Problems connecting my hdd and optical drive

[Andy1212]

Hi

I have almost finished my i5 build but can't seem to connect the hard drive and optical drive. They are both sata and currently have them connected to a 4 pin molex connector. I have no idea where to connect this on my p55 ud5 motherboard. I tried looking for a sata connector on my psu (corsair hx850) but had no luck. Can anyone offer some advice please?

Thanks



[setter]

The psu will have a number of sata power connectors on it, theese are long flat connecors with an L shape connecting point, this will match a connector on the back of the hdd/dvd drive. Also on the back of each drive is a smaller L shaped connector, this is for the sata data cable, the other end of this will plug onto the sata ports on the motherboard.

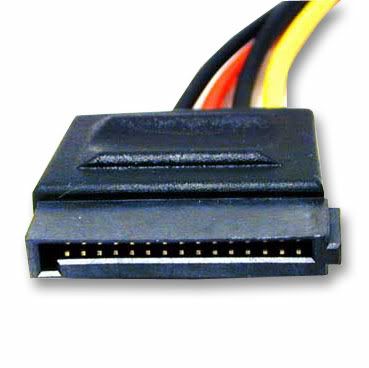

sata power connector

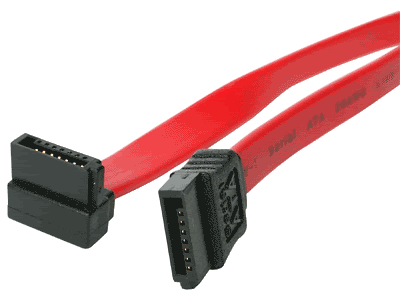

sata data cable

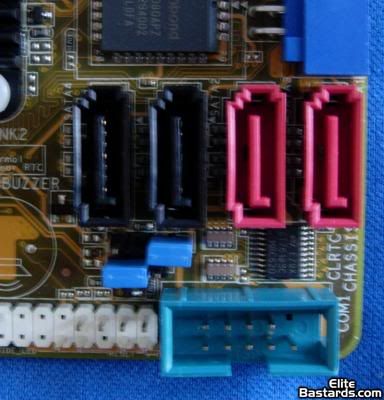

motherboard sata connector.



[Andy1212]

Thanks for the help. I looked in the goody bag Corsair sent and found those leads.



[Corasik]

Dont forget its either SATA power OR molex, never connect both types of power cable to a single HDD or optical drive.
