Resurrecting the ZS: With pictures

Quick update, not got much done due to the snow.

Have ordered the following, some has arrived and some hasn't yet, as I ordered it in drips and drabs.

- Inlet/Exhaust manifold gasket
- Cambelt tensioner
- Cambelt idler
- Cambelt
- Fuel injection pump tensioner
- Fuel injection pump belt
- Water pump
- 4x Ice White headlight bulbs
- Camshaft cover gasket
- Anaerobic sealant to rebuild camshaft carrier assembly
- Auxiliary drive belt
- Threadlock compound
- Injector to head sealing washers
- 3 Layer head gasket (slight decompression, but it's the one normally used)
- 282mm vented disc brake calipers, discs and pads

It's all coming together, won't be long!

Cheers mate, it's not been easy but I feel it's only fair to the car - I've hammered it for the last 30k odd and despite the bad rep they get, the only faults with the car have been my own doing.

Time to give something back! :)

Progress.

Got the camshaft carrier out of the ZS, and ready to fit to the new head.
The problem is, I found quite heavy evidence of an oil leak from the camshaft oil seal:

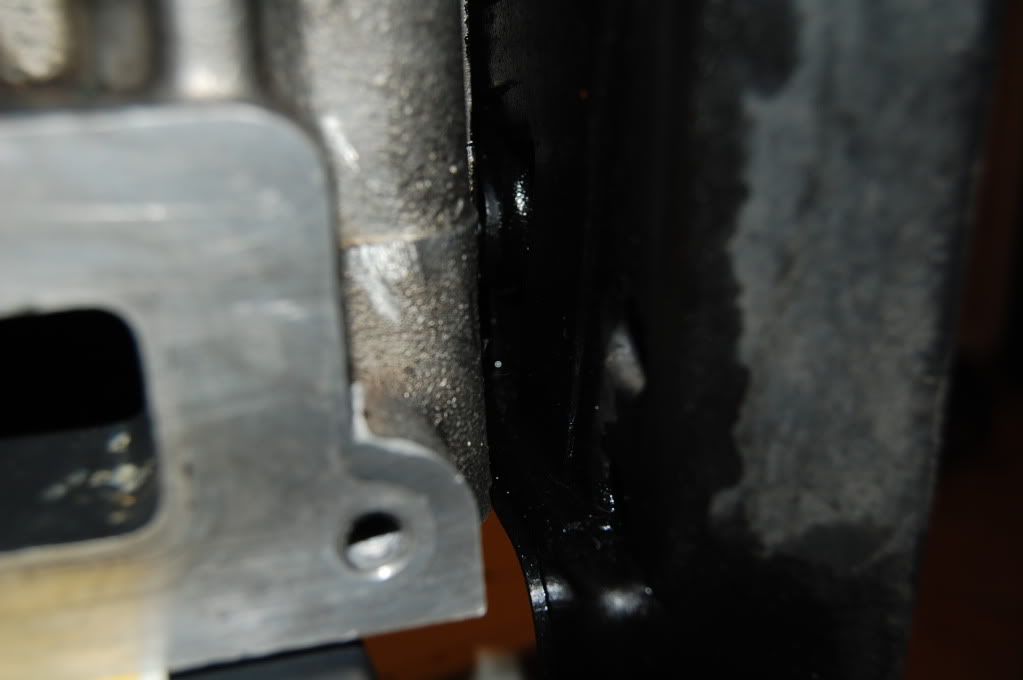

Cleaned up the head to camshaft carrier mating face:

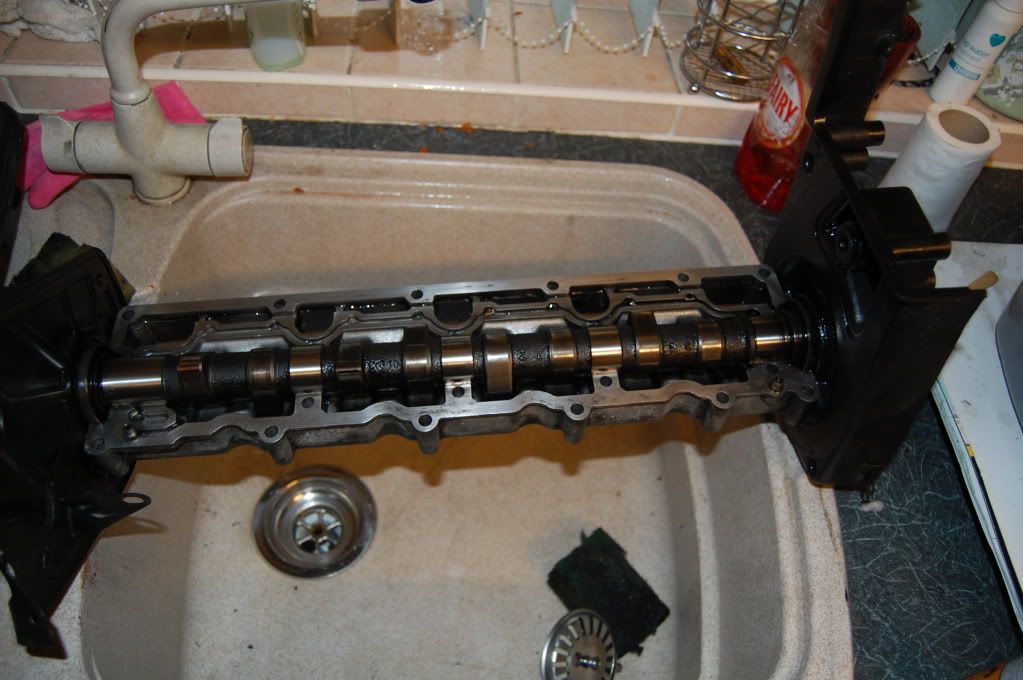

Also, had a go at cleaning the camshaft carrier assembly:

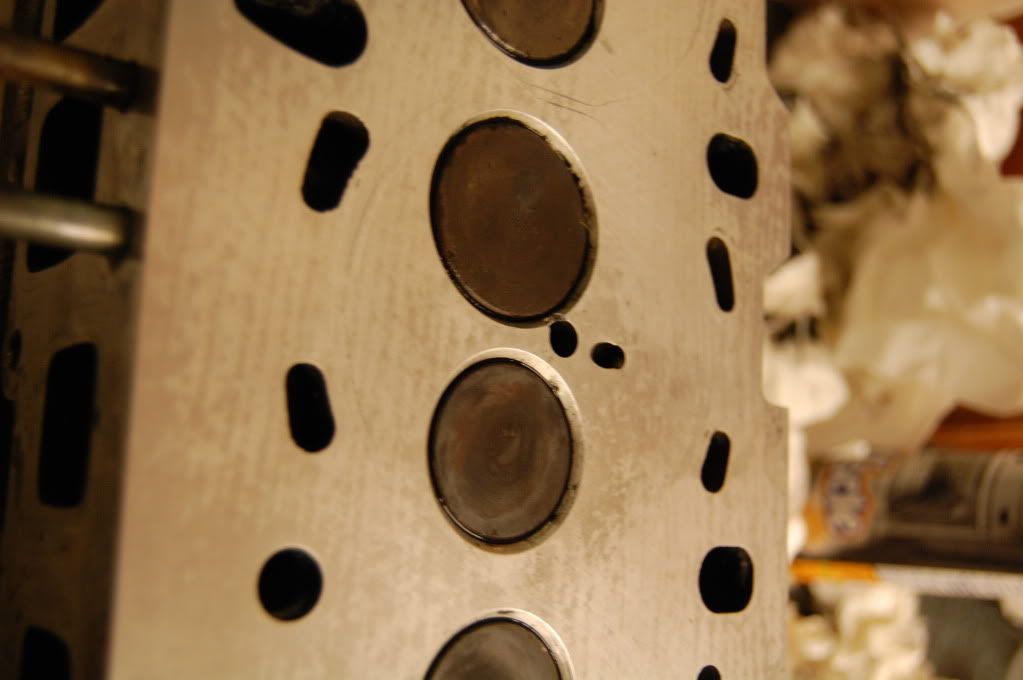

I also had another go at cleaning up the head to a good finish... :)










Getting there.... :cool:

Fair play to you:) Have some man-points!

I've got a new head for the 320i arriving today, am going to be doing a similar job to that. Once i've sorted out the fact that I can see the road through about three different holes in my car. :(

Looking good Matty! thought I recognised the username from the Xpower forums.
If you need any bits I'm off to a scrappy near me next week who has a couple of Zed's in, and I've got a few bits left off my old MkI as well.

Alex

Cheers guys, it's been a lot of tough work but it'll be worth it.

More of a learning curve than anything, and hopefully with all the work done I'll be up to my target of 160bhp and 280lb/ft too which is a bonus.

Will be re-fitting the bare head (no cam carrier on Tuesday, and working forward from there over the coming weeks.

I need to make a tough call - another swift change in circumstances means my needs are changing yet again. I hate change! I might find my self sat in a dirty diesel once again come May, but who knows.

Dogbreath said:
Trouble is they turn into a giant kite if there is any wind.
Click to expand...

We found this at Silverstone last year. Storm + gazebo = epic fail.

Anyway...

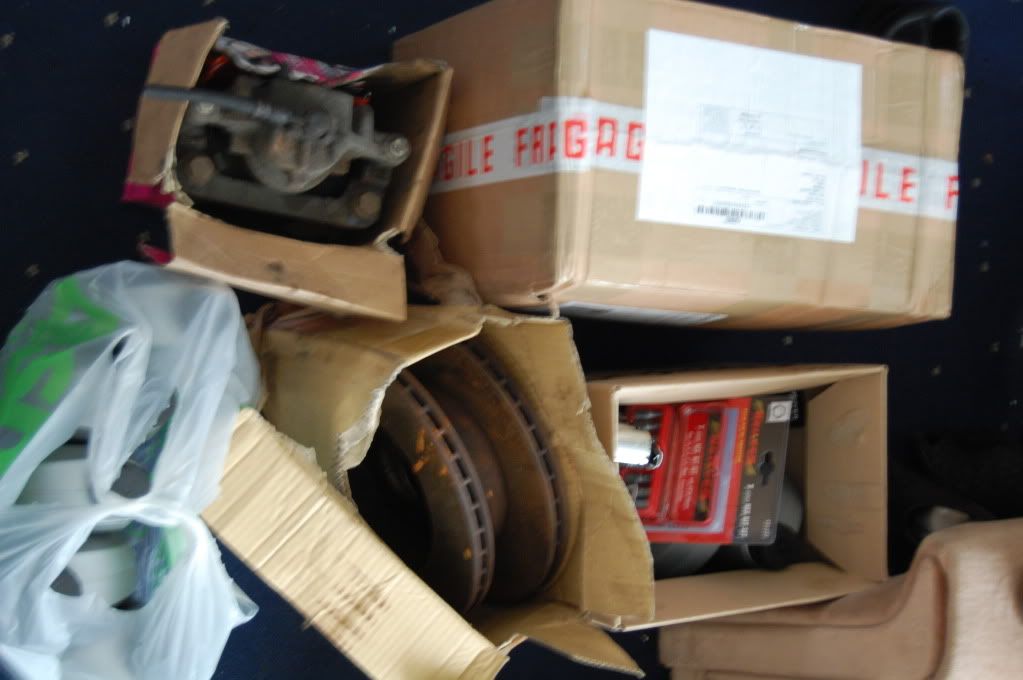

Boxes of parts ready to go on:

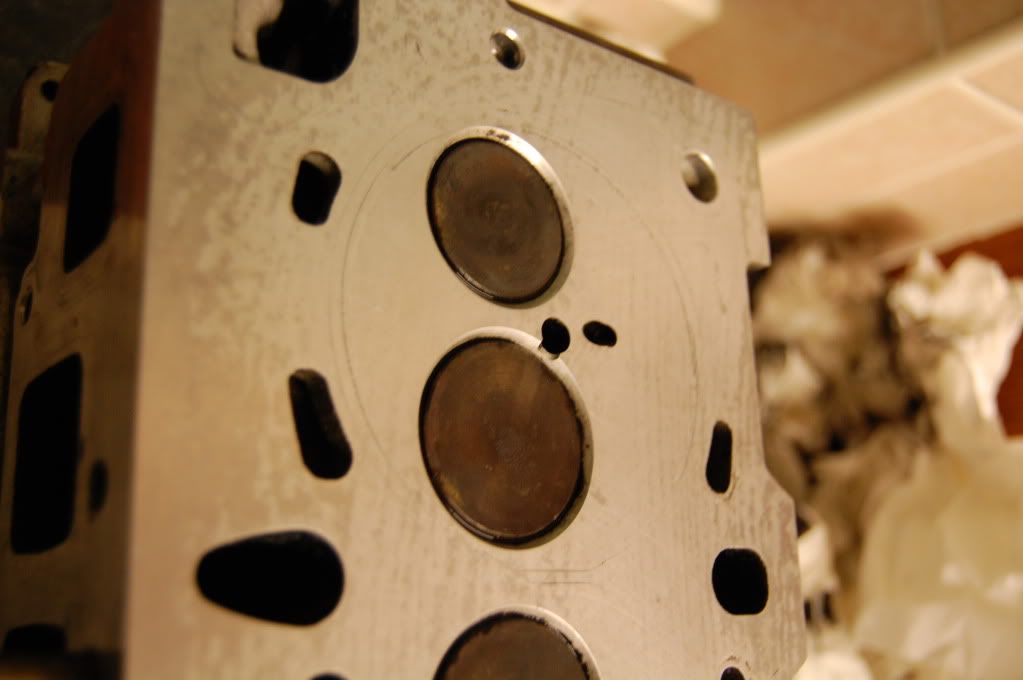

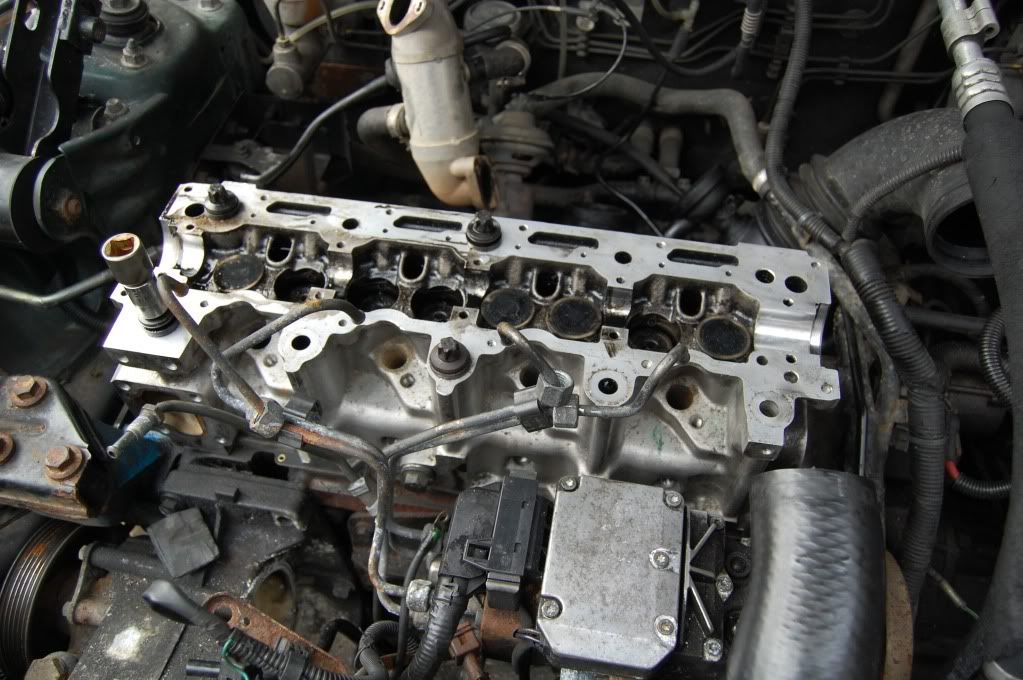

Cleaning the head; partly done:

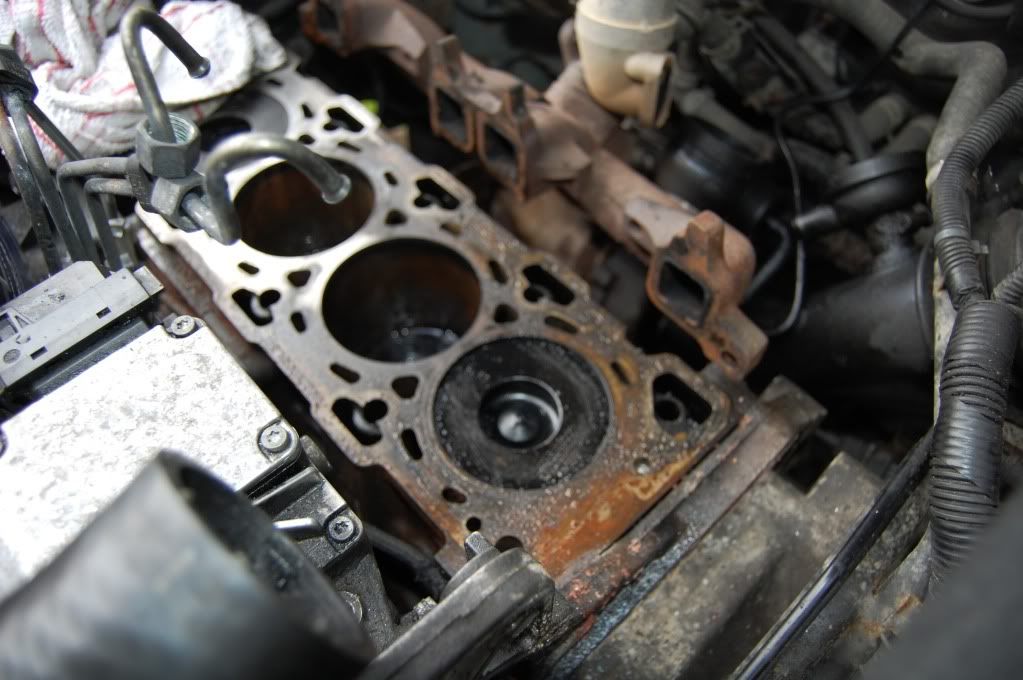

This is what I faced - quite bad rust due to no head for a while:

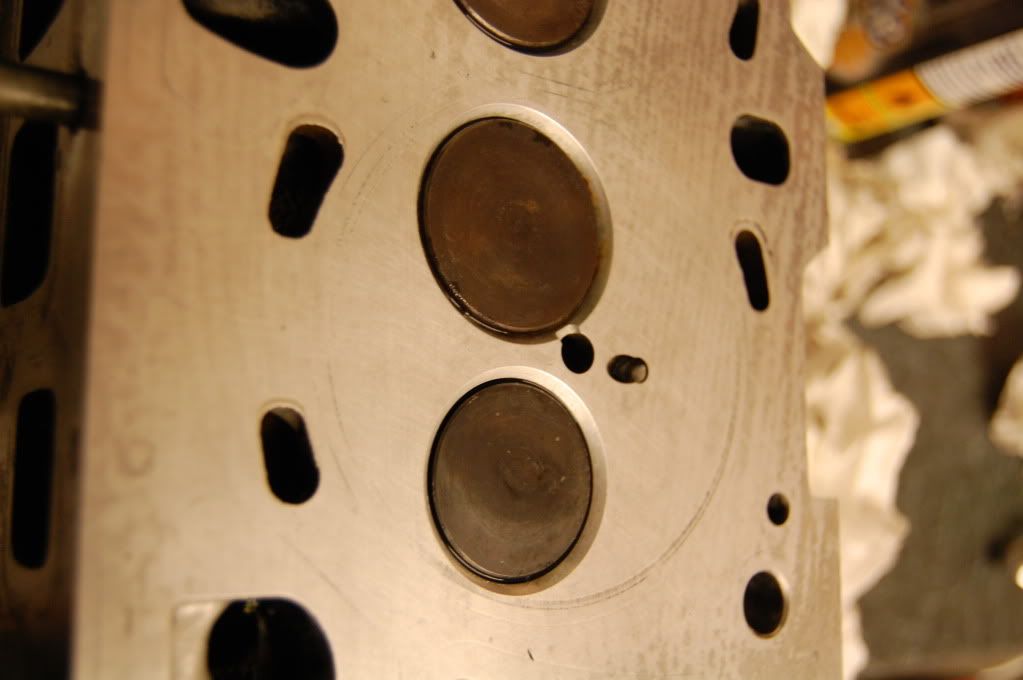

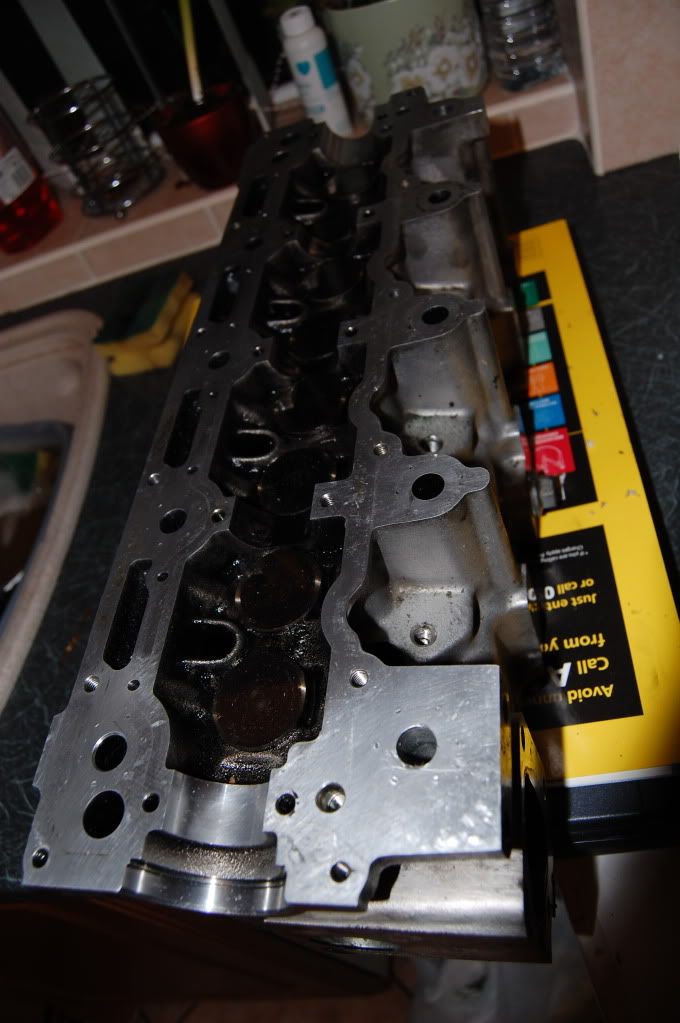

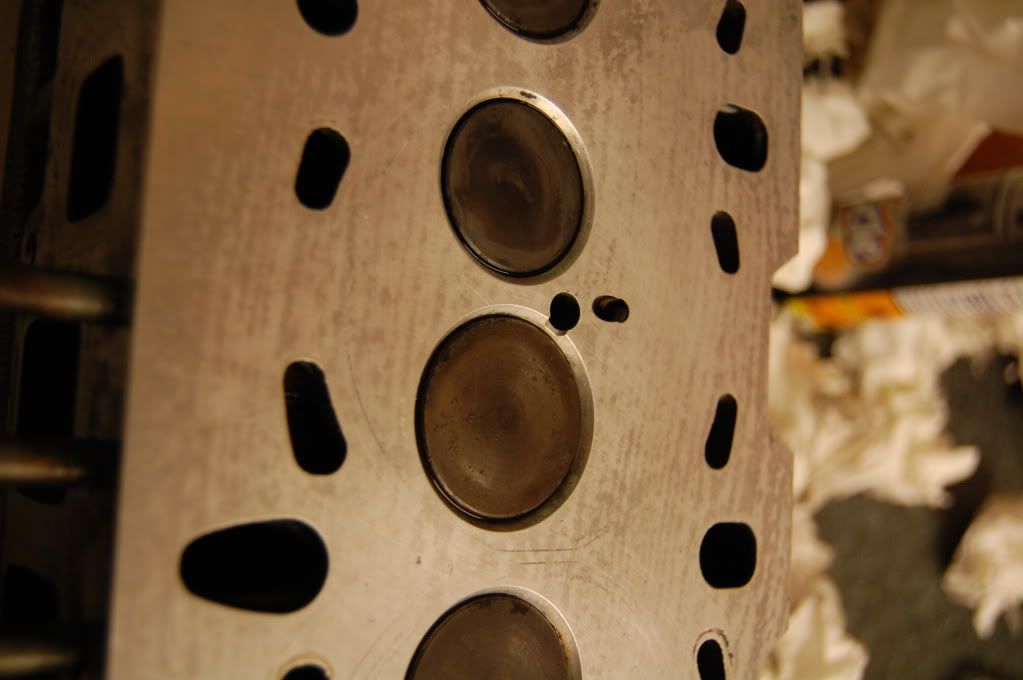

Cleaned up, finally!:

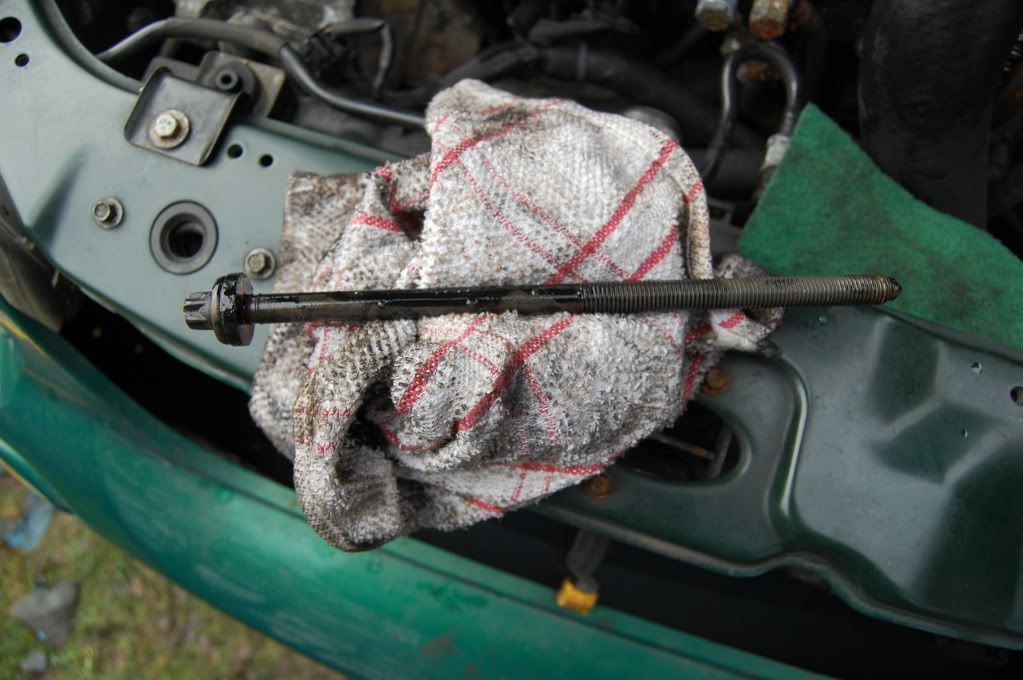

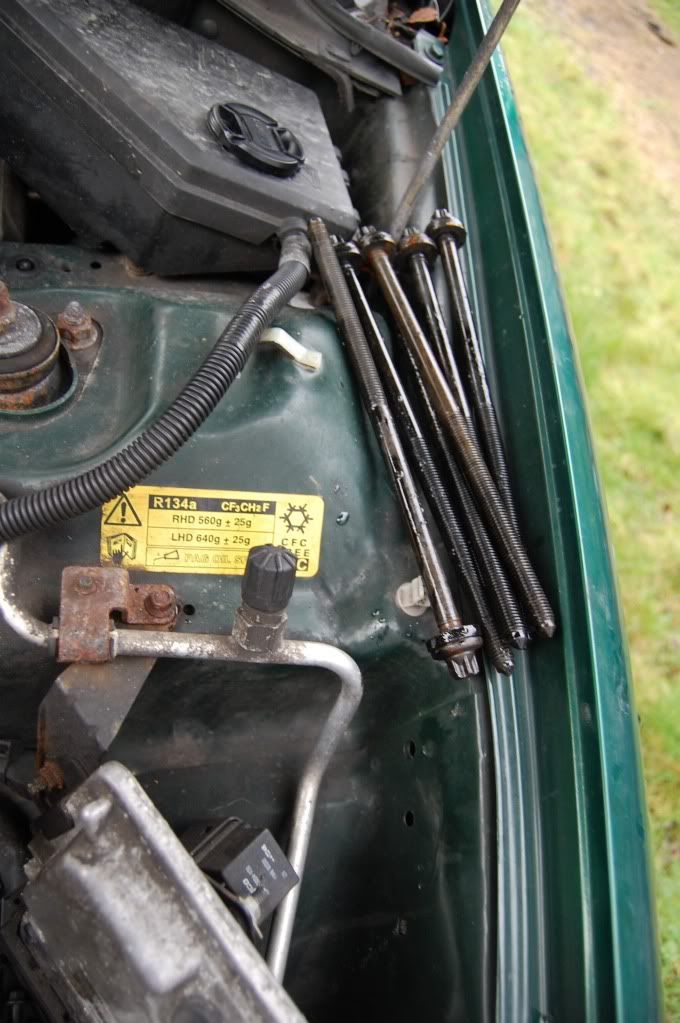

Head bolts - damn thick compared to something like a K series.


I gave each one a quick clean, the coated threads with oil to aid refitting.

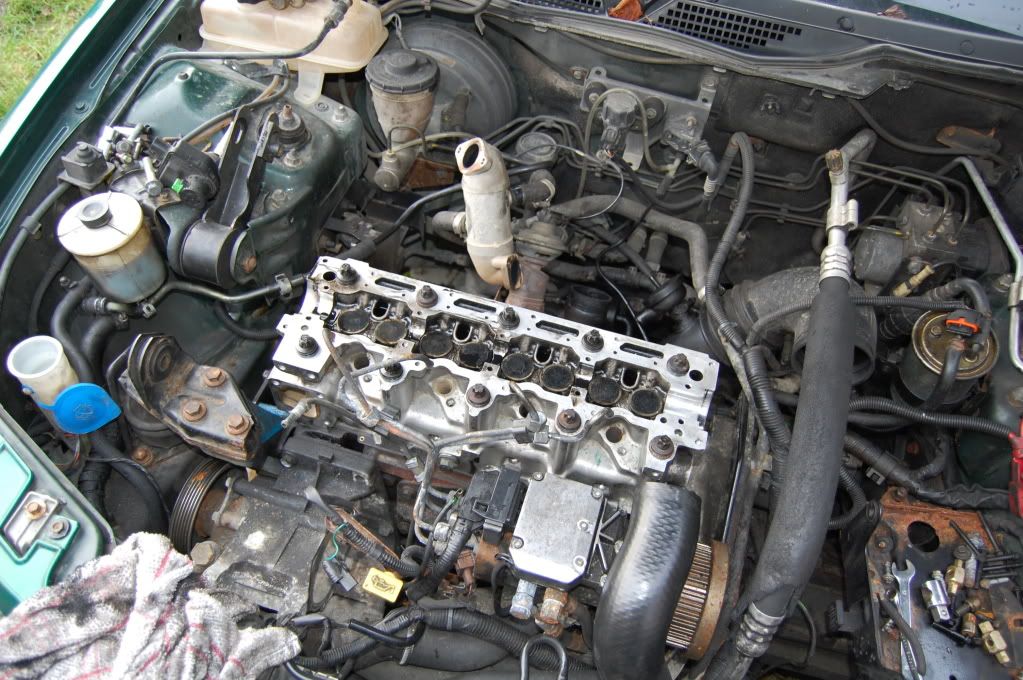

Fitting each bolt loosely:


All back on and tightened down. It's terrifying putting 65nm on each bolt, then 90 degrees and then an additional 90 degrees! :eek:

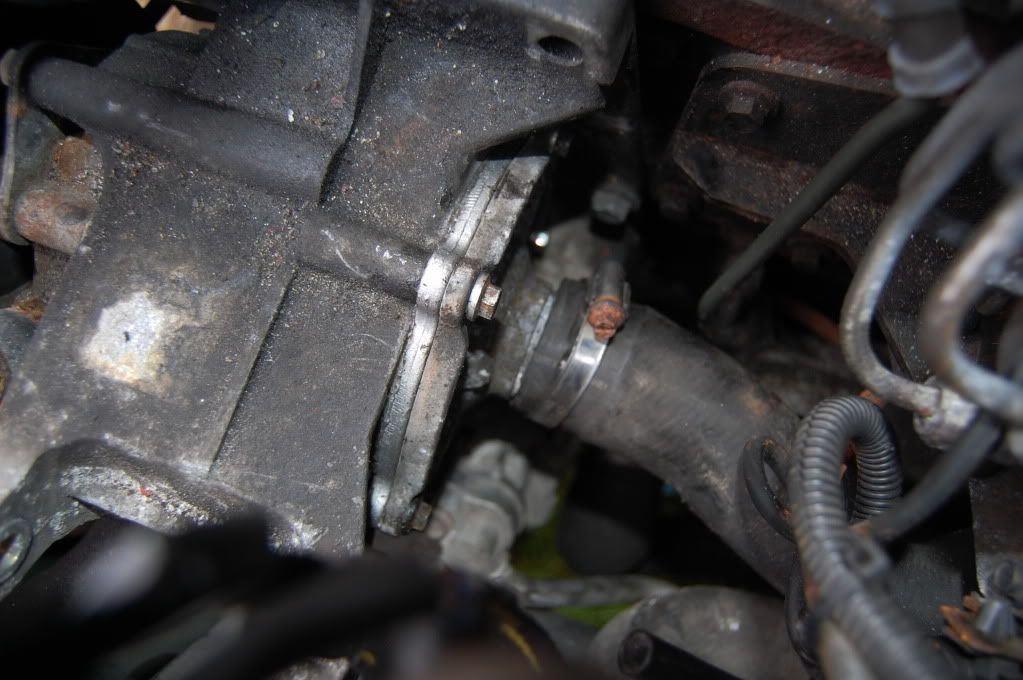

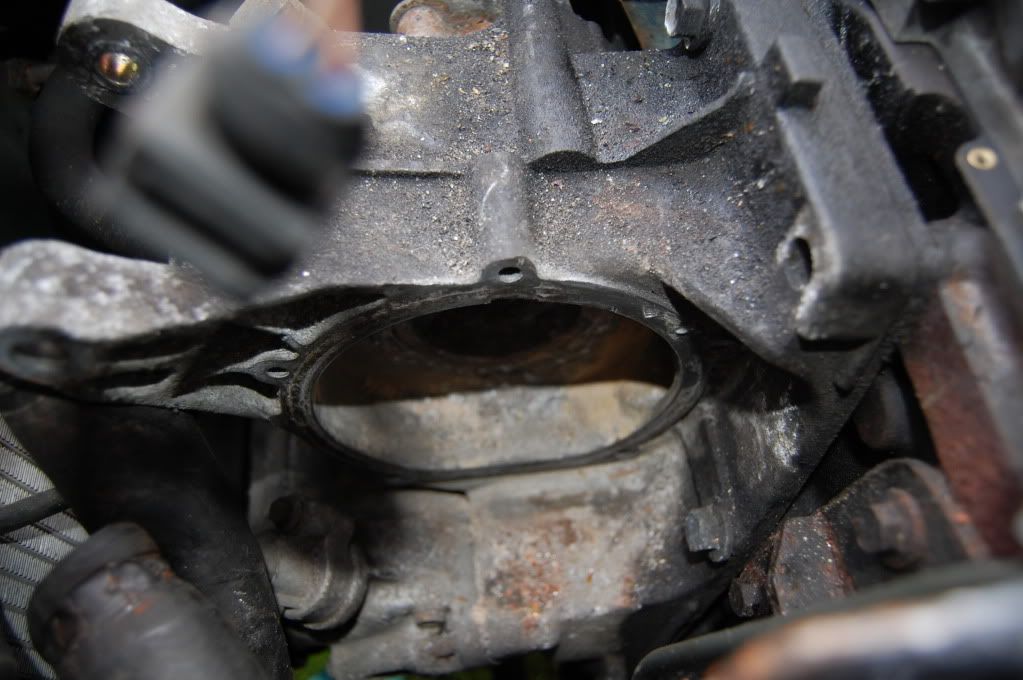

Waterpump housing. The old waterpump was totally knackered.

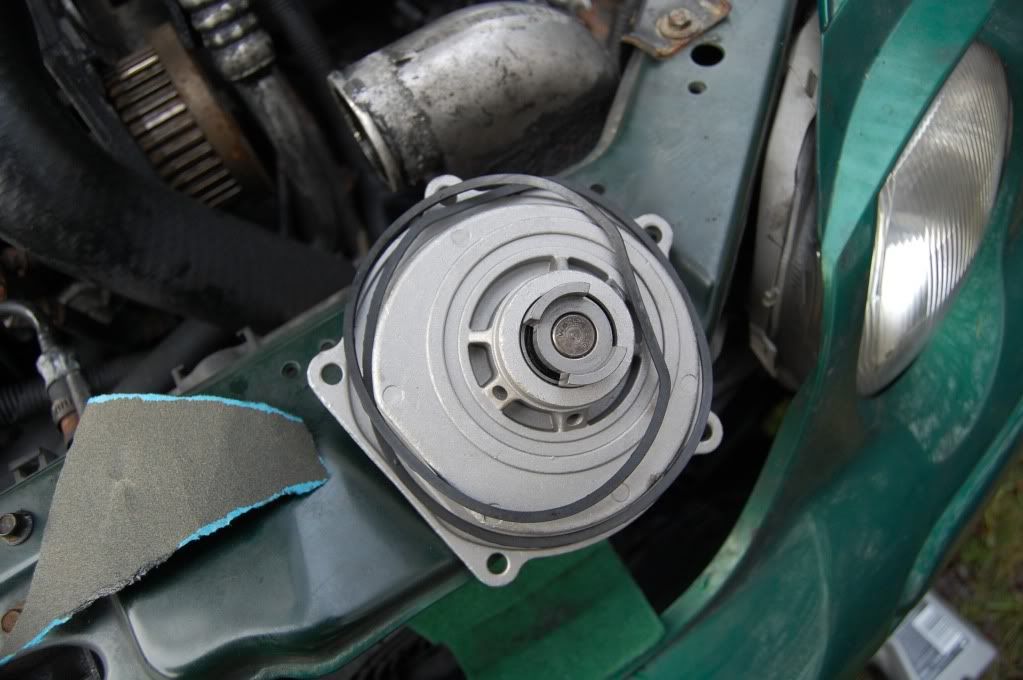

New item:


All back on. :cool:


More soon! :D
