Vince's Repair Thread - (Console Repairs & Mods)

Timber said:
Thank you that's really useful guidance.

So basically it's convenience vs cost; a heat gun is just going to be much easier than the chopping apart method, but also more expensive. I need to decide if it's worth it.

I have found a few sellers with '60/40/Tin/Lead', or similar. One has a skull branding with '63/37'. Is this OK, or do I need to keep looking?

EDIT: after botching up the 2 DS4's boards I then tried my attention on a 3 year old Dualsense with stick drift and again struggled with removing the solder. Tried to capture the stick I did remove but it looks like the middle of the 3-pins for the left sensor now has a burnt pad (for want of better term) and so is this board a lost concern?

Click to expand...

Im going to do a ps5 pad after this xbox im working on so ill do a quick vid :)

Wasnt happy with how beaten up the shell was on this gears special:









It's not perfect but this is pre paint at the back so ill touch it up to look a bit better, rebuilt it using plasto :cry:

Its another one of those cool specials that makes a custom noise when you turn it on and off or eject a disc :D

Last edited:
Timber said:
Thank you & much appreciated. I will definitely watch it.

I've managed to pick up a cheap, used Dualshock 4 so now have two V4's en-route (one new, one used), my original 2014 V1 will battery issues, a Dualsense with the above board, another 3 year old Dualsense which is already getting loose on the right stick (blame Division 2 for this) and an old drifting Xbox One controller. So lots to work with as I never threw away old Playstation's controllers. I also have the case/shell and internals for the two V4 Dualshocks I mucked up. So real potential if I can learn this.



Nice repair.

That was my second Xbox One X after my first one died 18-months in. Microsoft back then did make some wonderful special edition consoles. I also had the Halo Reach 360 with the two custom noises for start-up and shutdown. Also that Gears 5 Xbox One X had one of the nicest, if not the nicest special edition controllers too - which if I remember they sold separately too.
Click to expand...

Also just finished a project Scorpio this morning and am now working on a PS5 with no display!


Right PS5 sorted. Just needed a new port...





Time to record a ps5 pad.... im just going to do an unedited overhead.

Last edited:
Timber said:
Yea, understood.

There's also a simple combined soldering gun & sucker Yihua sell for £35 but I'm not sure that's going to work as well. I still haven't been able to find that knack for using a solder sucker and breaking those first two Dualshock 4 boards has made me evaluate options. I know I've got to spend something to upgrade my soldering iron and I suppose the budget heat guns and solder irons are cheap enough that you could run them in tandem with this unit as a desoldering gun only, but again might be getting even sillier for my usecase.

I found one channel on Youtube (Retro Computing Reboot) who did a review of the unit 6-months in, working on old 8-bit computers. Claimed to have used it for 3-4 hours a week, but cruicially mentions that it does the one job it's meant to do very well of removing the solder. Although technically his review is on the non-I version without the soldering gun.

I did notice there's a sale tomorrow, so will see if anything comes down in price and make a decision then. Again thank you for the guidance.

EDIT: Just found Yihua sell the 948 desoldering gun for £115 atm. This is the non-2-in-1 version. So I would just need a competent soldering iron to go with it.
Click to expand...

My iron is like £30 :)

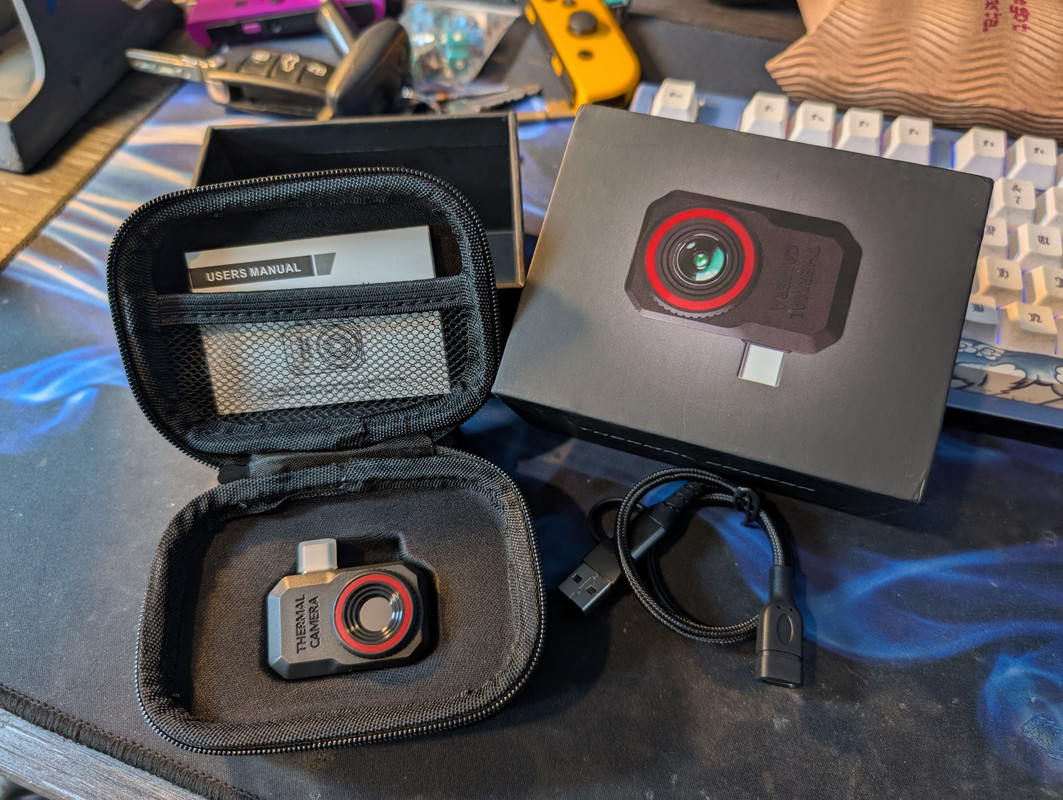

New toy!!!



My coffee was getting cold so used it to confirm... yep cold coffee!



and im also still alive so thats good!


Timber said:
Yep I saw it linked earlier in the thread.

So I'm leaning towards your soldering iron plus the Yihua 948 (non-all-in-one) for £115. Total just over £140. Not sure the soldering iron will get discounted for the spring sale but I can wait for a few hours.

I've ordered a small amount (50g) of 60/40 solder from eBay too. So I might be getting to the point of competent tools. Whether me as the operator can get to that level is another thing..
Click to expand...

You got this, the thread believes!! yes we do!!!

Go a link to the solder? Ive tried a lot of ebay solder and most arent 60/40 at all... or anything like it. I know good solder and im yet to find it on ebay. Which is why I now have this £50 roll of weller lol

Last edited:
Haha so today I issued a bounty to my discord.. make me an app that allows me to calibrate Xbox one / elite 1 and Xbox 360 pads. I set the initial bounty at a new 3ds and £100 cash. The bounty is now a 3ds, £100 cash and $100 cash with further community commitments coming in. Knew this discord would be useful for something :cry:

Let's see if they can make it happen.

Timber said:
I've probably gone wrong but I went with this because I recognised the brand as the Duratool PCB holder I recently purchased is actually quite well made and packaged. And wasn't as cheap as some of the others. I did find that Weller roll like yours at £27 but it's way too much for me.
Click to expand...

So not shocking but not "good"... Should do you ok.



I actually compared cross sections under my scope of my old 30 year old roll that I was dreading finishing and a load of others... Nothing compares or comes close to that 30 year old reel... You seemingly can't buy stuff that good anymore

I have kept about a meter of the old stuff, that stuff is bloody awesome. Not even the Weller stuff compares.

Last edited:
Timber said:
Good to hear I didn't go totally wrong. Beyond using solder before de-soldering I've still actually got to get to the bit where I can actually solder in new components.

I did find some examples where the labeling looked old; like this and this too. So it sounds like age is potentially a good thing if buying 60/40 solder, but I didn't know if incorrect storage might be an issue.
Click to expand...

Unlikely mine was stored wherever and was given to me as almost a complete roll some 25 years ago... Stuff was next level.

Look at the price on that oouf...

When it comes to solder old stuff is good stuff.

Last edited:
Timber said:
Good to know. Yep very expensive, but large amounts.
Click to expand...

Indeed but thick isn't always good either. Mind you I used thick stuff for ages. It's just a quality thing. It's actually hard to find really good solder. I should do a vid on just how good that old stuff I have is vs basically everything else.. Weller included.

Armadillo said:
+1 for old stuff still seems to work fine. My dad has an old reel of 60/40, no idea who made it, labels are long gone, probably at least 20 years old, works fine.

I use "newer" stuff, either a reel of 60/40 kester (can't remember exactly what flux is in that, would have to look) that is older (at least 10 years), still fine or a 63/37 kester 44 core, that's a couple of years old and still good.

Way too much solder for me, it will probably out last me, but I was fed up scratching around with whatever random solder you could find sellers selling in smaller amounts.
Click to expand...

If you look at my very first post you can see my big reel of really old stuff. Back then it weighed about a 1.5kg now its an empty reel with a slither on it :cry:

Also looking back things have come along a lot since those posts... Still enjoying it mostly though but i still have too much "stuff" laying around which I wish was a bit clearer.

Last edited:
