water cooling help please

24 pin layout's have to be the same surley


Top of the graphics card fitting , it's sorted now m8 1.5 of fluid is in :) none went on the graphics card :) just been gentley rocking the case. But it's looking good what pump speed you use? It's quite noisy :(

It's pretty tight bit scared to undo the ring I case fluid comes rushing out. Everything else is fine :)
Done it up a little more just going to leave the pump running and keep checking. Then I can wirer everything else up and the fan controller once I'm 100% sure. Email? I can send pictures to you that way off my phone

To upload photos from your iPad download the photo bucket app, go into app, select upload media from the bottom, then go to choose existing (presuming you've already taken the picture), tap on the picture and then at the top tap upload now. Then go into "my albums" from the bottom (you may need to refresh) and then tap on the pic and at the bottom right tap the "i" which will give you the image links. Tap the image code as it will be copied :)

Takes around 1 min^^

It'll e easier for us to help you with pics :)

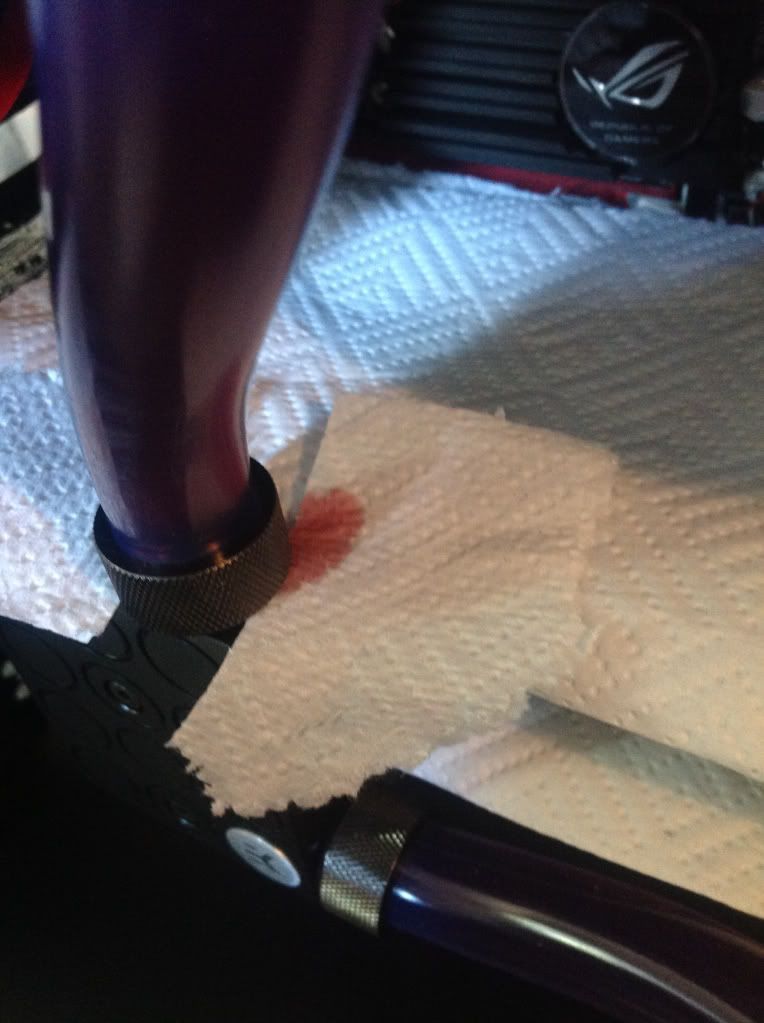

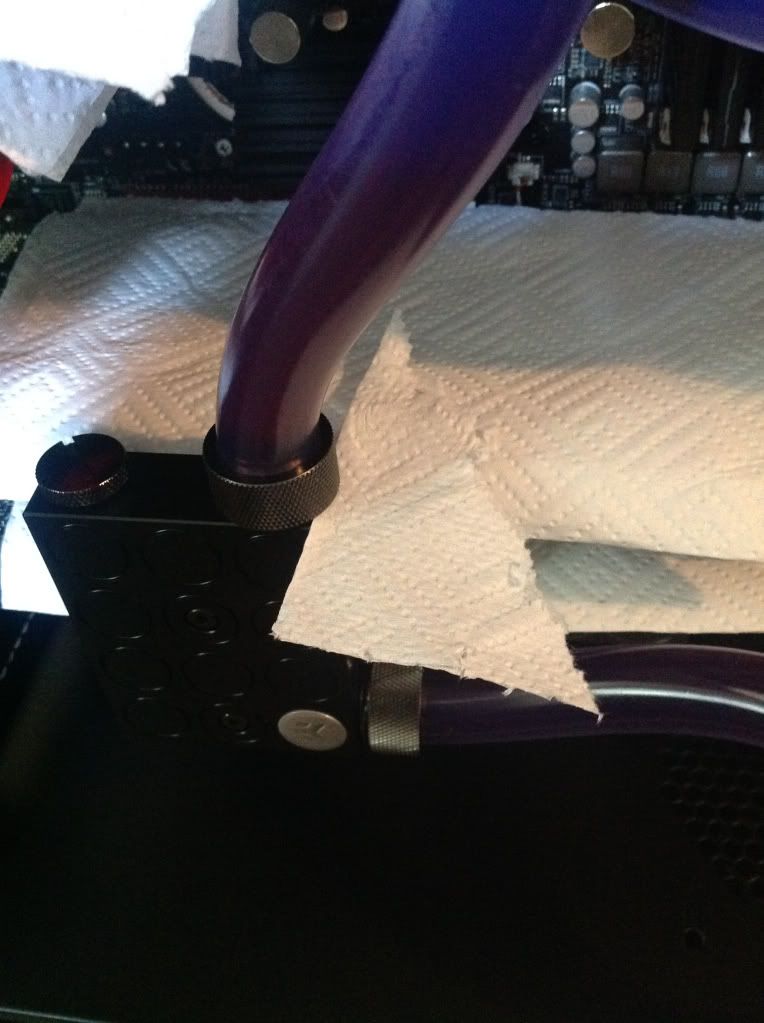

Looks like a damaged O ring or you have threaded the fitting off centre somehow. I would drain to loop and have a look at the ring and see if you have the compression in straight. It would take a bit of effort to cross thread that tough stuff but something isnt right. Just check its not coming from where the tube seals in the barb and is running down to the joint

What's the best way to drain? And how? The compression fitting your saw in the picture are the ones I've used all over the case. I've been running it now for 20 minutes with tissue under the ring no fluid as of yet, I've tighten the ring so far so good. Or best to drain still?

fantasticCG said:
What's the best way to drain? And how? The compression fitting your saw in the picture are the ones I've used all over the case. I've been running it now for 20 minutes with tissue under the ring no fluid as of yet, I've tighten the ring so far so good. Or best to drain still?
Click to expand...

If its stopped sounds like It might not have been tight enough. To be honest I would possibly drain it to make sure, but your call mate. To drain it snip your lowest tube over a bucket and drain it. When it stops free running out hold 1 end over the bucket and blow down the other half. You can then just replace the tube.
