coldmetal3000 · 26 Mar 2018 at 13:45

hey 8pack, i recently got a bios update for the intel microcode bug and the update wiped the bios profiles, in hindsight i should have backed them up to a flash drive before hand but oops, is there any chance you would be able to help me out

8Pack extreme I7 6900k oc to 4.4 gaming bundle

gigabyte x99 soc champion
kingston predator 16gb 4x4 drr4 pc4-24000c15 3000mhz
Intel I7 6900k
360mm aio

8 Pack · 1 May 2018 at 22:09

For this I xmp, vcore 1.35-1.375v 44 ratio, vcache 1.25v, dram voltage 1.375v.

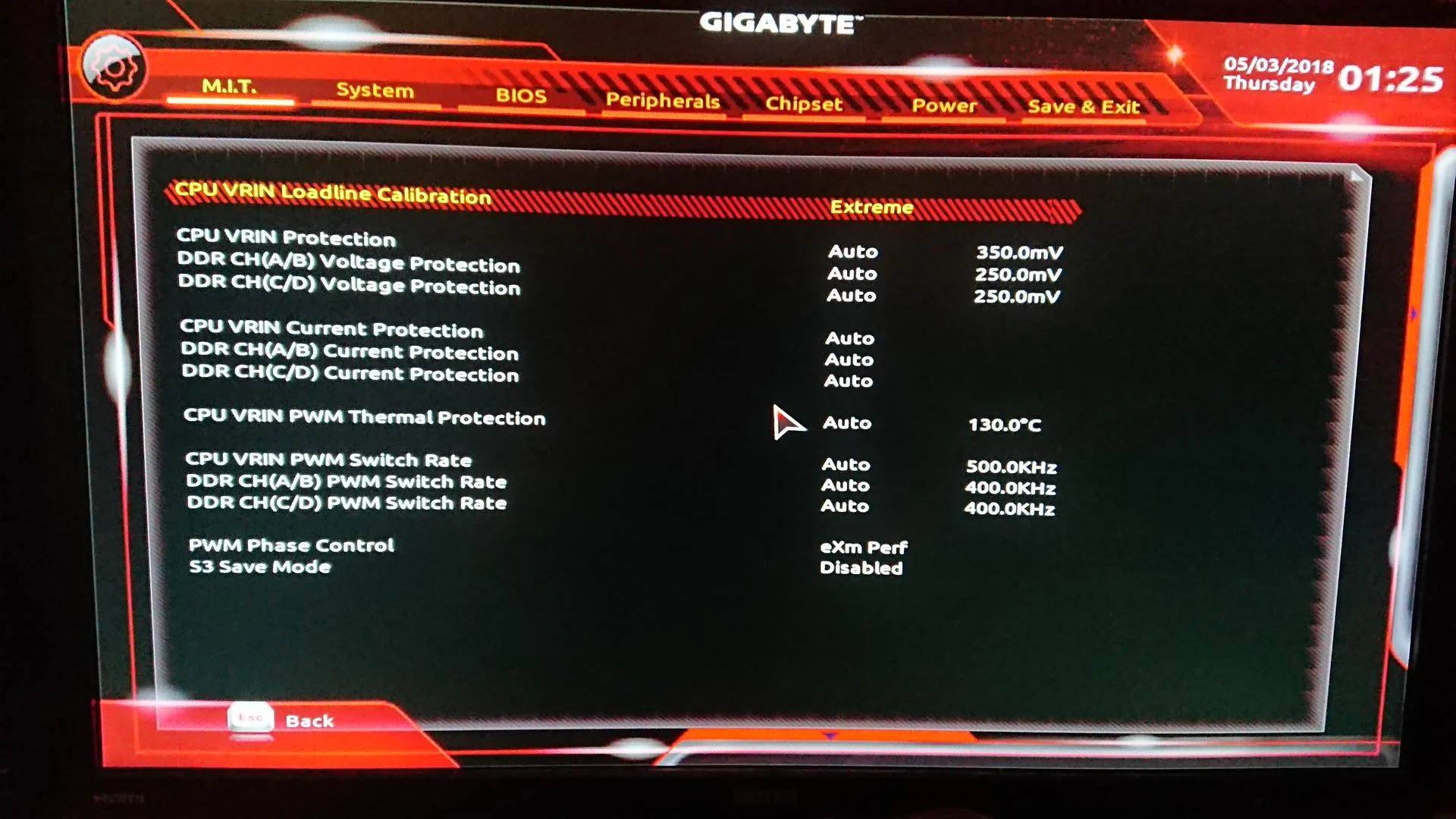

In the power settings turbo llc, and extreme performance on the bottom setting.

Try this and report back. New microcode can effect cpu OC and performance..

coldmetal3000 · 3 May 2018 at 02:05

hey 8pack , thanks for getting in touch,

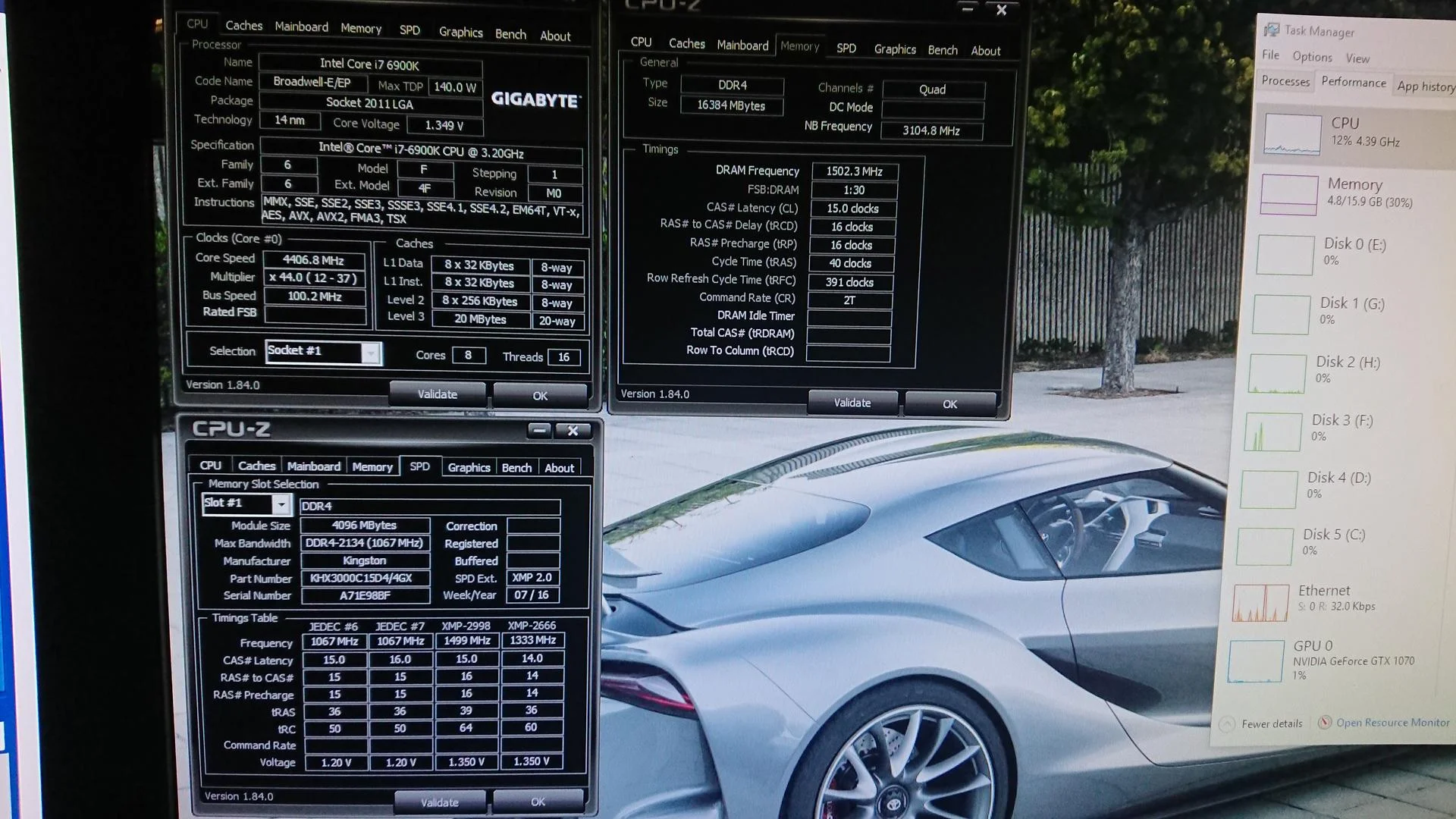

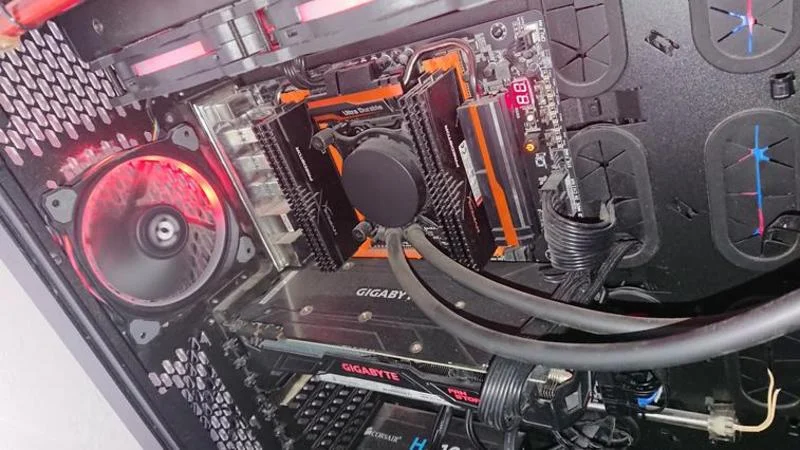

i managed to find this in my camera roll from when i finished the build

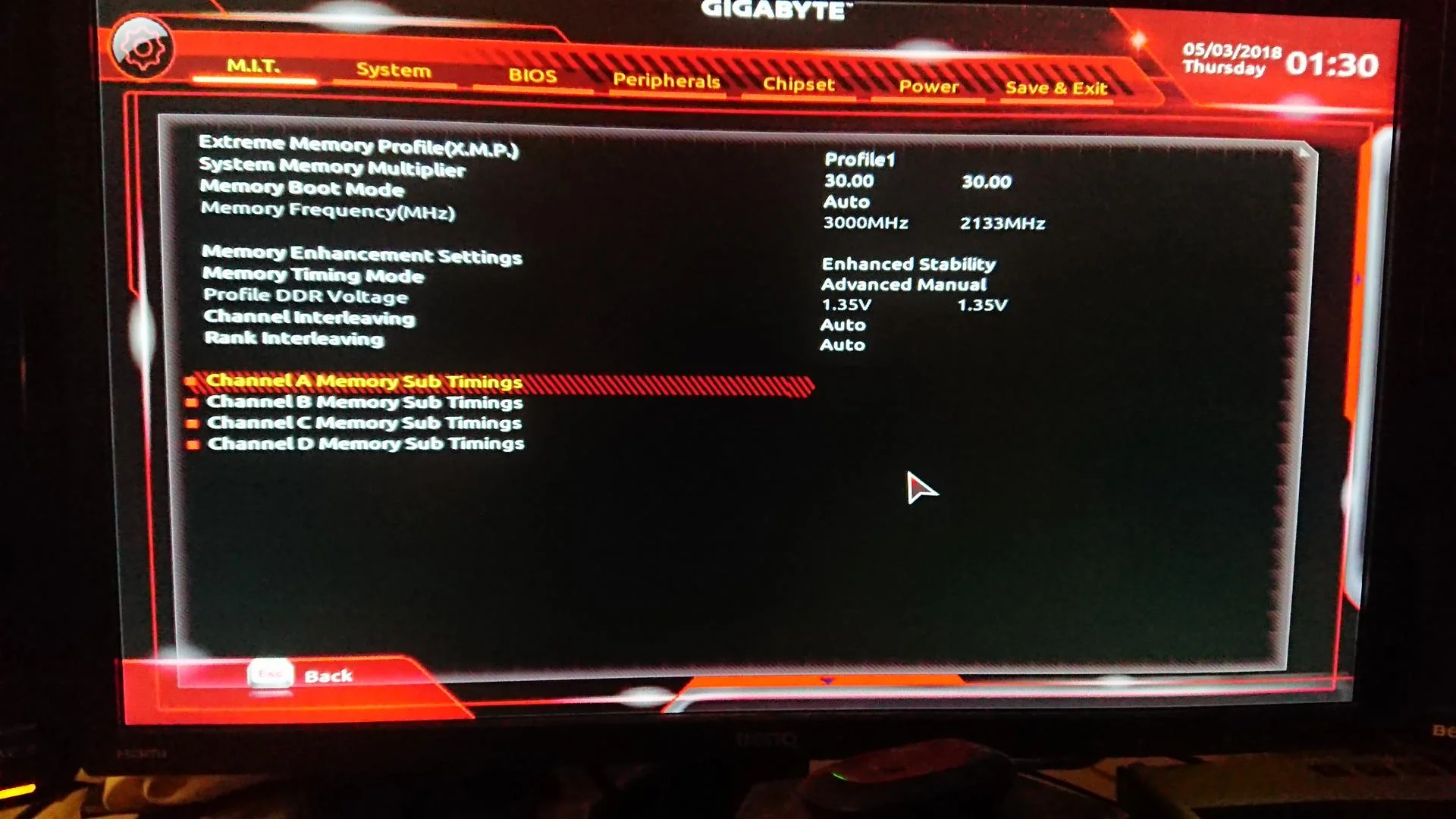

i also entered these as accurately as possible, such as the advanced memory timimgs

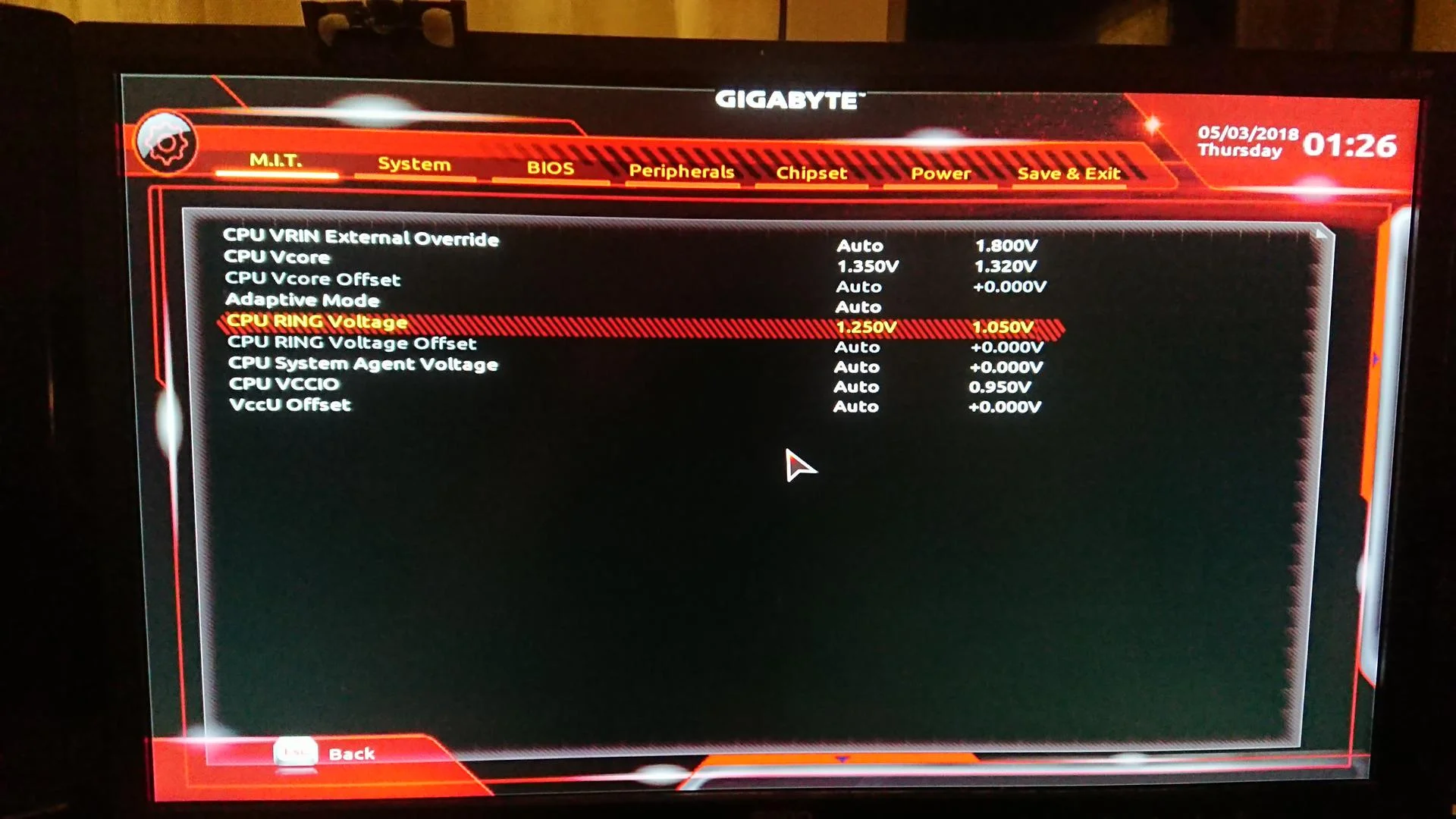

i have also entered the rest of what you suggested however some of the items all labeled differint, such as vcache, think its also know as cpu ring voltage

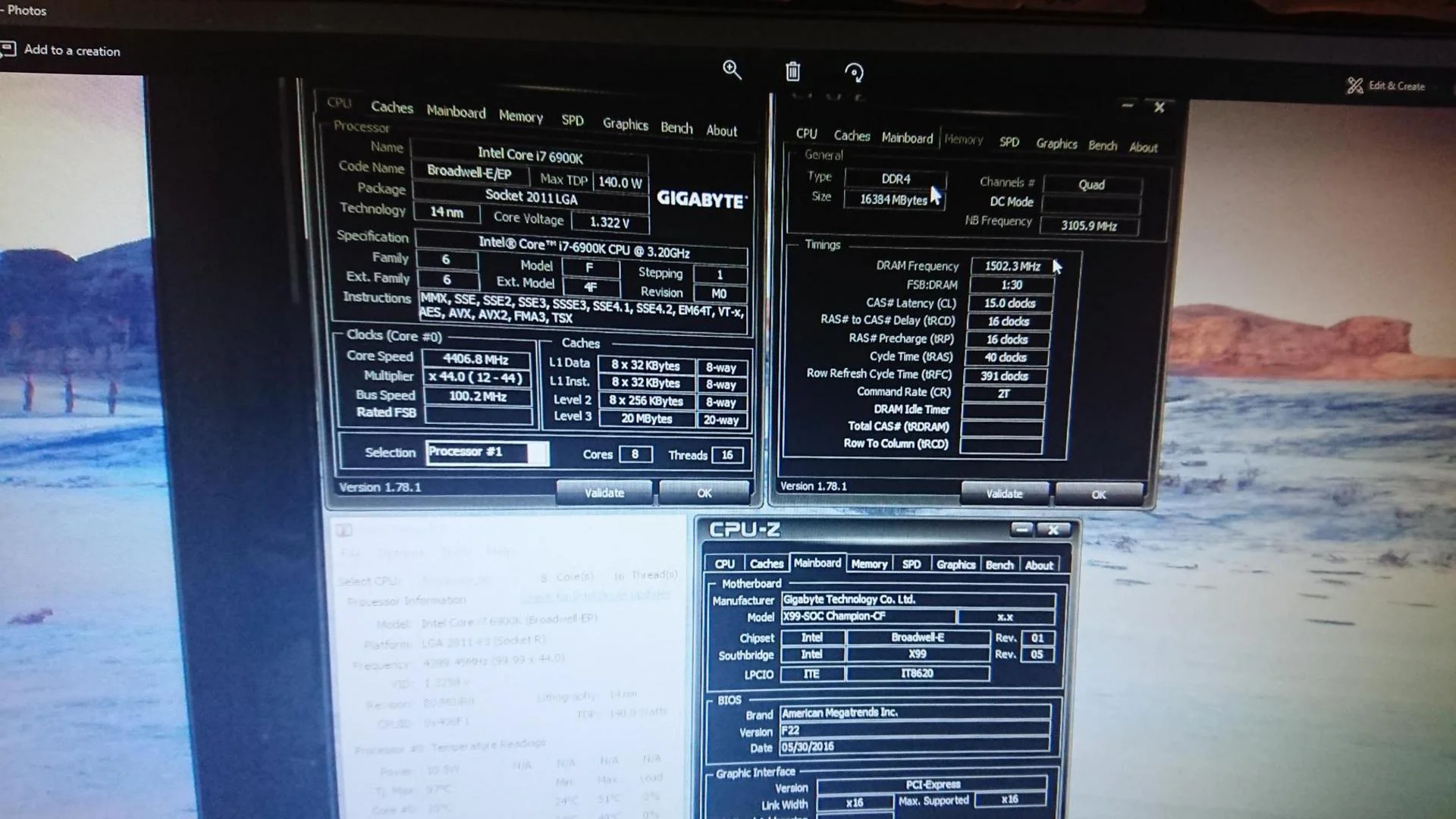

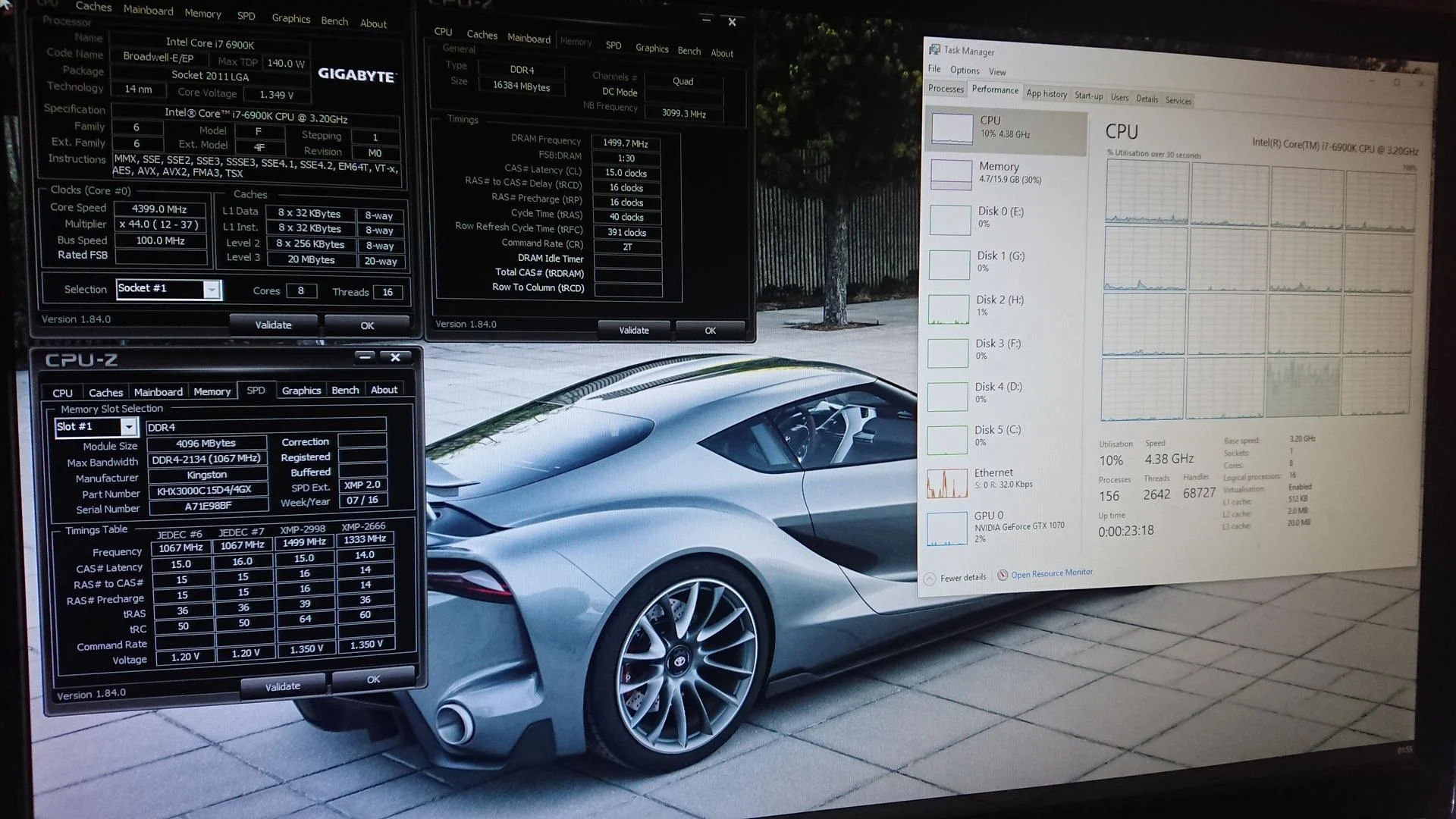

all thought the PC is up and running the cpu freq is throttling between 4.4 and 3.7, i have however noticed a difference from looking at cpuz cpu page, from
the original cpuz screenshot shows the multiplier x44 (12-44)

and currently x44 [12-37]

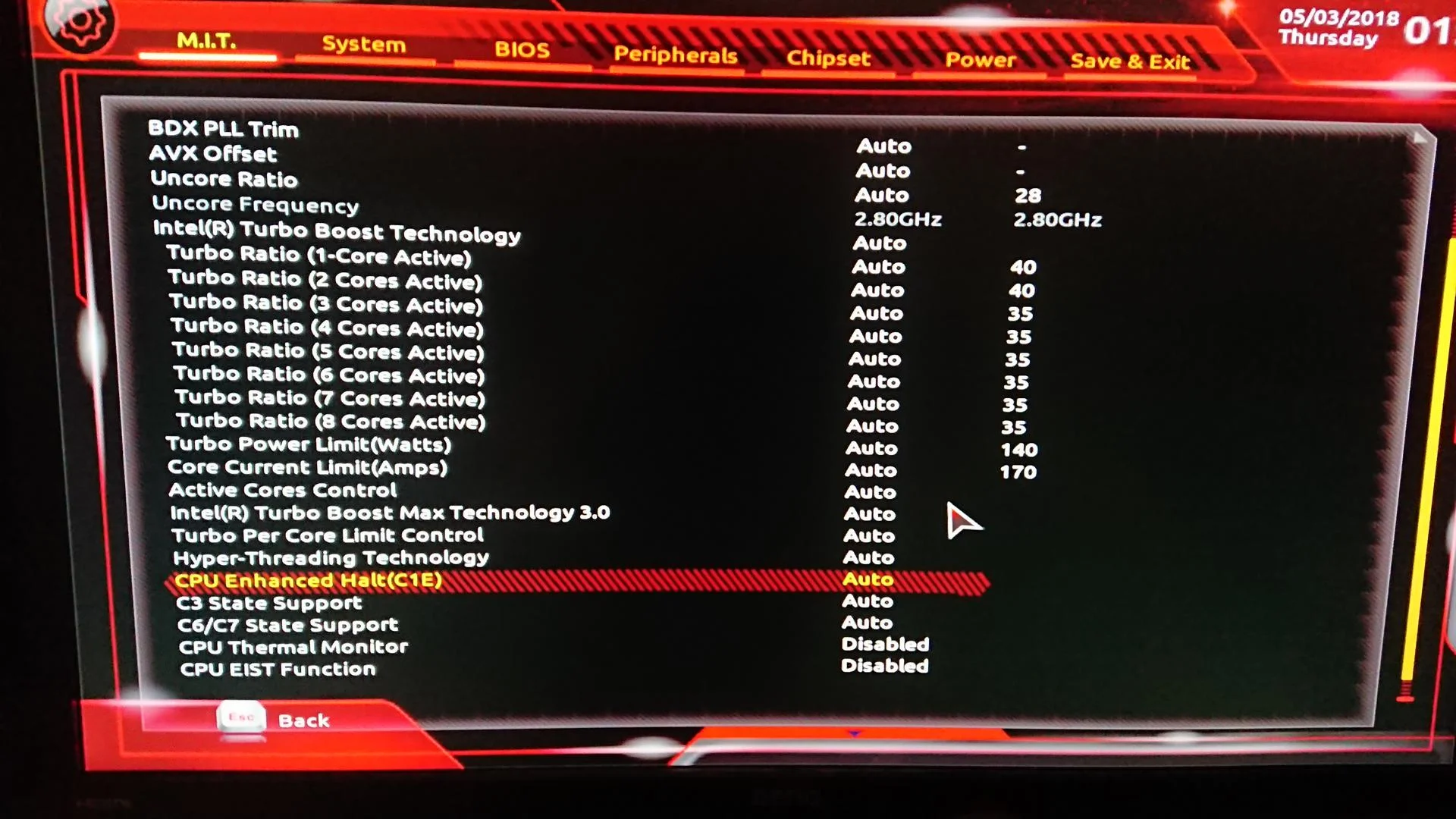

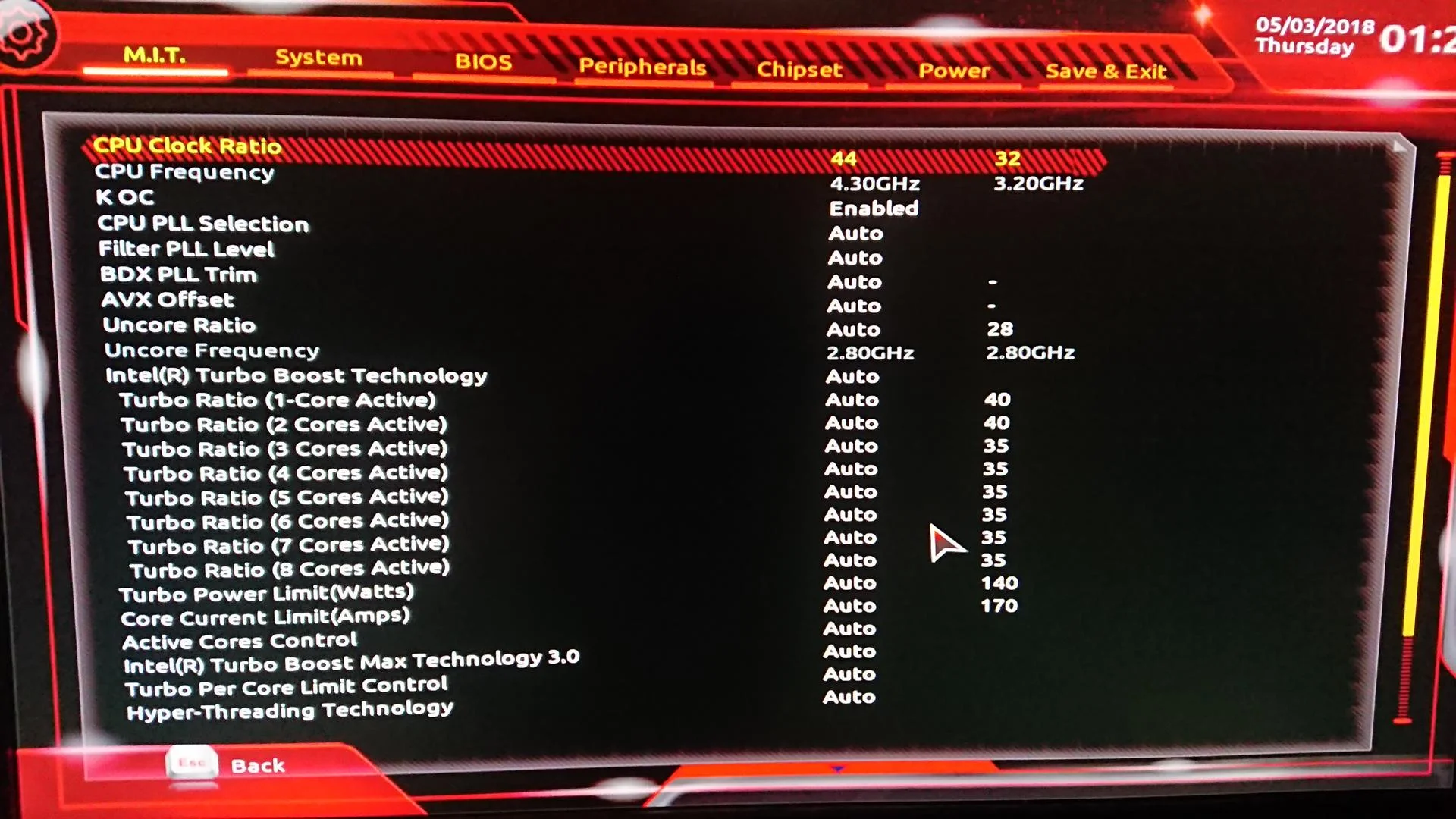

so im guessing unicore settings i'll need to change in the advanced cpu tab
guessing here

thanks in advance for you assistance

coldmetal3000 · 3 May 2018 at 02:32

update

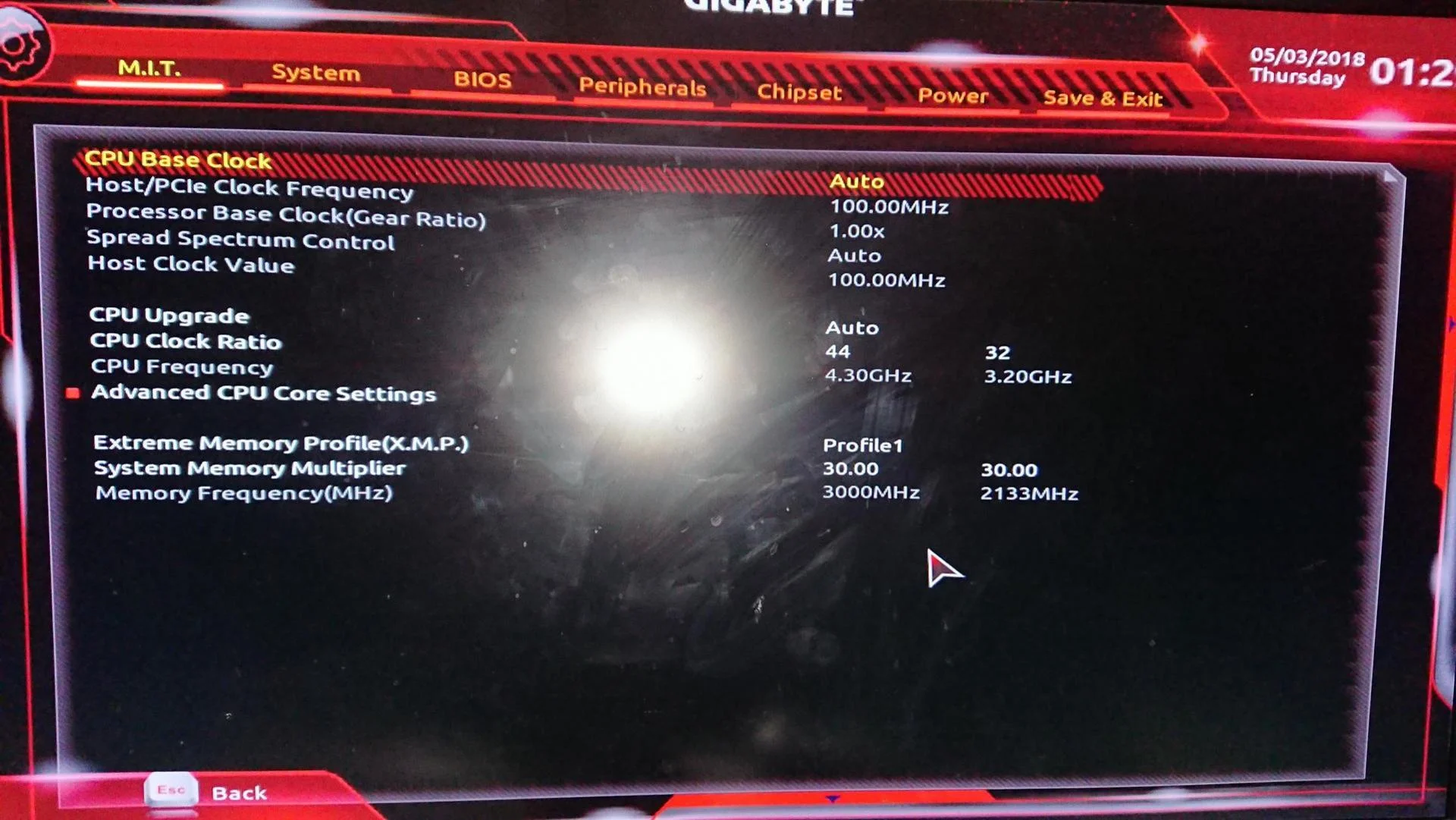

i changed the base clock to 100.2 resulted in matching cpu and memory clocks

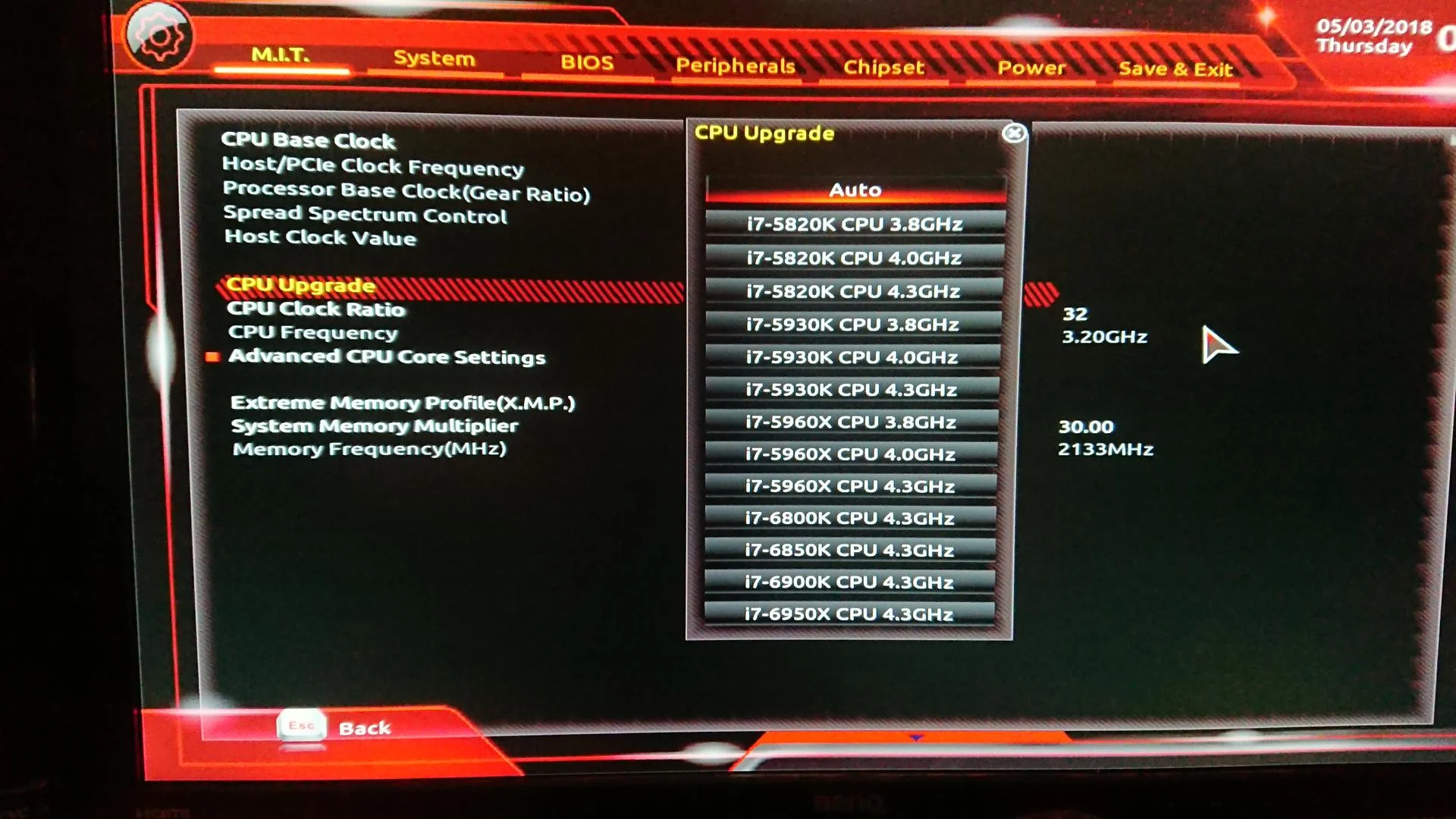

also found this option , just don't know if its relevant

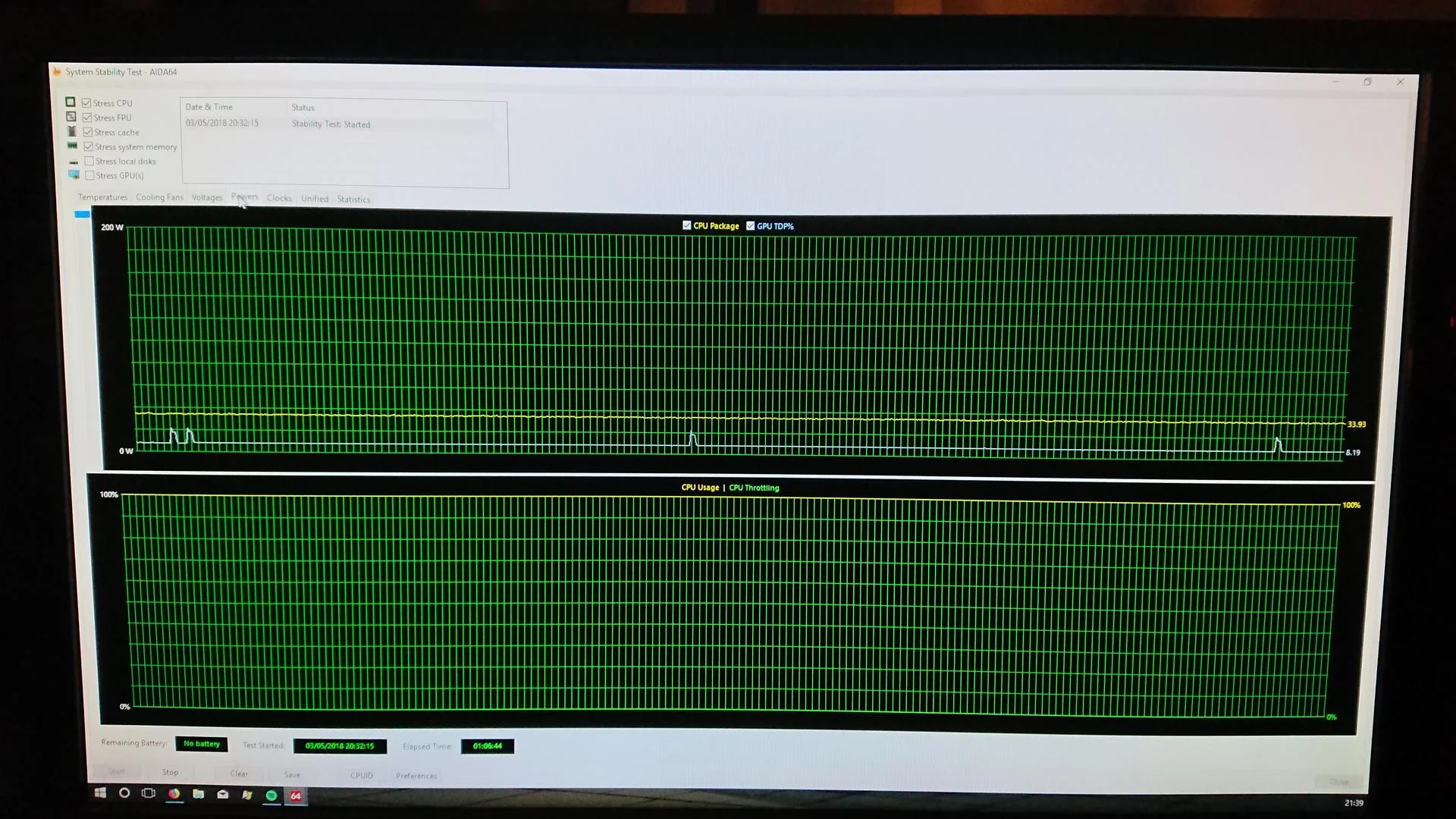

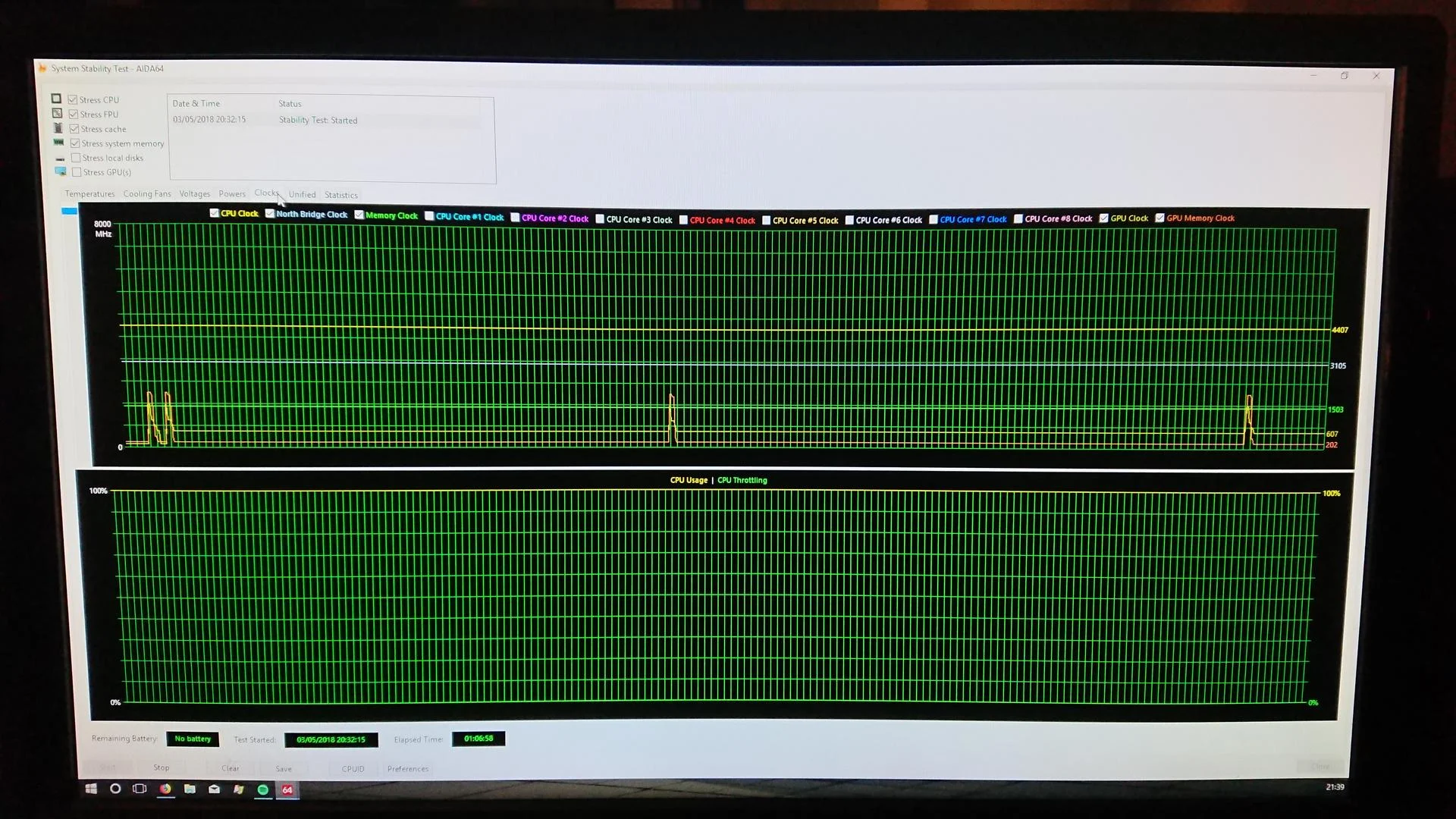

also wanted to ask what stability/bench marking software did you use for testing , i have aida64

coldmetal3000 · 3 May 2018 at 02:42

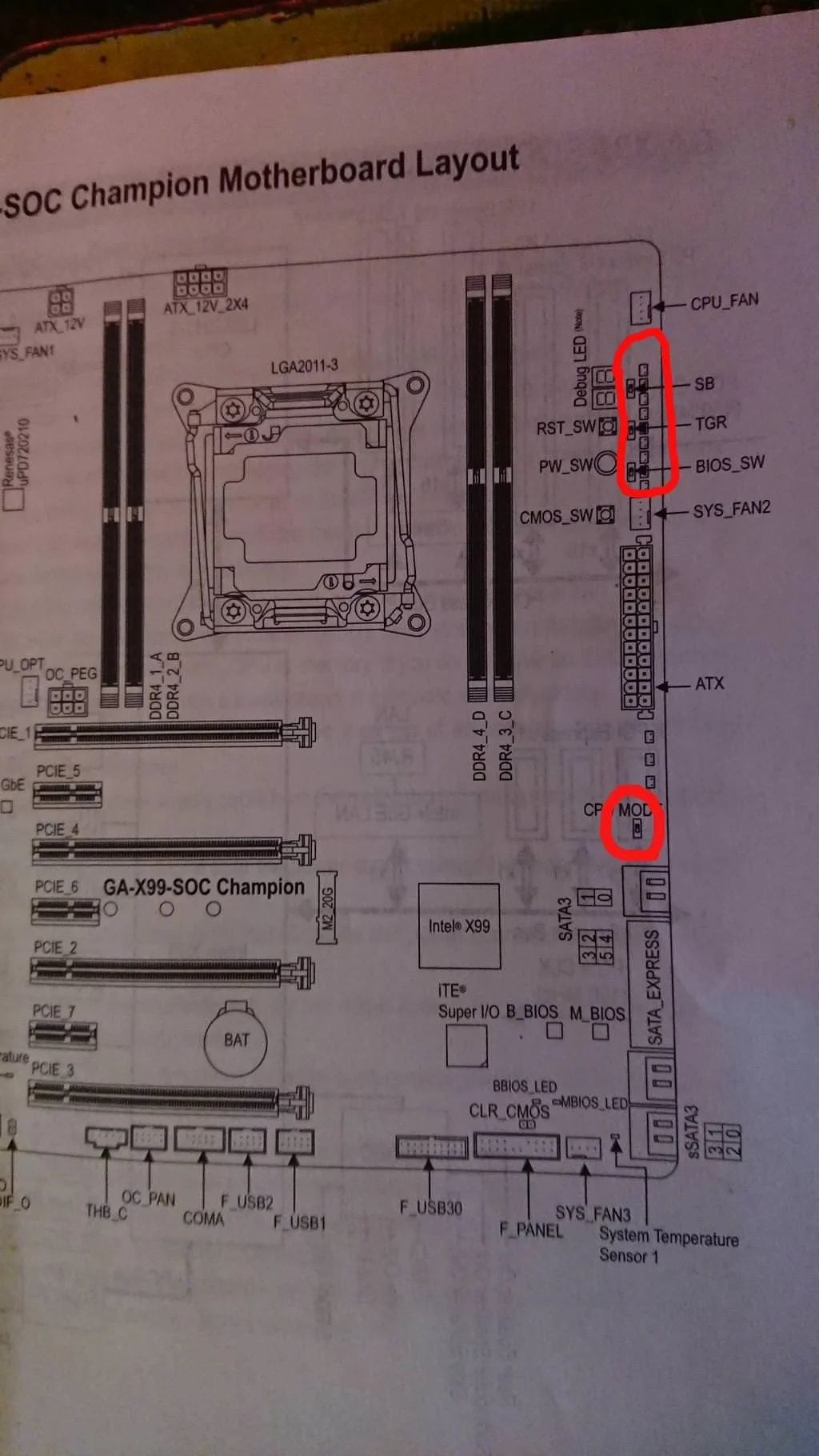

do i need to also change any onboard switches over too such as cpu mode, single or dual bios mode?, all of which are currently set to position 1

coldmetal3000 · 4 May 2018 at 19:33

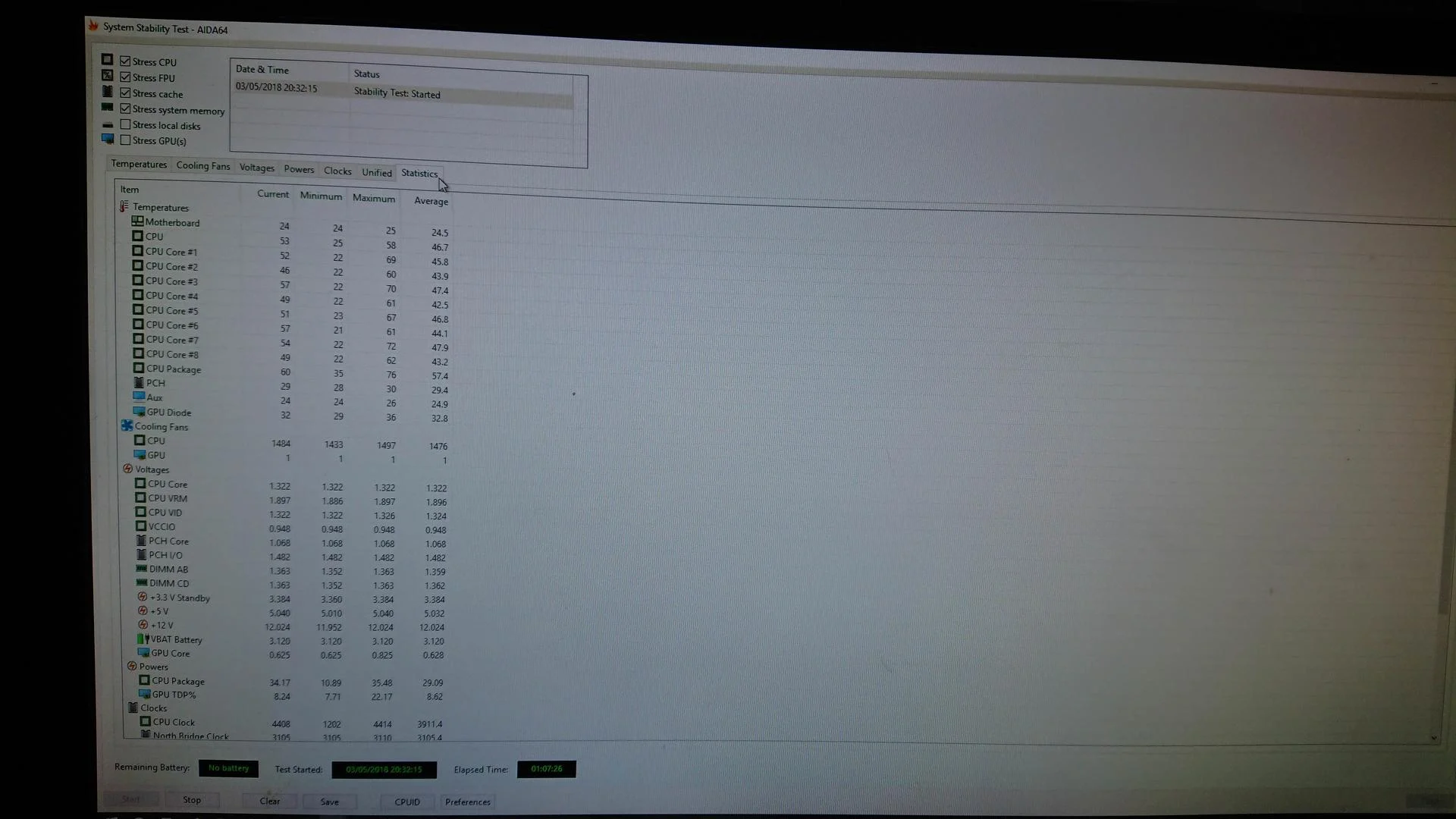

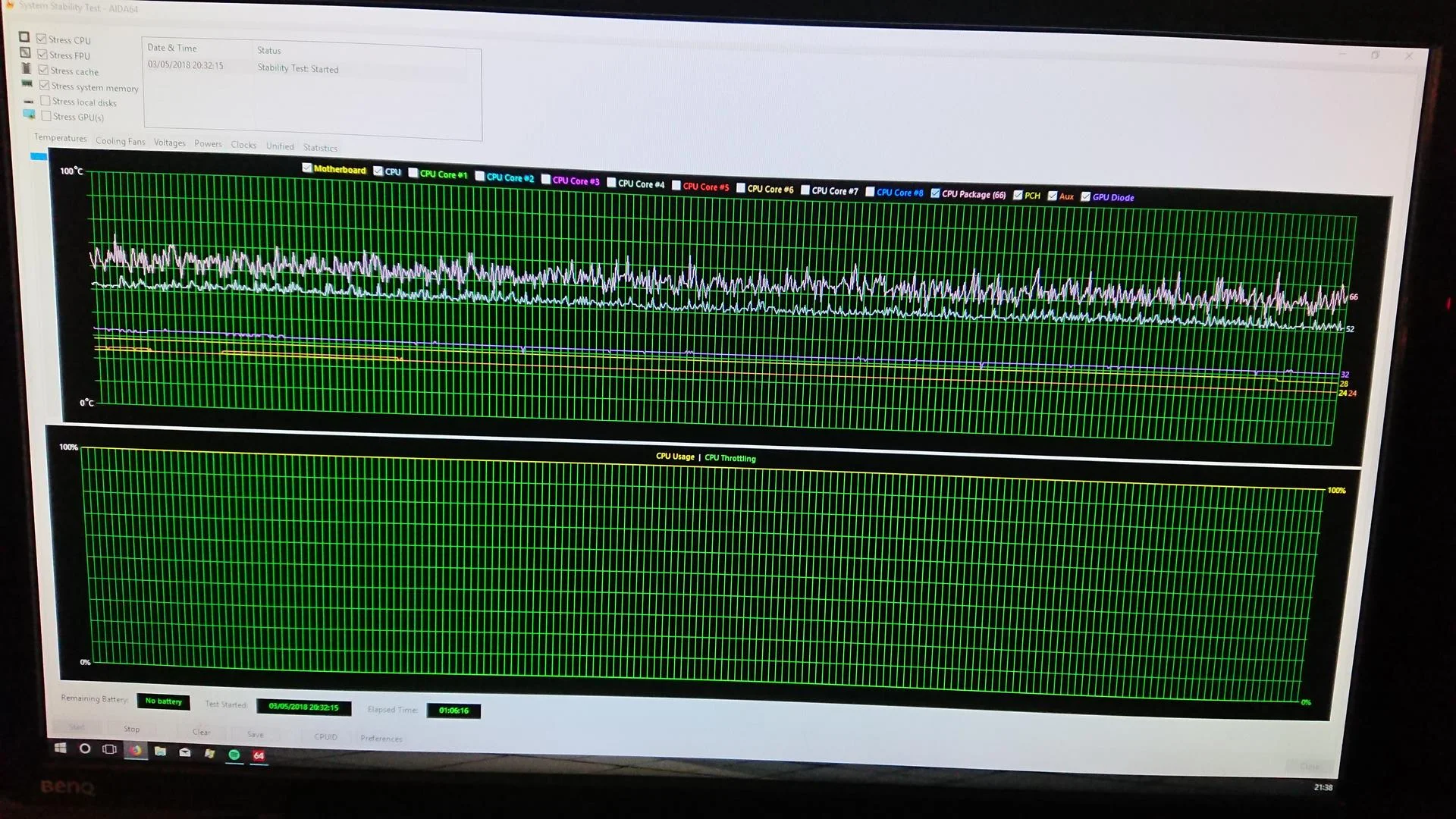

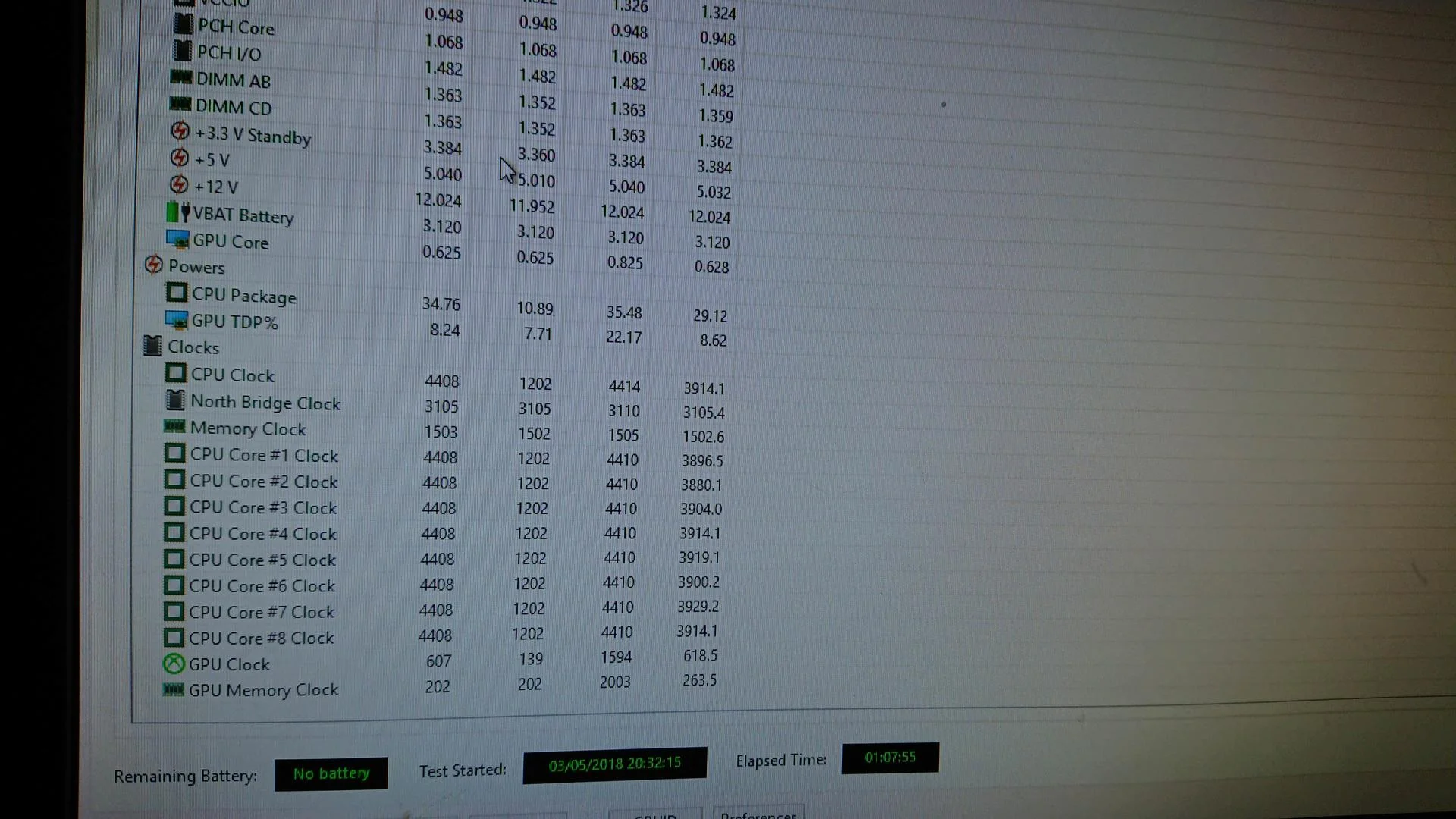

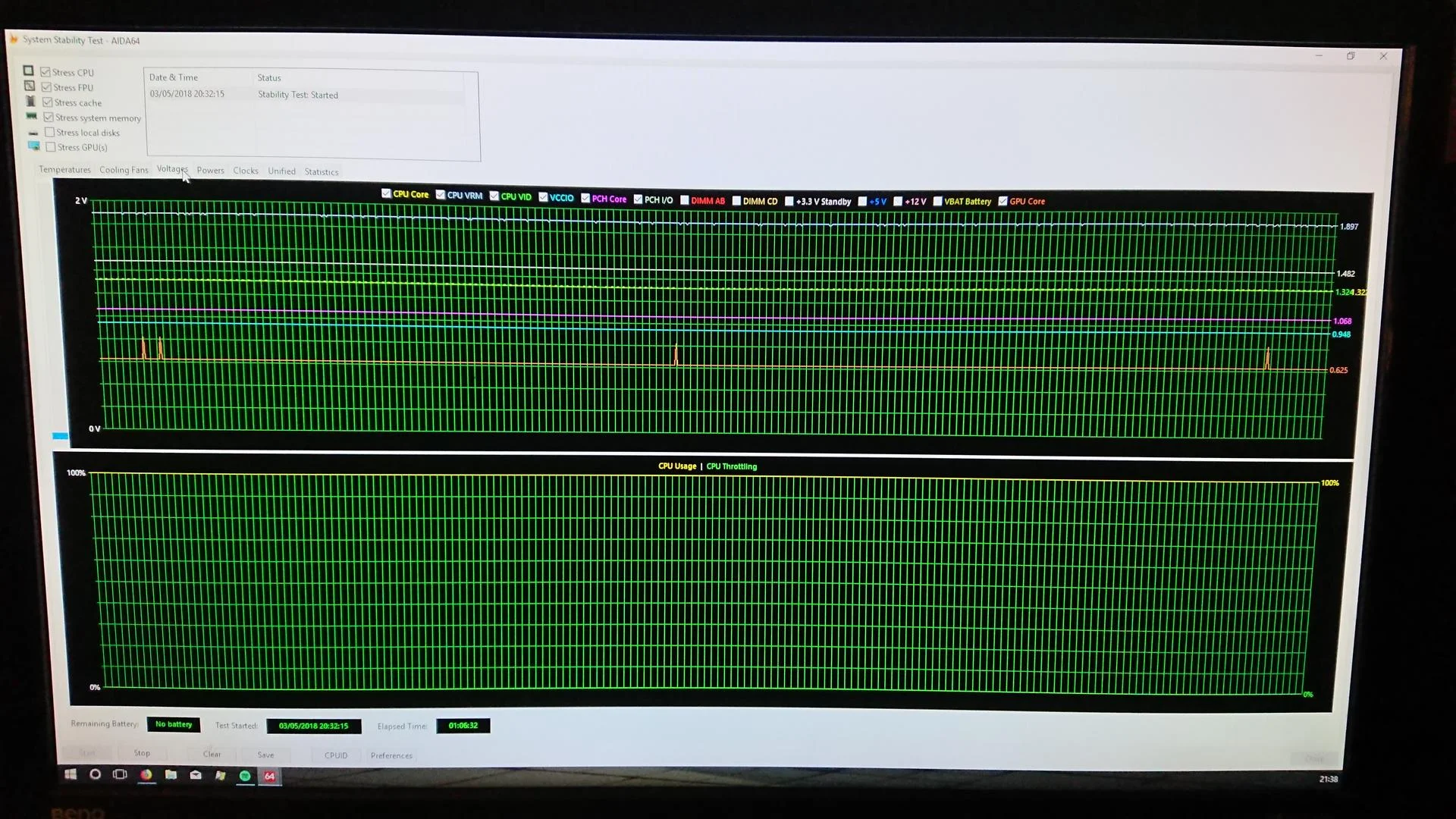

update, changed the vcore back to 1.325v, system boots and appears to be stable for the most part, just the unicore to sort out, ran aida64 for over a hour with no throttling,
