AMD Ryzen 7 9800X3D
- Thread starter Hostile_18
- Start date

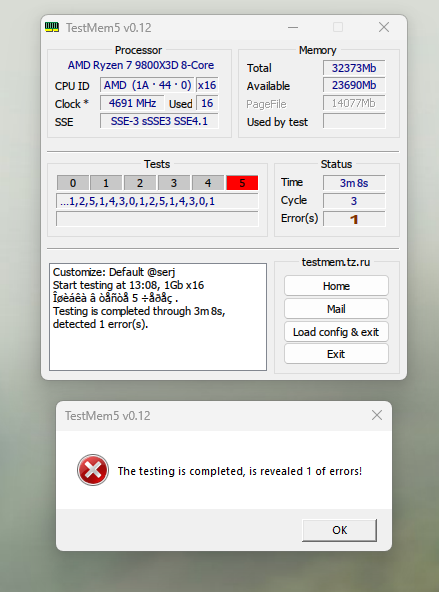

There are two EXPO profiles in the bios “EXPO 1” and “EXPO 2”. Try the other one and test.OK, I've just run TestMem5 and it's reported an error...
I'll try the Windows memory tester, but I guess it's RMA time?
Edit - Windows memory Diagnostic ran fine…
Sometimes EXPO can be unstable. If that doesn’t work you can remove expo and enter the exact same timings manually. I know these methods have worked for people in the past.
I would also remove any PBO/Curve Optimiser just so you can be sure it isn’t causing instability. You have quite a big offset and unless you’ve tested thoroughly it could be unstable.
Last edited:
OK, tl;dr - Dual channel kit will not do 36 / 36 on tRCD or tRP anymore!
I've disabled EXPO (Only have one option in the BIOS) and set the timings manually. Heres where we are...
System is stable currently @
- 30 Offset on all cores (72c fully loaded with a 115i Pro 360 AIO)
+ 100 on boost clock (5.3Ghz)
Manual RAM Timings.
Question, how/should I get 1:1 on FSB/DRAM? If so, how?
I've disabled EXPO (Only have one option in the BIOS) and set the timings manually. Heres where we are...
System is stable currently @
- 30 Offset on all cores (72c fully loaded with a 115i Pro 360 AIO)
+ 100 on boost clock (5.3Ghz)
Manual RAM Timings.
Question, how/should I get 1:1 on FSB/DRAM? If so, how?
Last edited:
Soldato
- Joined
- 18 May 2010
- Posts
- 23,438
- Location
- London
OK, tl;dr - Dual channel kit will not do 36 / 36 on tRCD or tRP anymore!
I've disabled EXPO (Only have one option in the BIOS) and set the timings manually. Heres where we are...
System is stable currently @
- 30 Offset on all cores (72c fully loaded with a 115i Pro 360 AIO)
+ 100 on boost clock (5.3Ghz)
Manual RAM Timings.
Question, how/should I get 1:1 on FSB/DRAM? If so, how?
You should be able to set +200 on the boost.
If its unstable it wont be the boost clock but the undervolt.
You would -5 until you have stability.
Last edited:
Soldato
- Joined
- 18 May 2010
- Posts
- 23,438
- Location
- London
OK, I've just run TestMem5 and it's reported an error...
I'll try the Windows memory tester, but I guess it's RMA time?
Edit - Windows memory Diagnostic ran fine…
Did you buy the sticks as a set?
I.e Two sticks of 16GB or are you mixing?
Are you running the latest bios?
Also check the mobo manual to make sure you are running the sticks in the right slots.
I know the mobo require either A1,B1 or A2,B2. (cant remember)
Last edited:
Yes and yes,
Kit from OcUK. It worked perfectly at the EXPO setting for a good few hours.
Code:
G.Skill Trident Z5 Neo EXPO RGB 32GB (2x16GB) DDR5 PC5-48000C30 6000MHz Dual Channel KitSoldato
- Joined
- 18 May 2010
- Posts
- 23,438
- Location
- London
If it was me I wouldnt accept that they dont work at expo.
I would send them back. My Corsair CL30 6000 work perfect so can recommend those.
Last edited:
Thanks, Yeah ill speak to OcUK on Monday. Are you running 1:1 FSB/DRAM?
Soldato
- Joined
- 18 May 2010
- Posts
- 23,438
- Location
- London
I haven’t checked to be honest. I just set expo in the bios and left it at that.
Soldato
- Joined
- 18 May 2010
- Posts
- 23,438
- Location
- London
You’re on the latest bios right?
Yes, updated last night. It's quite a new board, I think there are only two additional boards. It's the latest 1.2 Revision as well.
Soldato
- Joined
- 18 May 2010
- Posts
- 23,438
- Location
- London
You're going to see a big improvement then ! Even when I went from a 3900X to a 5800X3D I noticed a big uptick in performance eg. as much as 50% for Flight Sim and in most other apps approx. 25%.
My jump from 3800x to 5800x was a huge gaming performance increase. Upgrading to 9800x3d this week, cant wait to finally be able to actually hit 240fps in games
I’m currently using the CL28 version without issue while I wait for the G.Skill CL26 to come in stock. I’m hoping I have no issues and can start tuning.
As you say the safest option is the 6000 CL30.
