Build almost completed. Advice please

zx|muppet · 10 Mar 2012 at 15:51

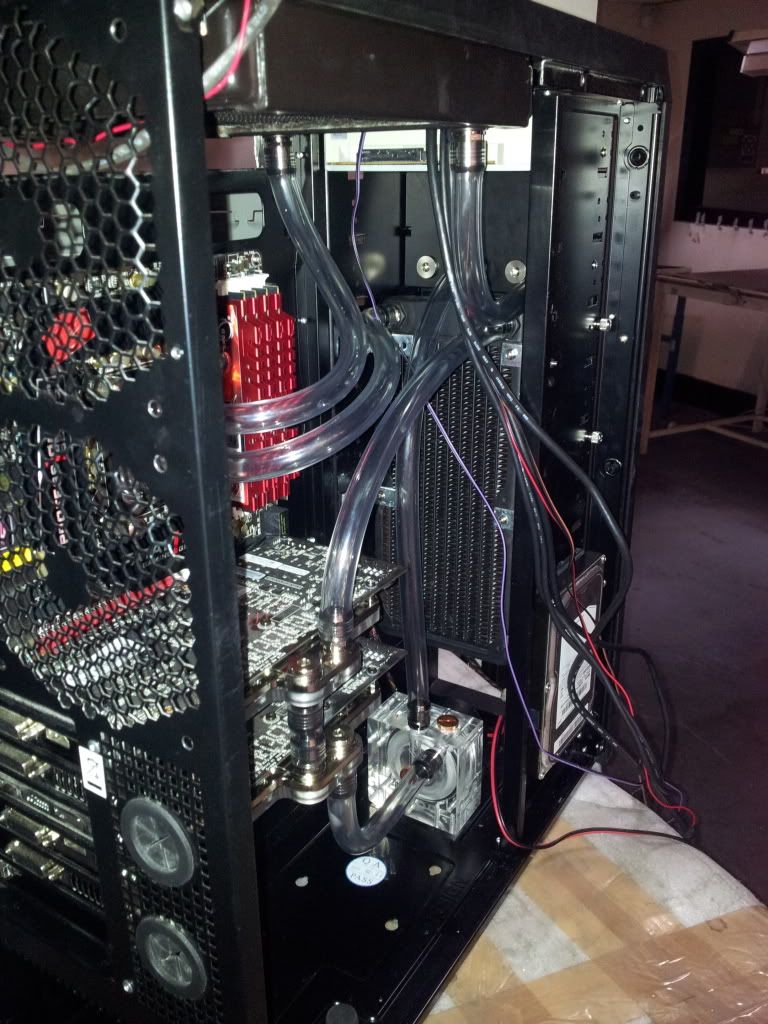

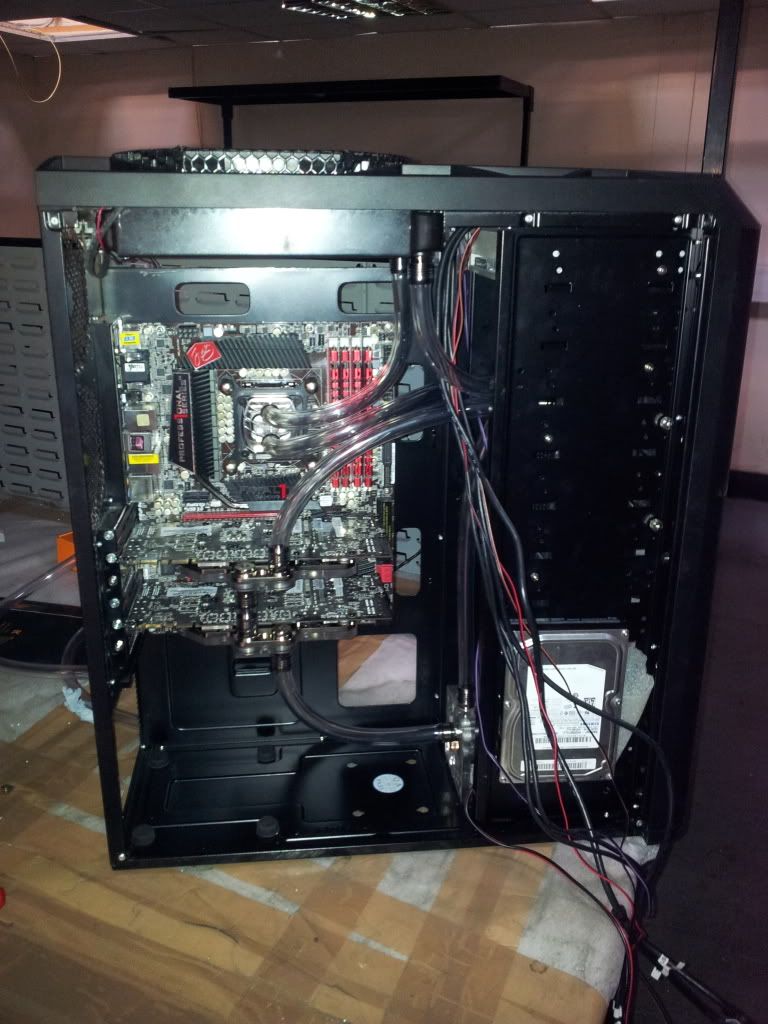

Soo been working on pc today and installed everything. Dose this look OK?

Gone res > pump > gfx > 240 > Cpu > 200 > res

if this is OK will start leak testing now :-D

Jokester · 10 Mar 2012 at 15:53

It looks like you've got your pump the wrong way round there, the inlet is the port connected to the GPU.

zx|muppet · 10 Mar 2012 at 15:54

oh how noobish of me! brb!

now you see where i get my name from!

Jokester · 10 Mar 2012 at 15:55

zx|muppet said:
oh how noobish of me! brb!

now you see where i get my name from!

Actually, can you give me a close up photo of the plexi top, not so sure now.

The inlet port, is the one that goes to the centre of the impeller, the outlet will be the one that connects to the outer edge of the impeller.

zx|muppet · 10 Mar 2012 at 16:00

Jokester · 10 Mar 2012 at 16:01

That's the right way round in that case, there's an internal channel connecting the top of the block to the centre of the impeller.

zx|muppet · 10 Mar 2012 at 16:03

So I'm good to go then?

cjgardens · 10 Mar 2012 at 16:44

is that a bay res? you loop seems to go

gpu pump res rad cpu rad gpu gpu pump

or am i looking at it wrong

the water will come out the top of the pump you need to turn your pump around i think

zx|muppet · 10 Mar 2012 at 17:12

it is going pump > gpu > gpu > 240 > cpu > 200 > res > pump

the 240 is mounted with the barbs near the res

will put some pics up now with water!

cjgardens · 10 Mar 2012 at 17:38

are they new tops? been a few years since i had one of those. normally the way you have the pump water would come out the top as you have the pump on its side

Jokester · 10 Mar 2012 at 17:40

The top internals are drilled out the opposite way to a typical top on that top.

zx|muppet · 10 Mar 2012 at 17:42

It's not on its side. There is a plate to mount on the bottom. It has and inlet and outlet on the top and the same on the front. As I turned the pump on you could see it pushed towards the gpu so all seems good!

cjgardens · 10 Mar 2012 at 17:49

ahhhh its a d5 lol couldnt see it proper on my phone

thought it was a mcp355

ive only ever had the stock top for the d5's

panyan · 10 Mar 2012 at 18:18

i have a feeling that in the EK manual it recommends mounting the block with the holes horizontally - but check first - i might be wrong

zx|muppet · 10 Mar 2012 at 18:30

I can't see it being too much of a problem though? I will check temps when the system is back up and running next weekend. But if that's true I'm going to have to redo the loop near the cpu.. Well the 2 pipe anyway.

I would have put a drain plug in somewhere but I didn't know where to start so left it :-D

other fun that it all looks ok yes?

panyan · 10 Mar 2012 at 18:47

i wouldnt give it too much thought - i might have dreamt it

Jokester · 10 Mar 2012 at 18:54

I tested an EK Supreme HF in both orientations and it didn't make any real difference.

zx|muppet · 10 Mar 2012 at 18:58

I'm guessing as long as you get the inlet and outlet right on the cpu block you can't really go wrong then :-)

zx|muppet · 12 Mar 2012 at 07:49

seems i may have screwed up a little! the pipe going from pump to gfx card hits on the psu... bleh why didnt i check that BEFORE i put coolent in

Biffa · 12 Mar 2012 at 09:16

Get a shorter PSU?
