Can't install alpenfohn k2 mount doom correctly

ShiversDan · 27 Feb 2013 at 01:03

Hi I am trying to install this cooler on to my board but when I have installed it the cooler is facing the graphics card and not the ram?? Yet in all the I turns I see of everyone else's Rigs it is facing the ram. If I try and face it towards the graphics card it fits perfect but towards the ram it doesn't fit at all, have I messed up something with the backplate? Really baffled as followed the instructions perfectly.

SeraphX · 27 Feb 2013 at 01:12

What board are you trying to install it on?
Is your ram high profile?
What case?

Uncle Petey · 27 Feb 2013 at 01:23

Sounds like you installed the bracket 90° the wrong way

Unscrew it and fit it so that the two mounting plates/arms are at the top and the bottom.
Hope that makes sense.

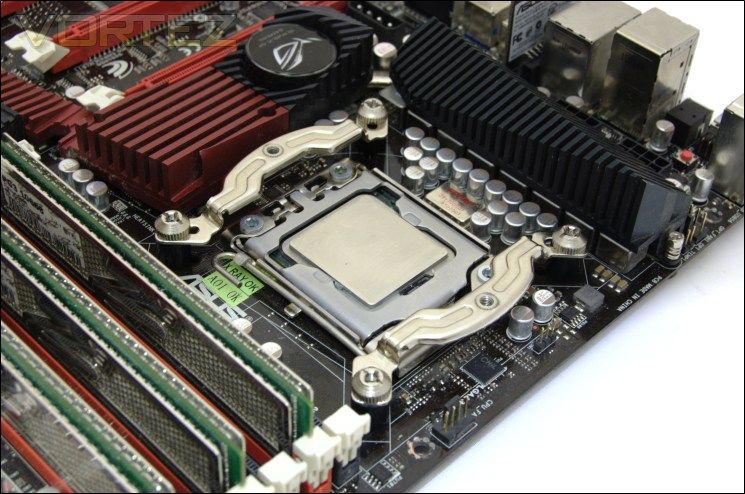

EDIT: Like this:

sparky05084 · 27 Feb 2013 at 21:02

Definetly as Uncle Petey says mate. The bracket needs to be facing as the pic. I have the K2 Mount Doom and mine is facing the ram slots.
