Cooling/Fan control

Snodge

Snodge

Snodge

Permabanned
Joined
14 Apr 2012
Posts
1,762
Afternoon guys,

I'm looking to potentially looking to purchase a fan controller, is it as simple as plugging the fan control directly into the motherboard then plugging the fan's into the controller then adjusting dials?

Secondly I'm looking to mod my 780ti with a NZXT H10 would it be a simple as removing the current cooler adding the NZHT H10 then purchasing a AIO to mount on top of the chip and away I go?

Hi.

Is your 780ti a reference PCB?

https://www.nzxt.com/product/detail/138-kraken-g10-gpu-bracket.html#

Compatibility Nvidia : GTX 980, 970, 780 Ti, 780, 770, 760, Titan, 680, 670, 660Ti, 660, 580, 570, 560Ti, 560, 560SE
AMD : R9 290X*, 290*, 280X**, 280**, 270X, 270 HD7970**, 7950**, 7870, 7850, 6970, 6950, 6870, 6850, 6790, 6770, 5870, 5850, 5830
The compatibility list is based on AMD Radeon and NVIDIA's reference board layout, screw spacing and die height only. Please check the height restriction before purchase.
* Some variation in die thickness and height may cause issues with screws being too short to install on some AMD 290-based cards.
* Do NOT force the G10 to fit if your card is too thick, contact support for a revised screw set.
** Some variations in AMD die height may require the use of a shim.
Click to expand...
Click to expand...

Fan controllers are normally powered from the PSU and it divides the volts to each fan.

Not sure if you need to connect to a motherboard header for some sort of rpm sensing or not, but I doubt it.

Snodge said:
Afternoon guys,

I'm looking to potentially looking to purchase a fan controller, is it as simple as plugging the fan control directly into the motherboard then plugging the fan's into the controller then adjusting dials?
Click to expand...

Plug fans (and temp probes if supplied/required) into controller. Plug in power (molex usually) and away you go.

Doubt it for that card.

But I will look it up.

It has a good cooler anyway (one of the best).

Yeah but my GPU is getting to around 75 degrees, when I've got the fan at 70 percent and gpu usage at around 60-80 percent. no Idea what's going on with it

Cleaned it out? apply new paste to it?

75C doesnt sound to high.

Is it a Ghz edition? do you know the model code?

I'm going to do that tonight, and I'll get the model code :) I don't think it's the Ghz edition :)

**B Grade** Gigabyte GeForce GTX 780Ti WindForce 3x OC 3072MB GDDR5 PCI-Express Graphics Card (GV (GX-129-GI)

Well Ive found a picture of it (the non Ghz edition) and looked at its PCB versus a Nvidia reference 780ti PCB online and the Gigabytes packing more stuff on the PCB.

:( Ah that's a shame. looks like I'll have to give a good clean and hope it fixes the problem. One day it was fine the other day it was heating up. maybe one of the fan stops :P

As in maybe one of the three fans has just stopped spinning entirely :) I've got arctic paste reckon that'll be ok?

Cooler pretty easy to remove?

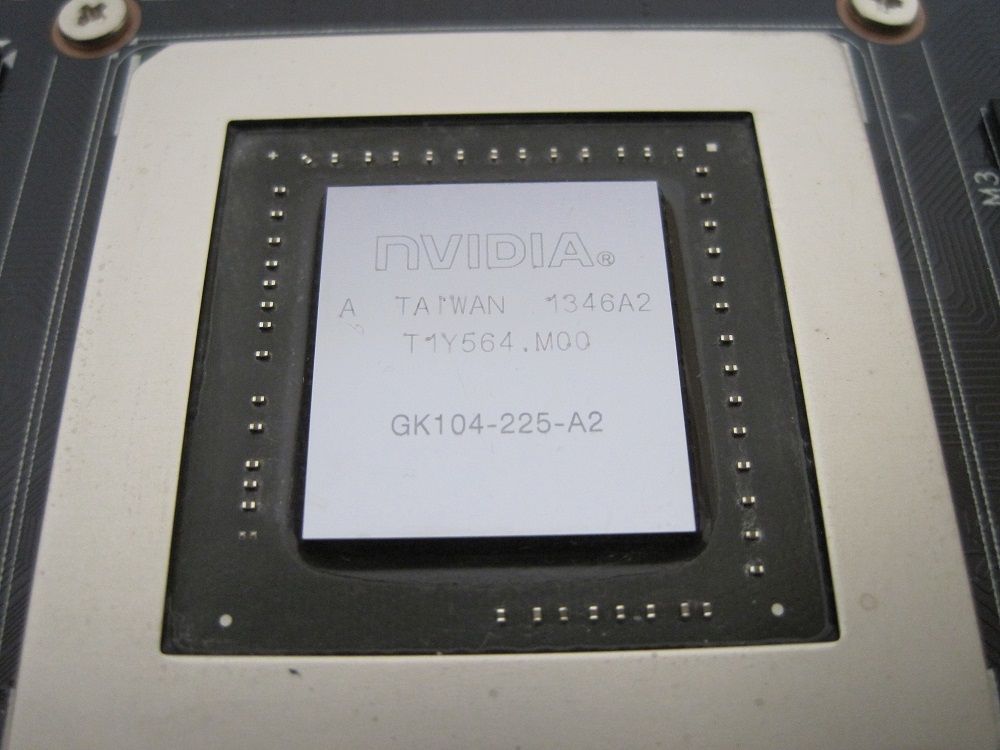

Artci silver 5 I wouldn't be happy to use, there are bits around the gpu die (smd capacitors etc), so if you get that paste on them then it can cause issues.

You want a non electrically conductive/capacitive paste.


You need a block and loop I think.

Snodge said:
Someone put the NZXT on a Windforce 980 so maybe it might work? :)
Click to expand...

Cant use that as a guide.

I like to use MX-2 or 4 on GPUs.

I dont know about taking the chance with the NZXT thing, what if theres something on the PCb that must be cooler (VRMS etc) and its not making contact with those parts.
