Custom Side Panel what do you think?

brad257 · 14 Apr 2011 at 21:15

My mate cut this out for me today and I just had to post it because I think it is totally awesome.

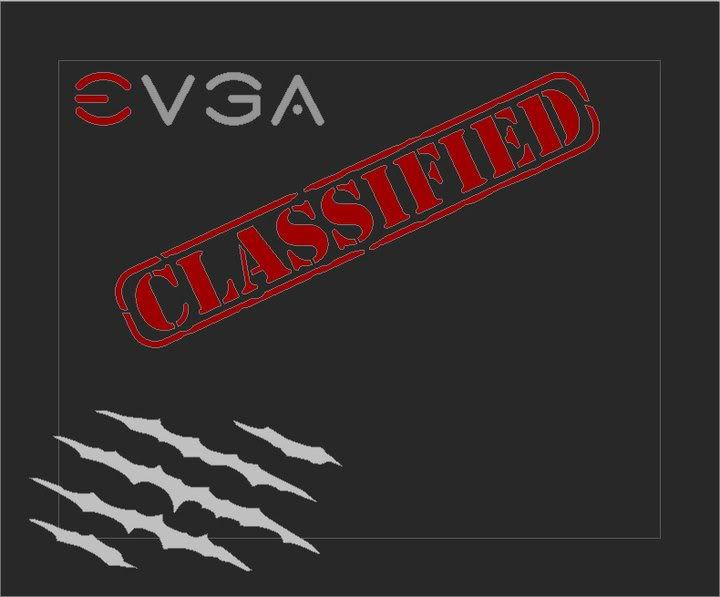

This is the Design for my side Panel that I drew in CAD

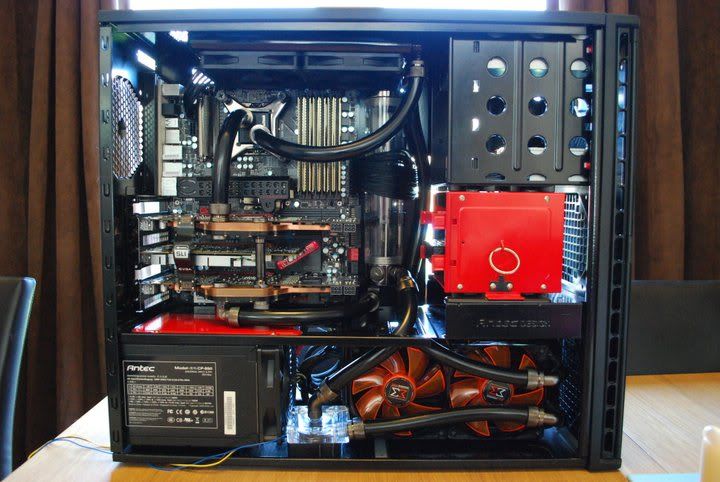

Case without Panel

Case with Initial Cut out

Let me know what you think guys.

As you can see not the right size yet, I sort of guess the Dimensions

Rest of the build is still in progress too

Thanks for looking

WingZero30 · 14 Apr 2011 at 21:22

brad257 said:
Thanks for looking

Thats a beautiful setup :cool:

.

panyan · 14 Apr 2011 at 22:45

WingZero30 said:
Thats a beautiful setup.

+50

hyperst · 15 Apr 2011 at 00:48

Very nice, but is that on the wrong side?

SubScape · 15 Apr 2011 at 01:26

hyperst said:
Very nice, but is that on the wrong side?

I think it's more of a just a nice looking design panel rather than being a conventional window, that's why it's on the other side.

EniGmA1981 · 15 Apr 2011 at 07:21

Maybe he's doing two...?

Looks ****ing awesome by the way!

danzhang16 · 15 Apr 2011 at 11:07

How did you do that? Laser cutter? Looks awesome by the way

Danfoss2011 · 15 Apr 2011 at 11:13

Thats really neat, how was it done please?

Solemn · 15 Apr 2011 at 11:31

Very neat =) Love the work on the side panel!

brad257 · 15 Apr 2011 at 12:32

Thanks for all the comments

Very nice, but is that on the wrong side?

I have a windowed panel for the other side to show off all the internals. Its going to be sitting on my desk and not against a wall so you will be able to see both sides

How did you do that? Laser cutter? Looks awesome by the way

Yes a friend of mine did it for me. I drew the design in Autocad and the machine just cut it out.

The final panel will be in black and have red perspex mounted behind the E and the Classified. The VGA will have aluminum mounted behind it and the claws marks are basically a grille.

Kosmiche · 15 Apr 2011 at 13:29

Why not get the reverse?

A sheet of perspex with the lettering in a colour of your choice, then you can see the beauty inside the case.

edit: Ah I see its covering the "boring" side, yeah looks good then mate!

raikesi · 15 Apr 2011 at 13:37

what are specs of this beast?

brad257 · 15 Apr 2011 at 14:00

Its a little old now this is my rebuild:

CPU
Core i7 920 @ 4.2GHz

Motherboard
EVGA Classified 3 E760

Memory
12GB OCZ Gold DDR3 1600 CL8

Graphics Card
2xEVGA 285 SSC SLI + 9800GT PhysX

Hard Drive
OCZ Agility 128GB SSD + 1TB Spinpoint F3

Sound Card
Creative X-Fi

Power Supply
Antec CP-850

Case
Custom Antec P193

CPU cooling
Custom Water

GPU cooling
Custom Water

OS
Windows 7 Ultimate 64 Bit

Monitor
24" Syncmaster 1920x1200

evil_yo · 15 Apr 2011 at 15:44

looks good, keep up the good work

danzhang16 · 15 Apr 2011 at 17:58

Nice, I might try something like this, using the schools laser cutter

Cr416 · 16 Apr 2011 at 23:12

Ive noticed that the Graphics cards are not connected power wise

could you post a pic of them powered?

I agree with the side panel btw. Uniqueness for the win

.

AMG · 17 Apr 2011 at 01:50

that is really nice, is that two 240 rads I see in there? interesting to say the least, I m thinking of watercooling myself

conoflex · 17 Apr 2011 at 10:59

Thats looking the dogs Brad, are you going to fit a bit of red plexi behind the "classified" and e of "evga" ?

GJ02 · 17 Apr 2011 at 11:02

Oooosh
Looks very nice

RiskyRix · 18 Apr 2011 at 00:02

really like that a lot
