Hi, would much appreciate any pointers with a little issue I have configuring my router.
I suspect it's easy to solve but I'm being a bit thick at the moment...
Summary of the problem:
I need to correctly configure my DrayTek VigorLTE 2860Ln to allow hosting a webpage. I think the problem is the firewall is not allowing external traffic through.
Background:
I have a few useful little applications running on an ancient RPi (MK1) which is a LAMP server.
The Pi has a fixed IP address within my LAN.
I'd like to get Alexa to communicate with this server - and if I could get Alexa to directly send CURL data, eg POST or GET then I'd be happy.
As it stands I can only achieve this if I use Alexa -> IFTTT -> Webhooks. The problem is Webhooks needs a publically accessible URL.
Please flame me if there is simpler way to do this, but I decided host my RPi LAMP server on the open web. Since I have a Draytek router I can use a free, mini DNS service called DrayDDNS.
Current situation:
I have activated this mini DNS service, and got given a URL I can use, which then points all traffic to my home router. Of course being a DDNS service, it will automatically update my IP as it changes.
If I connect to this URL on a browser from within my LAN, no problems.
You can guess where this is going, this URL is inaccessible from outside my LAN (tried using 4G data connection, and a VPN service). Which makes me think the Draytek's firewall is simply blocking outside traffic -- alas, my attempts to create a fliter, or open a port have failed miserably
Here's a few screenshots of what I have done thus far:
Here I set up my freebie DDNS service.
So by clicking on http://164*********.drayddns.com/test.php it should direct traffic to my home IP address, and as this IP changes in the future DrayDDNS will auto-update.
A bit of tinkering is needed, simply specifying which LAN IP address to send traffic to:
(in this case, the blurred IP is my RPi, LAMP server).
These two simple steps are enough to get my RPi LAMP server on the www.
So if I connect to the URL using a browser, all checks out fine:
Of course, you cannot connect if you're outside my LAN.

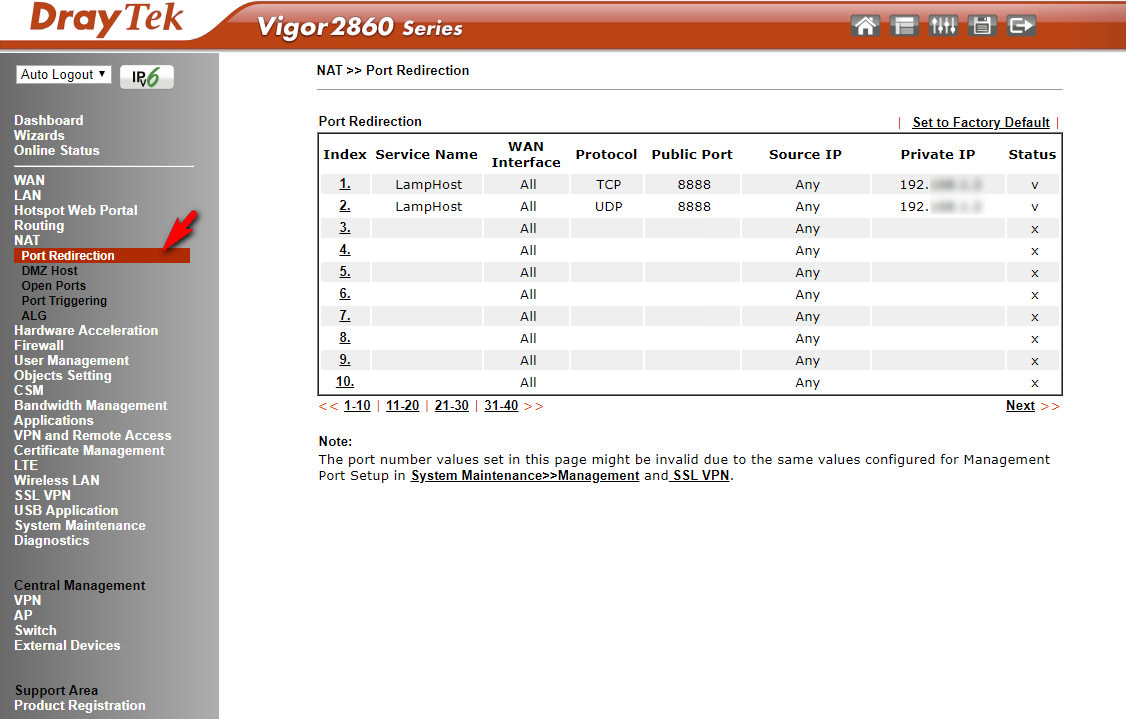

The first thing I tried was port redirection. You can see below I specified a public port of 8888. It wouldn't let me use port 80. I don't mind having inbound traffic arrive on 8888, if this makes it slightly more secure.
However if I try:
http://164*********.drayddns.com/test.php
http://164*********.drayddns.com/test.php:8888
none of these work from outside the LAN.
I tried opening the ports:
Again, no access from outside.
And finally, I changed the firewall filter (default data filter) to specifically allow incoming traffic to pass immediately. Also, no luck.
Any ideas?
thanks
