Hey everyone just got done with my first full memory OC feels like Ive spent days on it! well including reading up and trial and error i probably have.
I used the Dram calculator for guidance but was unable to get near what i suggest but i did manage to tighten up the XMP profile default a little bit with a tiny increase of SOC 1.1 >1.1063 and Dram Volt 1.350> 1.360. with a lot of failing to boot and resetting cmos along the way.
I ran memtest for 2 passes without any errors and plan on running it for the full 4 when i go to sleep.
The only thin i will say is i noticed while booting up before Asrock appears on my screen i got a little flicker of green screen for about a second not sure if this is pointing to something bad about my OC ?

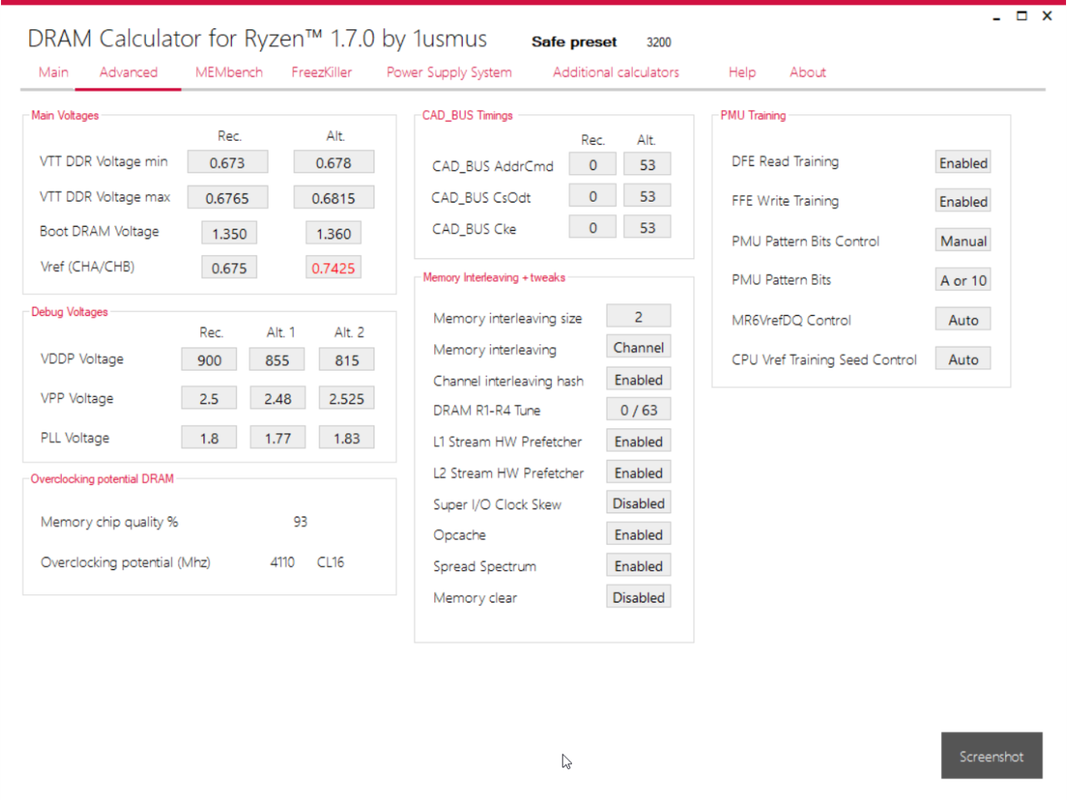

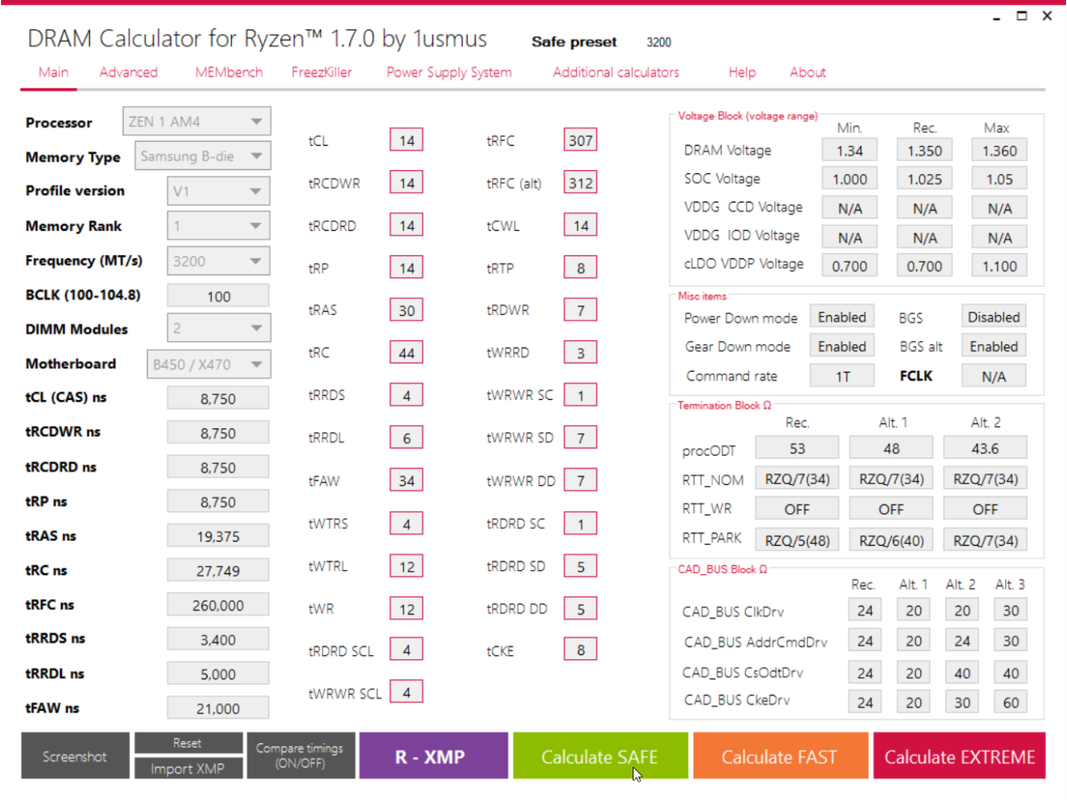

What was recommended by Dram Calculator

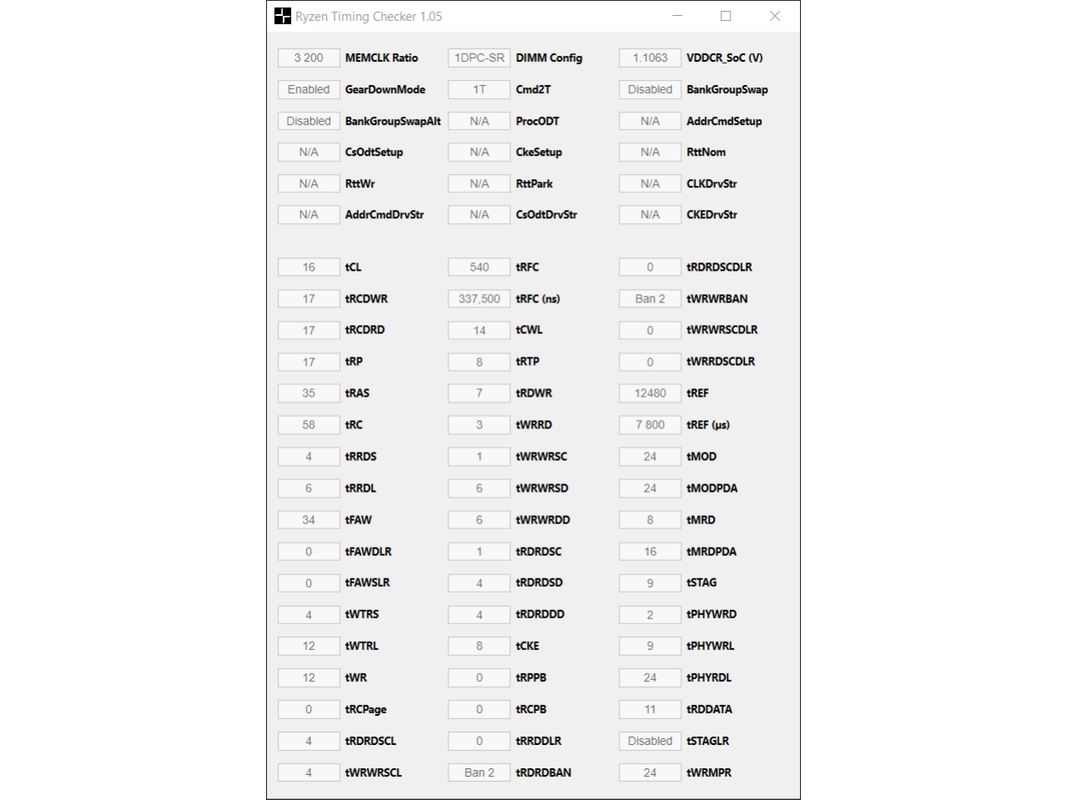

What i managed to get with 2 passes no errors.. will update on 4 tomorrow.

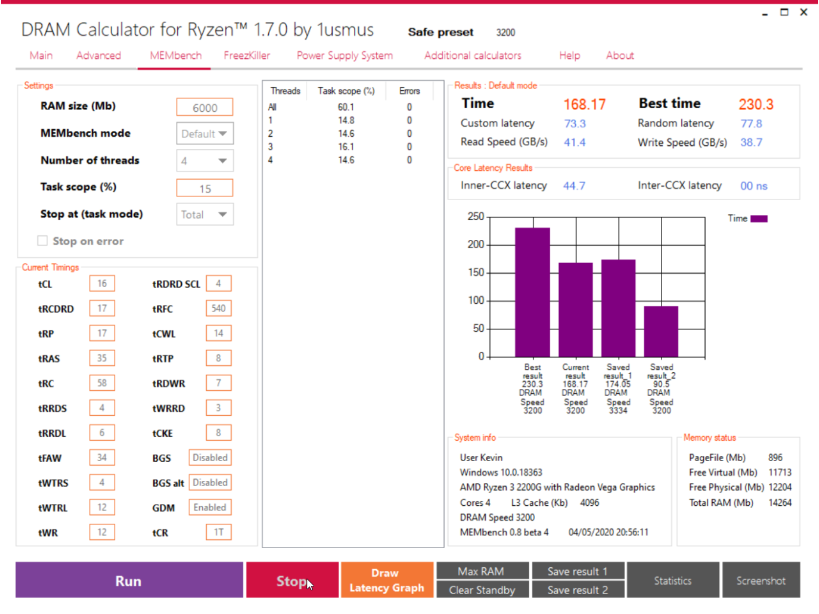

And Bench score
If it turns out its stable should i think about raising Soc and Dram and pushing for more of an overclock or just leave it as is ? If so should i push for 3200 with even tighter timings or go for increased speed ? I'm doing this Mem OC to then be able to push my Ryzen 2200g IGPU OC next so is the speed more important than the timings or vice versa ?
And one last question how do i get round not being able to input clDO VDDP voltage or no temp reading for VRM as i've read both of these are critical for faster OC and making sure its stable and not damaging.

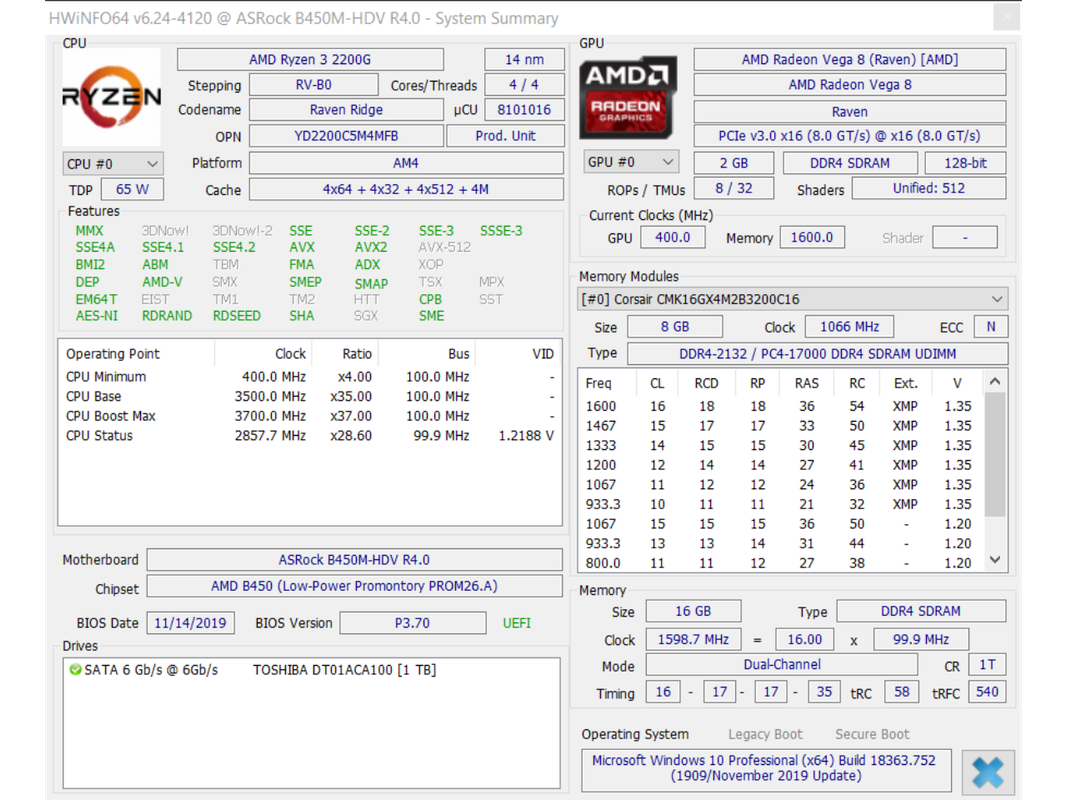

My Hardware
Thanks for reading and any suggestions you might offer.
