funny front end

Associate
Joined
16 Jul 2021
Posts
6
Location
uk
s!AnrTeoVMhHXko1FPAmMHaBt-ZPRK

https://1drv.ms/u/s!AnrTeoVMhHXkqRlC6isFdvrnrTfW?e=tgYH5h

Meet my homemade bike.
https://youtu.be/ECzFlrXNry8

Somebody had to do it - or maybe not

s!AnrTeoVMhHXktAo4uGRUwOmHO59L

https://1drv.ms/u/s!AnrTeoVMhHXktAo4uGRUwOmHO59L?e=VyXQI0

It weighs 80kg and goes 80mph - and it handles! Don't believe me? Don't care :)

Last edited:

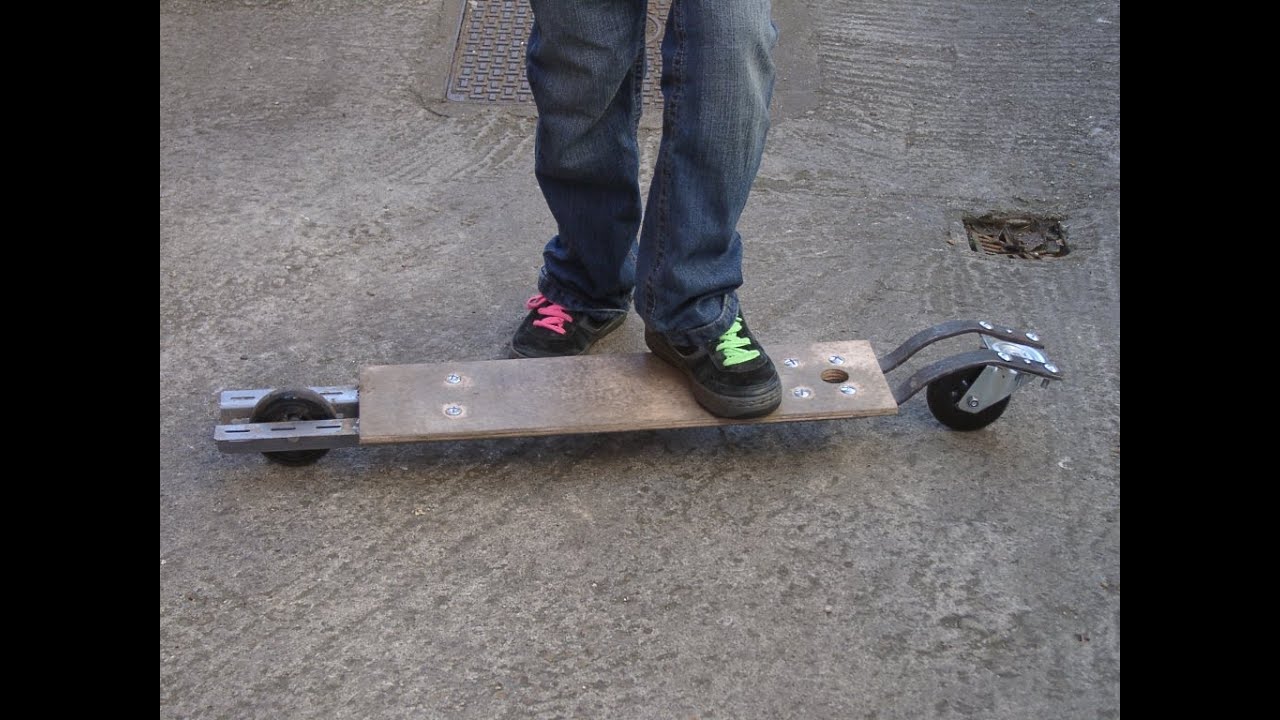

Well....... if you had that, feet forward layout, like a car say, so the handlebars are quite a long way back from the front wheel, and you just put tellies on it, the rake angle would be huge, and it wouldn't handle nicely. The advantage of this layout is that the seating position is just like a car (without a seat rest) . The seat is the same height as my family car. At that height, you are 2/3 the height of a 'normal' bike, and the same width, so your frontal area is 2/3 of a normal bike, so it has 2/3 the drag, so it goes faster. That said, the wrong way round steering self-steers better than a normal bike and it feels really secure, especially on very tight turns. I even made a two wheel skateboard with the steering axis the 'wrong' way round. https://youtu.be/5MQ7qDzfENo You can see that it steers the same way you lean - even without handlebars. If you used a 'right way round' steering axis angle, it wouldn't work.


inline longboard - for on and off road


I know the bike is very small, but its lighter and faster than a 125 Honda say. They're about 130kg. Mine is 80kg - and the scales don't lie. Big scooters, like Yamaha's Xmax for example, are quite feet forward, but to get a proper car-type seating position, the rake would be too big and they wouldn't handle. So, they are still quite upright and have more drag than my bike, (and weigh more too, but that's probably not a fair comparison). They should use my front end on big scooters. They would handle better and go faster.

So, I suppose that's the answer to your question, why? This bike handles better and goes faster than anything comparable. :D

Last edited:
Well....... if you had that, feet forward layout, like a car say, so the handlebars are quite a long way back from the front wheel, and you just put tellies on it, the rake angle would be huge, and it wouldn't handle nicely. The advantage of this layout is that the seating position is just like a car (without a seat rest) . The seat is the same height as my family car. At that height, you are 2/3 the height of a 'normal' bike, and the same width, so your frontal area is 2/3 of a normal bike, so it has 2/3 the drag, so it goes faster. That said, the wrong way round steering self-steers better than a normal bike and it feels really secure, especially on very tight turns. I even made a two wheel skateboard with the steering axis the 'wrong' way round. https://youtu.be/5MQ7qDzfENo You can see that it steers the same way you lean - even without handlebars. If you used a 'right way round' steering axis angle, it wouldn't work.


inline longboard - for on and off road


I know the bike is very small, but its lighter and faster than a 125 Honda say. They're about 130kg. Mine is 80kg - and the scales don't lie. Big scooters, like Yamaha's Xmax for example, are quite feet forward, but to get a proper car-type seating position, the rake would be too big and they wouldn't handle. So, they are still quite upright and have more drag than my bike, (and weigh more too, but that's probably not a fair comparison). They should use my front end on big scooters. They would handle better and go faster.

So, I suppose that's the answer to your question, why? It bike handles better and goes faster than anything comparable. :D

With everything lower down like that what would it be like in terms of visibility, not for the rider but how visible are you to a car?

With everything lower down like that what would it be like in terms of visibility, not for the rider but how visible are you to a car?

To be honest you don't have the same presence on this particular machine as you do on a bigger bike. But I have limited resources. There's no reason not to make a bigger capacity one with an enclosed, streamlined fairing, daytime running lights or whatever you want.

Certainly unusual. Well done. Looks great.

EDIT: Not been on the road for the last two years though. Getting it out again?

Last edited:
Certainly unusual. Well done. Looks great.

EDIT: Not been on the road for the last two years though. Getting it out again?

How did you know I hadn't been out two years????? You're right, I haven't. Don't know what to do with it. It's a huge technical success, but it's just sitting in my garage right now. I even got published!!!
https://1drv.ms/u/s!AnrTeoVMhHXkjDc7yTk1QtPchUKB?e=NR8bz4
https://1drv.ms/u/s!AnrTeoVMhHXkjDjlUnDFDdGLks28?e=wyyPqh

Got any ideas? I think I might be waiting to be discovered. It hasn't happened yet.

who has information like that??? Are you a copper? Everything is legit by the way. I had to get it type approved and everything officer. :)
Nope, not a copper :)

What's really going to bake you noodle is how I know the last advisory was on the Rear Floor Brake test indicates a slightly grabbing brake (3.3.D2d) :)

As above, this information is available for free on the site posted by Tom_e, although I have a free app on my phone which is easier.
