Help connecting front USB on my case

[nightrider1470]

Hi I have lian case and when I put it all together I noticed my front USB as well as other inputs weren't working. I must have forgot to connect them to my motherboard.

From opening my case up it hard to to tell which cables I need to connect and to where for them to work, will these cables be the same as the motherboard headers cables? or some other type of cable? + where to connect them on my motherboard?

Sorry if not to clear! I cant see where the cables are coming from



[mp260767]

have you had a look at the manual for the case and your mobo ?



[nightrider1470]

That was my first thought but I dont hve it and cant find a manual online mate

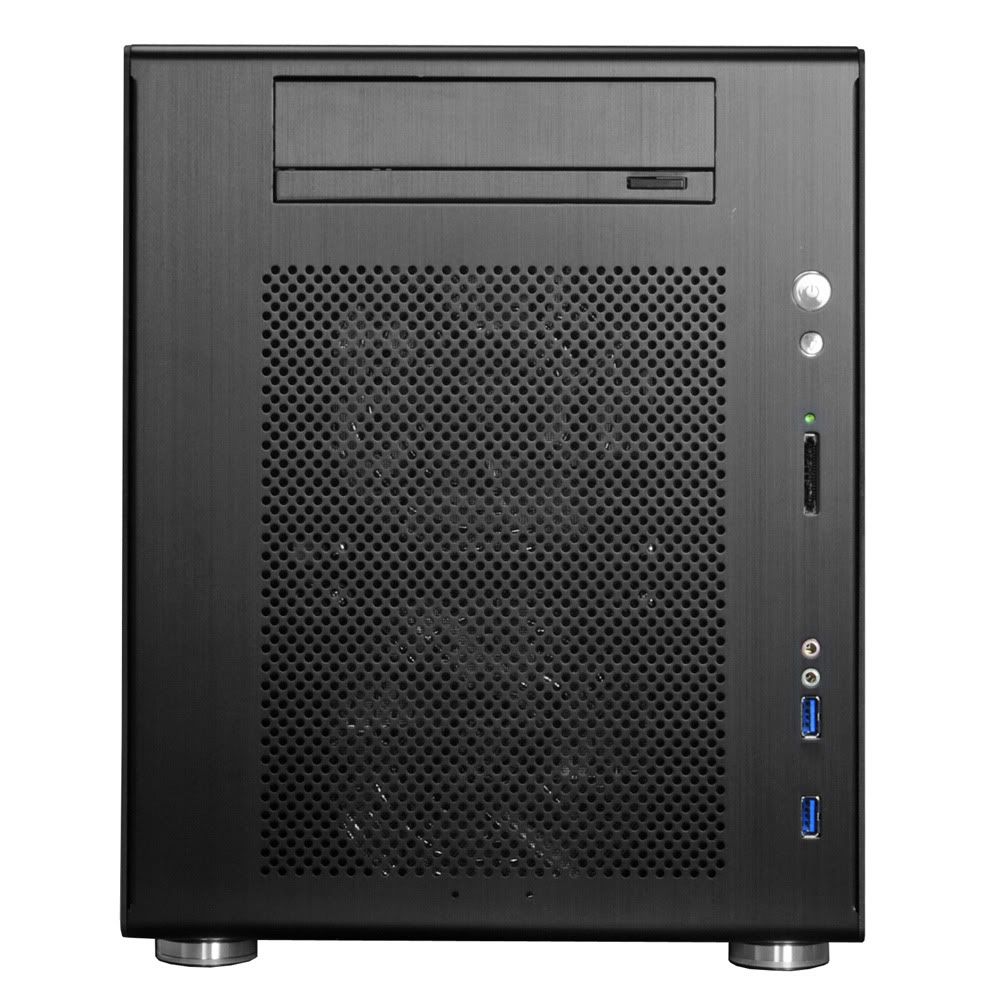

Lian Li PC-V354R Mini ITX



[nightrider1470]

This might help someone work out which cable it is maybe ?



[PiKe]

They are the same as the header cables, just make absolutely sure they're in the right way around else you'll blow the usb header as soon as you plug anything in.



[j6m]

Lian Li PC-V354R Mini ITX

Is this it?



[nightrider1470]

Ok thanks I will check, what are those black cables for then in the above pic?



[nightrider1470]

Is this it?

Jackpot!! good find, all though it was on their site! cant believe I never found it from searching !

Thanks mate !



[mp260767]

cant believe I never found it from searching

i'm sure they do there best to make it as difficult as possible sometimes

as mentioned make sure you check the cable for any id on the pin numbers before you plug it in place.



[Snograt]

I hate front panel connections. The audio and USB are simple enough (judging by the blue colour you need to make sure it's a USB3 header) but those damn fiddly pwr/rst/pwr led etc. are just a pain. I think I've moaned about this several times - there needs to be a standard connector like those used for USB or audio. Not too hard, surely?
