Help on finding a compatible WiFi Bluetooth card for ASUS Pro H610T D4-CSM

It says you have a Key-E for a 2230. I'd probably get Intel's AX200 desktop kit, or something along those lines, if you have space for the antenna

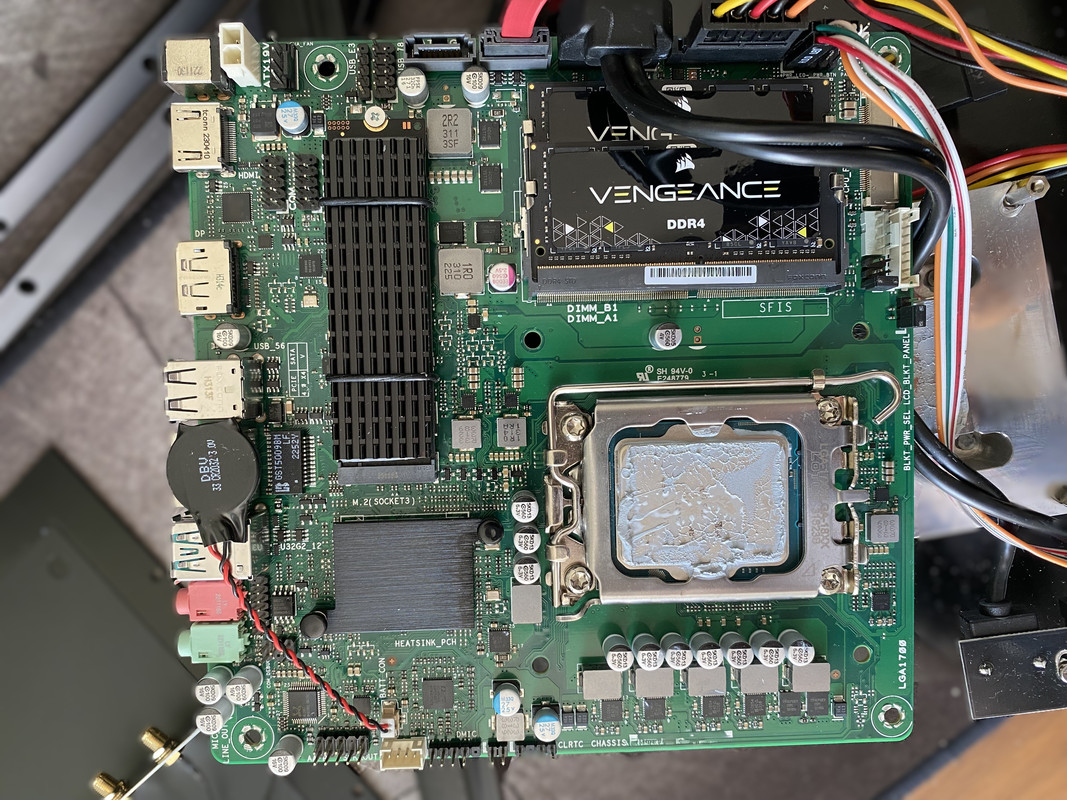

Thank you for your reply. I've opened up the pc to look at the motherboard. I'm not sure where I could install the AX200. It seems the M.2 socket is in use.
Is that correct (obviously never built or modified a pc ever) and do I have any other options?






NoelNicholson said:
Thank you for your reply. I've opened up the pc to look at the motherboard. I'm not sure where I could install the AX200. It seems the M.2 socket is in use.
Is that correct (obviously never built or modified a pc ever) and do I have any other options?
Click to expand...
From what I can gather looking at the pictures on the Asus website, the Key-E M.2 slot is underneath the M.2 slot for a SSD, so I think you have to remove the SSD before you can access the Key-E.

I've never seen anything like this, so I could be wrong, but that's my best guess.
