Honey, I Shrunk the PC

TheAceOfSpades · 6 Jun 2020 at 15:59

I've been wanting to do an ITX build for a while, and a country-wide quarantine was the perfect excuse to finally go through with it. The previous iteration of my PC was housed in a Coolermaster MasterCase Maker 5 - a capacious ATX case that was really too big and bulky for my needs. I'd had my eye on the Lian-Li TU150 since it launched last year for three reasons: it looked fancy, had a snazzy handle, but most importantly, it had 3 PCI slots (I wanted to transplant my Asus Matrix Platinum 980Ti to it, which is a 2.5 slot card).

As I did not have the budget to build an entirely new PC, I was going to be reusing as many parts from my old build as possible. This turned out to be the CPU, GPU, RAM, storage, fans, and (initially) my old air cooler. I decided not to opt for a custom water loop for simplicity and transport convenience. This may be something I explore down the line.

The new components I had to purchase were the case, an ITX motherboard, and an SFX power supply. I've listed my original components, and what they have been swapped out with below;

CPU: i5 6600k (Reused)
GPU: Asus Matrix Platinum GTX 980Ti (Reused)
Mobo: Asus Z170A -> Asus Strix Z270i Gaming
RAM: Corsair Vengeance LPX DDR4 16GB 2400MHz (Reused)
Cooler: Custom water loop -> bequiet! Dark Rock Pro 3
PSU: EVGA Supernova G2 750w -> Corsair SF 750w
Case: Coolermaster MasterCase Maker 5 -> Lian-Li TU150 (Silver)
Fans: 3 x Noctua NF-A14 PPC, 2 x Noctua NF-F12 PPC (NF-F12's were reused)

Below are some images of the MasterCase build, and one of it with the ITX case for size comparison;

How's it all going to fit in there!?

N.B: I started this project at the beginning of April, but haven't been able to post the log until now. The ITX system has been up and running for a little while now, but I still have more changes to make (hint - it involves a Ryzen 3600)

Updates detailing the progress I have made so far to follow shortly - stay tuned!

TheAceOfSpades · 13 Jun 2020 at 13:42

Here are the PSU and motherboard I used for the build

Comparing the motherboard with my GPU. I didn't expect it to be that small...

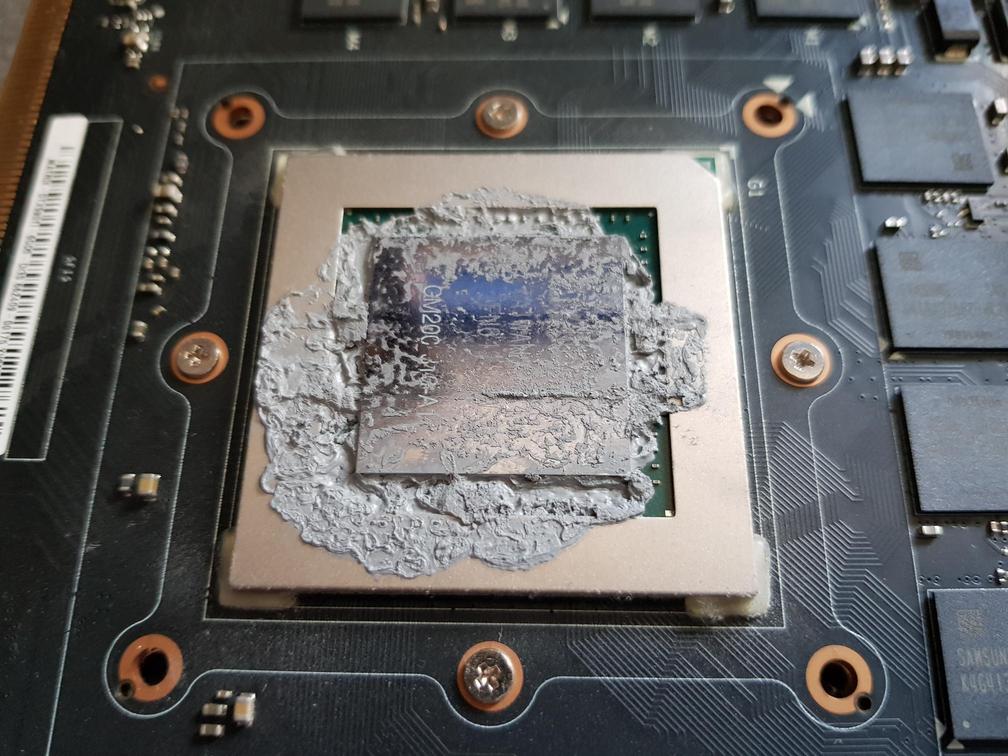

I took the opportunity to reapply the thermal paste on my GPU. This is what it looks like when you leave the factory stuff on for 4 years. Oops.

That's better.

It turned out that the Dark Rock Pro 3 cooler I wanted to use wasn't exactly compatible with the Z270 socket, so I had to make a few modifications. Firstly I had to drill three holes in the backplate to provide clearance for the socket mounting screws. Then I had to trim down some of the component legs because they were preventing the edge of the backplate from sitting flush.

Starting to put it all together. The tiny motherboard creates the illusion that the case is bigger than it actually is in this photo.

Adding the graphics card fixes this

Here it is with the cooler installed. The Dark Rock Pro 3 is difficult to install in the best of conditions. In this small case, it was an absolute nightmare. If I had any other cooler available at the time, I would've gone with that.

I didn't spend very long on cable management. There weren't many cables, and the was plenty of space for them behind the back panel.

This case has a cable management space in the roof. I only used it for the SATA power in the end as most of the cables were too short to take the detour, but could be useful in conjunction with cable extensions.

Here's the final result. Mug for scale.

I couldn't get any better shots of the inside with the side panel on because it's slightly tinted and very reflective (being glass). It ended up looking fairly neat as there is a cutout in the side panel that hides the power supply area and the rats nest of cables.

Still to come: cooler swap out and Ryzen upgrade.
