How is this supposed to connect together?

smr · 12 Nov 2019 at 19:13

Hi,

I'm building a new rig for someone and it's been a while since I've done a build.

The motherboard is a mini ITX Phantom Gaming from ASRock.

And this is the Heatsink....

According to the manual for a stock cooler it looks like its got those plastic screw clips which twist and lock underneath the motherboard.

Help please!

Minibiker · 12 Nov 2019 at 19:19

The backplate from the stock cooler should fit to the rear of the motherboard then screw into that, i think

smr · 12 Nov 2019 at 19:22

Ah crap I think the backplate is still on the motherboard that got sent back which was DOA.

MissChief · 12 Nov 2019 at 19:27

smr said:
Ah crap I think the backplate is still on the motherboard that got sent back which was DOA.

What a mistake-a da make-a!

BUDFORCE · 12 Nov 2019 at 19:28

Try eBay one.

smr · 12 Nov 2019 at 19:42

https://www.coolermaster.com/catalog/coolers/cpu-liquid-coolers/masterliquid-ml240r-rgb/

Serial code is MLXD24MA20PCR so I think it's that one above ^

smr · 12 Nov 2019 at 19:46

Think this is the right one, can anyone verify ?

https://www.cmstore.eu/spare-parts/backplate-with-am4-support/

smr · 12 Nov 2019 at 19:57

Actually I think it's this one

VaderDSL · 12 Nov 2019 at 20:03

smr said:
Think this is the right one, can anyone verify ?

https://www.cmstore.eu/spare-parts/backplate-with-am4-support/

Looks right to me. Z390 is 1151 socket iirc.

LuckyBenski · 13 Nov 2019 at 00:32

Confusing. That backplate night be right... Intel doesn't have a stock backplate. Well, not to do with the heatsink.

smr · 13 Nov 2019 at 12:15

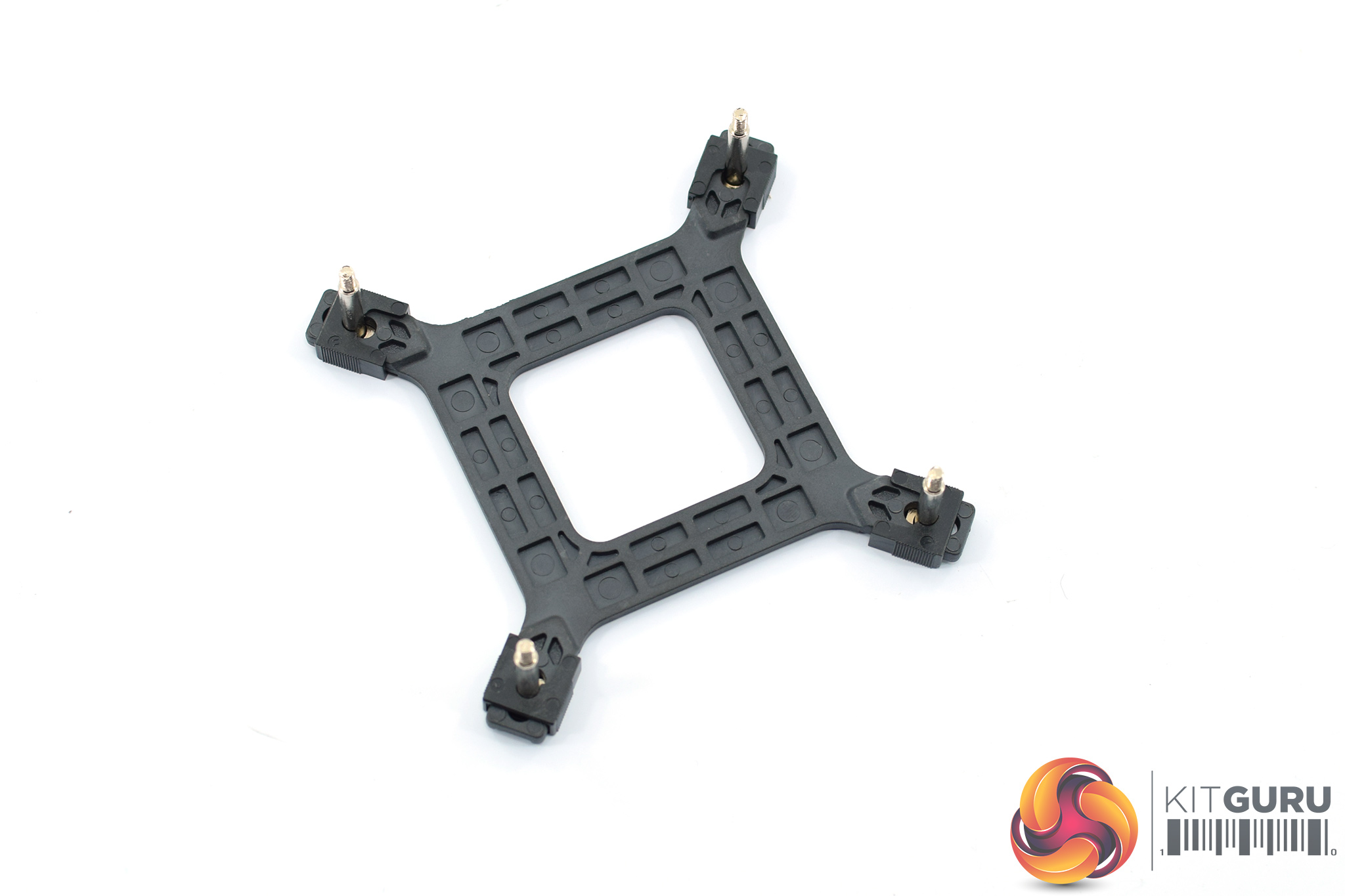

Hard to know which one to get but the one in the picture above is the one from a review of the Cooler so I'm guessing that's the right one, ordered it so will see when I get it.

smr · 13 Nov 2019 at 13:16

Well I should have spoken to them first but I just spoke to UK Coolermaster support and they said send the serial number over and they'll send one out for free. Very good of them.

FlyingScotsman · 15 Nov 2019 at 11:34

smr said:
Well I should have spoken to them first but I just spoke to UK Coolermaster support and they said send the serial number over and they'll send one out for free. Very good of them.

Nice 1 decent of them tbh
