How to wire 3.5mm stereo socket?

[Spanker]

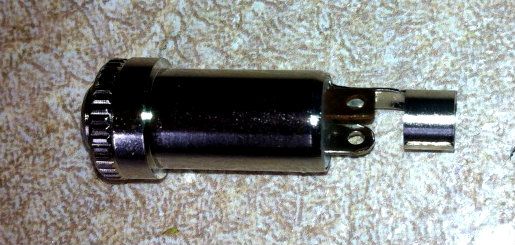

Can someone tell me which of the two small connectors is left and right. One appears to be copper with a square end and the other is rounded and maybe plated? It is going to be part of an Aux cable for my car.

Hope the image is clear enough.



[cheechm]

Can you try another with a 3.5mm jack plugged in please?



[Pixel]

"Copper-coloured terminal is tip/ silver-coloured terminal is ring"

http://www.maplin.co.uk/3.5mm-stereo-chassis-socket-1189

Tip = positive
Ring = negative

https://en.wikipedia.org/wiki/Tip_and_ring



[Raikiri]

Can someone tell me which of the two small connectors is left and right. One appears to be copper with a square end and the other is rounded and maybe plated? It is going to be part of an Aux cable for my car.


Hope the image is clear enough.

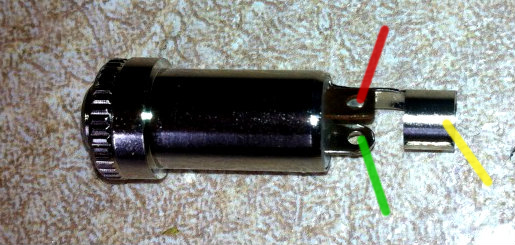

Left
Right
Ground

I think, I've only wired the other end on a set of 'phones though



[Spanker]

Awesome, thank you for the help guys! x



[mattyprice4004]

Awesome, thank you for the help guys! x

You're welcome Spanker!
x



[hux]

And use good solder, last thing you need is a dry joint.
