I9 9900k

Silent_Scone · 28 Oct 2018 at 09:50

Journey said:
CPU-z broke, says 3.0GHz.

Adaptive voltage / balanced PP is the way forward

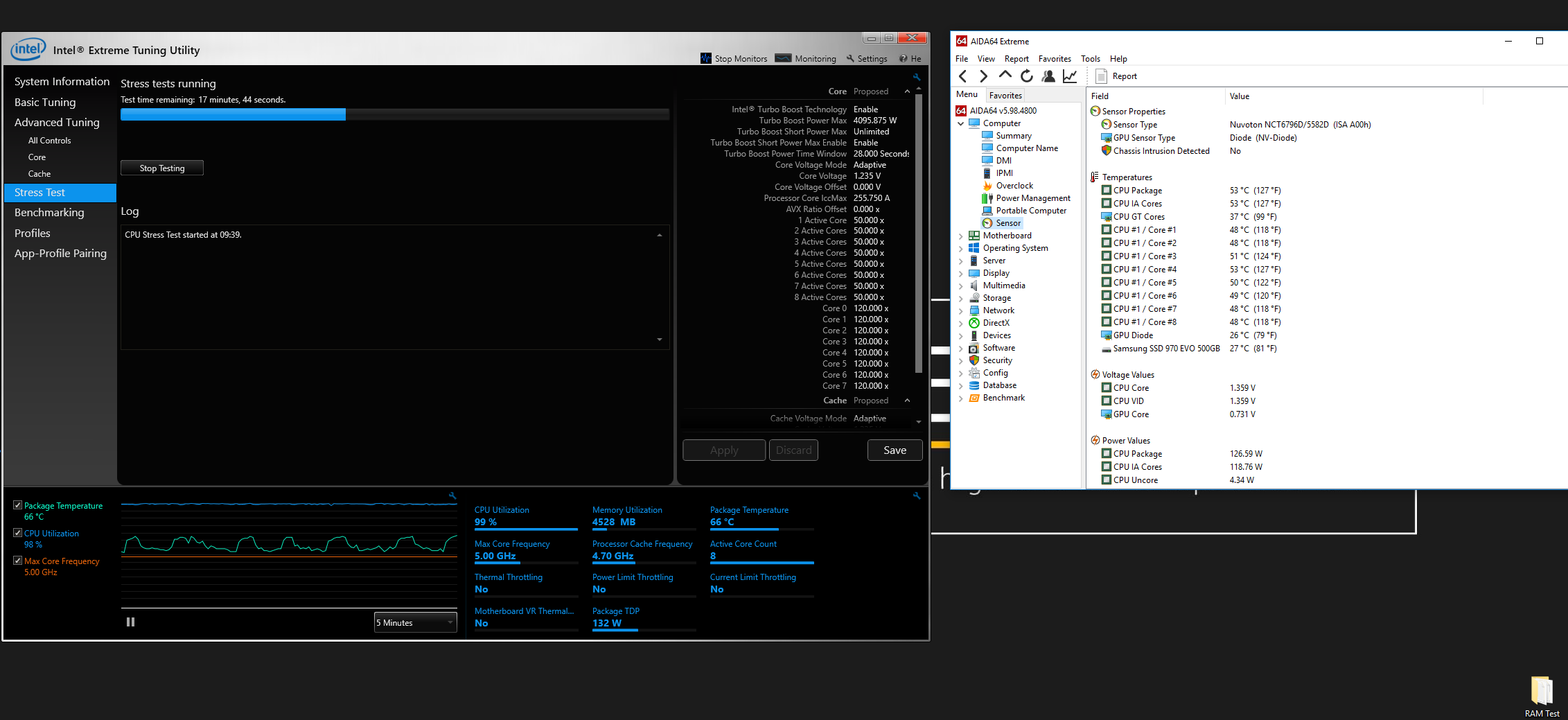

XTU temps.

ViRuS2k · 28 Oct 2018 at 10:00

haha i still got my 9900k in a drawer lol as i might be sending it back im thinking a 8700K @5.2ghz is fast enough for gaming

+ the fact the motherboards i want are not even out and no one knows anything about them ! Asus Xtreme z390 or Gigabyte Xtreme Z390 both boards are no where to be seen.

Going to phone OCUK tomorrow and get a 30 Day RMA that way if the boards are not out within that time the CPU goes back. lol

Silent_Scone · 28 Oct 2018 at 10:23

ViRuS2k said:
haha i still got my 9900k in a drawer lol as i might be sending it back im thinking a 8700K @5.2ghz is fast enough for gaming
+ the fact the motherboards i want are not even out and no one knows anything about them ! Asus Xtreme z390 or Gigabyte Xtreme Z390 both boards are no where to be seen.

Going to phone OCUK tomorrow and get a 30 Day RMA that way if the boards are not out within that time the CPU goes back. lol

Extreme will be landing shortly.

rIcK · 28 Oct 2018 at 13:08

I currently have an 8700k it's been a great processor and sits at 4.8ghz easily. Not tried to push it further. The 9900k is on order I think I'll just slap it in my Z370 board for the moment to avoid a rebuild.

I got the impression the 9900k was hotter, but is this not the case?

Distracted · 28 Oct 2018 at 13:12

rIcK said:
I currently have an 8700k it's been a great processor and sits at 4.8ghz easily. Not tried to push it further. The 9900k is on order I think I'll just slap it in my Z370 board for the moment to avoid a rebuild.

I got the impression the 9900k was hotter, but is this not the case?

Not for me, stock vs stock it is cooler than my 8700k. Thats with 2 extra cores and a higher base clock.

It does get hotter when overclocking, but still cooler than my 8700k when that was overclocked.

And stress tests like Prime push the temps sky high but that is to be expected with any cpu running an intensive avx load.

Coolasmoo · 28 Oct 2018 at 13:31

rIcK said:
I currently have an 8700k it's been a great processor and sits at 4.8ghz easily. Not tried to push it further. The 9900k is on order I think I'll just slap it in my Z370 board for the moment to avoid a rebuild.

I got the impression the 9900k was hotter, but is this not the case?

Mine runs slightly cooler than the 1800x at 3.9 it replaced

My voltage is 1.24 Max on the Aorus (Auto volts)

Nickolp1974 · 28 Oct 2018 at 16:33

Silent_Scone said:
Let the games begin

ASUS Formula XI / 9900K 5GHz @ 1.25v

Nice looking system you got there! mate

and a cool i9, erm whats PP?

Parsley · 28 Oct 2018 at 17:02

I assume he means LL, load line.

Distracted · 28 Oct 2018 at 17:33

I thought it meant power plan, as in windows power plan set to balanced.

Nickolp1974 · 28 Oct 2018 at 18:03

Distracted said:
I thought it meant power plan, as in windows power plan set to balanced.

This seems most likely. Great temps either way. Interested to know what the average max freq is, 5.1ghz? I'm still unsure to hold out for retail or just go oem, the pull is strong to just buy now though :/

Parsley · 28 Oct 2018 at 18:46

Fair enough. Didn't even occur to me to leave it on balanced, I always go and mess with it on a fresh install.

His temps are really great but his core temps don't hold as they are shown there, they increase and then drop down. XTU has a spike in core temps that then drops, then the package temp remains higher before dropping itself, then the cycle repeats. It is a very consistant stress test, at least from my experience.

Silent_Scone, would you mind seeing what hwinfo says about your Vcore under load? Mine is reporting a fair bit lower than XTU does and I'm just wondering if it does the same for you.

Silent_Scone · 28 Oct 2018 at 18:57

Nickolp1974 said:
Nice looking system you got there! mate and a cool i9, erm whats PP?

thanks, dude

Sorry, Windows power plan

Parsley said:
Fair enough. Didn't even occur to me to leave it on balanced, I always go and mess with it on a fresh install.

His temps are really great but his core temps don't hold as they are shown there, they increase and then drop down. XTU has a spike in core temps that then drops, then the package temp remains higher before dropping itself, then the cycle repeats. It is a very consistant stress test, at least from my experience.

Silent_Scone, would you mind seeing what hwinfo says about your Vcore under load? Mine is reporting a fair bit lower than XTU does and I'm just wondering if it does the same for you.

Hi, depends how you're setting it up. LLC, manual or adaptive, etc. Under adaptive you're going to see some variation due to how Intel is handling things on the VID side. With LLC 4 I see anywhere from 1.24 to 1.32v depending on load conditions

Parsley · 28 Oct 2018 at 21:30

I'm using adaptive though I have an offset to lower that. I have 8 levels of LLC on my board, with 8 being the highest. 7 doesn't give me quite enough but 8 gives me waaaay to much voltage. Maybe Asus will improve it with a bios update.

robin66 · 28 Oct 2018 at 22:18

Found this earlier. A great guide if you have an Asus board. And being new to Asus it helped me a lot.

Phil2008 · 29 Oct 2018 at 03:10

Coolasmoo said:
If money isn't a problem just get one and enjoy the upgrade.

I agree, plus more of you might be able todo this now by paying monthly installments with paypal, I upgraded my pc using this method

Silent_Scone said:
Let the games begin

ASUS Formula XI / 9900K 5GHz @ 1.25v

Im loving the small case,, I have gone off the large cases, I like just enough room for the hardware without loads of room left over. I have the Cooltek W2 Case, its nice and small, minimalistic and it can take a extra large motherboard and a long gfx card. Plus it stays nice and cool with just 2 140mm front fans and a rear 120mm fan.

subbytna · 29 Oct 2018 at 09:15

My OCD is twitching at that weird loop kink CPU to mobo line.

Drollic · 29 Oct 2018 at 09:16

Parsley said:
I'm using adaptive though I have an offset to lower that. I have 8 levels of LLC on my board, with 8 being the highest. 7 doesn't give me quite enough but 8 gives me waaaay to much voltage. Maybe Asus will improve it with a bios update.

That doesn't make sense? You could lower your offset value or use a positive value so it's giving more volts then you don't need to use as higher llc setting? You alter the offset taking into account the llc setting to get the exact adaptive voltage under load, not changing the llc setting to try and get the exact voltage as you will find that no setting probably is just right.

Nickolp1974 · 29 Oct 2018 at 09:47

@Gibbo any more news on retail cpu's? One place has there's as 31st oct but that probably means nowt.

Gibbo · 29 Oct 2018 at 10:29

Nickolp1974 said:
@Gibbo any more news on retail cpu's? One place has there's as 31st oct but that probably means nowt.

Some arriving this week but there will not be any spare I am afraid, backorders are higher than quantity of stock incoming.

Parsley · 29 Oct 2018 at 10:43

Drollic said:
That doesn't make sense? You could lower your offset value or use a positive value so it's giving more volts then you don't need to use as higher llc setting? You alter the offset taking into account the llc setting to get the exact adaptive voltage under load, not changing the llc setting to try and get the exact voltage as you will find that no setting probably is just right.

I have vdroop or over voltage regardless. It doesn't matter what I set the offset to, it still isn't right and it behaves strangely. I have managed to get it better however though I'm going to set up a manual voltage tonight with all the c-states enabled just to see how that goes.

Quite enjoying messing with it.
