Install NEST 3rd gen Potterton Suprima, EP6002 programmer

[hans gruber]

I am hoping to install a 3rd gen NEST myself but am a bit unsure about the wiring to the heatink. With the images supplied can someone help me with the type of system and where to put the wires into the heatlink and which ones go to the thermostat?

EDIT: Anyone know why I cant get the images to embed? EDIT2: It's funny as the embedded images show on my phone but not on my PC in IE (they do though in Firefox?).

http://i46.photobucket.com/albums/f117/Ricky_Spanish/2_zpsszzv9eef.jpg
http://i46.photobucket.com/albums/f117/Ricky_Spanish/1_zpsgipm2khu.jpg
http://i46.photobucket.com/albums/f117/Ricky_Spanish/3_zps0eh0bd60.jpg

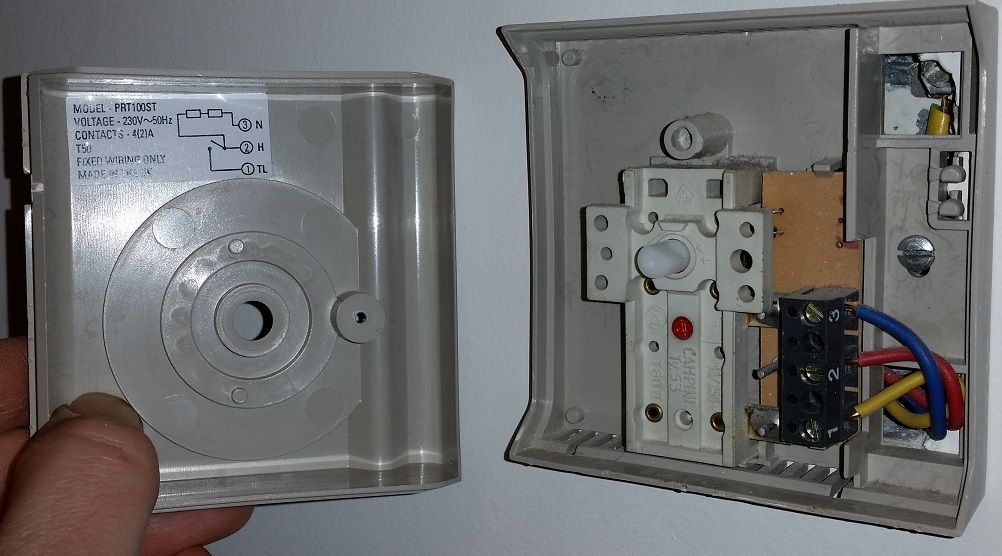

http://i46.photobucket.com/albums/f117/Ricky_Spanish/4_zpsfnf2ccxc.jpg

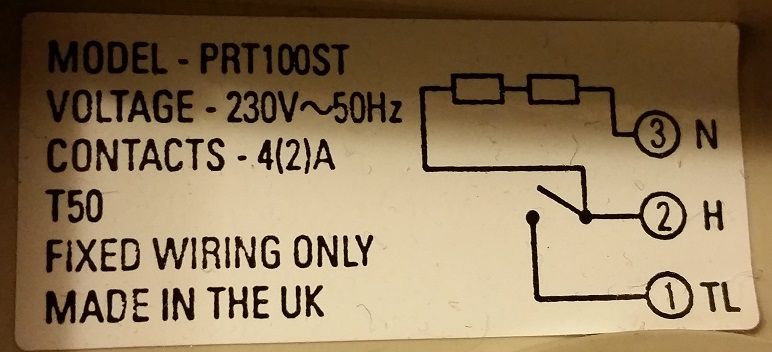

http://i46.photobucket.com/albums/f117/Ricky_Spanish/5_zpsqkmco2nk.jpg
