Integrated PC desk build

c0mpsaysno · 13 Jun 2018 at 21:05

Why hello again everyone - its been around 5 years since I was last on here. My trusted Antec 1200 custom build has proven very reliable over the years and had gone through a few revisions, however, now I am bored. And I want a challenge. I have always liked the idea of an integrated PC into a desk. I am bored of building computers in the sense as to where I have built so many, I needed a challenge. Watercooling isnt hard anymore either so I decided to try something new. You will have to excuse the pictures initially as I never planned to actually do a build log, but the ones so far will give a good idea of my plan. The colour scheme is white with blue coolant and accents

And please excuse me ahead of time - I am not very good at writing, I am recovering from recent bad mental health issues (I suffer from PTSD) and my brain is still struggling. This is a little recovery project which I am working on as and when I get the strength. So please be gentle in your responses. I am not firing on all cylinders

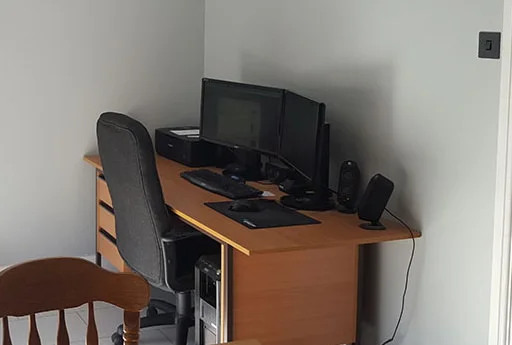

So, I had a very boring, very normal desk which was still perfectly decent enough, so I wanted to use that as a frame work. This was how it used to look

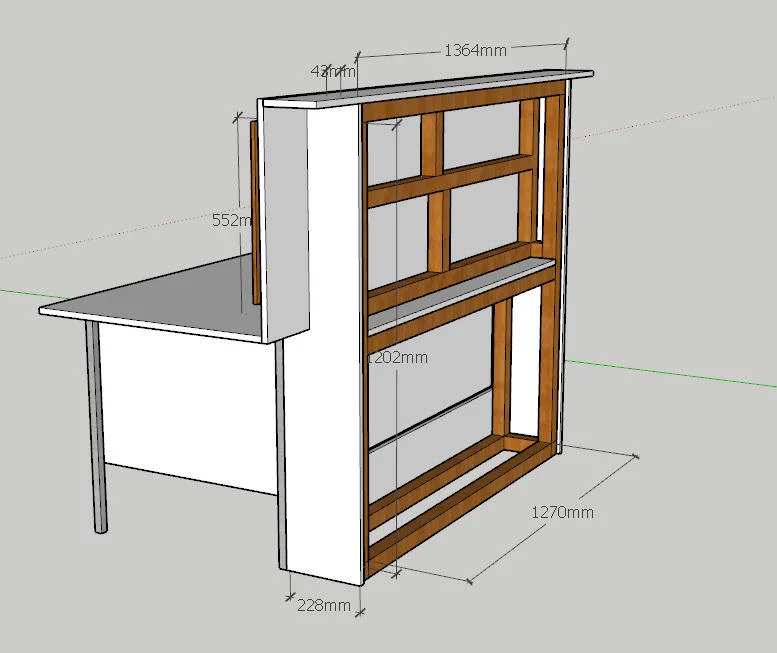

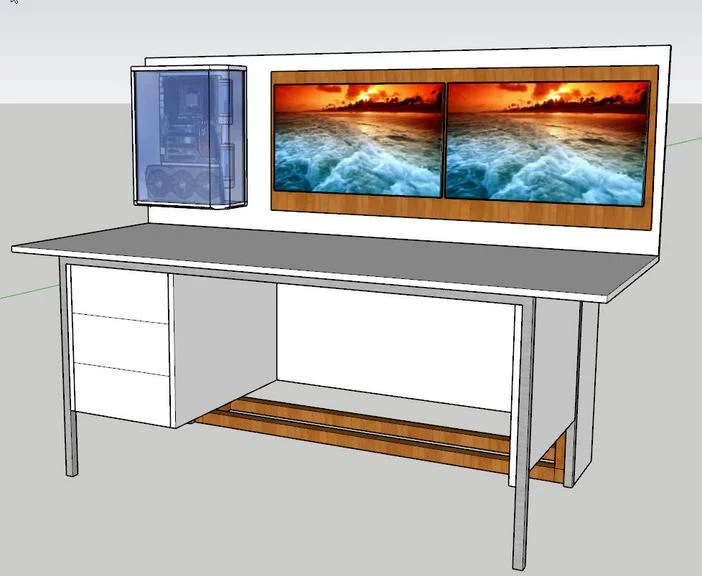

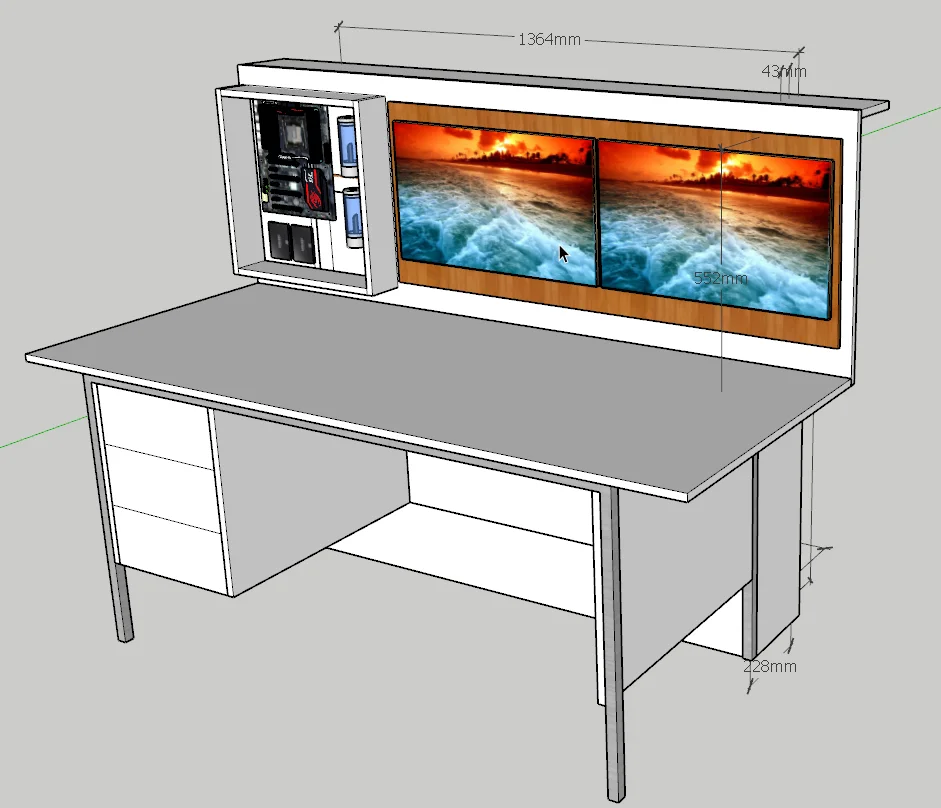

So I started to mess about with sketchup, went through a variety of designs, before kinda half settling on this.

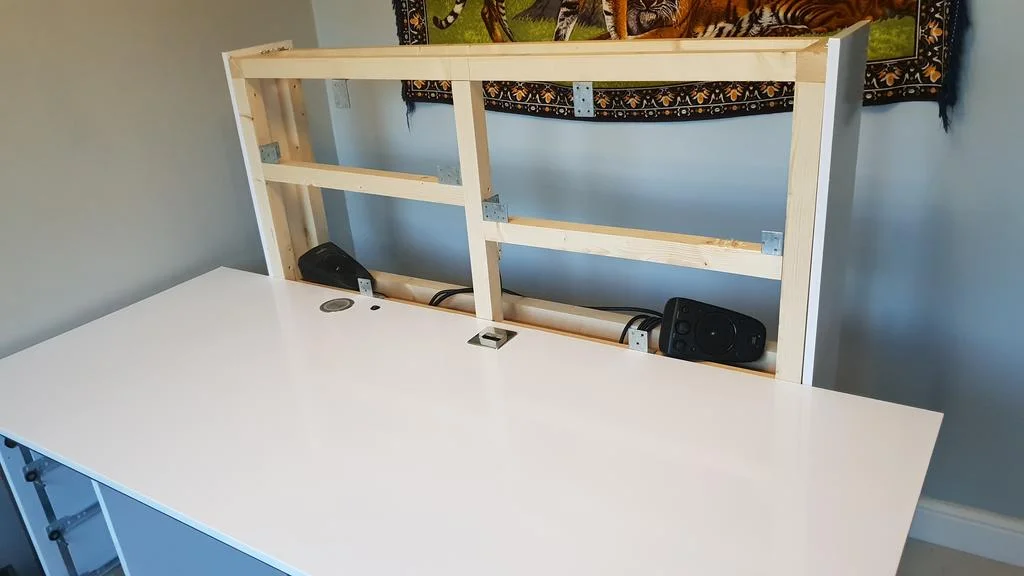

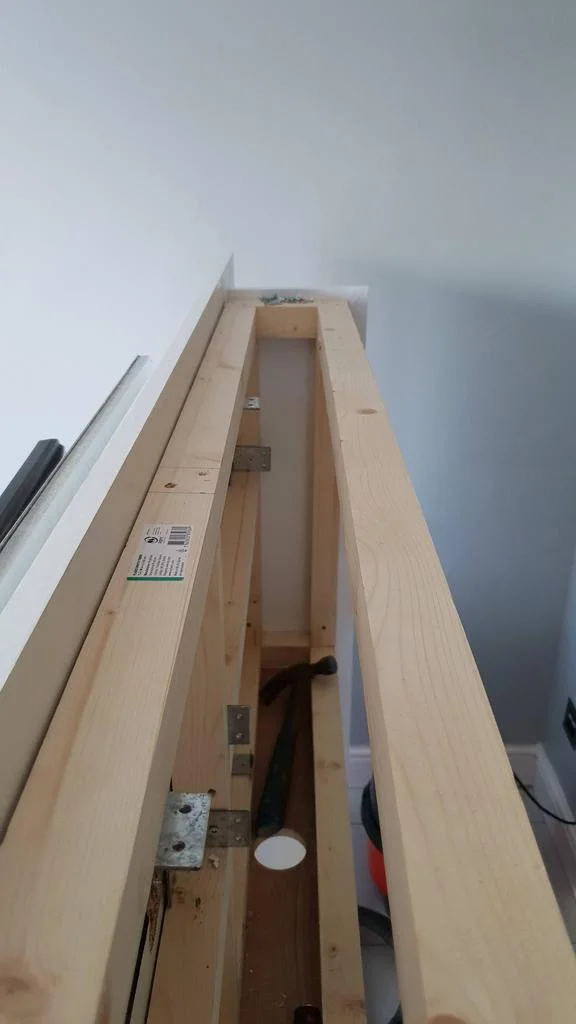

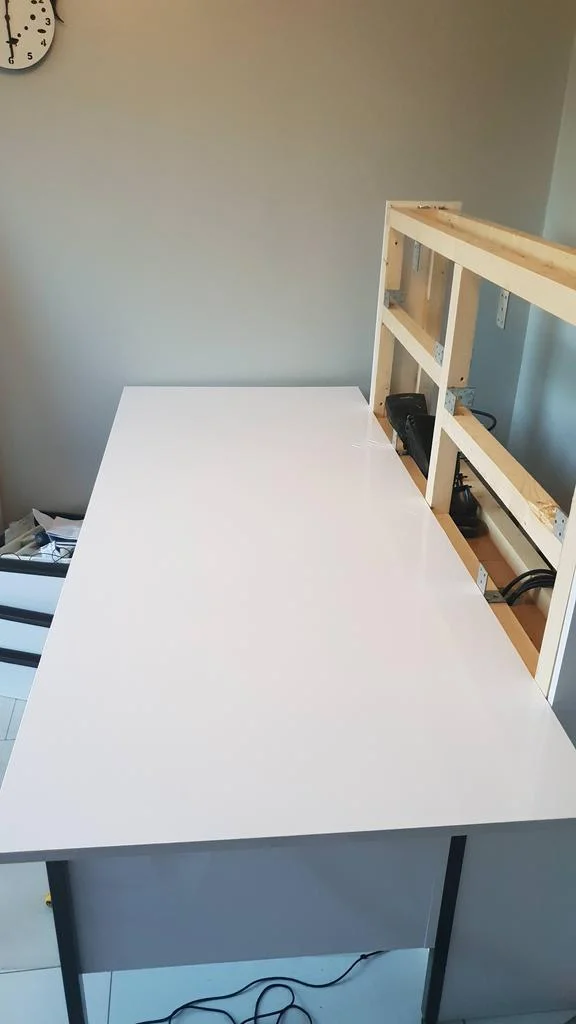

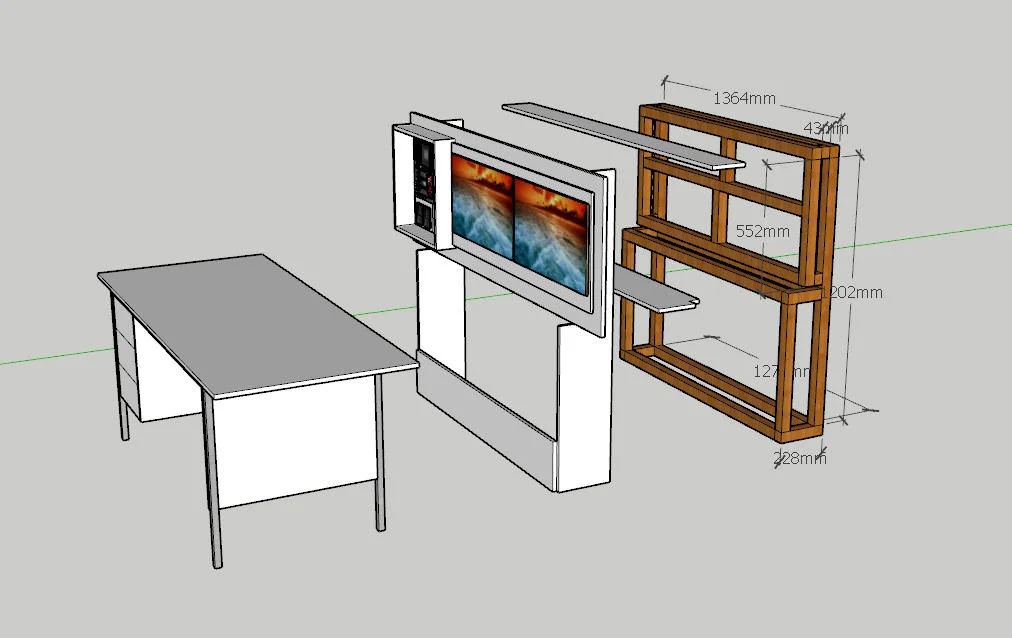

Got to building the carcass out of 2"x2" lumber, and bought some 16mm boards. I have quite a bit of experience with vinyl wrapping and decided that the desk and the vertical mounts would be vinyl wrapped in automotive quality gloss white wrap. Sides were created, and desk secured with the carcass.

VESA mounts were bought and mounted on the backboard however I wanted a contrast in colour so a "fake wall" was created to set off the monitors away from the backboard as well as providing a comfortable way of hiding the VESA mounts.

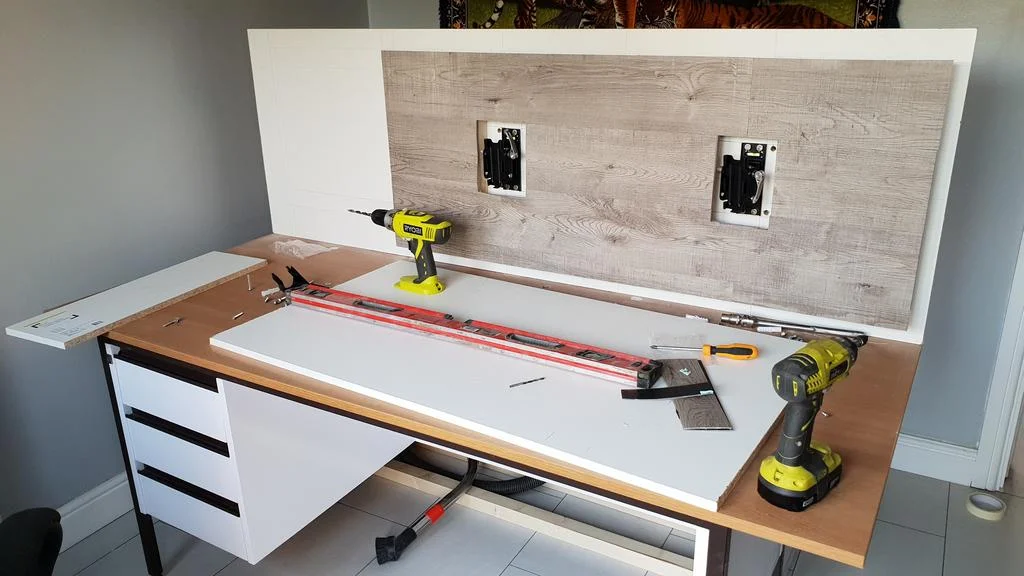

A small frame was built out of the 2" bits of lumber and some hardboard attached to it. I primed the hardboard with automotive quality primer using my compressor to prevent the dust from the hardboard preventing any panelling from sticking to it. I then used some wood quality floor vinyl panels to place over the hardboard to give what I hoped would be a nicer finish. You can see here how the desk has already been partially vinyl wrapped.

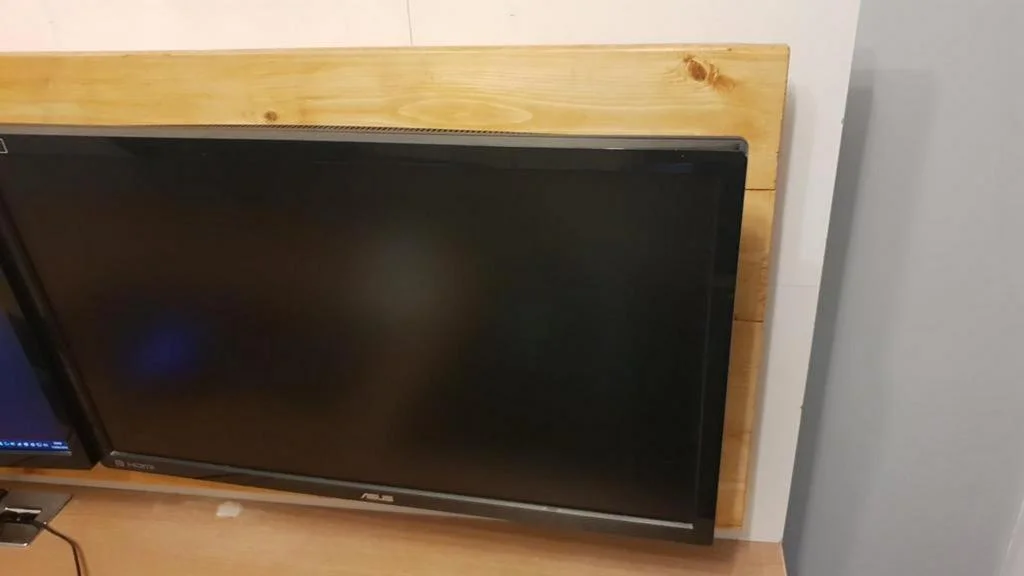

Anyway, the vinyl flooring proved to be useless and would not stick properly even when using contact cement, so I ripped it off, bought some pine boards, and stained them. This gave a much nicer effect.

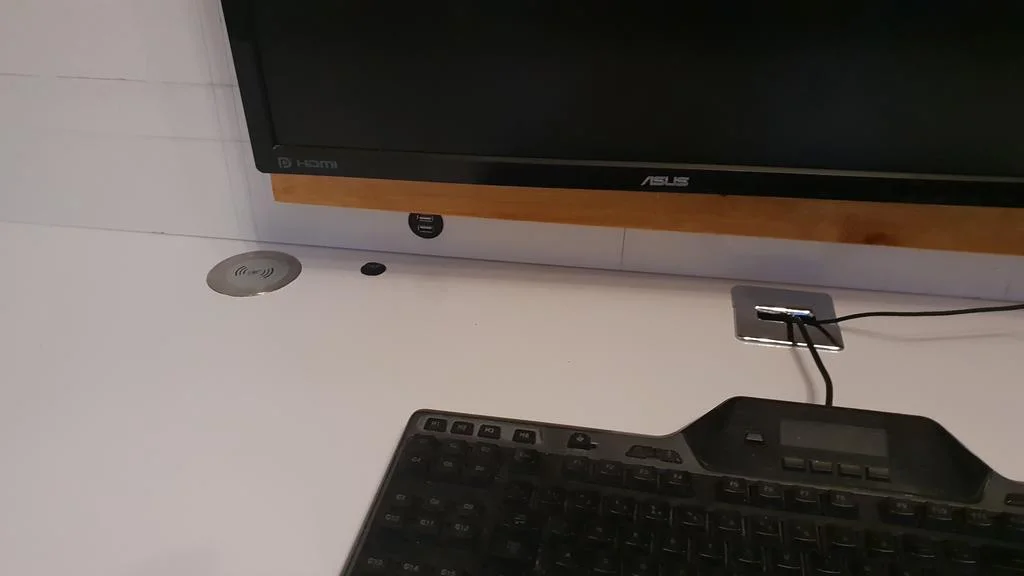

The top of the desk hadnt been vinyl wrapped as I was still wanting to cut out holes in it, and the backboard too. So I installed a recessed wireless phone charger, a 3 way toggle switch for LED lighting which is going to run behind the false wall (white lighting for desk work, and red lighting at night time when working on PC or gaming), as well as a nice chrome cable through for keyboard and mouse. A USB socket has been installed in the backboard as well, this will be hooked up to the motherboard front USB pins.

I then decided that I didnt like the design of the case, so redesigned it and mocked up a quick design.

c0mpsaysno · 13 Jun 2018 at 21:25

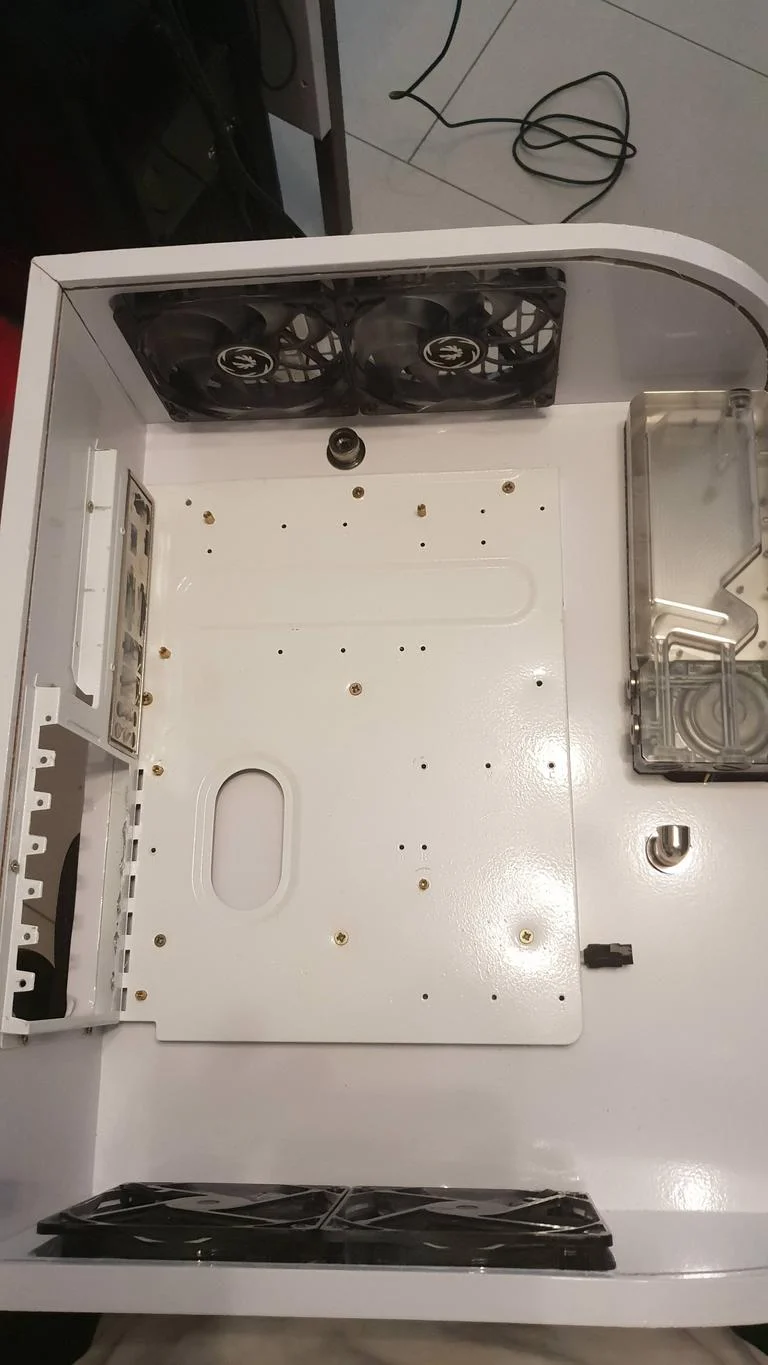

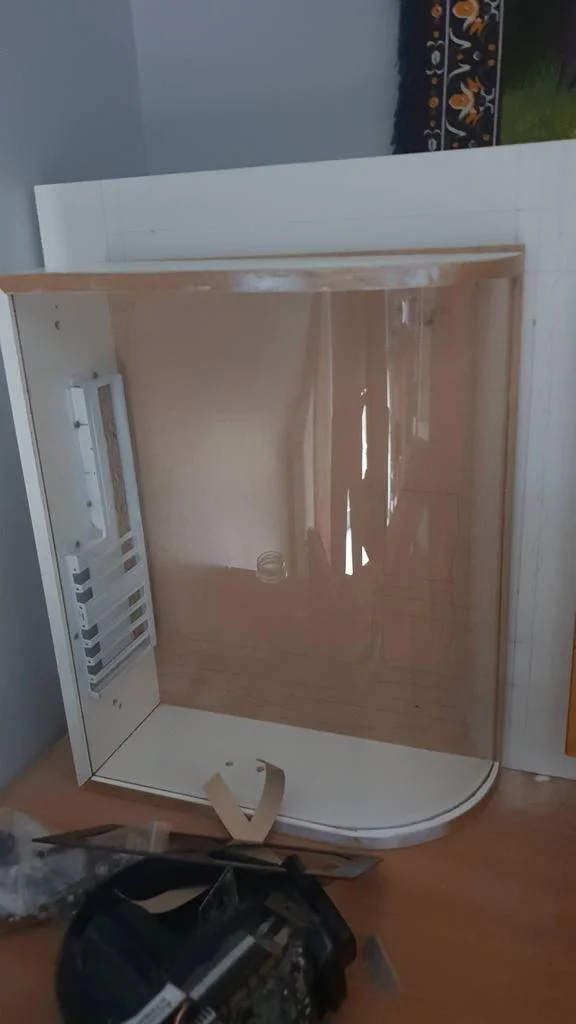

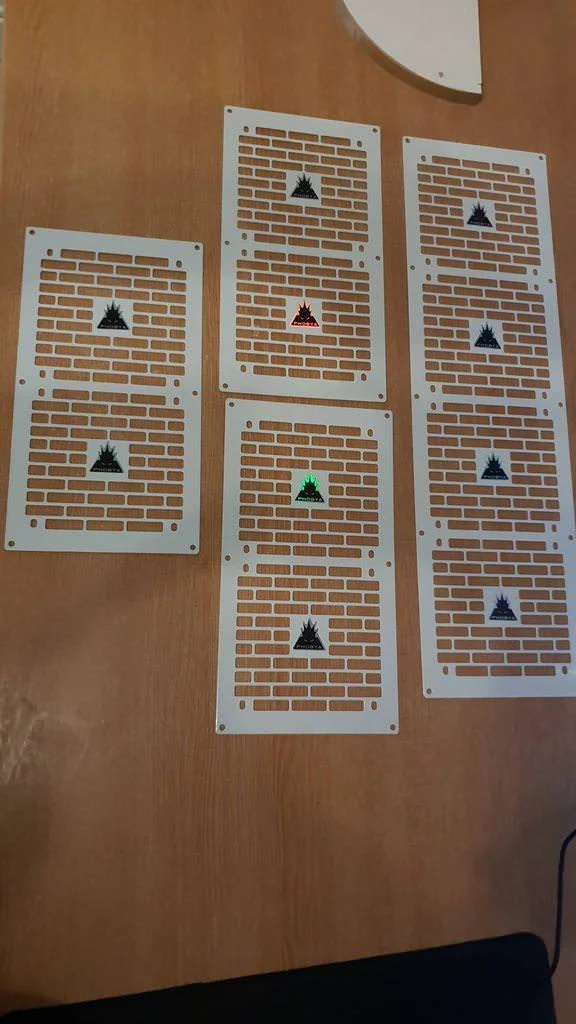

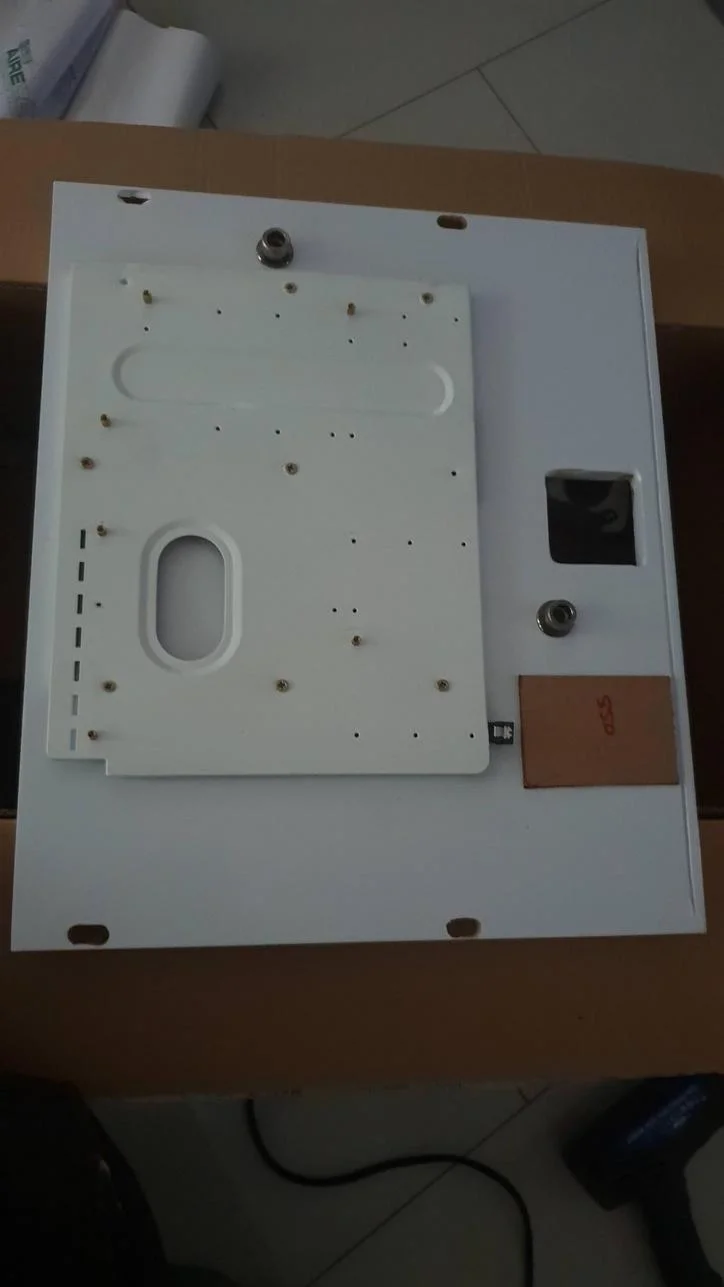

I took one of my many spare cases I have lying around and drilled all the rivets out to give me access to the rear IO tray. I also removed the motherboard tray in the same way and both were painted gloss white with my compressor using automotive paint. The rear of the case was then routered out and an old AMD MB and 285GTX mocked up just so that I could get the sizes right. The case is 450mm wide by 160mm deep by 550mm high. This was because I originally was going to place a single 240mm rad at the top of the case for cooling the CPU however then decided that I am going to mount it, and the GPU rad at the top of the backboard instead as I had no way of accessing the case internals if I sealed the top of it with a rad.

Cooling is going to be at the bottom of the case with 2x 240mm white led fans, and at the top, with the same set up in a pull push format. The case will be made shorter as the need for rads is no longer necessary. Components on display will be the MB obviously, the GPU which is currently a 1080, will be mounted in a vertical riser. Both the CPU and GPU are currently watercooled anyway. The SSD's will be on display as will the reserviour.

I am still undecided if I am doing a dual loop - something I havent done before and want to do it just for the sake of it, so not sure yet how many res's I will have or the exact layout of the piping as of yet, but the res will be a Phanteks Glacier 160 if dual loop, 220 if I stay with a single. If I go dual loop, I will throw purple scheme into it as well. The piping will be going through the backboard up to the top of it for the rads, so I will be using hardline at the front of the case (again, never used it before), but probably sticking with flexible hosing behind the desk as I have all the connectors, piping still etc.

I am wanting to custom braid the PSU cables, again, either white and blue for a single loop, or white, blue and purple for a dual loop. Never braided before so again, something I want to try. I need to start mocking up PSU placements behind the desk.

GPU will be cooled by a 480 slimline rad, CPU 240 if using dual loop. If a single loop, I will like them together, so the system will be cooled with both of them.

So, this is where I now ask for opinions

1 - single or dual loop?
2 - colour scheme - thoughts?
3 - I want to make my own cables. I know I can rip apart the existing ones and sleeve them, but I would rather just make my own, just for the sake of it. What gauge wires do I need for the 24 pin, 8 pin ATX, and gpu and sata power cables?

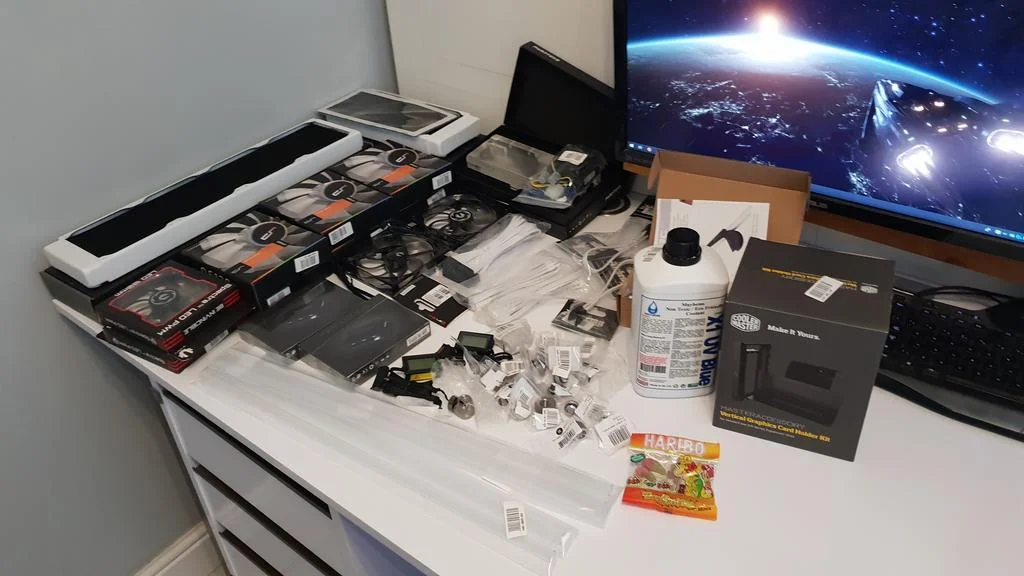

Oh, and these arrived today.

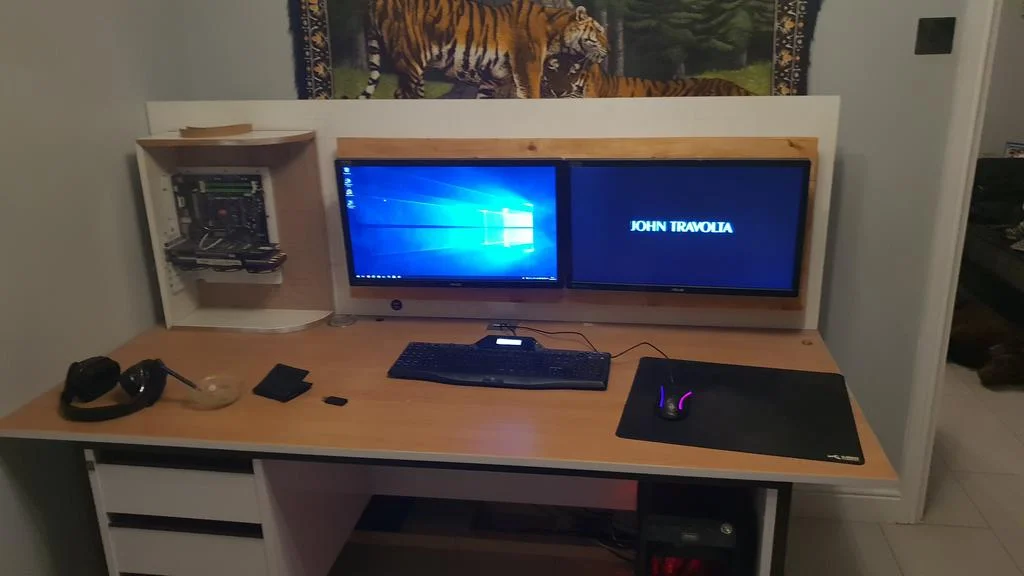

The desk, at this very moment in time, looks like this - the case is just sitting on the desk awaiting parts before I know the depth of the new fans so I can trim it all down to size and work out cable routings (which will be behind the MB and placements of SSD's and res's.

c0mpsaysno · 13 Jun 2018 at 21:26

Sorry - please delete this particular post - figured it out

RevBillyG · 14 Jun 2018 at 08:38

This is fantastic. What a great way to mount the screens. I've got a 4screen setup myself and it's a bit of a pain to get a desk large enough and to place them neatly with hidden cabling.
I'm seriously inspired by this setup and might have to look into doing a similar thing.
Will be watching this log with great interest.

almostgfx · 14 Jun 2018 at 14:24

Very interesting project! Looking great so far!!

NMBlack · 14 Jun 2018 at 16:39

I like the look of this one! An interesting interpretation of a computer desk. Why two monitors instead of a single ultrawide?

modd1uk · 14 Jun 2018 at 16:48

I'm liking this, nice to see something a little different.

c0mpsaysno · 14 Jun 2018 at 17:21

Thanks everyone - I am trying to work on it as and when, but I am not as quick as I used to be. Im finding battling myself is the biggest challenge at the moment.

At the moment, my Antec1200 has a dimastech momentary switch for power in red, but I am thinking that that wont go with the colour scheme, so thinking about maybe a blue switch for the power, mounted along side the front USB ports on the back rest where the monitors are. Thinking of putting the reset switch there too - Any thoughts?

Hoping to rip the desk top of later tonight and get that vinyl wrapped as well as starting to plan out where I am going to mount the PSU. I think cable management will be the easiest possible that I have ever had in this build.

c0mpsaysno · 14 Jun 2018 at 22:30

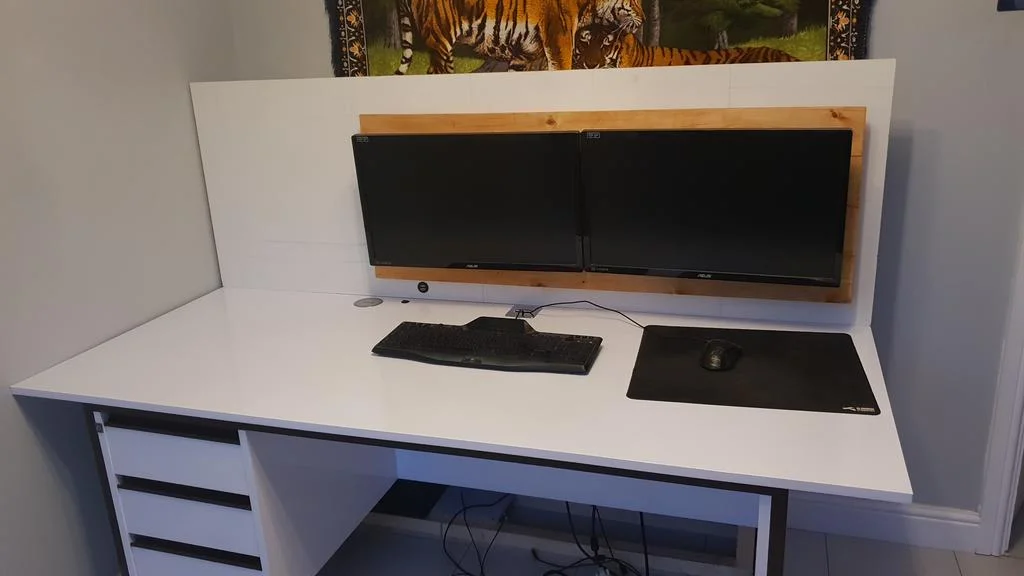

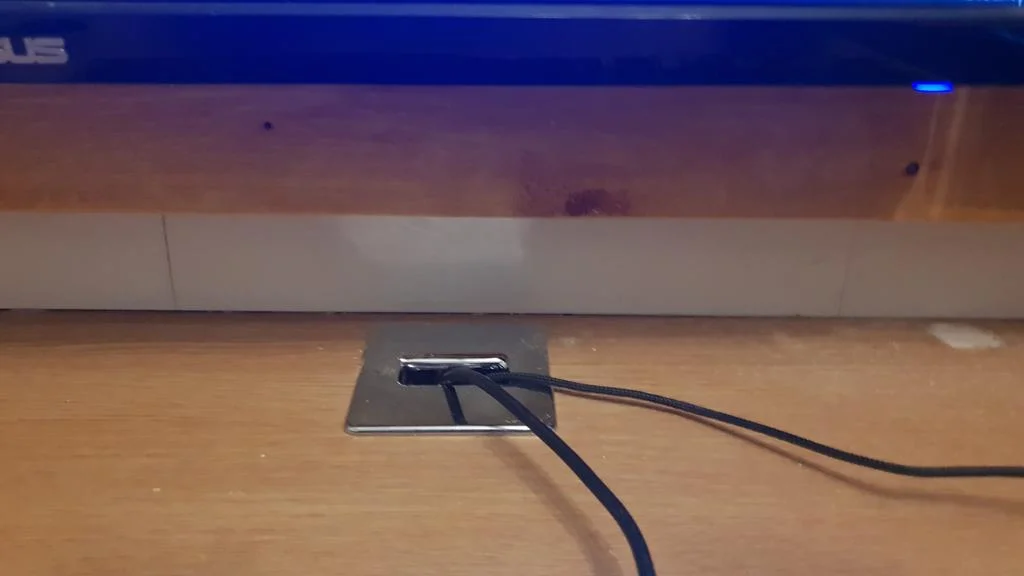

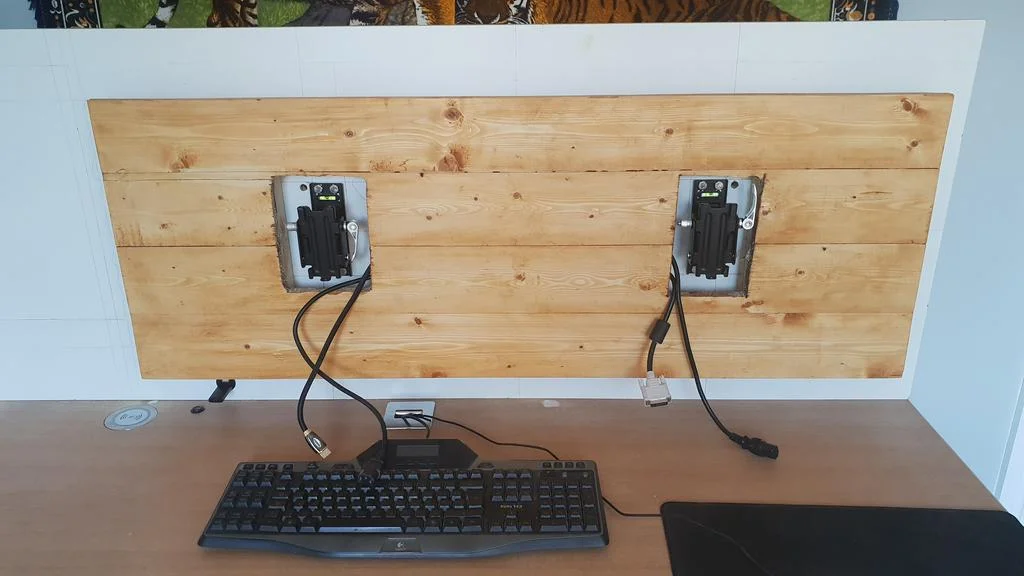

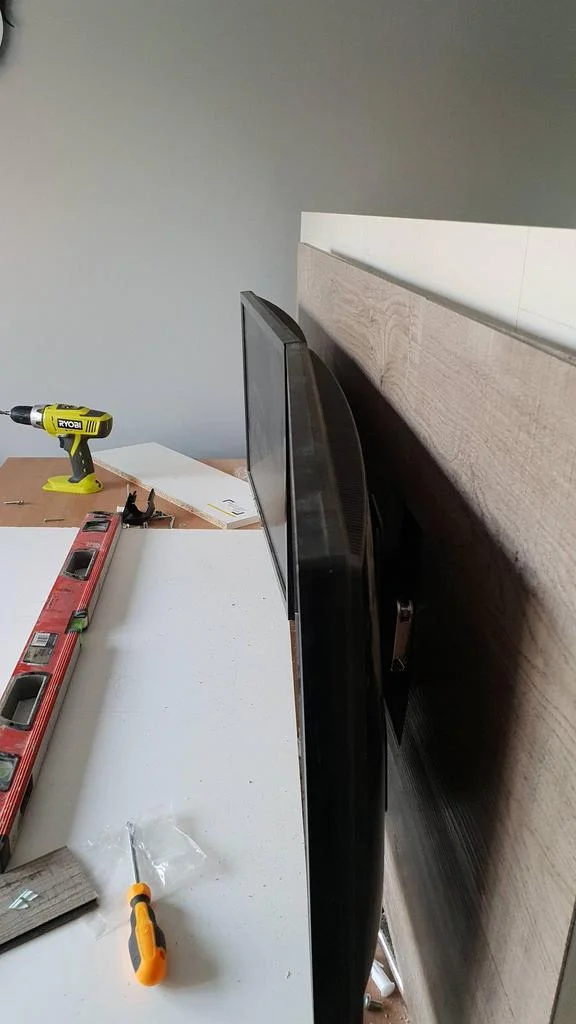

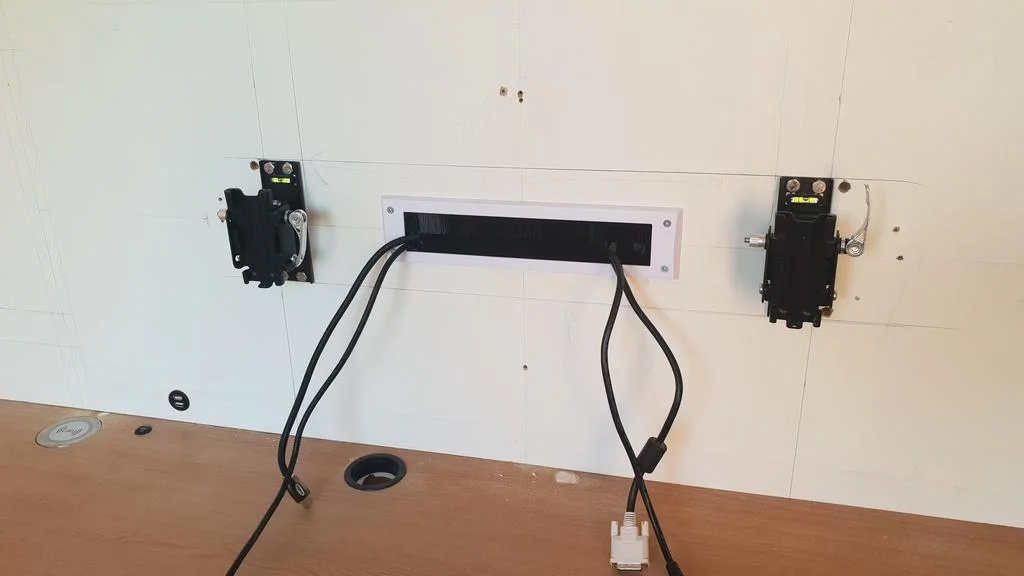

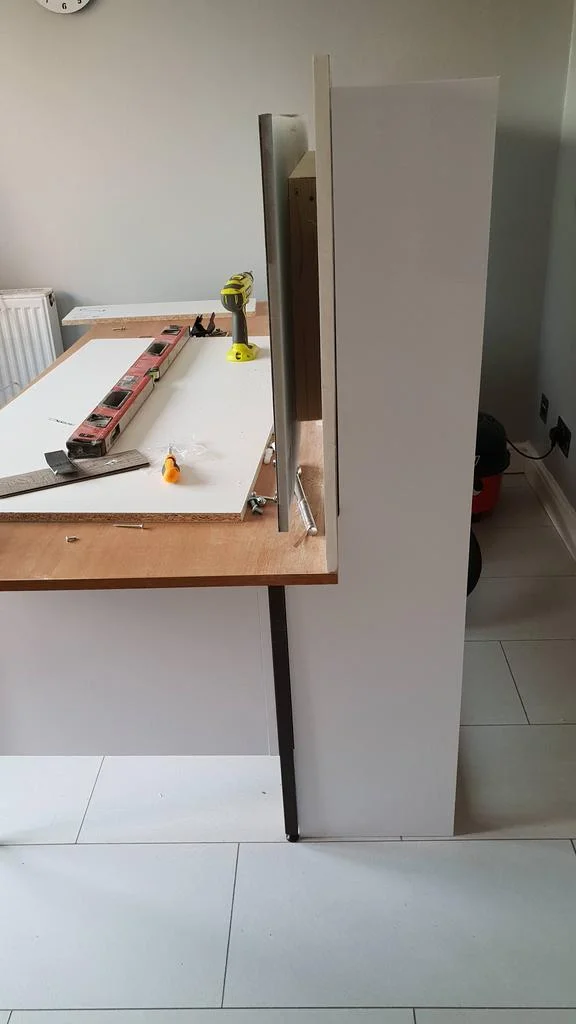

So just did a small amount tonight. Took the desk apart again so that I could wrap the desktop, thought I would take a few pictures just to show the mounting of the monitors. The back panel has not yet been wrapped.

For those eagle eyed, yes, that is a draught protector for letter boxes.

Whilst it was apart, I decided to start with some of the wiring for the toggle switch. The toggle switch is next to the wireless charger and will control two seperate circuits, the one will control white leds providing an integrated desk lamp, and the other one will provide probably red led's, to act as back lighting for the monitors for the night time gaming sessions.

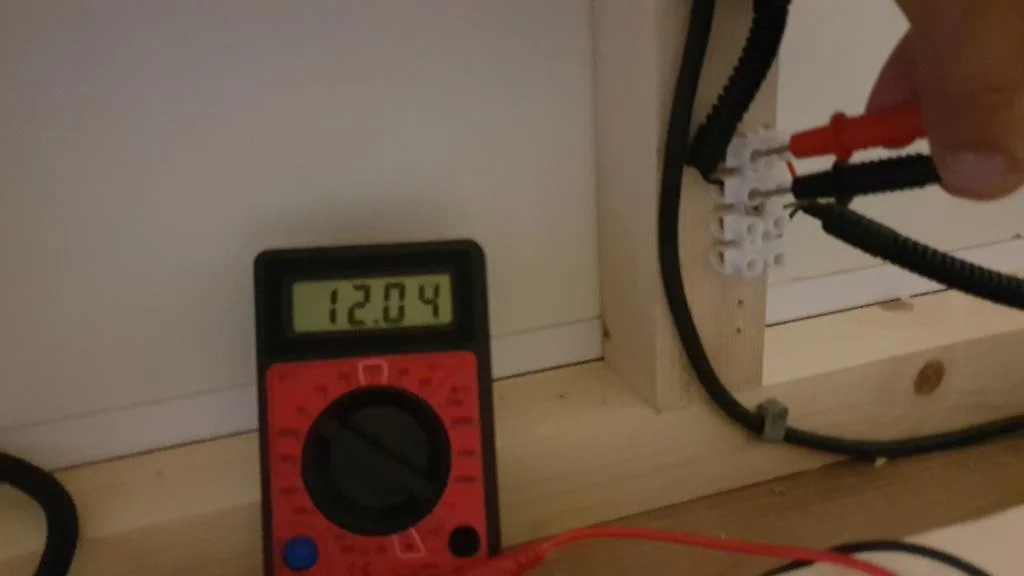

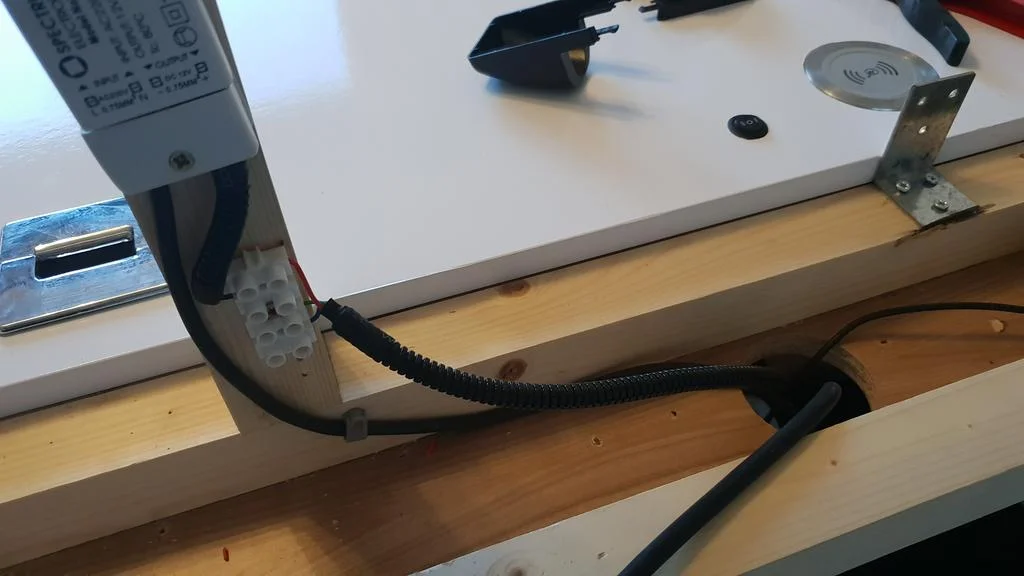

240v to 12v transformer attached and plugged into the sockets which are underneath the desk. 12v wire run to some chock blocks (as I know them to be) and then the live wire subsequently sent to the common of the switch. Two more positives run from the remaining poles and secured back to the blocks awaiting me to get the led strips and wire them in. Ran a length of conduit and shrink wrapped it all together just so that its neat, even though it wont be seen.

Everything then connected up awaiting testing

Started then on vinyl wrapping the desk, and after a short time, it ended up like this

A quick check to make sure the switch was wired up correctly

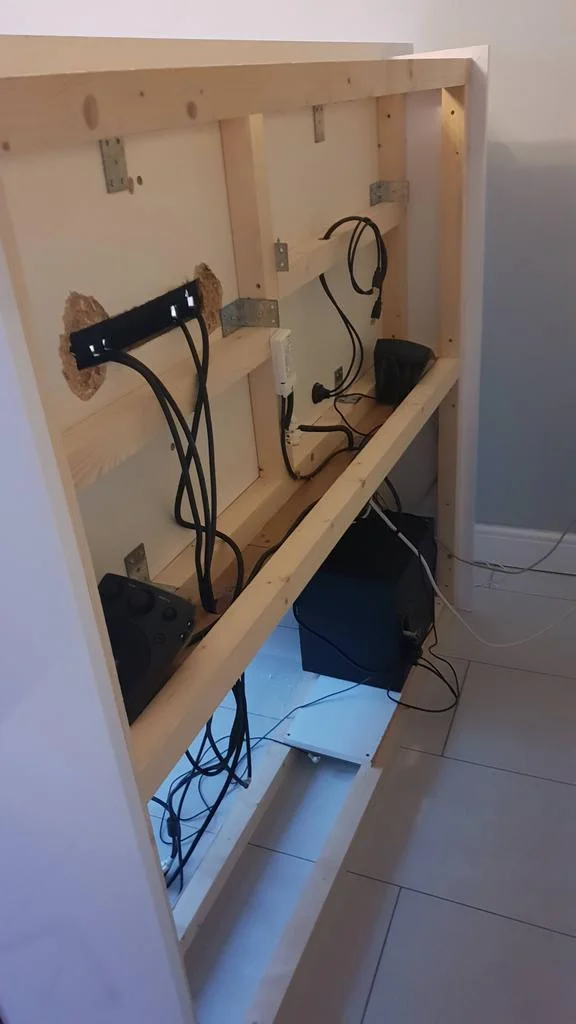

Just to give an idea of what it looks like at the back within the carcass...

Cable management, I am predicting, is going to be really easy

c0mpsaysno · 14 Jun 2018 at 22:49

NMBlack said:
I like the look of this one! An interesting interpretation of a computer desk. Why two monitors instead of a single ultrawide?

I like two monitors, I often work on one screen and watch movies etc on the other, or have a browser on one, office on the other etc

NMBlack · 16 Jun 2018 at 10:40

c0mpsaysno said:
I like two monitors, I often work on one screen and watch movies etc on the other, or have a browser on one, office on the other etc

Fair enough.....and that's an interesting use of a draft excluder, as it'll keep the cables in place and you don't see it behind the monitors.

skylineboy · 19 Jun 2018 at 15:48

I love this! Great work so far!

c0mpsaysno · 20 Jun 2018 at 20:40

New parts arriving tomorrow to get the entire thing completed - now to just find the motivation

c0mpsaysno · 21 Jun 2018 at 13:21

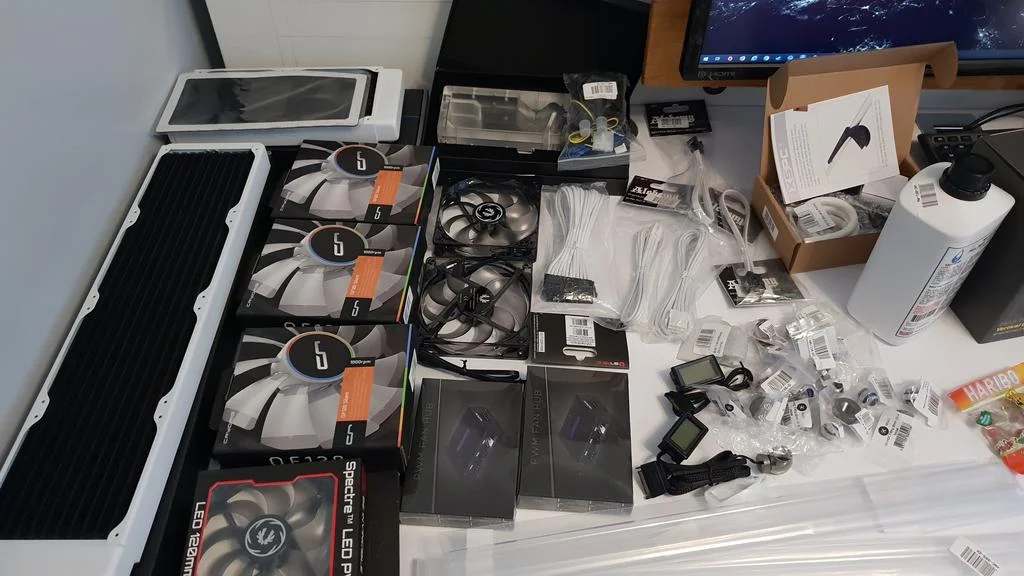

New parts!!

Must say that that Phanteks Glacier res is absolutely gorgeous

c0mpsaysno · 27 Jun 2018 at 23:04

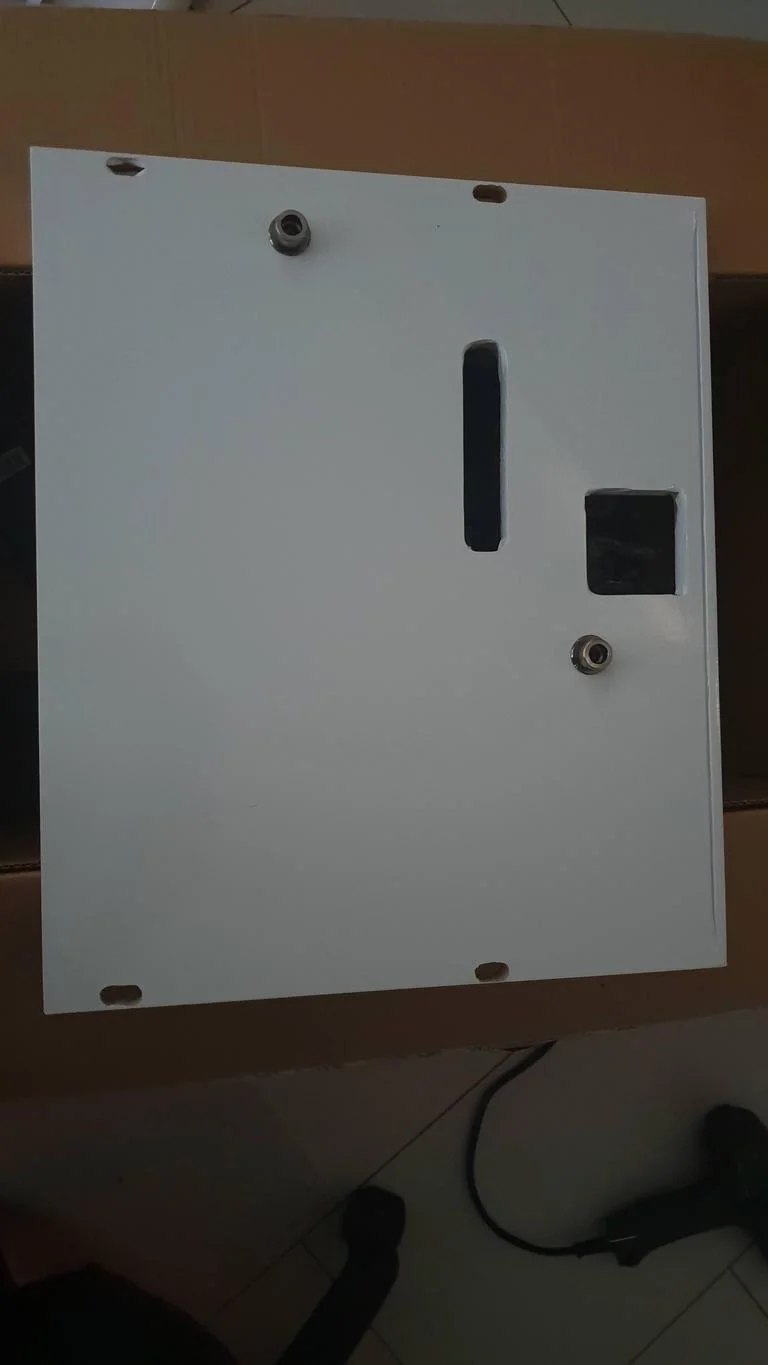

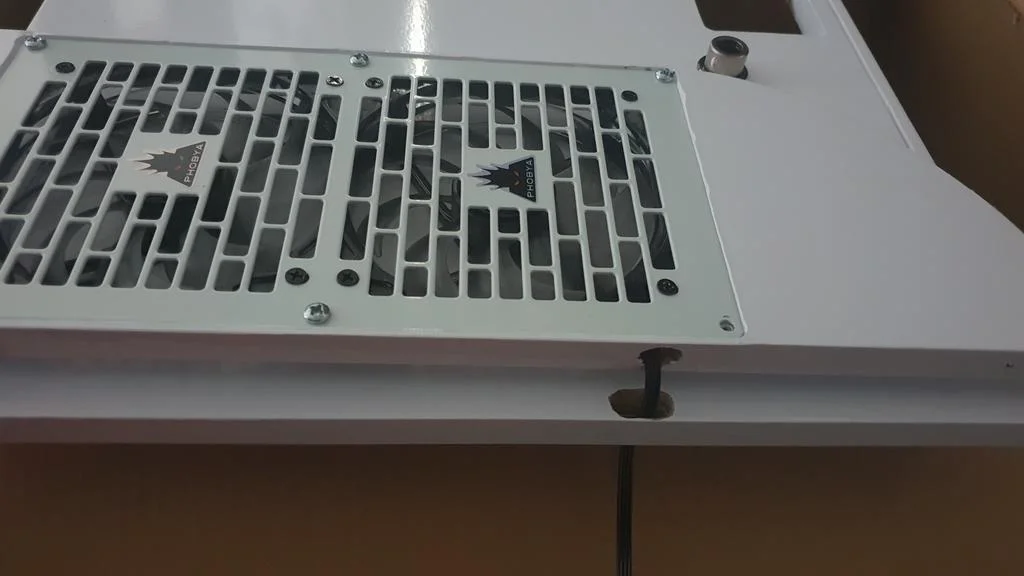

So got some more energy today to work on this. Backplate completed with cable cut outs, as well as passthroughs for the inlet and outlet tubings. Fans installed in their correct orientation, with the wiring going through the wood and out of the back to ensure a completely clean and wirefree fans. Everything vinyl wrapped with the same automotive quality Airlease white gloss wrap as the desk.

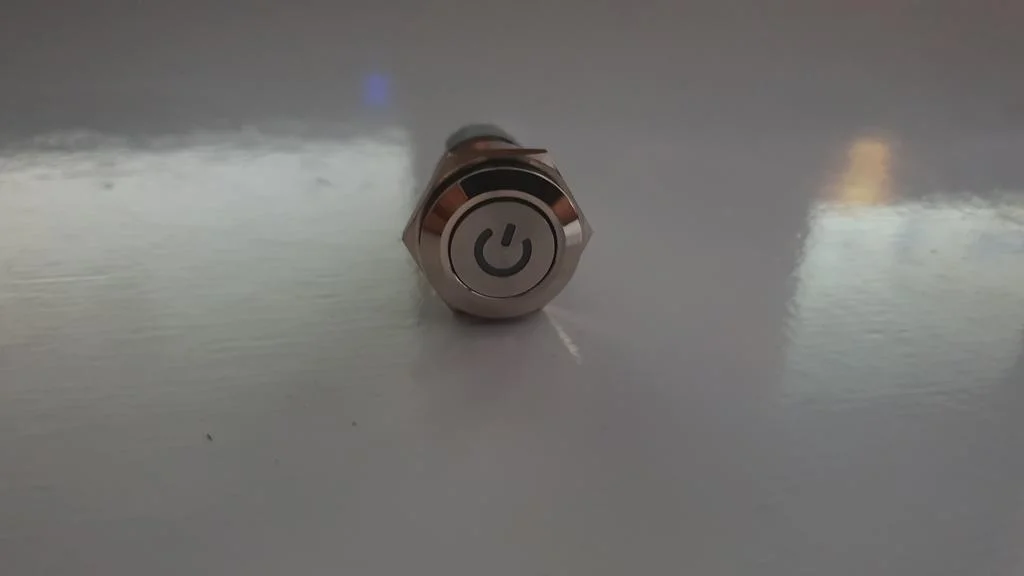

Got a new power button which will light up blue when the PC is turned off. Ill mount is next to the usb sockets

c0mpsaysno · 29 Jun 2018 at 20:18

Question about the PETG fittings - does the pipe have to secure down past the o-ring inside of the compression fitting as well as the one on the screwhead?

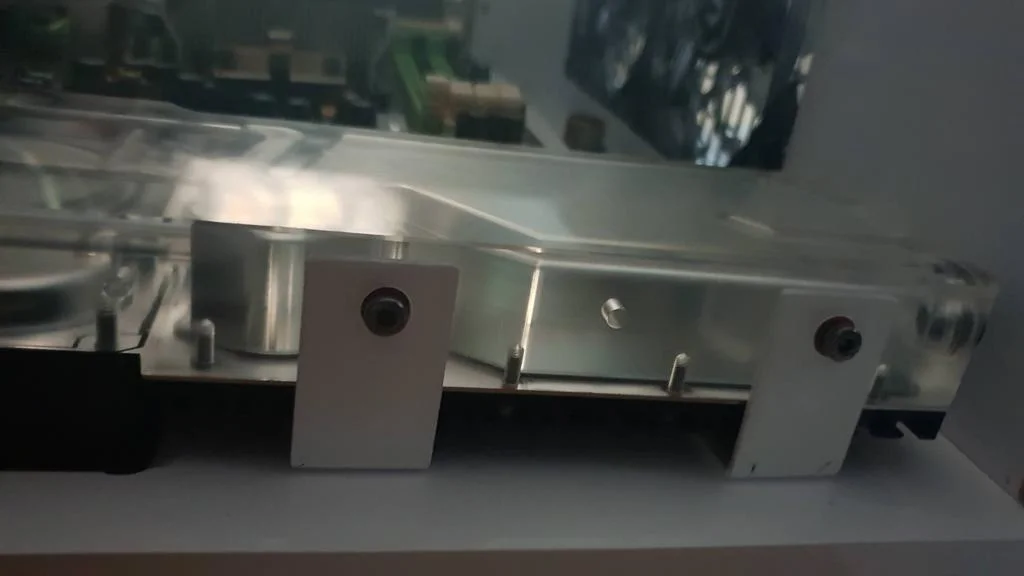

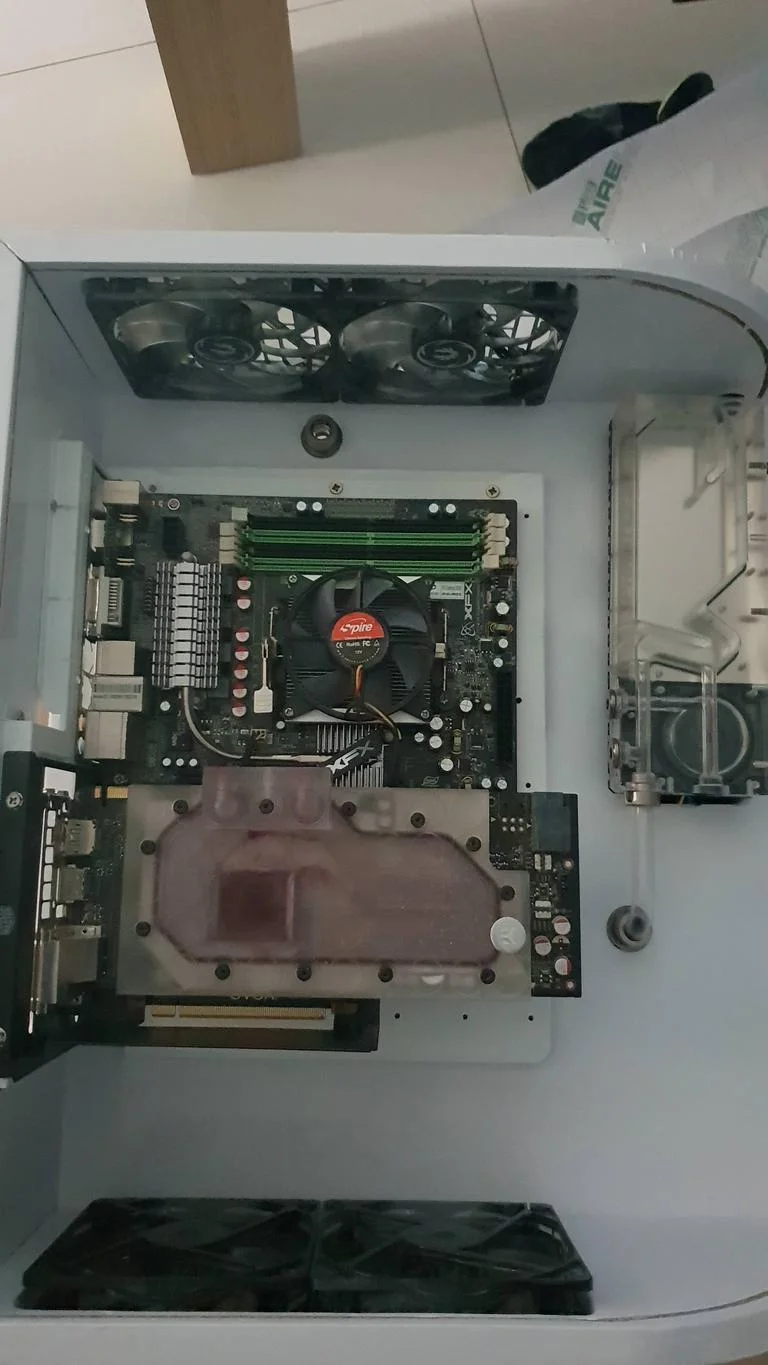

Quick pictures of me just mocking things up with an old broken AMD MB with serial ports and a ex WC 670 GTX. The res is hardtubed up now to the passthrough. Custom brackets made to hold the res in place as the one they provide is just massive and ugly. DDC pump attached and recessed into the case.

The MB will be an MSI Gaming 9 ACK which is in my current system going on, so red accents will be obviously present.

Thoughts about the riser card.... should it be left black, or painting gloss white? Im thinking gloss white, or maybe alternating it between white and blue to coincide with the coolant colour.

Thoughts??

Dan103 · 2 Jul 2018 at 11:13

Looks really good . Boring desk slowly turning into a pretty good looking desk. Looking forward to finished article

c0mpsaysno · 5 Jul 2018 at 21:29

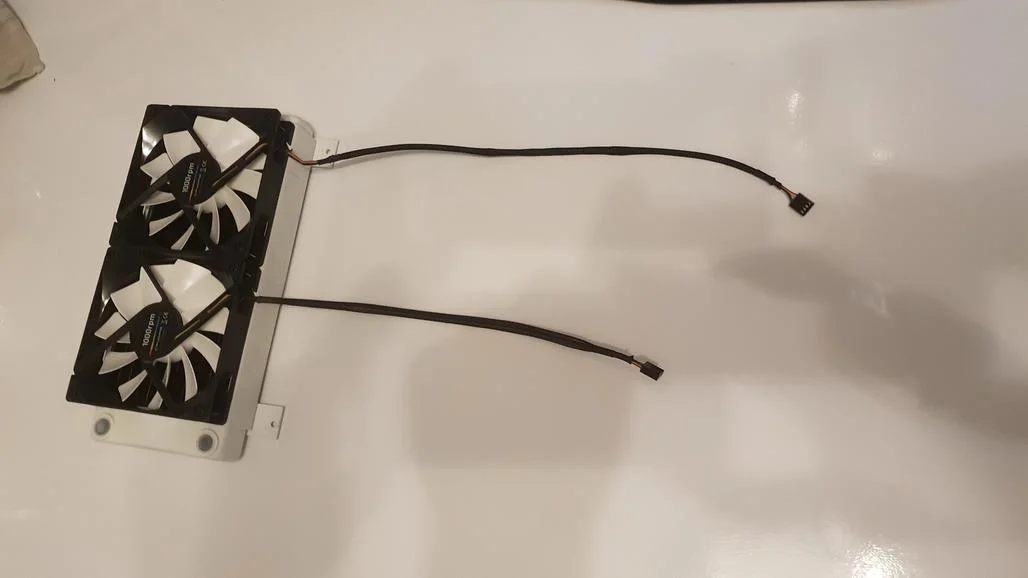

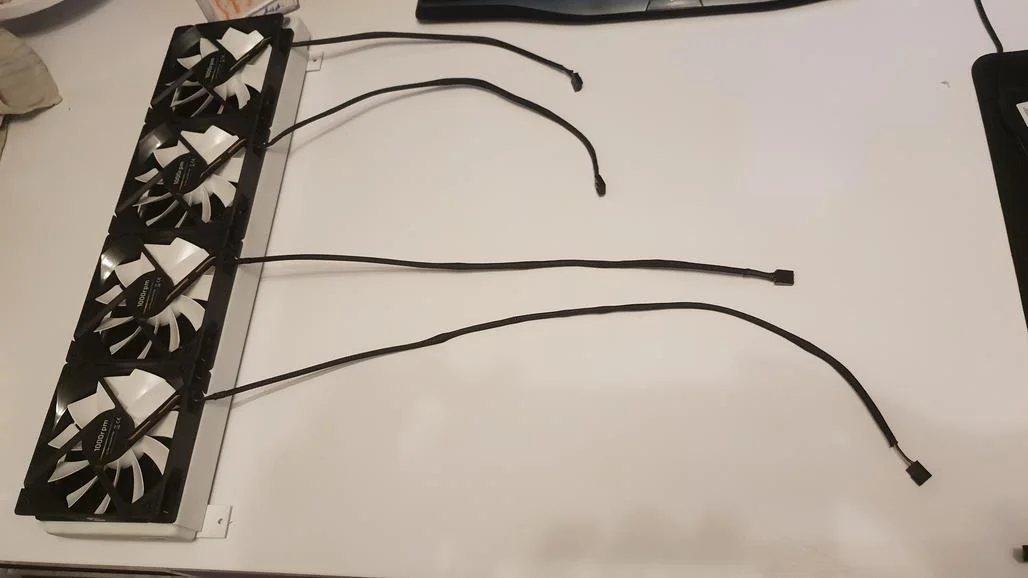

Just a minor update - fan cables extended and resleeved for the radiators so that they could all reach the phanteks hub.

Smffy · 6 Jul 2018 at 09:27

c0mpsaysno said:
Question about the PETG fittings - does the pipe have to secure down past the o-ring inside of the compression fitting as well as the one on the screwhead?

Yes it does, this is the primary seal. Generally you should chamfer the ends (get a £3 copper pipe chamfer tool) and light grit sand the tip to smooth. The idea being it stops square it sharp tube damaging the seals, also much easier to get it in.

It’s difficult sometimes to know it it’s completely in so personally I just dot a dry wipe marker about 1cm up on the PETG (measure the depth) so you know when it’s fully fitted.

LuckyBenski · 6 Jul 2018 at 15:06

Smffy said:
Yes it does, this is the primary seal. Generally you should chamfer the ends (get a £3 copper pipe chamfer tool) and light grit sand the tip to smooth. The idea being it stops square it sharp tube damaging the seals, also much easier to get it in.

It’s difficult sometimes to know it it’s completely in so personally I just dot a dry wipe marker about 1cm up on the PETG (measure the depth) so you know when it’s fully fitted.

I had a hard time with this on some Alphacool hard-line recently. Heavy chamfering helped, and so did wetting the tubing and o-rings before insertion. Sadly I did tear one o-ring.
