Is ram holding me back?

Glaucus · 20 Nov 2008 at 16:18

Am I limited by ram?
Trying to overclock but when I get above 2.5Ghz it crashes or freezes when I run Blend in prime 95, but perfoms fine in place large FFts. In fact in large FFt's I can get over 2.8Ghz. Even at 2.8 cpu only hits 58C at full load

does this mean I have a memory error?

E6300
Asus p5k-e
2GB OCZ 6400

What appears to be stable although need to run a longer test
FSB - 355
Cpu Voltage - 1.3500
Divider - 7
Ram 2.05 (max 2.1)

Is that the maximum i can get? is the ram holding me back, is there some other settings I can try.

GinG · 20 Nov 2008 at 16:53

i had my 6300 running at 3.22ghz for 2 years, just recently has it started to go a bit wrong. Trying to work out what is going on.

at the moment i have my computer running at 2.8mhz.

your fsb dram isnt running 1:1, try running at fsb 1800 and ram divider at 2 - this will give you 800mhz dram.

edit - what cooler have you got, thats pretty high temps...

Gunda · 20 Nov 2008 at 16:55

yeah change your divider on the ram down to 1:1 that should net you a lot more room to overclock the cpu

Glaucus · 20 Nov 2008 at 16:58

Cheers I'll give taht a try. Pretty rubbish akasa cooler.. But willing to go higher.

GinG · 20 Nov 2008 at 17:02

as stated, had to pull it back from 3.22ghz to work out what has gone wrong!

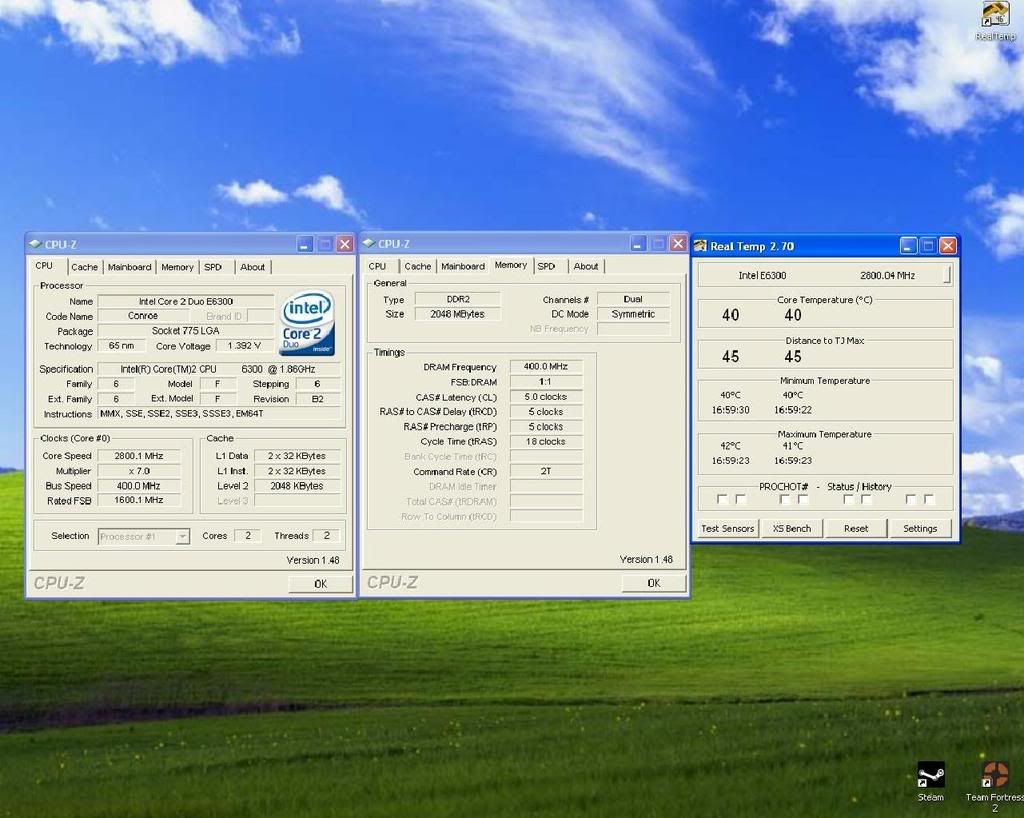

edit: added new image

GinG · 20 Nov 2008 at 17:03

hmmm......dunno whats gone wrong with the screen shot lol

Glaucus · 20 Nov 2008 at 17:13

I cant seem to see where to set dram divider?
and it will only let me select odd numbers for dram fsb

Glaucus · 20 Nov 2008 at 17:30

I see the fsb is related to the Dram fsb. If i set the fsb to 400 Then I can get ram 1:1..

Glaucus · 20 Nov 2008 at 18:55

Thanks guys seem to have it stable at 3ghz and don't want the temps any higher.

think I would need ram and better cooling to go faster.

Although do you have any idea how to stop it dropping the multiplyer? I assuming it's speed stepping or an asus version of the same thing.

zykan · 20 Nov 2008 at 19:03

yeah c1e stepping(speed stepping) in your bios, turn it off. plus you could always go higher than 52c, 65-70 is acceptable!

Glaucus · 20 Nov 2008 at 19:07

zykan said:
yeah c1e stepping(speed stepping) in your bios, turn it off. plus you could always go higher than 52c, 65-70 is acceptable!

If you look at max temp it's 60 at full load after 12mins..

If I up it to 3.2-3.4 after a while it hits 64C and I get a black screen.

Also i don't think the ram likes it as I can't see a setting to isolate the fsb dram. Which means even 3.2 would mean 450Mhz

Gunda · 21 Nov 2008 at 00:48

to be sure its stable i would run those stress tests for at least 5hours.

GinG · 21 Nov 2008 at 09:06

glad you managed to squeeze a bit more out of it!

as said though run the stress test for a bit longer than 12min!

deuse · 21 Nov 2008 at 10:01

My mate has one the of same E6300 and its getting very hard to get it stable
@3.0 even with 1066 ram he just got.

He is now getting a E6300 with a 1.25vid off the bay
That should overclock very well

EDIT here is a pic of my E6300 temps
http://picasaweb.google.co.uk/lh/photo/i6spGq3gWdVwW4q07Ew1BQ

Gunda · 21 Nov 2008 at 13:16

1.14v is amazing for 3ghz on that chip i would have thought you would need at least 1.3 to be stable.
