Juniper SSG5 trunk to Cisco switch

mike1210

mike1210

mike1210

Associate
Joined
20 Jan 2006
Posts
313
Hello all,
I am trying to get my SS5 to trunk to my Cisco 2940 switch. I followed a guide in a book however it was based around trunking 2 bonded connections. Can someone if possible give a base guide on how to trunk it. I have looked around the GUI but nothing stood out. I assume this is possible as they can both use dot1q trunking?

Mike :-)

It's probably called "tagging" on the juniper not trunking. Cisco often confuses people with this as "trunking" in cisco terms is used to apply tagged vlans to a port, to the rest of the world it's creating load sharing groups. Most non Cisco devices refer to tagging for adding multiple VLANs to a port.
Have a look in the VLAN port assignment settings and see if you can set VLANs to be tagged on a specific port. That should sort you out.

On the SSGs you have to create a sub interface and assign the VLAN tags to that, you can't do it on a physical Interface itself. You just need to go to the Interface list then in the top right there is a dropdown box - set that to Sub-IF and hit new. You then pick the physical interface to make a sub interface from where you can do the usual stuff like set an IP address but from there you can also specify VLAN tag values.

Last edited:

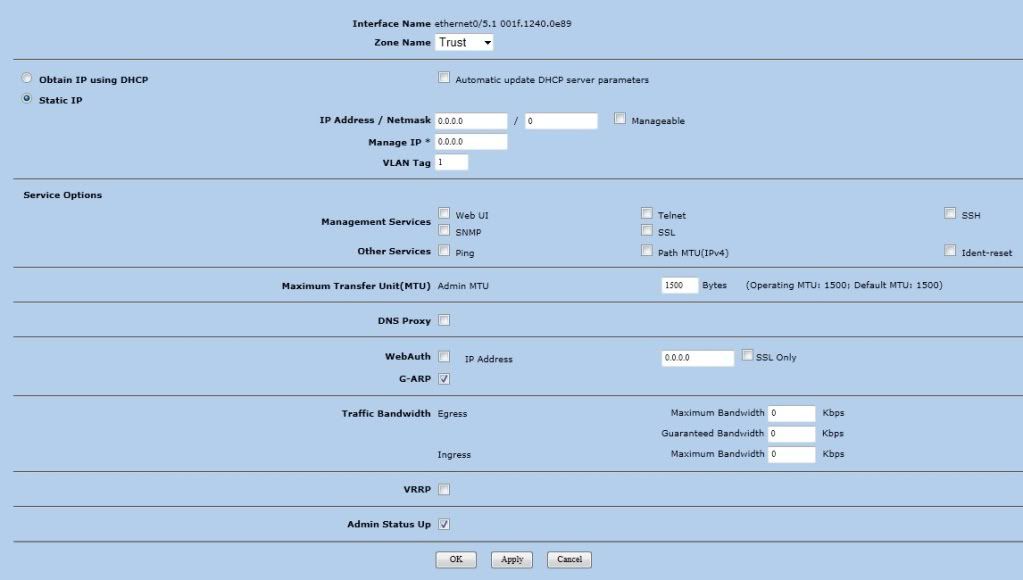

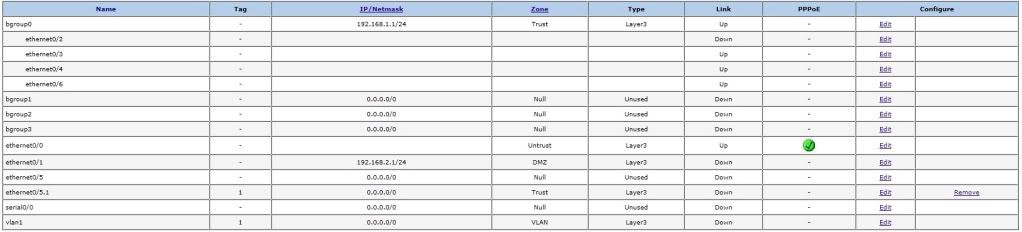

Hi Guys many thanks for the replies. I have tried but cannot set this up, pics below show my current settings, I have tried configuring the VLAN's with IP's but to no avail

http://i1137.photobucket.com/albums/n517/mikejrg/SSG5/ssg1.jpg

http://i1137.photobucket.com/albums/n517/mikejrg/SSG5/ssg2.jpg

Ideally I would like to trunk down 2 Vlans on seperate Subnets to my Switches(s)

First VLAN would be 192.168.1.1/24

second 192.168.3.1/24 for wireless clients, this would only be allowed limited outgoing ports and could not access the other VLAN

Any chance you can give me some more pointers please :-)

Last edited:
you are using eth0/5 for your sub interface when there is no link on this port or an address assigned so not surprised this isn't working.

You got 192.168.1.1/24 assigned to bgroup0 which holds eth0/2, eth0/3, eth0/4 and eth0/6.
You need to create the sub interfaces with the VLAN tags on the bridge group if this is where you need that subnet and then add the wireless as well.
