Loop order advise/sanity check

My pc is conveniently near the window :)
Main thing is how to deal with all the fan wiring?
Already have 9 x 120mm fans
Al120 so weren't cheap would want to reuse those
Plus the fan wires probably won't be long enough

Wish I could find the post where someone
Made quick disconnects for their pumps and fan wiring
On their external radiator
Was really neat
One cable or maybe it was a lot of cables in one sleeve
Then the wiring had quick disconnects similar to the tubing

Main thing is how to deal with all the fan wiring?

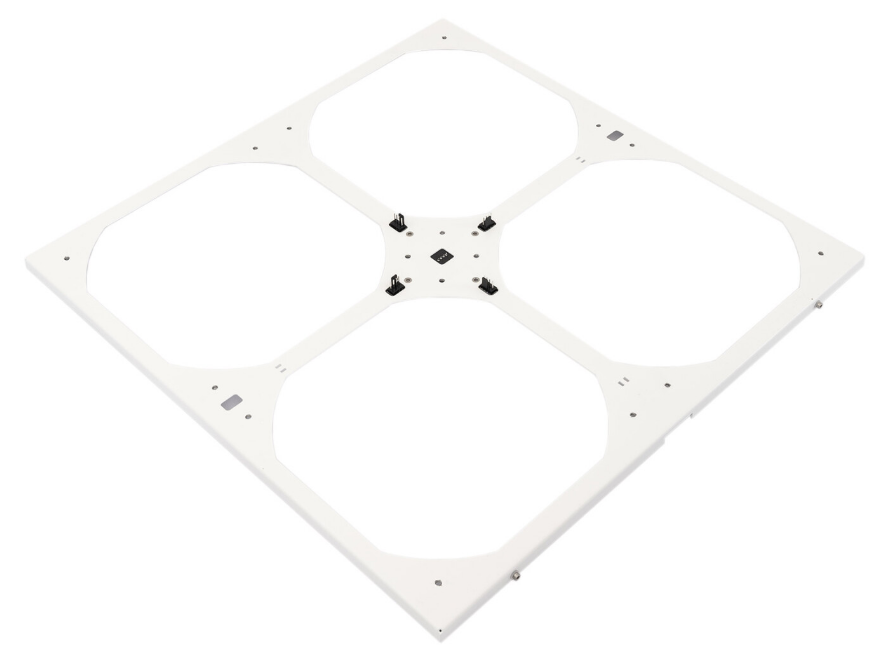

The 200mm fan frames for the MO-RA IV have fan connections built in, so you only require 1 cable.



I'm using a noctua powered hub to control mine, but Watercool have their own controller also that slots into the rad.
I will probably get this at some point as its pretty sleek.

Not sure about the 120mm version though, it's not clear from the website images

Last edited:
If you aren't using the WC PSU the next most expensive/cleanest option is an AC D5 next pump which will mean just 1 fan cable to the pump and 1 sata cable from the pump.

Or you get a 9+ fan pwm hub and a 90cm sata/molex extension cable.

Been so long since I put those fans in
Might be a usb connection on
The end of the controller box
Though its more than likely you can get usb extension
And guessing the controller box has sata power
It's all doable one way or another
But those 9 fans were about 200 quid
Be a shame not to use them

Will also check out alphacools external radiator
For 9 x 120mm
Lot cheaper than mora
No idea why it's a lot cheaper though

Bit of a coincidence
But just saw some guy on Facebook group
Did all custom wiring on his build
Including the fan wires and connectors on a mora

Shame I am not allowed to use a soldering iron
Any more after my little accident with one :cry:
