Monitoring water temps

Griff7520 · 20 Mar 2020 at 11:22

Hi all

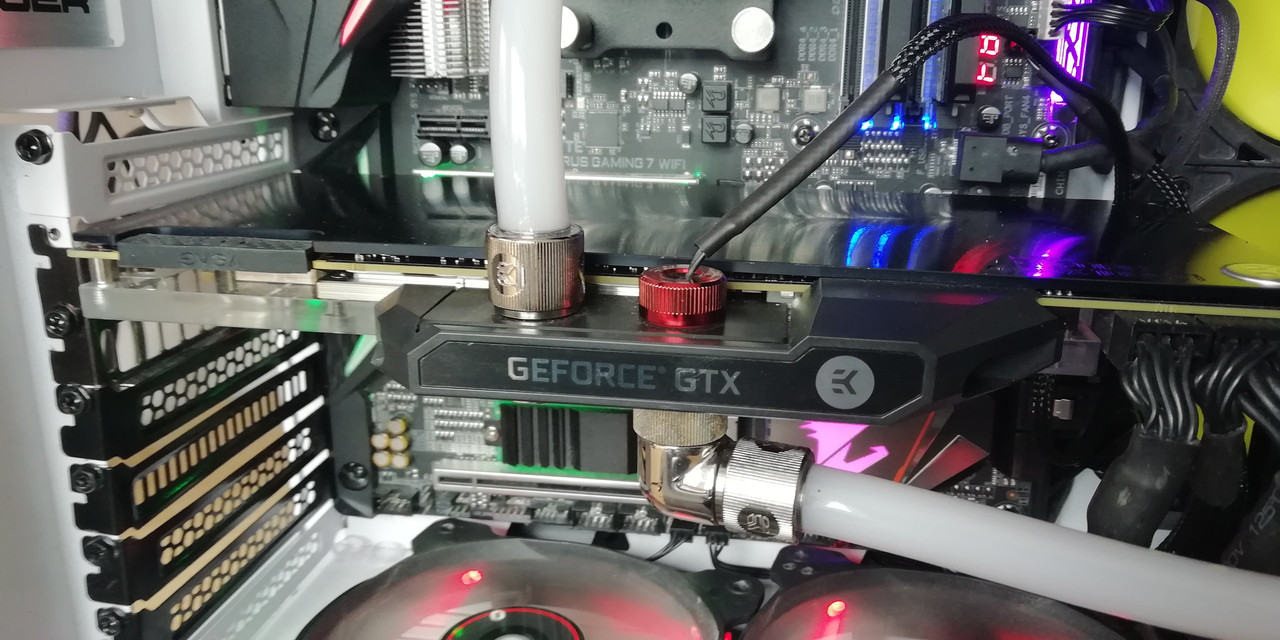

I have bought a monsoon temp sensor and was wondering if I have installed it correctly. I have put it here

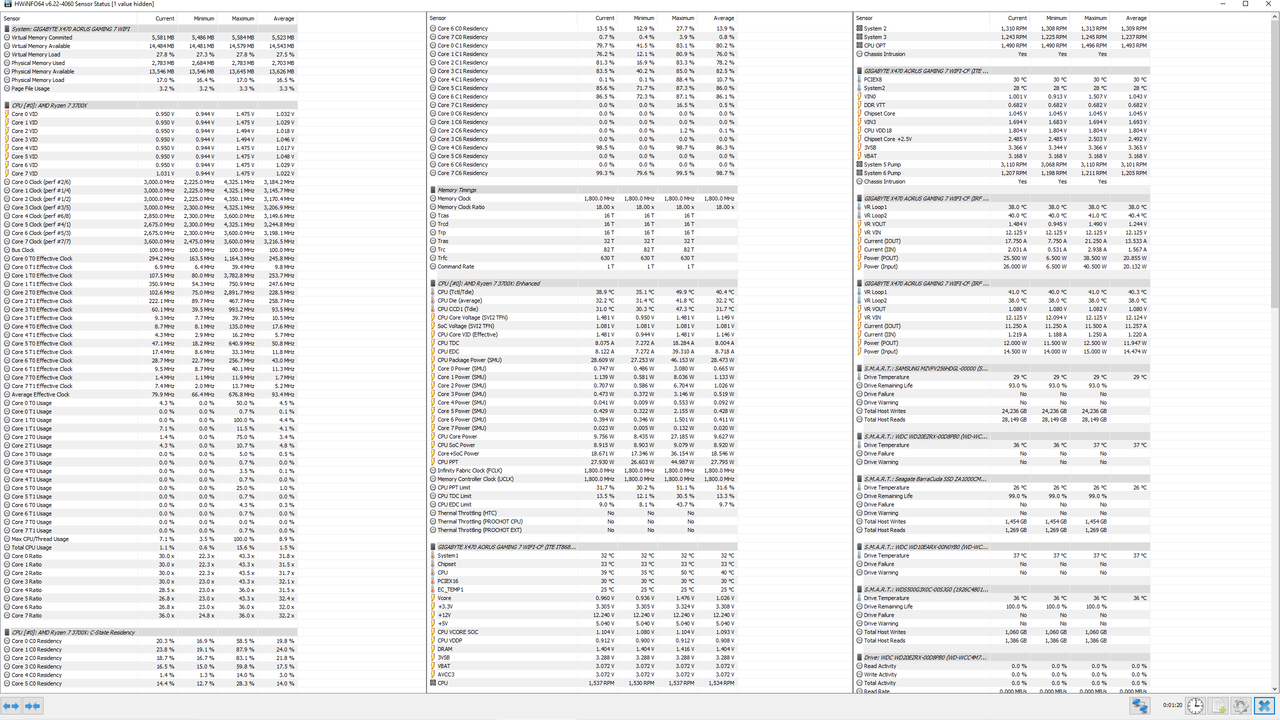

my temps are these

image sharing

I think the water temp is the ec-temp 1 at 25c, I have run a couple of games and this temp goes up to about 30/31c, gpu and cpu is around 46c and 50 to 60c cpu....does this sound about right and is the sensor working ok. I have the loop as this res/pump, gpu, cpu, 240 rad, 360 rad, res/pump.

I am not overclocking.

cheers

Disco_P · 20 Mar 2020 at 12:07

We'd need to know more about your loop to give a good answer. For example, what is the header on the board that you've plugged it into?

Griff7520 · 20 Mar 2020 at 13:03

its listed as 1 of 2 temp sensors, a 2 pin sensor. and it is the ec -temp as shown in the pic at 25c, i pulled out the sensor to see

.

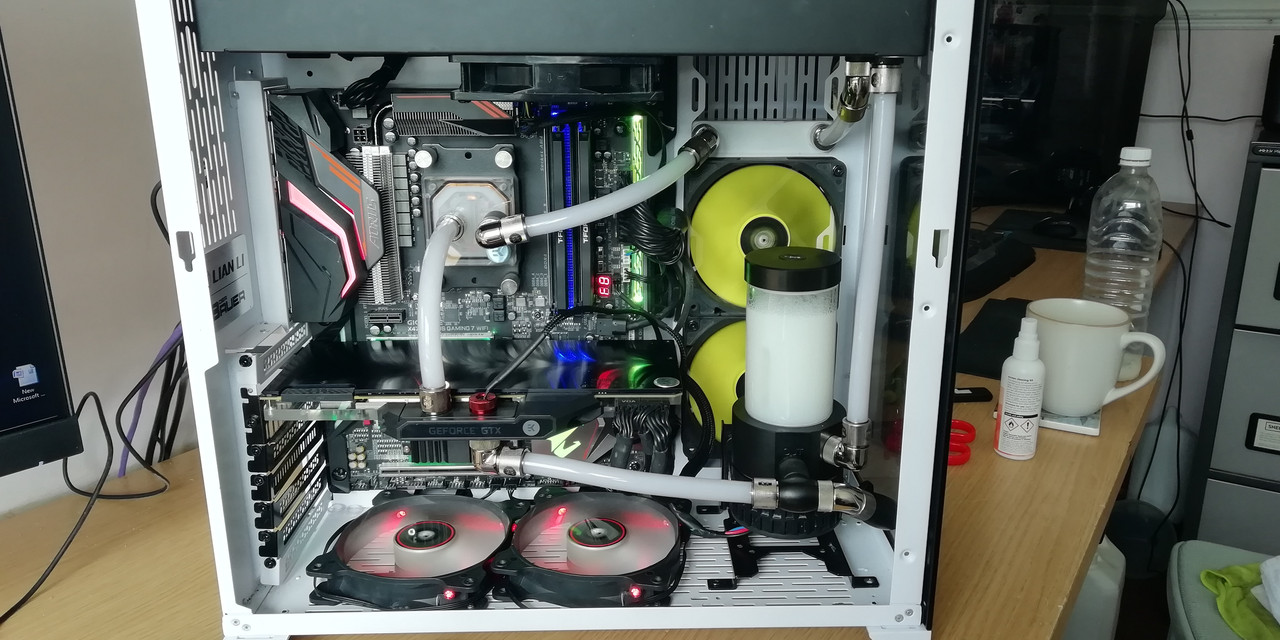

here is a pic of the loop

image posting

Griff7520 · 21 Mar 2020 at 08:36

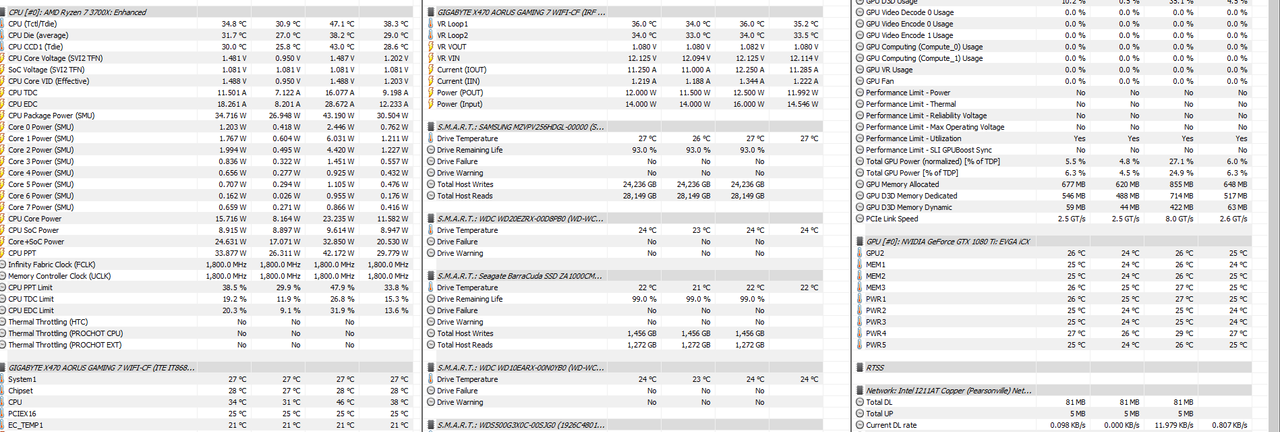

these are my temps this morning

forensics average salary
the liquid temp is 21c (bottom left corner of pic) my gpu is 25c average and cpu is 29c average. No load, does this look correct or is the liquid temp way out.
thanks

Disco_P · 21 Mar 2020 at 10:14

Looks about right but load temps after an hour or two are the most important

Griff7520 · 21 Mar 2020 at 10:36

during gaming yesterday for a couple of hours liquid temp went up to 32c so I guess the sensor is working. at the moment after the pc has been on a couple of hours just browsing the liq temp is now 25c from 21c at boot

Disco_P · 21 Mar 2020 at 13:55

Those all sound very similar to my temps with a 240+360mm cooling a gtx 1080 and OC'd 5820K
