MSI x99S SLI plus PM961 detection issue

andybarsblade · 26 Jan 2017 at 21:19

I have installed a 1tb PM961 SSD into my MSI X99S but it does not show it as available in the bios?

https://www.overclockers.co.uk/sams...3.0-x-4-nvme-solid-state-drive-hd-22f-sa.html

Anybody help?

Disco_P · 26 Jan 2017 at 22:00

I think by default your motherboard has set your M.2 drive to be in sata mode which won't work with it being PCIe NVME.

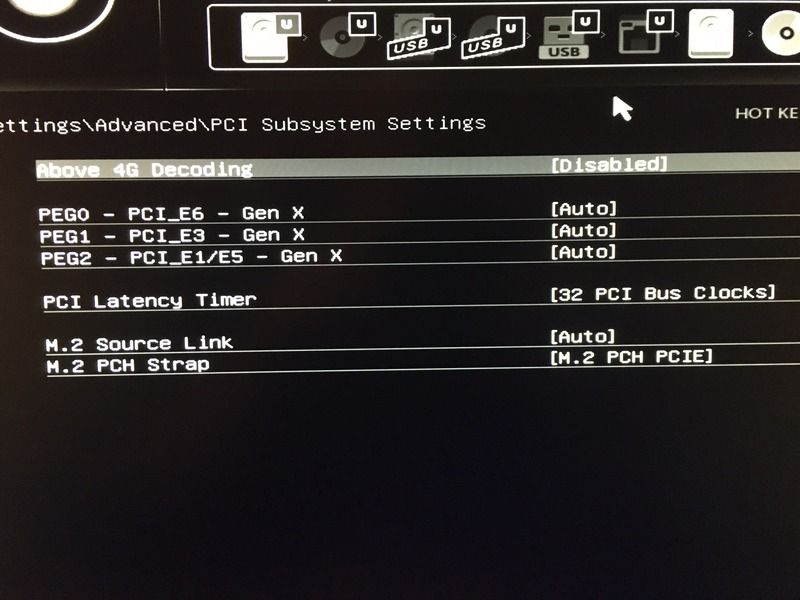

Hit F7 (or whatever it is) to go into advanced mode, then go to settings > advanced > pci subsystem settings and at the bottom there change M.2 PCH strap to NVME.

(disclaimer: I have no idea if this is the solution but it seems logical to work. My board and your's are slightly different plus I don't own an M.2 NVME drive (yet))

andybarsblade · 26 Jan 2017 at 22:34

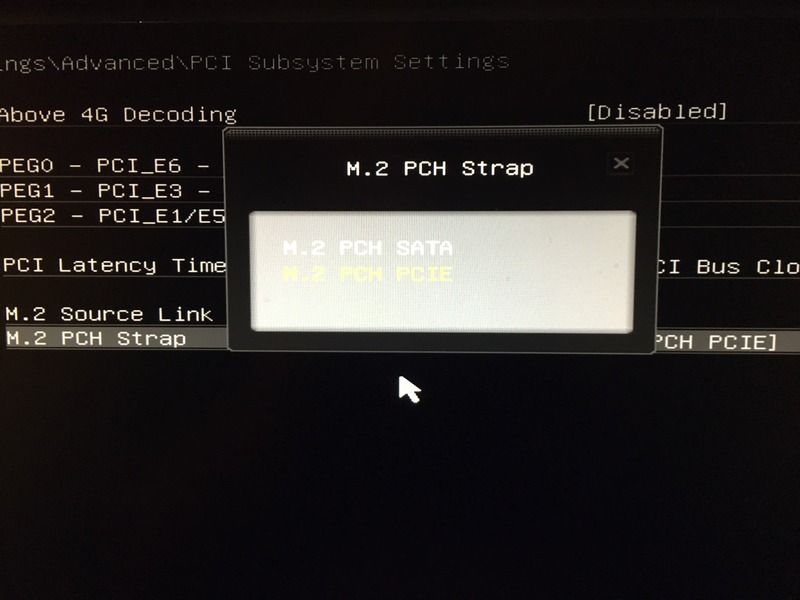

I have PCIE or SATA to chose from?

Disco_P · 26 Jan 2017 at 23:48

andybarsblade · 27 Jan 2017 at 08:37

Disco_P said:
PCIE

Same issue, support site does say 500gb is compatible but nothing on the 1tb.

bimbleuk · 27 Jan 2017 at 13:01

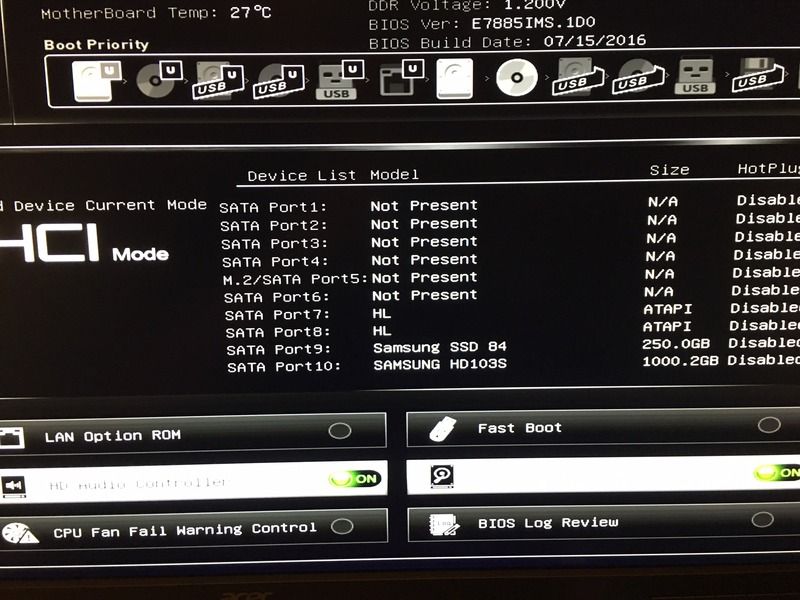

I was going to suggest the M.2 was disable my using the SATA Express but I can see now in the pic the Port5 is the one shared with M.2

Lack of BIOS support looks likey unless you can get some verification elsewhere.
