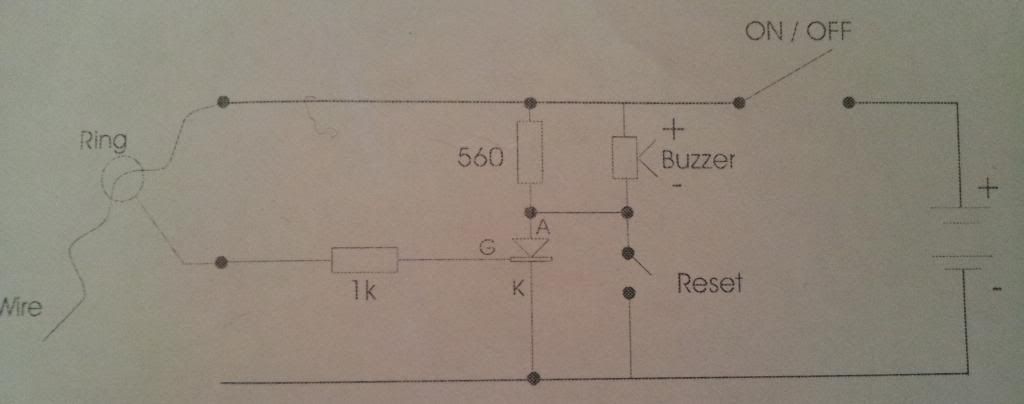

5 Apr 2013 at 17:08 #1 HUNTER.P HUNTER.P Associate Joined 3 Oct 2011 Posts 827 Location Belfast Having never worked with breadboards/stripboards this has become quite a task for me I need to make this circuit on a strip board. Would any of you be able to draw up a quick diagram to help me out?
Having never worked with breadboards/stripboards this has become quite a task for me I need to make this circuit on a strip board. Would any of you be able to draw up a quick diagram to help me out?

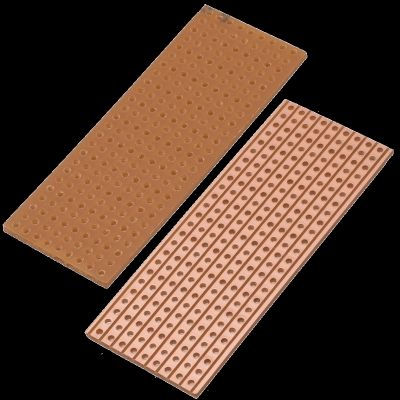

5 Apr 2013 at 17:40 #3 HUNTER.P HUNTER.P Associate OP Joined 3 Oct 2011 Posts 827 Location Belfast Just never worked with these stripboards before and not 100% sure where to place then on the board and where to break copper track etc
Just never worked with these stripboards before and not 100% sure where to place then on the board and where to break copper track etc
