Powering a Raspberry PI LCD Screen via power bank

MarkIpswich

MarkIpswich

MarkIpswich

Associate
Joined
25 Jun 2020
Posts
11
Very simple question.

I got an Anker Power Bank 26,800 and I need a bit more power to be able to use a LCD screen on the Raspberry PI (it uses 3.3a and it the power bank has 3a max per port)

if I use a dual USB cable to micro USB, using the both slots from the power bank to the PI, would that mean I am able to get past the 3.3a? So in total the power would be 6a.

You should be able to find the max output on the back. If it's got a 3amp and a 1amp output, but the max states 3 then you won't be able to power from both ports.

If you have any basic electronics skills you can build a li-ion powerbank with whatever output specs pretty easily - charging boards based around a tp4056 chip and/or something a little bit more advanced for multiple cells and a buck or boost regulator output board can be bought cheap mostly ready to go with a little soldering to connect leads and plenty of guides out there.

Though the more readily available cheap USB sockets may not be rated to carry more than 1-2amp at 5V.

Semple said:
You should be able to find the max output on the back. If it's got a 3amp and a 1amp output, but the max states 3 then you won't be able to power from both ports.
Click to expand...

The power bank,

Input: 5V ⎓ 4A (5V ⎓ 2A Max Per Port)

Output: 5V ⎓ 6A (5V ⎓ 3A Max Per Port)

It's got 3 USB slots

So I presume it will work.

It's a Model 3B+ I have.

EDIT: Would this one be correct?

https://business.currys.co.uk/catal...-cable-usb-to-micro-usb-type-b-91-cm/P129791P





If you are reading this and know that one will work, please reply and let me know!

Thank you.

Last edited:
I will be getting one today, from the link below, but first I need someone to let me know if that is the correct one that I need?

If not, exactly what type? With a link please. You must be 100% sure it'll work.

This

https://business.currys.co.uk/catal...-cable-usb-to-micro-usb-type-b-91-cm/P129791P

  • High Speed USB 2.0 data transfer rates up to 480Mbps < - is that enough or not?
The screen needs 3.3a to power it up.

OR

https://www.ryman.co.uk/juice-3-in-1-charge-and-sync-cable-1m

Power bank has USB type C connectors.

Last edited:

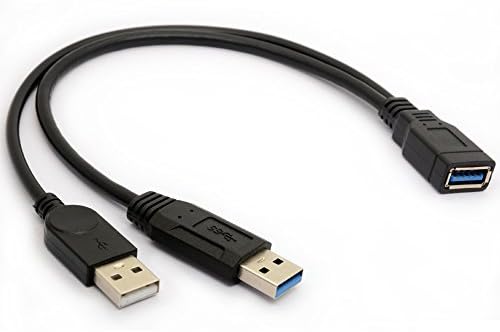

I don't know if you went for it in the end... But when I found that my Roku box wasn't getting all of the power it needed I bought a 1 female to 2 male usb splitter and that did the trick. Cost about £4 from forest.
