Project: Eris

darwin1859 · 27 Oct 2015 at 14:28

Project: ERIS - Z170, In Win D-Frame Mini, H2O [Build Complete]

Introduction

Welcome to project Eris. Eris is the Greek goddess of chaos, strife, and discord.

The previous Darwin PC project, Erebus, was a Trifire R9 290X, X99, watercooled Corsair 900D behemoth featuring two 480 mm radiators.

Eris will be an ITX build based in the In Win D-Frame Mini, so on a different scale. The emphasis will still be on watercooled gaming performance, but this project will look very different.

The hardware is based around the new Intel Z170 chipset, with MSI's Mini ITX offering for the mobo and a Skylake CPU. Paired with a MSI Gaming GTX 980 Ti, Eris will pack a punch.

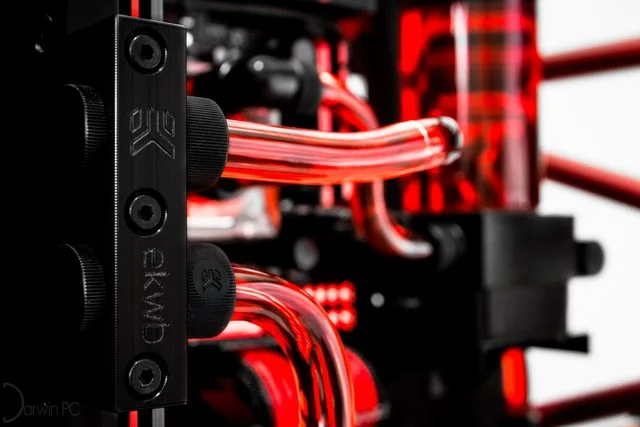

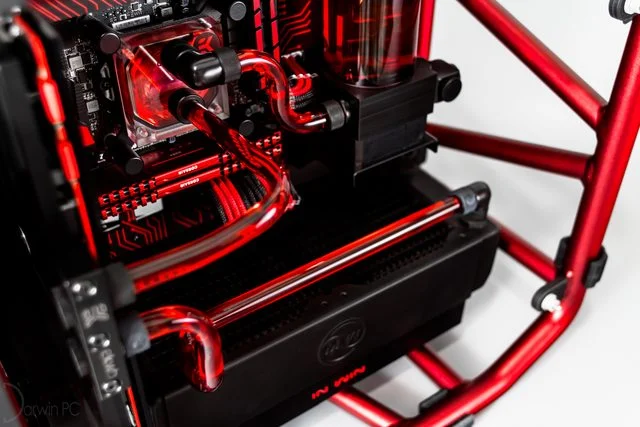

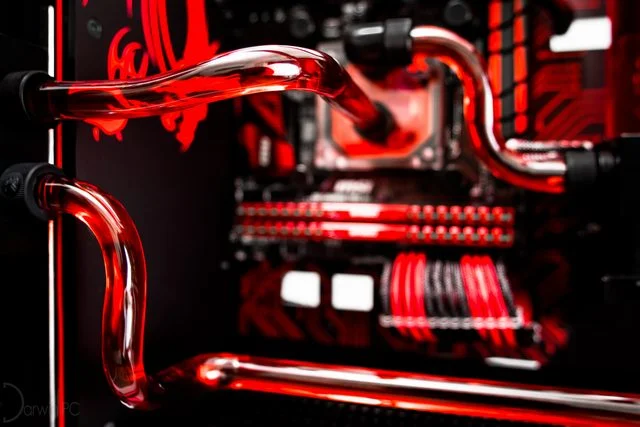

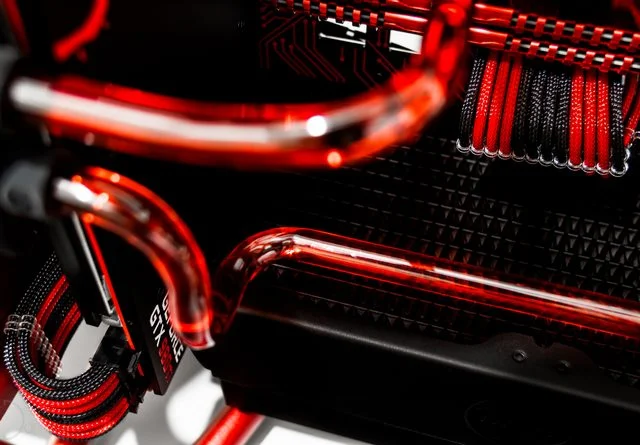

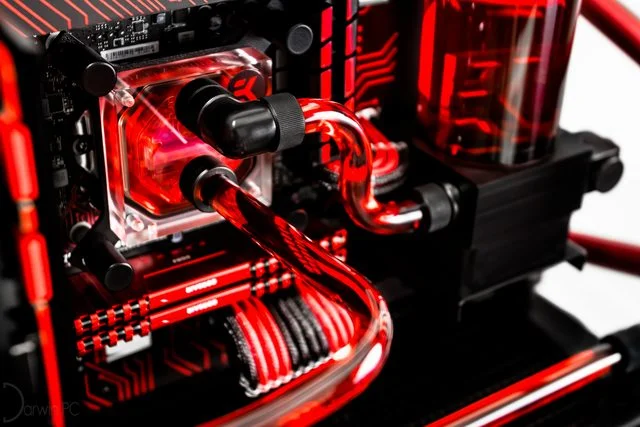

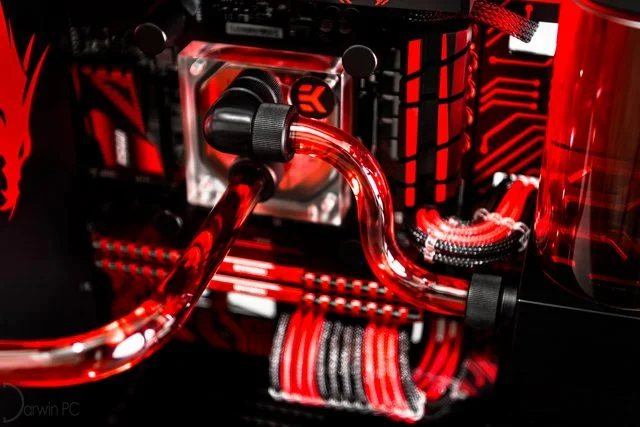

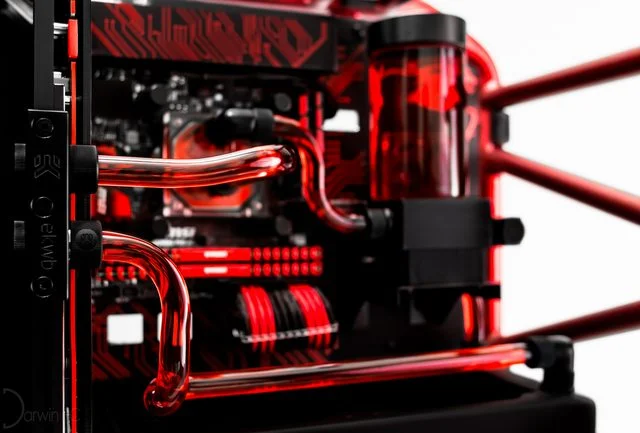

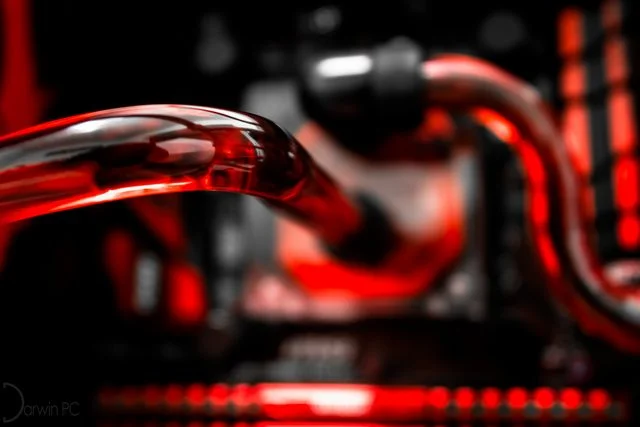

The project will be fully watercooled with a rigid loop, and I'm planning several mods to make this build something special.

Hardware

Case: In Win D-Frame Mini (limited edition red anodised)
Motherboard: MSI Z170I Gaming Pro AC
CPU: Intel Skylake
GPU: MSI GTX 980 Ti Gaming 6G
Memory: Corsair Vengeance LPX 16GB
PSU: Corsair HX750i

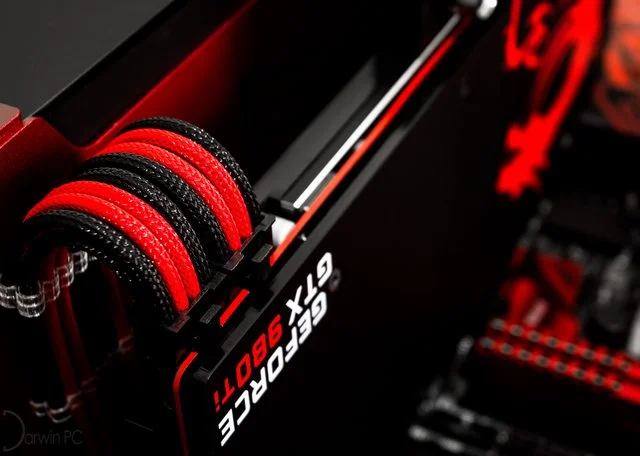

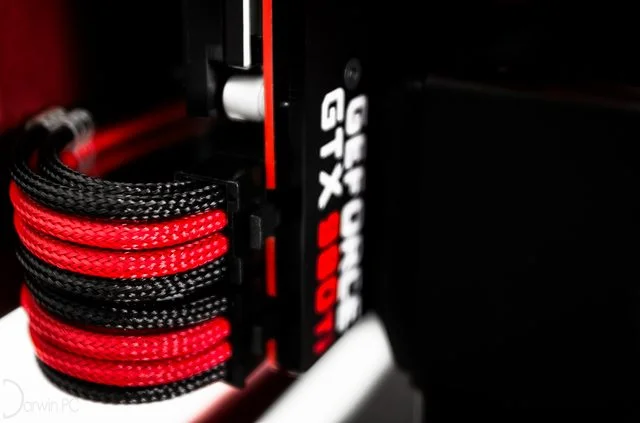

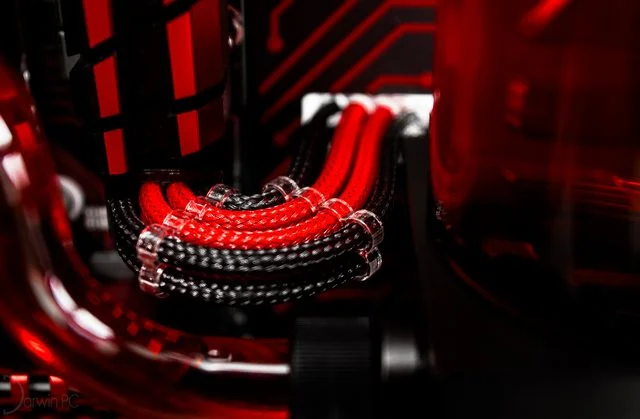

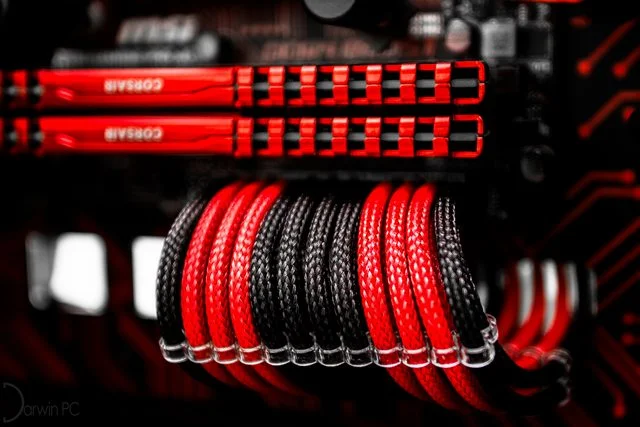

Cabling: Custom-sleeved with E22 Teleios

Watercooling

Radiator: Mayhems Havoc 240

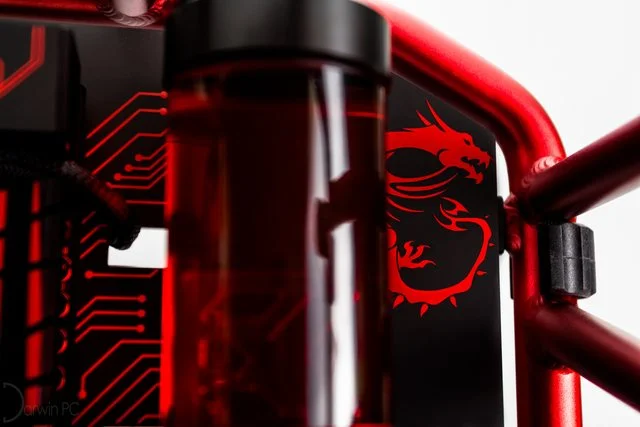

Pump/res: EK-XRES 140 Revo D5 - Acetal
CPU block: EK-Supremacy EVO - Nickel
GPU block: EK-FC980 GTX Ti TF5 - Acetal+Nickel
Fittings: EK-HDC Fitting 12mm G1/4 - Elox Black

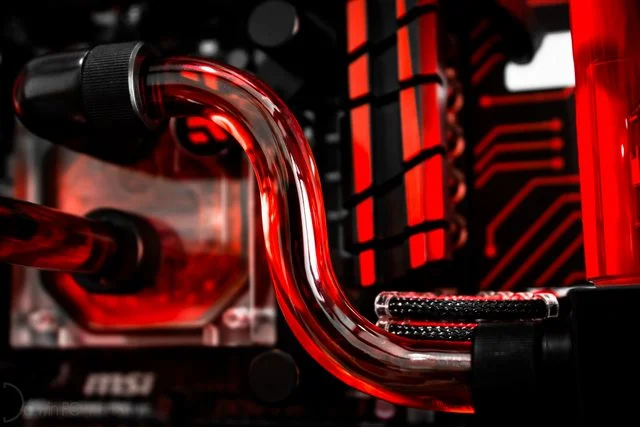

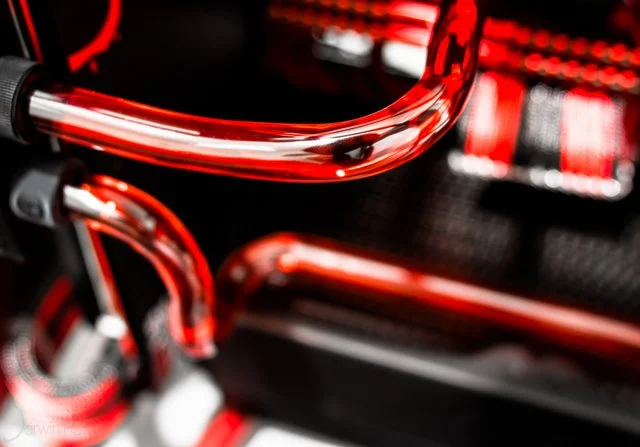

Tubing: E22 Custom 12/10mm Ultra Clear Hard Tubing
Coolant: Mayhems X1 red / aurora

Confirmed sponsors

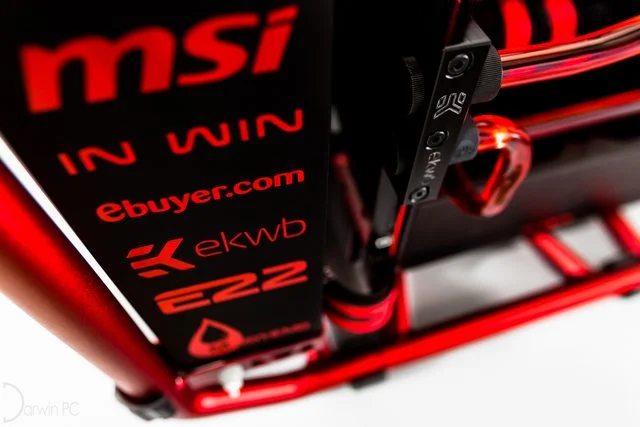

Thanks to the following sponsors for making this project possible:

Updates

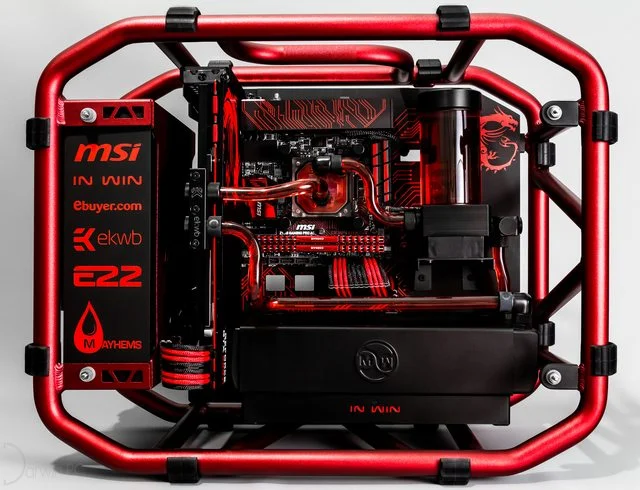

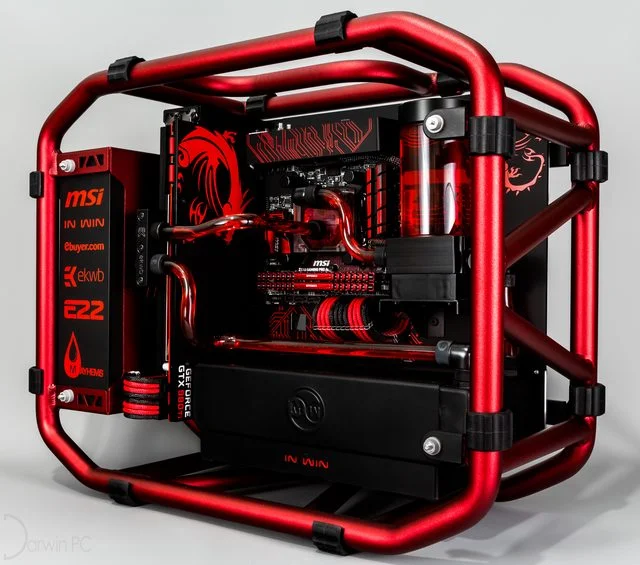

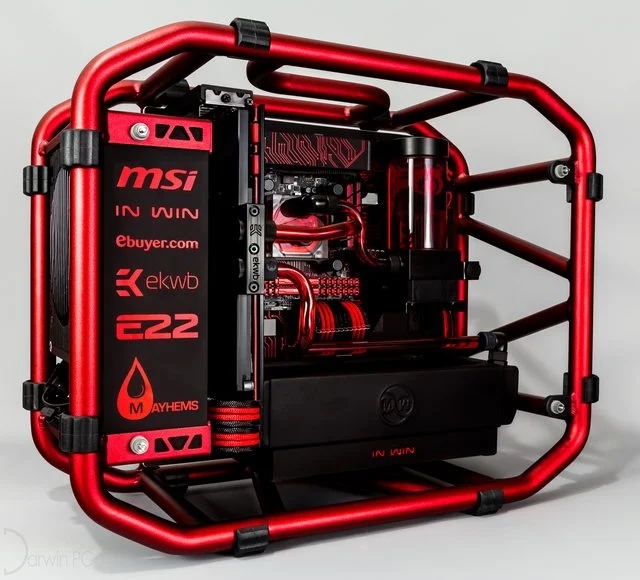

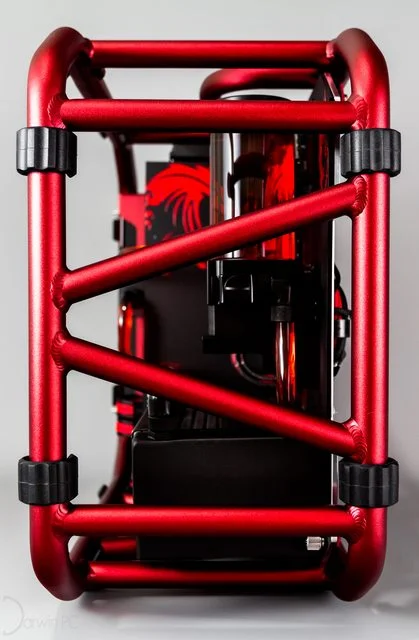

Build complete

darwin1859 · 27 Oct 2015 at 14:29

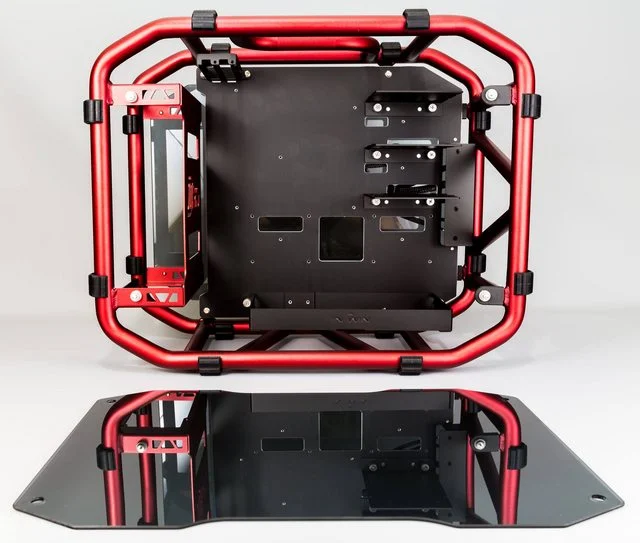

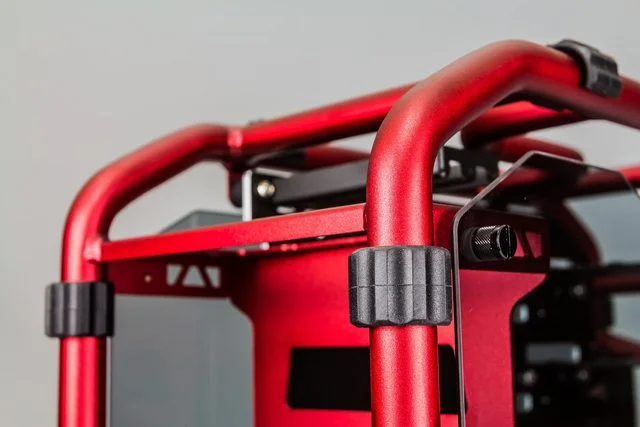

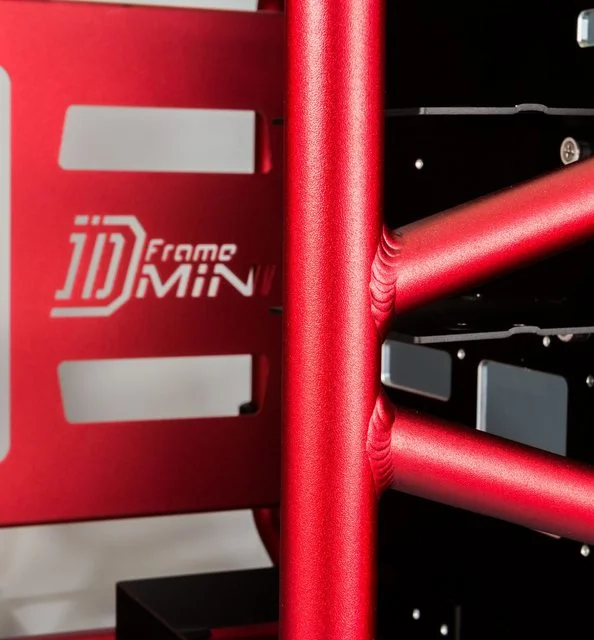

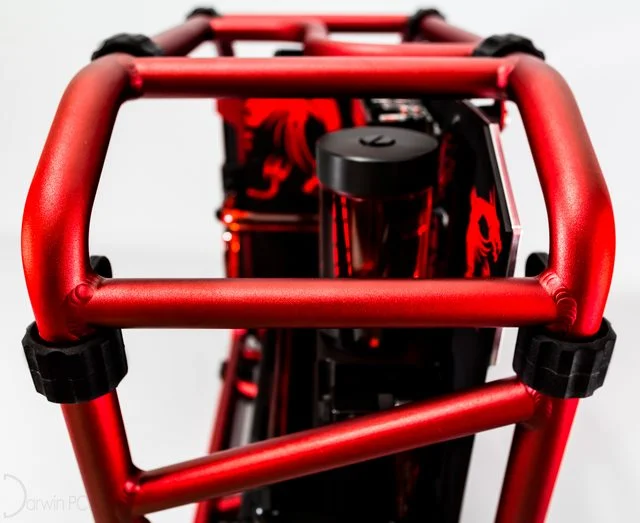

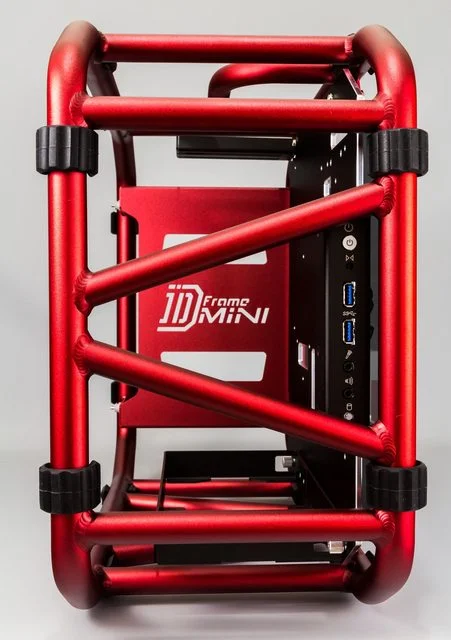

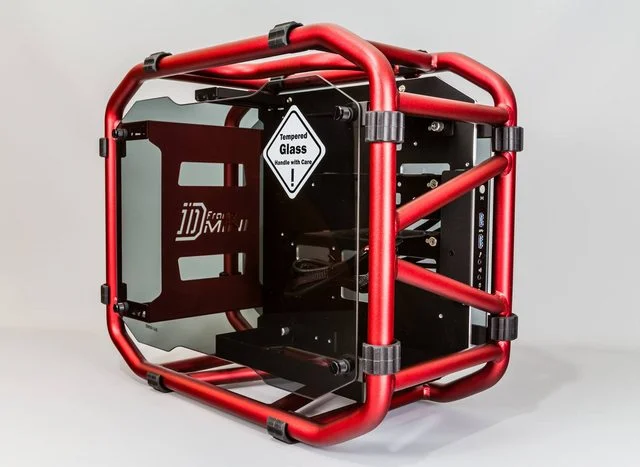

Thanks to the first sponsor, In Win, for providing this awesome limited edition D-Frame Mini. The anodised red finish is just stunning.

Luggs · 27 Oct 2015 at 15:07

Damn, that red is amazing, what an awesome looking frame...

I remember Erebus well so have high expectations of this build

darwin1859 · 27 Oct 2015 at 15:46

Luggs said:
Damn, that red is amazing, what an awesome looking frame...

I remember Erebus well so have high expectations of this build

Thanks mate

darwin1859 · 2 Nov 2015 at 11:27

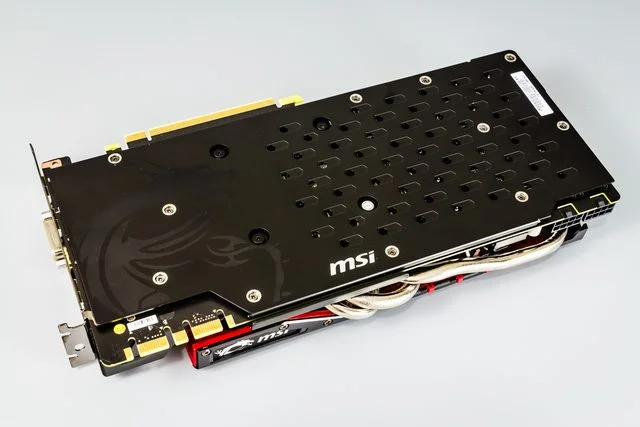

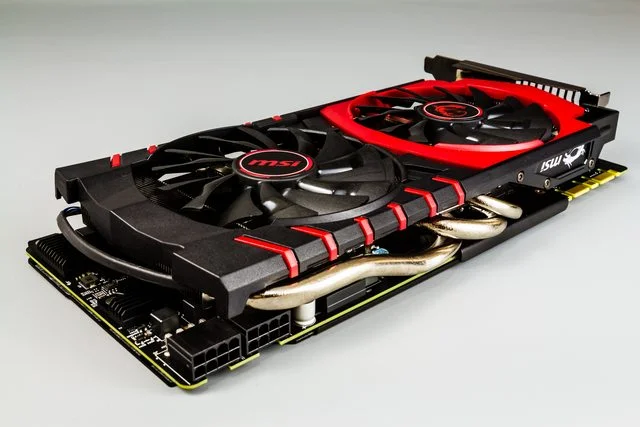

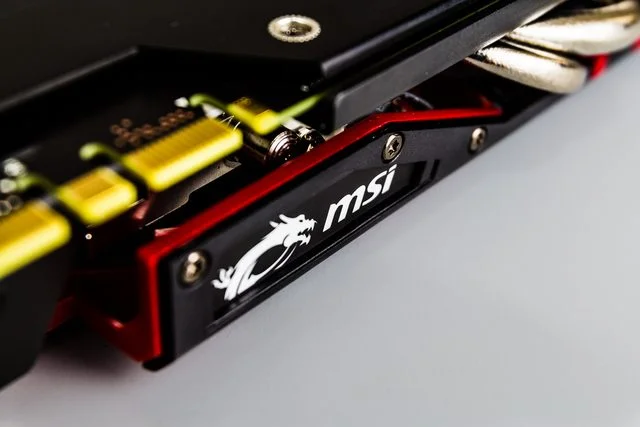

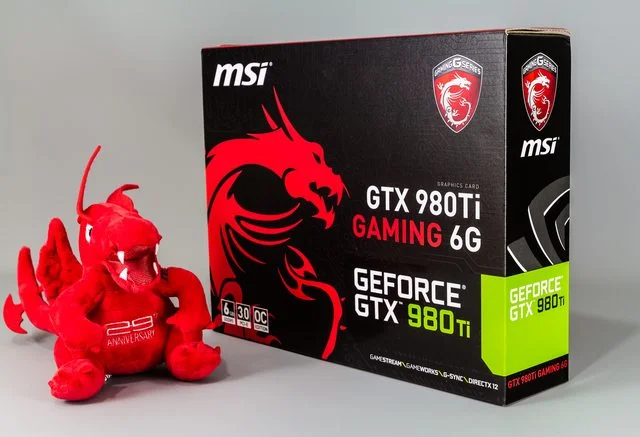

Thanks to MSI for supporting Project Eris. First of their products is the graphics powerhouse, the GTX 980Ti GAMING 6G. The Twin Frozr V is a really nice looking cooler. This one however will soon be replaced with a water block...

darwin1859 · 8 Nov 2015 at 13:56

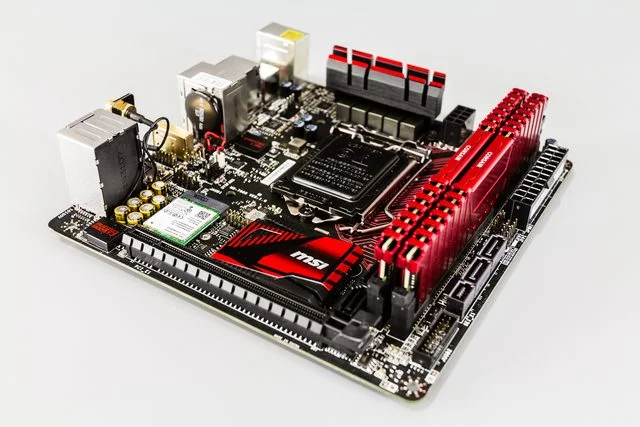

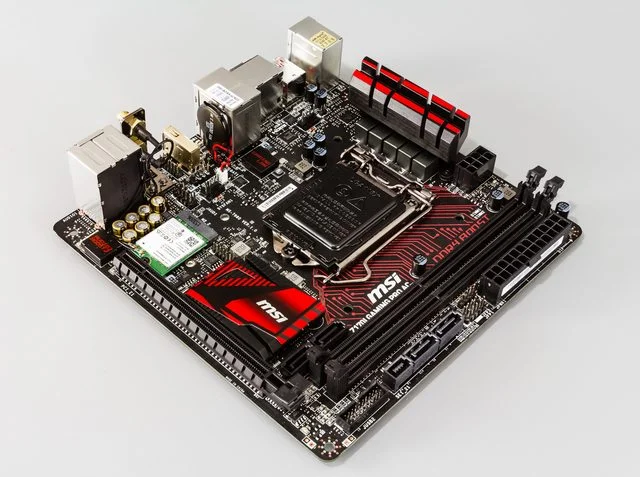

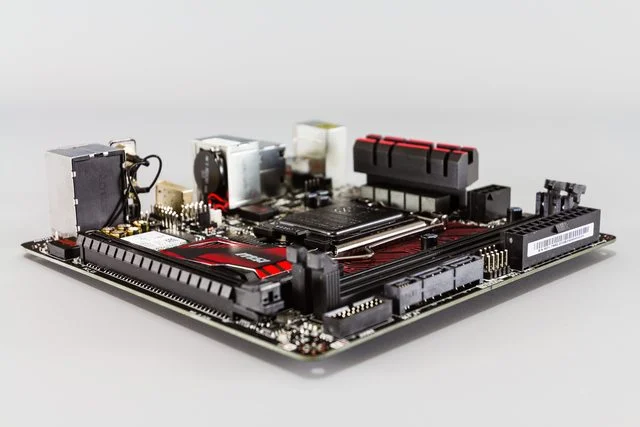

The Z170I Gaming Pro AC motherboard from MSI. This mini-ITX board will be perfect for Project Eris. The styling of the new Z170 boards from MSI look great. It also comes with a handy M.2 slot underneath. Looking forward to modding this board!

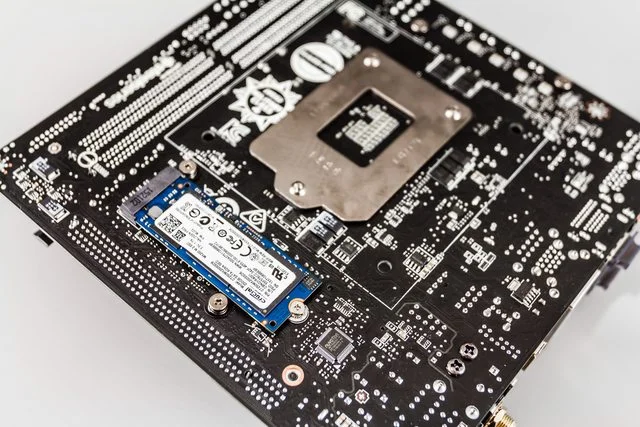

Crucial M.2 fitted underneath the mobo:

faheemrazzaq · 9 Nov 2015 at 14:48

great showcase of these impressive components.

This never ends well · 11 Nov 2015 at 16:44

That frame, can i come nicked it from you.

darwin1859 · 16 Nov 2015 at 15:01

faheemrazzaq said:
great showcase of these impressive components.

Thanks, I'll get some build pics up soon too

darwin1859 · 16 Nov 2015 at 15:01

jamiehard1989 said:
That frame, can i come nicked it from you.

darwin1859 · 16 Nov 2015 at 15:02

Thanks to another sponsor for supporting custom gaming PC, Project Eris with these components.

The PSU is a Corsair HX750i, which will provide plenty of power for the system. It’s also fully modular and has few double wires, which will be helpful when sleeving the cables for Project Eris.

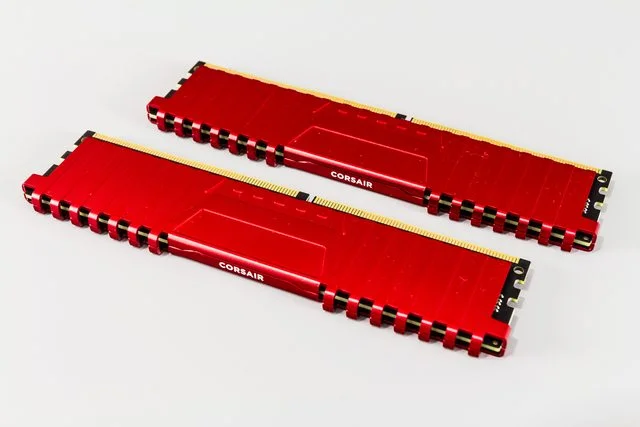

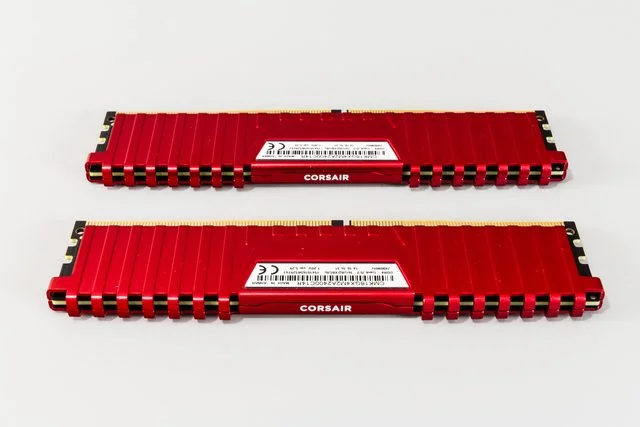

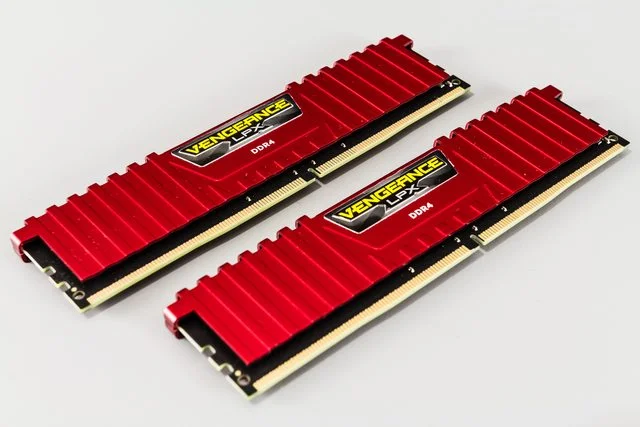

The memory is Corsair Vengeance LPX 16GB (2x8GB) DDR4 RAM at 2400MHz. The Corsair Vengeance LPX RAM is both fast and good looking, and the red colour matches well.

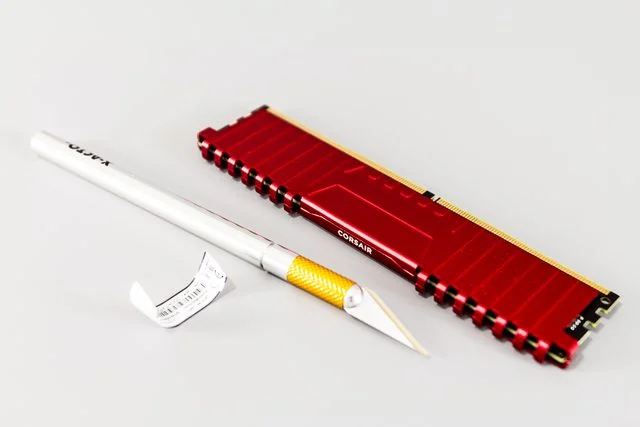

As the only colours in Project Eris will be red and black (with minimal silver), the RAM was modded by removing the info and yellow logo stickers. This was done with an X-Acto knife and a steady hand.

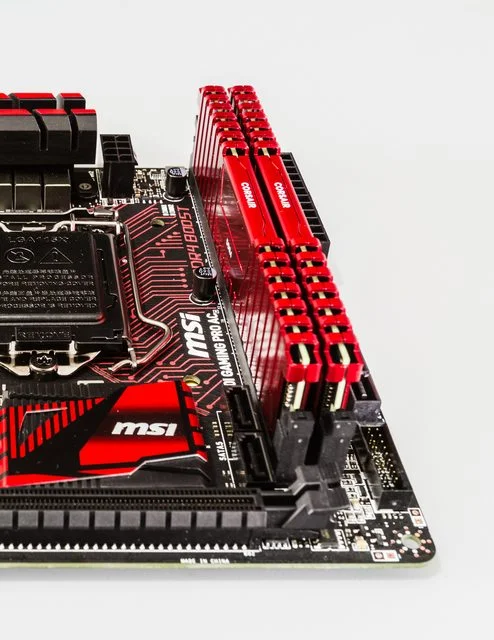

As shown installed in the MSI Z170I Gaming Pro AC motherboard, the colour matches well the heatsinks and design.

darwin1859 · 16 Nov 2015 at 20:17

Cvlty said:
Looking top mate keep going.

Thanks, more to come soon

SamyBoy13 · 16 Nov 2015 at 21:41

It's beautiful build! Waiting to see more.

colinmcr · 16 Nov 2015 at 22:58

Did you edit the red in the images, they look like "super red" !! I like it

Bone9 · 16 Nov 2015 at 23:24

Looks very nice! I'll keep an eye on this

darwin1859 · 16 Nov 2015 at 23:36

SamyBoy13 said:
It's beautiful build! Waiting to see more.

Cheers

more very soon!

colinmcr said:
Did you edit the red in the images, they look like "super red" !! I like it

Thanks - you don't think it looks overdone then? I think I actually had to lower the red saturation if anything. I've been playing with a new backdrop and lighting in my mini studio, and it still needs tweaking a bit.

Bone9 said:
Looks very nice! I'll keep an eye on this

Thanks a lot

colinmcr · 17 Nov 2015 at 01:34

The frame looks great but the red for the ram looks odd but I think because the further away stick looks a different shade to the foreground. I was just curious though I'm not critising. I really like the look of these frame case builds. Will be following....

darwin1859 · 17 Nov 2015 at 09:35

colinmcr said:
The frame looks great but the red for the ram looks odd but I think because the further away stick looks a different shade to the foreground. I was just curious though I'm not critising. I really like the look of these frame case builds. Will be following....

I think I see what you mean, it might be partly due to the reflective surface of the RAM, one side looks quite different to the other. Thanks

Luggs · 17 Nov 2015 at 09:36

Wow, lots of excellent progress since I last checked in, looking really good.

Still can't get over the red colour on the frame, looks fab!

darwin1859 · 17 Nov 2015 at 09:39

Luggs said:
Wow, lots of excellent progress since I last checked in, looking really good.

Still can't get over the red colour on the frame, looks fab!

Thanks for your comments. The frame is still probably my favourite part, I was pretty chuffed when In Win told me they had one of these limited edition anodised finish ones from Computex, apparently only 50 or so were made and they were never retailed.
