With the new build still waiting on parts I decided to do a small project to fill the time: A head tracker for Project Cars 2 (cheers to my mate Gibbo for the heads up on these things and the advice when I was stuck!).
The aim was to do this as cheaply as possible, using junk / spare bits wherever possible. In total I had to fork out about £7 for the camera, £4 for the LED's, £1 for a pack of resistors, £1 for a USB cable and £1 for some elastic. Not bad! Anyway, the build...

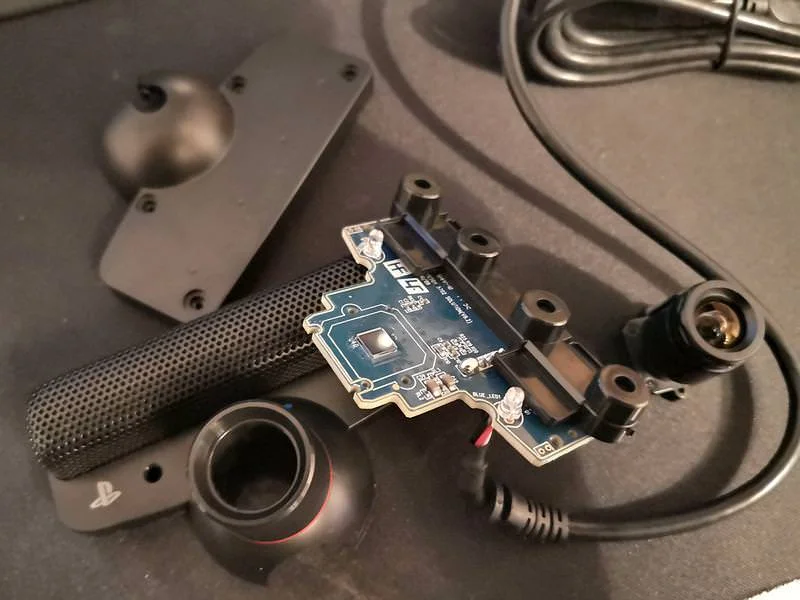

First job was to rip the camera apart (PS3 cam)

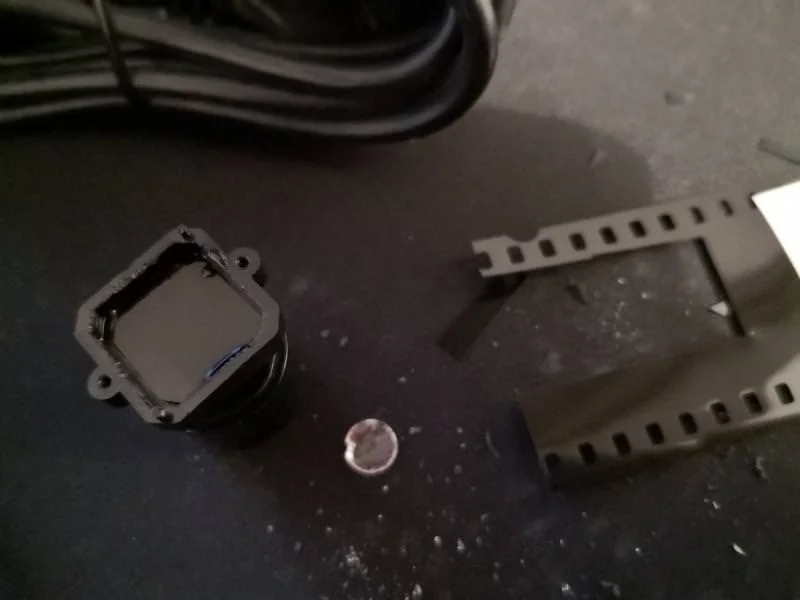

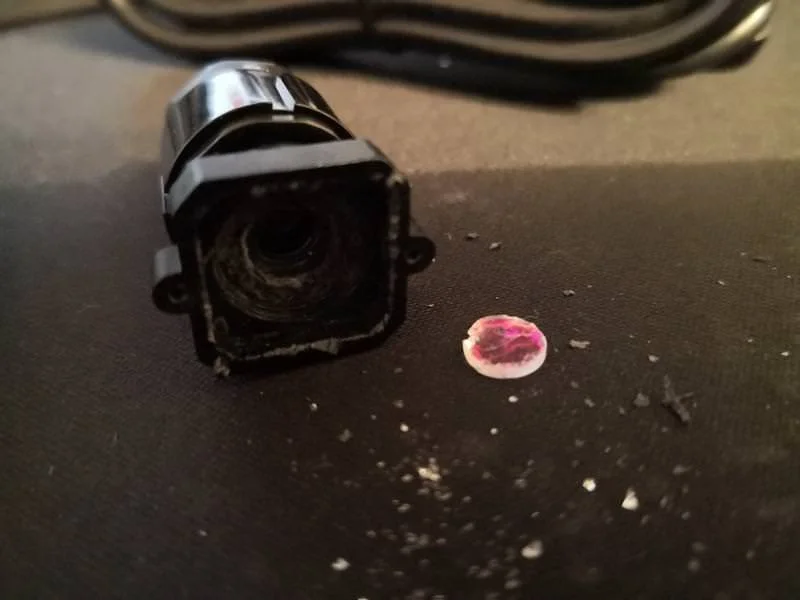

Remove the IR filter
And replace it with a light filter (old film negative)

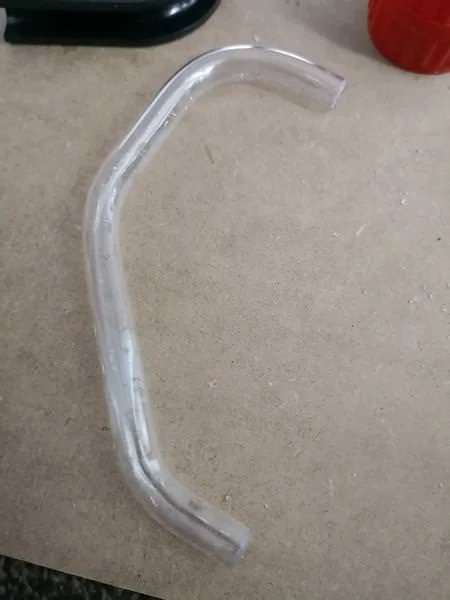

The camera now picking up only IR light it was time to make the headset. But what could I use that's free? That's right, watercooling tubing I had left over from the W2W build

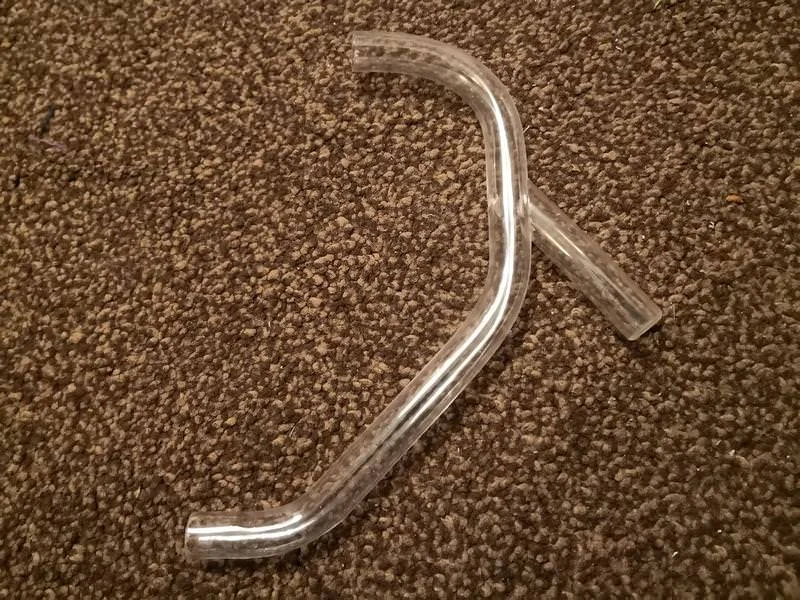

An extra piece to tidy up the USB cable a bit
And then the awkward bit: How to mount the LED's. The middle one was easy, I just made the hole directly opposite the larger USB cable hole and pushed it through from the inside, but the other 2... At first I was trying to make small plugs out of left over acrylic
Which was a major PITA, but then the missus had a better idea: BUTTONS! So I asked mother if she had any random buttons I could use and was given... This

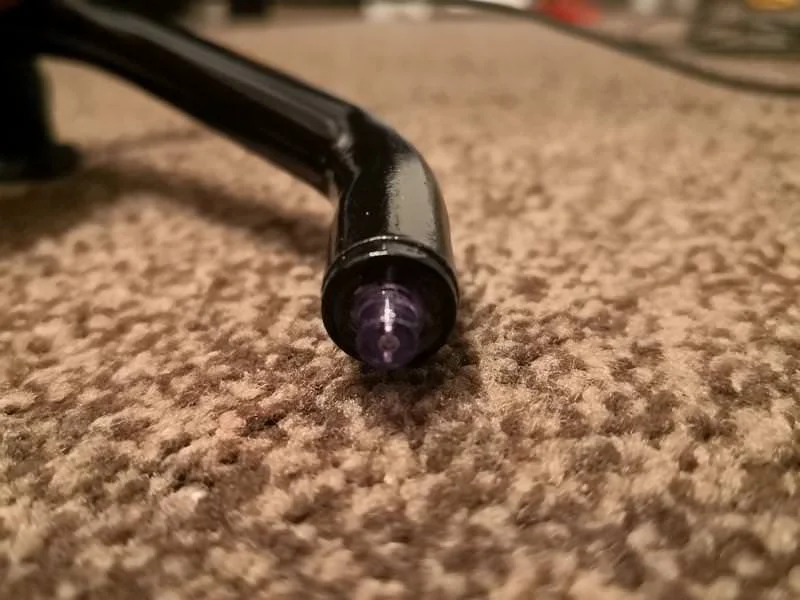

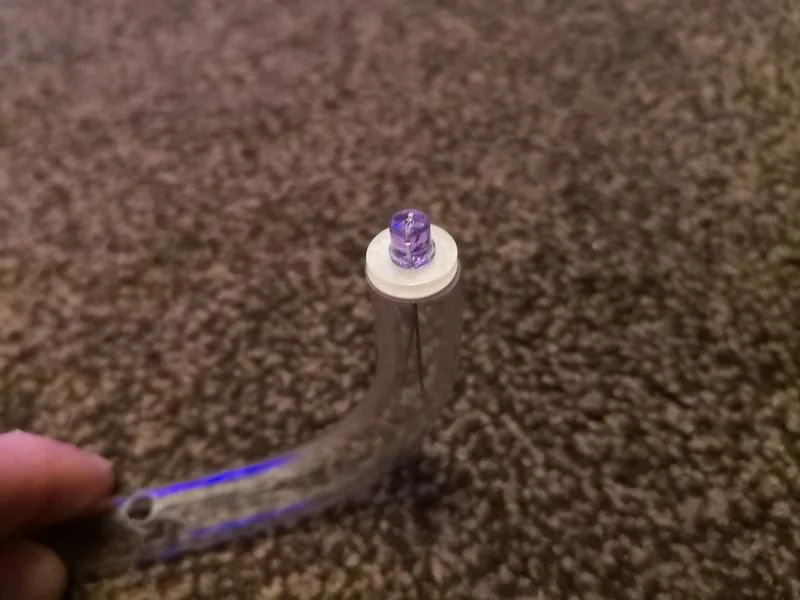

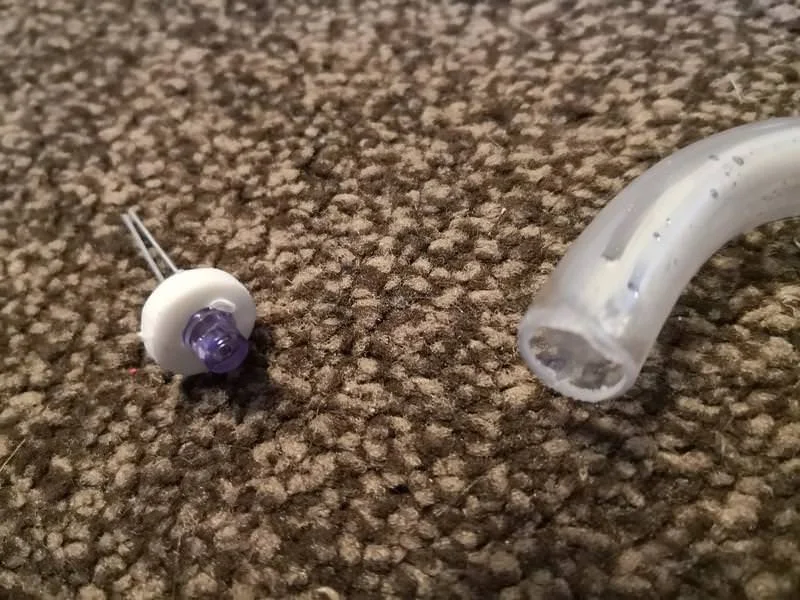

Bit of searching later and found 3 perfect sized buttons, 2 for the LED's and one for the USB cable

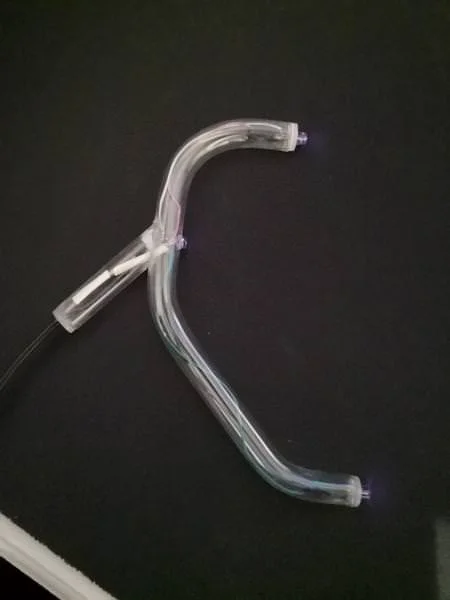

All soldered up and glued together, time to test it's working

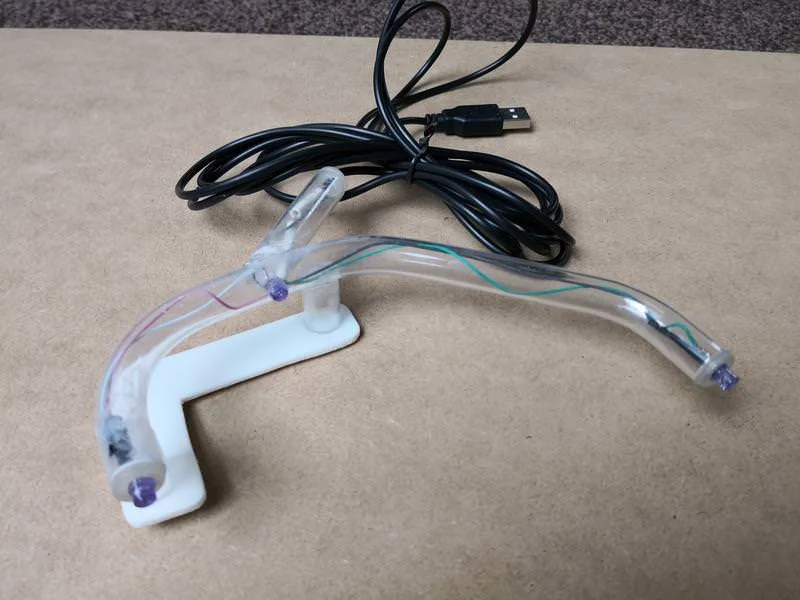

Then came the issue of mounting it. I did't want to have to wear headphones, but it needed to be far enough from my head that my face didn't block the centre LED when turning... More left over tubing & acrylic to the rescue!

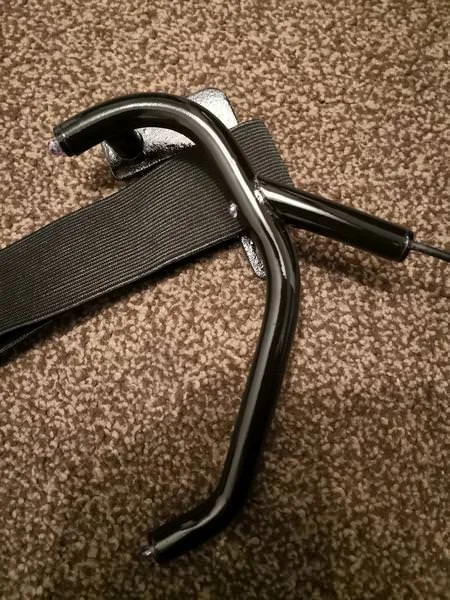

Quick lick of paint

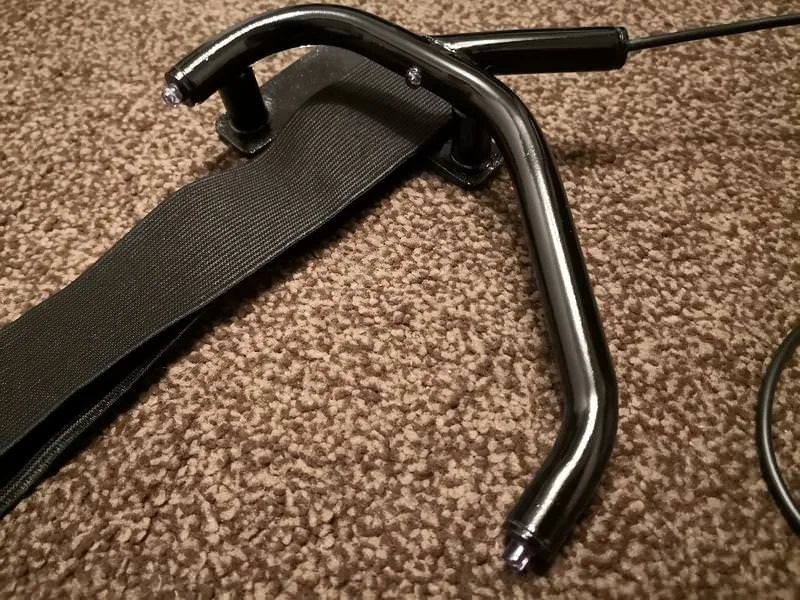

Some elastic velcroed on to make a headband
And we're ready to test!
I was worried it wouldn't hold stable enough and would pick up false movement as it 'twitched', but I needn't have worried, it holds rock steady and works perfectly
So, for about £14 all in I'm pretty happy with that! Now back to the proper build, with another small update coming tomorrow... Hopefully.
