Reservoir after pump

[seamp]

Im buildning custom loop in my 1000d.

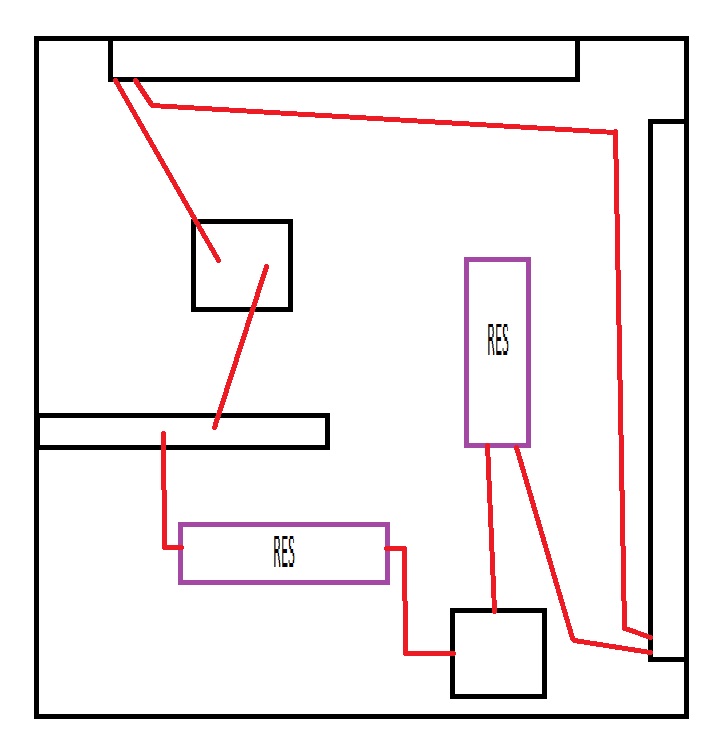

Just for esthetics, I want to place one rad before the pump, and one horizontally right after.
Is it possible (pic)? Im a noob, just want to check with the pros first



[Brizzles]

It will work.

Aslong as you have a res before the pump ( for filling ) which you do.

How well it will work is a different matter and i can't answer that.



[SirConfused]

Assuming your pre-pump res is going to be how you fill the loop then as long as you manage to get all the air out of the post-pump res you should be fine. If you're pressurising that second res with your pump though, make sure it's sealed well!



[MikeTimbers]

The post-pump res will basically act like a big bit of tubing. It needs to be full - no air else it will get pushed around the loop, end up in the pre-pump res anyway. It might be tricky to bleed.



[tyler_jrb]

Should still work fine just ideally have to bleed it carefully as you fill the loop up.

Few tips of the case should sort that I bet. Can’t see any reason why it would have a negative impact not particularly any restriction.
