SLI Freezing

Jay4csa · 2 Feb 2012 at 20:32

First off, I'd like to say hello. I was recommended to this site by a buddy of mine.

Anyway, my problem is as follows. I have 2 GTX570's and when I try to put them in SLI, my computer completely freezes and requires a hard reset. I can run both cards (and overclock them) without problems by themselves. When both are installed, my PC freezes. Any thoughts?

Specs are:
MSI GD-80 B3 mobo
i5 2500K @ 4.2ghz
8GB Corsair Vengeance 1600mhz
MSI Twin Frozr II - first GPU
MSI Twin Frozr III - second GPU
Corsair AX850

RJC · 2 Feb 2012 at 20:37

Hello and welcome

Looking at the specs there is nothing which should course any issues.
I assume your running the latest drivers and is it possible to try without your overclock on.

Jay4csa · 2 Feb 2012 at 20:44

Thank you.

I have been using the 290.53 beta drivers since release. Updating to 295.51 at the moment.

setter · 2 Feb 2012 at 20:56

Hi and welcome to ocuk forums.

Are both cards identical models, and do they have the same bios? Ive seen a few users just this week reporting similair issues with sli cards.

James J · 2 Feb 2012 at 21:01

Connected the 4pin molex to the motherboard next to the first PCIe16x lane when running SLI? I've got the same PSU and 2x 580gtx and without that cable my 12v RAIL gets destroyed to the point of instability.

Jay4csa · 2 Feb 2012 at 21:02

setter said:
Hi and welcome to ocuk forums.

Are both cards identical models, and do they have the same bios? Ive seen a few users just this week reporting similair issues with sli cards.

One is a Twin Frozr II (stock clock at 750mhz) and the other is a Twin Frozr III (stock clock at 770mhz). I've gotten it to work a couple of times, but it always ends up freezing. I've tried clocking both to 750, both to 770 and even both at 732. Same results.

How do I check the bois on the cards?

RJC · 2 Feb 2012 at 21:04

Ah yes, Did not see that on the photo, 6 pin Power connector by the first PCI-E slot!

vectisitch · 2 Feb 2012 at 21:04

can i ask,is your copy of windows genuine? if not then that is the problem

Jay4csa · 2 Feb 2012 at 21:06

James J said:
Connected the 4pin molex to the motherboard next to the first PCIe16x lane when running SLI? I've got the same PSU and 2x 580gtx and without that cable my 12v RAIL gets destroyed to the point of instability.

I don't know what 4pin molex you're talking about. :confused:

Jay4csa · 2 Feb 2012 at 21:09

RJC said:
Ah yes, Did not see that on the photo, 6 pin Power connector by the first PCI-E slot!

I see a space where a 6 pin power connector could go on my motherboard. I've never plugged anything into it though.

vectisitch said:
can i ask,is your copy of windows genuine? if not then that is the problem

Yes, it is genuine. Windows 7 home premium SP1.

vectisitch · 2 Feb 2012 at 21:11

what about your windows???

ANN1H1LAT0R · 2 Feb 2012 at 21:14

You are using the SLi bridge between the two cards right?

setter · 2 Feb 2012 at 21:15

Jay4csa said:
One is a Twin Frozr II (stock clock at 750mhz) and the other is a Twin Frozr III (stock clock at 770mhz). I've gotten it to work a couple of times, but it always ends up freezing. I've tried clocking both to 750, both to 770 and even both at 732. Same results.

How do I check the bois on the cards?

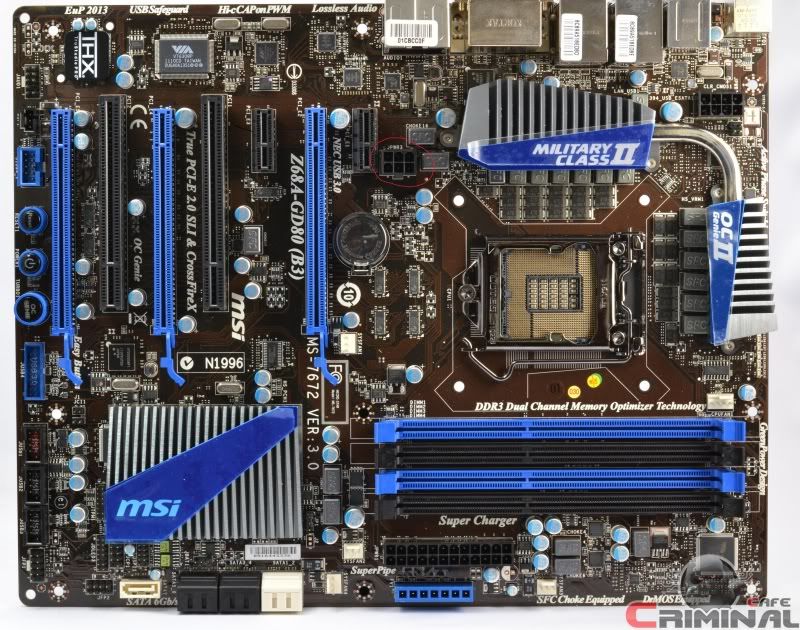

Is this your board?

Power connector next to primary pcie slot circled in red.

Bios revision of each card can be checked using gpuz.

http://www.techpowerup.com/gpuz/

Jay4csa · 2 Feb 2012 at 21:15

vectisitch said:
what about your windows???

I'm sorry. My posts have to be approved by a moderator first.

ANN1H1LAT0R said:
You are using the SLi bridge between the two cards right?

Yes, of course.

inSilica · 2 Feb 2012 at 21:24

vectisitch said:
can i ask,is your copy of windows genuine? if not then that is the problem

Are you serious?

vectisitch · 2 Feb 2012 at 21:29

yes mate.i was running a dodgy copy of windows 7 and i could not get sli to work.as soon as i clicked sli nvidia control panel locked up,or the screen went blank,and i had to keep restarting my pc.i read on the net the someone else had the same problem and it was because their windows was'nt genuine.so i bought a copy of windows 7 home premium from the mm and did a fresh install and it worked fine first time.i also did a fresh install using my dodgy copy and it was the same so it was'nt just the fresh install.it was the genuine copy of windows

Jay4csa · 2 Feb 2012 at 21:29

setter said:
Hi and welcome to ocuk forums.

Are both cards identical models, and do they have the same bios? Ive seen a few users just this week reporting similair issues with sli cards.

Bios versions are not the same.

TF II is 70.10.38.00.00
TF III is 70.10.27.00.01

setter said:
Is this your board?

Power connector next to primary pcie slot circled in red.

Bios revision of each card can be checked using gpuz.

http://www.techpowerup.com/gpuz/

Yes, that is my board. Molex connectors came with my GPUs that have that 6pin connector, but I wouldn't know where to put it.

Sorry that I'm kind of a new guy when it comes to SLI.

inSilica · 2 Feb 2012 at 21:41

vectisitch said:
yes mate.i was running a dodgy copy of windows 7 and i could not get sli to work.as soon as i clicked sli nvidia control panel locked up,or the screen went blank,and i had to keep restarting my pc.i read on the net the someone else had the same problem and it was because their windows was'nt genuine.so i bought a copy of windows 7 home premium from the mm and did a fresh install and it worked fine first time.i also did a fresh install using my dodgy copy and it was the same so it was'nt just the fresh install.it was the genuine copy of windows

WOW! Good to know. I'm glad I'm mainly using Linux

, though will need windows at some point when I do my new build, for gaming that is

vectisitch · 2 Feb 2012 at 21:43

this looks like it might be the plug by the pci-e lane,but it was deffo an issue with mine.

setter · 2 Feb 2012 at 21:48

Have theese auxiliary gpu power connectors started to come back in again? I can remember theese on some s939 sli nforce 4 boards, 4 pin molex for extra gpu power in sli.
