The ASIC benching thread, what does yours boost up to ?

Discussion in 'Graphics Cards' started by Kaapstad, Aug 28, 2015.

  1. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,122

    Location: Dalek flagship

    The ASIC benching thread.


    [​IMG]


    The purpose of this thread is to compare the following

    ASIC
    Max Boost
    Temp
    Voltage Used

    If we can get a good range of results we can see if there are any trends with ASIC quality.

    In the next post are the settings and software to be used, please do not submit any results using anything else as it will not be counted as we all need to use the same for this to work.:)

    Last edited: May 28, 2016
  2. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,122

    Location: Dalek flagship

    [​IMG]


    Settings.


    Any single GPU can be used.

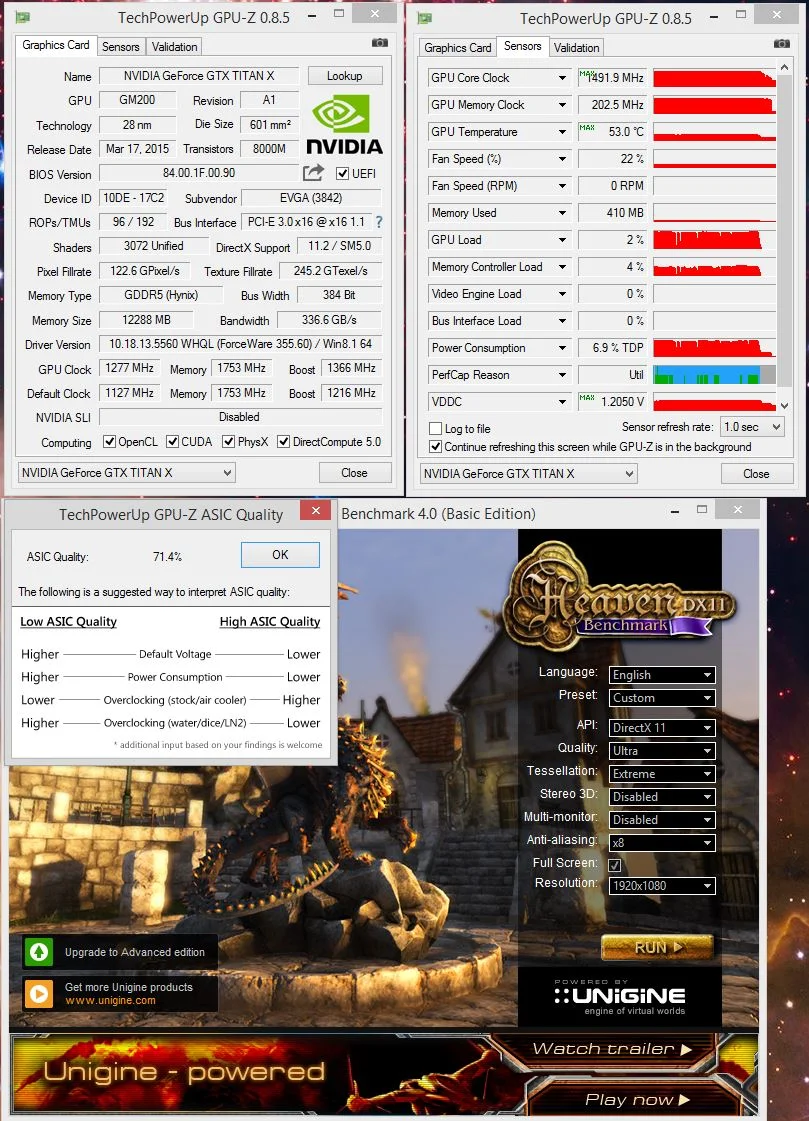

    Please use 2 copies of GPUZ as shown below to show -

    ASIC Quality
    Max GPU Core Clock
    Max GPU Temp
    Max VDDC

    Please run the Heaven 4 bench using the settings below.

    Only 1080p and single GPU results can be used.

    [​IMG]

    When you are done please submit the screenshot exactly the same as I have done above.:)

    Please post what GPU you are using as it is not always obvious in GPUZ.


    Thread Navigation Links.



    Last edited: Mar 29, 2017
  3. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,122

    Location: Dalek flagship

    [​IMG]


    Results.


    1. 290X ASIC 73.9% GPU Clock 1250 Set Boost 1250 Max Boost 1250 Max Temp 66.0 Max VDDC 1.398 bloodkil Link
    2. 290X ASIC 78.5% GPU Clock 1225 Set Boost 1225 Max Boost 1225 Max Temp 68.0 Max VDDC 1.359 protoo Link


    1. 290P ASIC 81.2% GPU Clock 1300 Set Boost 1300 Max Boost 1300 Max Temp 53.0 Max VDDC 1.375 Streetlight Link
    2. 290P ASIC 76.7% GPU Clock 1190 Set Boost 1190 Max Boost 1190 Max Temp 68.0 Max VDDC 1.305 thebennyboy Link
    3. 290P ASIC 68.1% GPU Clock 1170 Set Boost 1170 Max Boost 1170 Max Temp 68.0 Max VDDC 1.336 MadMatty Link
    4. 290P ASIC 73.2% GPU Clock 1150 Set Boost 1150 Max Boost 1150 Max Temp 70.0 Max VDDC 1.258 JAMIE_CORTEZ Link
    5. 290P ASIC 83.2% GPU Clock 1030 Set Boost 1030 Max Boost 1030 Max Temp 67.0 Max VDDC 1.172 shankly1985 Link


    1. 7970 ASIC 66.6% GPU Clock 1150 Set Boost 1150 Max Boost 1150 Max Temp 66.0 Max VDDC 1.256 Hiijinx Link


    1. 280X ASIC 62.1% GPU Clock 1140 Set Boost 1140 Max Boost 1140 Max Temp 56.0 Max VDDC 1.238 megatron Link



    [*] ASIC % GPU Clock Set Boost Max Boost Max Temp Max VDDC

    Last edited: Oct 28, 2017
  4. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,122

    Location: Dalek flagship

    [​IMG]


    Results.

    1. TitanM ASIC 68.5% GPU Clock 1271 Set Boost 1360 Max Boost 1508.9 Max Temp 44.0 Max VDDC 1.243 P.B Link
    2. TitanM ASIC 71.4% GPU Clock 1277 Set Boost 1366 Max Boost 1491.9 Max Temp 53.0 Max VDDC 1.205 Kaapstad Link
    3. TitanM ASIC 67.3% GPU Clock 1127 Set Boost 1216 Max Boost 1458.6 Max Temp 70.0 Max VDDC 1.230 Radox-0 Link
    4. TitanM ASIC 78.9% GPU Clock 1230 Set Boost 1306 Max Boost 1444.8 Max Temp 50.0 Max VDDC 1.168 BG1980 Link
    5. TitanM ASIC 72.1% GPU Clock 1252 Set Boost 1326 Max Boost 1439.6 Max Temp 63.0 Max VDDC 1.168 breadturbo Link
    6. TitanM ASIC 73.0% GPU Clock 1000 Set Boost 1076 Max Boost 1164.0 Max Temp 45.0 Max VDDC 1.137 africanos23 Link


    1. 980 Ti ASIC 72.8% GPU Clock 1320 Set Boost 1409 Max Boost 1560.3 Max Temp 60.0 Max VDDC 1.243 Joe! Link
    2. 980 Ti ASIC 82.8% GPU Clock 1276 Set Boost 1365 Max Boost 1554.0 Max Temp 61.0 Max VDDC 1.243 smit101 Link
    3. 980 Ti ASIC 75.8% GPU Clock 1301 Set Boost 1390 Max Boost 1553.6 Max Temp 46.0 Max VDDC 1.243 Aurhinius Link
    4. 980 Ti ASIC 75.2% GPU Clock 1310 Set Boost 1411 Max Boost 1550.4 Max Temp 66.0 Max VDDC 1.230 andybird123 Link
    5. 980 Ti ASIC 79.8% GPU Clock 1307 Set Boost 1396 Max Boost 1547.2 Max Temp 60.0 Max VDDC 1.199 uscool Link
    6. 980 Ti ASIC 72.5% GPU Clock 1285 Set Boost 1361 Max Boost 1525.5 Max Temp 73.0 Max VDDC 1.243 rapt0r Link
    7. 980 Ti ASIC 70.2% GPU Clock 1292 Set Boost 1381 Max Boost 1519.5 Max Temp 66.0 Max VDDC 1.237 atomic7431 Link
    8. 980 Ti ASIC 69.2% GPU Clock 1199 Set Boost 1287 Max Boost 1516.8 Max Temp 44.0 Max VDDC 1.243 F1aw1ess Link
    9. 980 Ti ASIC 83.0% GPU Clock 1268 Set Boost 1369 Max Boost 1506.1 Max Temp 57.0 Max VDDC 1.180 Hiijinx Link
    10. 980 Ti ASIC 80.0% GPU Clock 1268 Set Boost 1369 Max Boost 1506.1 Max Temp 63.0 Max VDDC 1.199 Hiijinx Link
    11. 980 Ti ASIC 71.9% GPU Clock 1252 Set Boost 1340 Max Boost 1488.3 Max Temp 73.0 Max VDDC 1.224 IceWolf Link
    12. 980 Ti ASIC 69.7% GPU Clock 1318 Set Boost 1420 Max Boost 1482.4 Max Temp 69.0 Max VDDC 1.199 PakJai Link
    13. 980 Ti ASIC 66.4% GPU Clock 1418 Set Boost 1506 Max Boost 1480.0 Max Temp 49.0 Max VDDC 1.274 Mysterae_ Link SLI
    14. 980 Ti ASIC 62.9% GPU Clock 1418 Set Boost 1506 Max Boost 1480.0 Max Temp 49.0 Max VDDC 1.274 Mysterae_ Link SLI
    15. 980 Ti ASIC 65.9% GPU Clock 1251 Set Boost 1340 Max Boost 1440.4 Max Temp 71.0 Max VDDC 1.199 CEUOTC Link
    16. 980 Ti ASIC 72.9% GPU Clock 1152 Set Boost 1241 Max Boost 1366.9 Max Temp 62.0 Max VDDC 1.199 rolypolyman Link
    17. 980 Ti ASIC 68.6% GPU Clock 1026 Set Boost 1114 Max Boost 1215.4 Max Temp 71.0 Max VDDC 1.187 arc@css Link


    1. 980 ASIC 79.8% GPU Clock 1642 Set Boost 1642 Max Boost 1641.0 Max Temp 25.0 Max VDDC 1.275 String Link
    2. 980 ASIC 70.5% GPU Clock 1390 Set Boost 1491 Max Boost 1591.5 Max Temp 73.0 Max VDDC 1.250 SouthEastBlue Link


    1. 970 ASIC 79.0% GPU Clock 1356 Set Boost 1507 Max Boost 1608.1 Max Temp 64.0 Max VDDC 1.237 Davedree Link
    2. 970 ASIC 70.0% GPU Clock 1349 Set Boost 1500 Max Boost 1563.0 Max Temp 63.0 Max VDDC 1.225 kostacurtas Link
    3. 970 ASIC 80.1% GPU Clock 1310 Set Boost 1449 Max Boost 1550.4 Max Temp 62.0 Max VDDC 1.206 humbug Link


    [*] ASIC % GPU Clock Set Boost Max Boost Max Temp Max VDDC

    Last edited: Oct 28, 2017
  5. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,122

    Location: Dalek flagship

    Edit

    Last edited: May 28, 2016
  6. Wrinkly

    Wise Guy

    Joined: Aug 31, 2013

    Posts: 1,331

    Location: Scotland

    You should also include brand, model and possibly revision.

  7. P.B

    Wise Guy

    Joined: Apr 2, 2015

    Posts: 1,505

    are you including custom bios's water cooled cards ect. ?

    Is this basically to show the relative boost clock to it asic, as if so should the cards be at stock ?

  8. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,122

    Location: Dalek flagship

    Any card can be used

    The aim of the exercise is to see how high people can get their cards to boost.

    I did think about using stock but that means different things to different cards for example my TXs can not do stock as they are EVGA SC versions and the minimum I can get them down to is about 37mhz above stock.

    The ASIC quality if it makes a difference will effect the maximum boost so this is easier to use and people are free to bench their cards how they want with different bios etc. It is the trend we are looking for, not who is top of the table.:)

  9. P.B

    Wise Guy

    Joined: Apr 2, 2015

    Posts: 1,505

    True on the second part as also the type of cooler could dictate this or even fan curve.

    I take it, it needs to successfully do a full run and not a 'suicide' run lol :D

  10. P.B

    Wise Guy

    Joined: Apr 2, 2015

    Posts: 1,505

    how do I display asic quality ?

  11. P.B

    Wise Guy

    Joined: Apr 2, 2015

    Posts: 1,505

    Never mind found it usingv rubbish rog skin lol

  12. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,122

    Location: Dalek flagship

    Full runs please.:D

    I have included Max temp rather than type of cooling as it keeps things simple.

    I am having quite a job fitting in all the results info and making it readable with different colours.:)

  13. P.B

    Wise Guy

    Joined: Apr 2, 2015

    Posts: 1,505

    lol I can imagine trying to give this a run now

  14. bloodkil

    Hitman

    Joined: Dec 14, 2013

    Posts: 614

    Location: North Wales

    I presume this is just for Nvidia cards? Might be interesting to see AMD results as well.

  15. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,122

    Location: Dalek flagship

    AMD cards can be used too.:)

    For the results we need the maximum clockspeed you can achieve for the ASIC.

    If you use the GPUZ as above I know it won't show some of the boost figures with AMD cards but it will still give the max clockspeed.:)

  16. P.B

    Wise Guy

    Joined: Apr 2, 2015

    Posts: 1,505

    what free service can I use to post the image ?

  17. P.B

    Wise Guy

    Joined: Apr 2, 2015

    Posts: 1,505

    How can we prove we have done one past as when you get to the end you cant print screen the score and all the gpu-z ect. ?

  18. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,122

    Location: Dalek flagship

    I will take it at face value that people have completed a full run as we don't need the bench score, it is just about how high the clockspeed will go.:)

  19. P.B

    Wise Guy

    Joined: Apr 2, 2015

    Posts: 1,505

    Okay but this is the internet :eek: what did you use to post your picture I used to have a free imageshack account but it wants me to pay now :(

  20. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,122

    Location: Dalek flagship

    I use Imgur and it is free.:)
