The Gamers Guide To Mantle

Caporegime
Joined
12 Jul 2007
Posts
37,332
Location
United Kingdom
A whole plethora of new Mantle information has come to light from AMD's Robert Hallock. There is far too much new and exciting information to simply tack on to the end of an older Mantle thread, so bear with me while i relay it. :cool:

In the six months since Mantle’s January launch, it has quickly grown to be incredibly successful: seven game developers have pledged support, four game engines have adopted and 20+ games will be Mantle-based. Within those figures, Crytek and AMD recently announced Mantle support in Cryengine, and AMD joined forces with 2K Games to bring Mantle support to Sid Meier’s Civilization®: Beyond Earth™. In addition, this month marked the start of the private beta program for the Mantle SDK, which boasts another 40 developers committed to exploring the benefits of our revolutionary API.

With all this momentum for Mantle, we thought it would be a good time to look forwards, backwards and sideways at Mantle to give a comprehensive view of how and why it has achieved overwhelming industry praise. Let’s start, however, by looking at how Mantle reclaims lost performance for gamers.

With a basic implementation, Mantle was designed to improve performance in scenarios where the CPU is the limiting factor (so-called “CPU-bound” cases). CPU-bound scenarios are commonplace in gaming, as existing APIs are laden with heavy validation overhead, and have difficulty scaling out to multiple CPU cores. By addressing these problems, games developed with Mantle improve the experience for the majority of global PC gamers that have entry-level and mid-range processors.

Mantle achieves this through:
Low-overhead validation and processing of API commands
Explicit command buffer control
Close to linear performance scaling from reordering command buffers onto multiple CPU cores
Reduced runtime shader compilation overhead

Mantle is also designed to improve situations where high resolutions and “maximum detail” settings are used, although to a somewhat lesser degree, as thess settings tax GPU resources in a way that is more difficult to improve at the API level (so-called “GPU-bound” scenarios). While Mantle provides some built-in features to improve GPU-bound performance, gains in these cases are largely dependent on how well Mantle features and optimizations are being utilized by the developer. Some of those features include:

Reduction of command buffers submissions
Explicit control of resource compression, expands and synchronizations
Asynchronous DMA queue for data uploads independent from the graphics engine
Asynchronous compute queue for overlapping of compute and graphics workloads
Data formats optimizations via flexible buffer/image access
Advanced Anti-Aliasing features for MSAA/EQAA optimizations

For even more detail, we recently published our first whitepaper on Mantle. This 11-page brief contains essential technical information on the form and function of the Mantle graphics API. In addition, you might also read these recent blogs by Oxide Games and developer Josh Barczak, which detail some specific and significant ways Mantle is improving their development experience.

Altogether, these mechanisms have proven unquestionably attractive for a legion of game developers, to the extent that the first-year adoption rate for the Mantle API is projected to exceed the adoption rate of DirectX® 11

Industry interest in a picture: the number of games in development with Mantle support through Q1 2015.


We’re thrilled to see so many industry luminaries in active development with Mantle in its beta phase, as these studios have a vested interest in making the ideal, high-performance API for PC graphics. Throughout this process, we are discovering new opportunities to reduce inefficiency, and we’re evolving how we make better use of the technologies we have on-hand today.

Source
http://community.amd.com/community/amd-blogs/amd-gaming/blog/2014/05/28/mantle-101

Last edited:
Caporegime
Joined
12 Jul 2007
Posts
37,332
Location
United Kingdom
Mantle in the words of game developers

We’ve said much about Mantle’s goals and merits of late, but now it’s time to listen directly to the brilliant people who are actually in the business of making games.

Dan Baker, a partner at Oxide Games and the former graphics lead for Sid Meier’s Civilization® V, knows a thing or two about driver overhead and graphics APIs. In an interview conducted by MaximumPC regarding their Mantle-enabled “Nitrous” engine, he explained that Mantle is a cure for an industry that is in need of greater parallelization.

“[…]APIs are still designed in this functional threading model where you have a series of processes that pass work back and forth to each other. The idea is that you have say, one thread for rendering, one thread for audio, one thread for gameplay, etc. This is really not a scalable way to build things,” Baker said.

“In situations where you have a shared L3 cache, you also create contention from all the different processes running, since they all access completely different memory. The industry continues to move to a job-based setup, where we have lots of tiny jobs that run asynchronously. This can now scale to a large number of CPUs, and we can fill up most of the previously unused time where one of the processors isn't doing something.”

On the topic of driver overhead, Baker’s insights were also particularly enlightening, noting that his team has been “completely limited in what [they] could do by driver overhead problems.” With Mantle, however, his team rapidly discovered that Mantle is such an elegant solution that it “dwarfs” the Direct3D 11 performance they could achieve in their engine with any hardware vendor.

The team at Firaxis, authors of the upcoming Civilization: Beyond Earth, unequivocally voiced the same opinion in a recent blog on Mantle: “Simply put, Mantle is the most advanced and powerful graphics API in existence. It provides essentially the same feature set as DX11 or OpenGL, and does so at considerably lower runtime cost.”

For game developers, who live and breathe time-to-market pressures on their titles, Mantle has an added benefit. Mantle is their only opportunity to spend less time “tricking the system” to overcome software limitations, and more time getting on with the business of designing cool stuff for gamers. Our development partners have praised Mantle for reducing developmental complexity, which cannot always be said for API extensions or laborious code optimization efforts.

A notable proponent of this philosophy is Chris Roberts, CEO of Cloud Imperium Games and the brains behind Kickstarter sensation “Star Citizen.” In announcing support for Mantle, he noted that the API was key for achieving his vision without fighting the software to get there.

"AMD's Mantle will allow us to extract more performance from an AMD Radeon GPU than any other graphics API," Roberts said. "Mantle is vitally important for a game like Star Citizen, which is being designed with the need for massive GPU horsepower. With Mantle, our team can spend more time achieving our perfect artistic vision, and less time worrying about whether or not today’s gaming hardware will be ready to deliver it."

Firaxis also had something to say on this topic, noting that Mantle’s thinner abstraction layer empowers them to make better-informed game development decisions.
“The Mantle API is able to be backed by a very small, simple driver, which is thus considerably faster,” Firaxis said in their blog. “It also means that this work, which must still be done, is done by someone with considerably more information. Because the engine knows exactly what it will do and how it will do it, it is able to make design decisions that drivers could not.”

Dan Baker has a related philosophy, noting in his opening remarks (figure 1) at GDC14 that Mantle addresses fundamental development challenges that cannot addressed by a retrofit of an existing API.

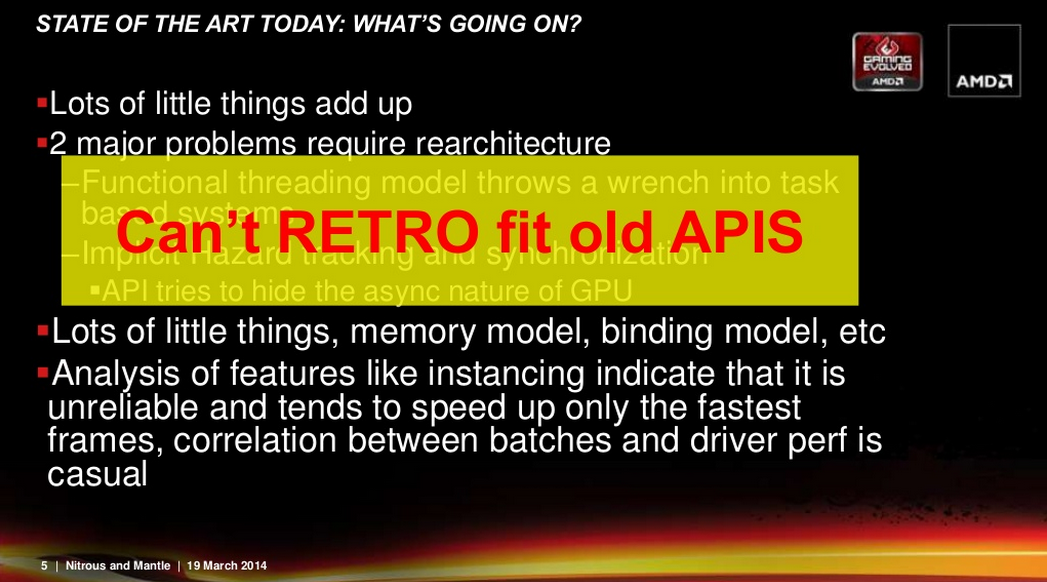

FIGURE 1: Dan Baker of Oxide Games said it plainly when he presented this slide at the 2014 Game Developer Conference: you can’t retrofit old APIs.

Baker continued this line of thinking in a recent blog, saying: “[…] many of the most experienced developers, Oxide included, had for years advocated a lighter, simpler API that did the absolute minimum that it could get away with. We believed we needed a teardown of the entire API rather than some modifications of current APIs.”


Johan Andersson, technical director of the Frostbite engine at DICE, has also praised Mantle for making development easier. That was the central theme of his keynote presentation at the APU13 developer conference late last year, which opened with exactly that sentiment


In review, it is evident that Mantle is addressing a clear need within the industry to reimagine or reinvent the graphics API, and to flush out tired problems that have long stifled game development. Together, AMD and top game developers are collaborating not only to undertake that effort, but to share the results widely throughout the gaming industry so that gamers of every stripe might ultimately benefit.

Source
http://community.amd.com/community/.../05/28/mantle-in-the-words-of-game-developers

Caporegime
Joined
12 Jul 2007
Posts
37,332
Location
United Kingdom
HARDCORE GAMERS: A LOOK AT MANTLE & MULTI-GPU

Moving on to multi-GPU platforms, we enter into an area where hardware has been even more constrained by software, as limited multithreading capabilities must now be stretched thin across two graphics cards hungry to get data and do work—even at 1600p!

Visiting the “Angry Sea” mission in Battlefield 4™ with this configuration demonstrates a large performance delta between DirectX® 11 and Mantle, even when one of those graphics cards is using a driver allegedly tuned to improve performance by reducing driver overhead in DirectX® 11.


We would be remiss if we didn’t put a fine point on this and remind you that this performance disparity represents a squandering of the money you invested in your hardware. Mantle isn’t just a way to increase detail or performance--it’s a return on your investment as a gamer.

ON THE TOPIC OF ROI

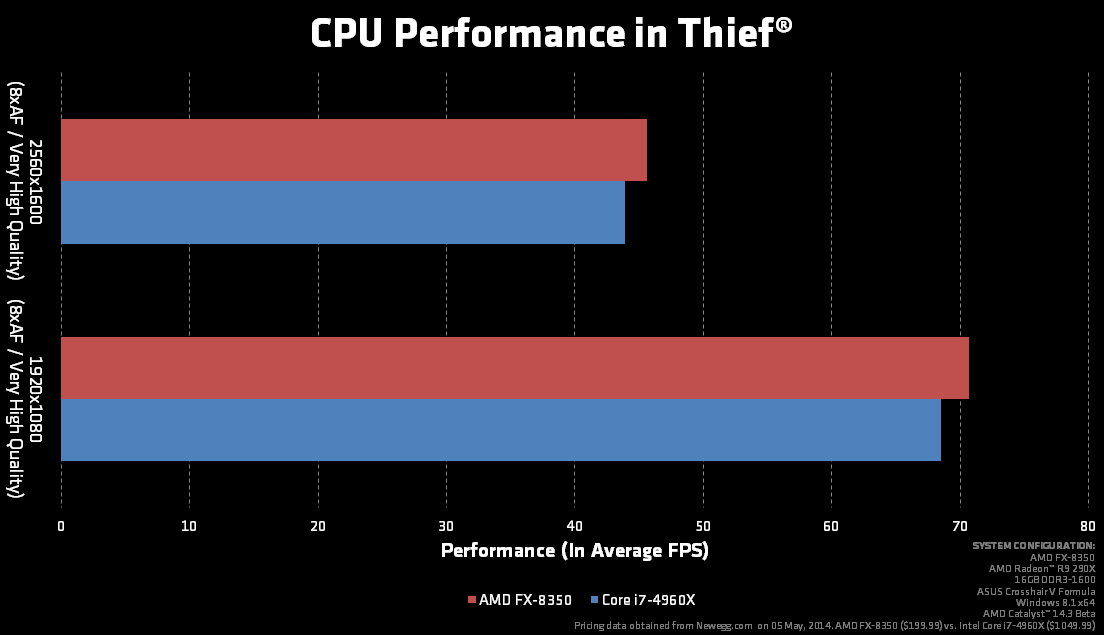

Another interesting trend arises from the data, in that the low-overhead benefits of Mantle are evidently unlocking the true performance of processors across the board, allowing contenders at very different prices to churn out approximately equal performance regardless of their retail cost. The importance of this trend, when extrapolated to an industry now focused on low-overhead APIs, cannot be understated.


Consider the implications of a new landscape where the budgetary choices you make for your PC have been democratized by software that totally deemphasizes the importance of your processor decision (and, by extension, the corresponding motherboard).

What would that do to the cost of your system when low-overhead APIs like Mantle become the norm? Would you purchase a less costly CPU and a more powerful graphics card instead? Would you simply reduce the cost of your system, perhaps by several hundred dollars? Little has been discussed on this topic, but we invite you to consider it in greater detail in your communities and articles.

Source
http://community.amd.com/community/amd-blogs/amd-gaming/blog/2014/05/28/the-performance-of-mantle

Caporegime
Joined
12 Jul 2007
Posts
37,332
Location
United Kingdom
Mantle: the start of low-overhead future

Mantle has consistently proven itself in a number of games and engines, to the extent that low-overhead APIs were one of the hottest topics at the 2014 Game Developer Conference. Microsoft announced DirectX® 12, a “console-like” iteration of their famous API that promises to streamline development and address programming overhead. Others talked low-overhead OpenGL™, and the practices that might need to be adopted to get there.

It’s important to highlight that AMD was an essential voice in both of these discussions, and the chronology plainly demonstrates that Mantle has been highly influential to both the theme and the existence of these discussions. Naturally, we are 100% behind any decision that provides the benefits of low-overhead game development accessible to more gamers and developers.

But we also feel that our effort to spearhead the low-overhead revolution has been inaccurately portrayed as an ugly “us vs. them” fight between Mantle and DirectX® 12. Today we’d like to set the record straight and spend a little time talking about the real relationship between these APIs in the months ahead.

As DirectX® 12 games sits about 20 months away by Microsoft’s estimation (“holiday 2015”), there exists a long period of time from today where game developers must prepare their studios for a future when all major graphics APIs seek to extract the same sort of benefits that Mantle has pioneered. As the industry’s only proven low-overhead API for PC graphics, Mantle stands ready and waiting to address that gap.

Beyond that point, we expect DirectX® 12 to be every bit the robust and powerful solution Microsoft has promised it will be. We know that because we, too, are a member of the consortium Microsoft assembled to help shape this and every other version of their API since the 1990s.

When DirectX® 12 lands in late 2015, millions of AMD Radeon™ products based on the GCN Architecture will be compatible on day one. Thanks to Mantle and our presence in the console space, AMD will also stand alone with a graphics architecture that has received years of attention from developers working with low-overhead graphics APIs.

Above all, Mantle will present developers with a powerful shortcut to DirectX® 12, as the lingual similarities between APIs will make it easy to port a Mantle-based render backend to a DirectX® 12-based one if needed or desired. In addition, Mantle developers that made the bold decision to support our historic API will be well-educated on the design principles DirectX® 12 also promises to leverage. Finally, we will ensure that tomorrow’s game engines have an easy time of supporting a Mantle render backend, just as talented devs are comfortable with supporting multiple backends today to better address the needs of gamers.


IN CONCLUSION

Over the last seven months, we have been quite transparent about the origins of Mantle rooted in requests from developers, the problems we hope to solve with Mantle, and the effect it has had on this incredible industry. In our communications, even within this very blog, we’ve also been open and honest about the nature of our data and the areas we’re still actively addressing to make Mantle an even better solution for problems in game development—we wish the same could be said for the benchmarks recently circulated by our competition. And today, we’ve shared with you our vision for the future of graphics, along with Mantle’s place in that future.

We heartily welcome discussion and analysis of the nature of Mantle in ways that comprehensively and accurately consider both CPU-bound and GPU-bound scenarios. We also invite inquisitive and philosophical investigation into why Mantle’s adoption has been so rapid, why Mantle is gaining traction amongst the largest and most experienced development studios, and how Mantle has shaped the direction of the graphics industry as a whole.

Whatever the future ultimately holds, we at AMD are simply proud the industry is joining us in making faster hardware through smarter software. That was our prime philosophy since the day game developers came to us—as they did each hardware vendor—asking us for a better way. We’re glad others respect that philosophy, too, and we can’t wait to put our GPUs to work in support of that mission wherever it may go.

Source
http://community.amd.com/community/...05/28/mantle-the-start-of-low-overhead-future

At 11 pages long the Mantle whitepaper offers a solid high level overview of the technology. In it AMD delves into further detail about several aspects of the API, without getting buried in the minutia of an API in a way that only seasoned programmers can appreciate. Among the subjects covered are Mantle's memory model, execution model, pipeline model, and the basic tenants of where low-level APIs can reduce overhead and improve performance over high level APIs.

The bulk of this information is a repeat from AMD’s earlier developer presentations, so we won’t spend any time going over the materials in-depth here, but for a more approachable look at the API from AMD’s perspective this is a great start.

Source
http://www.amd.com/Documents/Mantle_White_Paper.pdf

Last edited:
Caporegime
Joined
18 Oct 2002
Posts
37,075
Location
Ireland
Slightly ot but matt where about is this 7990 bios of yours? Might give it a try later Eyefinity temps still too high for my liking :(

Caporegime
Joined
12 Jul 2007
Posts
37,332
Location
United Kingdom
Slightly ot but matt where about is this 7990 bios of yours? Might give it a try later Eyefinity temps still too high for my liking :(

Here mate.

http://forums.overclockers.co.uk/showthread.php?t=18558655

new Mantle optimized Game , BattleField Hardline, not announced yet but visceral+ dice..= Mantle, the game is a baby from payday2 and battlefield4
http://www.youtube.com/watch?v=sj9F5o0T05s

How do you know that's a new Mantle game? I've not seen an announcement. I guess there's a strong possibility as it will be on Frostbite 3.0. As its from Visceral though who are different from Dice it may not have been agreed yet, or it may never happen at all. It could be one of those 40 devs looking in to Mantle, maybe.

Associate
Joined
8 May 2014
Posts
2,288
Location
france
Here mate.

http://forums.overclockers.co.uk/showthread.php?t=18558655



How do you know that's a new Mantle game? I've not seen an announcement. I guess there's a strong possibility as it will be on Frostbite 3.0. As its from Visceral though who are different from Dice it may not have been agreed yet, or it may never happen at all. It could be one of those 40 devs looking in to Mantle, maybe.

Visceral is one of the 40 studios part of the Mantle Beta, and is under EA publishing and using frostbite 3...it's like 90% sure it's a new Mantle game

Soldato
Joined
20 Feb 2009
Posts
9,426
Location
Not where I'd like to be
Without reading it, I'm at work and really should be getting on with my fun job of spreadsheeting, I'm going to assume that it's going to be awesome and lots of developers are going to excite us AMDers?

Soldato
Joined
25 Jun 2011
Posts
16,799
Location
Aberdeen
May be worth adding that the cryengine dev tool subscription is now available on steam, at a guess it would get Mantle support in due course.

Associate
Joined
8 May 2014
Posts
2,288
Location
france
Nice info on Mantle.




Next BF game is not BF5 ;)

still personaly i LOVE Payday2, and battlefield hardline adds the ability to play swat team not only robbers, building destruction like bf4, im very excited by this game hope they deliver on it, because i just love the genre.

Caporegime
Joined
12 Jul 2007
Posts
37,332
Location
United Kingdom
AMD Releases Mantle Whitepaper

At 11 pages long the Mantle whitepaper offers a solid high level overview of the technology. In it AMD delves into further detail about several aspects of the API, without getting buried in the minutia of an API in a way that only seasoned programmers can appreciate. Among the subjects covered are Mantle's memory model, execution model, pipeline model, and the basic tenants of where low-level APIs can reduce overhead and improve performance over high level APIs.

The bulk of this information is a repeat from AMD’s earlier developer presentations, so we won’t spend any time going over the materials in-depth here, but for a more approachable look at the API from AMD’s perspective this is a great start.

Source
http://www.anandtech.com/show/8074/amd-posts-mantle-whitepaper
http://www.amd.com/Documents/Mantle_White_Paper.pdf

Last edited:
Soldato
Joined
23 Jul 2009
Posts
13,919
Location
Bath
Good read, and it certainly puts nvidia under pressure to get more proactive about the gaming industry lest they be branded the EA of the gpu world.
