The GTX Titan X owners thread.

Discussion in 'Graphics Cards' started by Kaapstad, Mar 17, 2015.

  1. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,166

    Location: Dalek flagship

  2. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,166

    Location: Dalek flagship



    The Roll of Honour.

    Make EVGA SC, Kaapstad, Link
    Make Gigabyte/EVGA SC, Gregster, Link
    Make EVGA, magpie1966, Link
    Make EVGA SC, Cosimo, Link
    Make MSI, Orangey, Link
    Make Gigabyte, BG1980, Link
    Make Gigabyte, Boomstick777, Link
    Make EVGA SC, andrewohare, Link
    Make Gigabyte, Born_2_Kill_83, Link
    Make EVGA, Silent_Scone, Link
    Make Gigabyte, tipes, Link
    Make EVGA SC, ITANI, Link
    Make MSI, Five.Stars, Link
    Make Gigabyte, Nocky24, Link
    Make Gigabyte, mac40, Link
    Make Gigabyte/Zotac, africanos23, Link
    Make Gigabyte, Ayahuasca, Link
    Make EVGA SC, fantasticCG, Link
    Make Gigabyte, darket, Link
    Make Gigabyte, Scimitar1, Link
    Make MSI, Drojman, Link
    Make Gigabyte, SS-89, Link
    Make MSI, ndaar, Link
    Make MSI, VEGACORTEZ, Link
    Make Asus, 8 Pack, Link
    Make Asus, gerardfraser, Link
    Make EVGA SC, Evil Shubunkin, Link
    Make Gigabyte, wunkley, Link
    Make Gigabyte, crinkleshoes, Link
    Make MSI, VincentHanna, Link
    Make Gigabyte, Amidar, Link
    Make Gigabyte, Twisted Kid, Link
    Make EVGA, romanlegion13th, Link
    Make EVGA, danw872, Link
    Make Gigabyte, davisdavid, Link
    Make Palit, Watlinguk, Link
    Make Palit, TTomax, Link
    Make Gigabyte, seth1969, Link
    Make Palit, straxusii, Link
    Make Asus, Firefox35, Link
    Make Gigabyte, GarryO, Link
    Make NVidia Direct, Seyumi, Link
    Make Gigabyte, Mal X, Link
    Make Gigabyte, Budge4, Link
    Make Palit, Quartz, Link
    Make EVGA SC, whyscotty, Link
    Make EVGA, ^JP^, Link
    Make Palit, Meaker, Link
    Make Gigabyte, cwgk91, Link
    Make Gigabyte, andy_taximan, Link
    Make Gigabyte, hexblitz86, Link
    Make MSI, garymcq23, Link
    Make Palit, SpeckleD, Link
    Make Gigabyte, jim0082, Link
    Make EVGA, vasilltino, Link
    Make EVGA SC, Aylan1196, Link
    Make Gigabyte, cadmunkey, Link
    Make EVGA, Shamrock, Link
    Make EVGA SC, Genjuro82, Link
    Make Gigabyte, HACO, Link
    Make MSI, dasimpse, Link
    Make Gigabyte, CapitalOne, Link
    Make Gigabyte, Montegue, Link
    Make Palit, ish1, Link
    Make EVGA SC, Streetlight, Link
    Make EVGA SC/Zotac, dessimpson, Link
    Make EVGA SC, Mayh3M, Link
    Make EVGA SC, Deks, Link
    Make EVGA, elfoscuro, Link
    Make EVGA, thefogo, Link
    Make EVGA SC, Klunt Bumskrint, Link
    Make EVGA SC, faxfan, Link
    Make Asus, cjdavid, Link
    Make EVGA, alex_123_fra, Link
    Make OcUK, fatlenny, Link
    Make EVGA SC, darkslidez, Link
    Make EVGA, nath247, Link
    Make OcUK, Huntyz, Link
    Make Asus, crasher, Link
    Make EVGA SC, N19h7m4r3, Link
    Make OcUK, Sequence, Link
    Make OcUK, GSXR Gaz Mc, Link
    Make Asus, Dicehunter, Link
    Make Zotac, Worthy, Link
    Make Zotac, Maverick2332, Link
    Make Zotac/EVGA SC, Radox-0, Link
    Make EVGA, texxx74, Link
    Make EVGA, bake73, Link
    Make EVGA, UltraNEO*, Link
    Make Asus, OracIe, Link
    Make Zotac, Simon Belmont, Link
    Make EVGA SC, MrPix, Link
    Make Palit, kazuya1337, Link
    Make Zotac, spiralz, Link
    Make Gigabyte/Palit, TooTay, Link
    Make Zotac, oldestgregg, Link
    Make Palit, MrMason, Link
    Make OcUK, S2KIP, Link
    Make EVGA SC, trawetSluaP, Link
    Make EVGA Hybrid, jommy999, Link
    Make EVGA SC, SGTMASON, Link
    Make Gigabyte, littlepuppy, Link
    Make Zotac/Gigabyte, PFarrey, Link
    Make EVGA SC, SGTMASON, Link
    Make EVGA SC, sonne, Link
    Make PNY, olliej82, Link

    To get on the Roll of Honour all you have to do is post a pic with your user name on it of your TitanX.​



    [​IMG]

    Last edited: May 1, 2016
  3. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,166

    Location: Dalek flagship

  4. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,166

    Location: Dalek flagship

    Reserved.


    [​IMG]

    Last edited: Jun 7, 2015
  5. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,166

    Location: Dalek flagship

    User Reviews.





    Last edited: May 17, 2016
  6. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,166

    Location: Dalek flagship

    Last edited: Mar 19, 2015
  7. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,166

    Location: Dalek flagship

    TitanX Benchmarks.



    These can be used as a guide to ensure people are getting the best out of their systems.




    [​IMG]

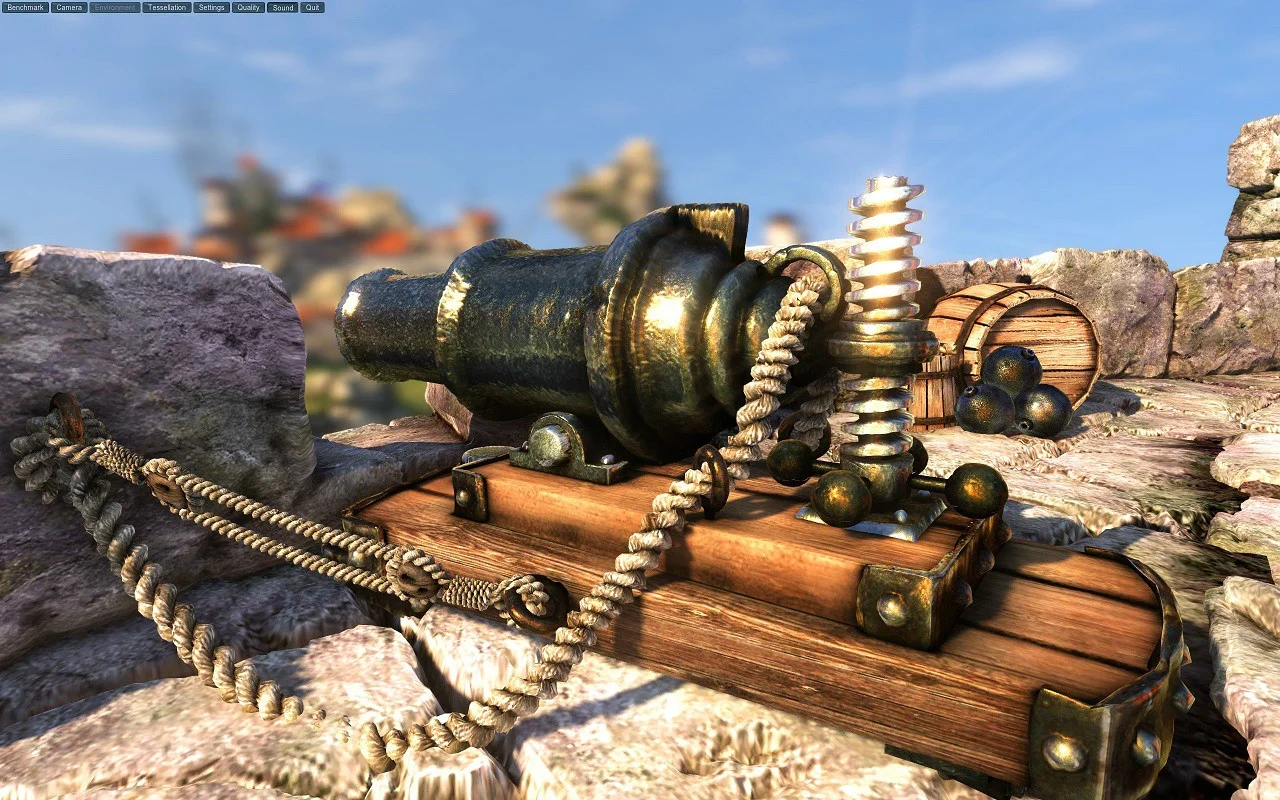

    Heaven 4 1080p


    1 GPU

    1. Score 2742, GPU TitanX @1500/2002, CPU 3770k @4.6, darket
    2. Score 2741, GPU TitanX @1450/2019, CPU 3770k @4.6, gerardfraser
    3. Score 2724, GPU TitanX @1509/2005, CPU 3930k @5.0, P.B
    4. Score 2719, GPU TitanX @1506/2027, CPU 5960X @4.5, Kaapstad
    5. Score 2694, GPU TitanX @1498/1998, CPU 5930k @4.4, Streetlight
    6. Score 2678, GPU TitanX @1442/2005, CPU 3930k @4.625, Gregster
    7. Score 2573, GPU TitanX @1380/2002, CPU 4930k @4.7, Kaapstad
    8. Score 2566, GPU TitanX @1275/2002, CPU X5650 @4.0, seth1969
    9. Score 2533, GPU TitanX @1451/1850, CPU 4790k @4.5, Montegue
    10. Score 2533, GPU TitanX @1453/2002, CPU 5820k @4.625, crinkleshoes
    11. Score 2494, GPU TitanX @1416/1878, CPU 2700k @4.6, mac40








    [​IMG]




    Firestrike Standard


    1 GPU

    1. Score 19307, GPU TitanX @1530/1977, GFX Score 21841, Physics Score 20835, Combined Score 9751, CPU 5960X @4.625, ^JP^, Post No.120 - Link Drivers 350.05
    2. Score 19278, GPU TitanX @1441/2027, GFX Score 21317, Physics Score 22379, Combined Score 10015, CPU 5960X @4.6, Kaapstad, Post No.9 - Link Drivers 347.88
    3. Score 19145, GPU TitanX @1514/1937, GFX Score 21267, Physics Score 21730, Combined Score 9938, CPU 5960X @4.5, tipes, Post No.36 - Link Drivers 350.05
    4. Score 19090, GPU TitanX @1262/2000, GFX Score 21282, Physics Score 21347, Combined Score 9886, CPU 5960X @4.5, andrewohare, Post No.104 - Link Drivers 347.88
    5. Score 18026, GPU TitanX @1490/1950, GFX Score 21420, Physics Score 16627, Combined Score 8742, CPU 4930k @4.5, alex_123_fra, Post No.159 - Link Drivers 350.12
    6. Score 17637, GPU TitanX @1475/1750, GFX Score 20692, Physics Score 16510, Combined Score 8799, CPU 5820k @4.2, thefogo, Post No.146 - Link Drivers 350.12
    7. Score 17326, GPU TitanX @1244/2003, GFX Score 21484, Physics Score 13371, Combined Score 8631, CPU 4790k @4.8, whyscotty, Post No.20 - Link Drivers 350.05
    8. Score 16915, GPU TitanX @1410/2007, GFX Score 20958, Physics Score 13087, Combined Score 8425, CPU 4790k @4.7, Twisted Kid, Post No.160 - Link Drivers 350.12
    9. Score 16798, GPU TitanX @1524/2001, GFX Score 21731, Physics Score 12542, Combined Score 7659, CPU 2700k @5.0, mac40, Post No.93 - Link Drivers 350.12



    Firestrike Ultra


    1 GPU

    1. Score 5368, GPU TitanX @1530/1977, GFX Score 5252, Physics Score 20992, Combined Score 2753, CPU 5960X @4.625, ^JP^ - Link Drivers 350.05
    2. Score 5030, GPU TitanX @1510/2000, GFX Score 5003, Physics Score 12513, Combined Score 2711, CPU 2700k @5.0, mac40 - Link Drivers 350.05
    3. Score 4842, GPU TitanX @1453/1957, GFX Score 4786, Physics Score 13467, Combined Score 2588, CPU 3930k @3.8, africanos23 - Link Drivers 347.88
    4. Score 4805, GPU TitanX @1433/1752, GFX Score 4712, Physics Score 15735, Combined Score 2539, CPU 3930k @4.4, Gregster - Link Drivers 347.88
    5. Score 4756, GPU TitanX @1264/1753, GFX Score 4599, Physics Score 20490, Combined Score 2509, CPU 5960X @4.2, Cosimo - Link Drivers 347.88




    [​IMG]

    Last edited: Oct 9, 2015
  8. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,166

    Location: Dalek flagship

    Last edited: Mar 21, 2015
  9. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,166

    Location: Dalek flagship

    Extreme Benching.

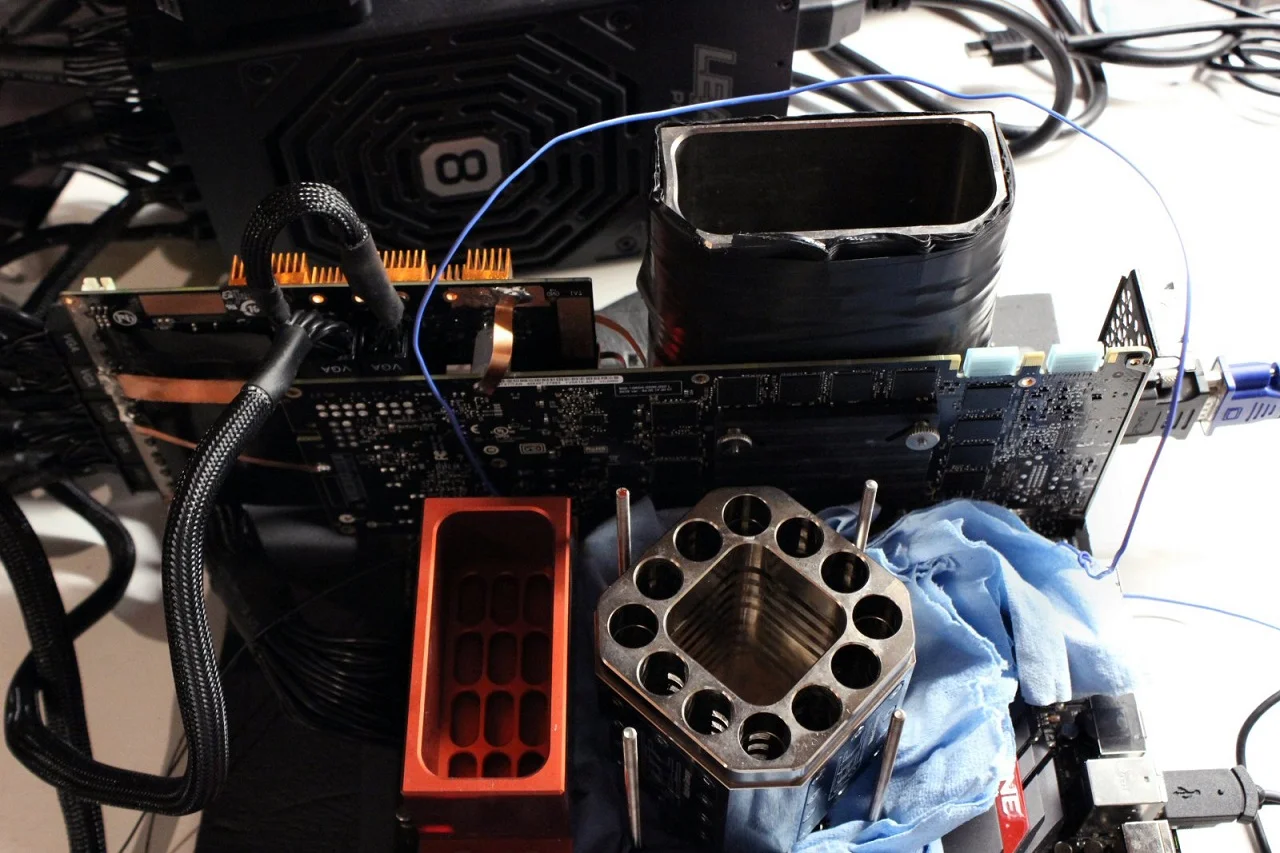

    8 Pack chats to Gregster about LN2 WR breaking TX setup.

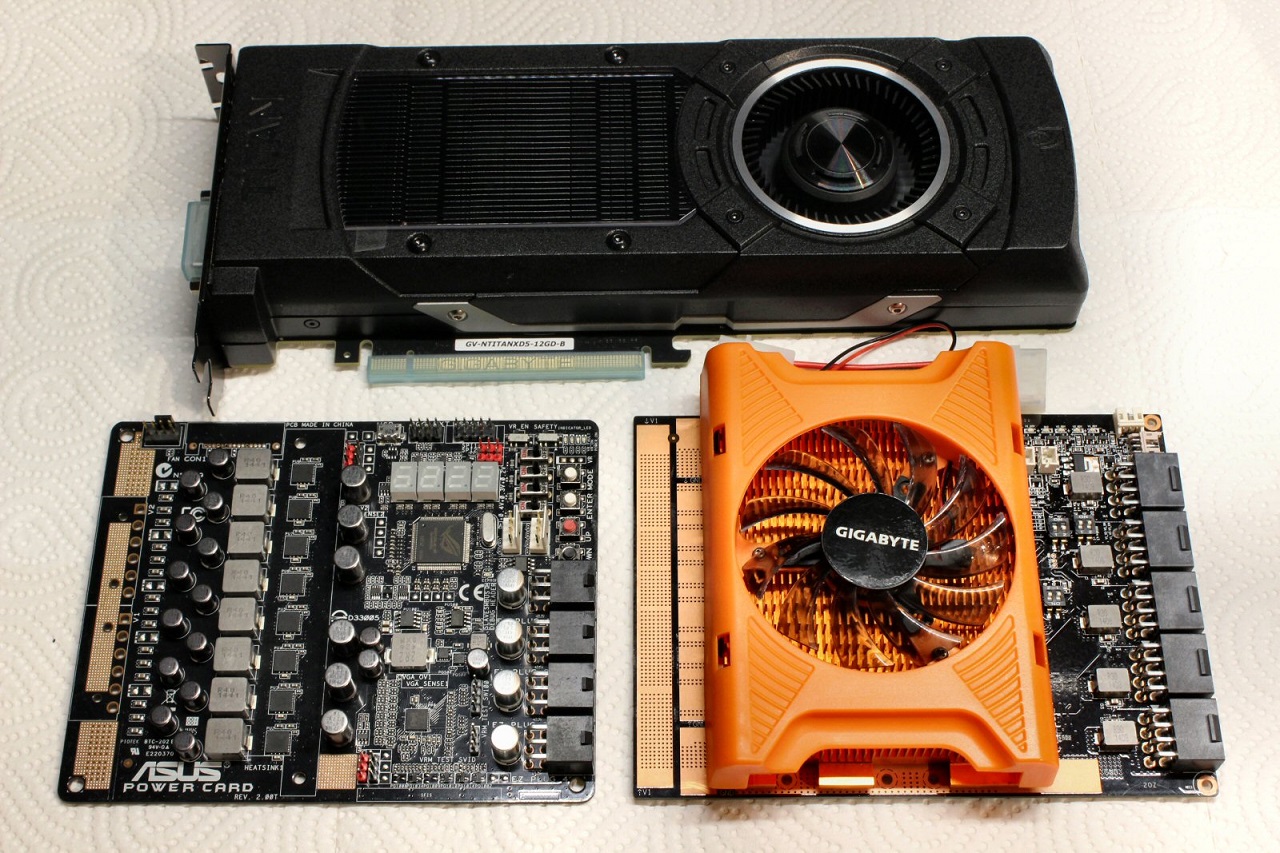

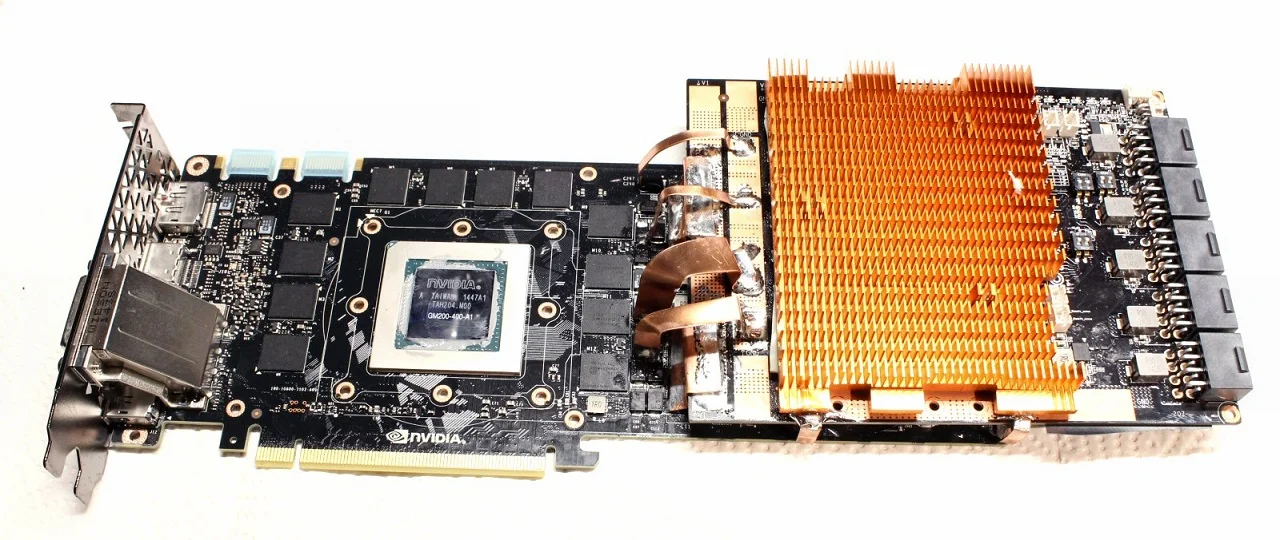

    TitanX – External Power Guide By der8auer.

    http://overclocking.guide/nvidia-gtx-titan-x-external-power-guide/


    [​IMG]


    Nvidia recently released the new GTX Titan X which is a very powerful card based on the Maxwell architecture. Unfortunately these graphics cards are not meant to be overclocked. The power
    design is quite weak and the VRMs will most likely blow up if you overvolt them a bit. For extreme overclocking we need a powerful voltage supply so here is a guide how you can hook-up
    an external power device such as EVGA E-Power, ASUS Power Card or GIGABYTE G-Power to the GTX Titan X.

    Things you need:
    ?Powerful soldering iron (minimum 80 W. 150 W is recommended)
    ?Copper sheets with 0.5 – 1.0 mm thickness
    ?Thick full solid copper wires
    ?High quality soldering tin (I use Sn95,5AgCu0,7)
    ?Hot glue gun
    ?Grinder
    ?Multimeter
    ?Patience


    1. Unmount the cooler.

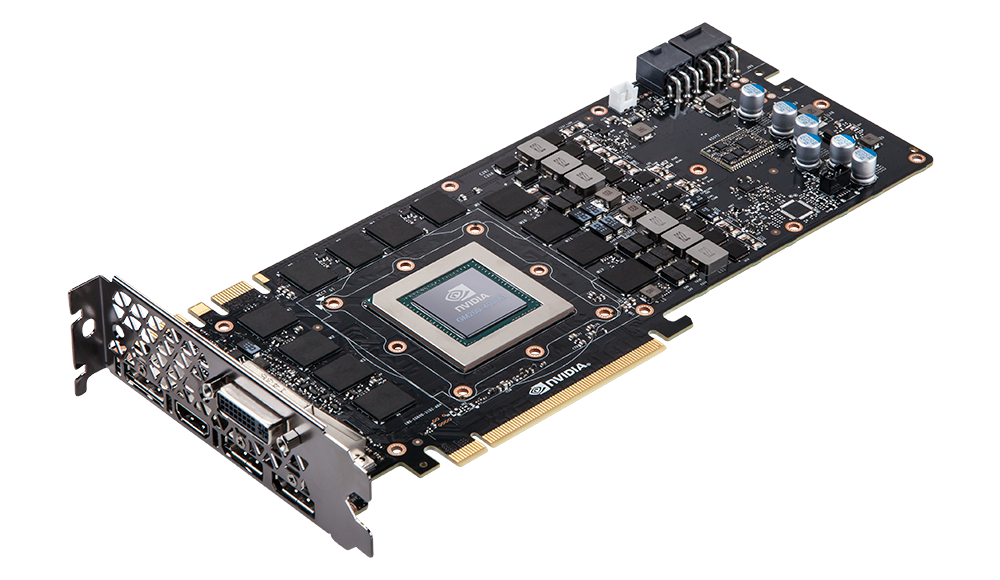

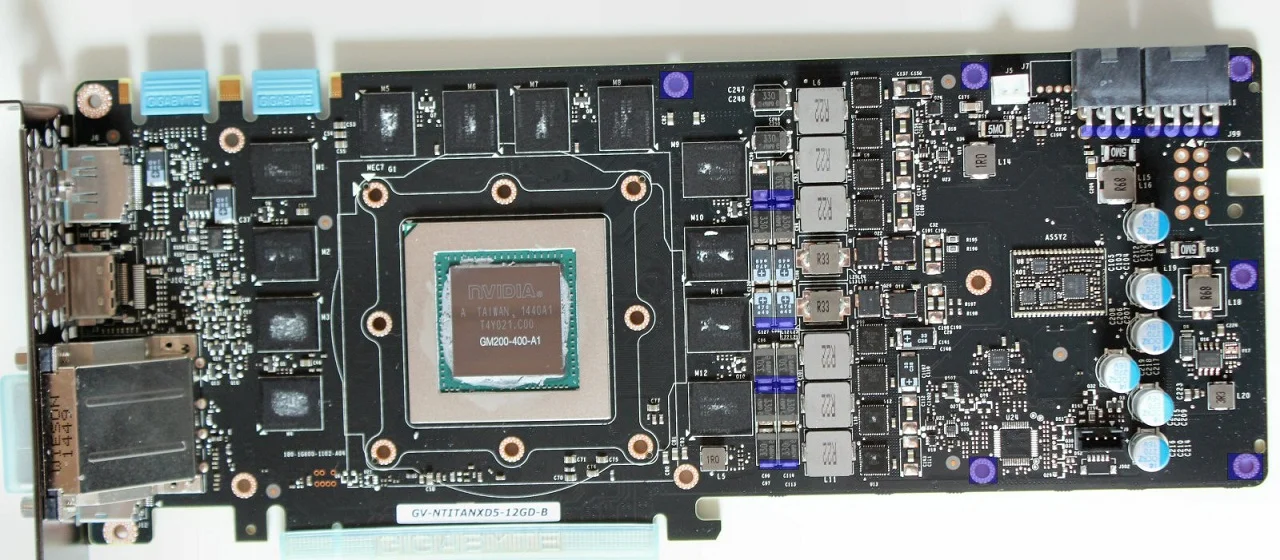

    Take off the cooler and take a closer look at the PCB.

    [​IMG]

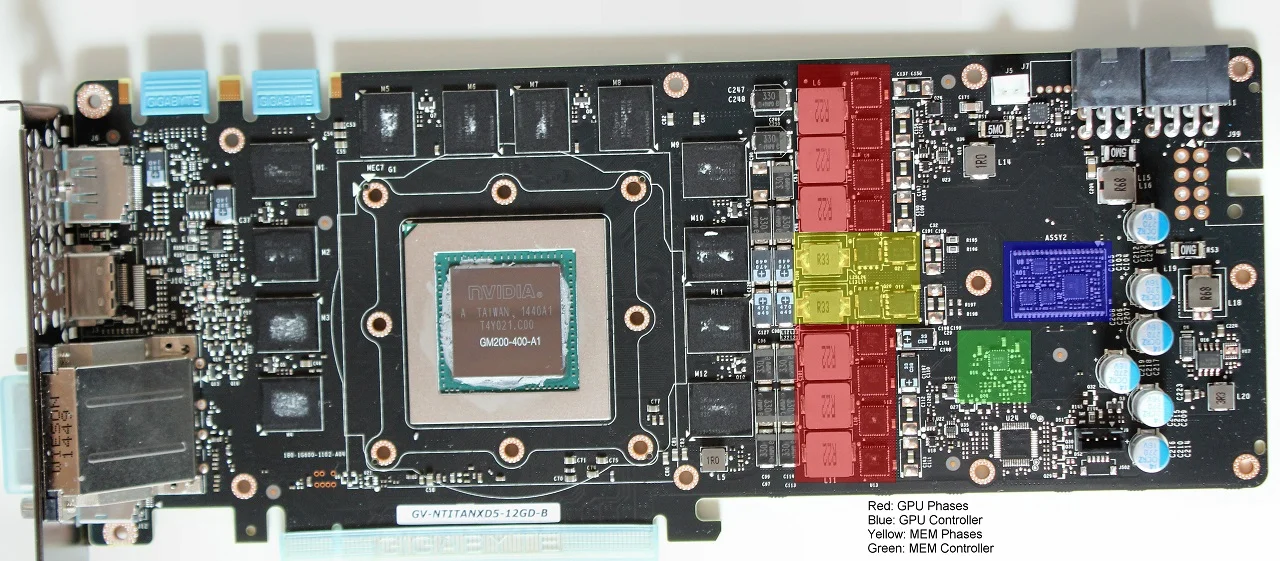

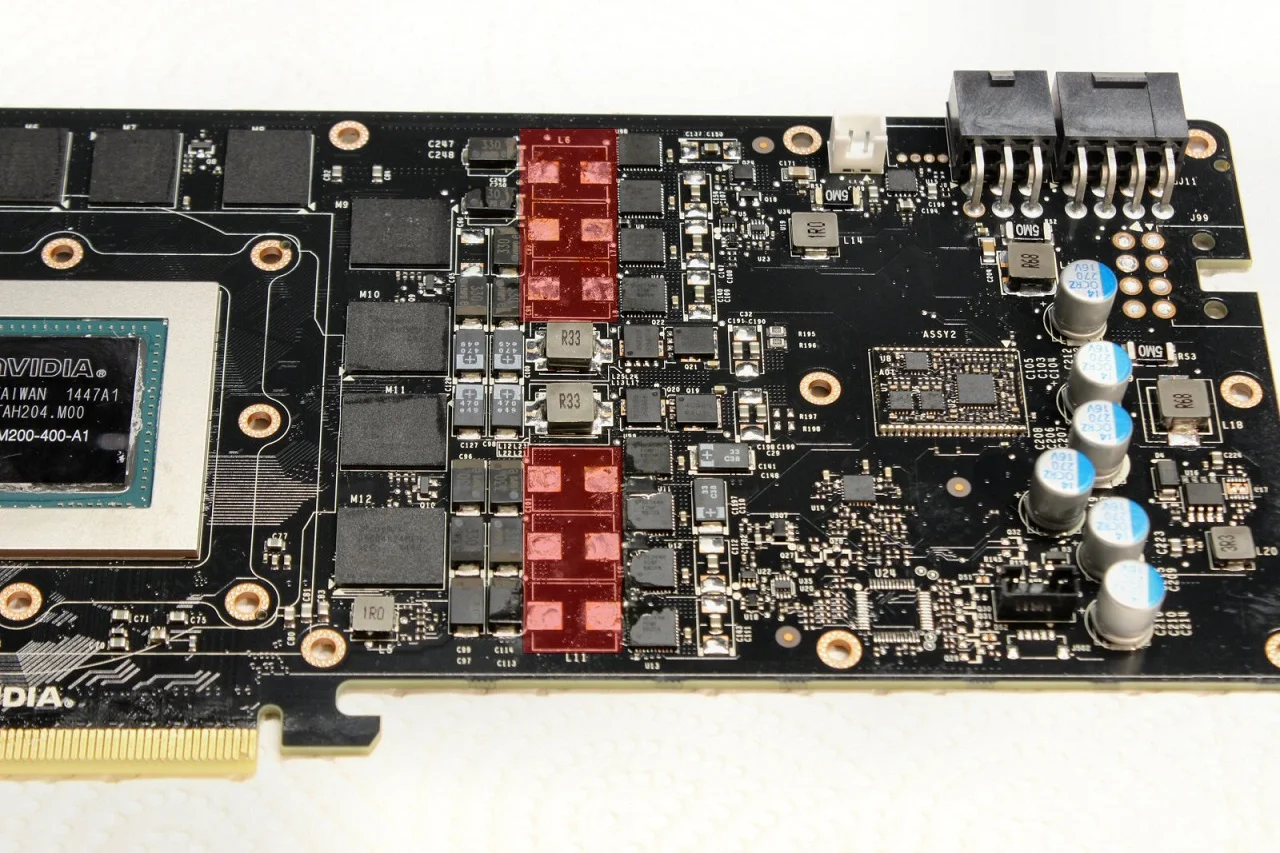

    The theory is simple: Remove the inductors of the GPU (red, marked R22) to disable the stock VRM and hook up the power board. Usually you don’t need to E-Power the memory (yellow) so we
    will keep the original memory VRMs. However, the GPU controller (blue, NCP81174) will prevent the GPU from powering on if we remove the GPU inductors. So…


    2. Cut the VR_READY trace.

    [​IMG]

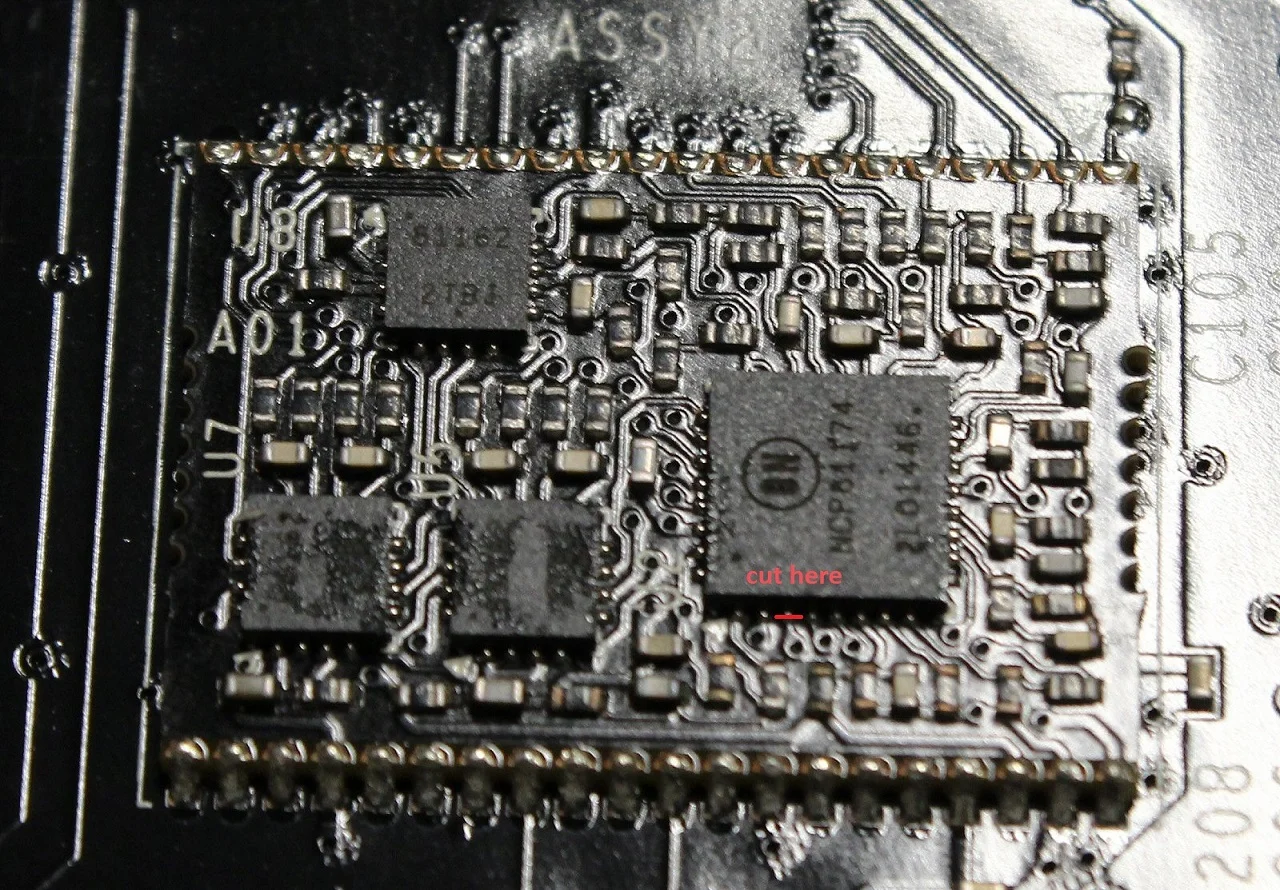

    Pin 3 of the Onsemi NCP81174 is the VR_READY input which will check if all VRMs are working or not. Simply cut the trace at the marked spot to disable the monitoring. The trace is really small
    so take a sharp knife and be careful not to cut too deep or anything else. If you can’t cut the trace or if you cut too much you can simply remove the whole IC.


    3. Unlock the Power-Target.

    [​IMG]

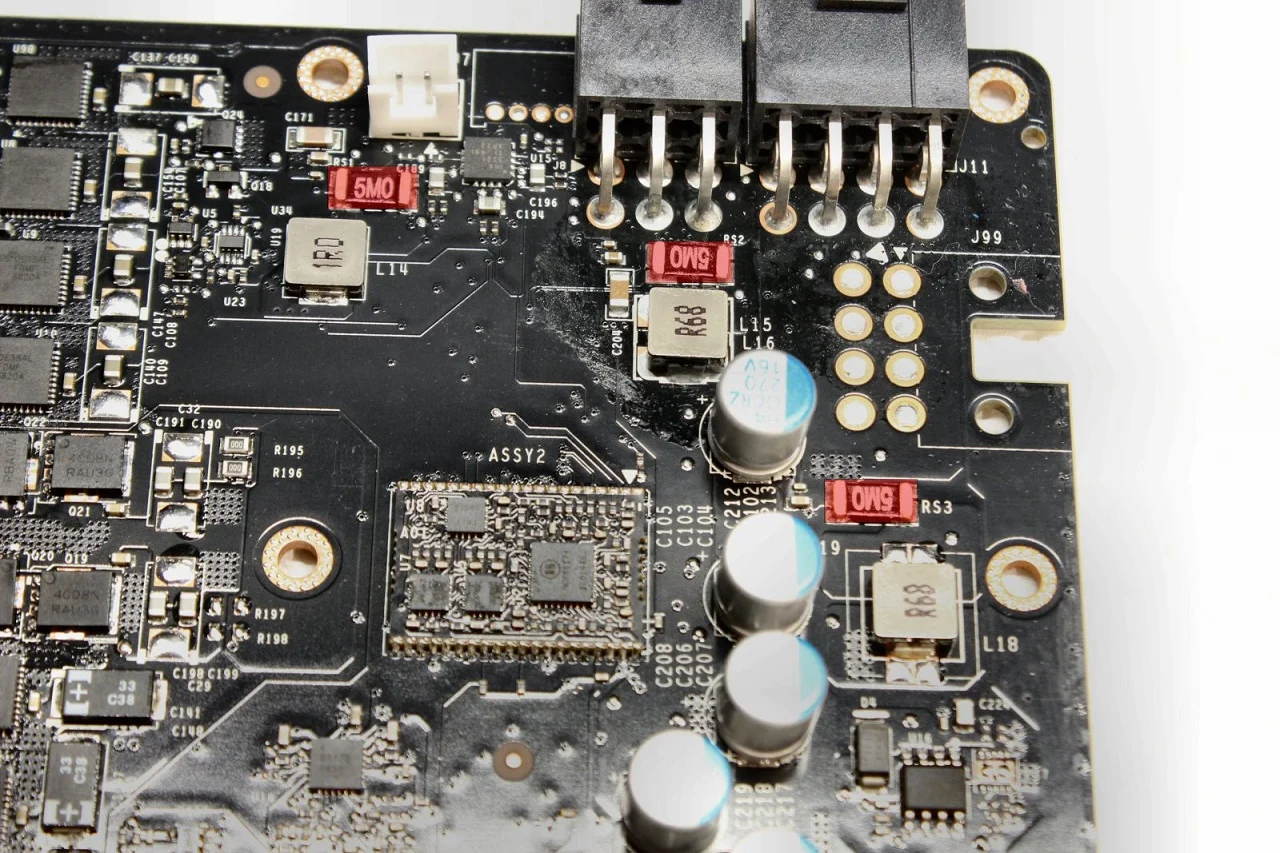

    After cutting the trace of the NCP81174 I recommend to unlock the power target. You can just solder across the 3 shunt resistors to unlock the full power target. (If you want to know more about
    this topic, check here: http://overclocking.guide/increase-the-nvidia-power-limit-all-cards/)



    4. Remove the GPU inductors / prepare soldering spots.

    [​IMG]

    Now remove the stock GPU inductors marked with R22.

    Afterwards check the resistance from vGPU to Ground. The resistance is quite low and will also depend on your multimeter. Usually you will have values around 1.5 – 3 ohm. Everything below
    could be a result of a short circuit which means you either connected something wrong or something is broken. In this case recheck everything you did before.

    [​IMG]

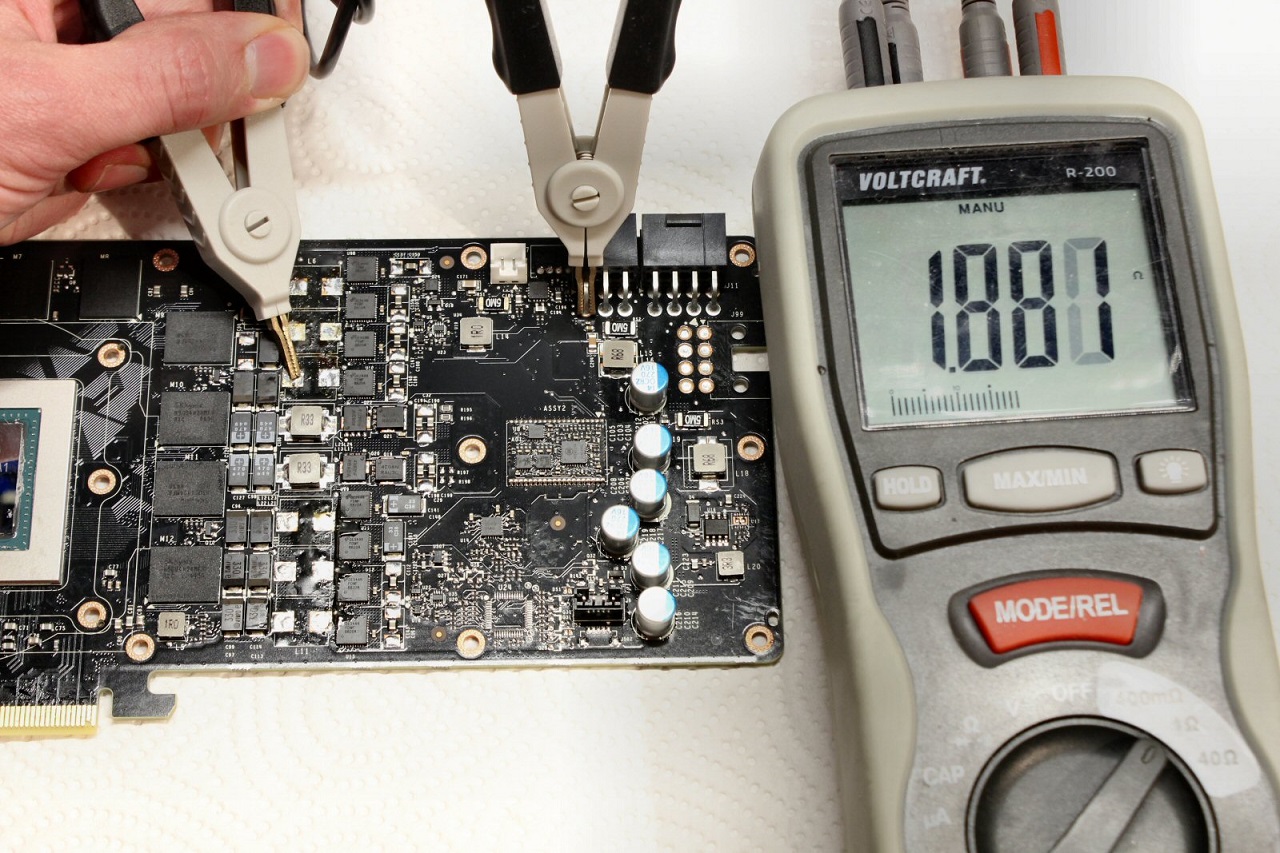

    In my case I measured 1.881 ohm from vGPU to Ground. Measuring from the Ground of the 6-Pin connector to another Ground spot I had 0.127 ohm. So if you have a different multimeter and
    measure e.g. 0.9 ohm from Ground to Ground it could be that you will measure 3 ohm from vGPU to Ground.

    If everything is fine – move on.

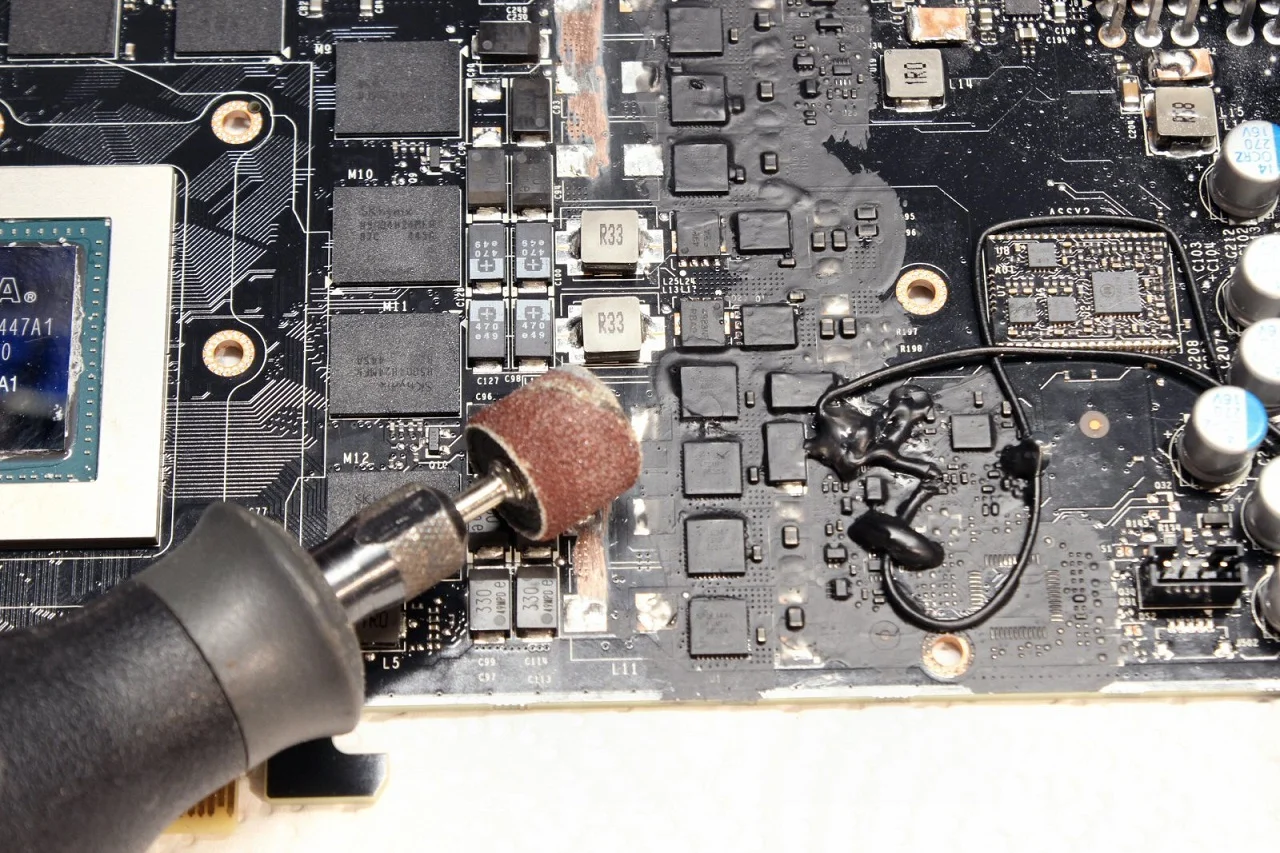

    To increase the soldering surface I recommend to grind around the soldering pads of the inductors as you can see in the following picture:

    [​IMG]

    Be carefuly not to grind too deep or you might damage other layers or cause short-circuits.


    5. Memory FB-Mod.

    [​IMG]

    Since we are using the stock memory VRM you can just apply a normal FB-Mod to increase the memory voltage. Replace the resistor in the picture above with a 10 kOhm trimmer set to
    3.09 kOhm. If you increase the resistance it will increase the memory voltage.

    Removing the small resistor you should have a resistance in circuit of about 17.4 kOhm. Just for reference.

    [​IMG]

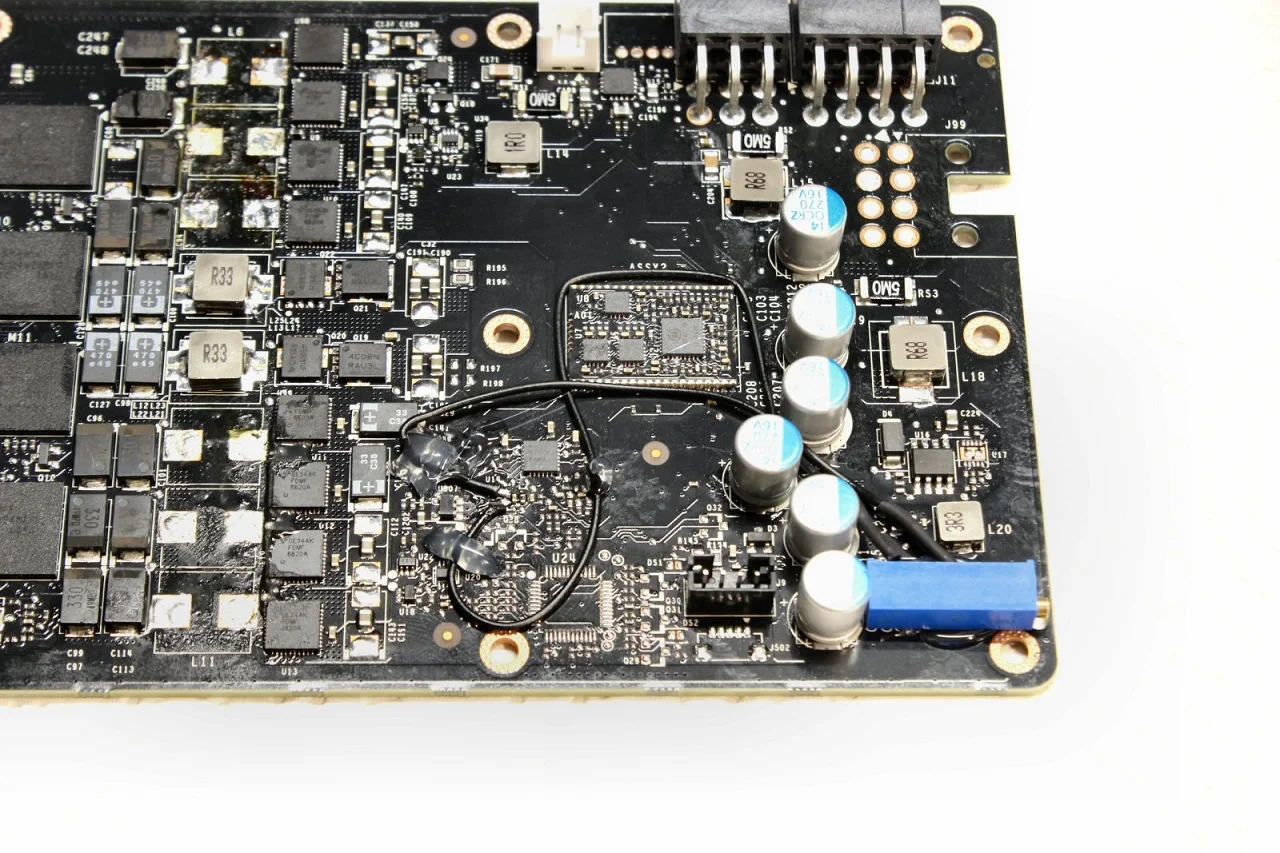

    Now take your trimmer and set it to about 3.09 kOhm. If you got that – solder it on.

    [​IMG]

    [​IMG]

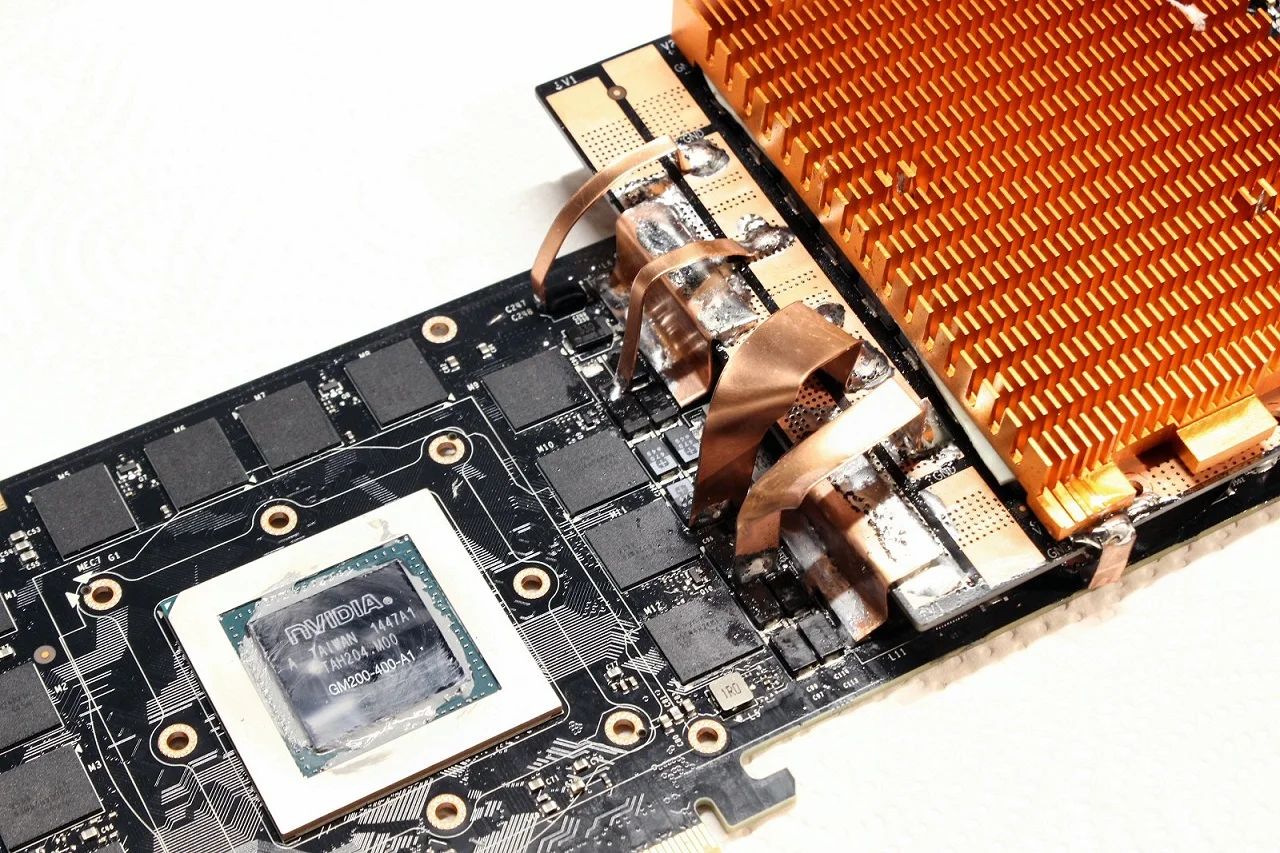

    6. Hook up the power board.

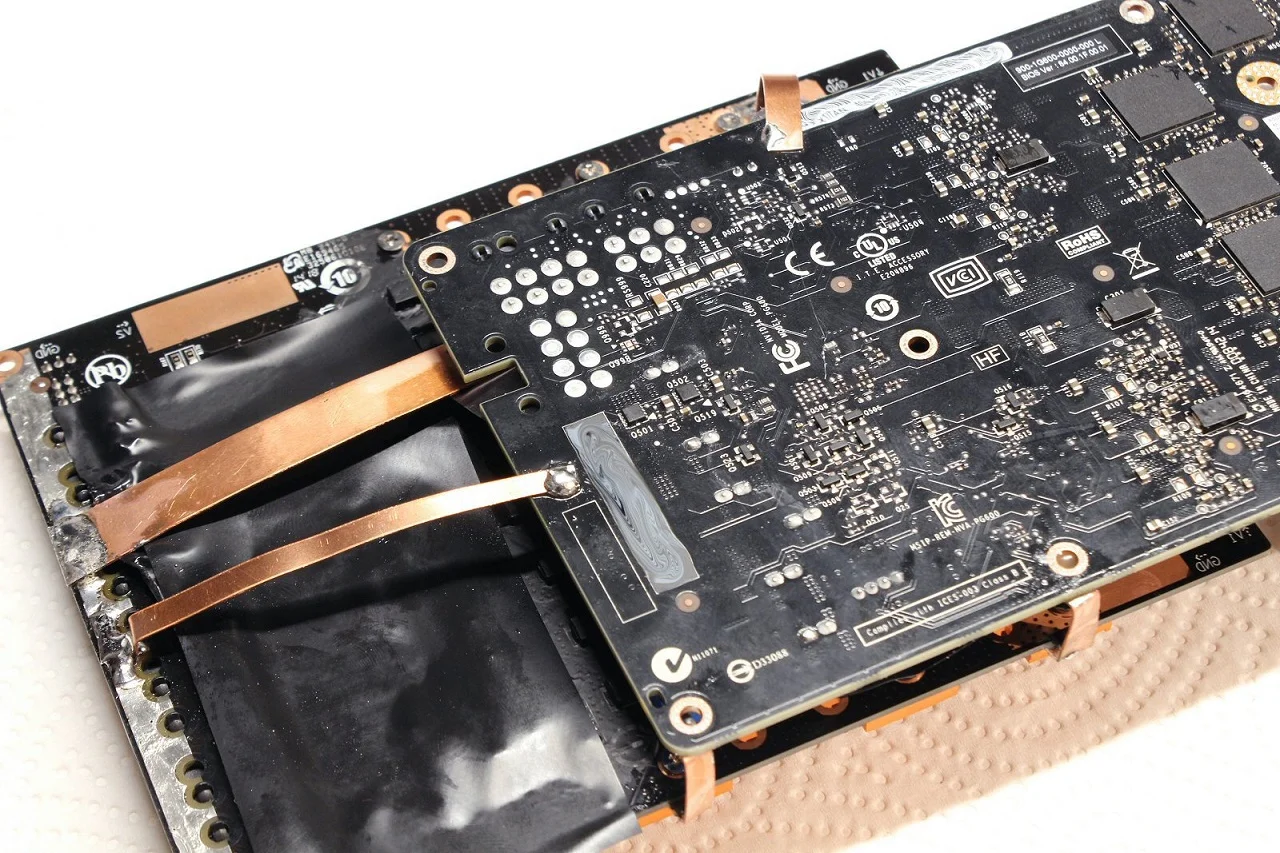

    Now it’s time to attach the power board to your card. Make sure you use as much ground and vGPU as possible. The more – the better. I used 0.5 mm copper sheets to connect everything.

    I marked some Ground spots on the front which are quite good to use. You can also use all mounting holes on the back of the card.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Afterwards re-check the resistance between vGPU and Ground. The resistance should stay at about the same level as before. Again, if you have a resistance below 1 ohm recheck everything and
    don’t power up the card. Otherwise you might damage something.


    7. Attach measuring cables.

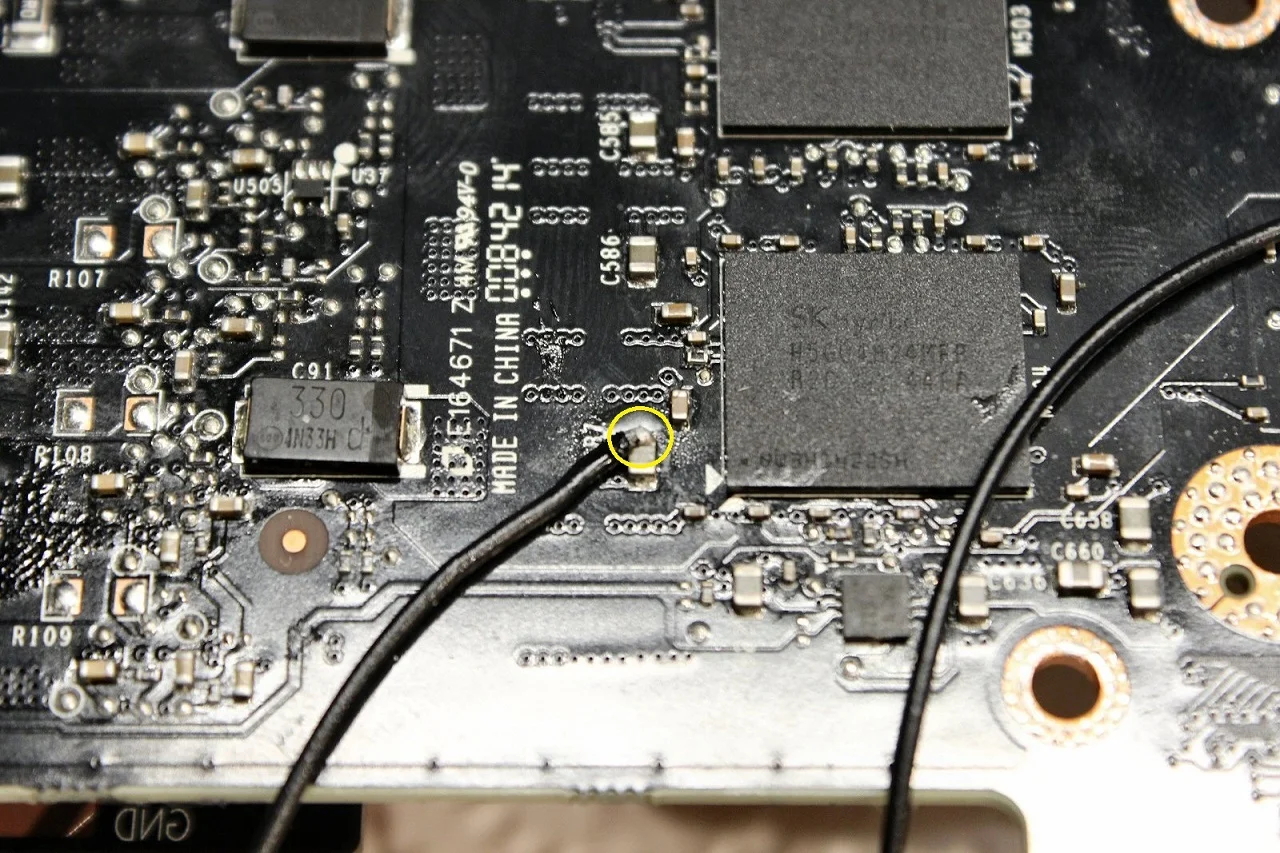

    GPU voltage point:

    [​IMG]

    Memory voltage point:

    [​IMG]

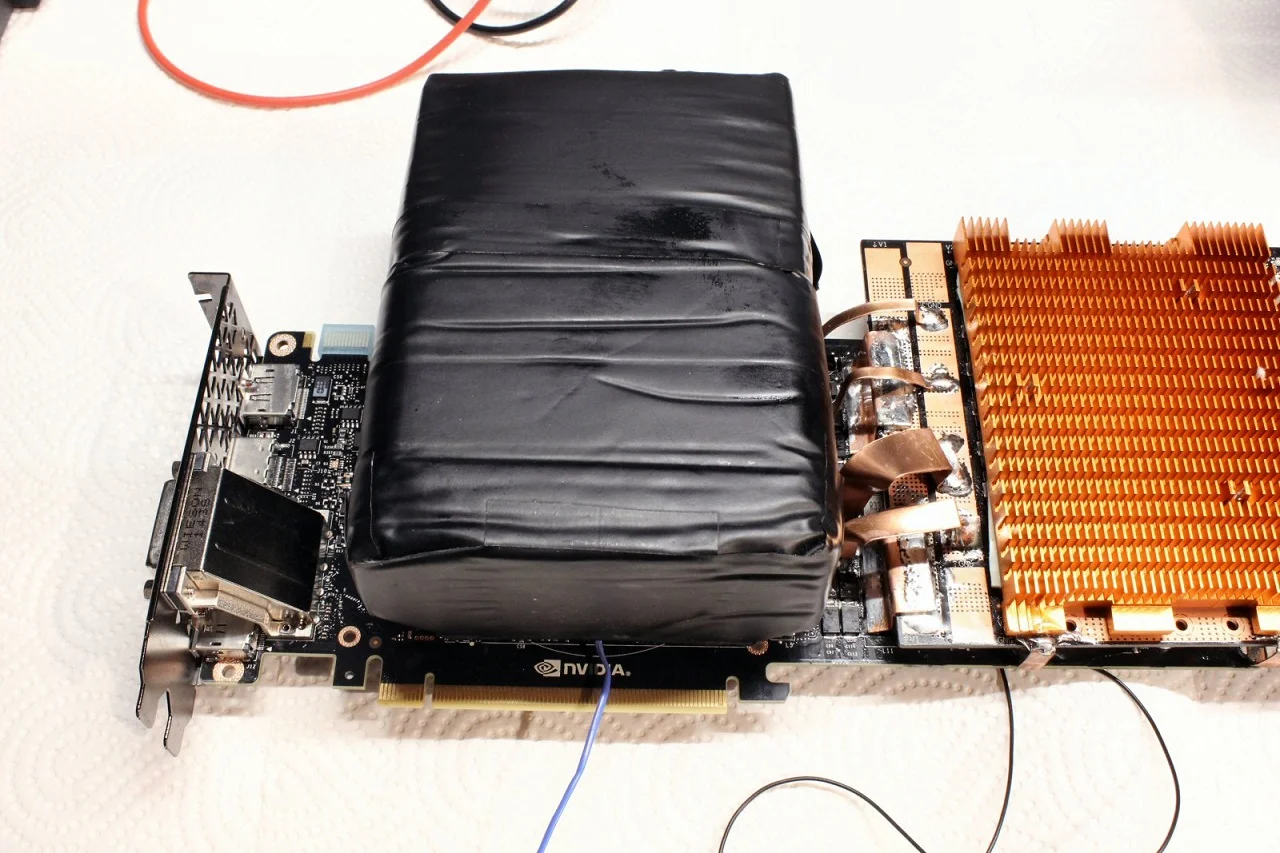

    8. Mount the pot and break records!

    [​IMG]

    [​IMG]

    http://overclocking.guide/nvidia-gtx-titan-x-external-power-guide/

    Last edited: Apr 20, 2015
  10. Kaapstad

    Man of Honour

    Joined: May 21, 2012

    Posts: 28,166

    Location: Dalek flagship

    Edit

    Last edited: May 28, 2016
  11. crinkleshoes

    Capodecina

    Joined: Jun 9, 2009

    Posts: 11,682

    Location: London, McLaren or Radical

    Last edited: Mar 17, 2015
  12. TheRealDeal

    Sgarrista

    Joined: May 28, 2007

    Posts: 9,311

  13. Nocky24

    Mobster

    Joined: May 19, 2009

    Posts: 3,055

    Location: Near Birmingham

  14. whyscotty

    Sgarrista

    Joined: May 6, 2012

    Posts: 9,396

    Location: Wigan

    Looking forward to the reviews :)

    Last edited: Mar 17, 2015
  15. Tonester0011

    Soldato

    Joined: Feb 27, 2012

    Posts: 6,586

    Sheesh, ruin the thread because you couldn't be arsed to read the other. SMH.

  16. crinkleshoes

    Capodecina

    Joined: Jun 9, 2009

    Posts: 11,682

    Location: London, McLaren or Radical

    Haha... OK... didn't notice the other had been closed.

    Oh well... I'm buying a pair of these cards & I will edit the post when I have them... no harm ;)

  17. bemaniac

    Mobster

    Joined: Jul 30, 2006

    Posts: 2,840

    Can anyone think of the cheapest way to finance 2 of these? I'm thinking 0% offers or monthly payments but only upto 2 years as that is my expected time for another titan.

  18. Mei

    Mobster

    Joined: Jan 3, 2012

    Posts: 3,983

    lapdancing?
    nyotaimori?

  19. kedge

    Mobster

    Joined: Sep 5, 2010

    Posts: 3,679

    So far a black titan x with a pretty green light, looking forward to what it can actually do.

  20. crinkleshoes

    Capodecina

    Joined: Jun 9, 2009

    Posts: 11,682

    Location: London, McLaren or Radical

    OCUK have 12 month 0%, I think...
