***The Official Ryzen 3700X Overclocking thread***

easyrider

easyrider

easyrider

Caporegime
Joined
24 Dec 2005
Posts
40,067
Location
Autonomy
Please can you post your voltage and your all core clock speed of your 3700x please?

And Temps when running R15

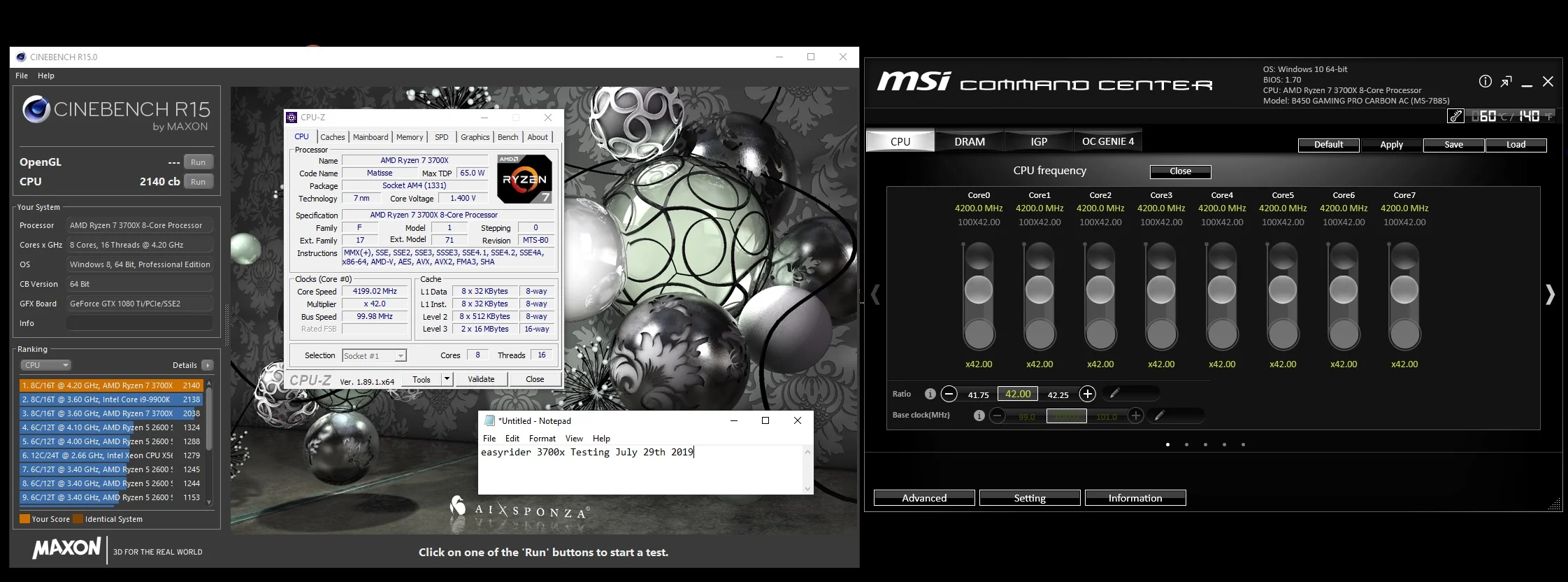

I have mine running 4.2ghz all core @ 1.4v (just testing) 77c R15 2 x 120MM AIO

Also could you post a screen shot of R15 and your ram speeds as I would like to compare against my Cas 14 3200mhz


Thanks

What did it boost to without the all core clock and with PBO on/off please?

Seems a great value CPU. Tempted to replace my 1700 with one.

opethdisciple said:
You should be able to push it to 3600MHz then.

16 16 16 16 36 1T @ 1.4v dram

I'd also leave the SOC on auto. The BIOS automatically pushes to 1.1v when you go over a certain speed I think and that should be enough.
Click to expand...

I had it at 3600 and it booted up and performed fine, however it hanged on the next reboot and I had to clear CMOS. It's all been good @3200 so I'm now going to see if I can tighten the timings to C14.

There's only 2 points between 3200 & 3600 with Cinebench, although the Aida memory benchmark sees quite a gap. I'm not sure how that translates into real world performance if Cinebench shows next to no gains?

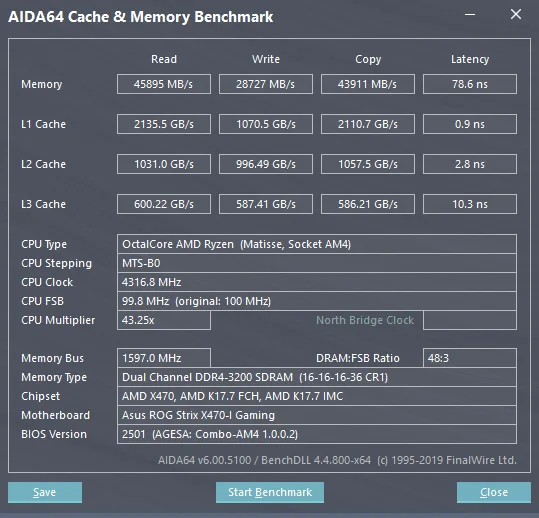

3200 - C16

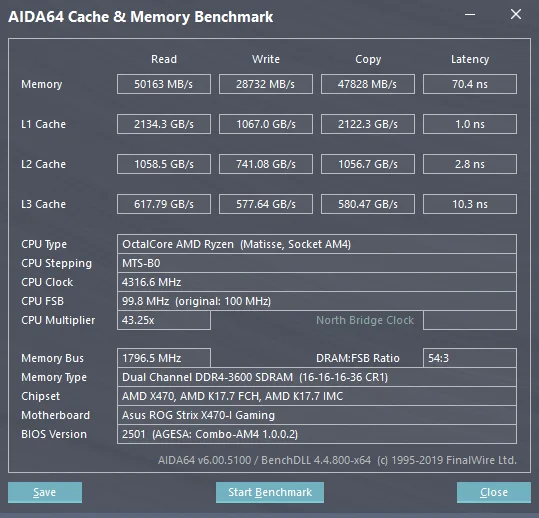

3600 - C16


String said:
That made me :D

I'll set to 3600 again and try SOC @ auto to see if that helps the stability.

p.s. I'd love to see an example of real world difference of 3200 v 3600 - is there anything you could suggest?
Click to expand...

Other than lowering that latency from 78ns down to 70ns none.

But again, the 3000 series has much better support for faster ram speeds. I personally think anything less than 3600MHz with a 1800MHz FCLK is doing it a disservice. (3700x, 3800x and 3900x)

A faster FCLK makes a big difference.

Your read and copy speeds are quite a bit faster with 3600MHz.

Have you flashed latest BIOS as I see Agesa 1.0.0.2 in screen shot.

You've probably seen these already:



Last edited:

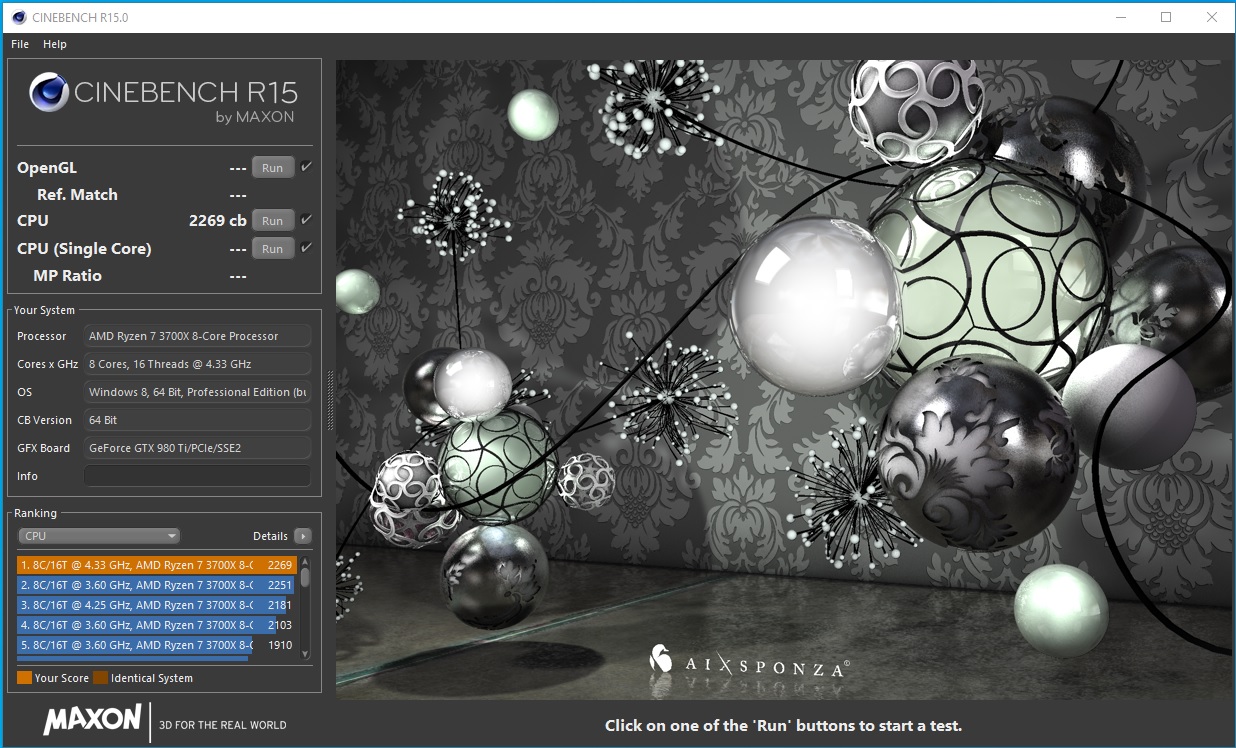

4.325Ghz voltage set to 1.375v under load ?.??v
ram 2933cl14
temp 68



whats best to use for voltage monitoring.? for me all three programs are showing different values under load.


Last edited:
