What type of connection does this adapter uses?

blacblu · 10 Oct 2013 at 02:25

Hyburnate · 10 Oct 2013 at 02:38

Looks like display port

and by guessing it's actually a display port to display port mini adapter.

spoffle · 10 Oct 2013 at 02:42

It's definitely displayport. I don't think it's a displayport to mini displayport adapter though, it just looks like a female displayport socket with nothing else.

Mercutio · 10 Oct 2013 at 03:44

There's definitely something at the back there, I too think DP to mini DP.

spoffle · 10 Oct 2013 at 03:47

Mercutio said:
There's definitely something at the back there, I too think DP to mini DP.

The back is too small for it to be a mini-DP port at the back.

It will be a connection head that has had its cable removed.

Hyburnate · 10 Oct 2013 at 04:49

Looks exactly the same size.

spoffle · 10 Oct 2013 at 05:01

Hyburnate said:
Looks exactly the same size.

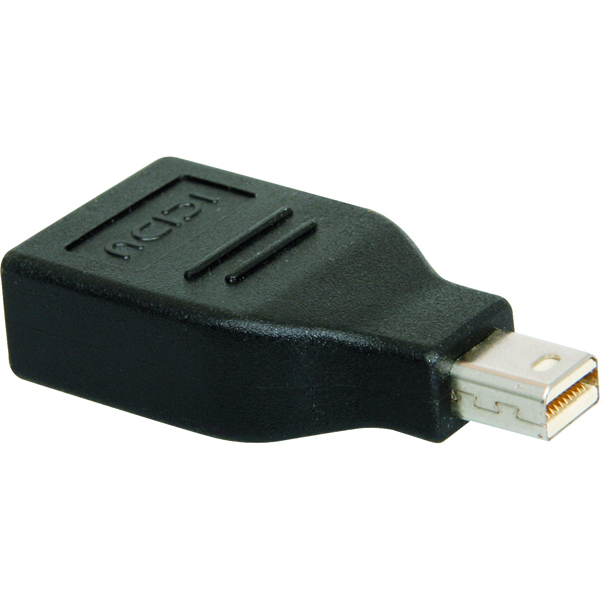

This other one tapers off to the side, and the point it tapers off to is not wide enough to accommodate a mini DP connector.

blacblu · 10 Oct 2013 at 16:36

The other side is a mini display port. I just couldn't recognize a display port.
