X570 Aorus Elite - ethernet stopped working

FARGO · 14 Apr 2024 at 10:12

Hi all, earlier in the week I added some more RAM to my PC and upgraded to Windows 11.

All was working as expected until a couple of days later, when I replaced the thermal paste on my CPU cooler

When putting it all back together, I had a message to say that my BIOS settings had been reset.

When booting into Windows, I noticed that there was no internet connection. However, the PC is working perfectly in every other way, as far as I can tell.

When using the Windows 11 network troubleshooting tool, I get this message:

'You're connected using a virtual network adaptor that we can't test.'

When looking at the Network adapters section in Device Manager there are eight listings, each begining with 'WAN Miniport...' but nothing else.

There are no orange exclamation marks next to anything.

It's been years since last looked in Device Manager but I feel like there should be something that mentions Ethernet, LAN, Network, Realtek or similar.

I went back to the original BIOS version and then updated to the most recent BIOS.

I've installed what I think are the latest chipset drivers and motherboard drivers.

I've let Windows 11 update everything but nothing has helped so far.

I can tether the PC to my phone's wifi via USB-C to USB. An ethernet to USB adapter also works, so it's not my router or the ethernet cable.

I'm wondering if I've knackered the ethernet port on the motherboard itself?

Would a kind person mind linking me to the driver(s) that I should be using, just so that I know I've tried the right one(s)? Are there any other things I should try?

AMD 3700x processor
Gigabyte x570 Aorus Elite motherboard
Corsair Vengeance LPX RAM
BIOS F39
BIOS Vender: AMI EUFI BIOS

Thank you in advance

mickyflinn · 14 Apr 2024 at 10:24

Did you check network adapters settings in the bios ?

Have you tried booting into safe mode with network.

drivers
You want Lan driver

X570 AORUS ELITE (rev. 1.0) Support | Motherboard - GIGABYTE Global

Lasting Quality from GIGABYTE.GIGABYTE Ultra Durable™ motherboards bring together a unique blend of features and technologies that offer users the absolute ...

www.gigabyte.com

Oh Ed not again. · 14 Apr 2024 at 10:50

I have one of these boards, and haven't had to do anything special with the drivers. Windows has always detected and installed without any effort needed.

As Micky says, go into the BIOS and check the update hasn't disabled the onboard ethernet port. I'd bet that's the culprit too.

superleeds27 · 14 Apr 2024 at 11:13

My ethernet port on my X570 Aorus Elite randomly died. Well it started playing up, random disconnections and causing issues, I ditched it before it did fully pack up!

Disabled it and chucked it a cheap TP Link 1GB pcie card and it's been fine since.

FARGO · 14 Apr 2024 at 11:47

mickyflinn said:
Did you check network adapters settings in the bios ?

Have you tried booting into safe mode with network.

drivers
You want Lan driver

X570 AORUS ELITE (rev. 1.0) Support | Motherboard - GIGABYTE Global

Lasting Quality from GIGABYTE.GIGABYTE Ultra Durable™ motherboards bring together a unique blend of features and technologies that offer users the absolute ...

www.gigabyte.com

Oh Ed not again. said:
I have one of these boards, and haven't had to do anything special with the drivers. Windows has always detected and installed without any effort needed.

As Micky says, go into the BIOS and check the update hasn't disabled the onboard ethernet port. I'd bet that's the culprit too.

Thank you both - I'll double check these ideas and let you know how I get on.

Mcnumpty2323 · 14 Apr 2024 at 16:22

I had issues with the x570 aorus ultra ethernet
It would randomly disappear
Vaguely recollect having to shut down pc
Then disconnect it from the wall socket/or psu whichever
Is easier to reach for a minute or two
Don't remember if also cleared the cmos
It would reappear and work for however long it wanted
Before disappearing again

FARGO · 14 Apr 2024 at 18:10

FARGO said:
Hi all, earlier in the week I added some more RAM to my PC and upgraded to Windows 11.

All was working as expected until a couple of days later, when I replaced the thermal paste on my CPU cooler

When putting it all back together, I had a message to say that my BIOS settings had been reset.

When booting into Windows, I noticed that there was no internet connection. However, the PC is working perfectly in every other way, as far as I can tell.

When using the Windows 11 network troubleshooting tool, I get this message:

'You're connected using a virtual network adaptor that we can't test.'

When looking at the Network adapters section in Device Manager there are eight listings, each begining with 'WAN Miniport...' but nothing else.

There are no orange exclamation marks next to anything.

It's been years since last looked in Device Manager but I feel like there should be something that mentions Ethernet, LAN, Network, Realtek or similar.

I went back to the original BIOS version and then updated to the most recent BIOS.

I've installed what I think are the latest chipset drivers and motherboard drivers.

I've let Windows 11 update everything but nothing has helped so far.

I can tether the PC to my phone's wifi via USB-C to USB. An ethernet to USB adapter also works, so it's not my router or the ethernet cable.

I'm wondering if I've knackered the ethernet port on the motherboard itself?

Would a kind person mind linking me to the driver(s) that I should be using, just so that I know I've tried the right one(s)? Are there any other things I should try?

AMD 3700x processor
Gigabyte x570 Aorus Elite motherboard
Corsair Vengeance LPX RAM
BIOS F39
BIOS Vender: AMI EUFI BIOS

Thank you in advance

mickyflinn said:
Did you check network adapters settings in the bios ?

Have you tried booting into safe mode with network.

drivers
You want Lan driver

X570 AORUS ELITE (rev. 1.0) Support | Motherboard - GIGABYTE Global

Lasting Quality from GIGABYTE.GIGABYTE Ultra Durable™ motherboards bring together a unique blend of features and technologies that offer users the absolute ...

www.gigabyte.com

Turns out I had actually already tried installing the above driver - this is the message I get:

This program might not have installed correctly
7z Setup SFX
Igor Pavlov
If this program didn't install correctly, you can try installing the program using compatibility settings.

I couldn't find anything obvious about network in the BIOS.

In the video below (around the 6min 34 mark) Intel(R) Ethernet Controller xyz can be seen on screen at the bottom of the menu.

I don't have that (or anything similar) anywhere in my BIOS.

I'm not great with computers so it's likely I'm doing something/missing something daft!

Tetras · 14 Apr 2024 at 18:13

FARGO said:
This program might not have installed correctly
7z Setup SFX
Igor Pavlov
If this program didn't install correctly, you can try installing the program using compatibility settings.

That's a zip program, not a driver, so not sure why you'd get that message unless the driver tried to install it to extract an archive.

Mcnumpty2323 · 14 Apr 2024 at 18:32

Tetras said:
That's a zip program, not a driver, so not sure why you'd get that message unless the driver tried to install it to extract an archive.

Think the driver is a self extracting 7 zip file
Standard zip files you need to have
A program installed and associated with zip
Sfx is self extracting
Ie contains what's necessary to unzip itself within the archive

Tetras · 14 Apr 2024 at 18:41

Mcnumpty2323 said:
Sfx is self extracting
Ie contains what's necessary to unzip itself within the archive

Ew, I think I'd be downloading that direct from the manufacturer then.

Mcnumpty2323 · 14 Apr 2024 at 18:48

Tetras said:
Ew, I think I'd be downloading that direct from the manufacturer then.

I think the reasoning behind self extracting
Would be a surprising amount of pc users wouldn't actually know
What to do with a zip,rar,etc file
If there wasn't already something on their pc
That opens them
Latest windows 11 builds are finally able to natively deal
With a load of different zip,rar,etc formats
Yeah self extracting isn't great from a security point you could argue
But then again a lot of anti virus softwares
The default settings are not to scan zip,rar,archives
Only when you open them
Uses less system resources I guess

Oh Ed not again. · 14 Apr 2024 at 18:52

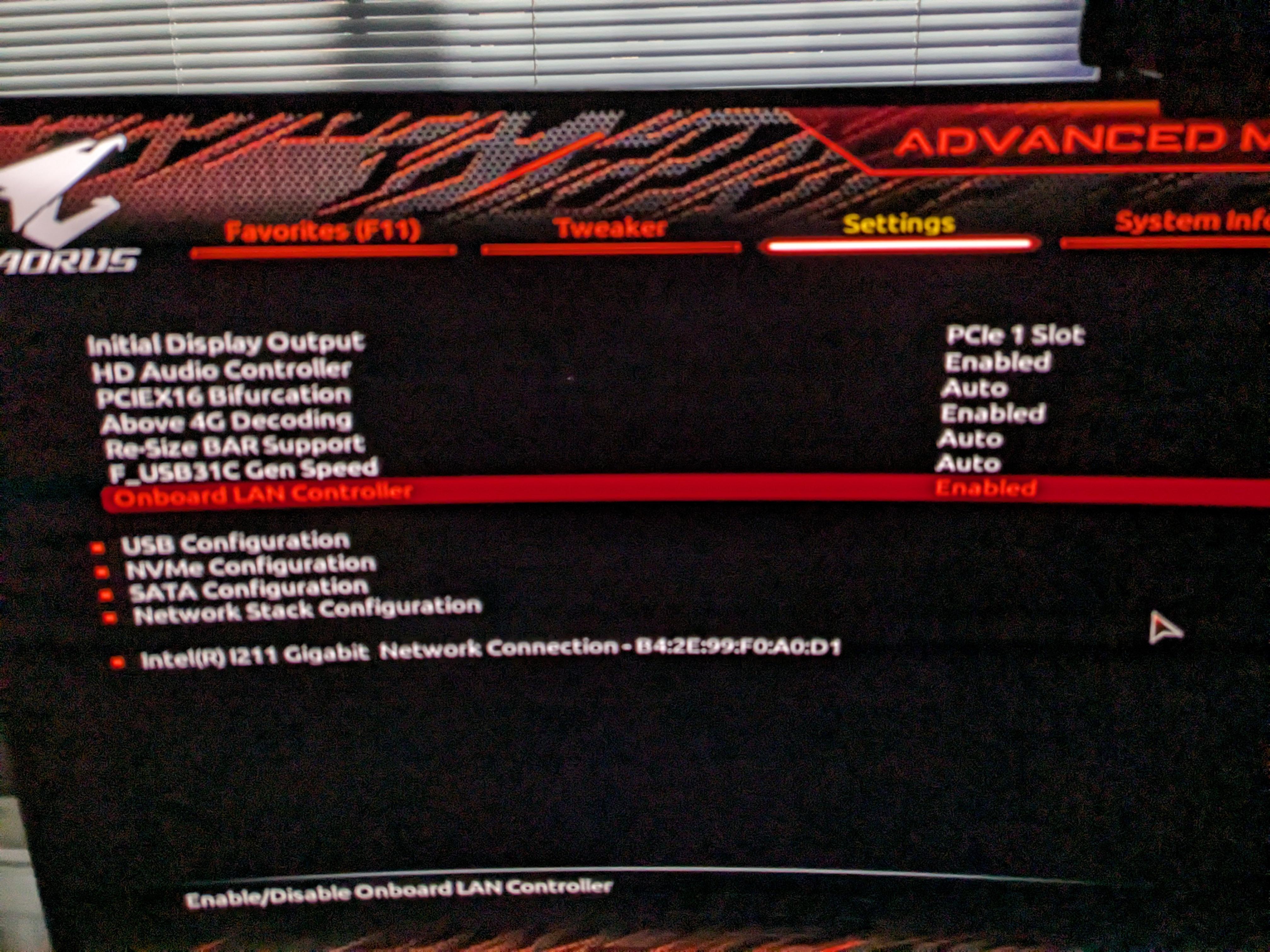

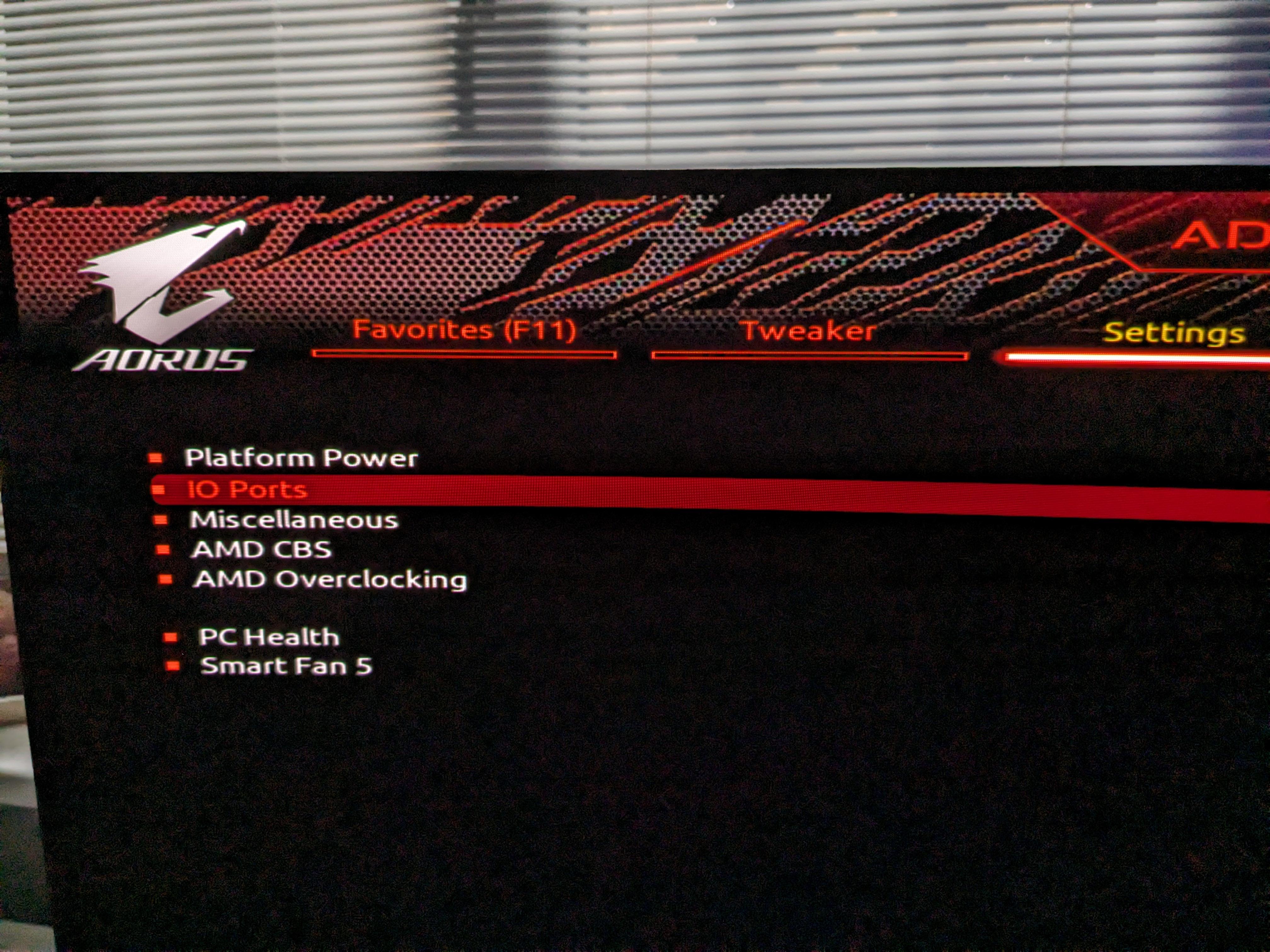

Here you go. Settings, I/O ports, onboard Ian controller.

FARGO · 14 Apr 2024 at 19:03

Oh Ed not again. said:
Here you go. Settings, I/O ports, onboard Ian controller.

Menu is the same, but I don't have the Intel I211 Gigabit Network Connection bit at the bottom.

Jamin280672 · 15 Apr 2024 at 16:21

I had an issue with a Gigabyte X570 Master ethernet controller, a year or so ago but that was the i225v controller, the intel controllers are the worst, I managed to fix it by updating the firmware for the controller, unfortunately I dont think I have that firmware anymore, but I got it from station drivers, it was also lost on that board after a bios update, all I can guess is Gigabyte arnt testing their bioses properly.......although they seem to be in beta forever.........and fixing one thing, yet killing another.

This is it here, you can have a look around and see if it contains the firmware for your controller, or if they have the firmware for yours on that site: https://www.station-drivers.com/ind...Controllers-Firmware-Version-1.79/lang,en-gb/

EDIT: in fact a quick look around looks like this will be for yours, but the fact you dont have it listed in the bios with a mac address says its gone completely, worth a go though, TITLE: Intel Gigabit Ethernet NVM Image https://www.station-drivers.com/ind...-controller-Firmware-Version-3.30/lang,en-gb/

FARGO · 15 Apr 2024 at 22:35

Jamin280672 said:
I had an issue with a Gigabyte X570 Master ethernet controller, a year or so ago but that was the i225v controller, the intel controllers are the worst, I managed to fix it by updating the firmware for the controller, unfortunately I dont think I have that firmware anymore, but I got it from station drivers, it was also lost on that board after a bios update, all I can guess is Gigabyte arnt testing their bioses properly.......although they seem to be in beta forever.........and fixing one thing, yet killing another.

This is it here, you can have a look around and see if it contains the firmware for your controller, or if they have the firmware for yours on that site: https://www.station-drivers.com/ind...Controllers-Firmware-Version-1.79/lang,en-gb/

EDIT: in fact a quick look around looks like this will be for yours, but the fact you dont have it listed in the bios with a mac address says its gone completely, worth a go though, TITLE: Intel Gigabit Ethernet NVM Image https://www.station-drivers.com/ind...-controller-Firmware-Version-3.30/lang,en-gb/

Thank you very much - I'll give it a go in a day or so and let you know how I get on.

It's as though all trace of me ever having ethernet has been scrubbed!

MisterMoppel · 12 Oct 2024 at 23:37

Hey everyone, I signed up here because I also have NO SOLUTION for this problem. Has your problem with the firmware been resolved?
I have exactly the same problem with the same board.
I first had the BIOS F39 like you, and updated it to F40D - then the same error came and i lost my Onboard Lan.
In the BIOS in the settings I see: LAN MAC ADDRESS: N/A - as if it had disappeared. In the I/O ports, however, it is set to "Activated" - the orange lamps are also flashing.
Since my whole internet is connected to an HP 2530-8G switch, I can see that the green lights flash as if they were sending or receiving something.
In the LAN SWITCH menu I see that the MODE for this port is simply set to 10 FDx, instead of 100/1000 FDx.

This is the Port for my PC

Code:

Port 3 Statistics
Rates
Total RX:    0 bps
Total TX:    5400 bps
Utilization RX:    0.00 %
Utilization TX:    0.05 %
Bcast/Mcast RX:    0 Pkts/sec
Bcast/Mcast TX:    3 Pkts/sec
Unicast RX:    0 Pkts/sec
Unicast TX:    0 Pkts/sec

I have tested all the cables that hang in the switch and they work. So an error in the cable, as well as in the settings of the switch is excluded. It was also connected directly to the router and there were no successes.

I also flashed back from the previous Bios F39 - I had also done CMOS reset several times - The LAN came back 1 time for a Windows start, and disappeared again after the restart. Nothing is displayed in the device manager - as I said, in the bios it says from the front that no LAN adapter is available, although it is activated (No LAN Mac Address N/A) I think this can only fix gigabytes with a new bios. Was actually satisfied with the board and the performance so far, But that really upsets me

FARGO · 19 Oct 2024 at 12:09

MisterMoppel said:
Hey everyone, I signed up here because I also have NO SOLUTION for this problem. Has your problem with the firmware been resolved?
I have exactly the same problem with the same board.
I first had the BIOS F39 like you, and updated it to F40D - then the same error came and i lost my Onboard Lan.
In the BIOS in the settings I see: LAN MAC ADDRESS: N/A - as if it had disappeared. In the I/O ports, however, it is set to "Activated" - the orange lamps are also flashing.
Since my whole internet is connected to an HP 2530-8G switch, I can see that the green lights flash as if they were sending or receiving something.
In the LAN SWITCH menu I see that the MODE for this port is simply set to 10 FDx, instead of 100/1000 FDx.

This is the Port for my PC

Code:

Port 3 Statistics Rates Total RX: 0 bps Total TX: 5400 bps Utilization RX: 0.00 % Utilization TX: 0.05 % Bcast/Mcast RX: 0 Pkts/sec Bcast/Mcast TX: 3 Pkts/sec Unicast RX: 0 Pkts/sec Unicast TX: 0 Pkts/sec

I have tested all the cables that hang in the switch and they work. So an error in the cable, as well as in the settings of the switch is excluded. It was also connected directly to the router and there were no successes.

I also flashed back from the previous Bios F39 - I had also done CMOS reset several times - The LAN came back 1 time for a Windows start, and disappeared again after the restart. Nothing is displayed in the device manager - as I said, in the bios it says from the front that no LAN adapter is available, although it is activated (No LAN Mac Address N/A) I think this can only fix gigabytes with a new bios. Was actually satisfied with the board and the performance so far, But that really upsets me

Hi, I stumbled across you post (and my own thread!) while having another go at fixing the problem and looking for solutions.

I too have N/A last n the LAN section of the BIOS

From what I can gather by reading similar threads on the internet, it's likely that the Ethernet port or NIC(?) adapter is damaged or broken.

Since creating this thread, I've been using an Ethernet to USB adapter, which does the job... But I don't know how much of a difference there is.

MisterMoppel · 21 Oct 2024 at 18:25

FARGO said:
...

Hey Bro, thanks so much for your answear.

Today I thought I'd take another look at the problem with the LAN network, because I absolutely had to connect to my Managed HP LAN SWITCH (which is currently not possible because each port has a MAC block)
My WiFi dongle has no access to the Switch :-/.
It's unbelievable with the motherboard - I had reset my CMOS several times, replaced my memory bars, etc.
Then there was the option that I activate FASTBOOT again, where you also get a few LAN adapter settings, but nothing helped.

Gigabyte's support page is an absolute disaster.
I wanted to write to the support for this error, and they ask me about it of each serial number of the installed parts, which is hardly possible without removing all the things, because some tools do not display this information. It's just annoying.

I probably have no other choice to buy a LAN adapter - absolutely unnecessary.
I was actually satisfied with the motherboard. I also googled a lot myself before and we don't seem to be the only ones. Only your post here, described so exactly my problem without exceptions.

Thank you for answering again - I wish you a nice Monday (or whenever you read this) - many greetings from Germany.
