Can this be used for 3 independent Ethernet connections (so using 12 pairs)?

Looking to run 30m of 3x Ethernet in a single armoured cable if I can’t do it as 3 separate cables.

My alternative is to use conduit, but this brings other issues.

I'm fairly sure the amount of crosstalk may be an issue with the 25pr cable, as it was generally just designed for analog phone / ADSL connections.

You'd likely be better with some of the cable that is essentially just a bundle of normal cat5e / cat5, like the below, but I haven't found any that is armoured.

connectec.uk

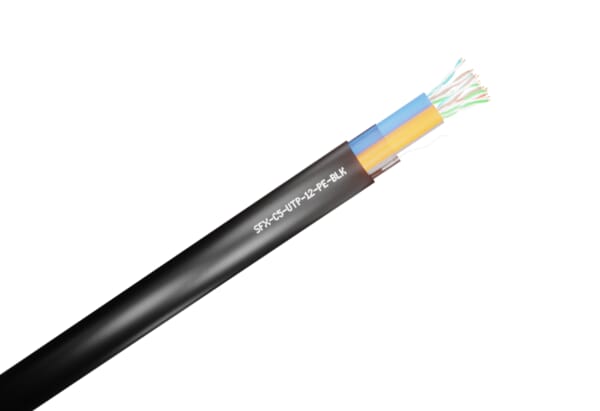

Cat5e UTP PE 12 Pair External Duct Grade Network Cable (Per 100m)

Solid copper Cat5e UTP PE duct grade network cable with 12 pairs to save on installation time & costs. For external applications, up to Gigabit speeds (Model: SFX/C5-UTP-12-PE-BLK-100)
connectec.uk connectec.uk
www.fscables.com

TruHome Cat 6 Bundled Cable

www.fscables.com www.fscables.com

Is it 25 individual Cat5e pairs, or are they arranged as six bundles of four with the proper twist in, plus one random additional pair? If they are individual pairs then as above, I think it will only really be suitable for voice.

Last edited:
It’s individual twisted pairs, it’s definitely used for Ethernet as I’ve found diagrams showing it used for backbone connections between switches. But can I find anything that describes what the actual signalling is, not a jot. The colour coding is per 5pairs so it’s not even 4pairs.

Considering getting one of those multi-Ethernet cables made up with armour as a solution.

Jokester said:
I'm copper only at one end.
Click to expand...
Use fiber to ethernet media converters.

TPLink MC220L, they are bomb proof. We use about 15 of them in work, never had one break or drop a connection. They take any SFP you can throw at them (1gb or 100m only)

bledd said:
Use fiber to ethernet media converters.

TPLink MC220L, they are bomb proof. We use about 15 of them in work, never had one break or drop a connection. They take any SFP you can throw at them (1gb or 100m only)
Click to expand...
I can’t put anything else into the box due to ATEX regs, so stuck with copper.

I've done my fair share of data cabling, never heard of the stuff you've found, so wouldn't want to vouch for it working etc
