5800x3d

[Prodway]

Hi All,

Could somebody advise on a reasonably cheap cooler for my 5800x3d? I can’t seem to find much info about this anywhere. I don’t really want to go the aio route but any recommendations will be a great help.

Thanks.



[Twinz]

Thermalright Peerless Assassin 120 SE​

It's $35 (in the US)and is what I would use if I were looking to spend as little as possible on a cooler for this CPU and still get decent cooling.

Keep in mind that the heat density of this chip makes it a challange for just about any cooler under all-core workloads. It reached 90c in R23 under my 280mm AIO. It just took longer to get there. (Using a Noctua NH-D15S now)



[rumple9]

Noctua nh d15 / chromax black



[goldy6660]

Hi All,

Could somebody advise on a reasonably cheap cooler for my 5800x3d? I can’t seem to find much info about this anywhere. I don’t really want to go the aio route but any recommendations will be a great help.

Thanks.

Why don't you want to go aio by the way?



[Guest2]

I have the Noctua NH-U14S with dual fan (in push-pull) I can highly recommend it if you can find one for sale. It's currently using a low noise adapter and the 3 Noctua case fans are locked at 42%

I looked at the D15 years ago and it looked too big for my case at the time and/or might have caused issues with memory clearance. As you can see, the front cpu far sits just behind (~1cm) the RAM
Also had an AIO years ago but it was one of the first (Corsair H50 I think it was) the pump on that thing was so loud and annoying that I went back to air not long after buying it

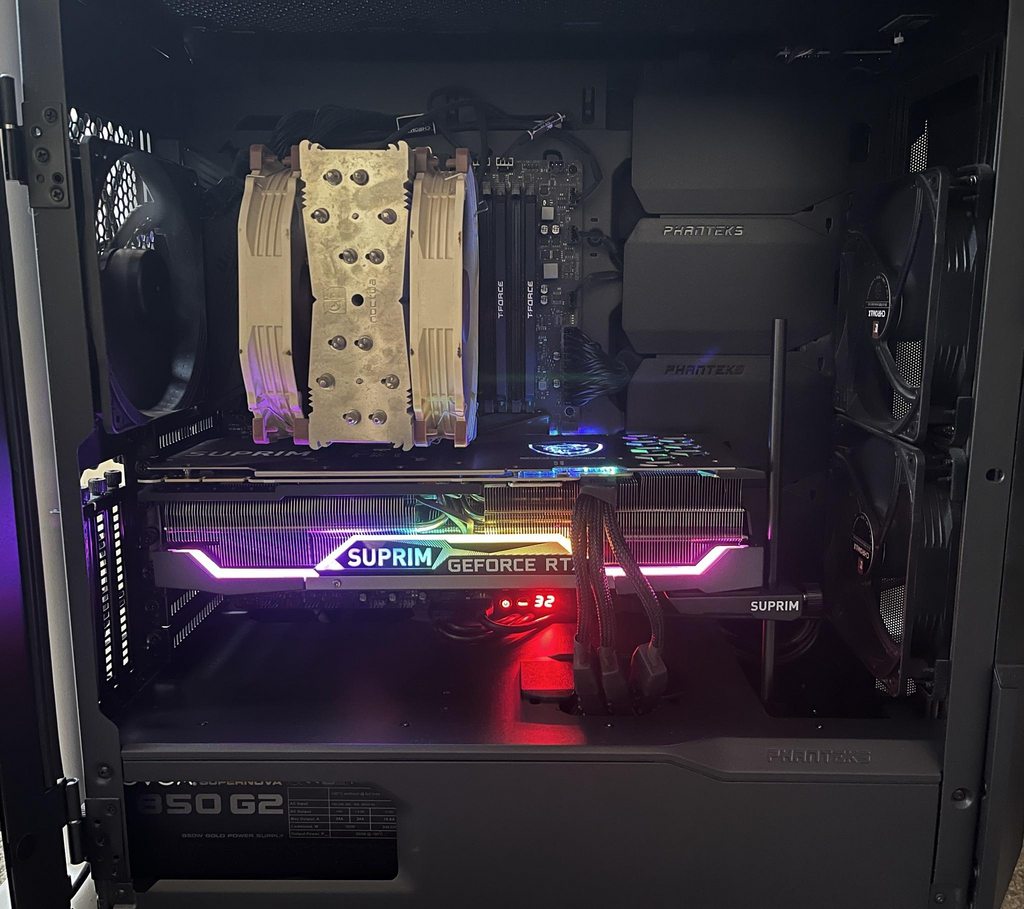

Here's my setup with the 5800X3D



[Prodway]

Why don't you want to go aio by the way?

The noise, worried about it leaking and there more expensive. Are they easy to fit?



[Prodway]

I have the Noctua NH-U14S with dual fan (in push-pull) I can highly recommend it if you can find one for sale. It's currently using a low noise adapter and the 3 Noctua case fans are locked at 42%

I looked at the D15 years ago and it looked too big for my case at the time and/or might have caused issues with memory clearance. As you can see, the front cpu far sits just behind (~1cm) the RAM
Also had an AIO years ago but it was one of the first (Corsair H50 I think it was) the pump on that thing was so loud and annoying that I went back to air not long after buying it

Here's my setup with the 5800X3D

That’s some fan! I think I’d be pretty close to my memory with that also



[Prodway]

Thermalright Peerless Assassin 120 SE​

It's $35 (in the US)and is what I would use if I were looking to spend as little as possible on a cooler for this CPU and still get decent cooling.

Keep in mind that the heat density of this chip makes it a challange for just about any cooler under all-core workloads. It reached 90c in R23 under my 280mm AIO. It just took longer to get there. (Using a Noctua NH-D15S now)

Would that be sufficient do you think? D15 is a little too much with my budget, which is about up to £50. I play mostly fs2020 which is cpu intensive.



[freddie64]

What case have you got?

This is a very good cooler and will not cover any of your RAM slots. (if it will fit in your case)

My basket at OcUK:

• 1 x Alpenfohn Brocken 3 CPU Cooler - 140mm (SKU: HS-05A-AL) = £32.99

Total: £41.69 (Includes shipping: £8.70)​

​

I used this cooler on my 5800X but unsure how it will perform with 3D Cache version.



[freddie64]

Also How to undervolt 5800X3D

Seen this mentioned a few times in the forums.



[Twinz]

Would that be sufficient do you think? D15 is a little too much with my budget, which is about up to £50. I play mostly fs2020 which is cpu intensive.

Yes. It's a great cooler for the money.



[goldy6660]

The noise, worried about it leaking and there more expensive. Are they easy to fit?

Fairly easy and I've not heard of them leaking, they are sealed units generally.

Noise wise I'd say sometimes quieter than air but depends.



[muon]

It's a 120W chip. Pretty much any cooler is fine.

If you want a cooler that will stop it immediately going to 90C when running Prime95 then you will be spending a lot of money.

A Hyper 212 or Freezer 34 is enough to keep it at 80C when running Cinebench r23. In games it will be locked to 4.45ghz.



[Prodway]

It's a 120W chip. Pretty much any cooler is fine.

If you want a cooler that will stop it immediately going to 90C when running Prime95 then you will be spending a lot of money.

A Hyper 212 or Freezer 34 is enough to keep it at 80C when running Cinebench r23. In games it will be locked to 4.45ghz.

Ok, great that helps mate.

Thanks a lot everyone



[Guest2]

Also How to undervolt 5800X3D

Seen this mentioned a few times in the forums.

Well documented in the 81 page 5800X3D thread.
Undervolting, either with PBO2 or Kombo strike / other manufacturer bios option will lower temps might also cause issues.
I noticed increased stuttering in Flight sim 2020 when undervolting. Without the undervolt, it was more smooth.



[freddie64]

Couldn't remember where i saw it.



[McGraw]

Would that be sufficient do you think? D15 is a little too much with my budget, which is about up to £50. I play mostly fs2020 which is cpu intensive.

It's better than the D15 regardless of price. Mine easily tames my 7700x



[Wing-Man]

It's better than the D15 regardless of price. Mine easily tames my 7700x

The only problem is finding one in the uk.
There is no uk supplier so you have shop ebay/amazon... but then you end up pay 50+
At that price buy an AIO



[Rup]

Well documented in the 81 page 5800X3D thread.
Undervolting, either with PBO2 or Kombo strike / other manufacturer bios option will lower temps might also cause issues.
I noticed increased stuttering in Flight sim 2020 when undervolting. Without the undervolt, it was more smooth.

Yes best to run at stock, doesnt use much power anyway.



[McGraw]

The only problem is finding one in the uk.
There is no uk supplier so you have shop ebay/amazon... but then you end up pay 50+
At that price buy an AIO

Mine was £42 on Amazon prime. It came next day. I used to run a h60 for my 4790k in an ITX case. I don't imagine it gets anywhere near a peerless assassin, costs more and they can fail and ruin your PC.
