Anyone into microscopes? Looking an id

roccles

roccles

roccles

Associate
Joined
26 Apr 2012
Posts
1,272

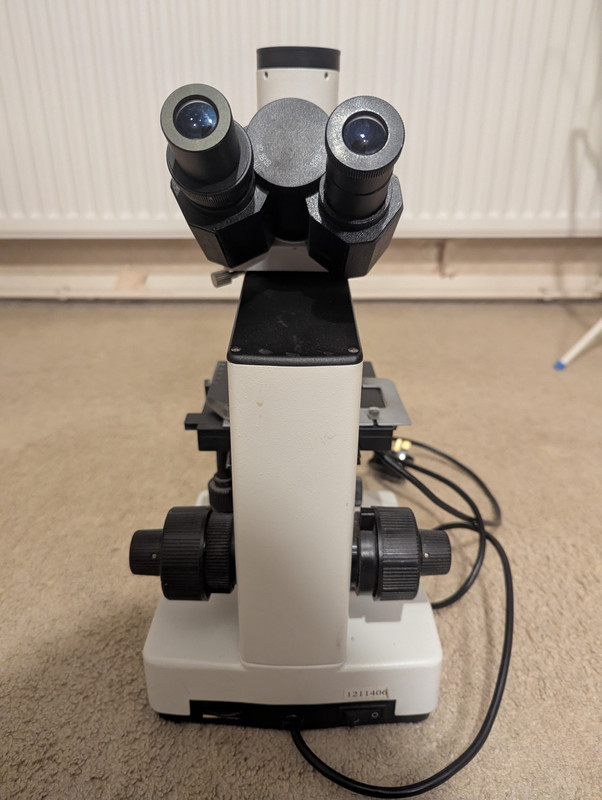

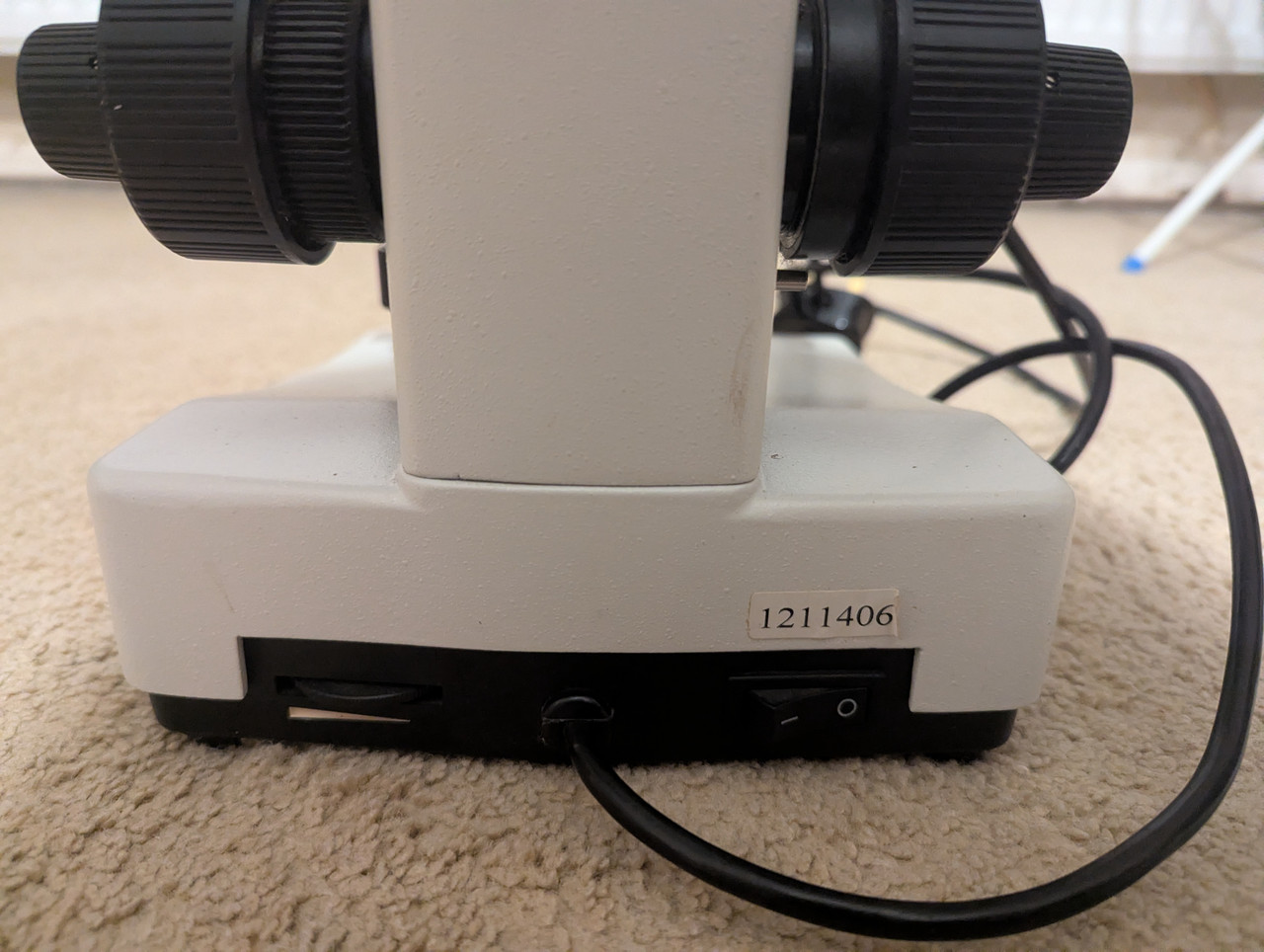

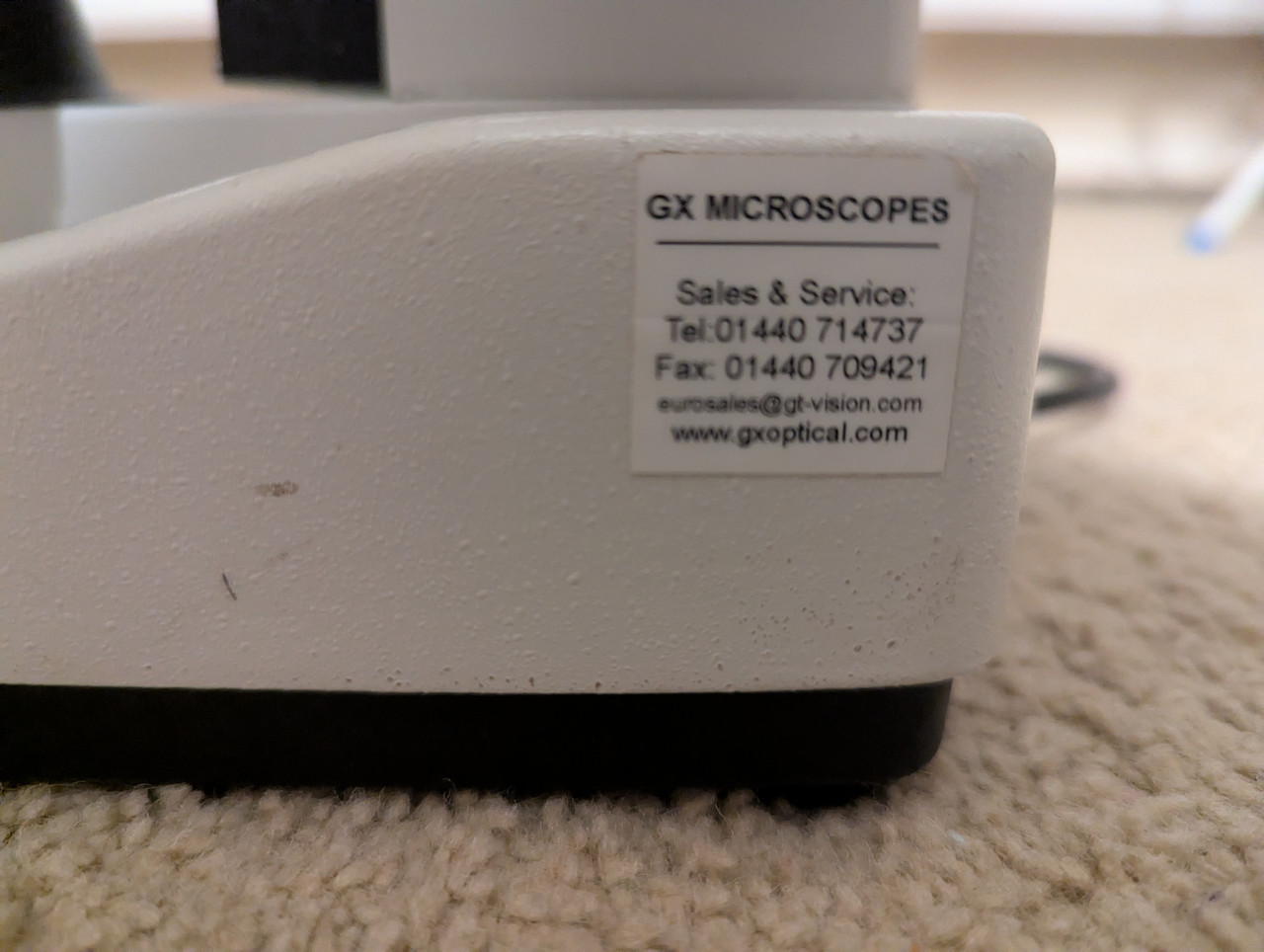

I inherited this microscope from my late father, and I know very little about microscopes, but I’d really like to learn more. I’m struggling to find any information online about this model so I can research it further and know what parts I might need to buy in the future if needed. There doesn’t seem to be a model number anywhere, and the number on the sticker doesn’t return any results. The gxoptical website printed on the sticker also doesn’t appear to be related to microscopes. There’s nothing printed on the underside just a slot for a fuse.


Any help would be much appreciated. It seems a shame for it just to sit on his old desk unused for would love to learn how to use it properly.


















Cheers

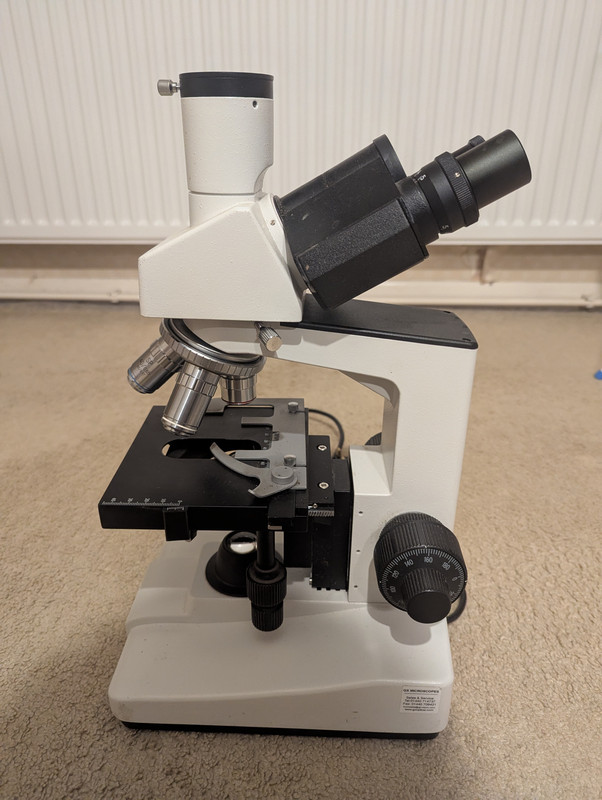

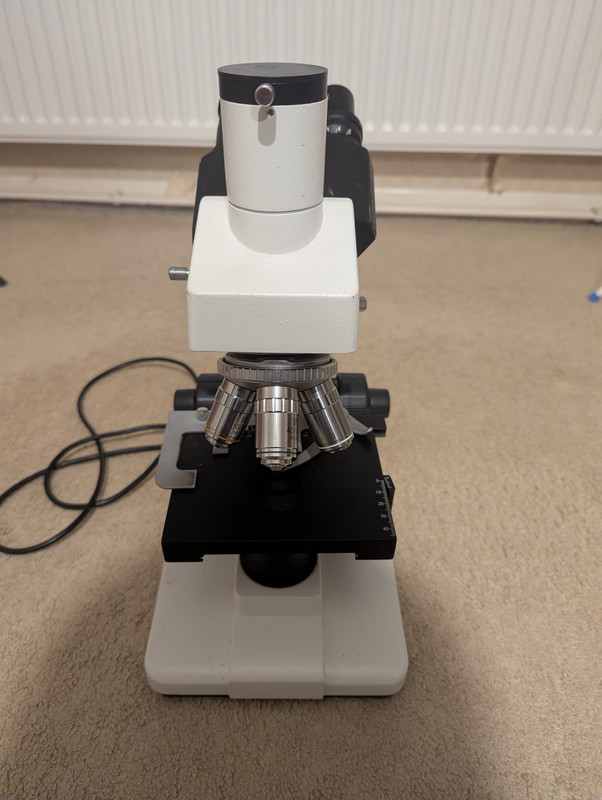

I don't know much about microscopes but GX Microoscopes seem to be well thought of after a quick search, I believe the bit sticking up with a black blank on it is for mounting a camera or CCD. It looks like the head, the bit with the lens is turned 180 degrees so it's facing the rear instead of the front. Seeing as that seems to be a good one you could have all sorts of interesting observations with that, just don't go looking at beasties through it or you will be having nightmares.

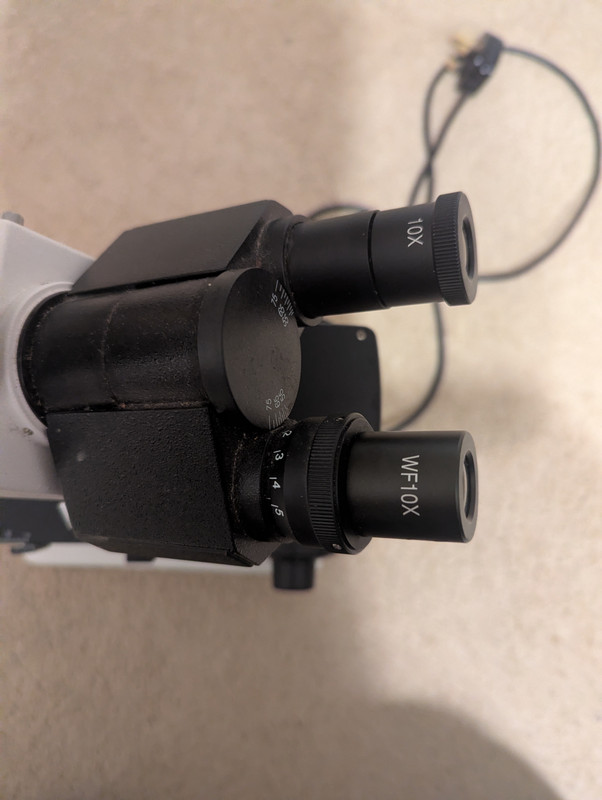

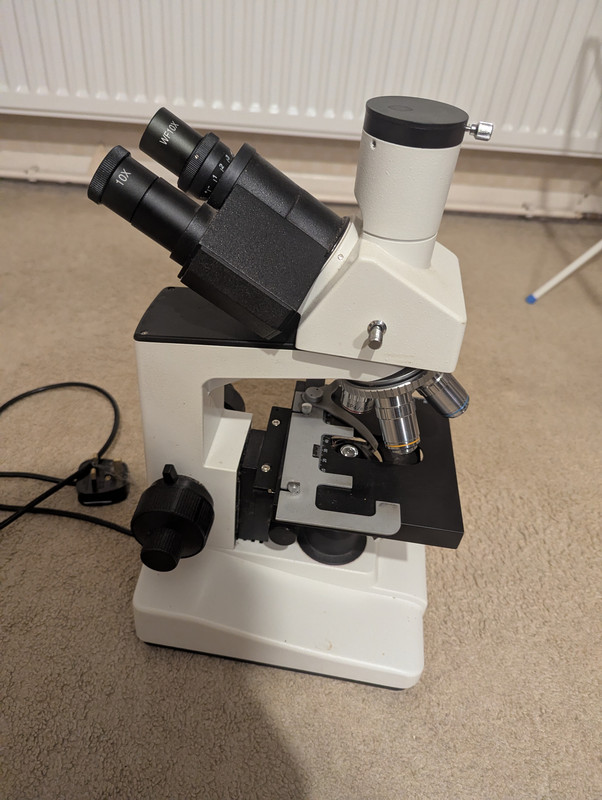

Pastymuncher is right. The top section spins round 180 and the top bit is indeed for a camera. You also have coarse and fine focus on the outer and inner wheels at the bottom. The eye pieces can be adjusted like binoculars. You can move them further apart and you have some focussing on them to adjust for your eyesight.

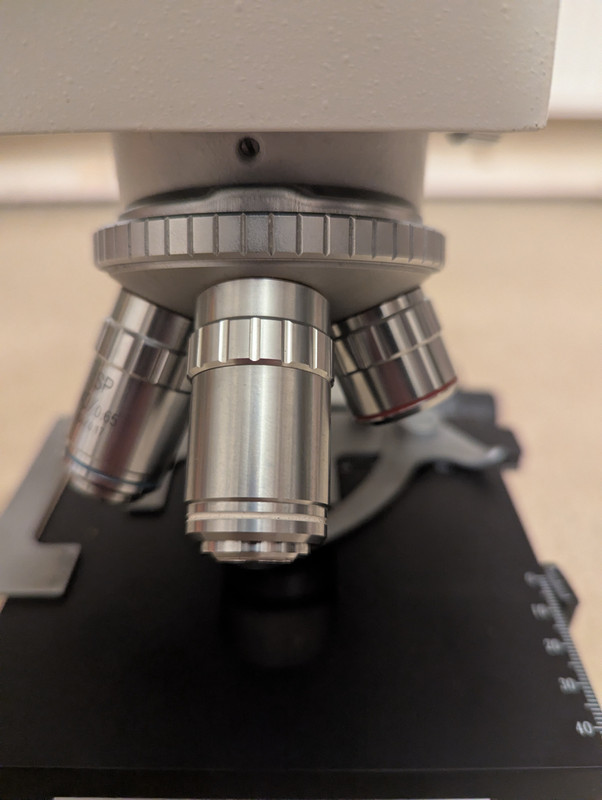

You have 3 magnifying lenses which you select by rotating the silver bit they are attached to.
There's a backlight (button the base) to illuminate the object from the bottom and then you use the two 'dials' on that rod hanging down from the sample base to move that platform around to look at the slide.

Try something simple like a leaf. Because it's a relatively simple backlit objective you'll need thin things that are quite transparent.

Cheers guys, I have ordered some glass slides so I can have a play and will try with a leaf as @Kevin Clark suggested.

Interesting to know about the camera attachment might have to give that a go.

I dont use it but apparently Facebook has a large Microscopy group with over 100k members which might be worth a look, and also Microscopy on Reddit.

I picked up a cheap microscope a while back and thought it would be fun to try and find Tardigrades but never got round to it yet.


Chaos said:
I dont use it but apparently Facebook has a large Microscopy group with over 100k members which might be worth a look, and also Microscopy on Reddit.

I picked up a cheap microscope a while back and thought it would be fun to try and find Tardigrades but never got round to it yet.
Click to expand...

That is pretty cool. I am going to go bear hunting!

I will return if my hunt is successful.

The other thing you can try is to find a bendy LED light so you can illuminate an object from above if you want to (sort of thing a model builder might use).

If you can't get the right camera attachment you'll be amazed at how good a shot you can get down the eyepiece with a phone camera.

I ordered a camera adapter for my Canon D600 and some pre-made slides from Amazon. The adapter was only £15, but I’m quite impressed with the results. I still don’t really know how to use the microscope properly or the camera in manual mode! :cry: but I think I’m starting to get the hang of it. I am considering spending a bit extra on a proper adapter which will remove the circular field of view from the microscope.

My next task is to hunt down some living creatures and maybe a water bear!

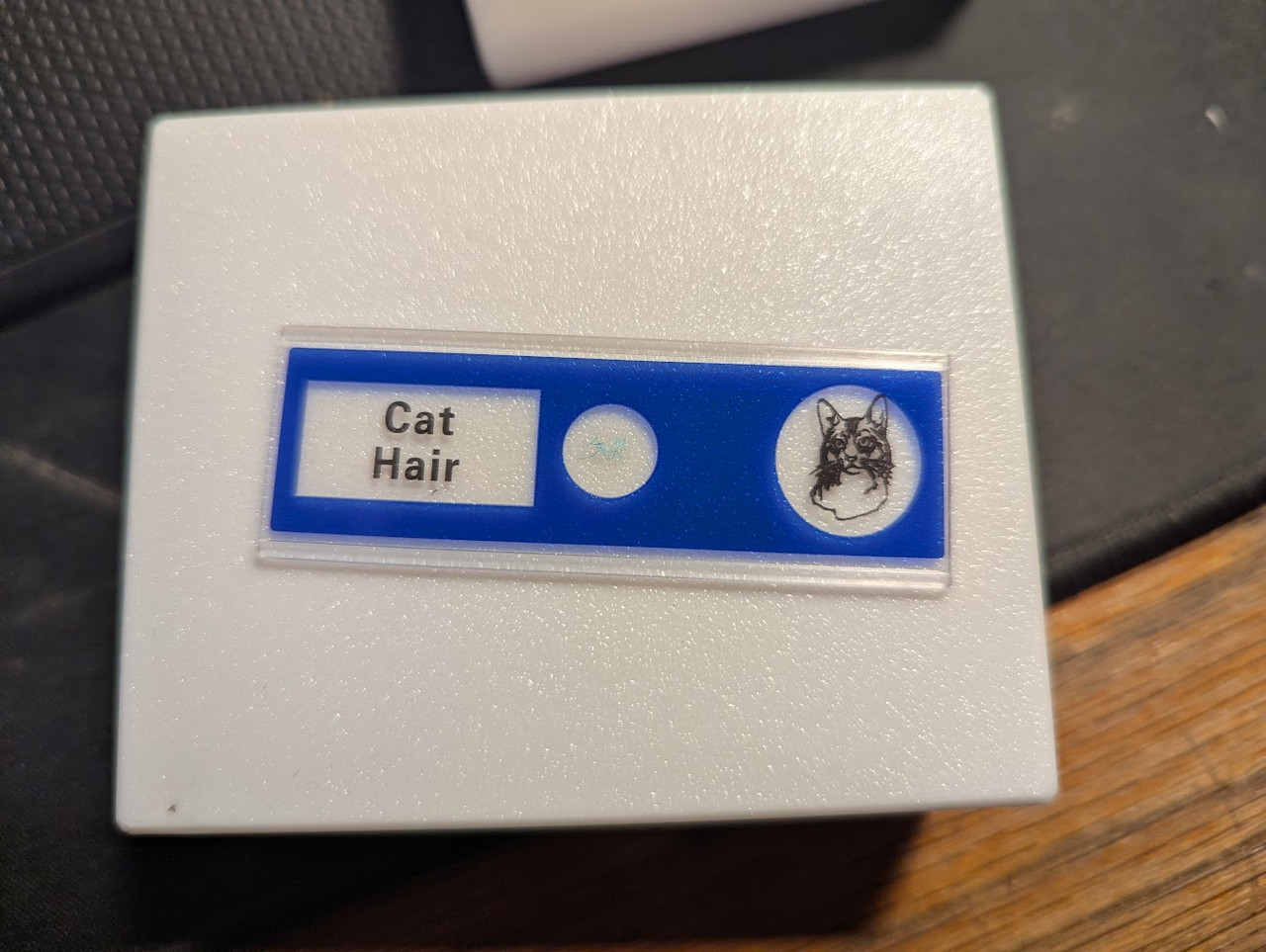

Cat Hair

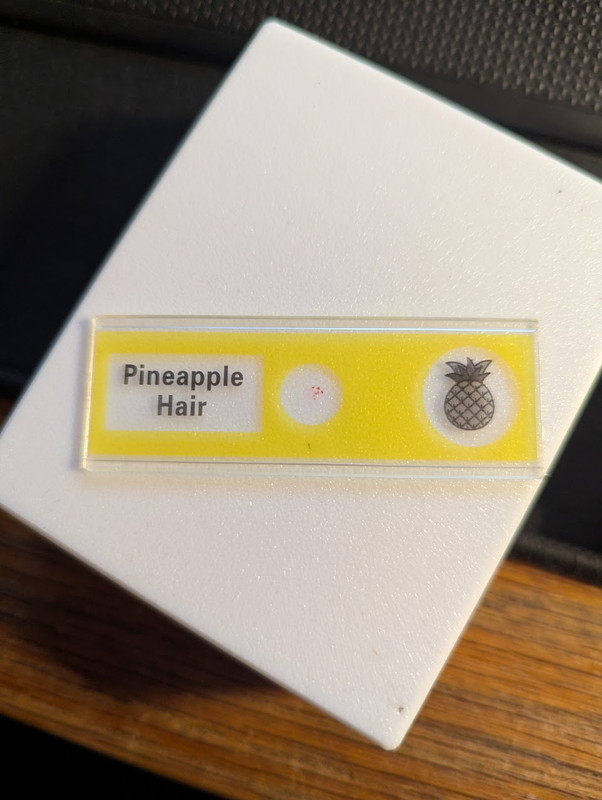

Pineapple Hair







Lilly Pollen






Mate - ***** your finger and check out the red blood cells, I remember showing my kids when they were younger - they were fascinated.

You could also check your own "swimmers":-)
