Tight fit build

Hi guys and gals.

My first forum post is going to be my new build log and I decided to get all of the below and try to squeeze it together!

list of parts:
Case: NZXT H440 Black/Red
Processor: Intel i5 4670k
MoBo: MSI Z87-GD65
RAM: Kingston HyperX Beast 2400mhz 8GB (2x4GB)
Primary drive: Sandisk Ultra Plus 256GB
Storage drive: Samsung 1TB 2.5" hdd
GPU: MSI reference 290x x2
PSU: XFX Pro 750 watt modular (might upgrade to corsair ax860)

watercooling (this may take a while):
CPU: Koolance 380i
GPU: Aquacomputer KyroGraphics Hawaii Nickel/black smoked plexi with active XCS backplate x2
Fittings: Aquacomputer straight, 45 degree and 90 degree fittings:
Pump: Laing D5 Vario
Pump top: EK D5 X-top CSQ
Reservoir: Phobya 150mm balancer matte black
Tubing: 3/8" ID 1/2" OD Masterkleer clear
Coolant: EK Blood red
Radiators: 360mm Alphacool NexXxos ST30, 360mm Alphacool NexXxos UT60
Fans: 10x Phobya NB E-loop 1600rpm
others: 360mm XSPC gasket (x2), fan extender cables (misc)

i think that is it for now...
I will be adding pictures and anything else i add to it when i get my case (c'mon NZXT, what's the holdup?)

Gallery:
http://imgur.com/a/XZBZO

Adam

Last edited:
not going to use one at all. will dial them all down to 7v and have them run at a constant speed. with those rads will do more than an adequate job and if i really need to up to cooling for any reason i can just turn the pump up. gotta love the vario ;)

also, in honesty, i am not a massive fan of the black one either. but the plain nickel ones are sold out EVERYWHERE and apparently they were quite a limited run, further runs will depend on how well they sold, so it could be a month or more before they are available anywhere. the backplate on this thing is the main reason i went with AC tbh. absolute magic!

well here we go... just got myself another 290x so now it will be a stunning xfire build! also managed to snag another active xcs backplate and a nickel/black GPU block! (yeah, rare as they are I found some muhahahaha). only thing left now is that damned case :( OCUK say they will likely be in towards the end of this month. also, they are released, but no EU stock at this point in time :(

ALL ABOARD THE CRAZY TRAIN!!!

i will give you many of the component pile when i get my case, 2nd block, card (waiting for blocks to come in, have it reserved for me @ £369.99 though!) and backplate delivered (the backplate i know is 100% in stock, but the gpu block they only had one listed in stock, so i need to get confirmation that it is really there and functional). c'mon NZXT and AquaComputer...

oh also, for anyone interested in mining with 290x cards, i am achieving a constant and stable 990kh/s with it. settings:
Stock BIOS
MSI AB - +25mv, +40% power, 1040 core, 1500 memory, fan fixed at 75% (start your miner with the default speeds and once your hashrate gets over 500, activate this profile or it causes crashes and lagging)
cgminer.bat file contents - cgminer --scrypt -o stratum+tcp://eu.clevermining.com:3333 -u 1Pr5tcFRsKbF1GgZaZ5VrqzTQ3wjhiCwos -p anything -I 20 --thread-concurrency 32760 -w 512 -g1 --gpu-powertune 40 --no-adl --no-submit-stale
(bitcoin address is in there if you fancy donating anything to the cause or if these settings help you up your hashrate ;))
oh and this is with the stock cooler, temps with front of case closed (cm silencio 550) 84 degrees, temps with front of case open 76 degrees (soundproofing is a heat trap :()

Last edited:
well i have been advised by an anonymous party that the black/red H440 should be with me on the 1st of April. might take me a while to assemble though as I have to fit it around my working schedule (yeah, this is my work rig!)

so, I have fitted the vast majority or my bits and pieces. all radiators and fans are in, mobo cpu ram GPUs (with waterblocks fitted) and have found that i will have to do a fair bit of "re-jigging" to get it all to sit happily. also need to buy a crystal link kit and another couple of angled fittings. trying to squeeze a reservoir and two gpus in this case is not easy! already had to mod the case slightly to seat the pump somewhere efficient! pics are on phone, so will have to transfer it all over. Away for a long weekend and booked up until at least next wednesday with work so will resume when i am able to :(

GP, your patuence is bigger than mine, lol.

Phate, I know what you mean, about the pump. I thought my case had so much open space first, then I started fitting everything and suddenly I am lacking it.
Well, good luck with your build and MOAR PICS !!! :D
We all love them.

Bart_Hunt said:
GP, your patuence is bigger than mine, lol.

Phate, I know what you mean, about the pump. I thought my case had so much open space first, then I started fitting everything and suddenly I am lacking it.
Well, good luck with your build and MOAR PICS !!! :D
We all love them.
Click to expand...

Trust me patience is failing me :(
I'll see how far my current case can stretch for now :p

Well it's not much, nothing great and pictures were taken on my phone. Completely forgot to take overall and progressive shots but there are a couple of pics in there you may laugh at or share my dismay as I discovered the issues! Decent pic of stripped case and also a good shot of how and where I mounted my D5.
http://imgur.com/a/XZBZO

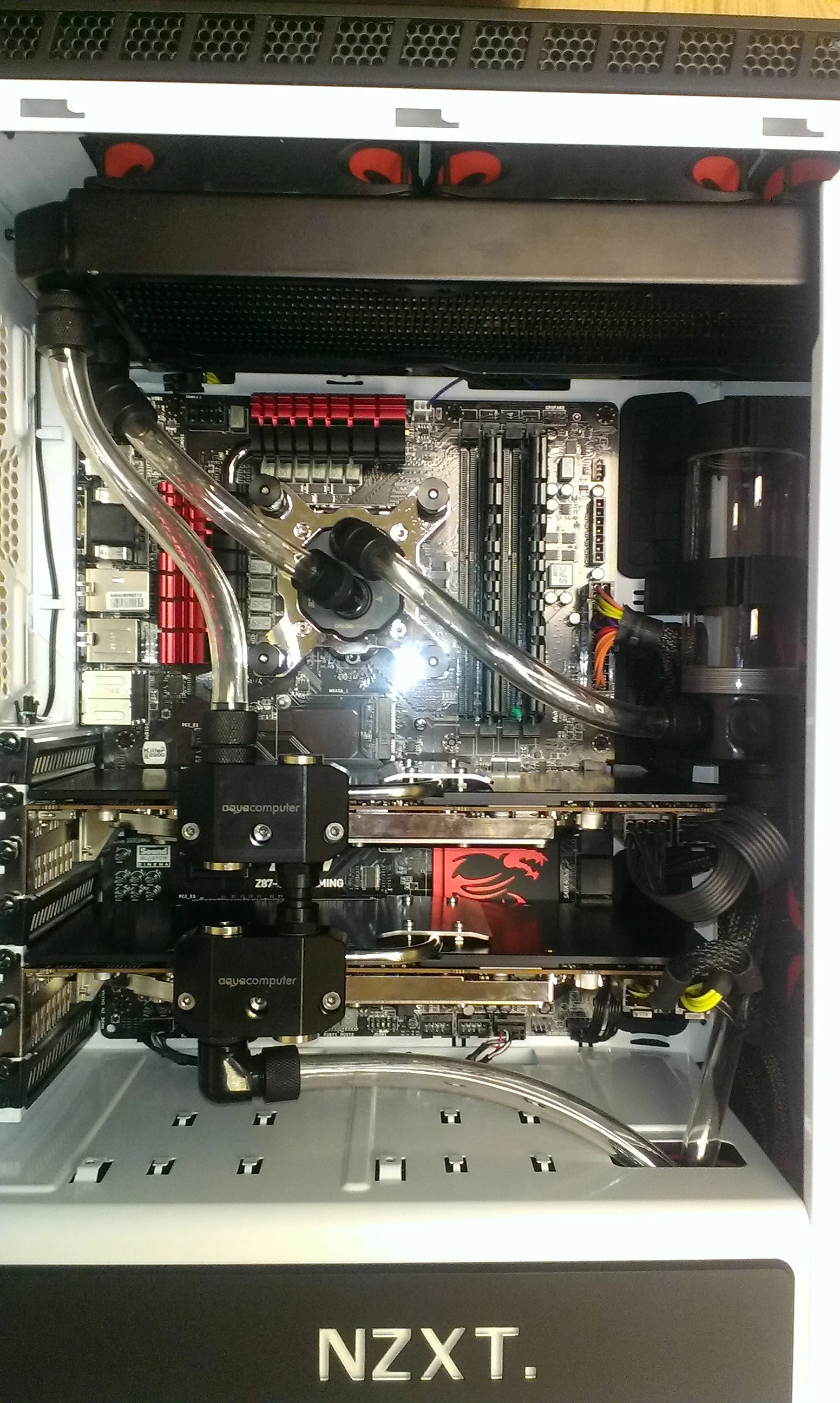

Updates!
Currently leak testing overnight! Might grab a new psu as the 750 probs won't be powerful enough to handle the 290xs with overclocks. Any thoughts on the ax860?

Last edited:
