Check my Loop

[Fluke]

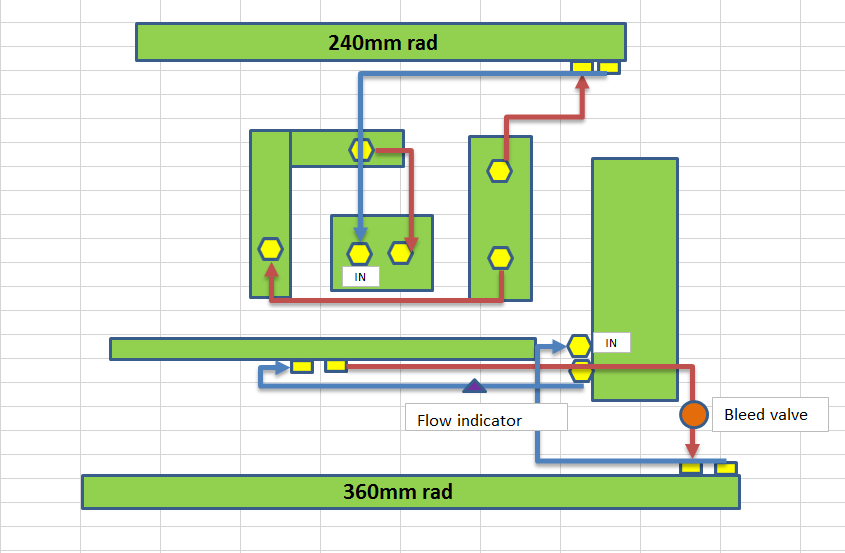

I am in the process of building a small rig everything has gone in ok and I am happy with the look, but its now time to install the tubing. I have gone for 1/2 5/8 Monsoon PETG tubing, before I start cutting and bending does the loop layout look OK?



[faheemrazzaq]

Am I missing something obvious or you have forgotten to close the loop properly. Your CPU, mobo/ram blocks and 240mm rad no way come back to the reservoir and completely isolated.



[faheemrazzaq]

Do this:

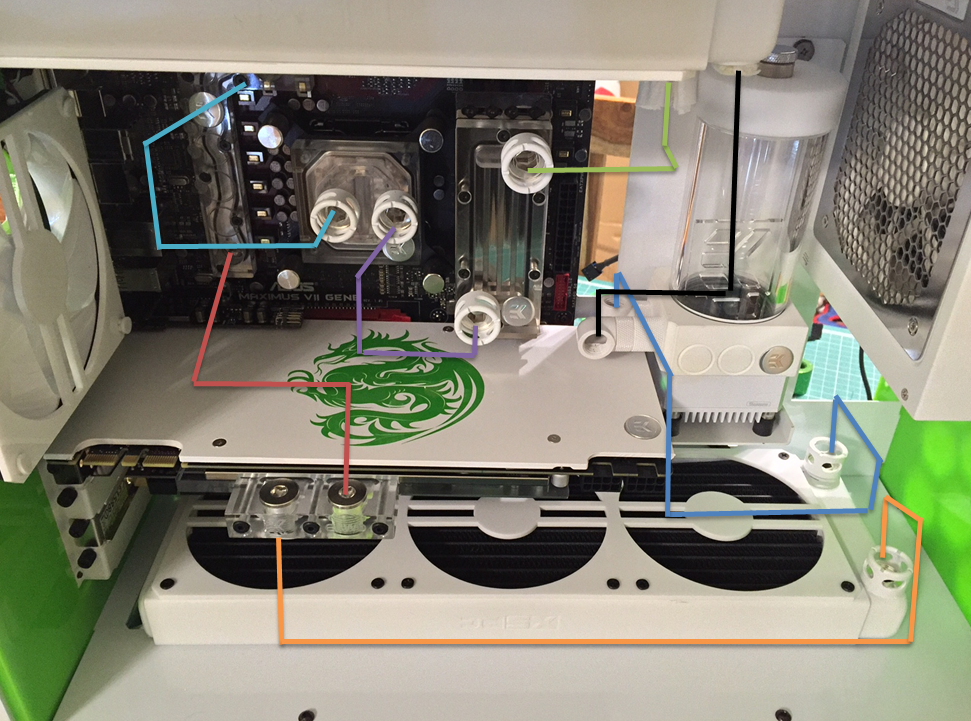

Pump>360mm rad>gpu>mobo>cpu>ram>240mm rad>reservoir



[Fluke]

Am I missing something obvious or you have forgotten to close the loop properly. Your CPU, mobo/ram blocks and 240mm rad no way come back to the reservoir and completely isolated.

No your right, I will have another go.



[faheemrazzaq]

No your right, I will have another go.

follow the sequence I suggested and tubing runs will be hopefully neater and easier, without crossing over each other.



[Fluke]

Thanks it now makes more sense.



I am hoping to just use 90 degree bends in the tubing, but space is going to be tight with the larger tube. I plan on running a Mayhems green UV pastel fluid, so should look nice.



[faheemrazzaq]

it will definitely look great. Just double check that you are using the right pump out there. pump out must feed the 360mm rad. The direction of flow doesn't matter for other components in loop but your CPU block has a defined inlet and outlet. rest should be fine



[Fluke]

it will definitely look great. Just double check that you are using the right pump out there. pump out must feed the 360mm rad. The direction of flow doesn't matter for other components in loop but your CPU block has a defined inlet and outlet. rest should be fine

Yes, the pump out runs to the 360 rad.



[faheemrazzaq]

Yes, the pump out runs to the 360 rad.

top stuff buddy. please share the photos of your build after filling the loop.
