High End Watercooled PC

Discussion in 'Project Logs' started by Sofronis Neofytou, Dec 5, 2019.

  1. Sofronis Neofytou

    Associate

    Joined: Dec 5, 2019

    Posts: 11

    Location: Limassol, Cyprus

    Hi all, for my first post here on Overclockers forums I wanted to show something special. I have been into building computers for the past 14 years, starting at the age of 12 as far as I remember with an old Q6600 processor which felt great at the time!

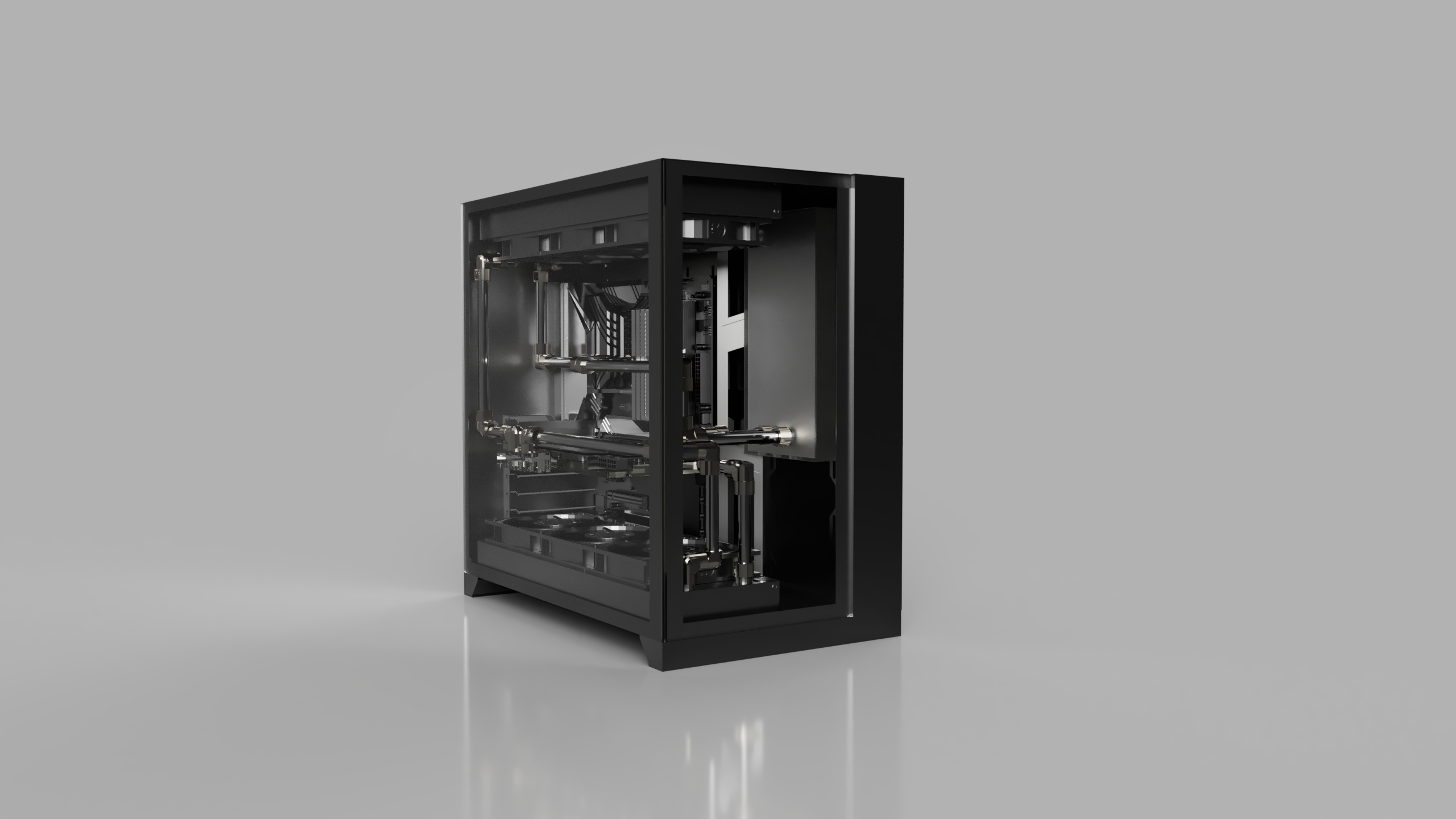

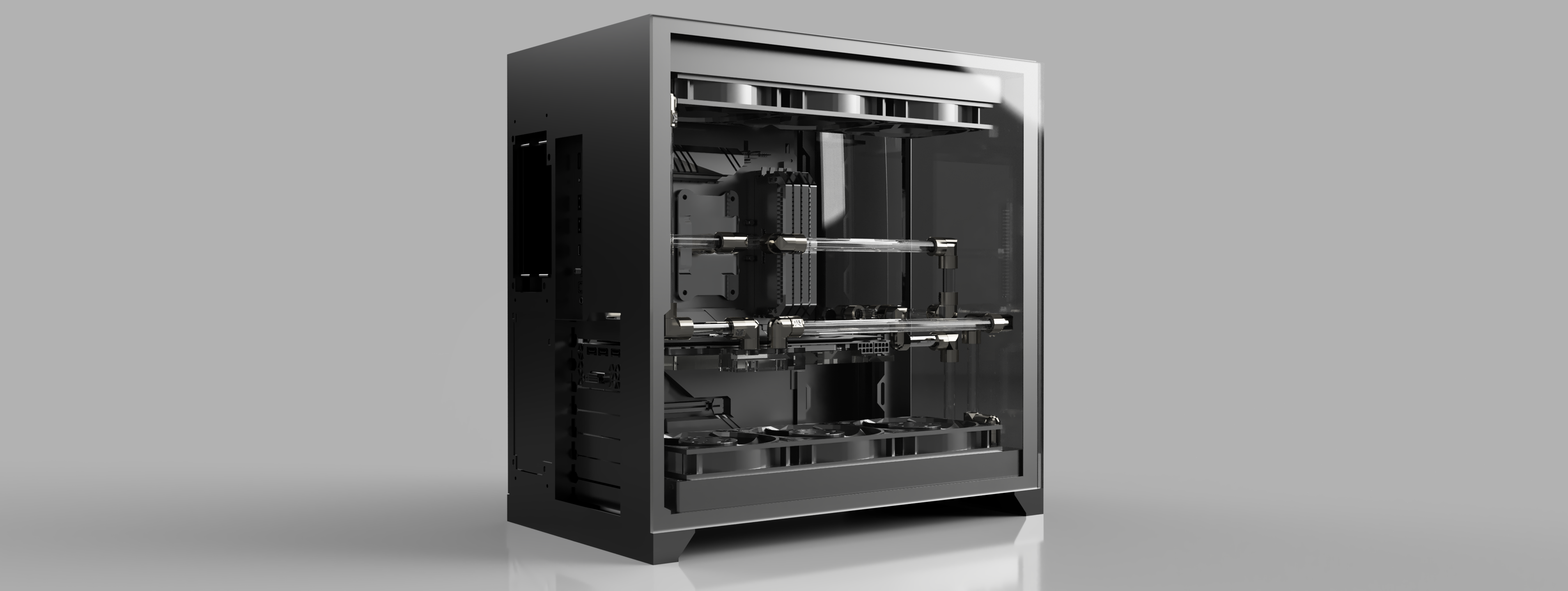

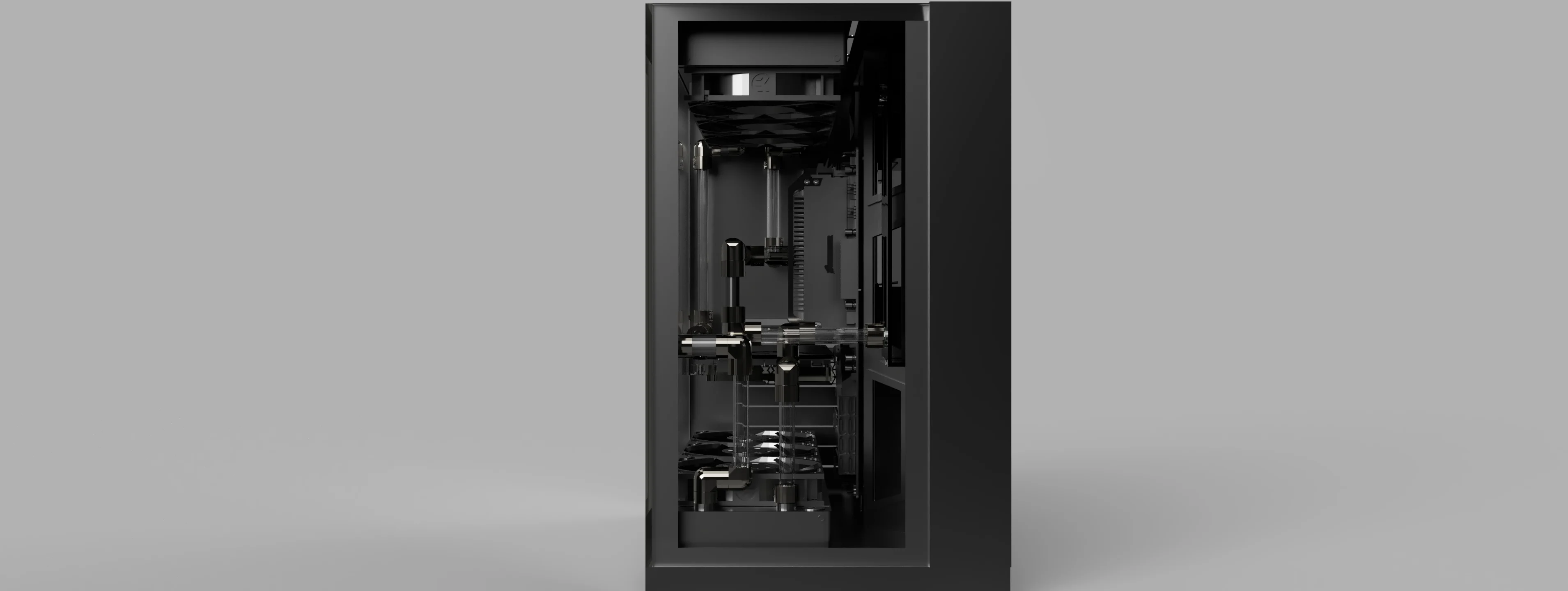

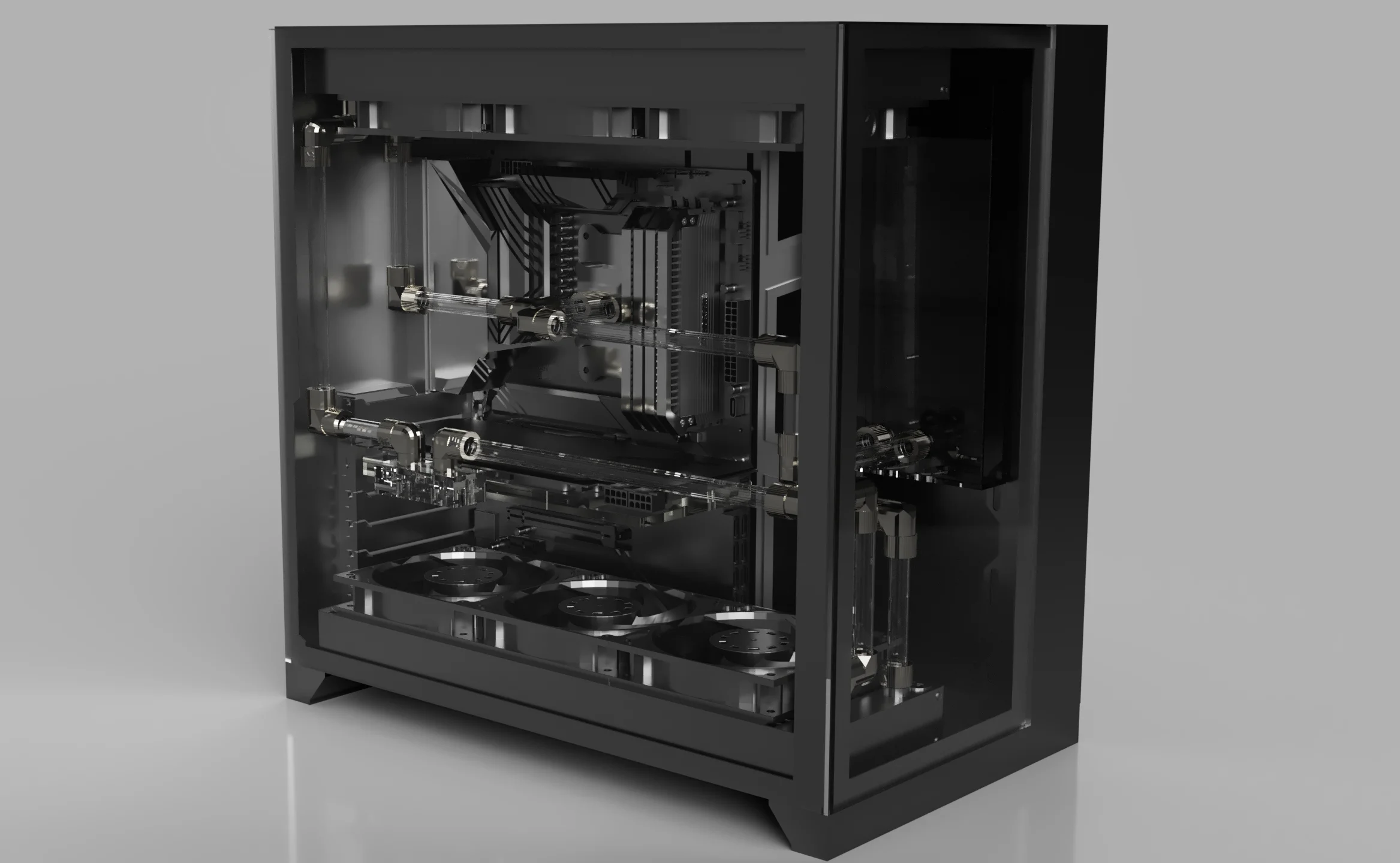

    So here are the specifications and some renderings for my latest and best build so far; this is a build where no bends are allowed. The pc is made mostly for number crunching in large spreadsheets, and the occasional rendering and gaming. No RGB, but I can cope with less FPS because of this :)

    Main components:
    CPU: Ryzen 9 3900x
    GPU: EVGA RTX 2080 Super XC Ultra Gaming
    Motherboard: ASUS ROG Crosshair VIII Hero
    Ram: 16GB Corsair Dominator Platinum @ 3200Mhz
    Storage: Samsung 970 EVO Plus 500gb
    PSU: Corsair RM1000i
    Case: Lian Li PC-011dynamic
    Fans: Noctua Industrial Fan 2000rpm x6
    Watercooling:
    EK-Coolstream PE 360 x2
    EK-Vector RTX 2080 block and backplate
    EK-Quantum Kinetic FLT 240 D5 reservoir+pump combo
    EK-Quantum MOmentum ROG Corsshair VIII Hero MonoBlock
    A boat load of fittings and angled adapters to achieve no bends loops
    Loop order for reference: PUMP->Bottom Radiator->GPU->Top Radiator->Monoblock->Pump

    I hope you like it; I would love to hear your comments and any recommendations since this is my first attempt at rigid tubing water cooling, but sure as hell it shouldn't be a rocket science thing to do! I am still undecided on whether to go with acrylic or stainless tubing, both look equally pleasing to my eyes.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Dec 5, 2019
  2. orbitalwalsh

    Capodecina

    Joined: Dec 1, 2015

    Posts: 17,384

    looks good! thought about the Master board, slightly cheaper- beefier vrm and UK RMA. Also wifi as standard

    https://www.overclockers.co.uk/giga...4-x570-chipset-atx-motherboard-mb-57t-gi.html

    look at sabrent rocket for NVMe storage or

    BB CODE
    My basket at Overclockers UK:
    Total: £312.63 (includes shipping: £8.70) ​
    [​IMG][​IMG][​IMG]

    slightly more but double the storage

  3. Sofronis Neofytou

    Associate

    Joined: Dec 5, 2019

    Posts: 11

    Location: Limassol, Cyprus

    I have tried going with MSI only once in the past 14 years, and I had to RMA it, might be just tough luck, but I will stick to the overpriced ASUS once again! As for the SSD, I have tested the samsung ones for some time now, and anyway this wasn't a budget build so here we are! Thank you for the suggestions anyhow ;)

    Edit: Sorry this was a Gigabyte board you recommended. Unfortunately, ASUS Rog Hero and Strix Gaming-E were the only X570 with monoblocks available from EKWB, so the motherboard was an easy choice.

  4. Vidar

    Mobster

    Joined: Dec 18, 2008

    Posts: 4,750

    Location: Liverpool

    That's sexy AF!!!!

    I'd go with glass tubing if it was me but don't suppose it matters if there's no rgb lol

  5. Sofronis Neofytou

    Associate

    Joined: Dec 5, 2019

    Posts: 11

    Location: Limassol, Cyprus

    Thanks a lot; greatly appreciate your feedback, I think I will go with acrylic for the tubing for now since it will be nice showing the solid white fluid that I plan on filling it with. Pictures of the actual build to follow tomorrow most likely, stay tuned!

  6. LePhuronn

    Mobster

    Joined: Sep 26, 2010

    Posts: 4,862

    Location: Stoke-on-Trent

    Beautiful renders, what did you use? Looks like Fusion 360.

  7. Sofronis Neofytou

    Associate

    Joined: Dec 5, 2019

    Posts: 11

    Location: Limassol, Cyprus

    Modelled using sketchup, imported to Fusion 360 where the material allocation and rendering took place. The most convenient way I have found in rendering cases so far.

  8. LePhuronn

    Mobster

    Joined: Sep 26, 2010

    Posts: 4,862

    Location: Stoke-on-Trent

    Sick. I'm doing everything inside 360 and importing STEP files from GrabCAD for items I really don't want to model myself :D

  9. orbitalwalsh

    Capodecina

    Joined: Dec 1, 2015

    Posts: 17,384

    Bit power make a damn good Master mono block along with Asus line . Outs EKWB to shame But hard to get here :(

  10. Alan1969

    Wise Guy

    Joined: Jun 16, 2019

    Posts: 1,036

    Location: Leek staffordshire

    Looks good, nice and clean. I like the sound of no rgb, however nowadays that’s quite difficult to achieve.

  11. Sofronis Neofytou

    Associate

    Joined: Dec 5, 2019

    Posts: 11

    Location: Limassol, Cyprus

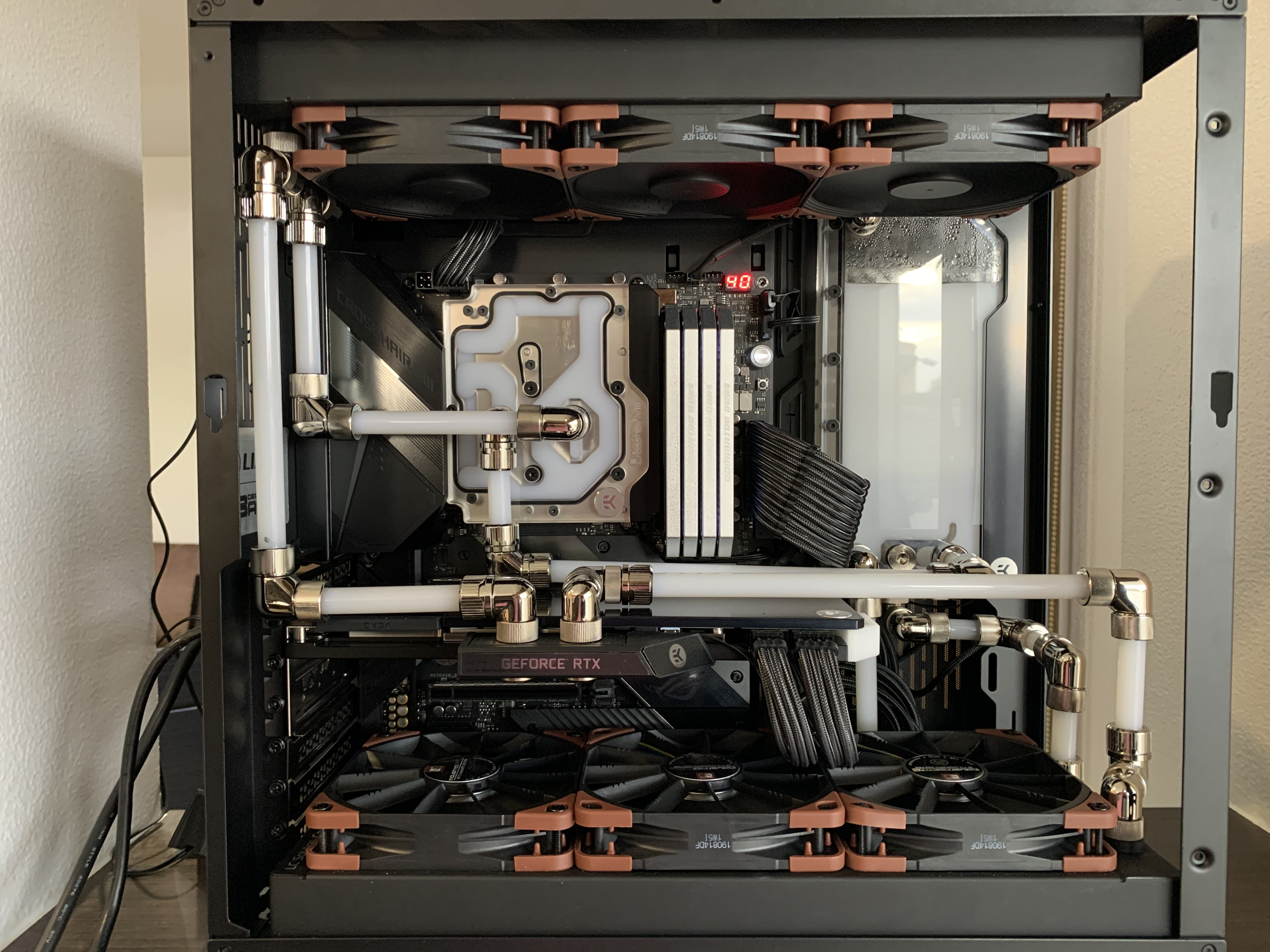

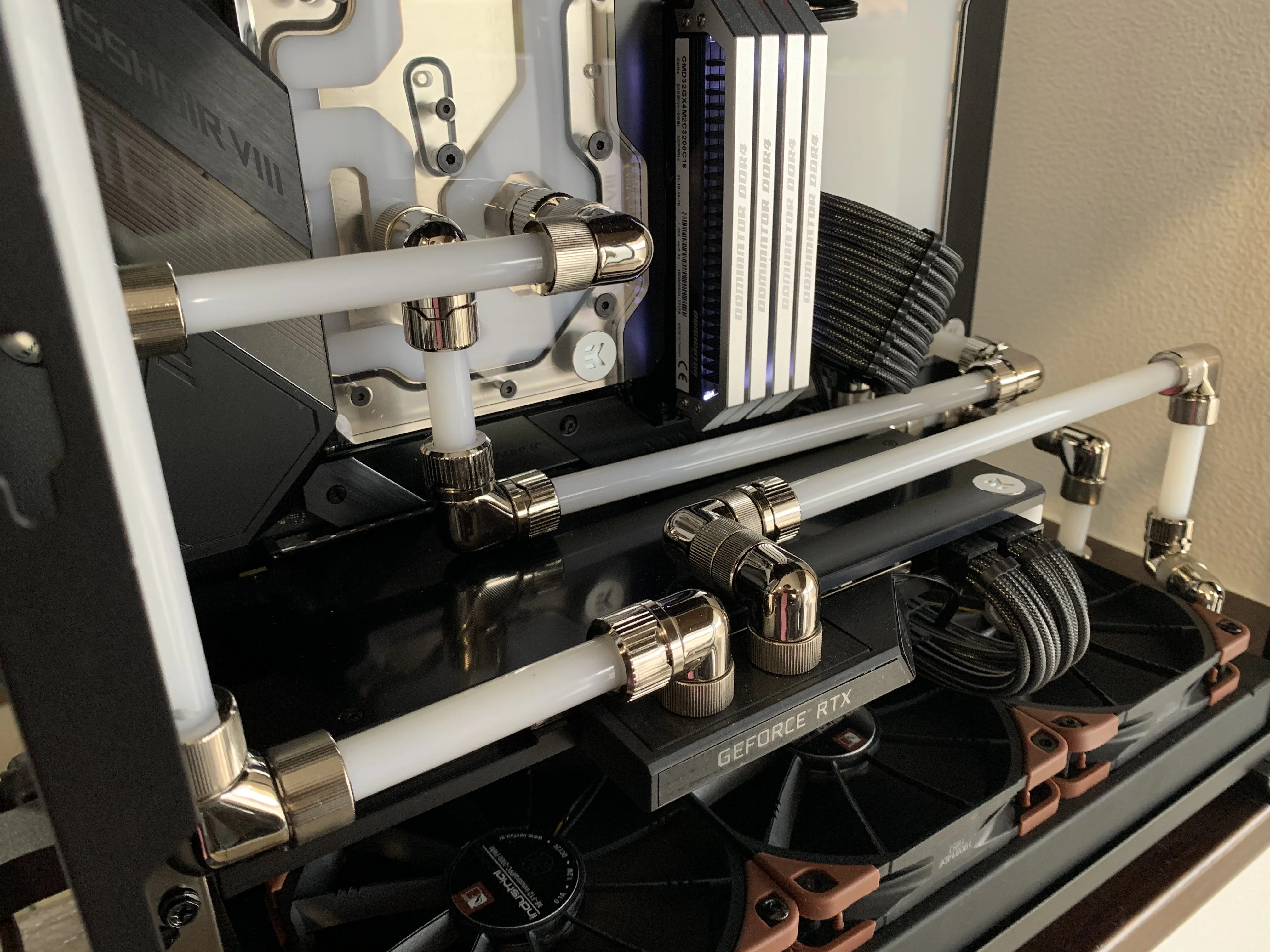

    Update: Here is the finished build. I think it turned out pretty nice; let me know your thoughts !

    [​IMG]

    [​IMG]

  12. Jay85

    Mobster

    Joined: May 22, 2010

    Posts: 3,968

    Location: Up S*** Creek

    Very nice! Hoping to get mine somewhere like this shortly!!!

  13. Alan1969

    Wise Guy

    Joined: Jun 16, 2019

    Posts: 1,036

    Location: Leek staffordshire

    nice

  14. Sofronis Neofytou

    Associate

    Joined: Dec 5, 2019

    Posts: 11

    Location: Limassol, Cyprus

    Will post benchmark and temperatures once all testing is done, including stable overclocking results.

  15. Tattysnuc

    Wise Guy

    Joined: Sep 22, 2008

    Posts: 1,431

    Location: Liverpool

    An uncanny resemblance to the mock up! Great looking build - would love to have seen the build process, but hey ho.

  16. Sofronis Neofytou

    Associate

    Joined: Dec 5, 2019

    Posts: 11

    Location: Limassol, Cyprus

    Thank you for your kind comments sir ! Indeed the resemblance turned out even better than I expected.

  17. Vidar

    Mobster

    Joined: Dec 18, 2008

    Posts: 4,750

    Location: Liverpool

    I really like it... only one thing I'd say though is the brown corners on the fans take something away from it.

  18. paradigm

    Caporegime

    Joined: Aug 26, 2003

    Posts: 35,712

    Location: Staffordshire

    I’d have curved the tubing rather than have relied on fittings for every corner, but it looks nice.

  19. Joelw291

    Associate

    Joined: Jan 1, 2020

    Posts: 11

    Location: England

    That build looks very aesthetically pleasing.

  20. Praz94

    Wise Guy

    Joined: Nov 28, 2018

    Posts: 1,277

    Location: London

    Simply beautiful
