Moving to a Prodigy

[Deleted member 115712]

Hey! Im probably starting this a bit late as its built already but I thought you'd like to see it anyway.

I had a Bitfenix Shibobi from my first PC build I done last year. I decided I wanted something smaller so decided to go with a prodigy.

I needed a new board so I went with an Asrock Z77E-ITX

Heres what my desk looked like before -

Shinobi took up so much room for a medium sized case!

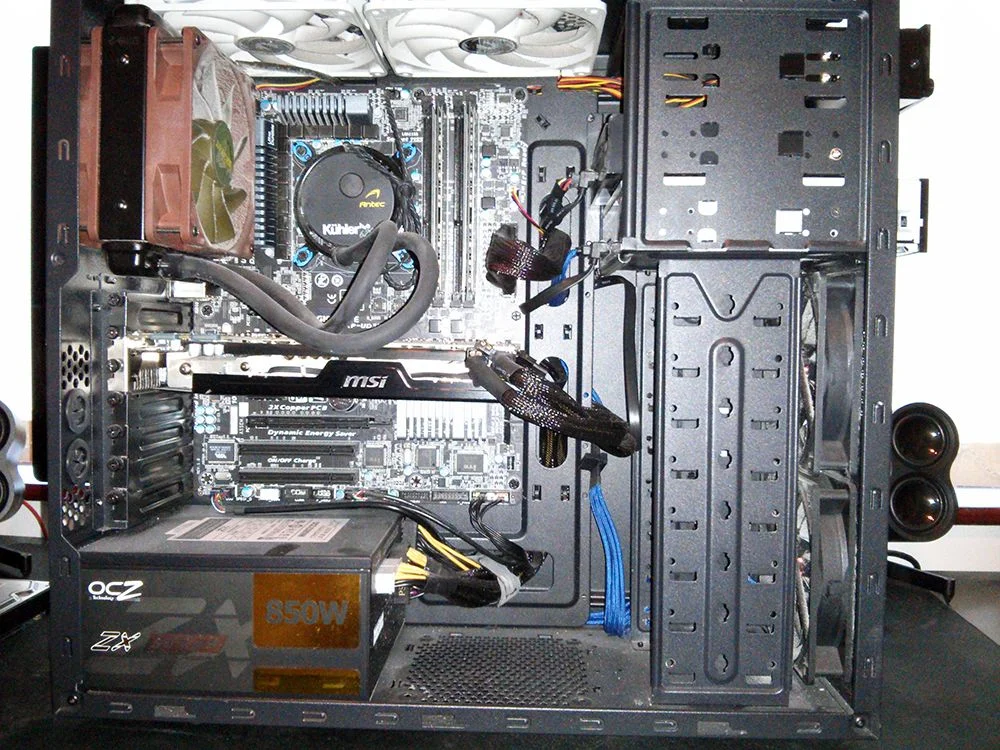

So onto taking apart the shinobi -

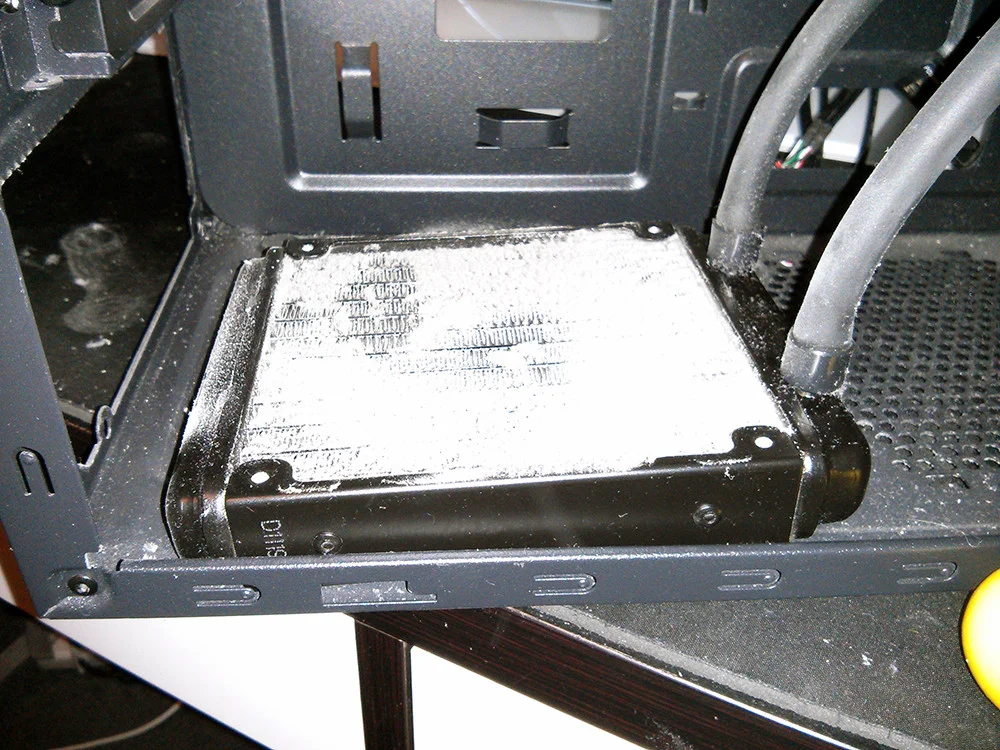

The Kuhler 620 rad...

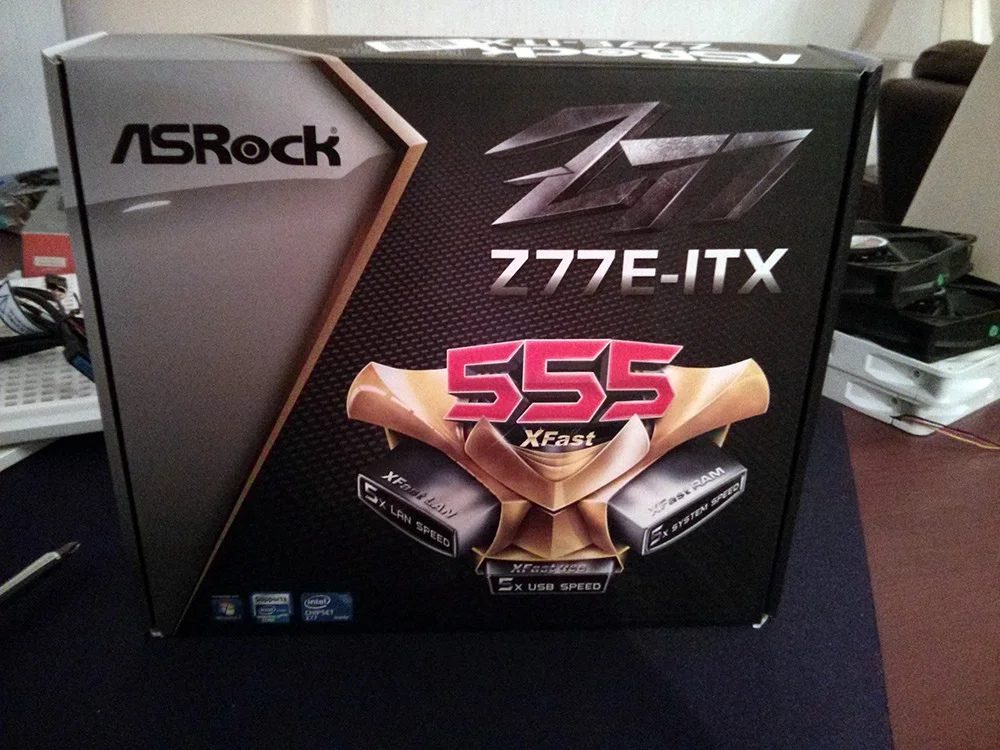

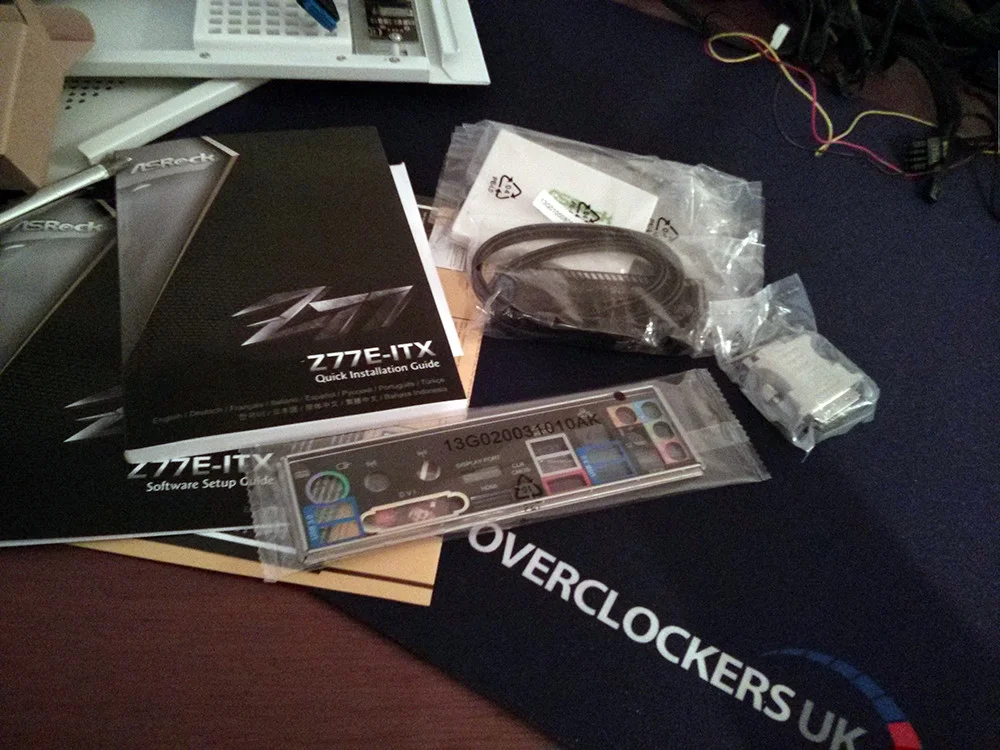

And heres the new stuff that came!

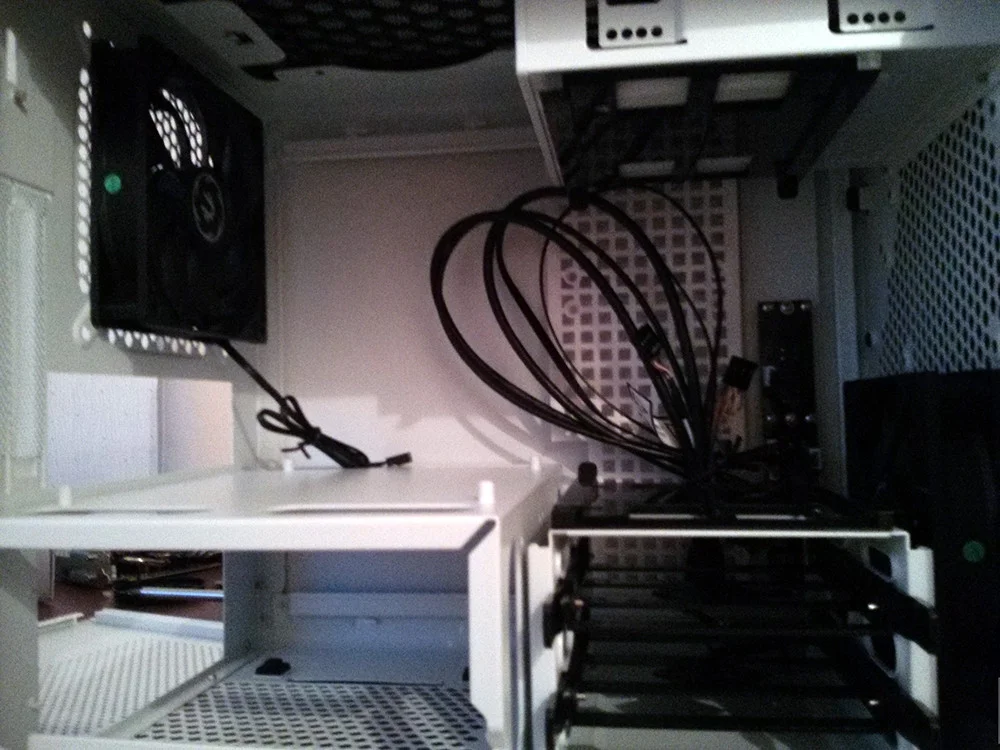

Few inside pics of the prodigy.

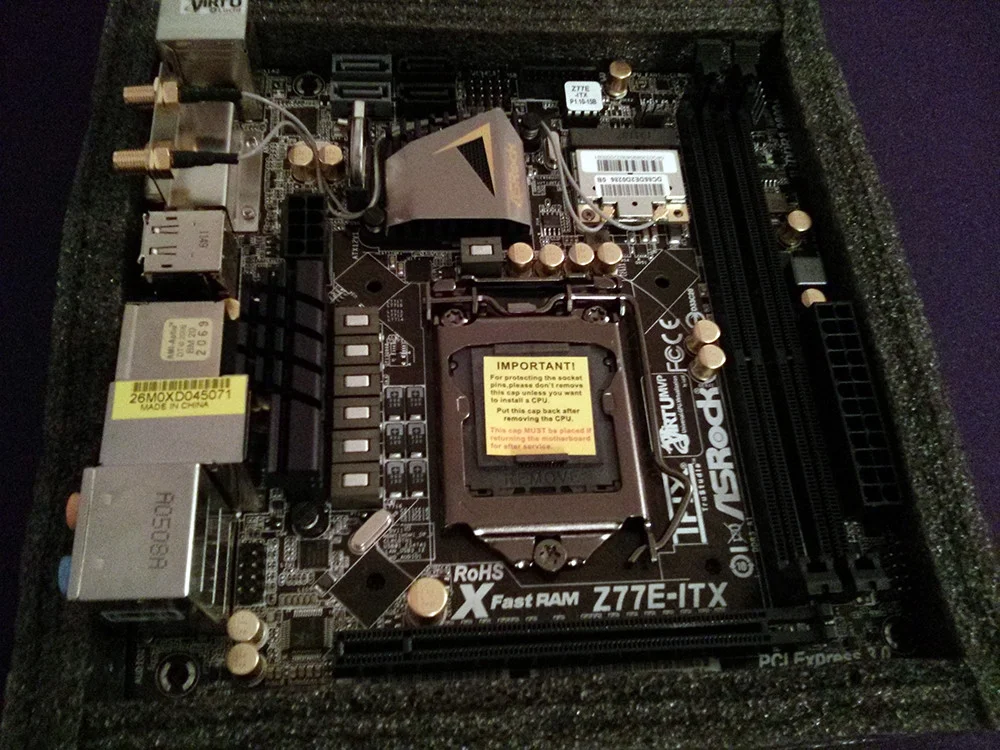

Onto getting the motherboard ready!

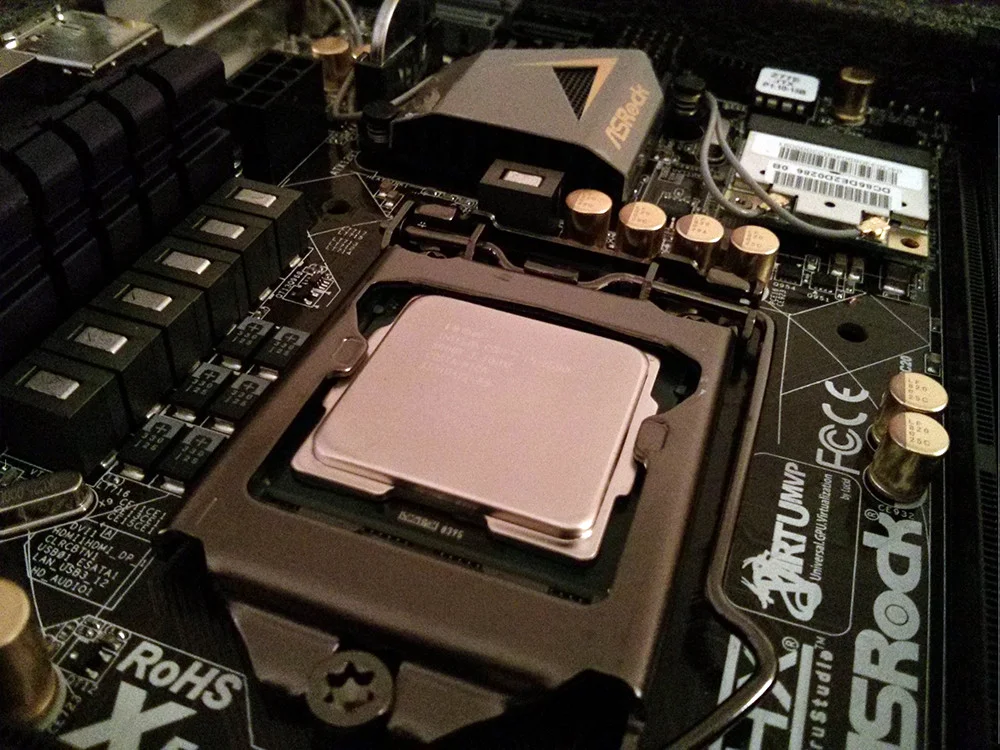

Installing the 2500K into the board...

Power supply dosnt exactly fit into the case... haha

The mounting bracket for the Kuhler didnt fit on due to a chip on the back and needed to be cut down

Cut down

And mounting on!

Some thermal *****

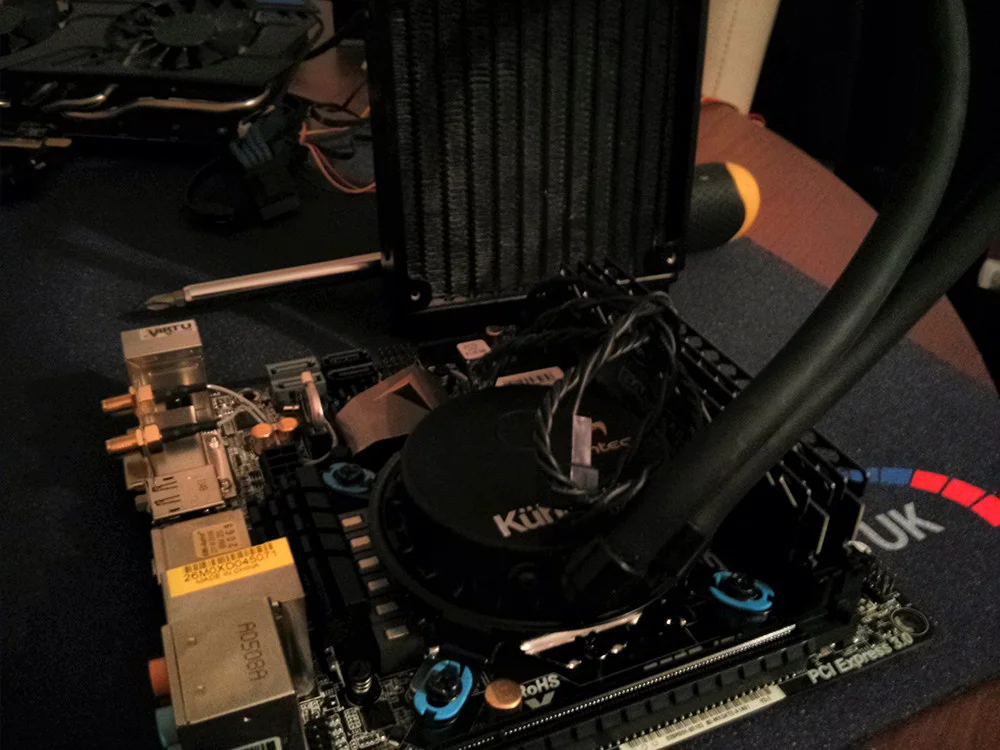

And the Kuhler is mounted and the ram installed.

I forgot to take pics when I was fitting it inside the case but all you missed was some cable routing really.

After she was built she looked like this

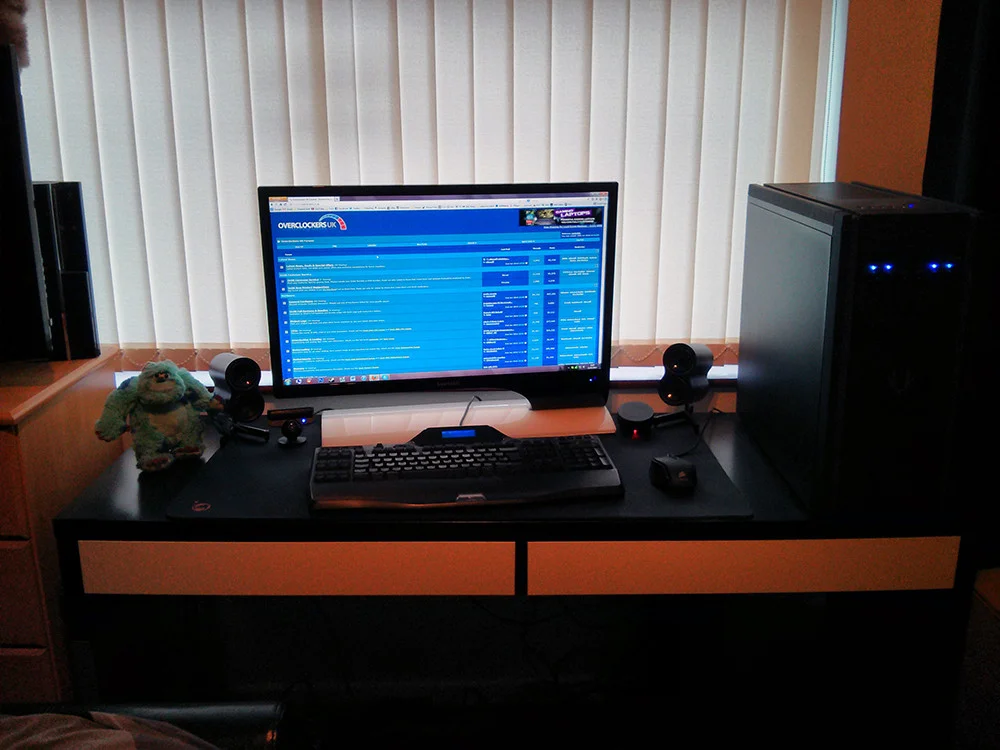

And on the desk!

I hope you enjoyed the pics even if some were blurry or to dark haha

Thanks!!

Jordy



[Quadcore14]

Nice build Jordy



[T345]

WTF is that powder on the rad



[Luffy]

Nice work and good reuse of parts.
How pleased are you with the way it turned out, is it more or less noisy and do you actually have more desk space?



[Deleted member 115712]

WTF is that powder on the rad

That was the dust.... I really should clean things out more...



[Deleted member 115712]

Nice work and good reuse of parts.
How pleased are you with the way it turned out, is it more or less noisy and do you actually have more desk space?

Yeah I'm really pleased! Love it! Its a lot quite now as it uses all spectres for the fans. And yeah i do get a bit more desk space. The height is a bonus as well because you don't fell so penned in.



[CEUOTC]

Prodigy is a great case, just finished making a media center with the midnight black case

Looking good there Jordy dude.



[Deleted member 115712]

Prodigy is a great case, just finished making a media center with the midnight black case

Looking good there Jordy dude.

Cheers!



[kthula666]

Nice build really like the case it has a very rigid feel when moving it around. The grips bend a little but are nice and strong. You could suspend it from the roof to free up the desk space.



[Deleted member 115712]

Nice build really like the case it has a very rigid feel when moving it around. The grips bend a little but are nice and strong. You could suspend it from the roof to free up the desk space.

hahahaha yeah it does! the side panels felt really solid as well



[dacads]

What fan controller did you have on the Shinobi?



[Deleted member 115712]

What fan controller did you have on the Shinobi?

Akasa FC Link here!



[*Rich*]

That's a really nice little build you've done there, i like it a lot.



[Deleted member 115712]

That's a really nice little build you've done there, i like it a lot.

Thanks!



[alfalavala]

Looks neat. I was thinking of doing something similar but then scope creep occurs and I was buying a whole new computer!



[joshcowin]

What graphics card dude?



[Deleted member 115712]

What graphics card dude?

670 Power edition!



[tomparker95]

Love this setup so neat and stylish! What desk is that mate?



[Deleted member 115712]

Love this setup so neat and stylish! What desk is that mate?

Micke desk from ikea, Link here



[Ian Jones]

looking good, i like that a lot. what are the temps like compaired to the old set up?
