MSI AfterBurner (Power Question)

Zeebedy · 3 Oct 2023 at 23:37

Hey guys,

Just finished some CS on my new GPU. Now, I went into AB to check my temps on CPU / GPU and checked the power output..peak..371W !! :eek:

Now, is the Wattage for the GPU solely or is that system draw? I mean, 371W!

haaammit · 4 Oct 2023 at 06:29

Might want to stick your specs up, a high end GPU could probably pull that kind of wattage wattage lol!

Glanza · 4 Oct 2023 at 08:55

If you've got a 4090 it'll easily pull that on it's own up to 450W depending on the game and settings / refresh rate.

Zeebedy · 4 Oct 2023 at 10:24

im now rocking a RTX 3090..

So I am assuming the draw is the GPU on its on! :eek:

Mind blown!

Zeebedy · 4 Oct 2023 at 10:57

just to add - according to MSI AB, my GPU (while under light load) is sitting around 45-50c, with the fans off, i think they come on at 60c..

is that reasonable? im assuming its the extra power, not being the most efficient GPU in the world these days?

Glanza · 4 Oct 2023 at 12:12

Totally normal

Ayahuasca · 4 Oct 2023 at 12:15

Just undervolt it, I've only slightly undervolted mine (FE) to 0.95v but it stays locked at 1980mhz during gaming so actually performs slightly above where it would be left at stock.

You can undervolt it much more aggressively and still run it around 1900mhz and only lose a few percent of the performance.

mrk · 4 Oct 2023 at 13:56

You can also save the faffing about with undervolting as every card needs a bit of trial an error to find the most stable UV, instead just lower the power limit in MSIAB. 80% is typical but you could go as low as 65% and still get good performance. I don't recall what the difference is on a 30 series but on a 4090 the loss is 4fps average, so basically nothing.

Zeebedy · 4 Oct 2023 at 15:07

mrk said:
You can also save the faffing about with undervolting as every card needs a bit of trial an error to find the most stable UV, instead just lower the power limit in MSIAB. 80% is typical but you could go as low as 65% and still get good performance. I don't recall what the difference is on a 30 series but on a 4090 the loss is 4fps average, so basically nothing.

thanks for this. the simpler the better for me! :cry:

So, literally move the slider down from 100%?

nothing else, seems too good to be true..

Zeebedy · 4 Oct 2023 at 15:10

im guessing this is the equivalent of my putting my CPU into "eco" mode, and running at 65W?

Still get good performance and better temps etc..

mrk · 4 Oct 2023 at 15:36

Zeebedy said:
thanks for this. the simpler the better for me!

So, literally move the slider down from 100%?

nothing else, seems too good to be true..

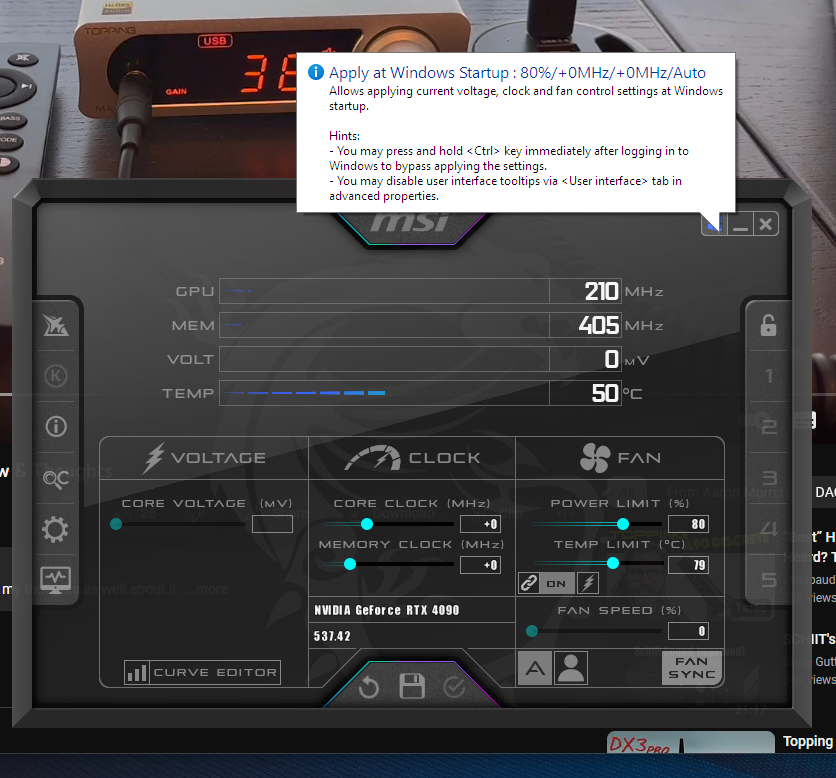

It's as easy as that. Just make sure that the blue windows logo is enabled so that the power limit is applied at startup:

It's realtime too so you can adjust it on the lfy whilst gaming and see the immediate power draw affect it has if you go back into AB/HWINFO64 etc.

Zeebedy · 4 Oct 2023 at 15:44

thanks @mrk

I have put it down to 85% for now. The only issue im getting is the Windows logo at the top is "greyed out". I cant click or amend with it??

Zeebedy · 4 Oct 2023 at 15:46

Got it sorted thanks mate. It was locked on the profile tab, soon as i unlocked it, it let me set the Windows icon!

Cheers again mate!

mrk · 4 Oct 2023 at 15:47

Nice also make sure the setting to start with Windows is on too:

Zeebedy · 4 Oct 2023 at 16:02

yeah, they are setup, it was the Windows logo that I hadn't activated! :rolleyes:

Zeebedy · 4 Oct 2023 at 16:30

quick update, had a quick blast on Dead Space (2023) and my Wattage draw was 370, now 300, fan speed on the GPU was less (so quieter), FPS and settings were still very respectable at 2K for a game like DS!

mrk · 8 Oct 2023 at 00:17

This is the way.
