Decided to build myself a gaming PC, been using a laptop for last few years.
Wanted something relatively small and neat so fits on desk without taking up too much space, so going with a Micro ATX build and cramming some pretty beasty powerful products in there, fingers crossed they will fit, so the parts list is:
- SKU: CAS-JON-06494
- EAN: 6970620554822
- MPN: V12 BLACK
The V12 from Jonsbo is a desktop MATX chassis that combines design elements such as glass side panel and solid wood trim. lt features a 270°panoramic sunroof, allowing for a clear view your hardware. The Jonsbo V12 case uses North American walnut solid wood trim for a clean and modern aesthetic that will nestle into any living room technology setup, office environment or gaming station.
- SKU: POW-SSC-03149
- EAN: 4711173878421
- MPN: FOCUS-GX-1000-V4
The Seasonic FOCUS GX ATX 3.1 is a fully modular, 80 PLUS Gold power supply offering advanced energy efficiency, quiet operation, and comprehensive protection features for high-performance builds.
- SKU: COO-TLR-02725
- EAN: 0814256016940
- MPN: Peerless Assassin 120 MINI BK
Peerless Assassin 120 MINI BK, 120mm Dual Tower Cooler, Black Design, 135mm Height, 6 Heat Pipes
- SKU: TH-020-TG
- EAN: 4260711990038
- MPN: TG-K-001-RS
Thermal Grizzly Kryonaut Thermal Paste was specially developed for extremely demanding applications and the most demanding of Overlocking community
- SKU: PRO-AMD-06938
- EAN: 0730143318280
- MPN: 100-100001973WOF
100-100001973WOF, 8 Core with 16 Threads, Up to 5.60GHz Boost Clock, 4nm FinFet Process, 96MB L3 Cache, Dual Channel DDR5 Controller, 120W TDP, 3yr Warranty
- SKU: MEM-GSK-05027
- EAN: 4713294238535
- MPN: F5-6000J2636H16GX2-TR5NG
F5-6000J2636H16GX2-TR5NG, 6000MHz RAM Speed, CAS 26-36-36-96 Timings, 1.45v VDIMM, AMD EXPO, Lifetime Warranty with OcUK
- SKU: MOT-SPR-05690
- EAN: 4895106296916
- MPN: 52123-01-40G
Socket AM5, B850 Chipset, Supports 7000/8000/9000 series AMD Ryzen, 4x DIMM Slots, DDR5 8000MHz+ (OC), PCIe Gen 5, 4x SATA 6Gb/s connectors, 2x M.2 Slot, 2.5GB LAN, Micro-ATX
- SKU: GRA-GIG-07144
- EAN: 4719331357023
- MPN: GV-N507TWF3OCV2-16GD
Boost Clock: 2497 MHz, Memory 16GB 28000MHz GDDR7, Cuda Cores: 8960, VR Ready, PhysX/CUDA Enabled, NVIDIA Blackwell 2.0, 4nm Process, Real-Time Ray Tracing, DLSS 4.
I've built the system and its up and running on latest BIOS. Not installed the GPU yet as was originally going with an RTX 5070 been the most powerful sub 260mm long GPU, but noticed new Gigabyte 5070 Ti V2 OC is 261mm long, so it is worth the gamble of seeing if it will fit or not, Jonsbo state 260mm maximum GPU length, so tonight I shall see if this 261mm card fits.
Not messed with PC's for years but so far will say the case seem easy to build in, system booted fine, updated BIOS to latest revision and as basic setup in BIOS I've set the following, LOOKING FOR ADVISE HERE PLEASE:

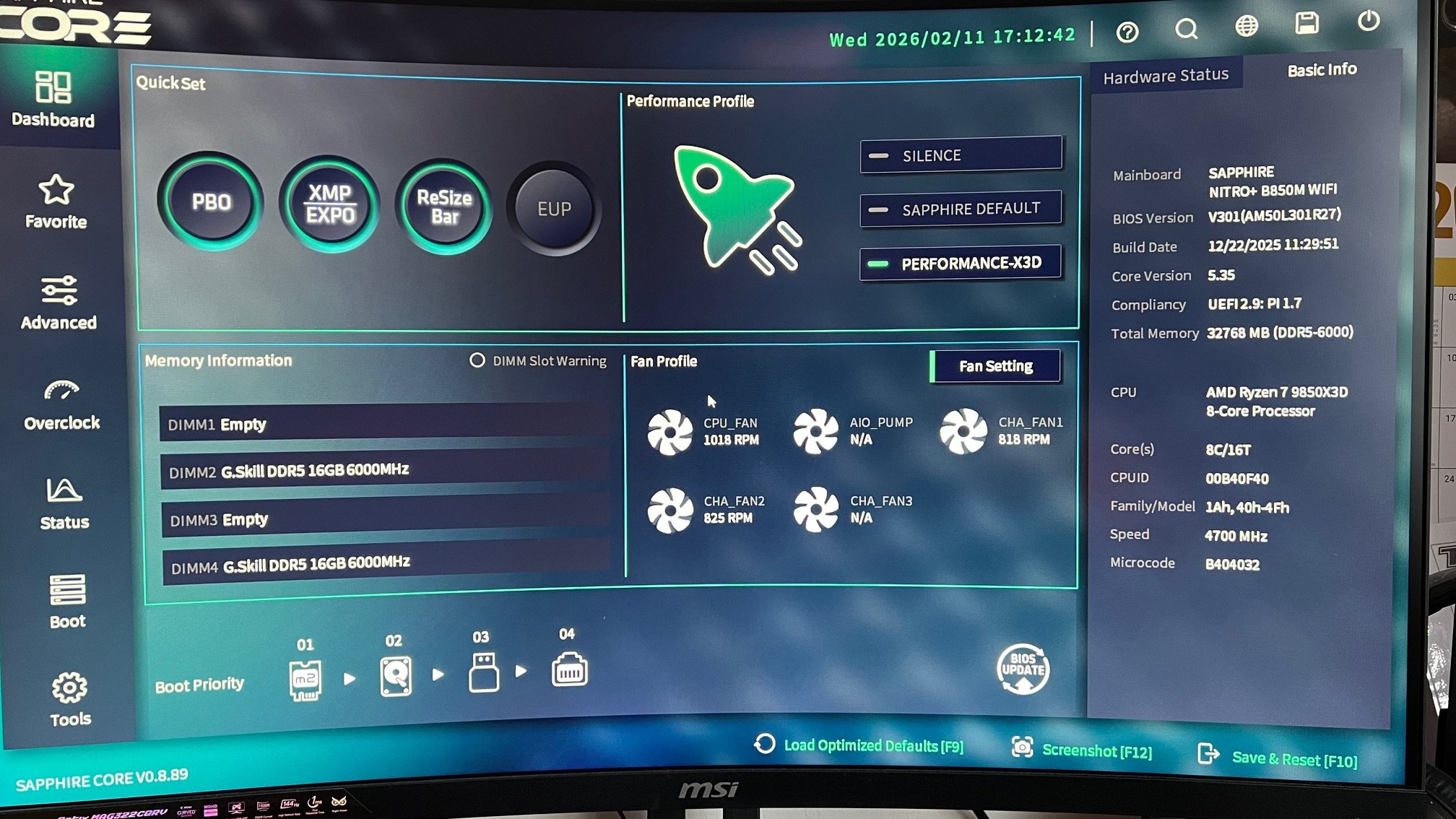

Mode: Performance X3D:

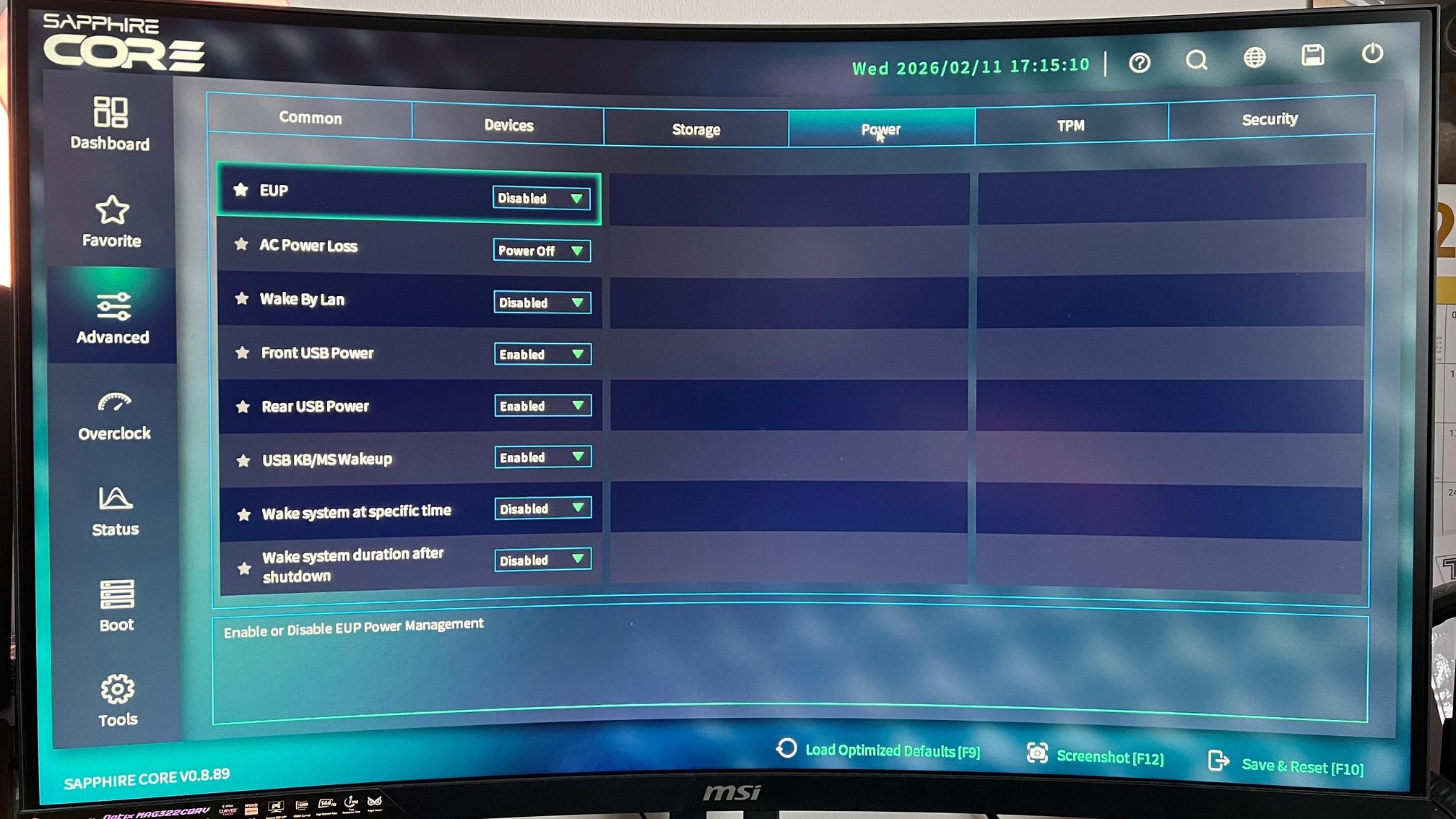

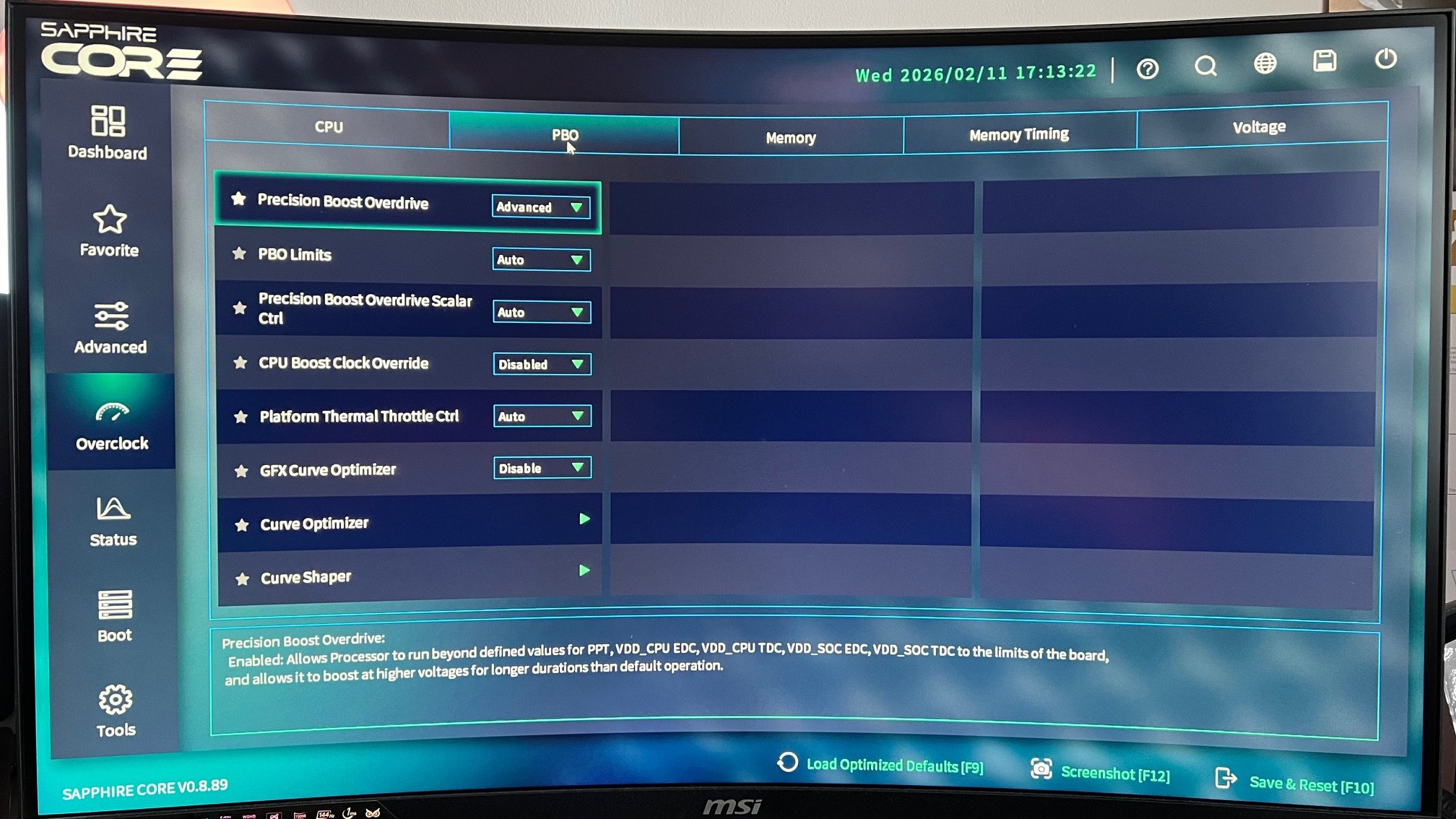

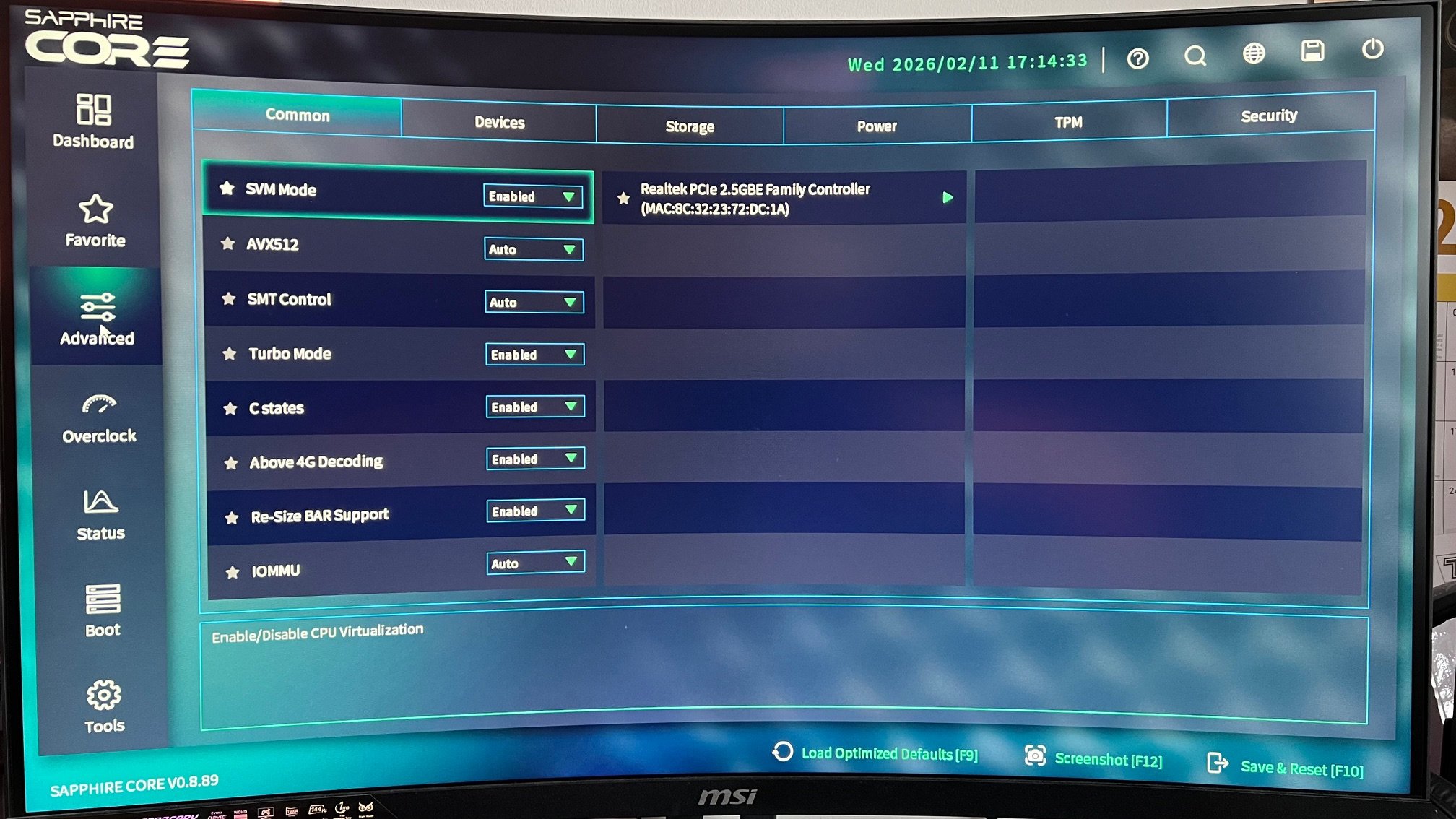

So I've enabled EXPO, PBO and Re-size bar, assuming all correct to do for max efficient performance, what is EUP? Energy saving mode?

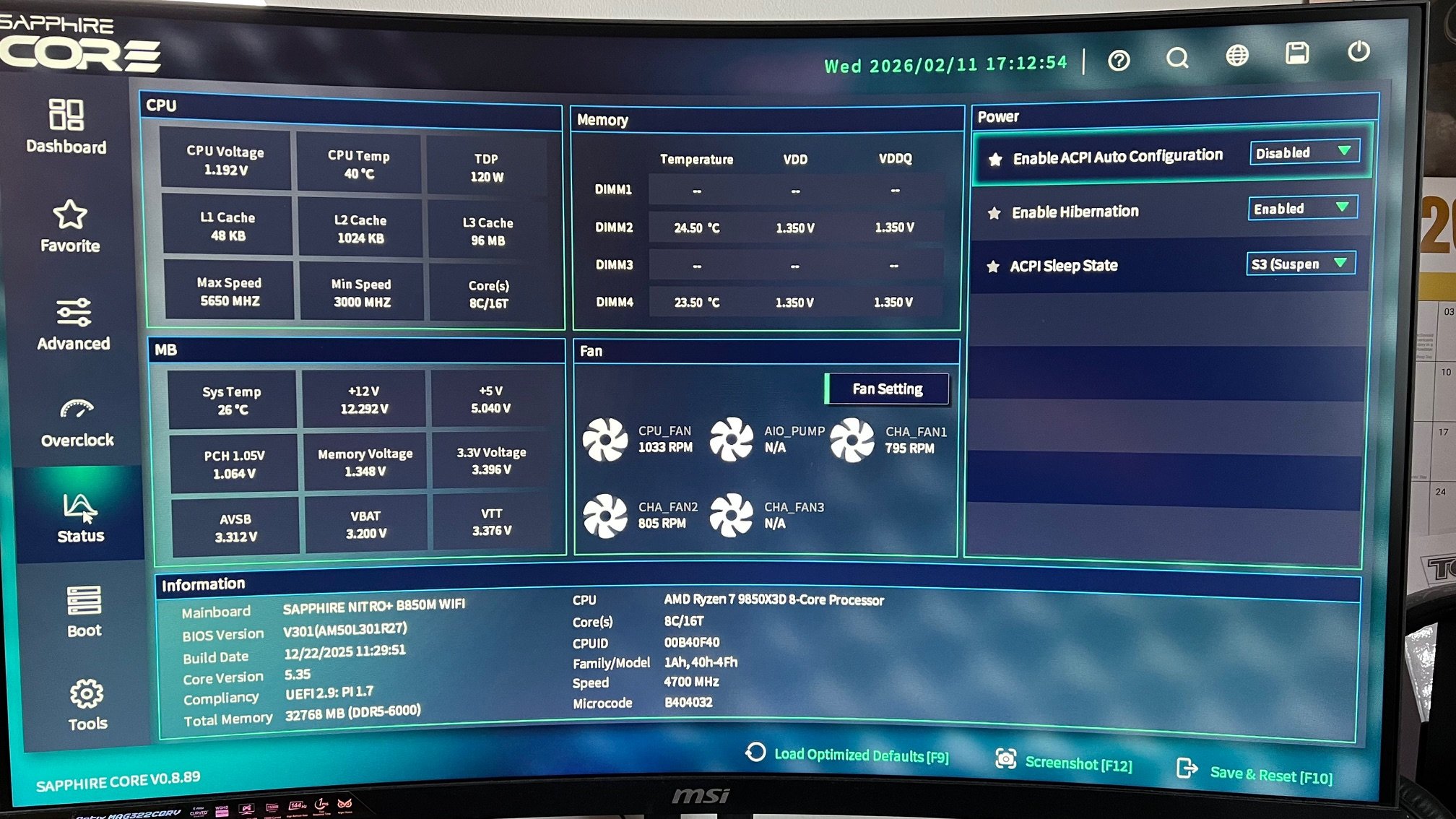

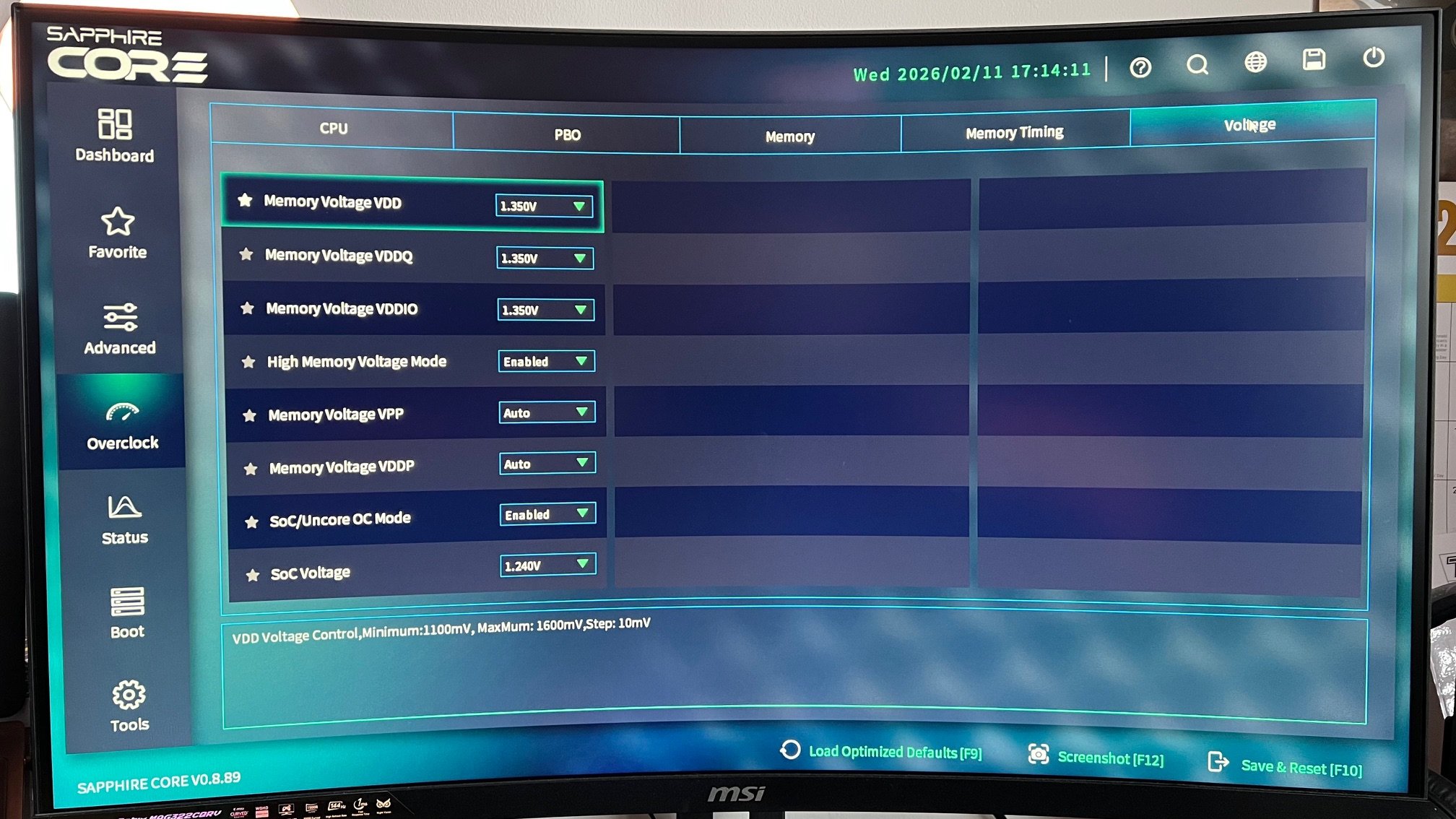

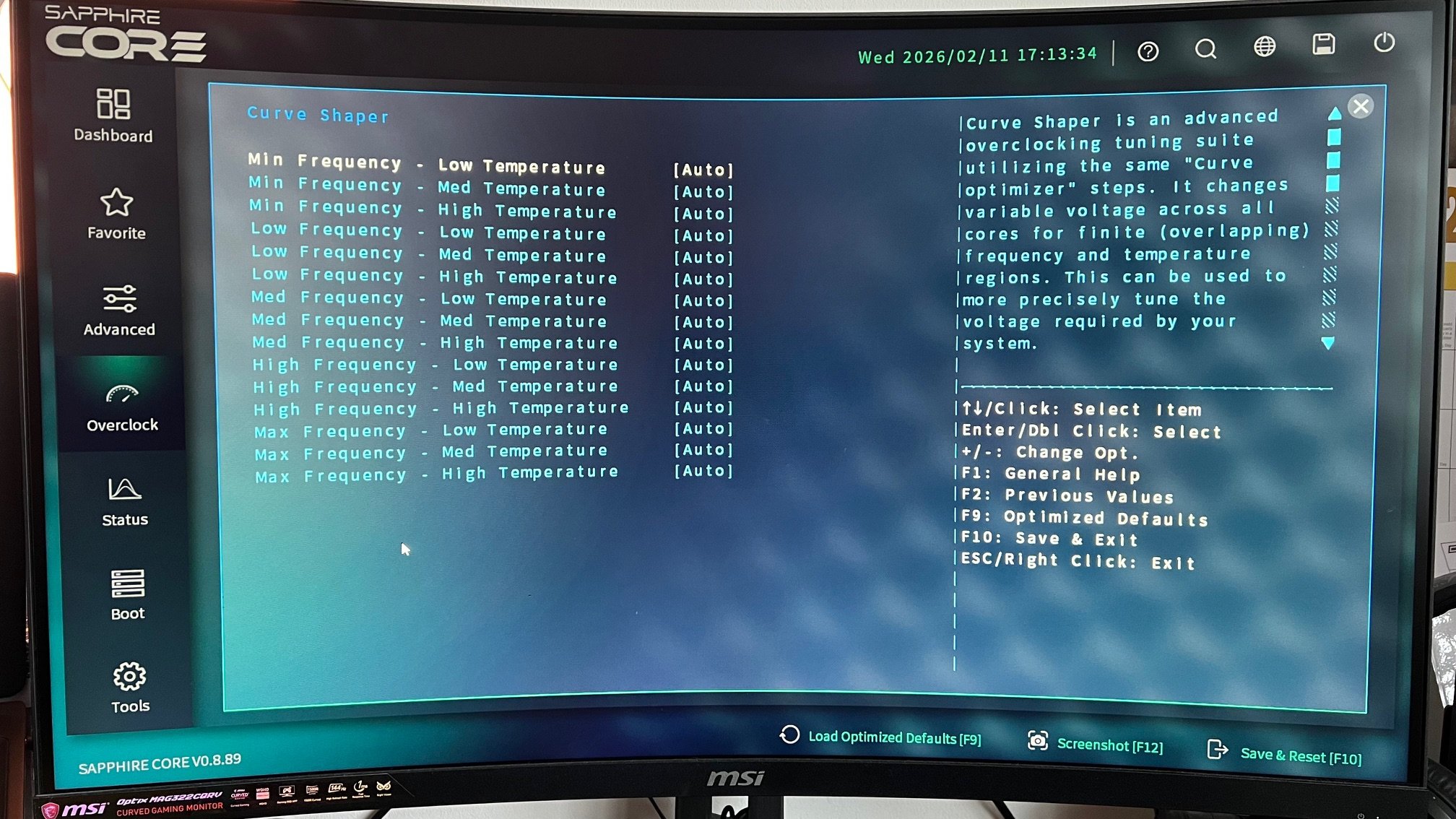

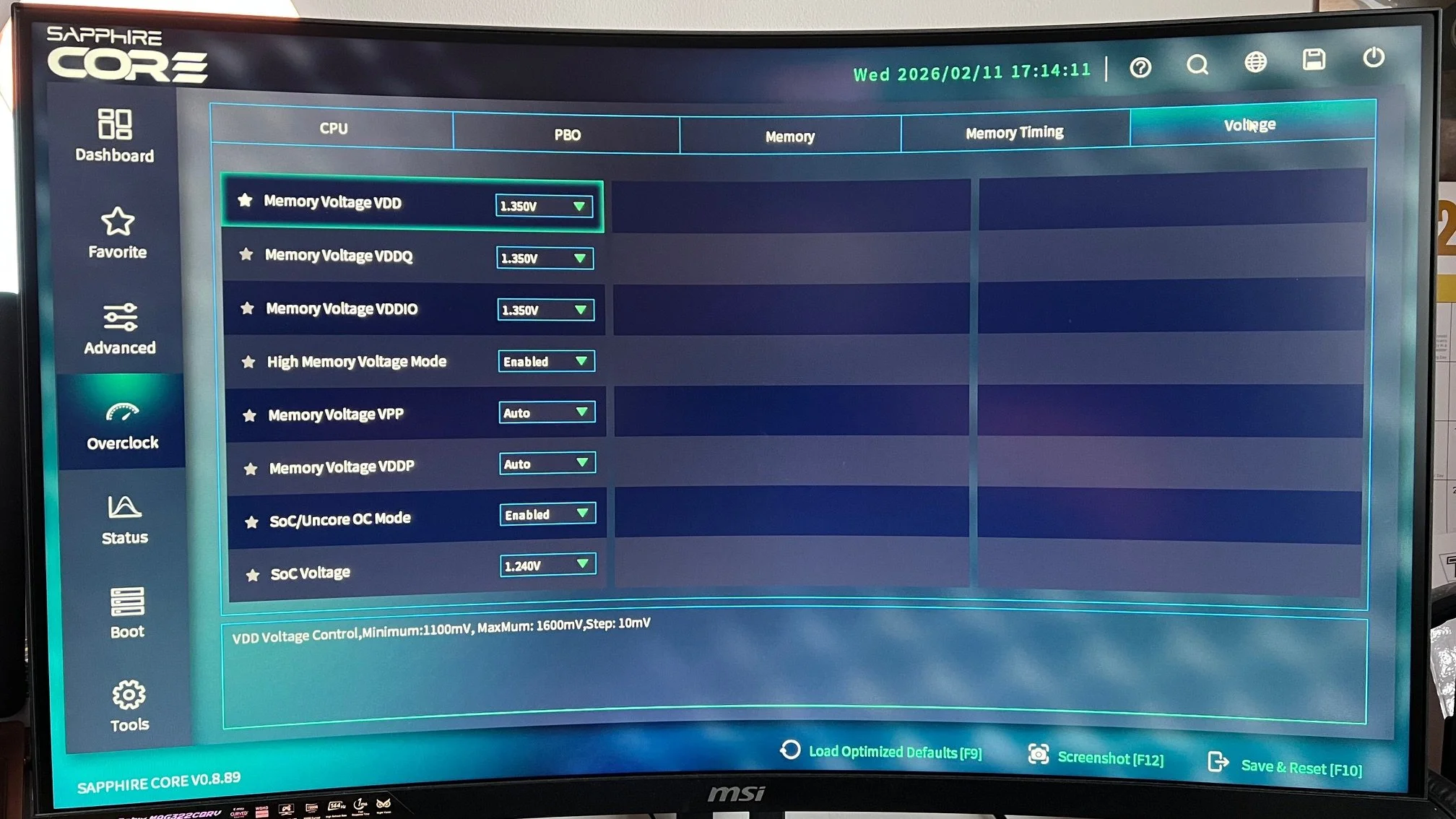

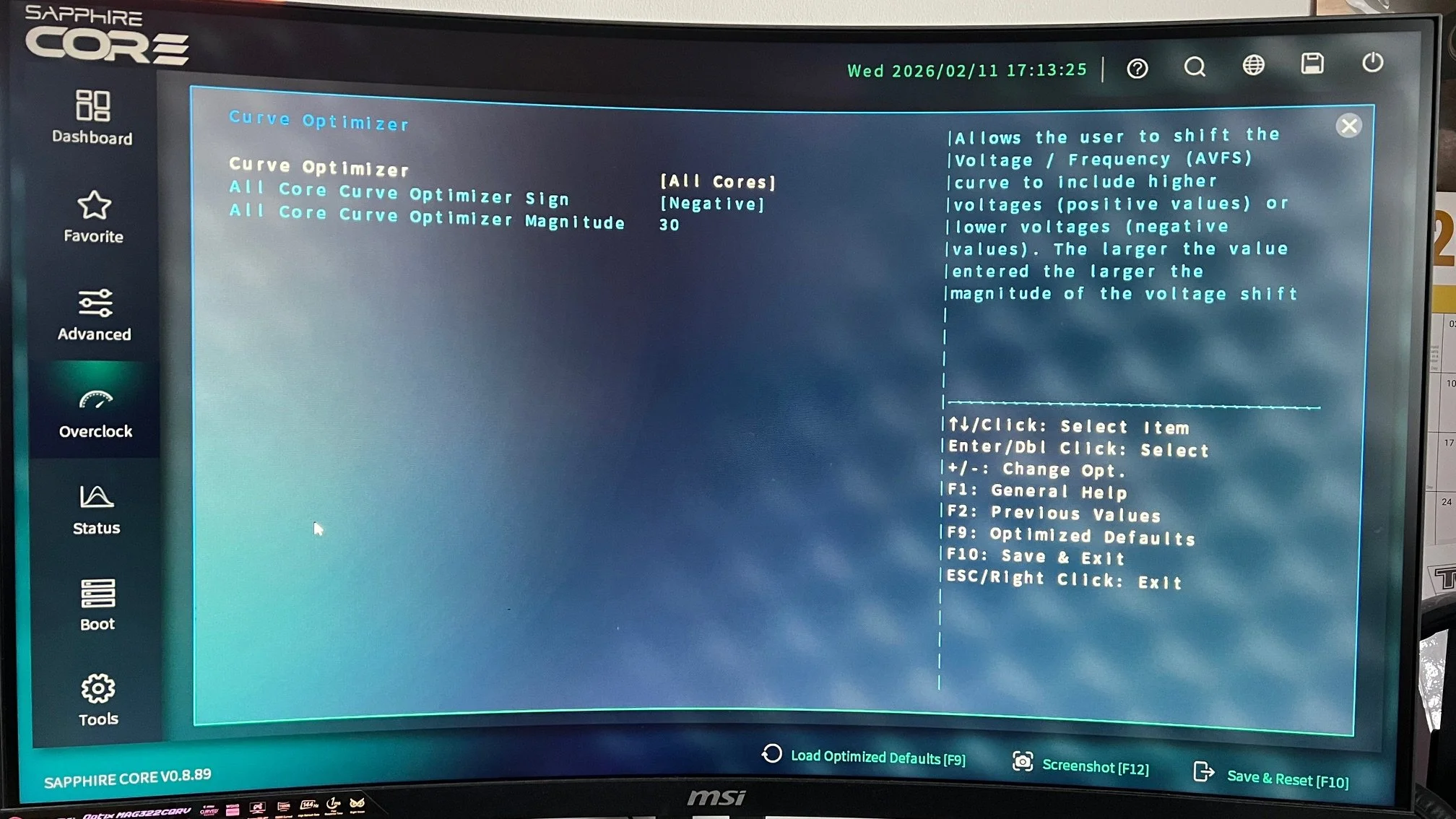

Having not build a setup for years which way back then would have been Intel, the initial voltages seemed high, 1.35v for CPU, 1.45v for memory and 1.25 for SOC. I've used PBO curve set too negative 30 to get CPU down to 1.20v and reduced memory to 1.35v and SOC to 1.20v am I on right track or going in wrong direction, what would be good targets to aim for, bear in mind the case is small and basic cooling.

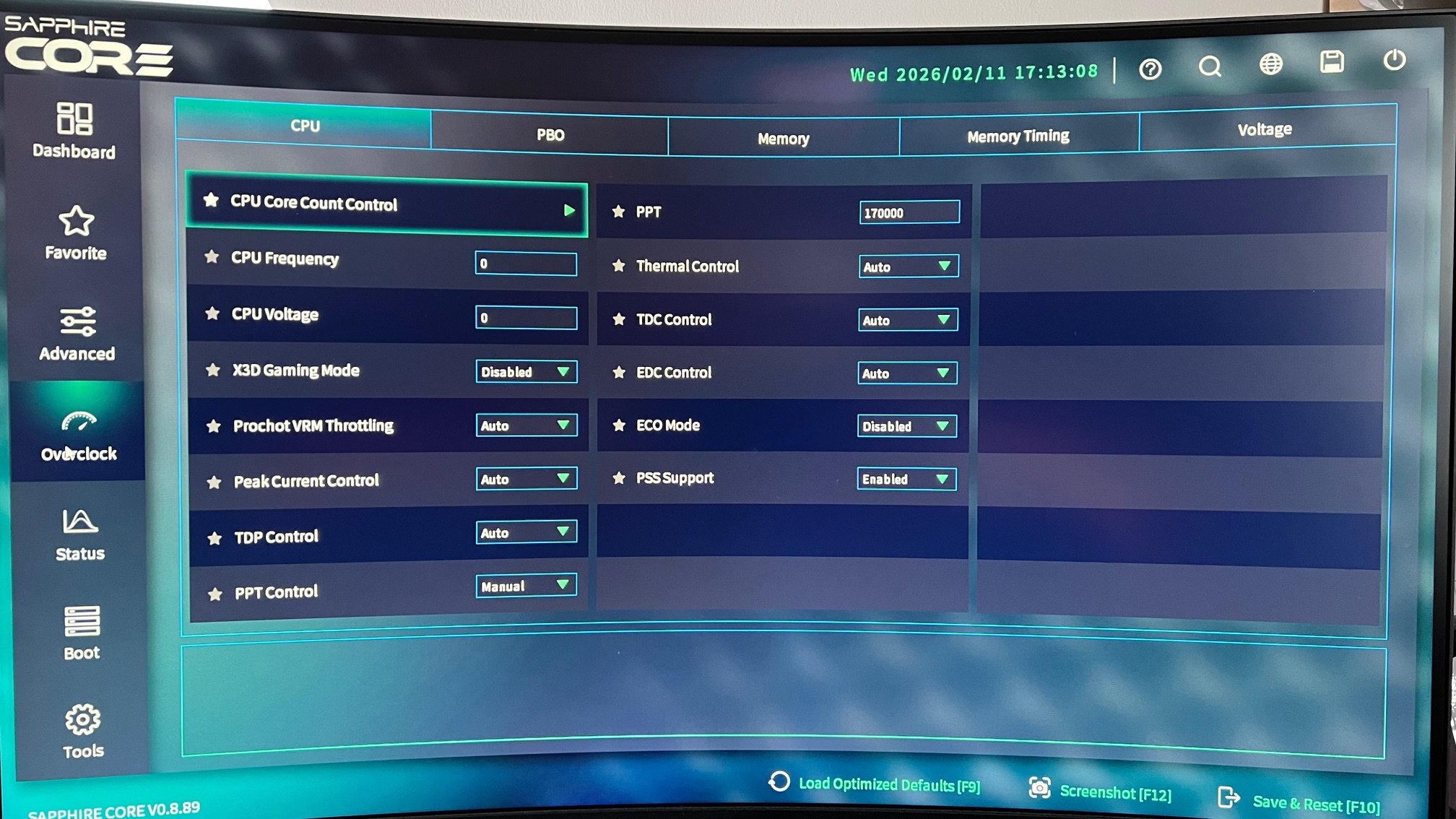

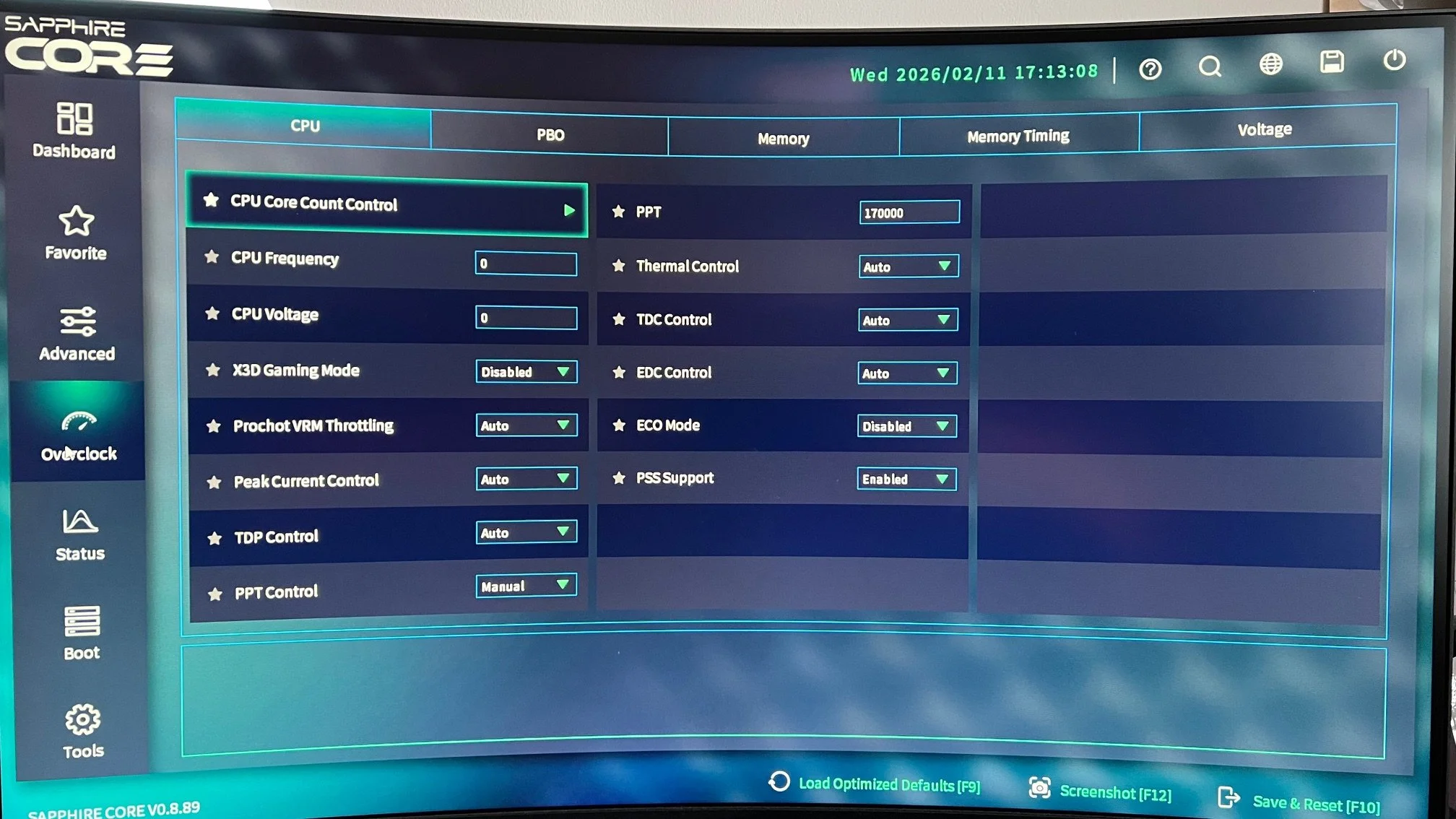

X3D Gaming Mode is disabled by default, but it says will make games faster so should this be ENABLED, any reason it defaults to disabled?
PPT is AUTO, but when I select Performance Profile it defaults to Manual and defaults to 170,000 should I return this to AUTO or is 170,000 a good number, what even is PPT?

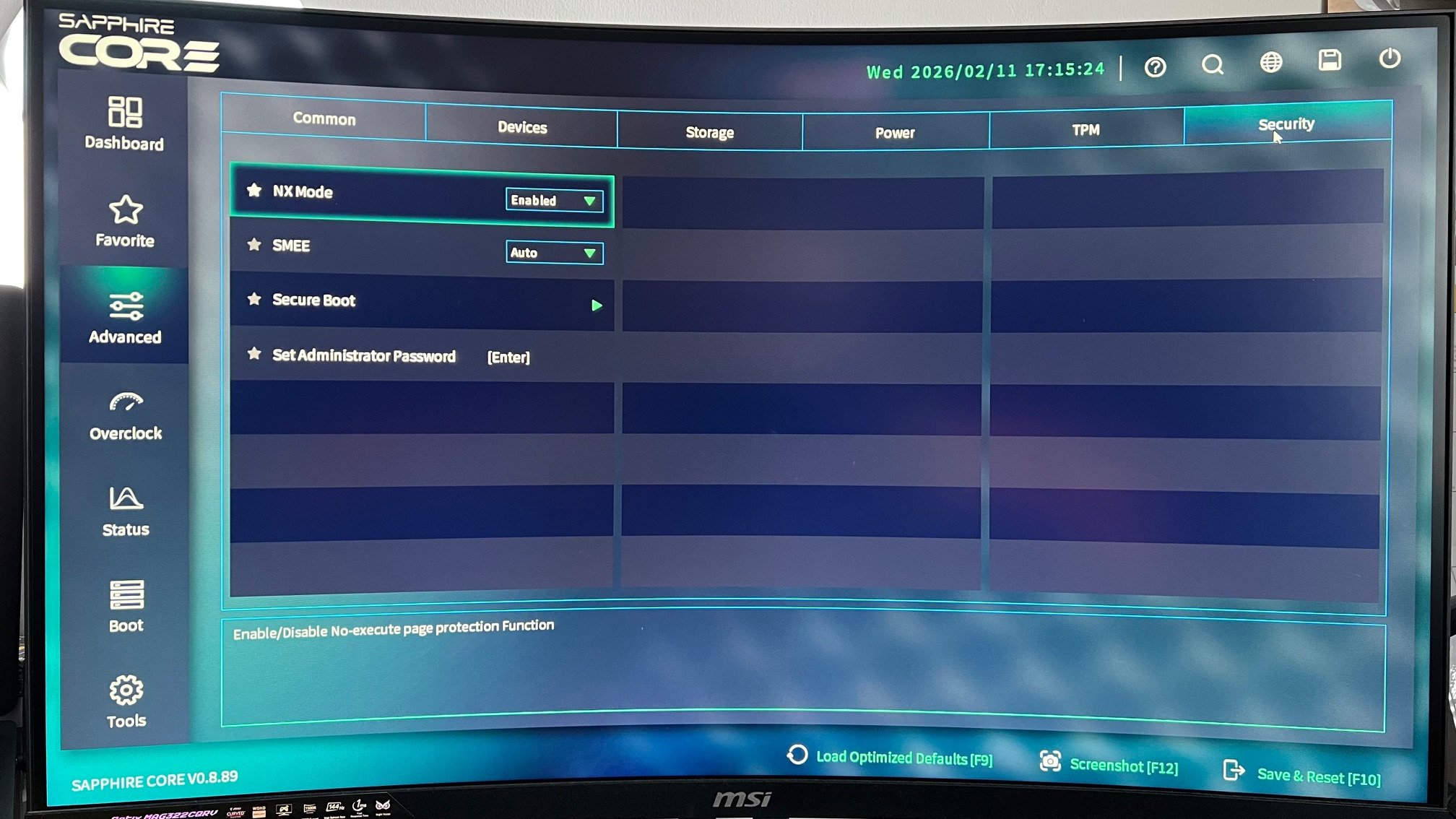

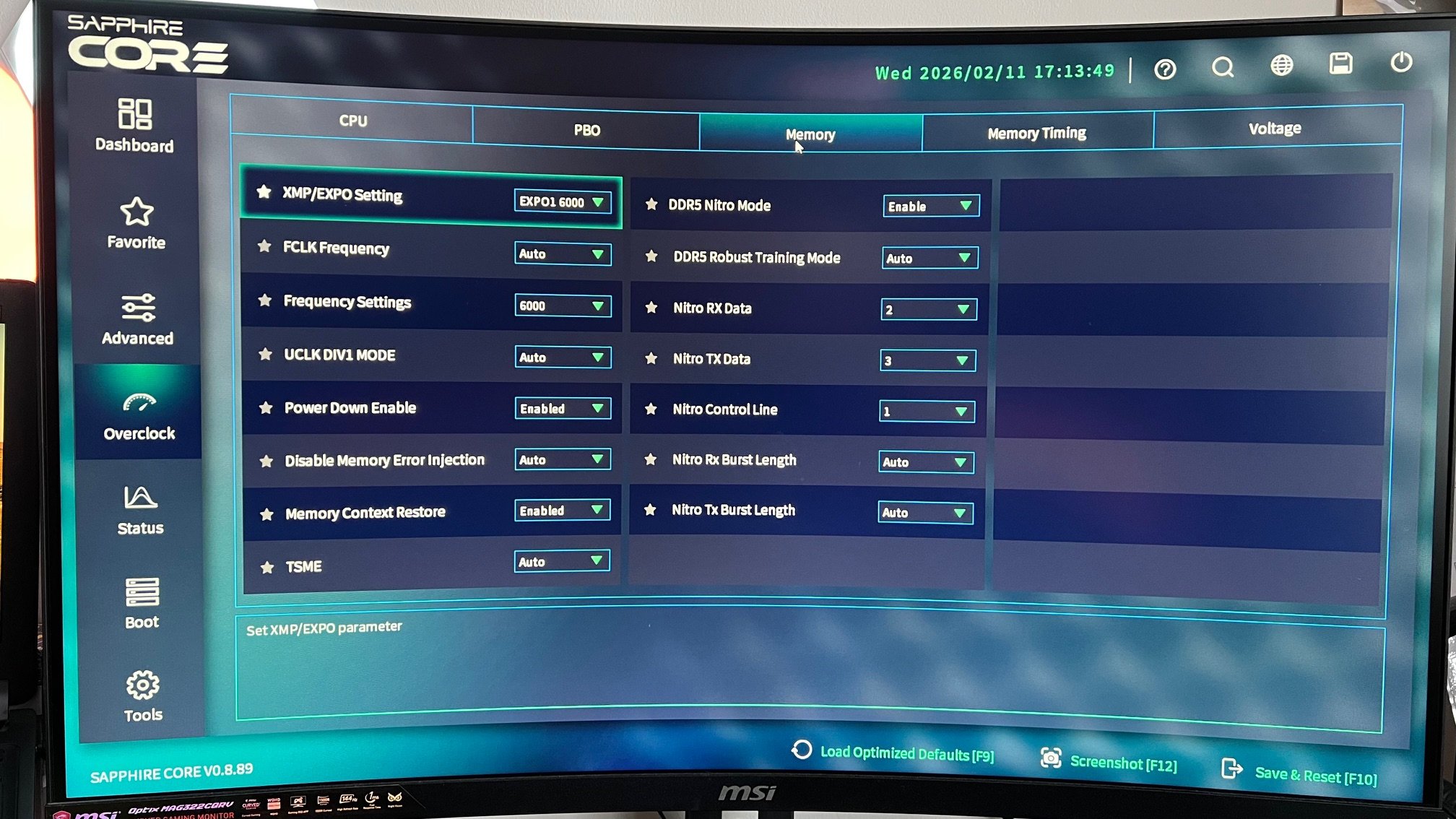

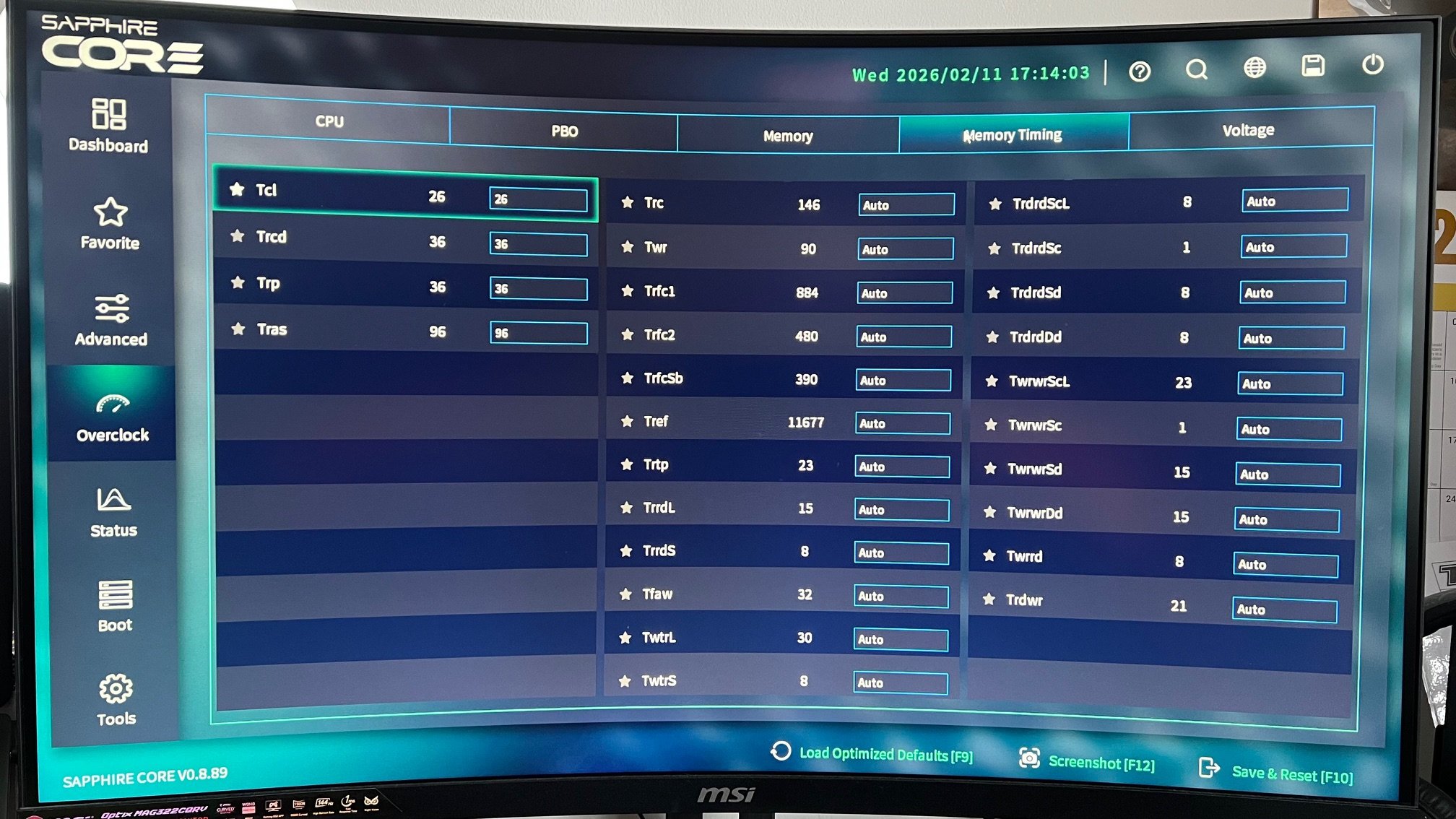

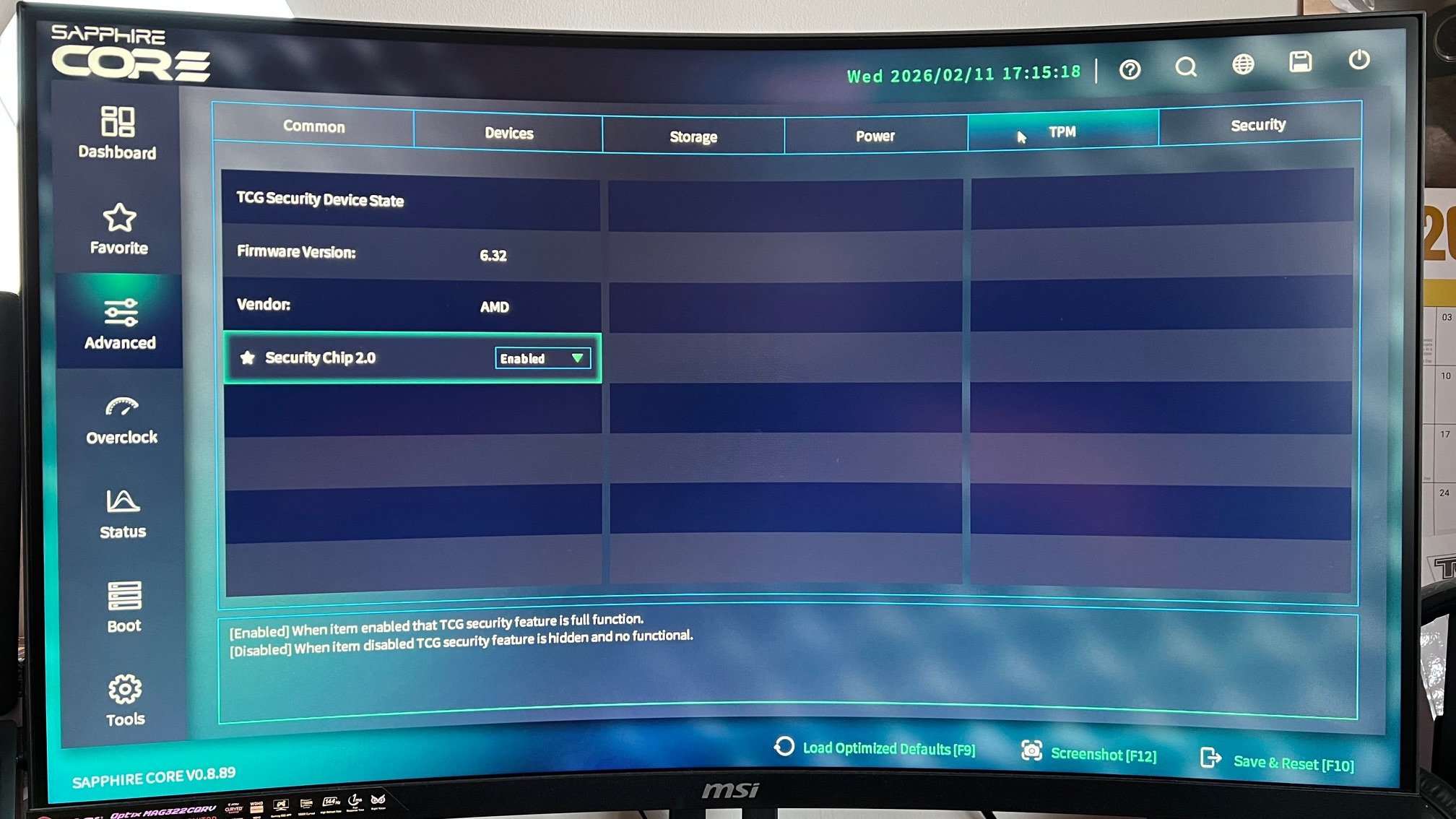

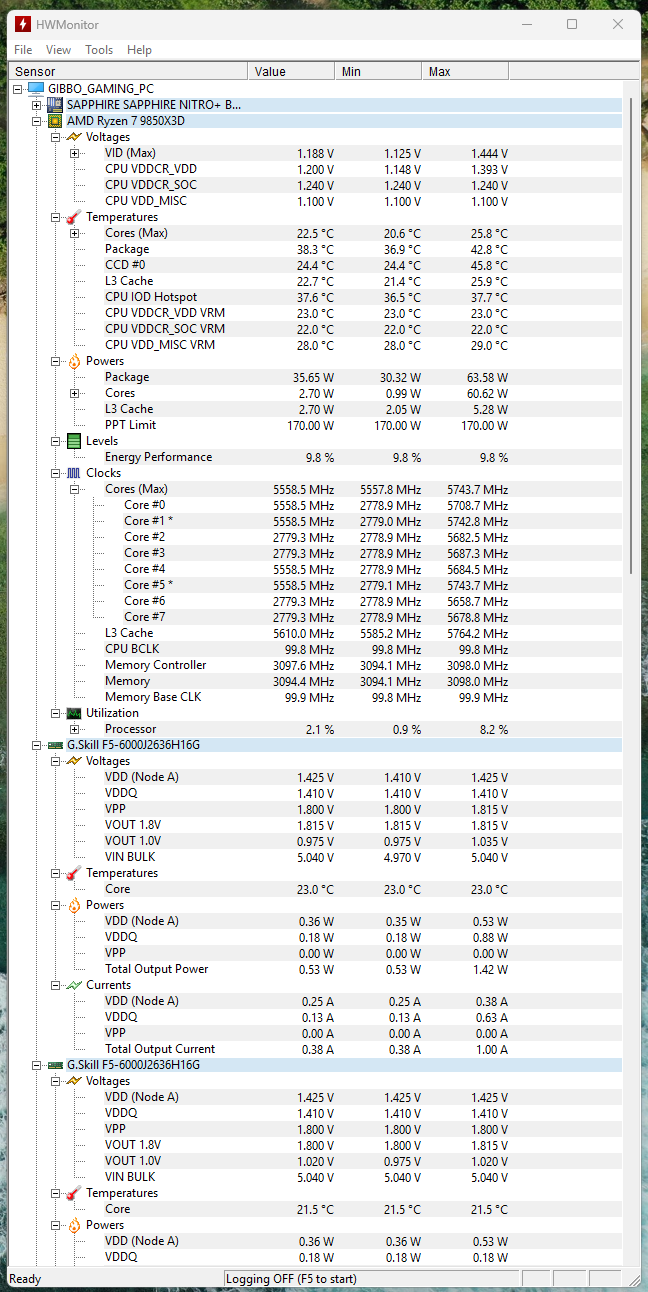

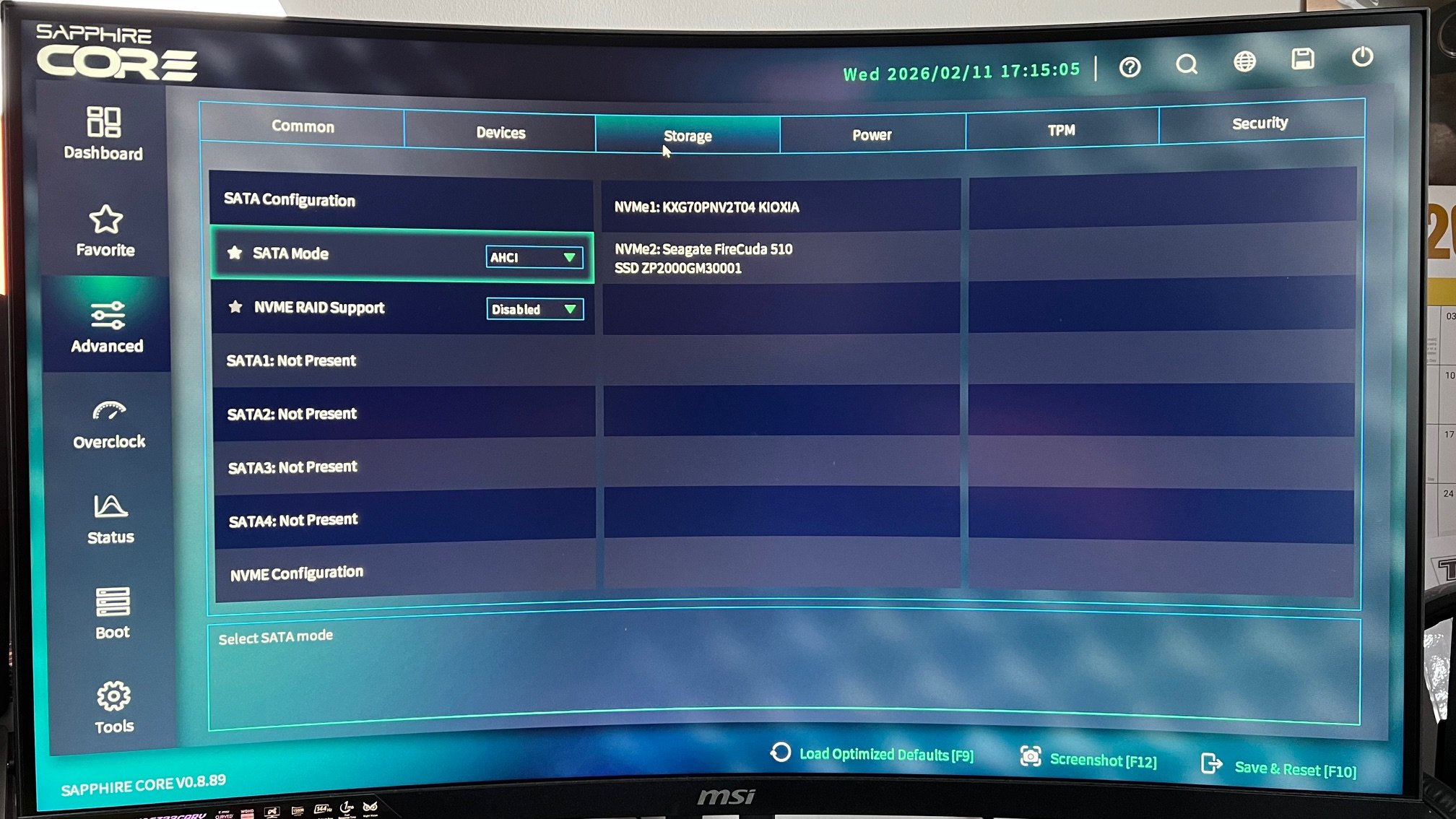

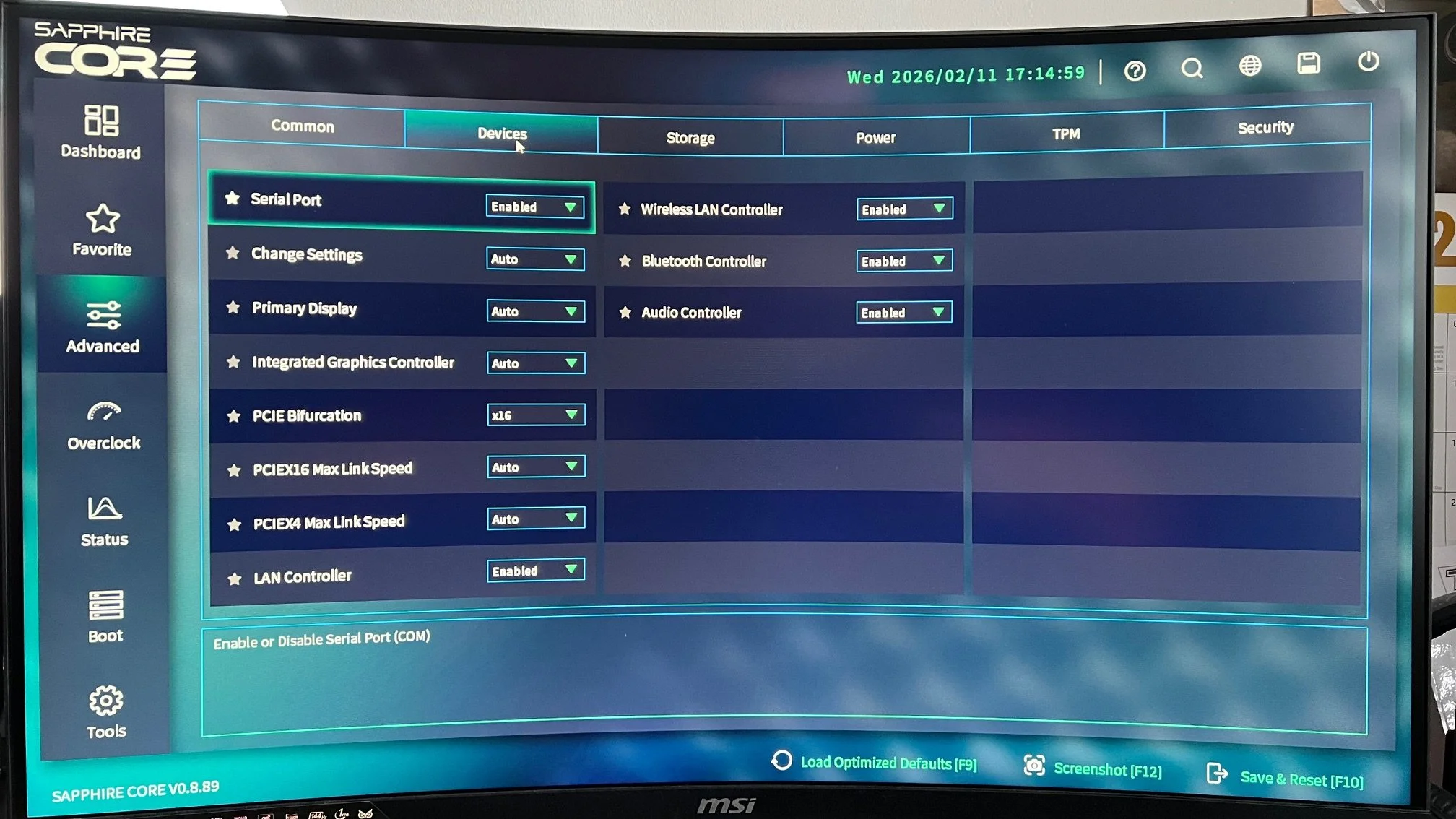

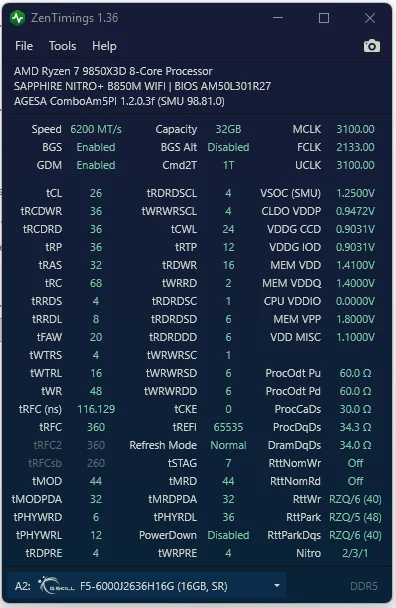

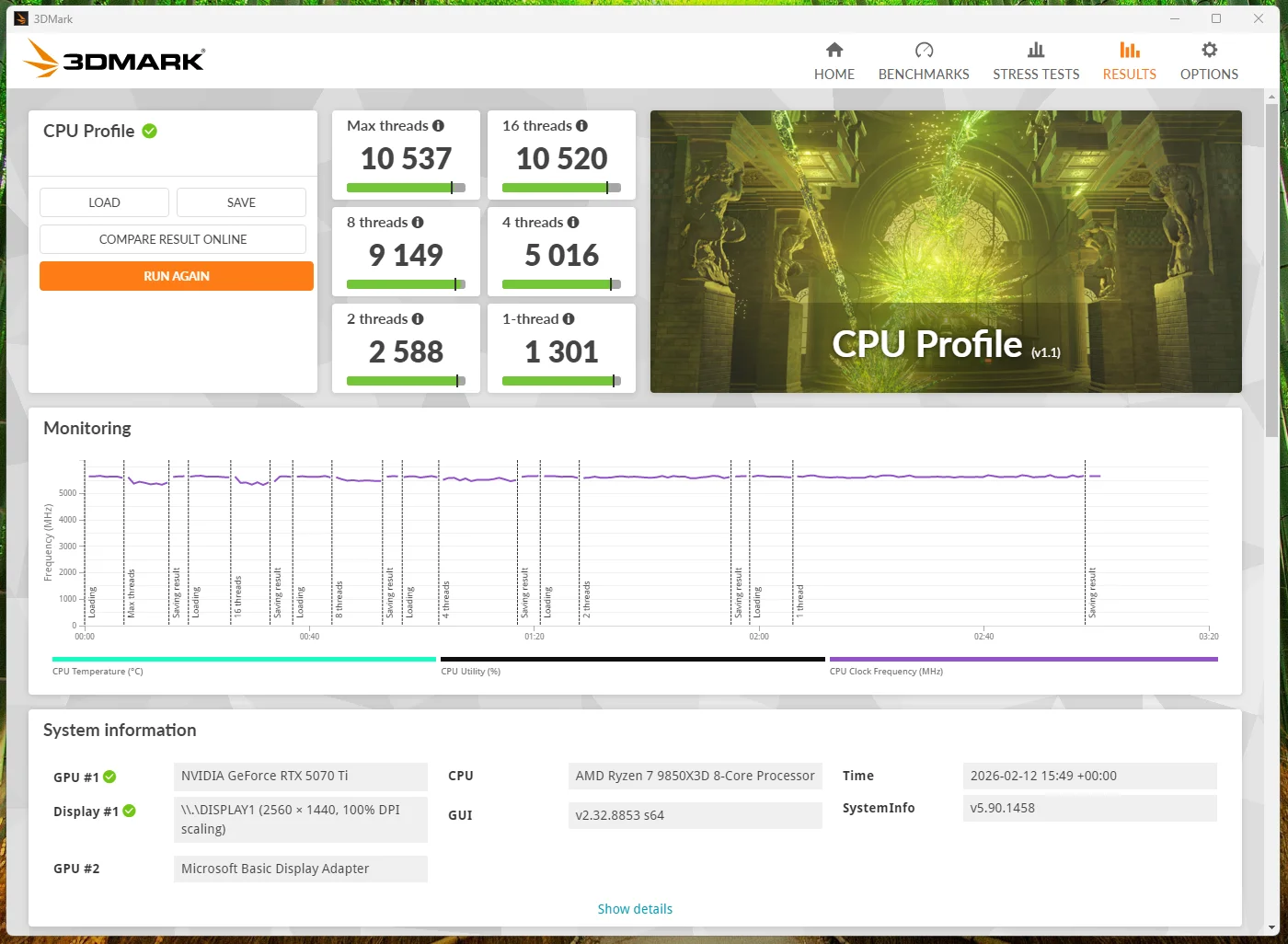

Some more screens if people can review and suggest settings please:
Apologies for screen overload, but having reviewed my settings which ones should I change and to what values please?

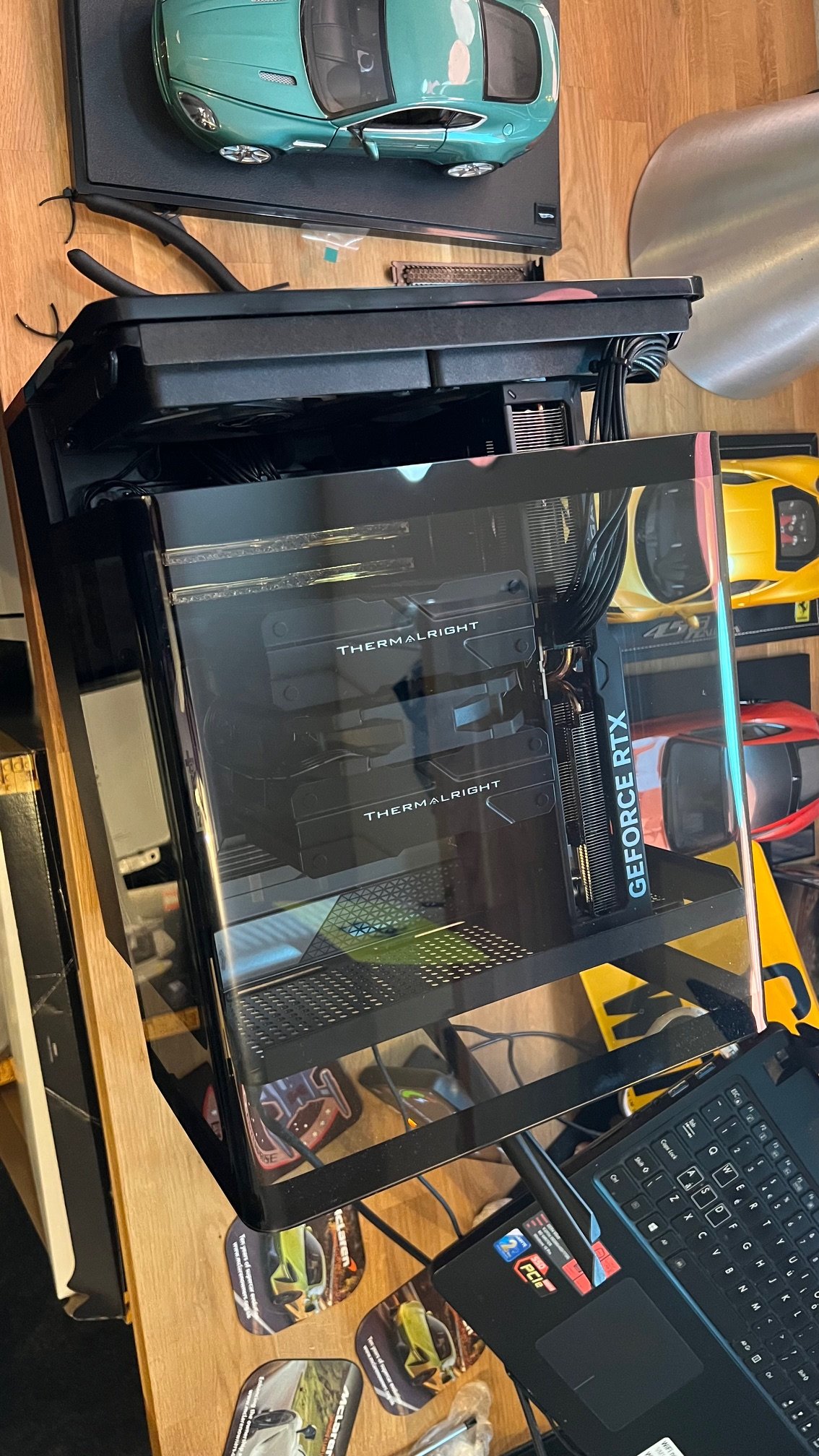

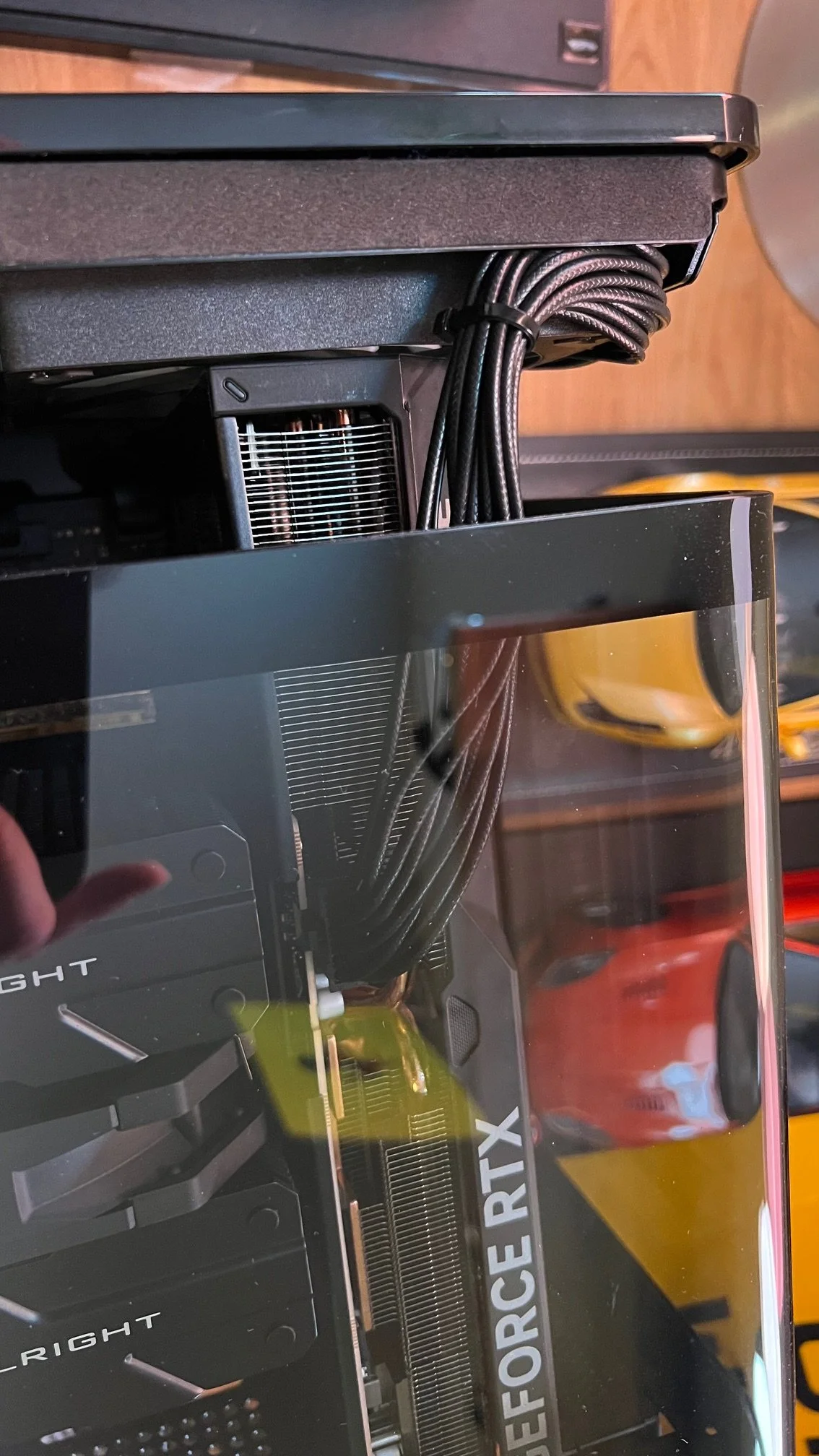

Wish me luck tonight with fitting a 261mm long GPU into a 260mm length case.
