wow, like it , really girly now. I like the purple my self , looks stunning.
PROJECT: Girly Mods II.
- Thread starter stopstartstall
- Start date
- Joined
- 4 Jan 2007
- Posts
- 197
- Location
- Stoke
Let me preface this by saying we suck... RL got in the way a bit but we're back working on this now so here's another update!
Before we started soldering, we did a bit of a mock up of what the top would look like once it was done. We put a bit of blowhole trim round the hole for the i/o bracket just to neaten it up, and put the switches in place. So far so good!
Next we soldered the switch - it has pins for the power header to the mobo and the LED header. We cut the wires off the old power button and off the power LED and soldered them on... despite neither of us soldering since high school we managed ok and it worked first time! We tested it in my computer and everything booted up and it lit up so we put it in the case.

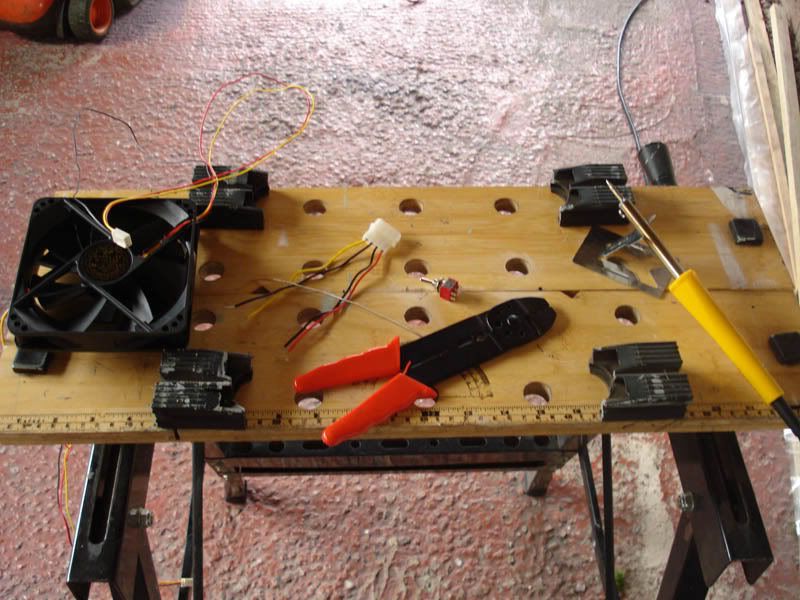

Next we decided to make the fan controllers. These were going to be simple: a flick switch that lets you choose whether the fans are run at 12v or 5v. There was going to a switch for the 120mm fans at the front and back of the case. We got yate loons so they were going to be quiet anyway, but since the computer was going to be living about four feet from the bed in my friend's uni room, we decided having the option to turn them down even more overnight would be useful.
It's really simple to make: the red and black wire from the fan (12v and ground) are soldered to the middle two pins, then yellow and black from a molex connector go one way and red and black from a molex connector go the other way. We tested it in my computer again, and they worked fine.
So now the soldering is done, all that needs doing is cable braiding and tranfering the computer into the new case. I should be updating again soon, and hopefully it'll all be finished by the end of the week!
Before we started soldering, we did a bit of a mock up of what the top would look like once it was done. We put a bit of blowhole trim round the hole for the i/o bracket just to neaten it up, and put the switches in place. So far so good!
Next we soldered the switch - it has pins for the power header to the mobo and the LED header. We cut the wires off the old power button and off the power LED and soldered them on... despite neither of us soldering since high school we managed ok and it worked first time! We tested it in my computer and everything booted up and it lit up so we put it in the case.
Next we decided to make the fan controllers. These were going to be simple: a flick switch that lets you choose whether the fans are run at 12v or 5v. There was going to a switch for the 120mm fans at the front and back of the case. We got yate loons so they were going to be quiet anyway, but since the computer was going to be living about four feet from the bed in my friend's uni room, we decided having the option to turn them down even more overnight would be useful.
It's really simple to make: the red and black wire from the fan (12v and ground) are soldered to the middle two pins, then yellow and black from a molex connector go one way and red and black from a molex connector go the other way. We tested it in my computer again, and they worked fine.
So now the soldering is done, all that needs doing is cable braiding and tranfering the computer into the new case. I should be updating again soon, and hopefully it'll all be finished by the end of the week!
Associate
- Joined
- 19 Mar 2007
- Posts
- 104
Very Detailed Thread learning quite a few new things from it, hope it looks well when shes / its finished!!
Associate
- Joined
- 27 Nov 2006
- Posts
- 1,334
- Location
- Coventry
Looking good so far. Making me want to mod my sisters pc
Soldato
- Joined
- 16 Jun 2007
- Posts
- 5,239
- Location
- London
wow. nice
lovely work, mind doing my akasa zen?
lovely work, mind doing my akasa zen
?
and should look great when finished .
Soldato
- Joined
- 13 Jan 2004
- Posts
- 23,926
- Location
- South East
Bit of a thread revival here.
This is AWESOME. Did it ever get finished?
This is AWESOME. Did it ever get finished?
Soldato
- Joined
- 12 Feb 2009
- Posts
- 4,399
- Location
- London
First time iv read it and its very impressive.
Soldato
- Joined
- 7 Feb 2004
- Posts
- 8,228
- Location
- North East
Only criticism is the top panel painting - should have drilled out the rivets, sprayed and re-riveted IMO.
Hopefully we'll see some final pics
Hopefully we'll see some final pics
Soldato
- Joined
- 13 Jan 2004
- Posts
- 23,926
- Location
- South East
Only criticism is the top panel painting - should have drilled out the rivets, sprayed and re-riveted IMO.
Hopefully we'll see some final pics
I was surprised to find that Rivet Guns are only about £10 or so. How easy it is to remove/re-revit?
Also, do rivet guns come in a 'one size fits all' type format?
Soldato
- Joined
- 12 Feb 2009
- Posts
- 4,399
- Location
- London
There very simple to drill out as there quite soft and then takes like 2 seconds to stick a new rivet in. All rivet guns iv seen have fitted the same size rivets as its just the ends thats diff to fit the hole and they come in countersunk variations too.
