Project JDM

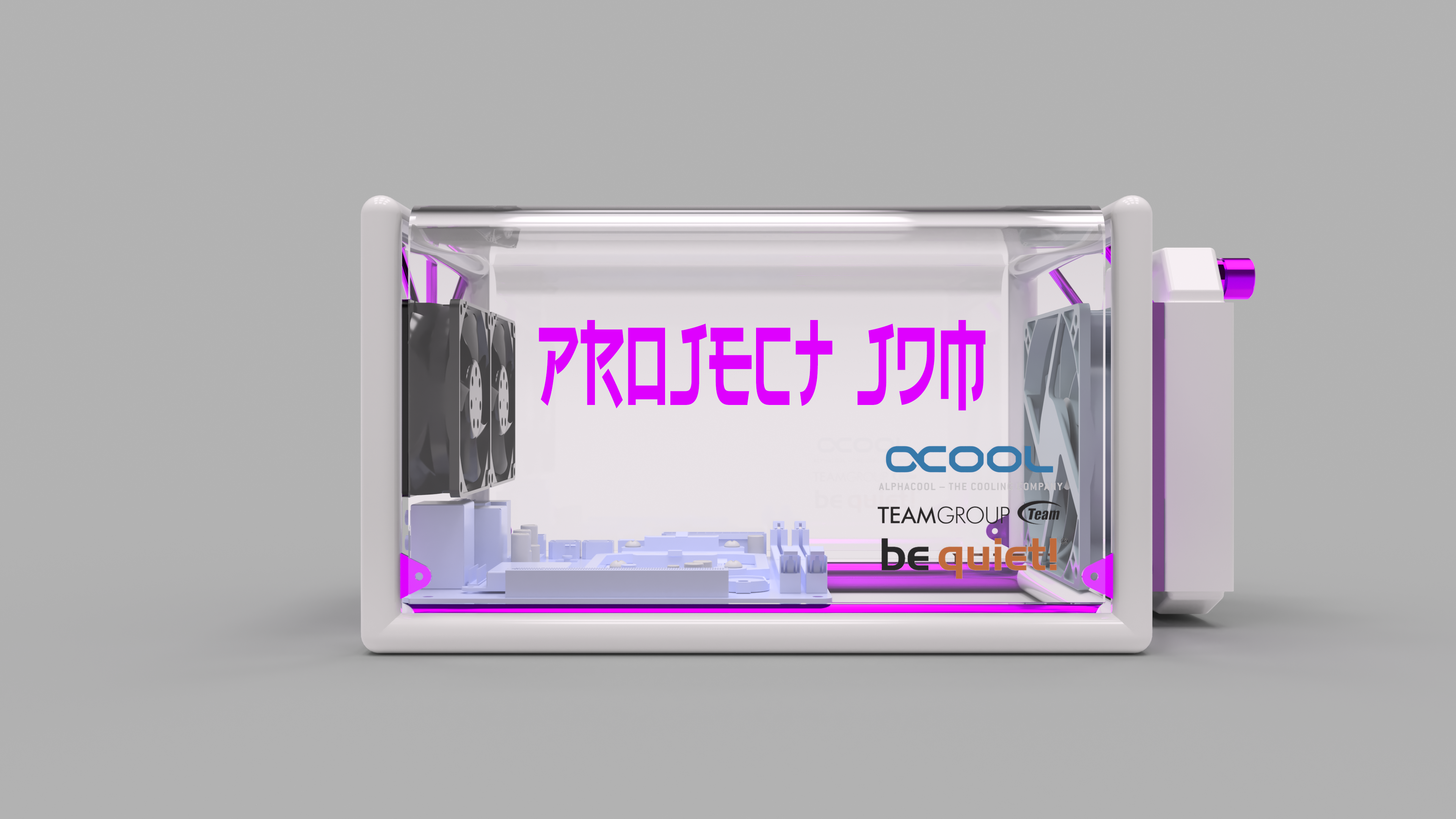

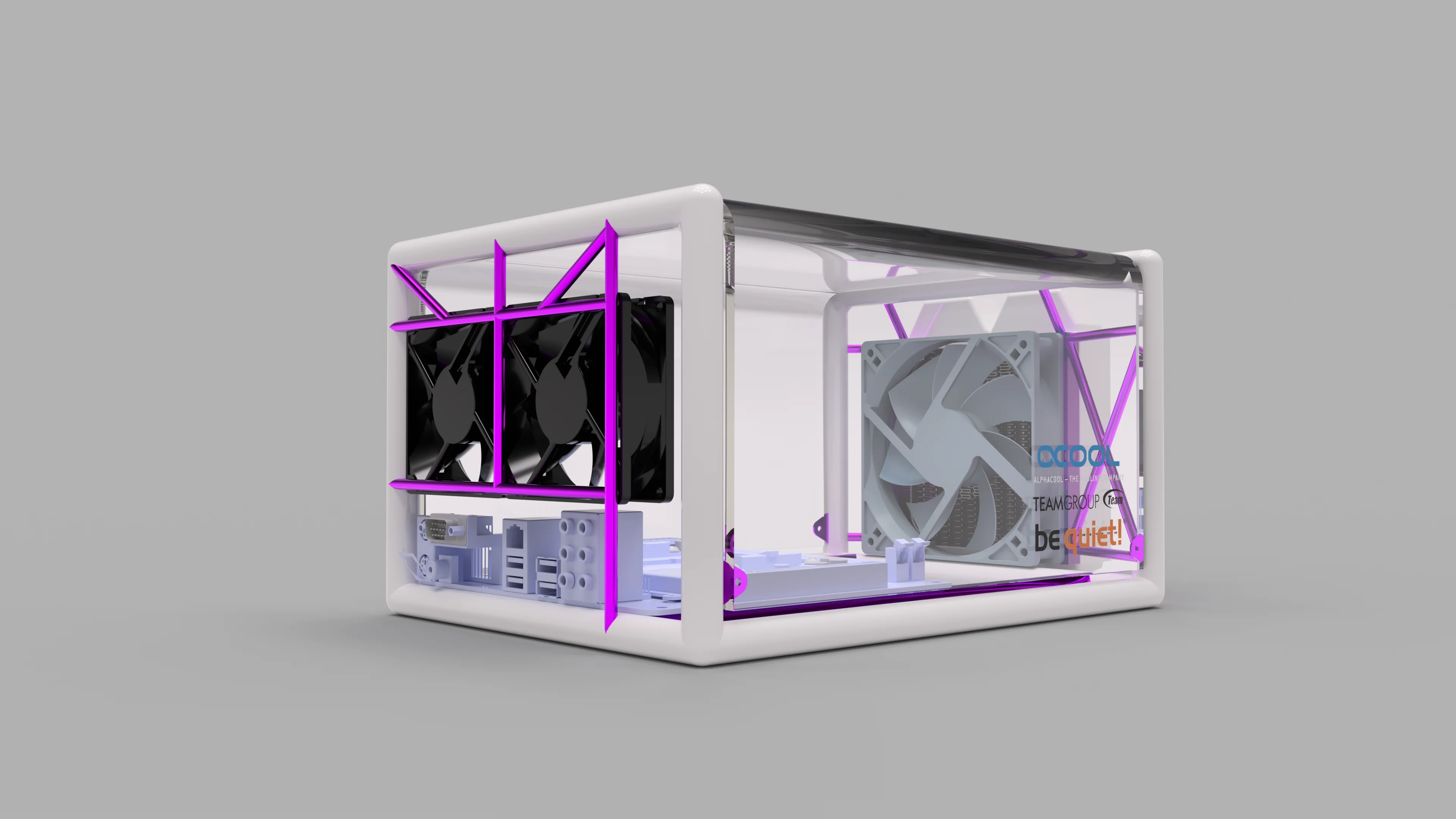

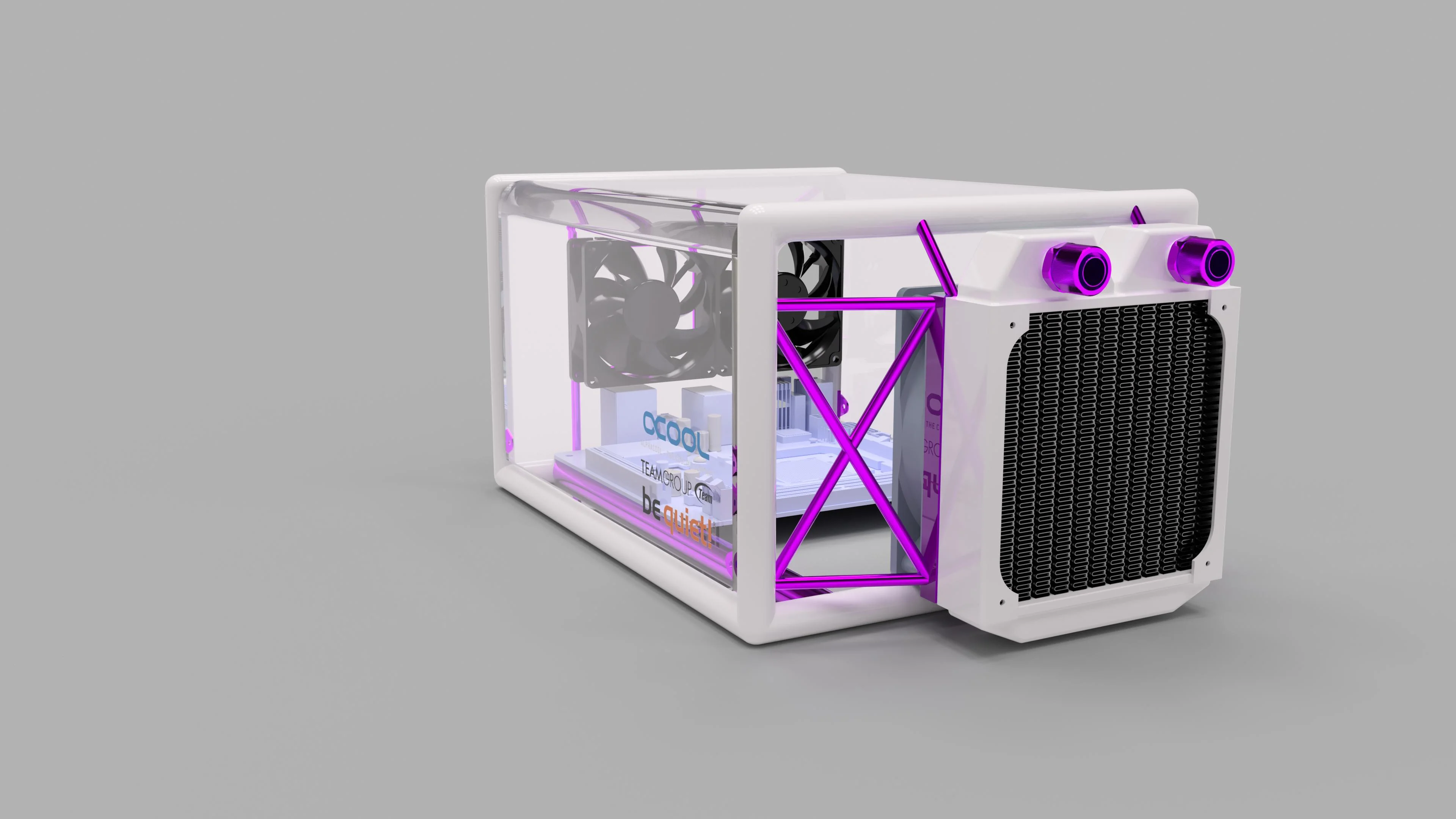

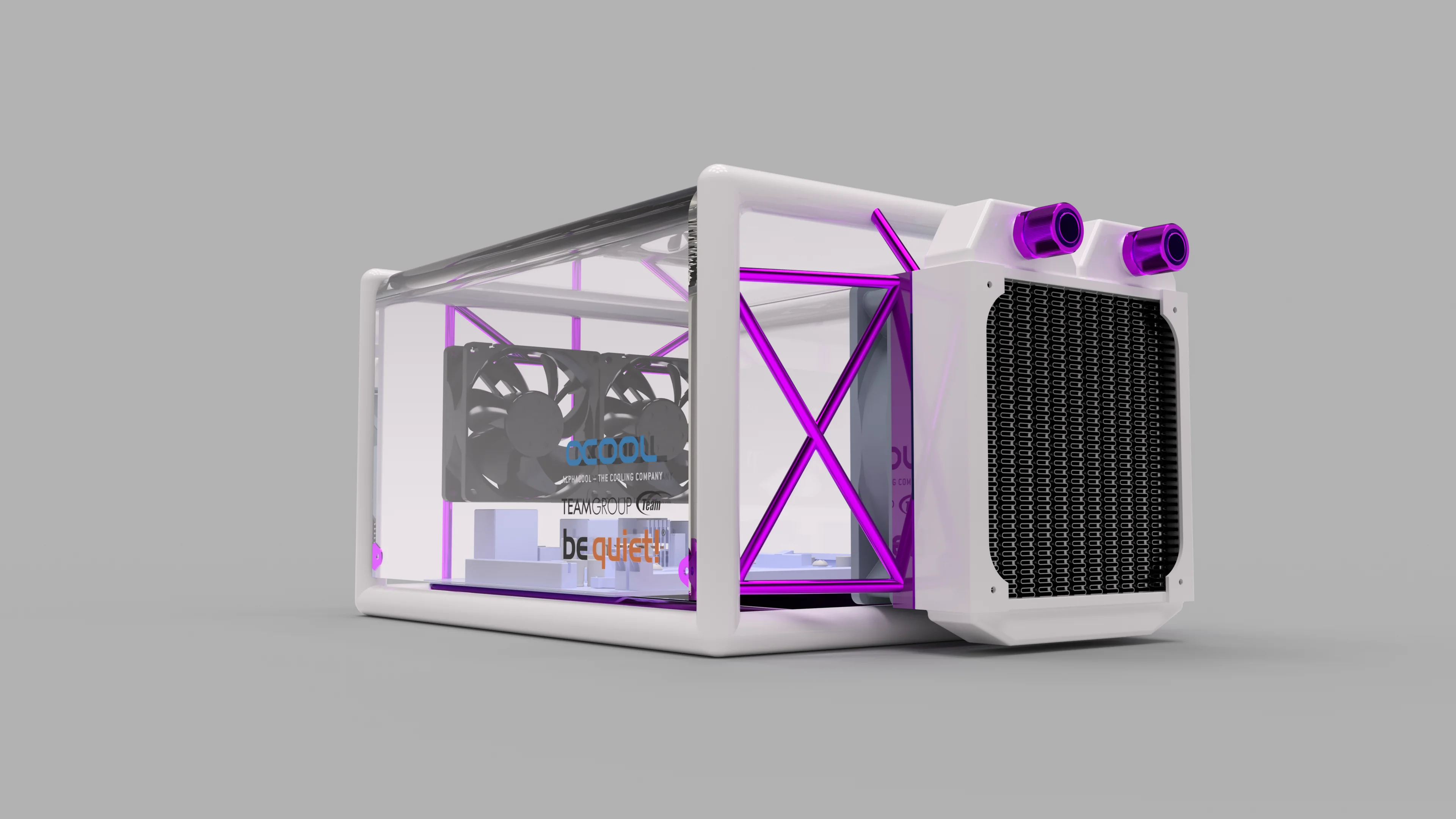

So its finally time to start on a new build log this time of a project i call "JDM". The core inspiration of the project was Japanese styled drift cars hens the radiator with outwards mounted ports to illustrate a oil cooler. And the other big small thing that is that i wanted it to be in mini-ITX format. So after a few weeks of thinking i decided to go with a tube frame to keep it true to the theme. Here are some of the renders i made after some designing in Fusion 360. Also big thanks to Bequiet and Teamgroupe for helping out with the hardware.






Last edited:
Associate
Joined
21 Aug 2015
Posts
36
Location
Syke's Palace
Yes. Me likey.

It's a shame Alphacool is a sponsor (I mean, it's not, their products are awesome) but I can just imagine what a radiator from Aquacomputer would look like mounted there:

** Do not Hotlink and from a competitor, please re-read the rules **

I mean come on; if you're going for a carlike feel they're just on another level. Though perhaps a bit thick for your purposes.

Last edited by a moderator:
Associate
OP
Joined
6 Sep 2017
Posts
27
Location
Finland
Yes. Me likey.

It's a shame Alphacool is a sponsor (I mean, it's not, their products are awesome) but I can just imagine what a radiator from Aquacomputer would look like mounted there:

** Do not Hotlink and from a competitor, please re-read the rules **

I mean come on; if you're going for a carlike feel they're just on another level. Though perhaps a bit thick for your purposes.

Yeah i actually thought about using one of those but decided not to because of the thickness. I could just mod pretty much any radiator to look similler anyways :)

Associate
Joined
10 Jul 2013
Posts
1,023
Location
Space
Massive drift fan so your project is on point for me. If the project comes out close to the renders your onto a winner, little things like the graphics mirror how they look on the car/windows. Seen as drift cars also use NOS have you thought of a possible reservoir looking like a NOS bottle at all?

Associate
OP
Joined
6 Sep 2017
Posts
27
Location
Finland
Massive drift fan so your project is on point for me. If the project comes out close to the renders your onto a winner, little things like the graphics mirror how they look on the car/windows. Seen as drift cars also use NOS have you thought of a possible reservoir looking like a NOS bottle at all?

Yes i have played with the ide' but i think i will have to skip it because there really isn't a good spot and space would probable become a problem :/

Associate
OP
Joined
6 Sep 2017
Posts
27
Location
Finland
First update to start things off.

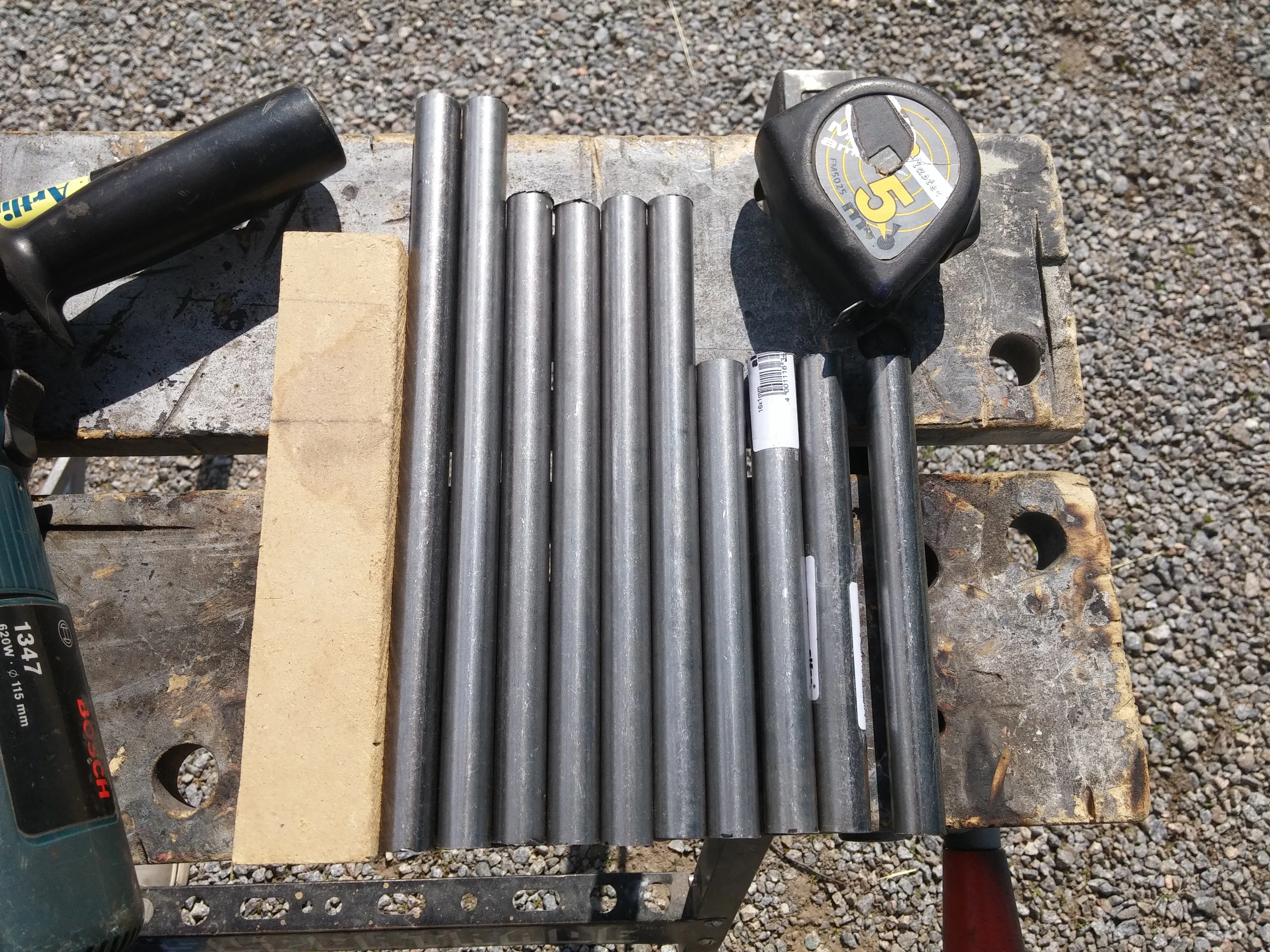

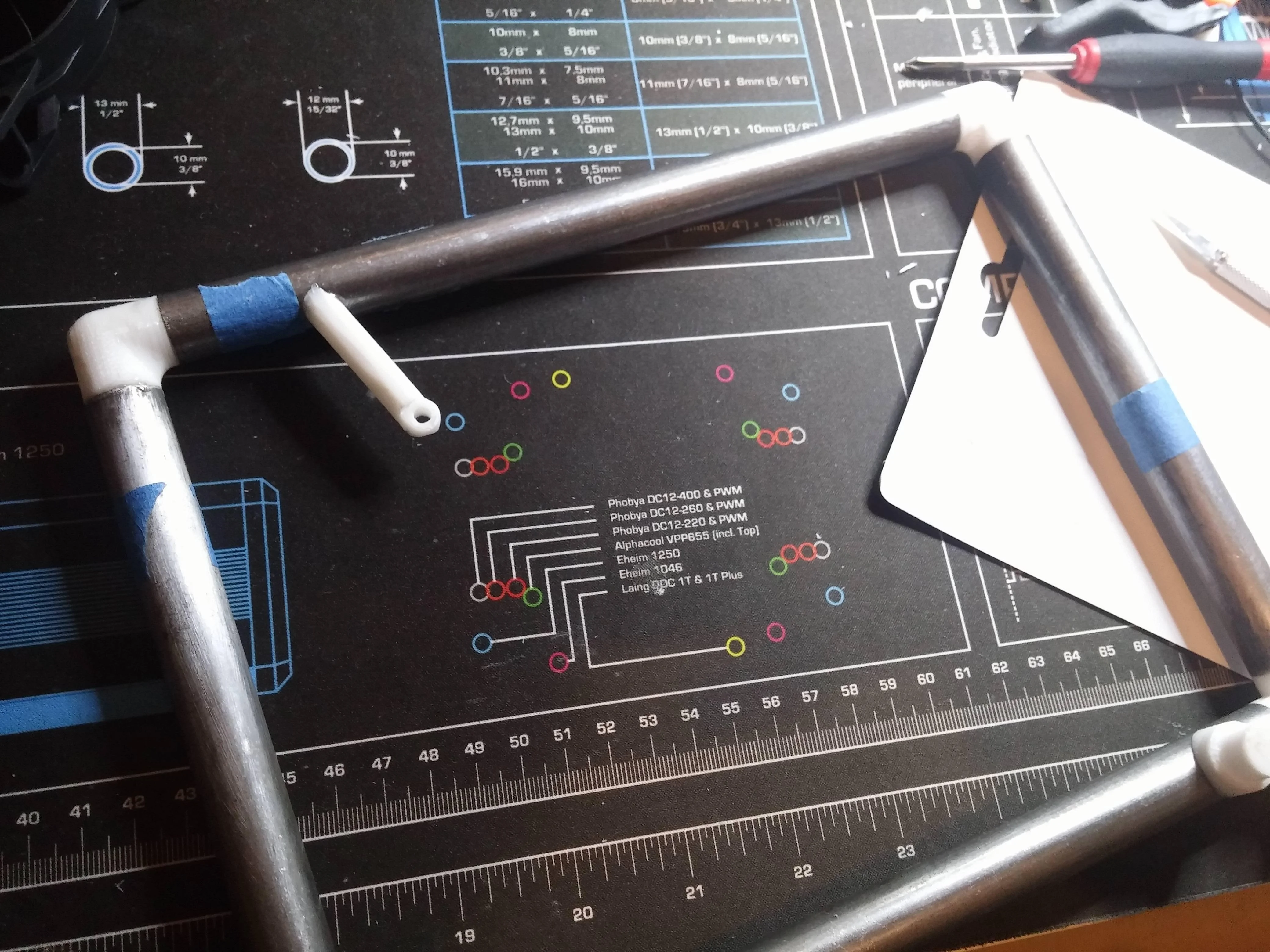

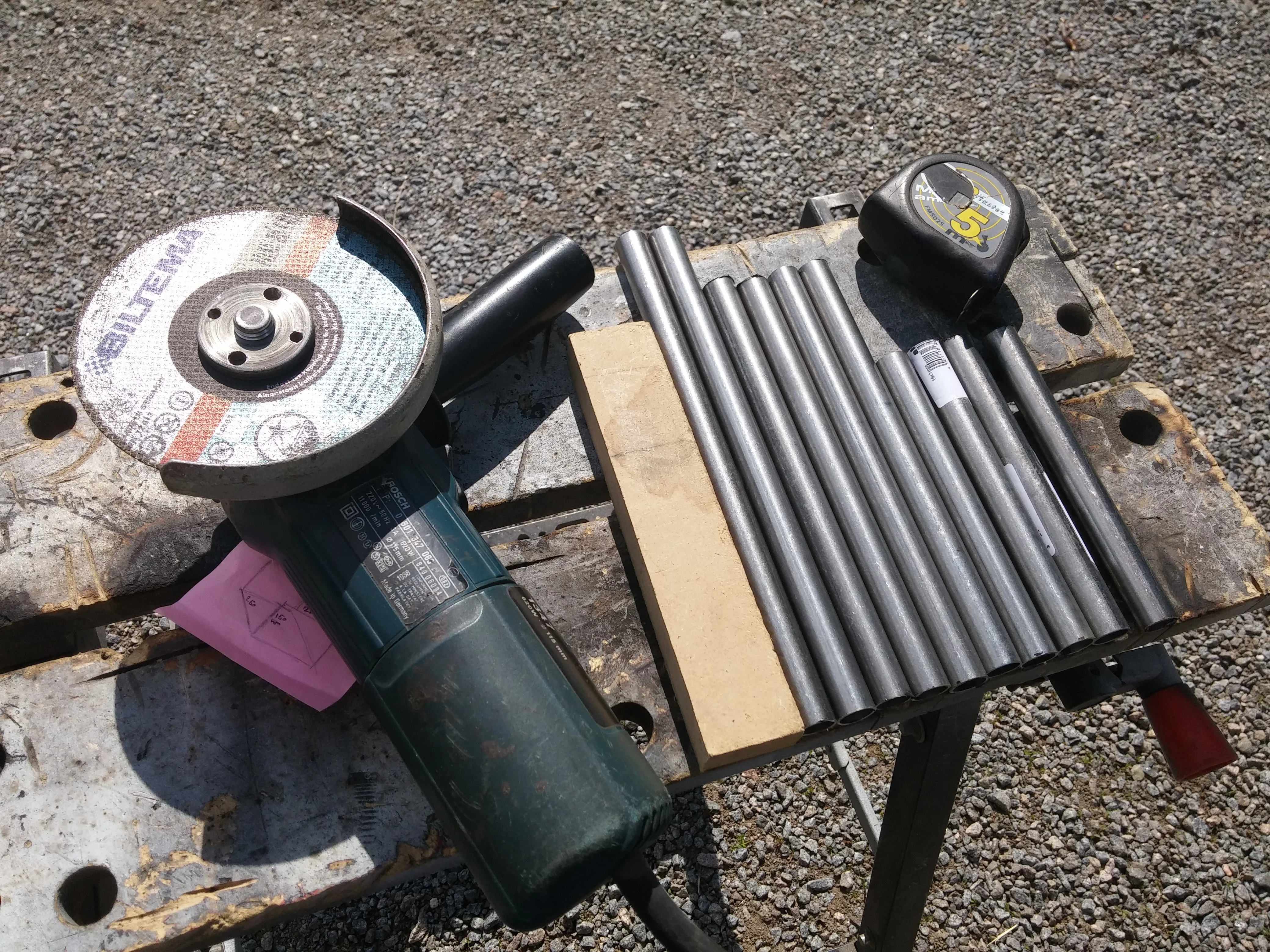

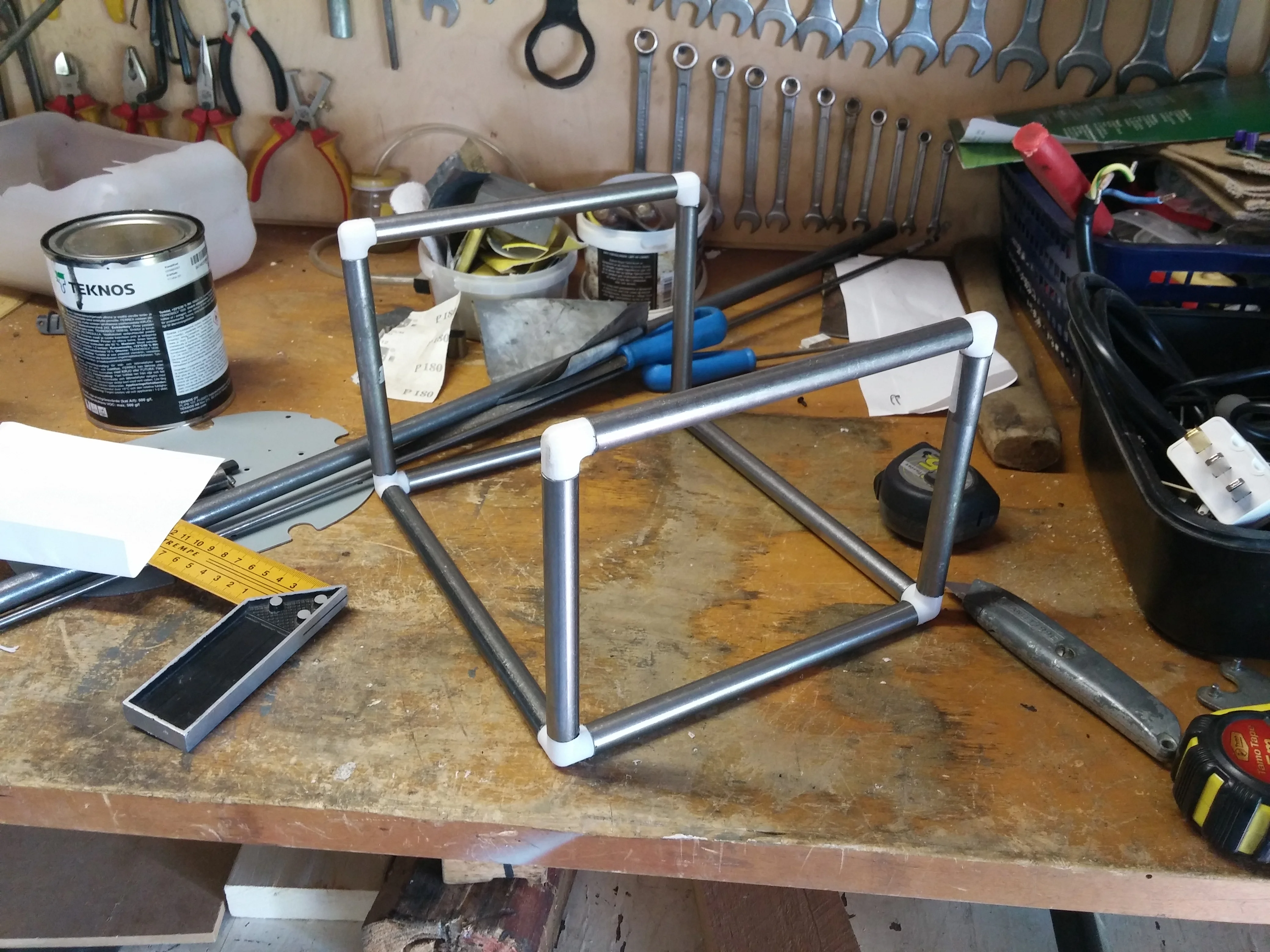

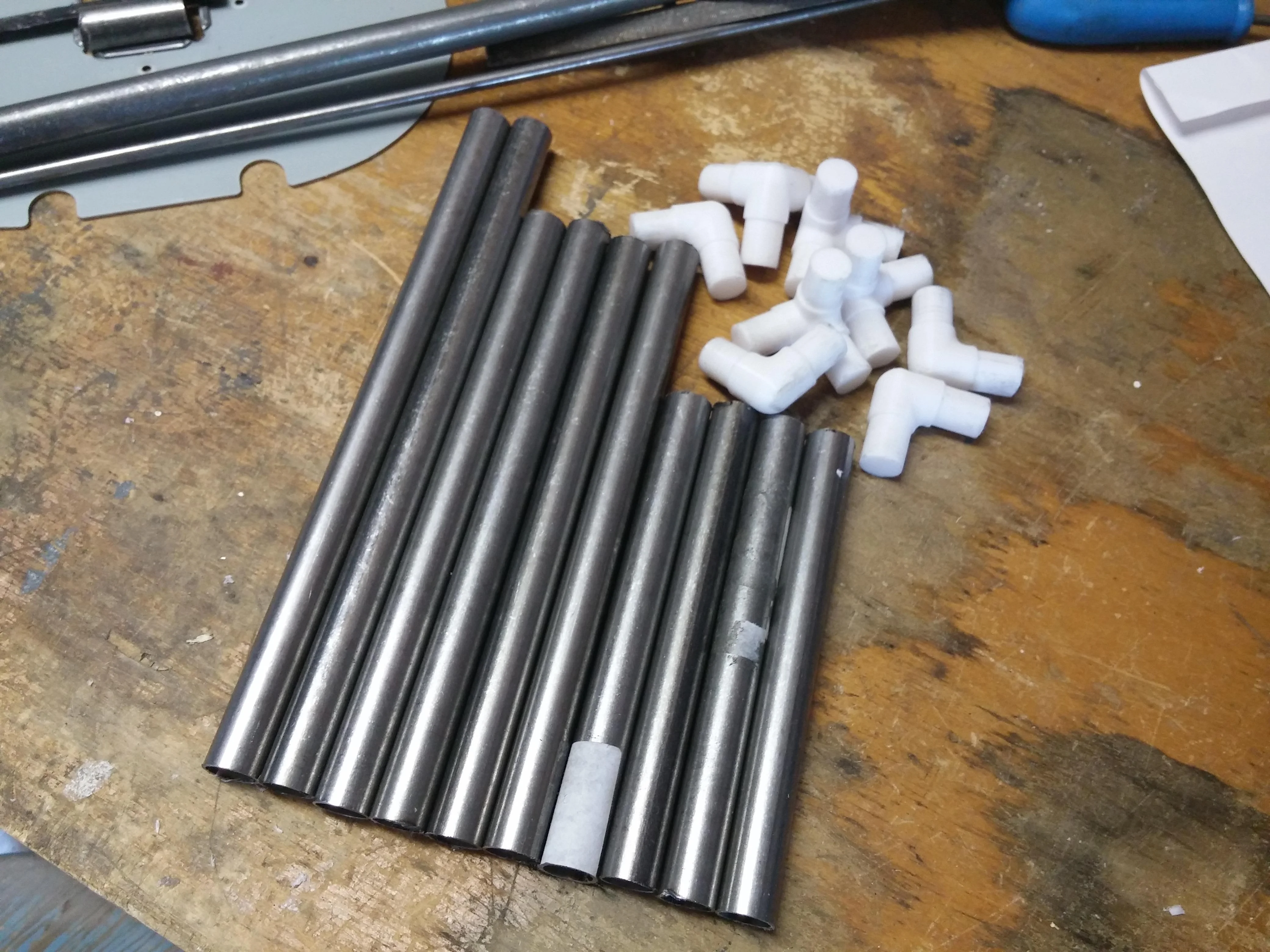

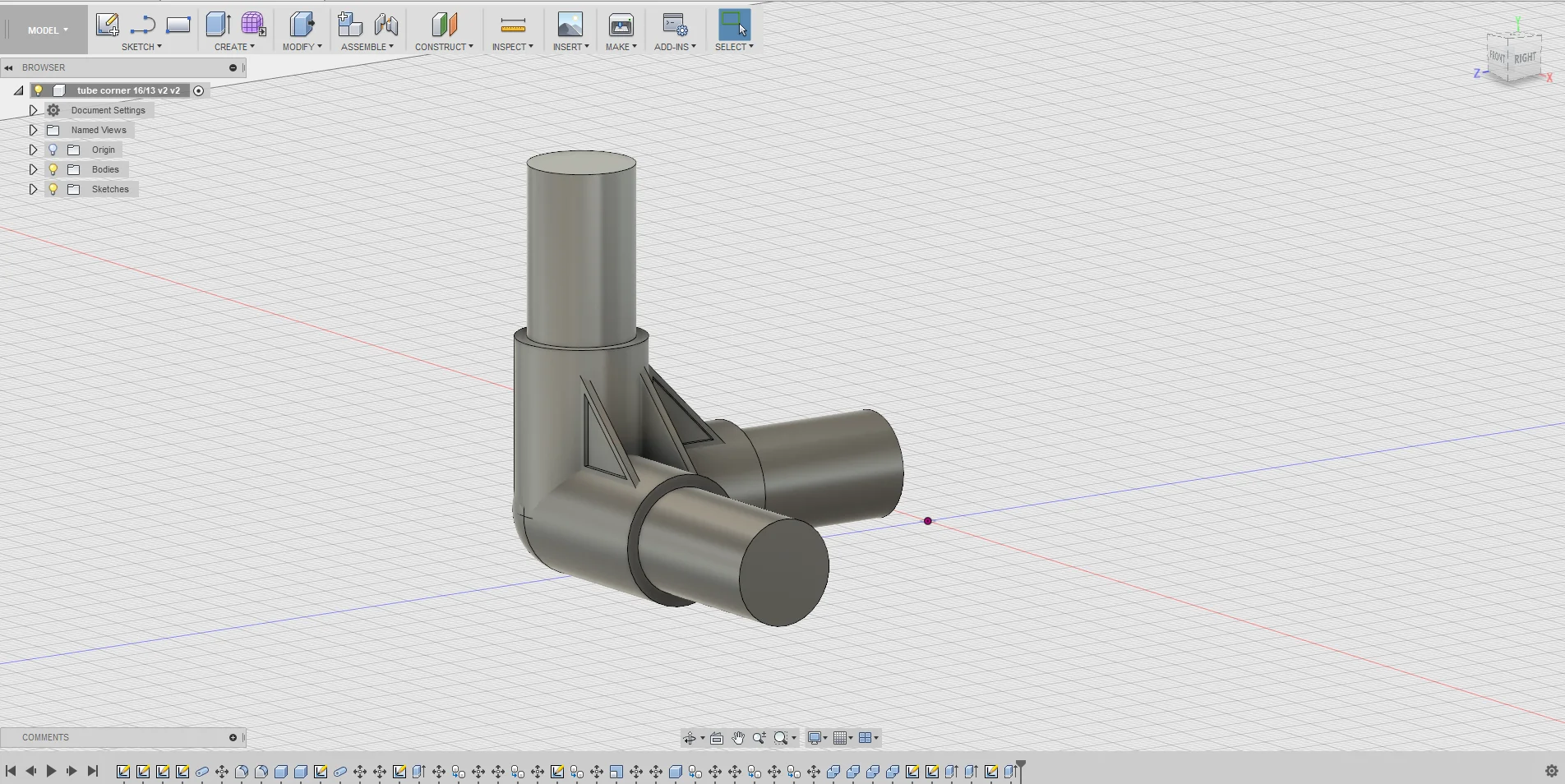

One of the first obstacles i encountered was the corner pieces. I had a few options but after some thinking i decided to make some custom 3D-printed parts for the job.

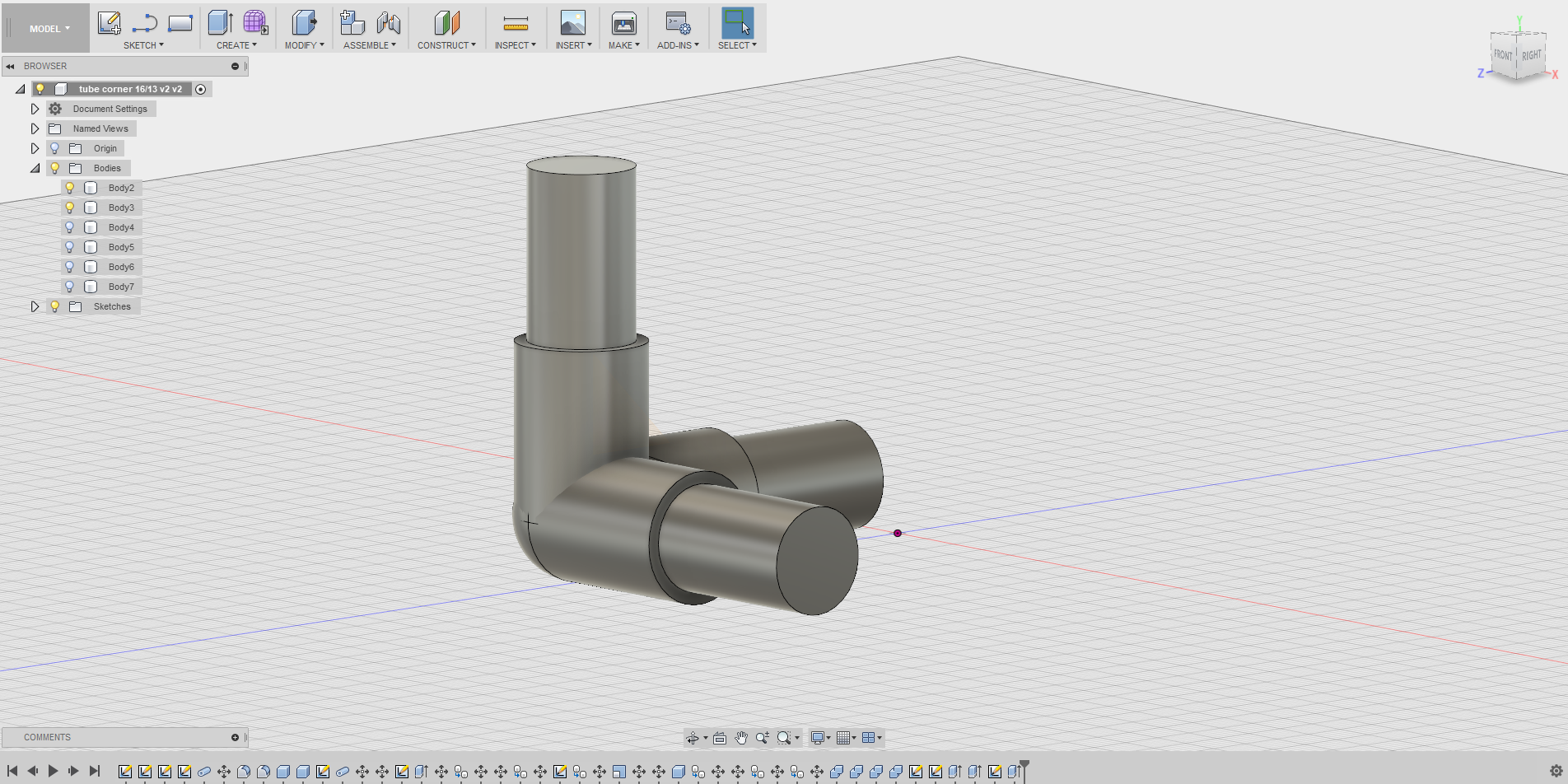

These are the 2 versions I made but I ended up going for the simpler design.

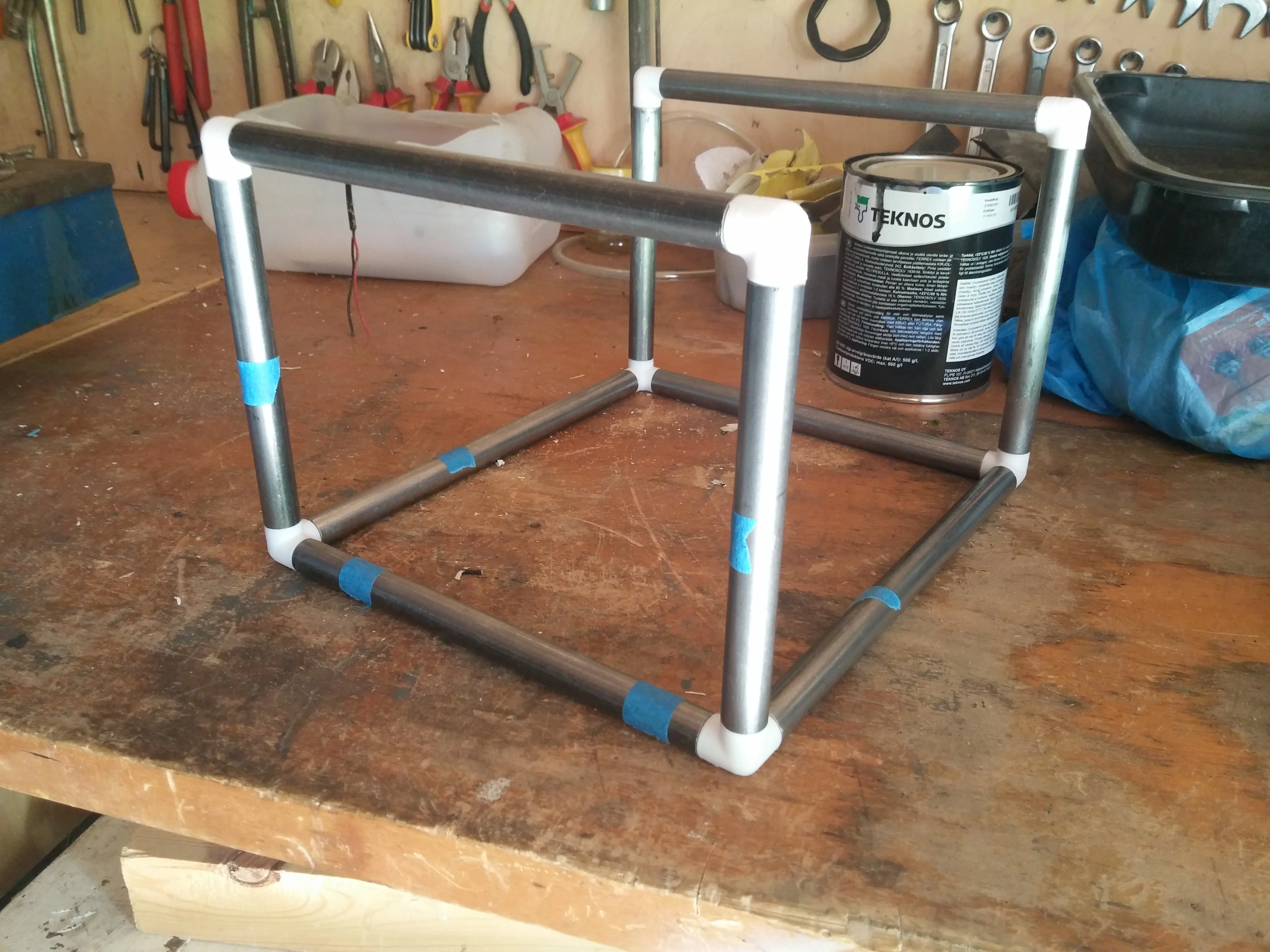

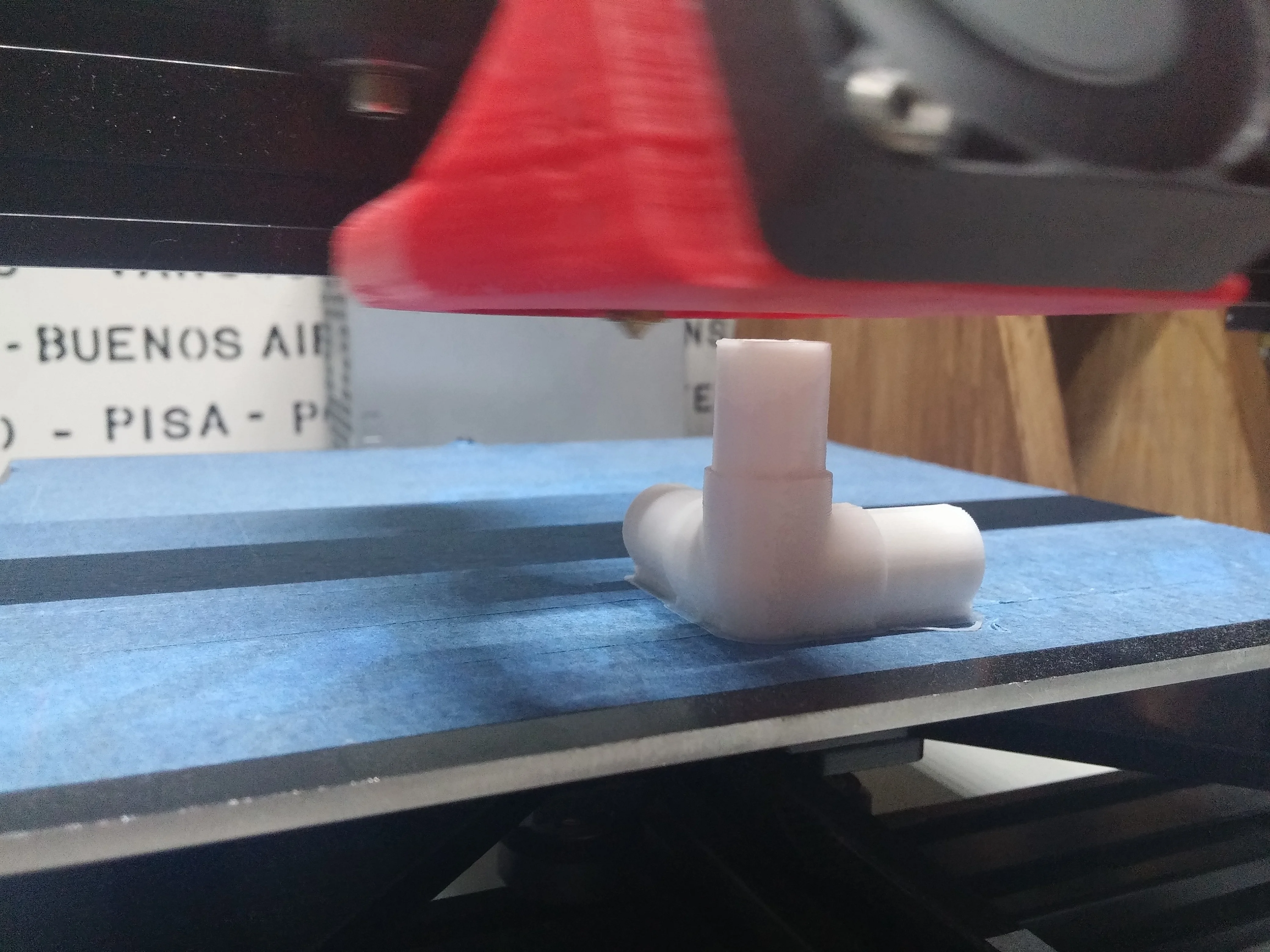

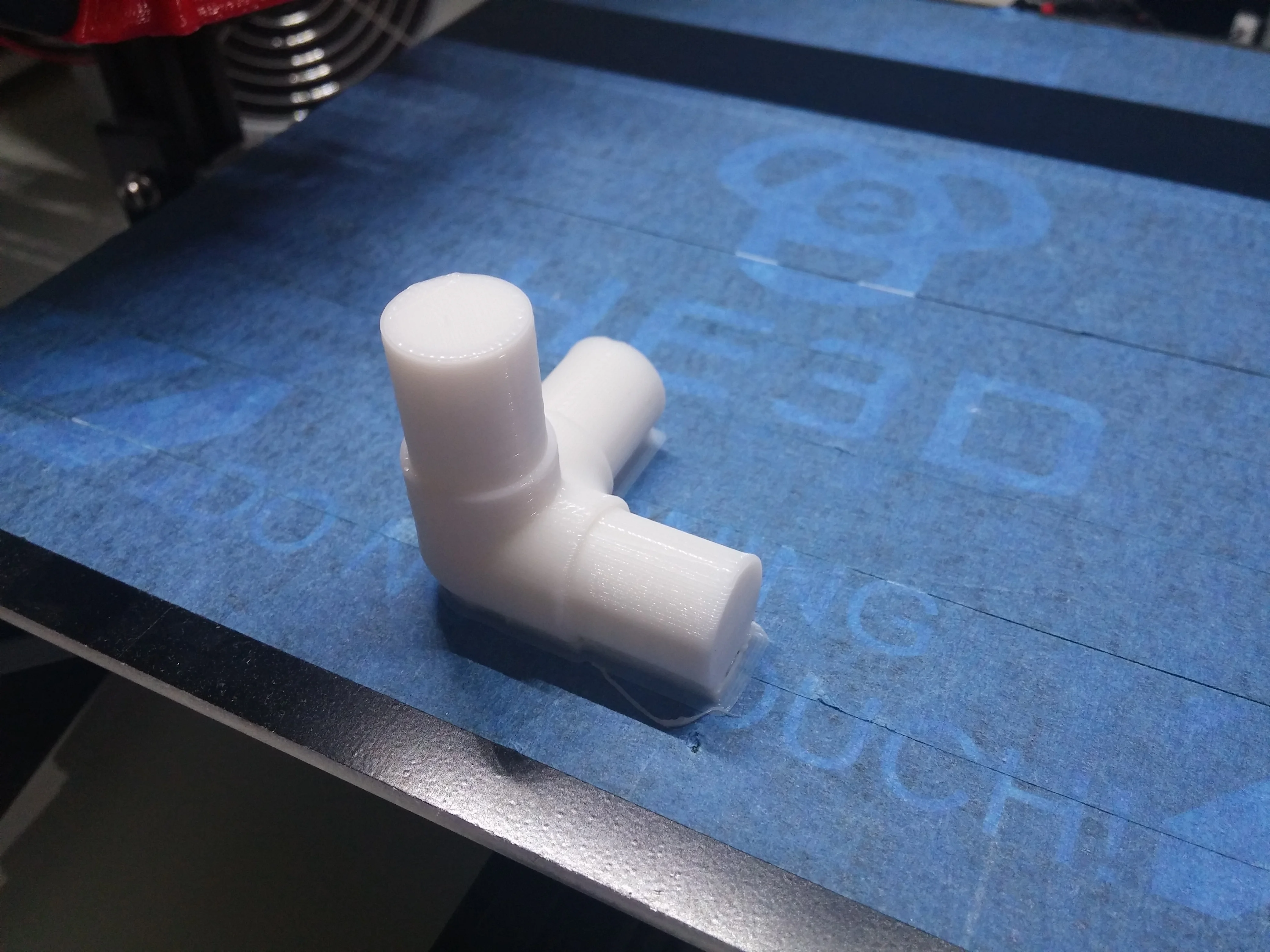

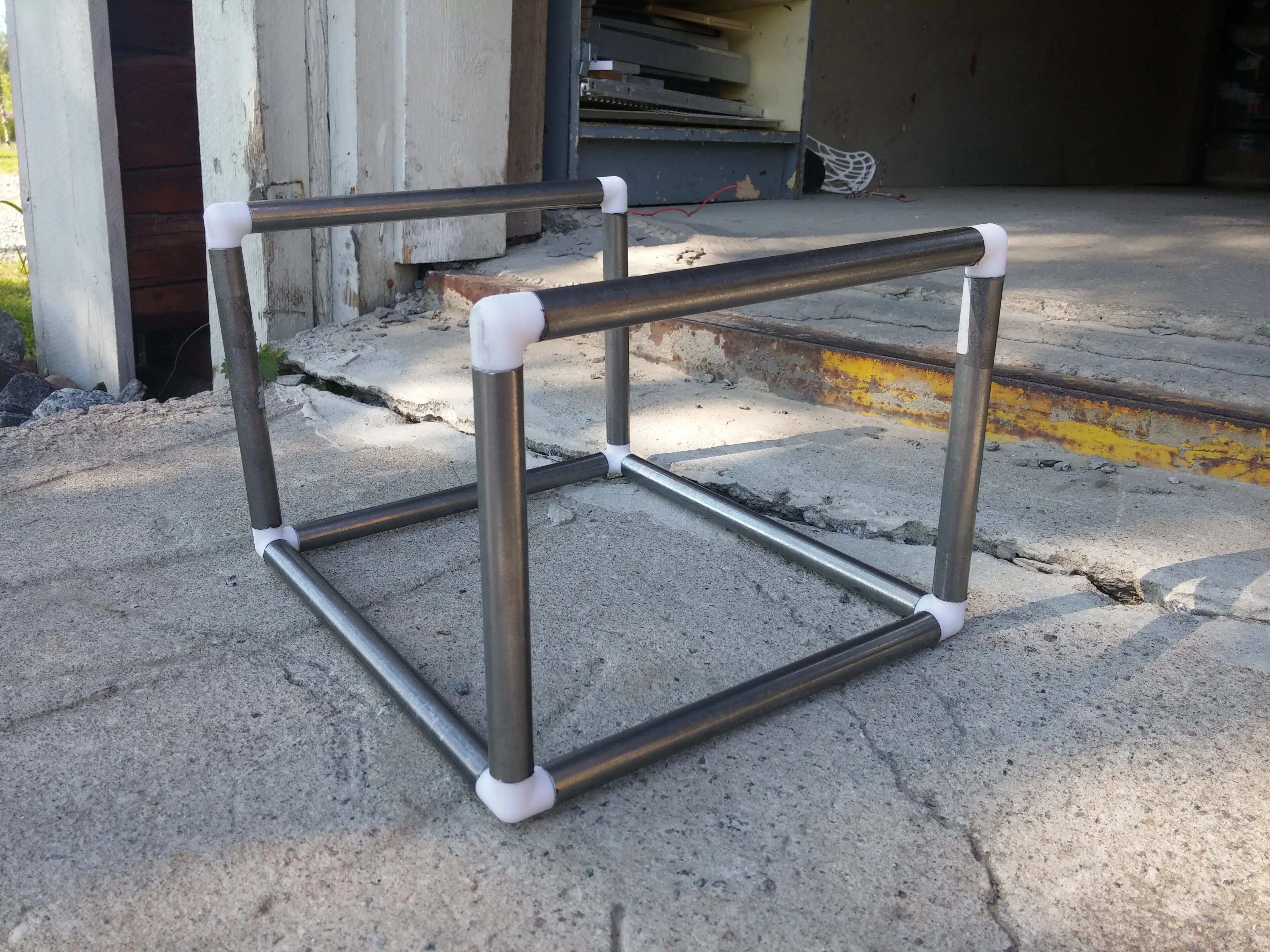

First print turned out great!

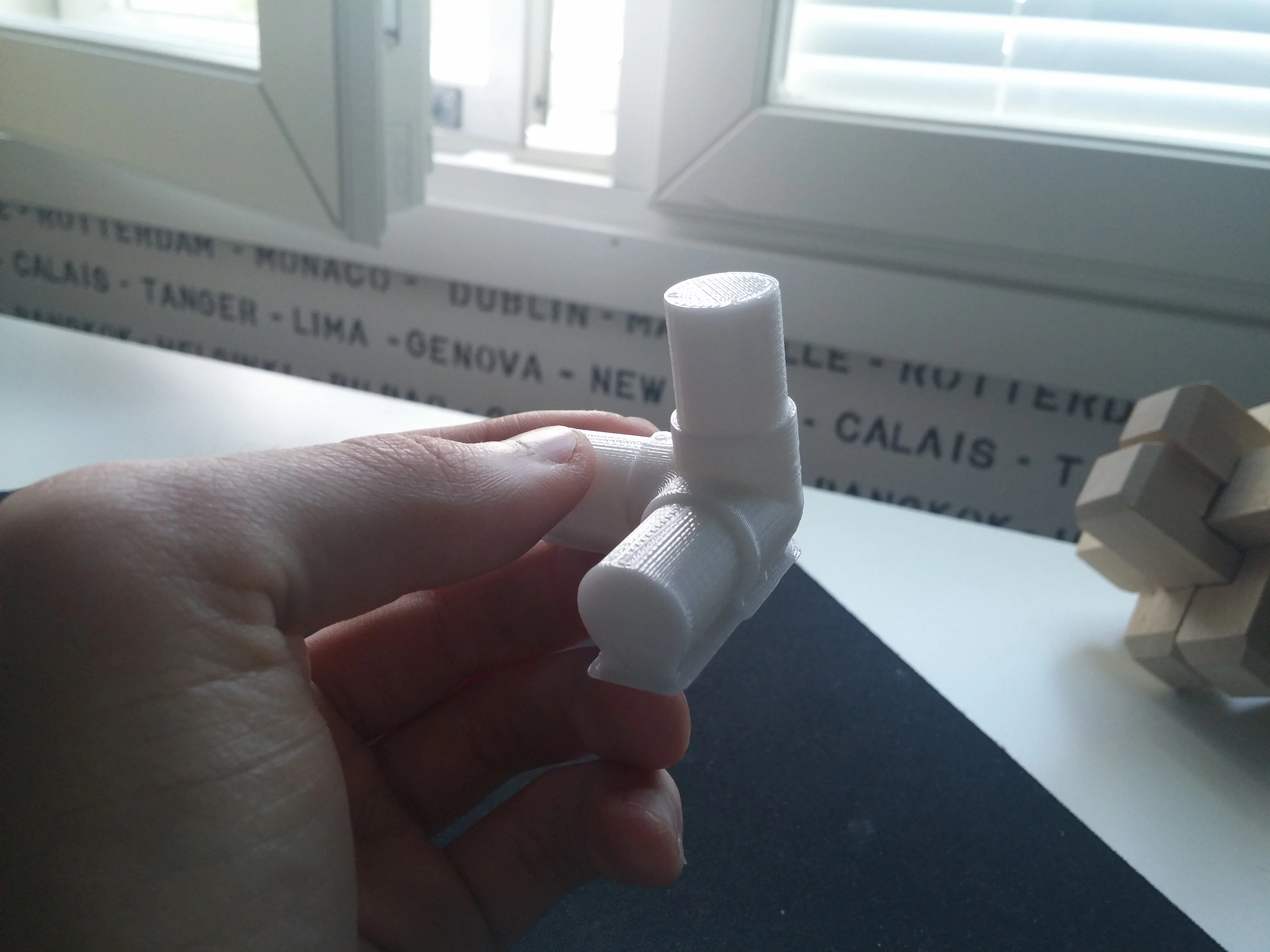

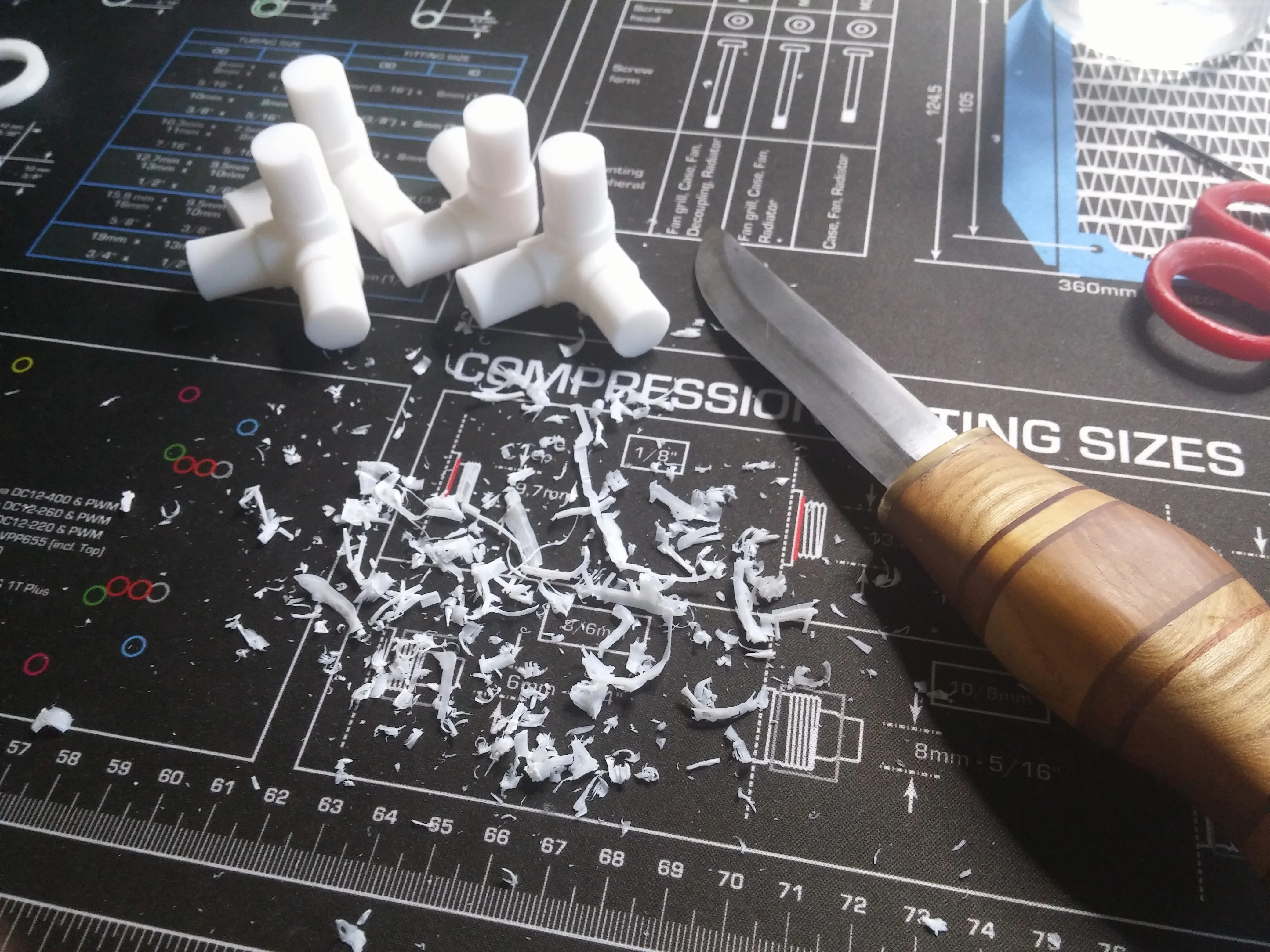

Removing the support material.


Associate
OP
Joined
6 Sep 2017
Posts
27
Location
Finland

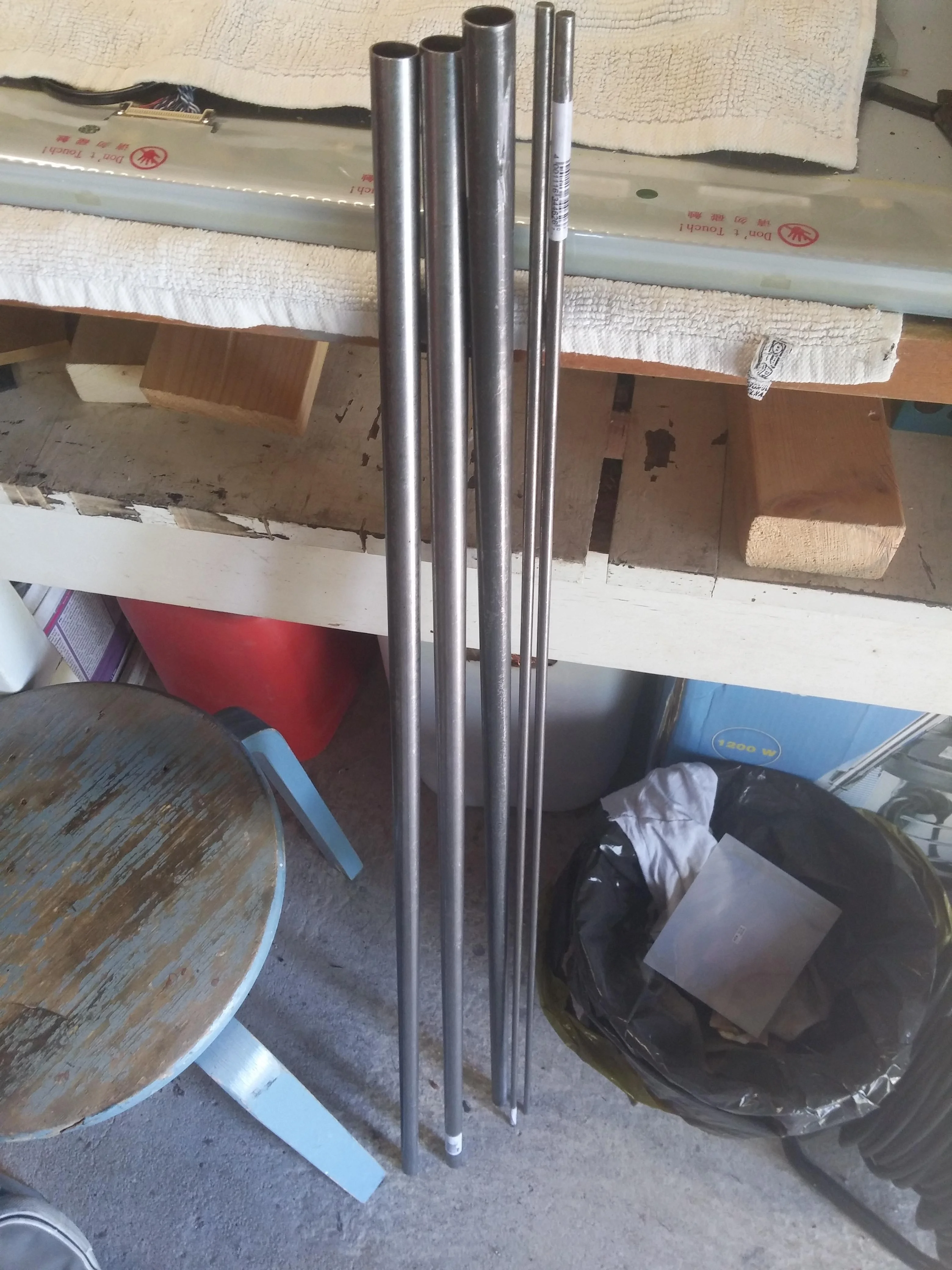

More metal work.

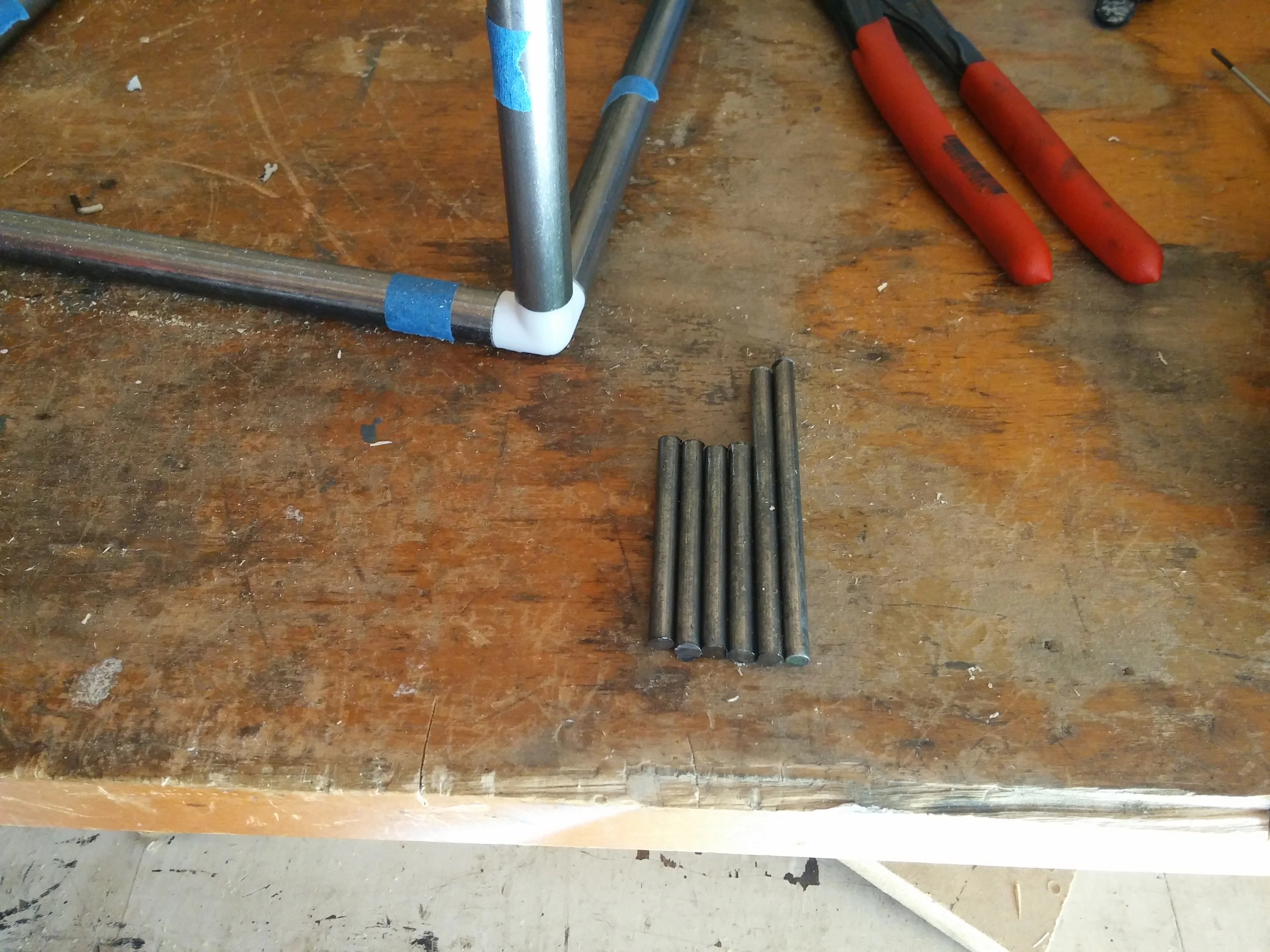

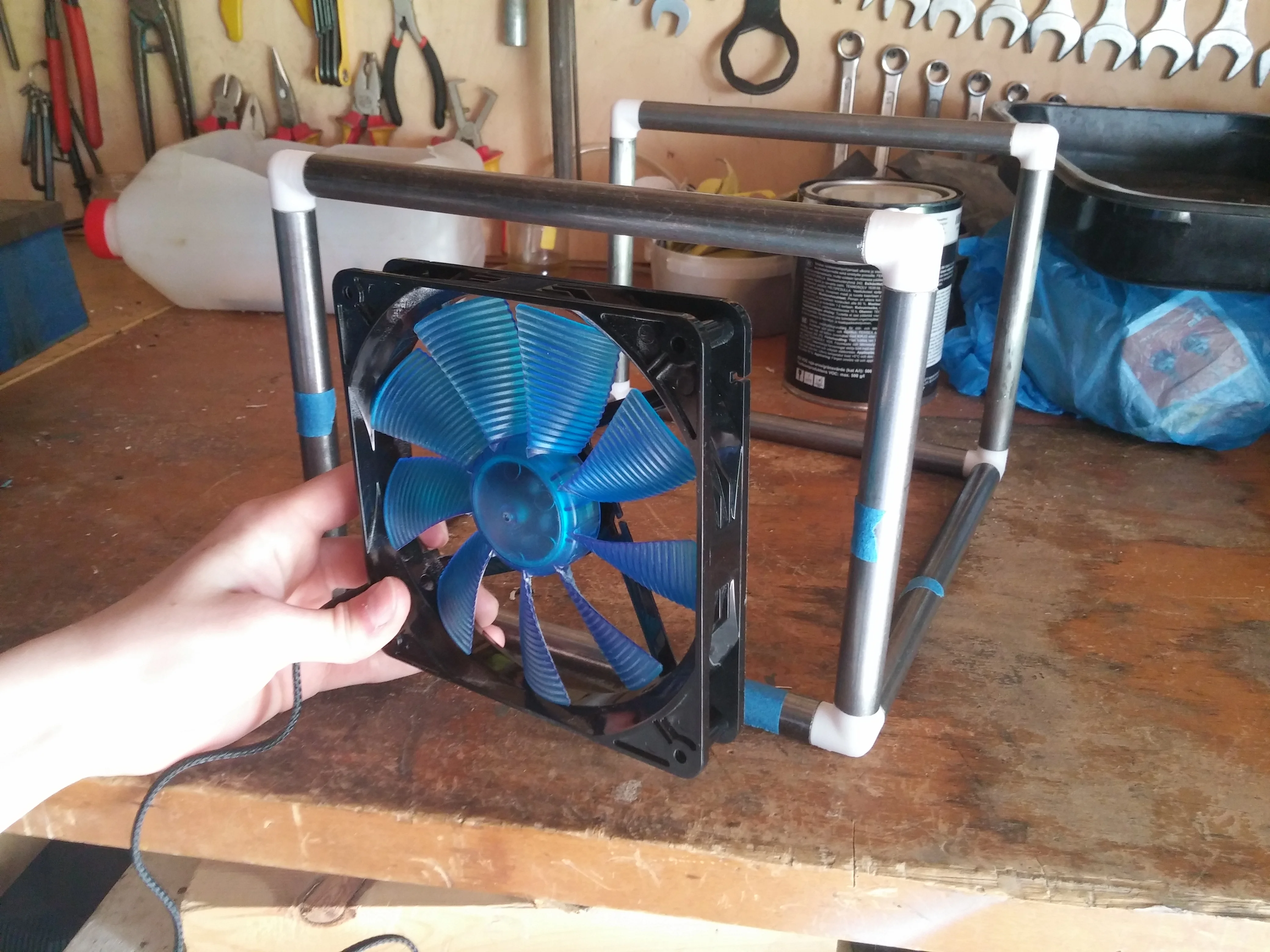

Making the support for the front radiator.

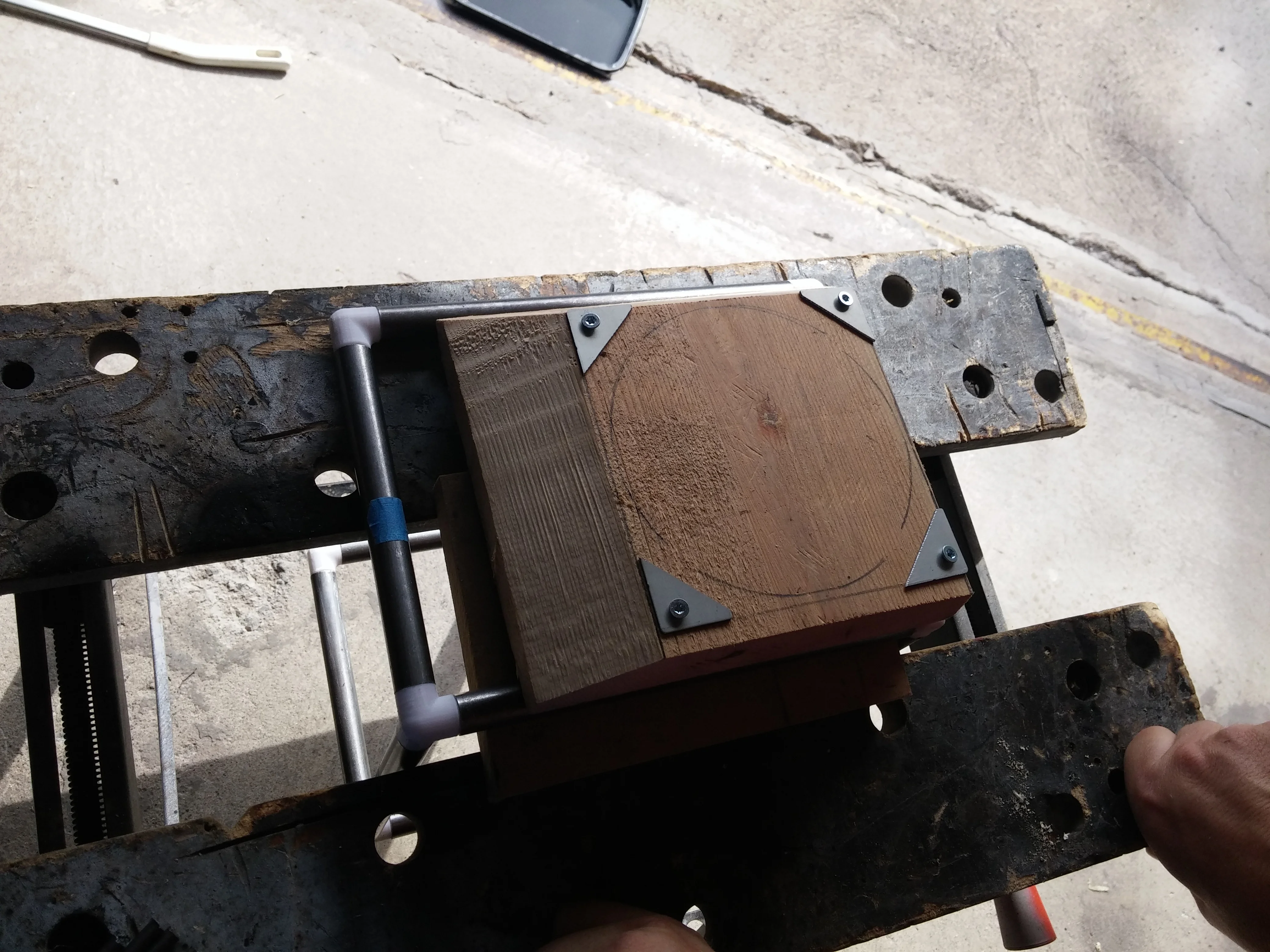

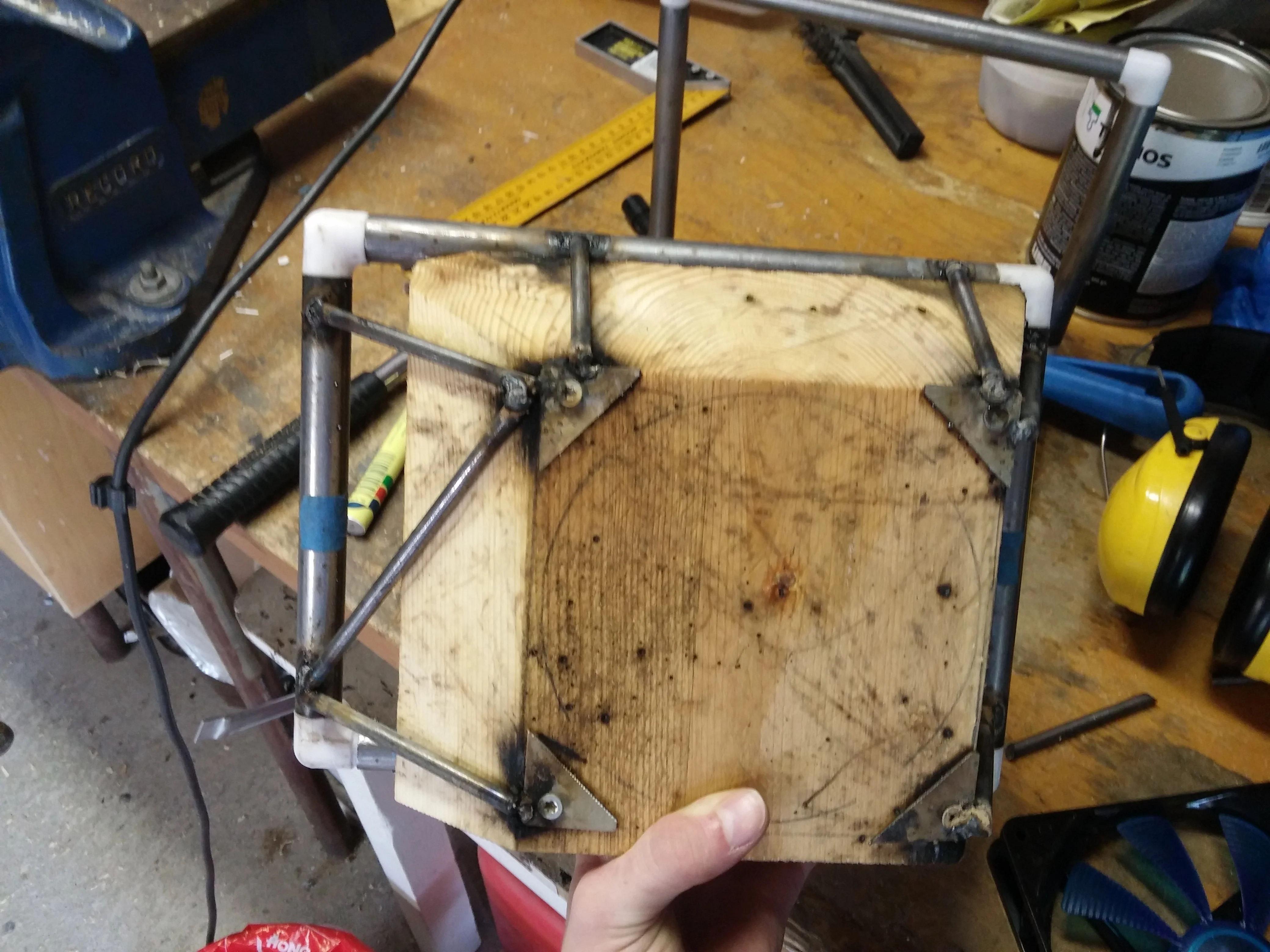

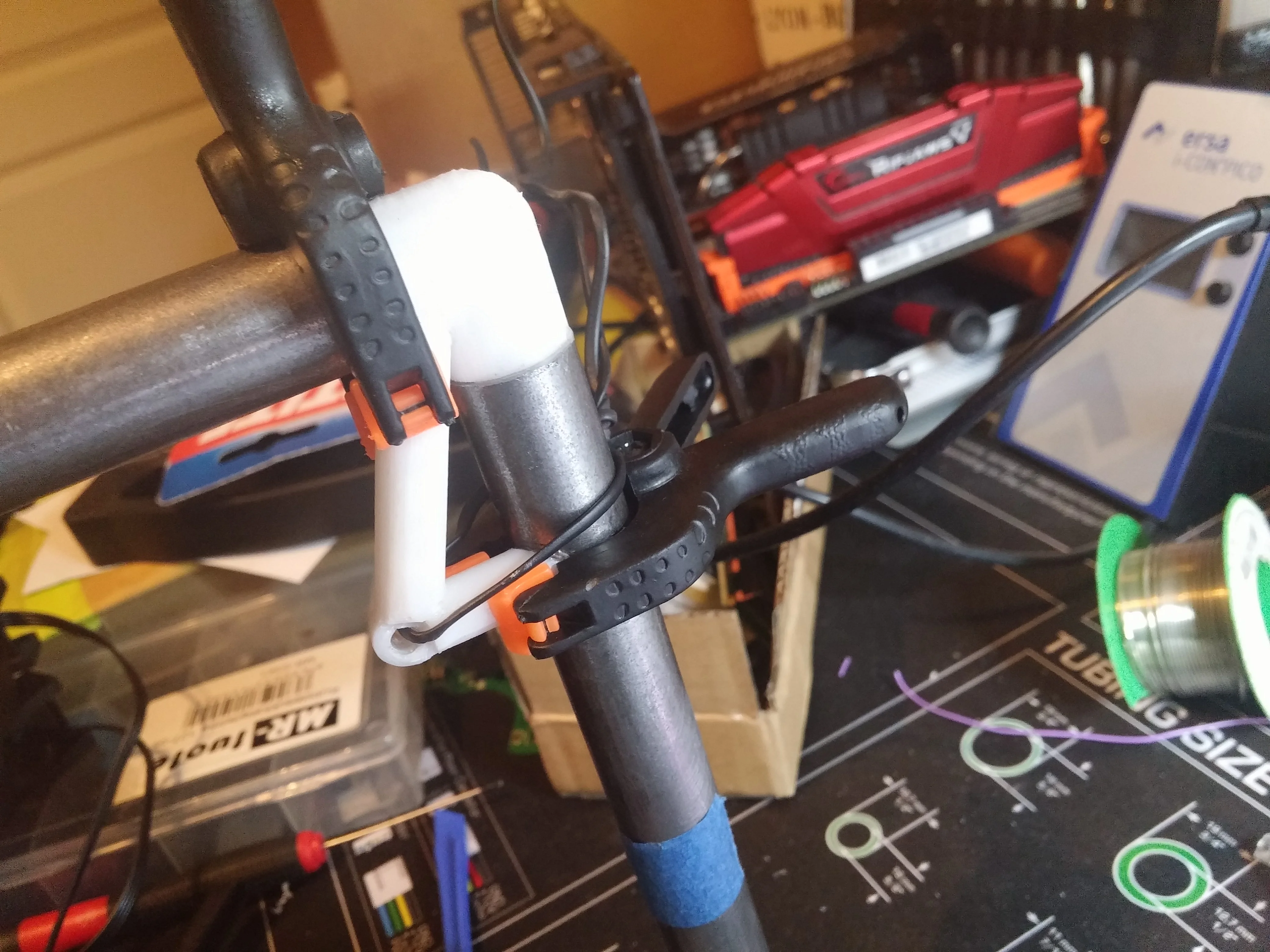

I made a bracket from wood to make the welding a bit easier.

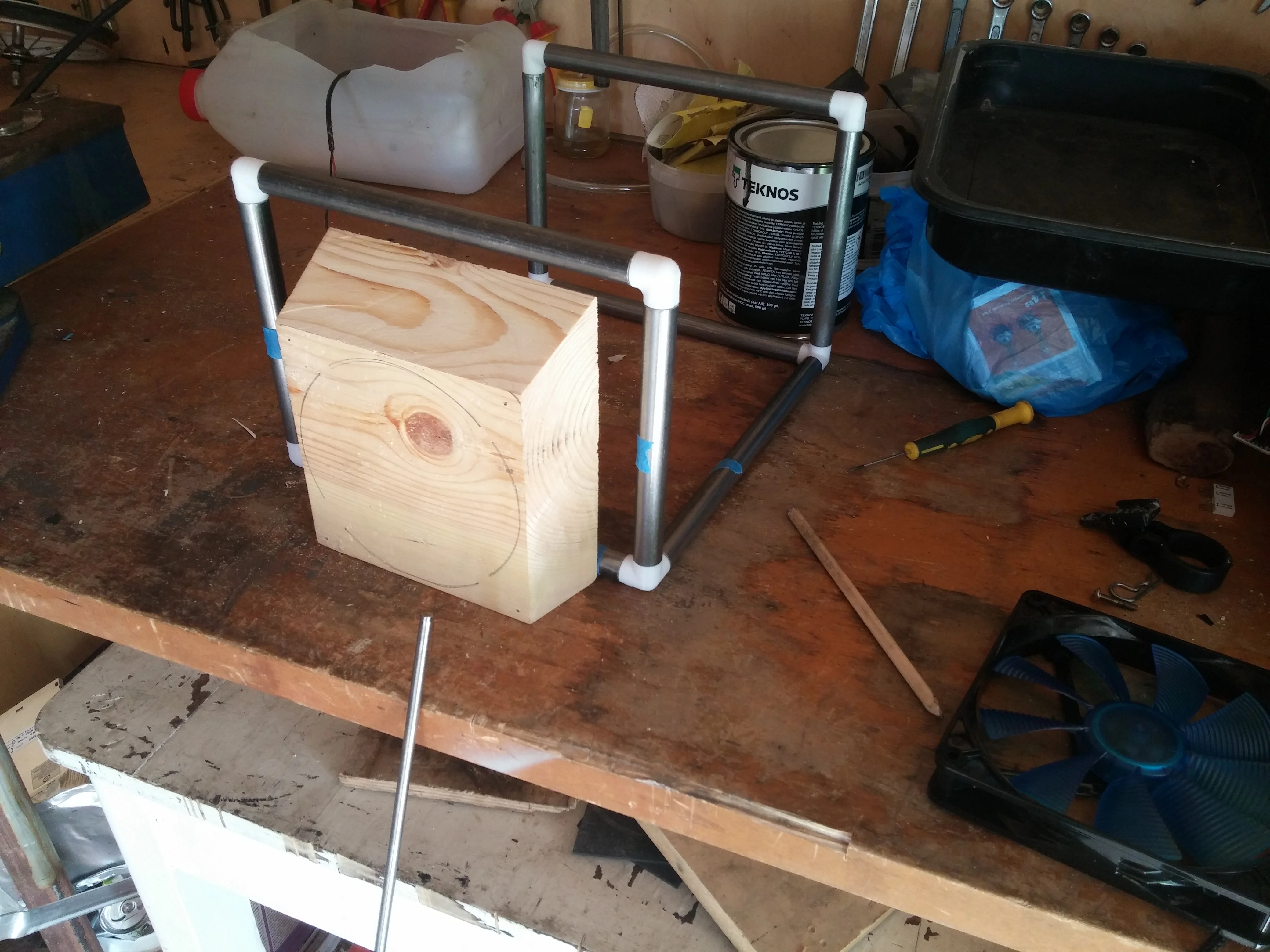

Ready to start welding.

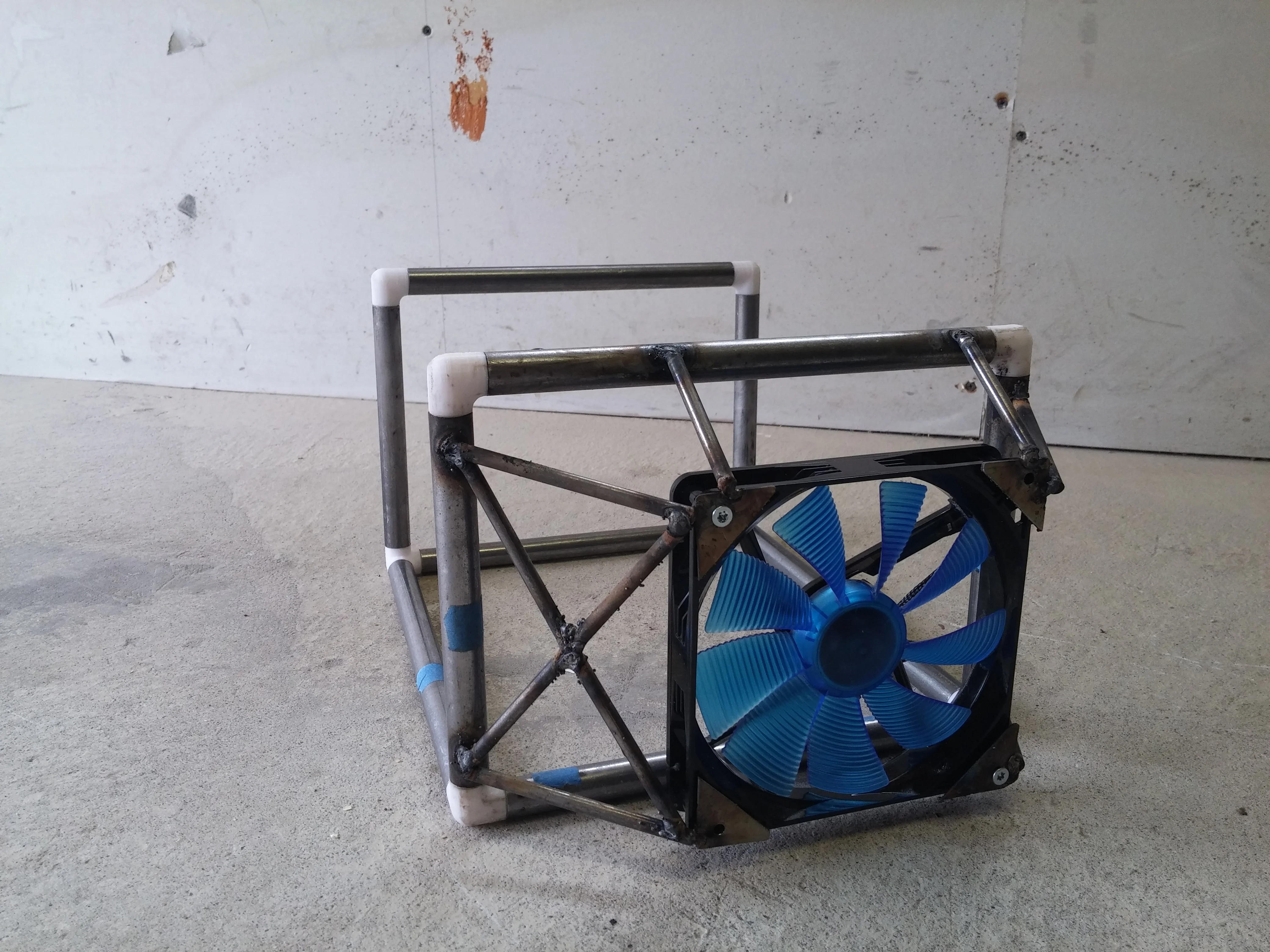

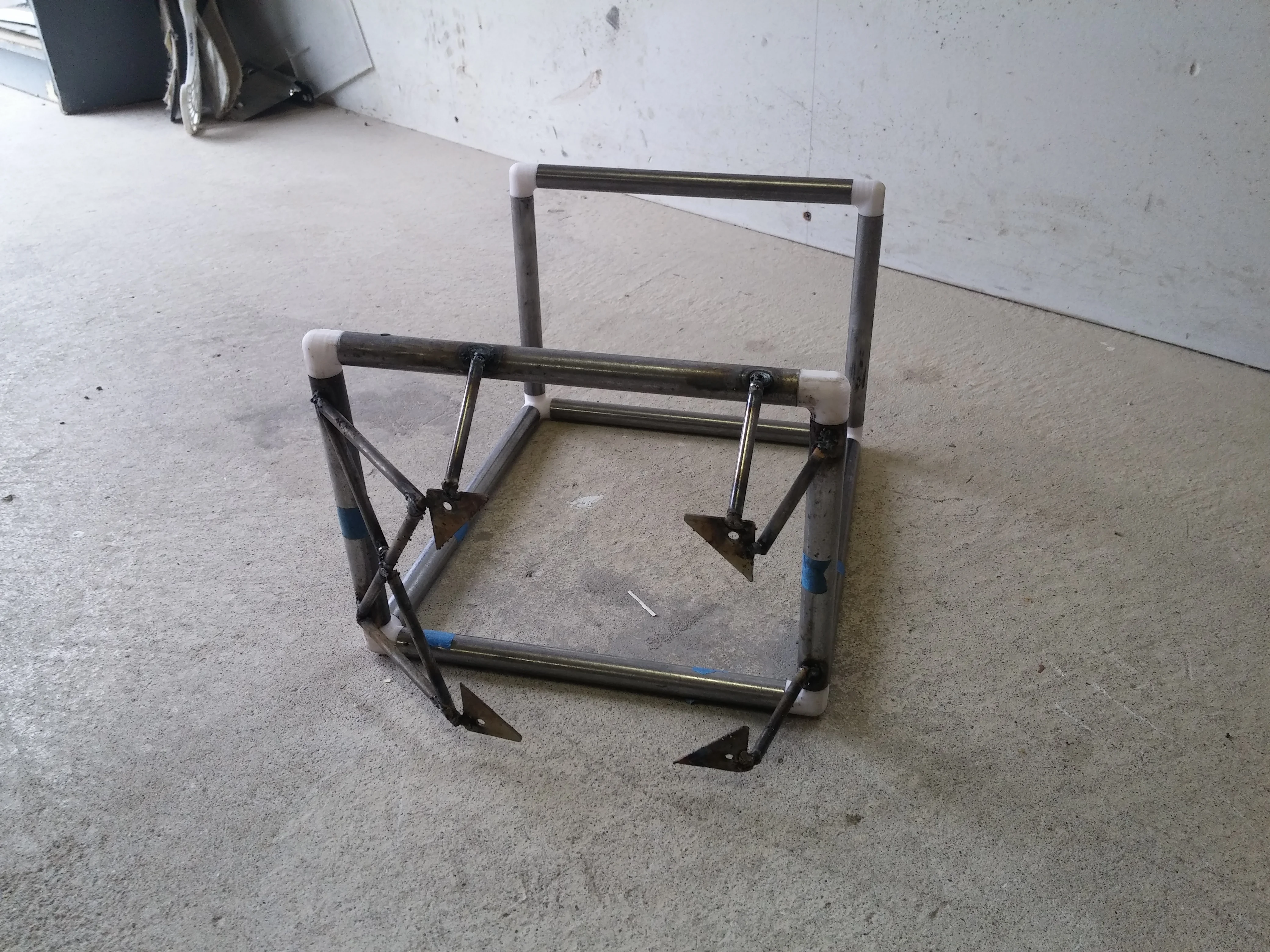

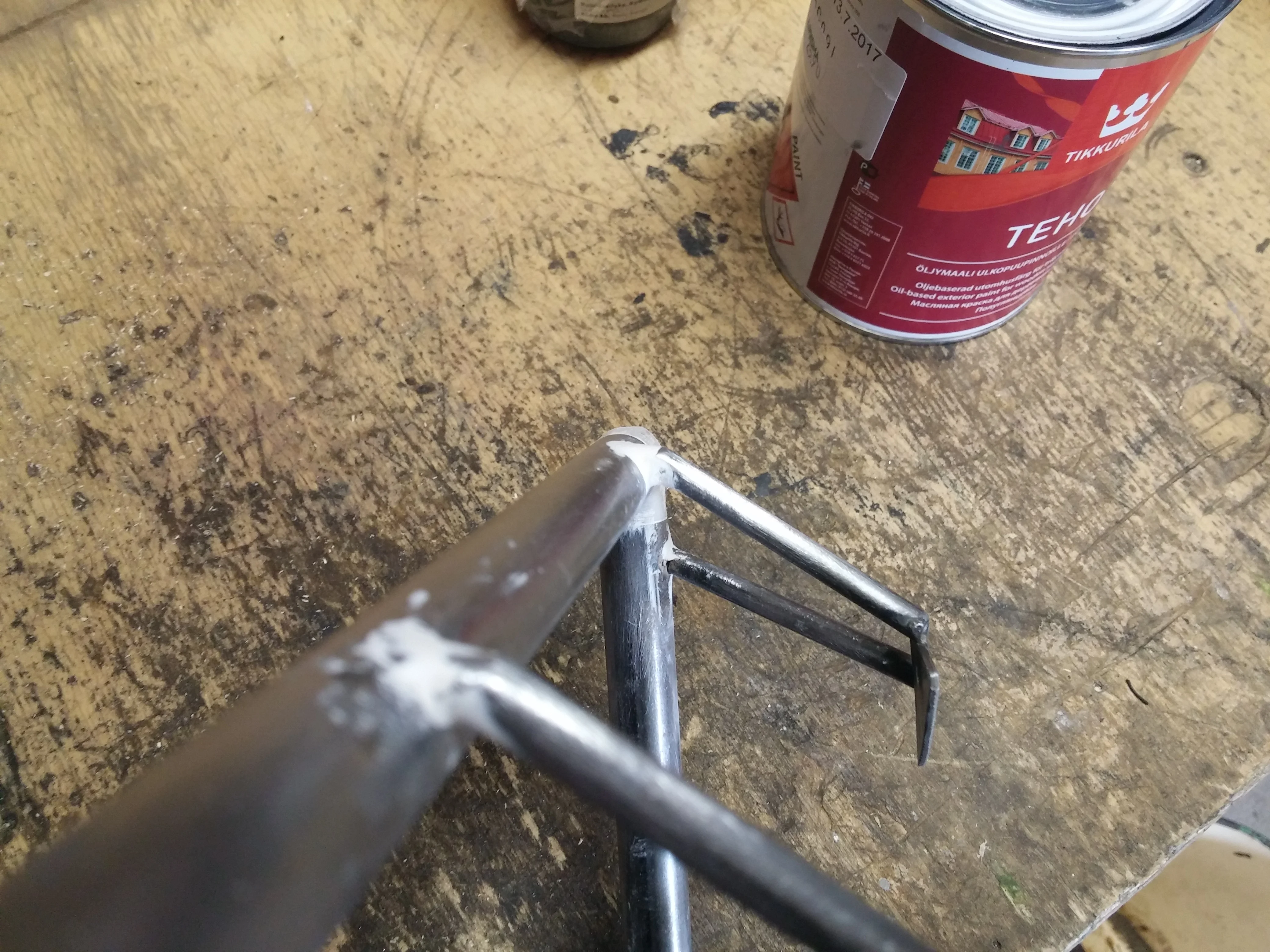

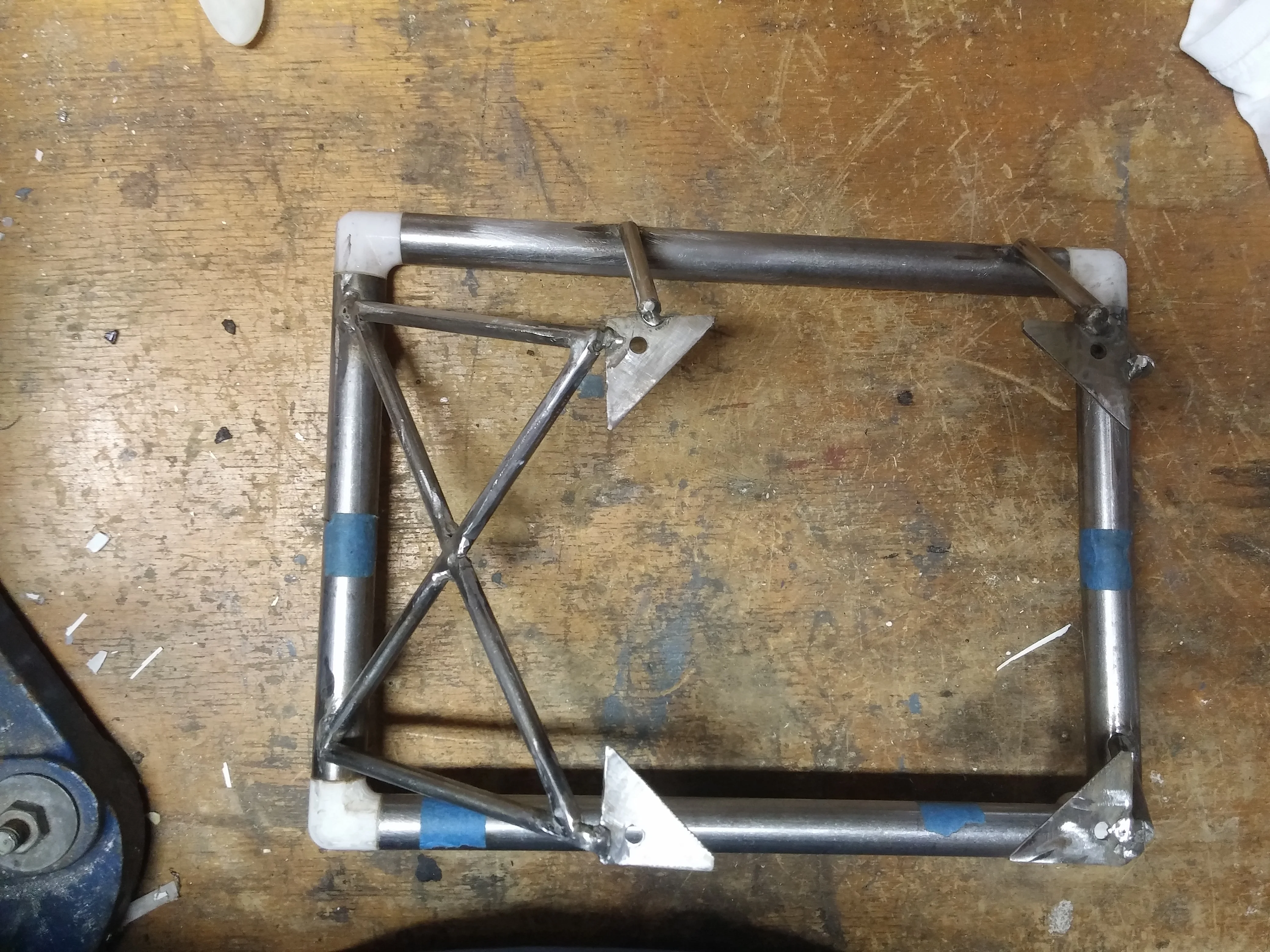

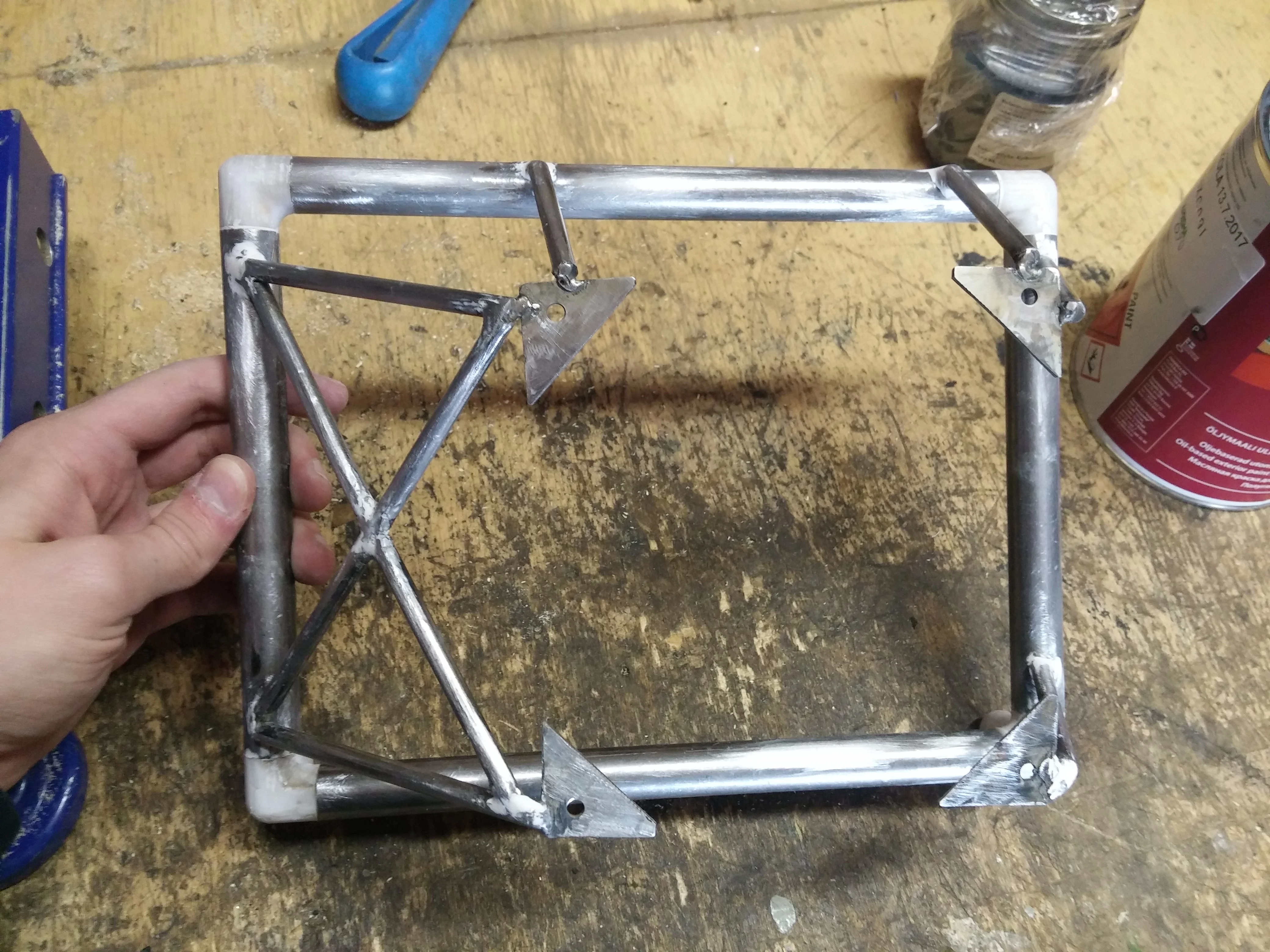

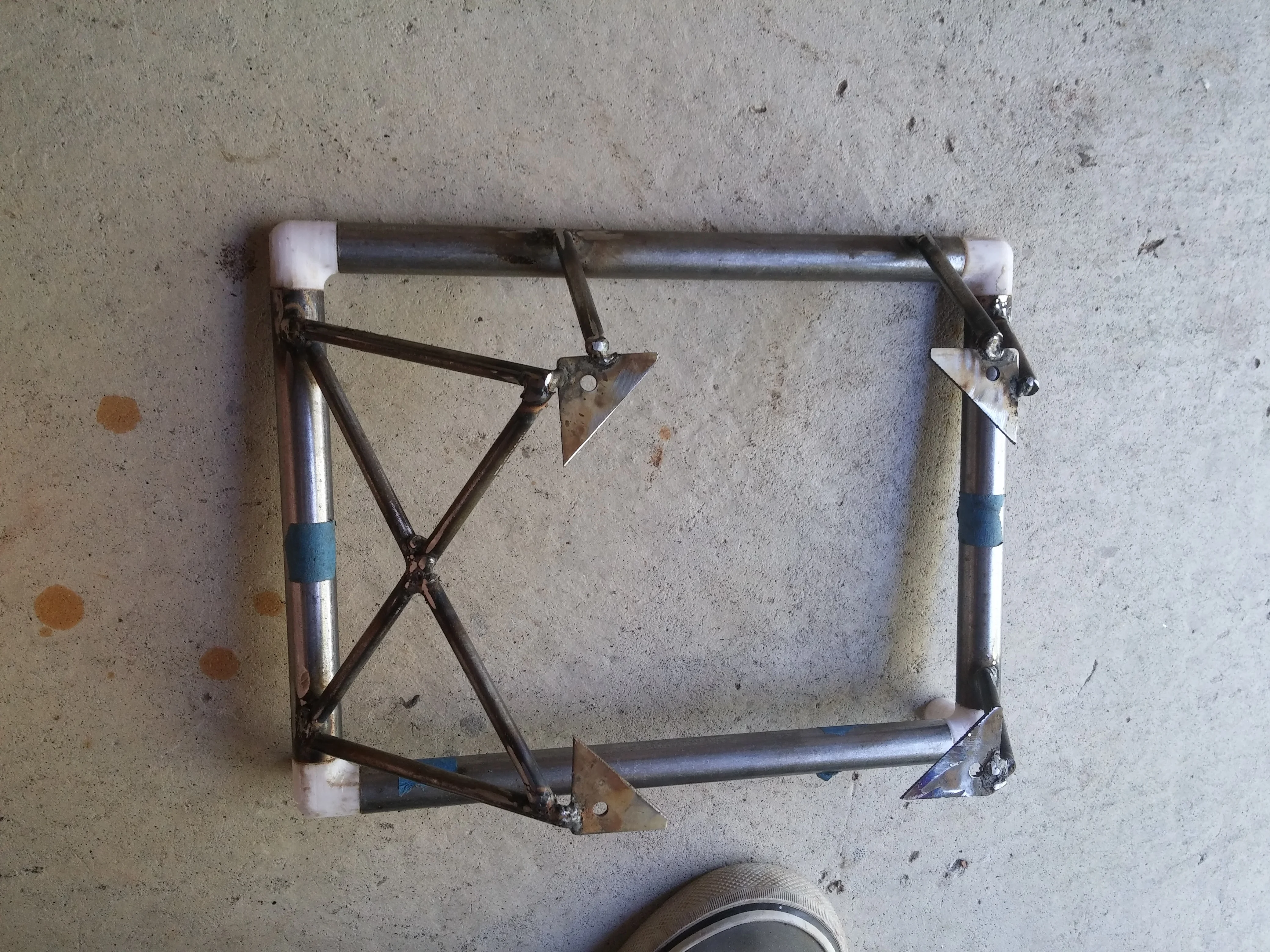

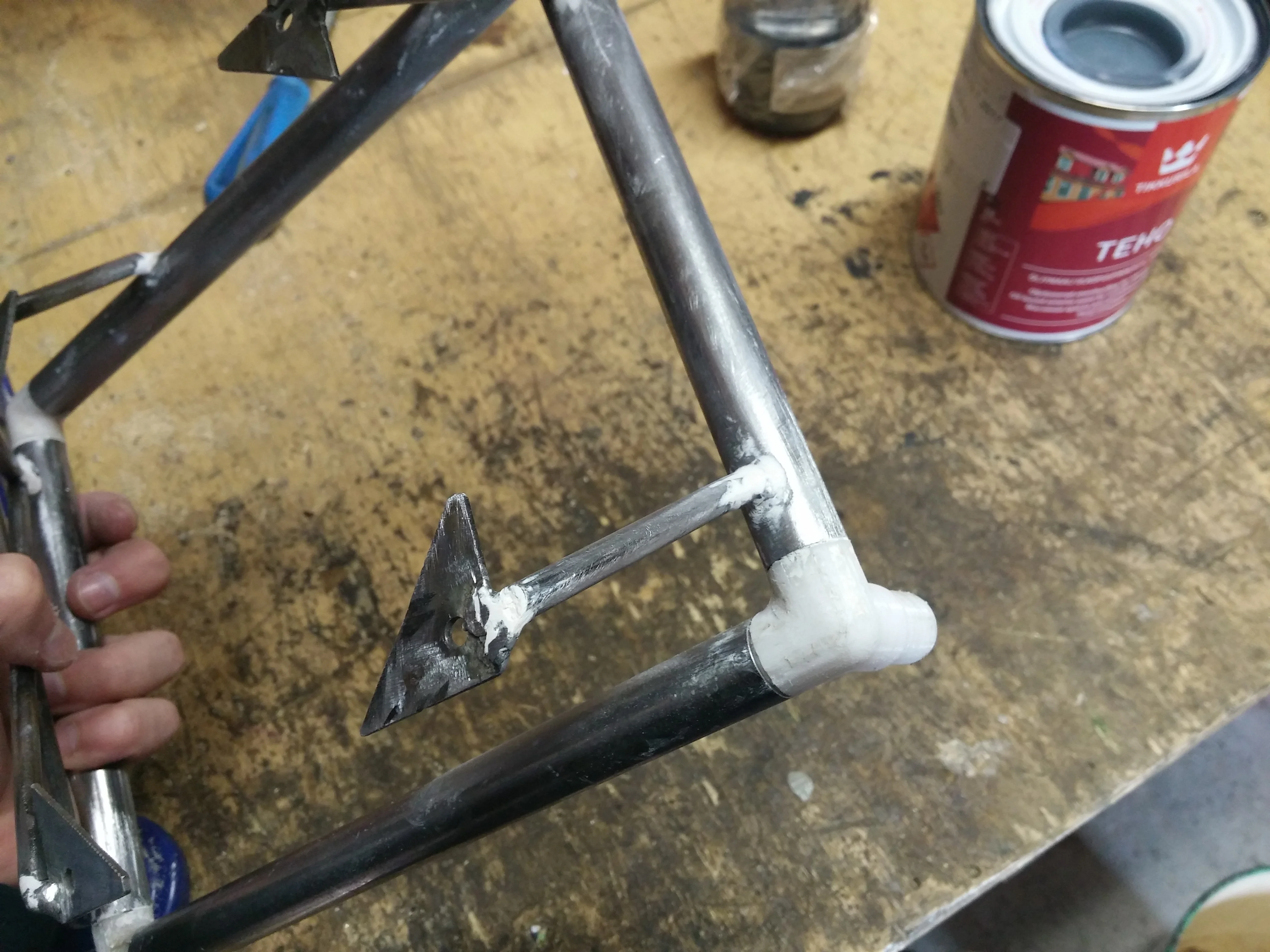

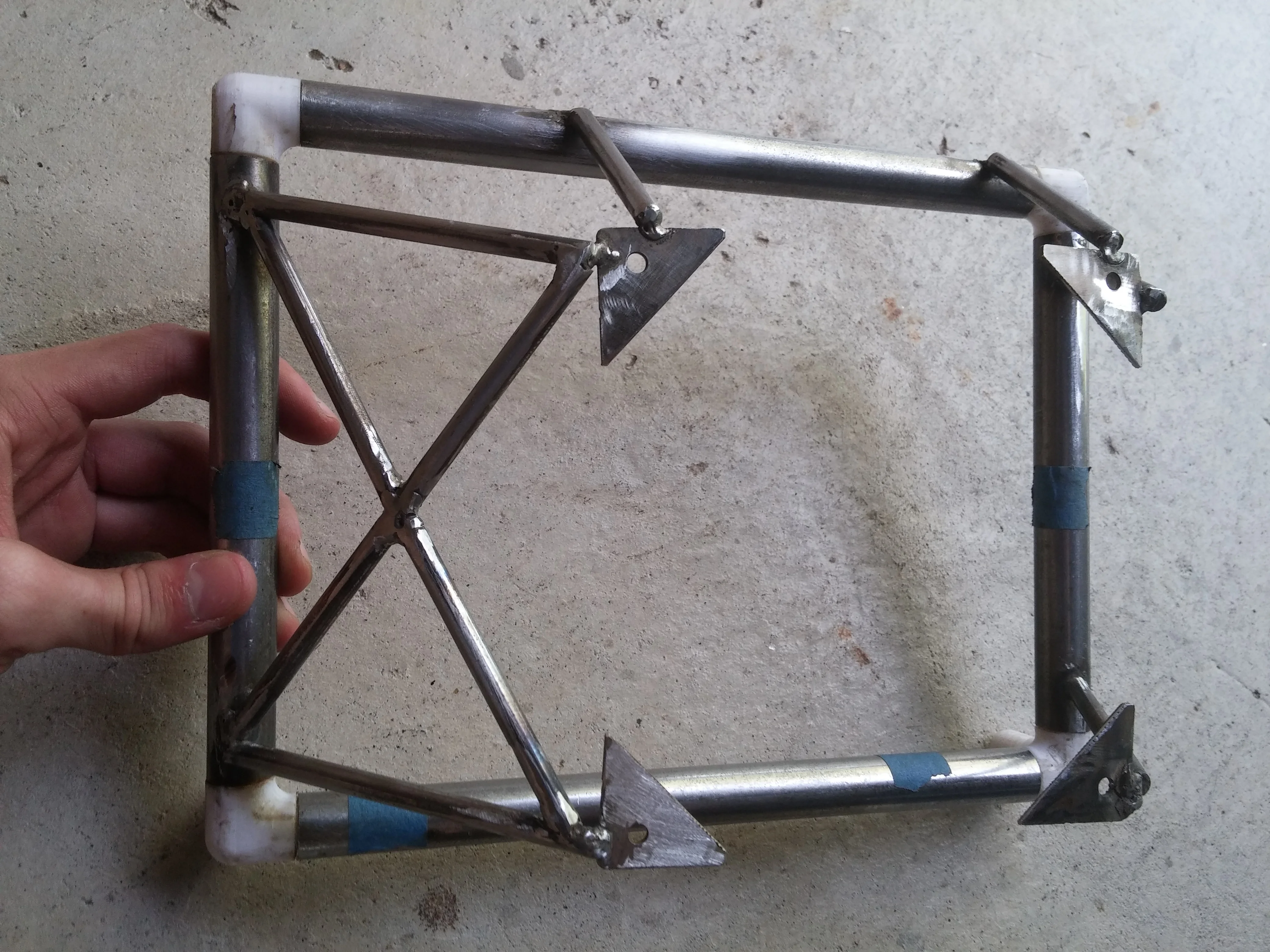

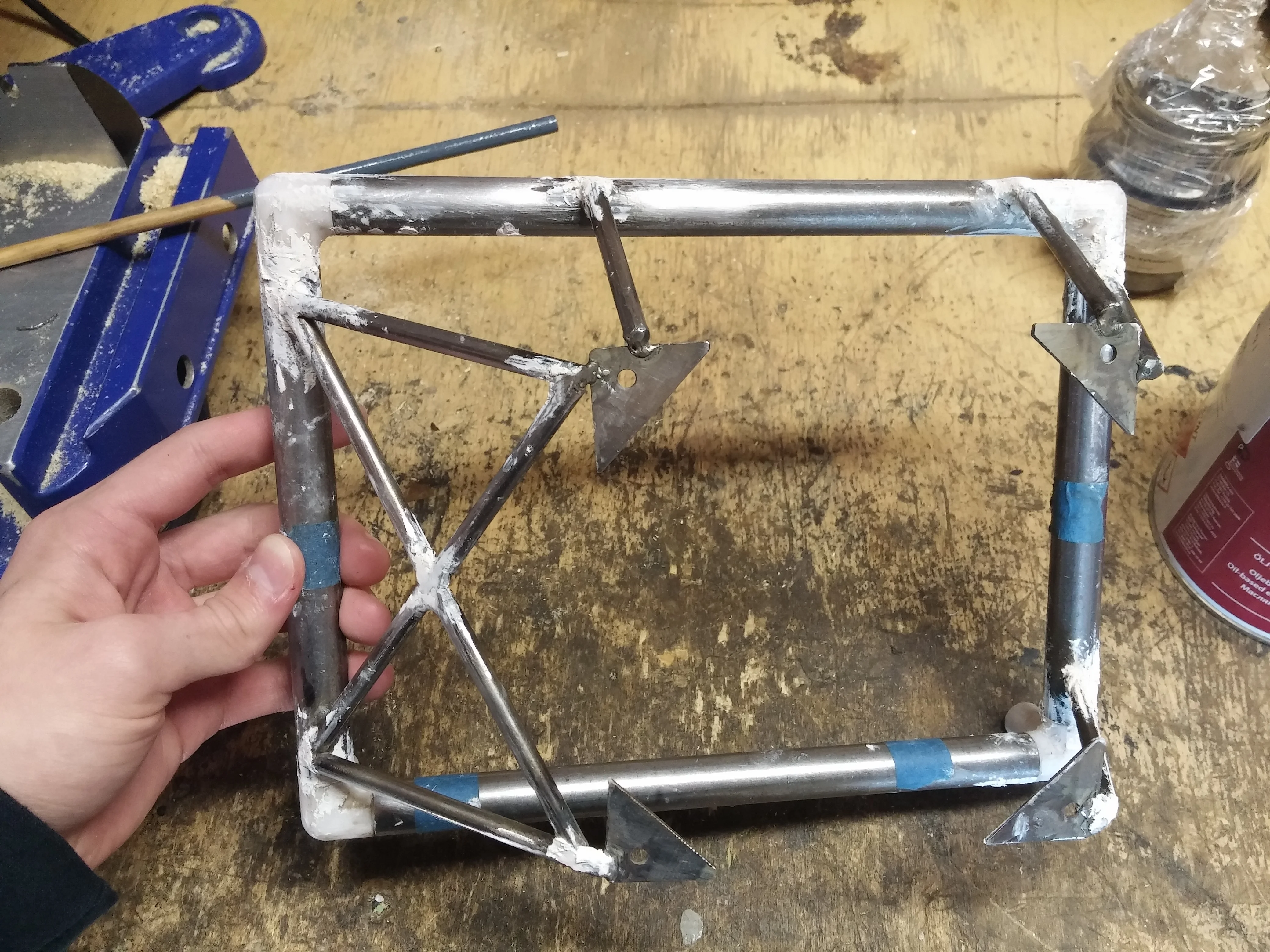

This is what it looked like with no clean up and still 2 pieces left to go.

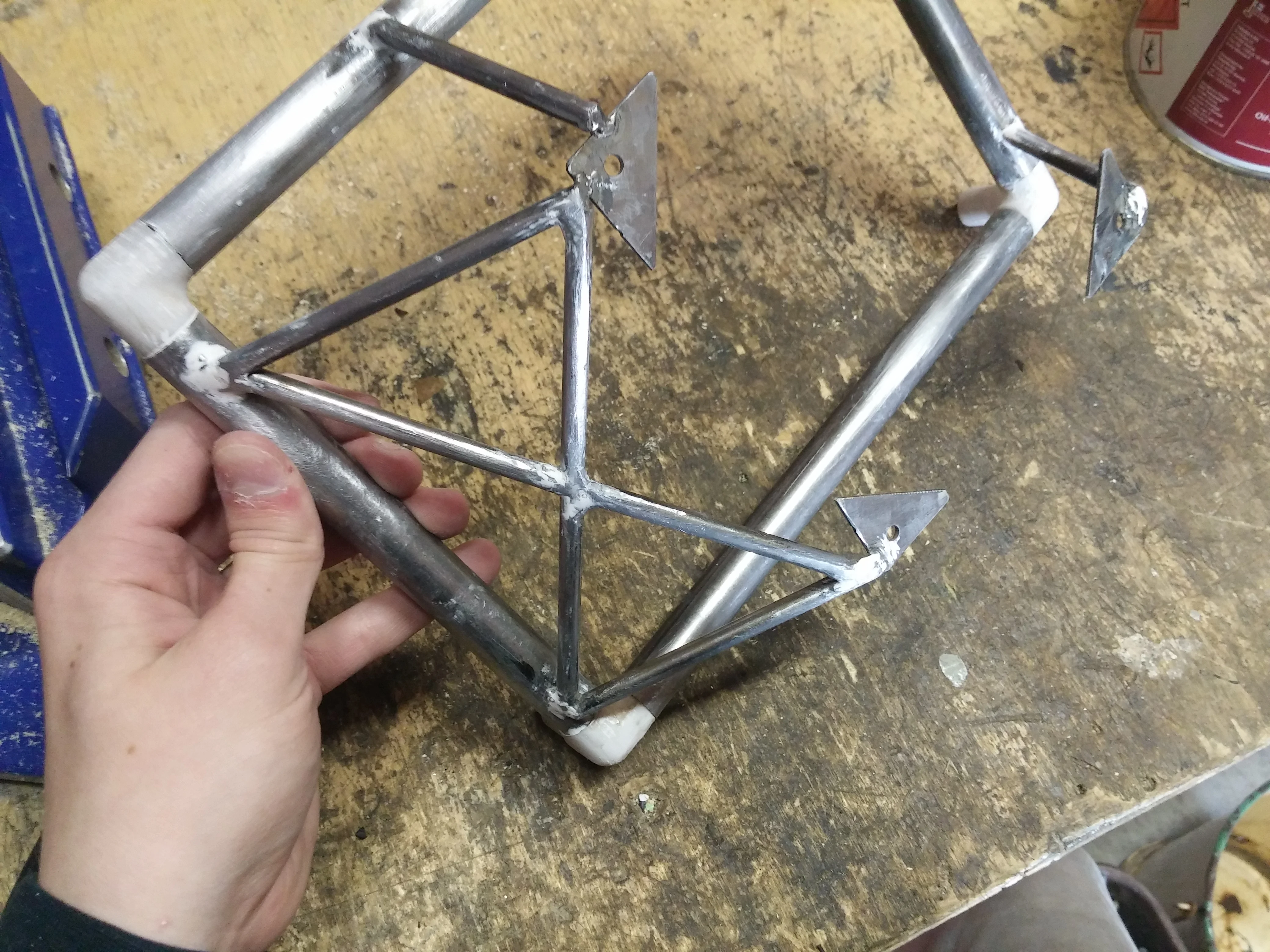

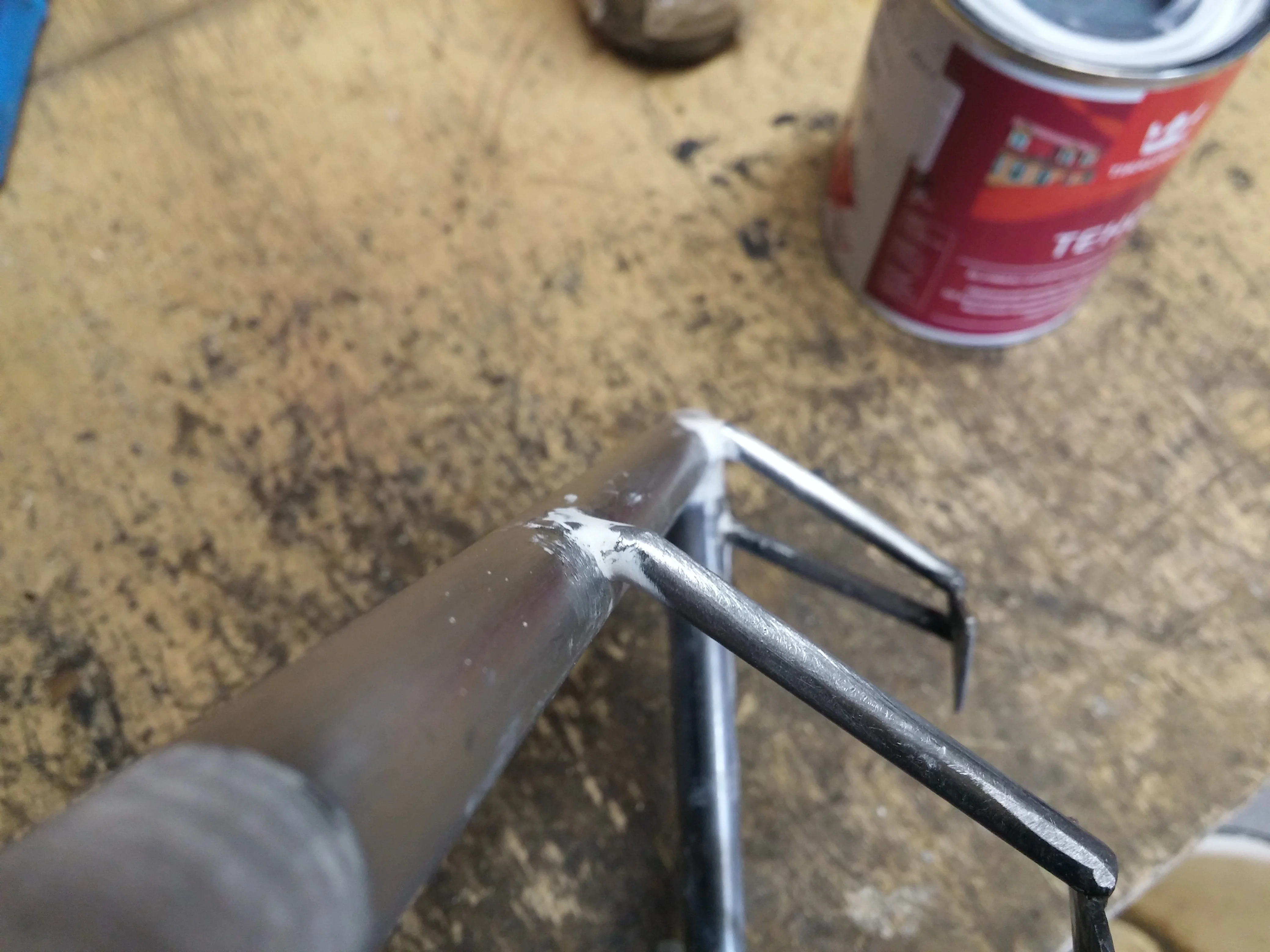

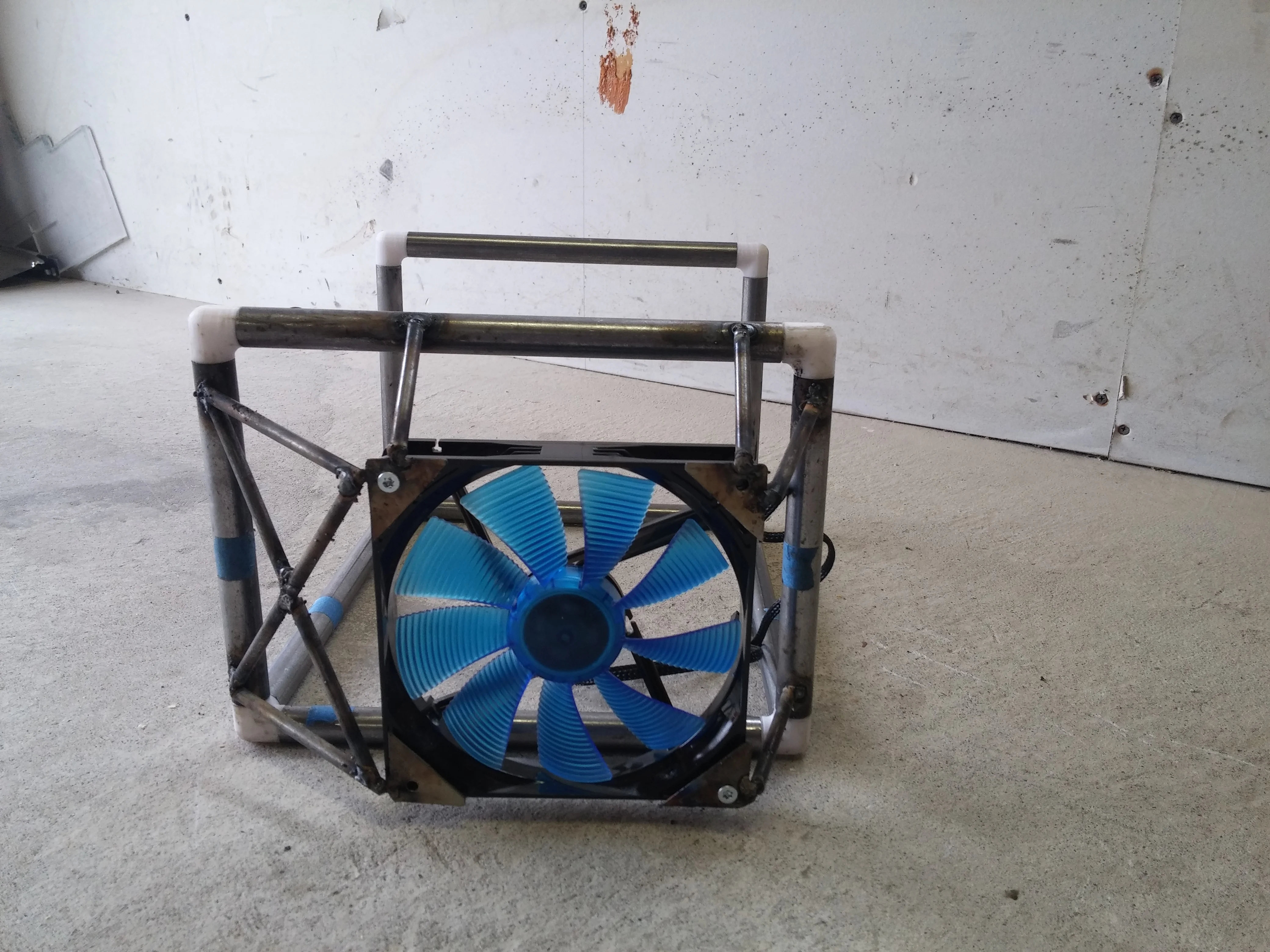

Now lets clean it up a bit.



Associate
OP
Joined
6 Sep 2017
Posts
27
Location
Finland
More work on the front.

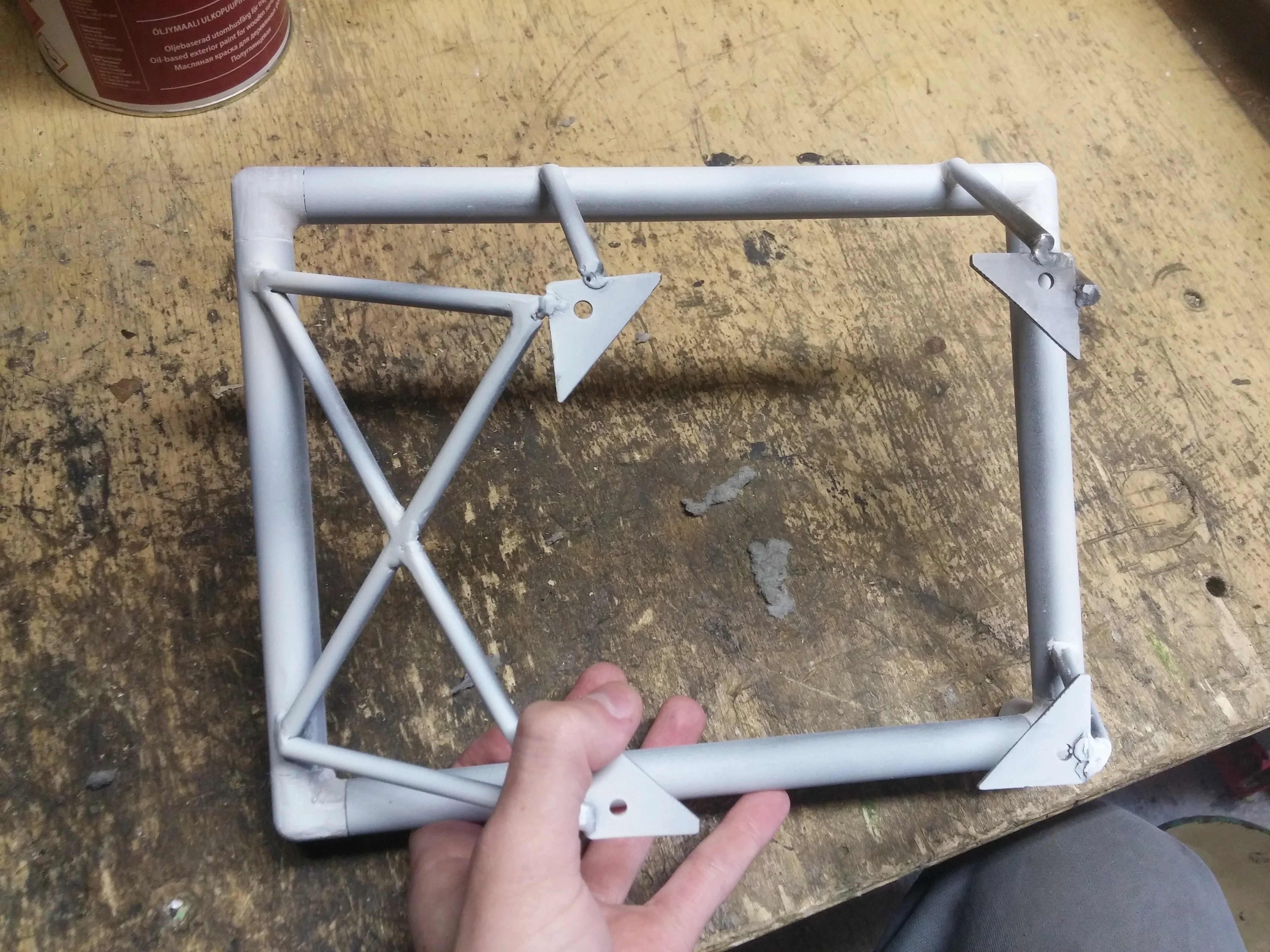

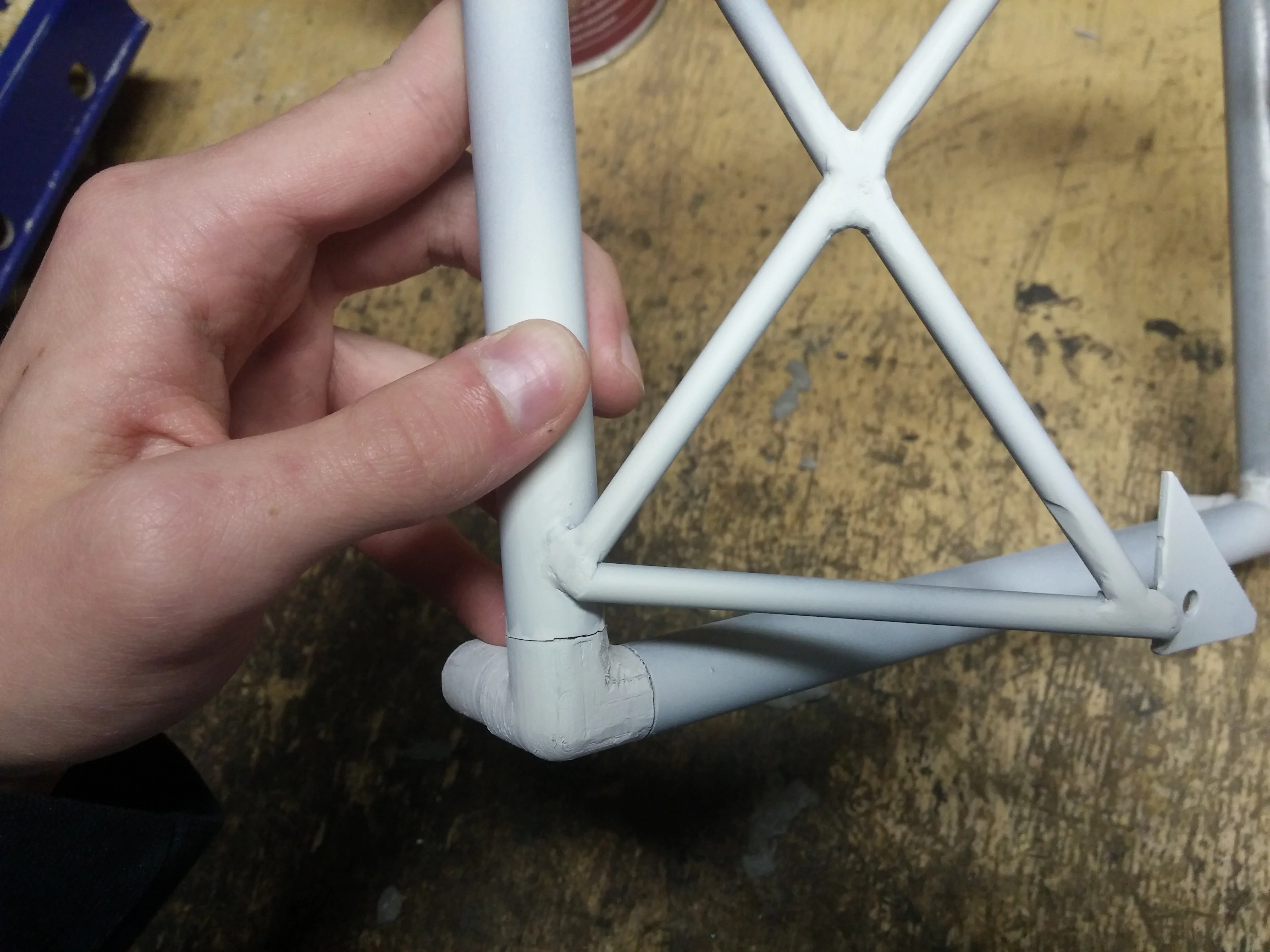

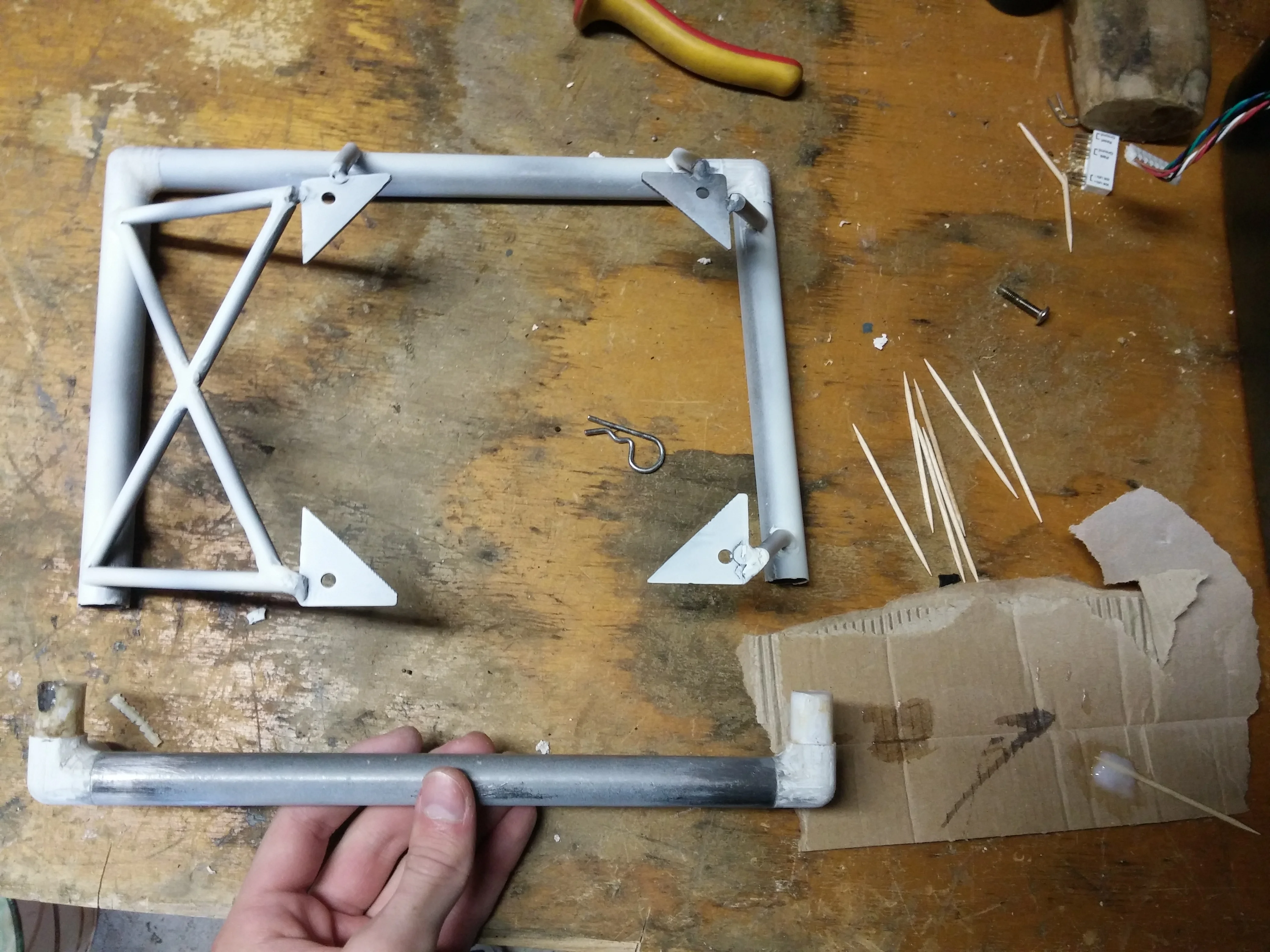

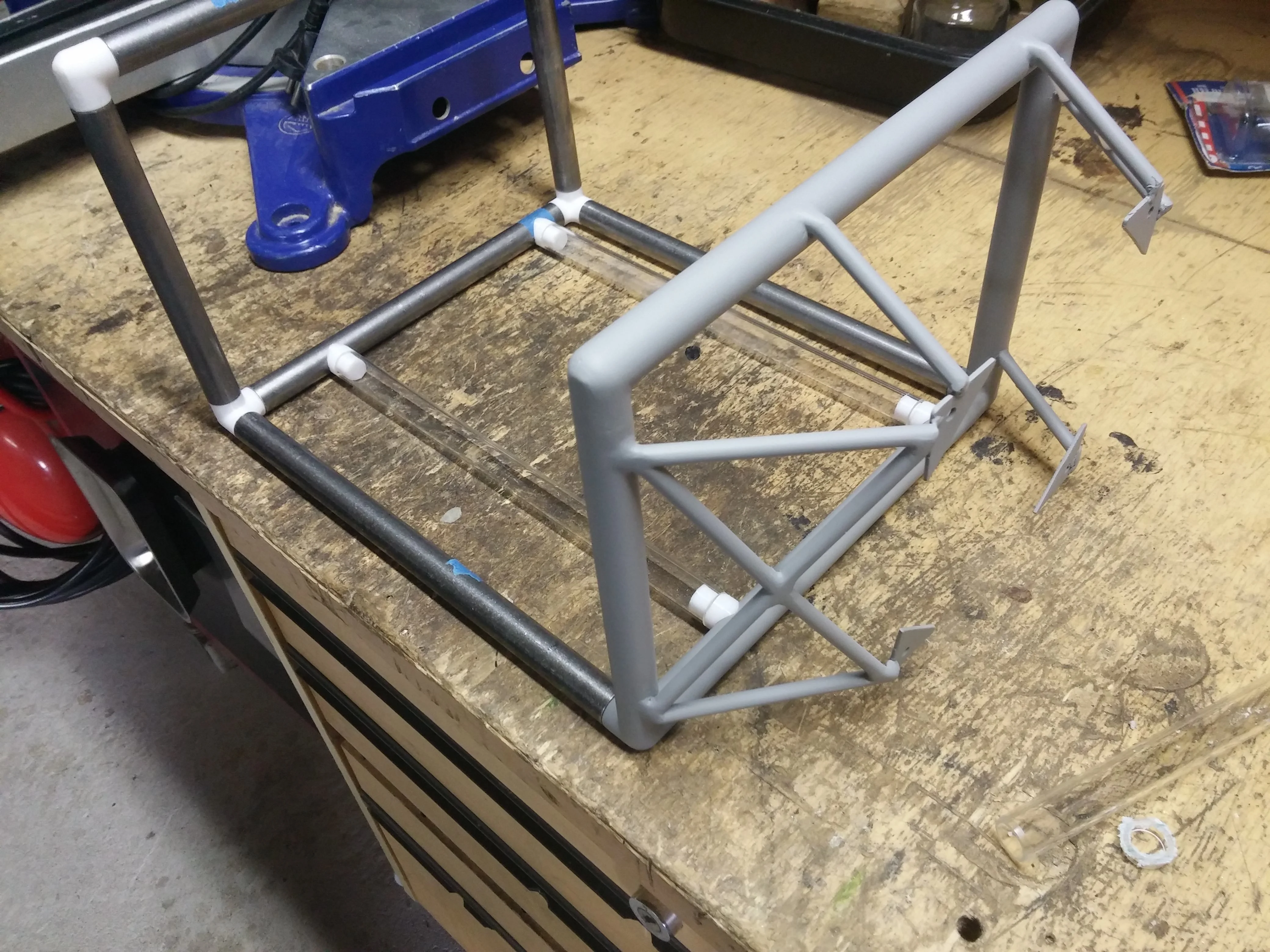

I applied a light coat of primer to make it easier to see imperfections.


Still need to glue the bottom piece together.



Associate
OP
Joined
6 Sep 2017
Posts
27
Location
Finland
More 3D printing and plastic parts

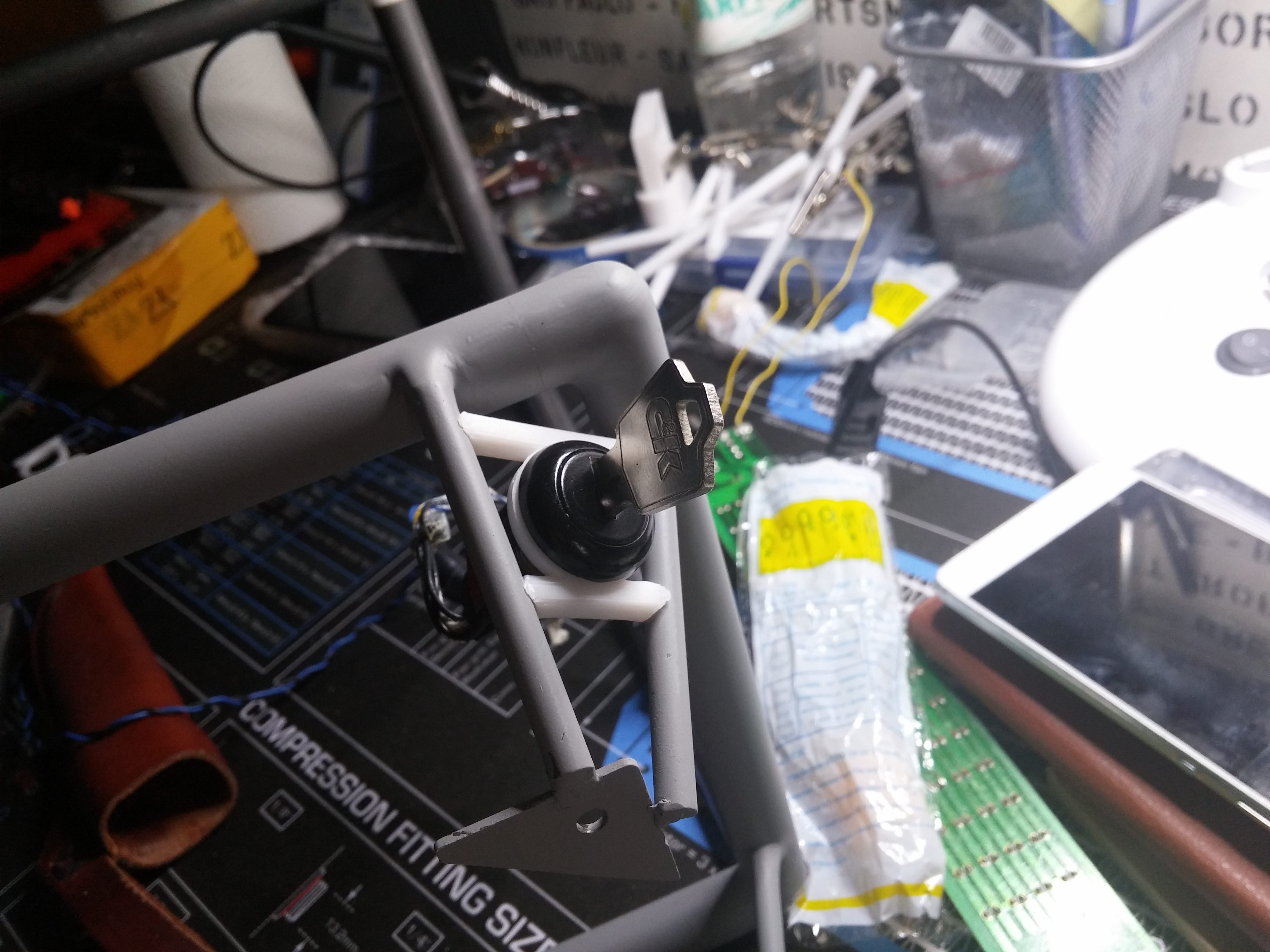

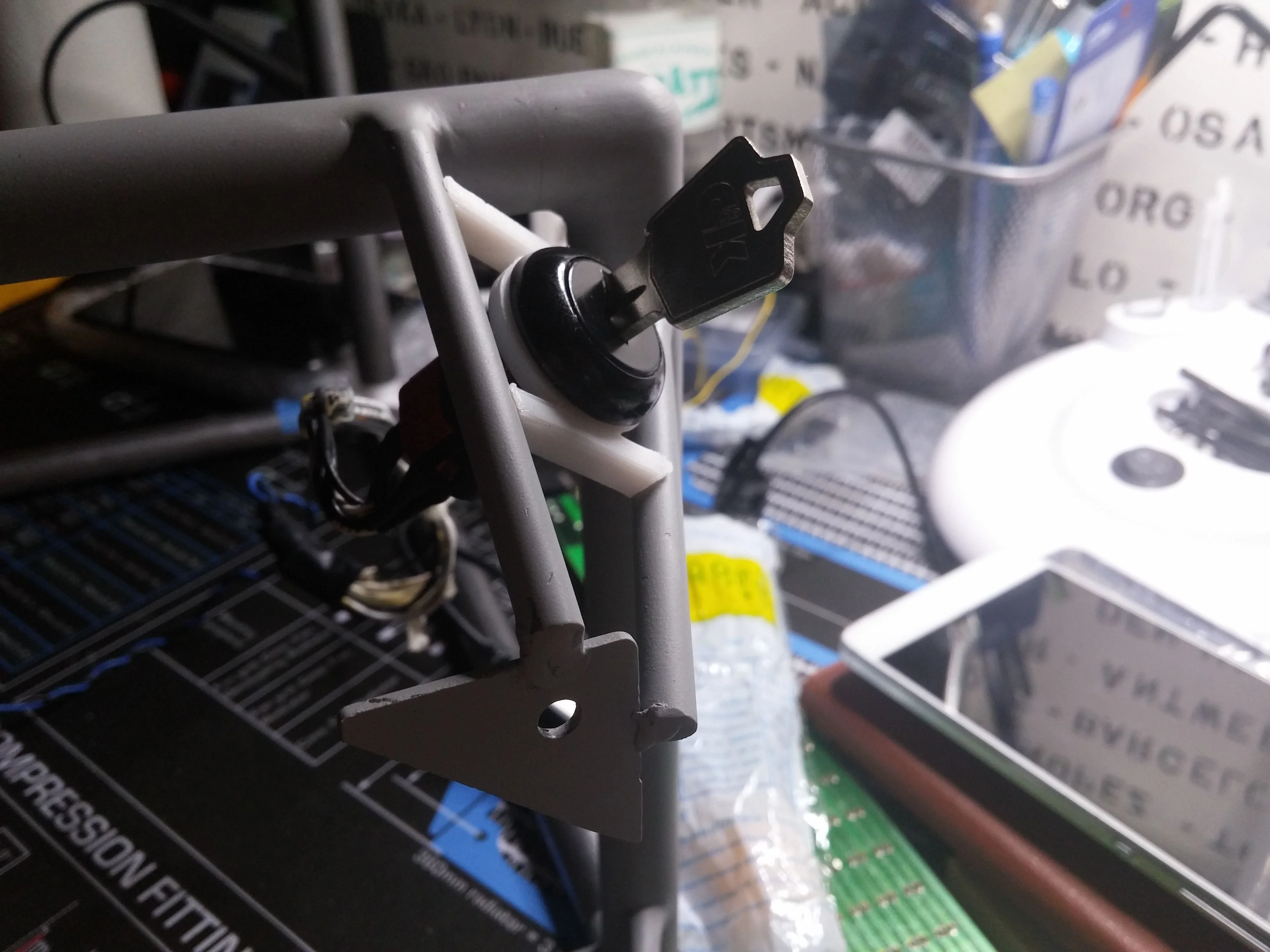

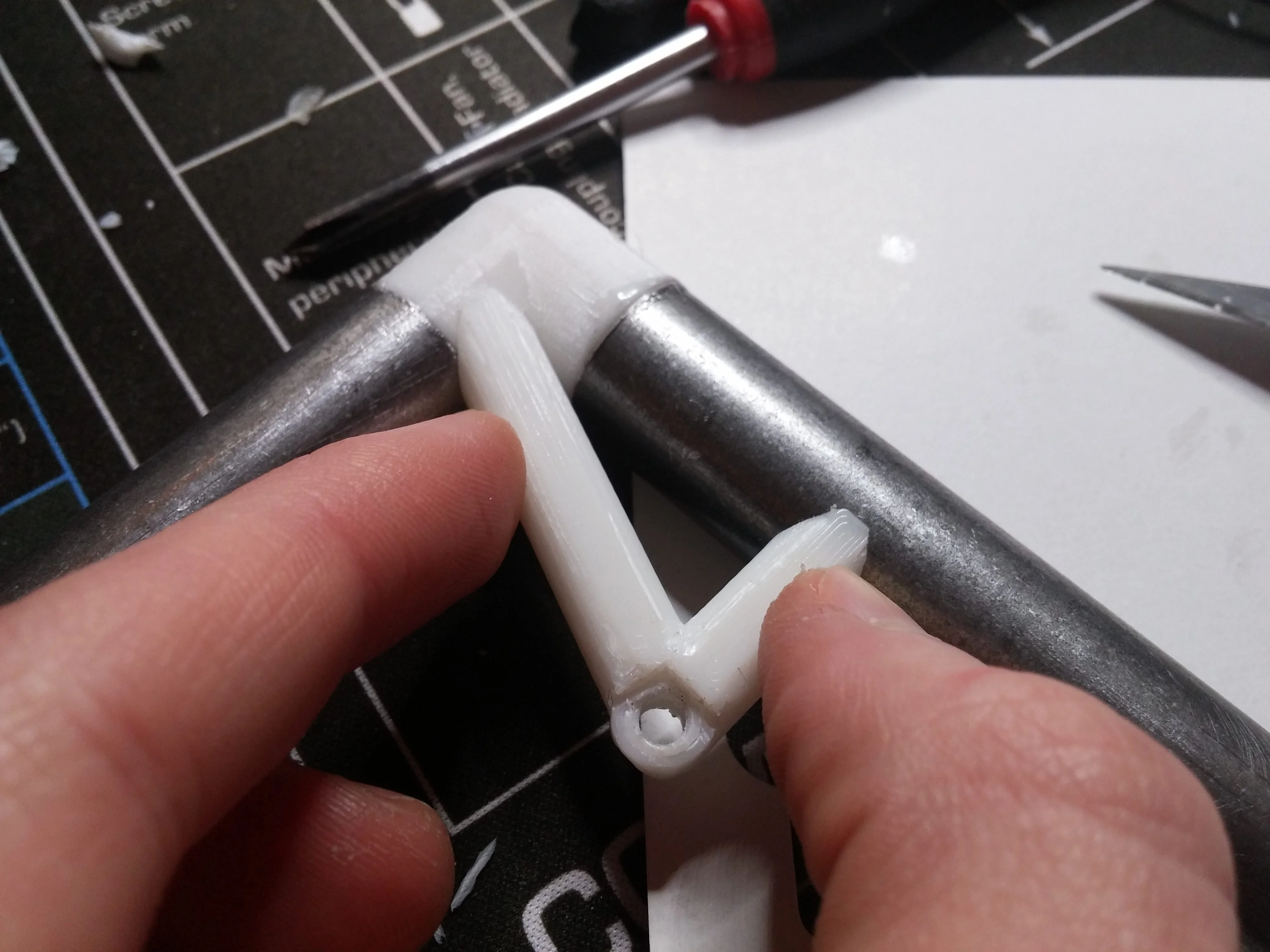

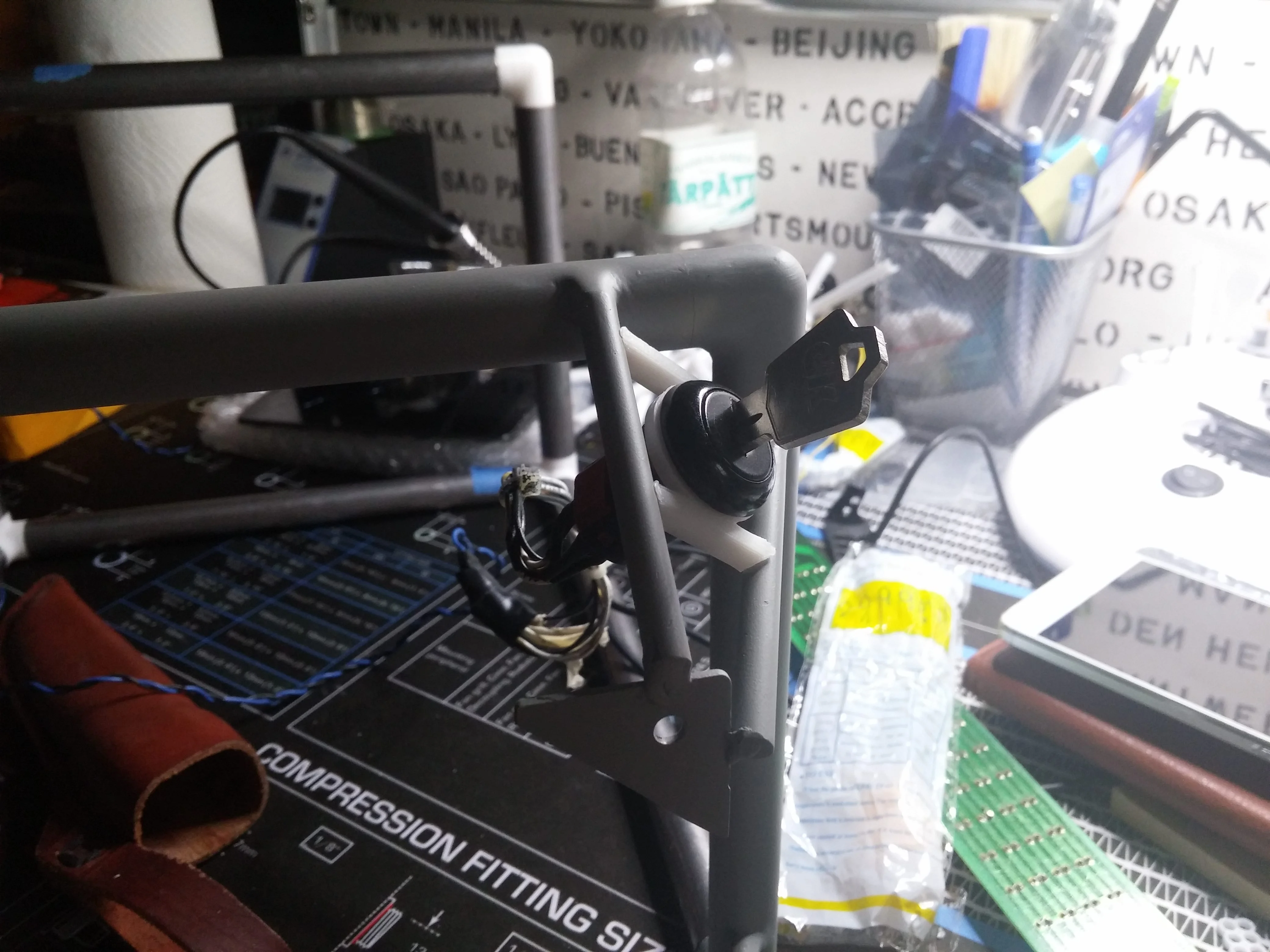

I made a small bracket for the start button which in this case will be a real key.

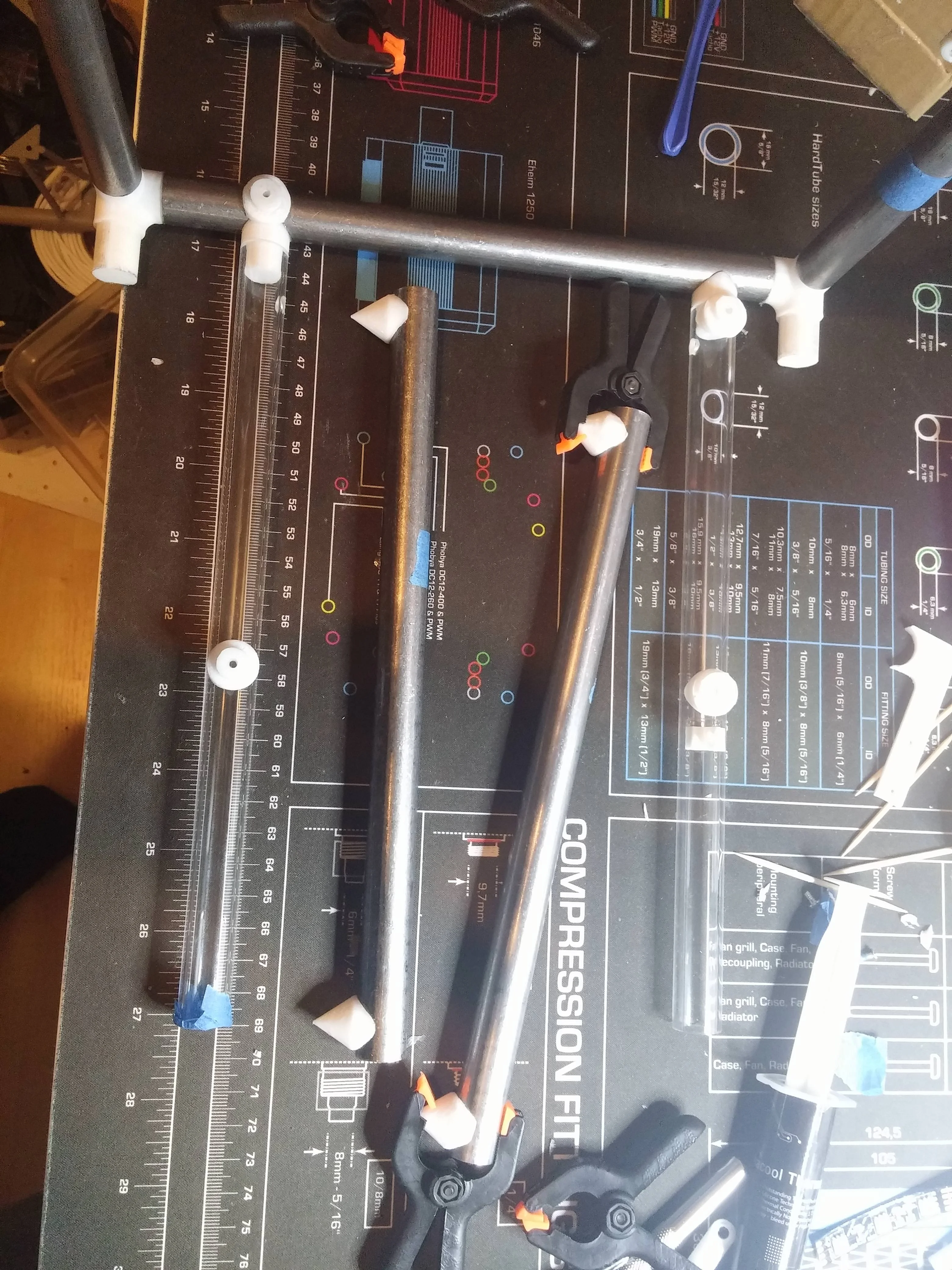

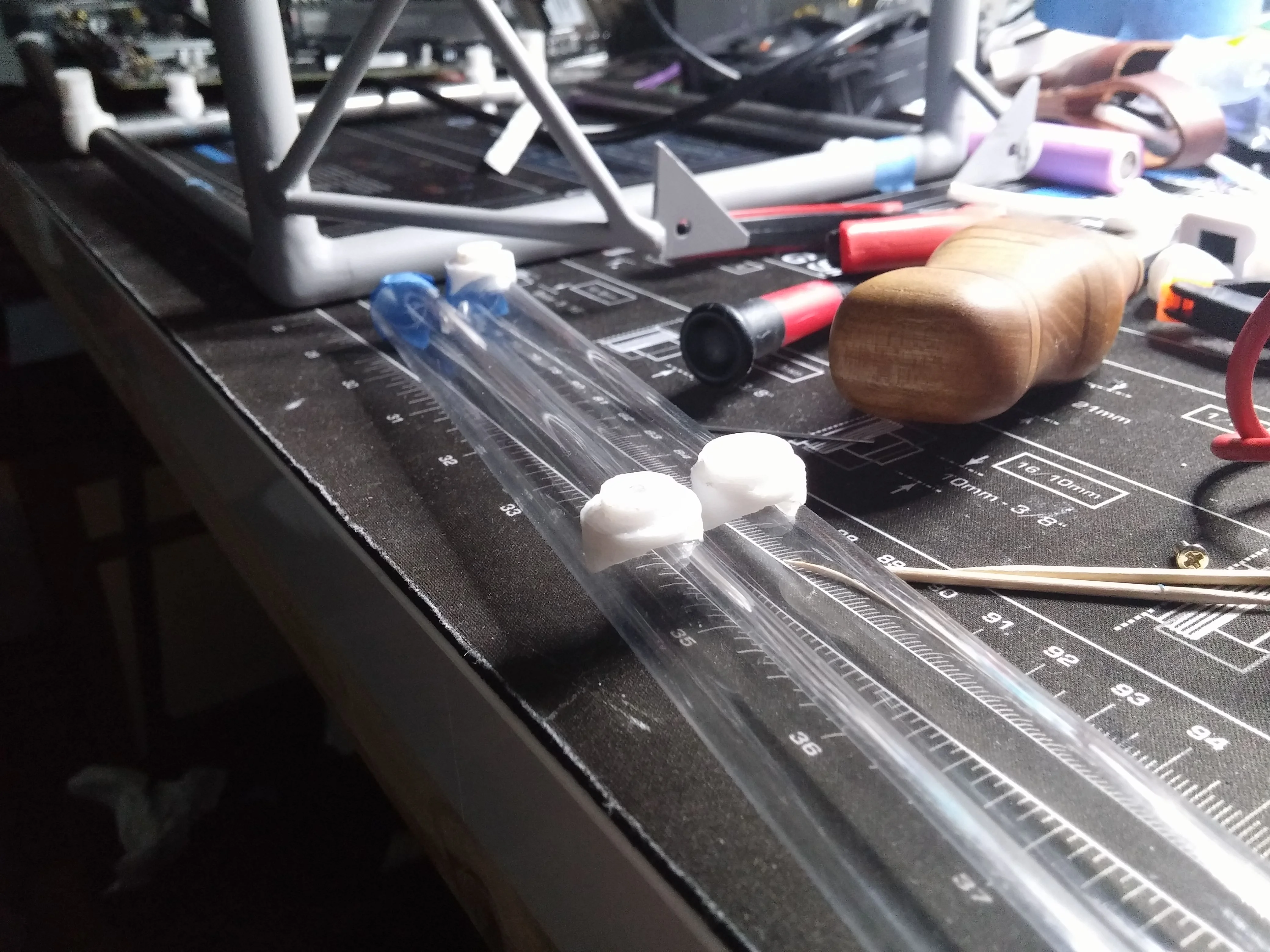

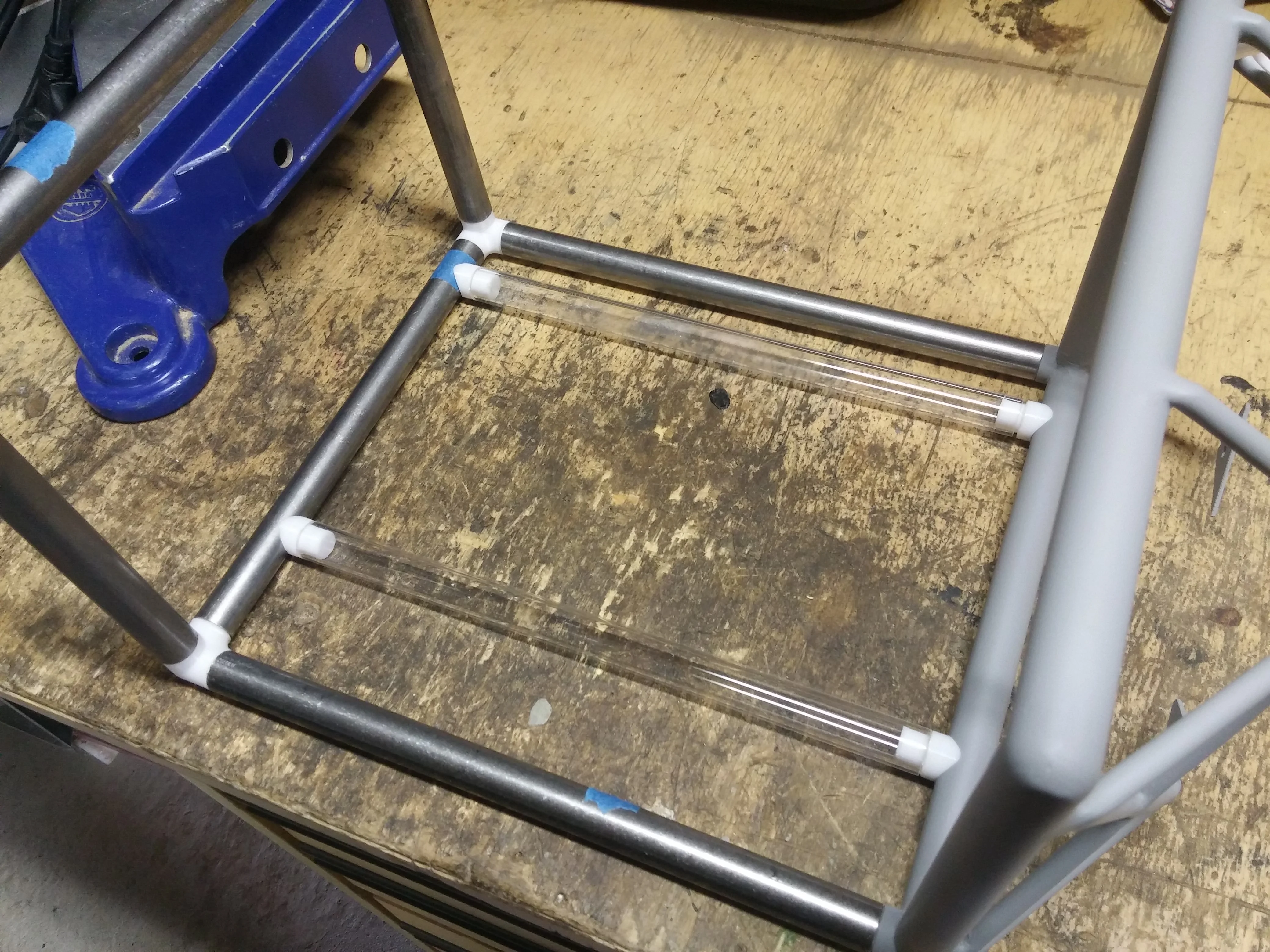

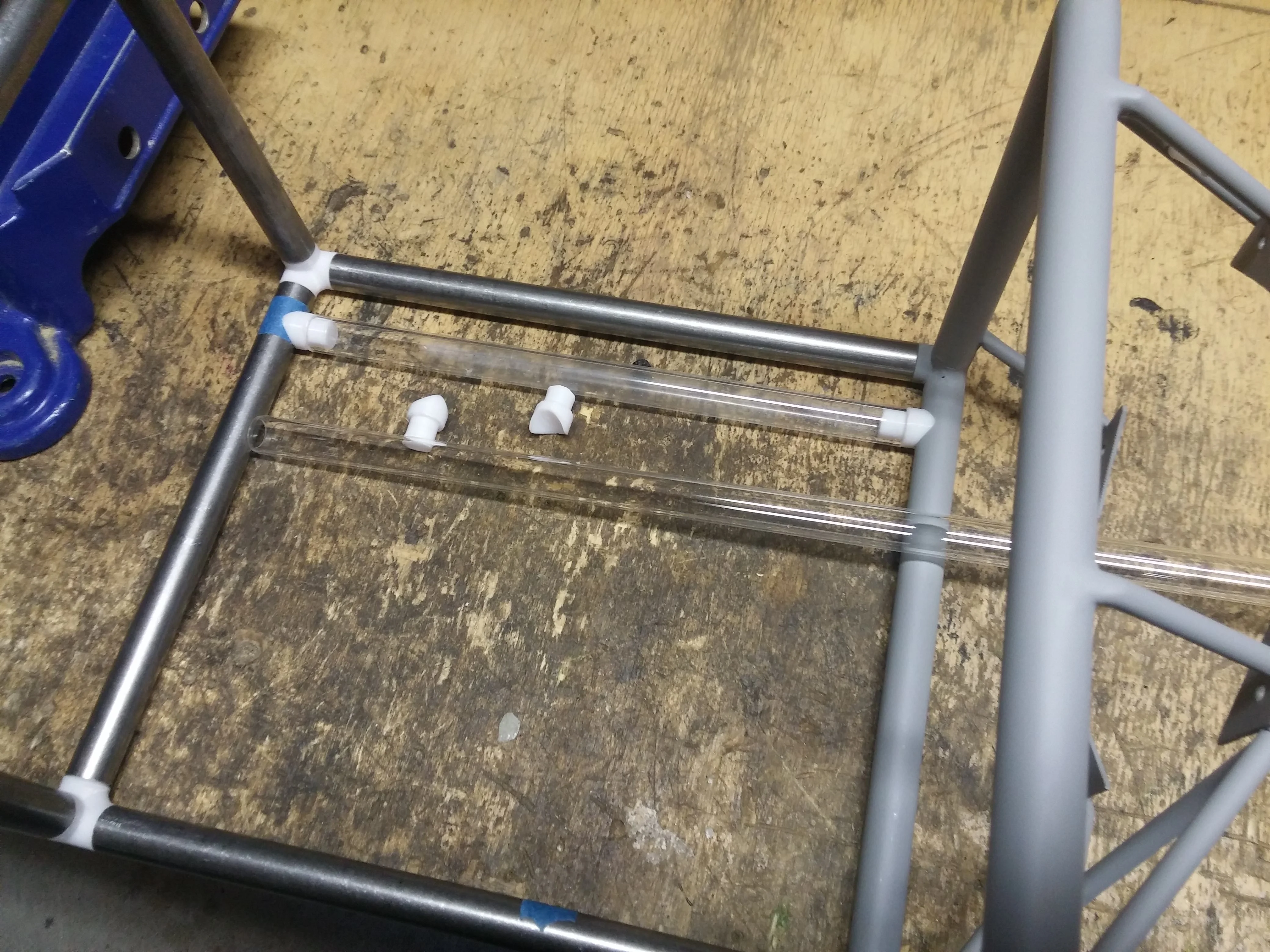

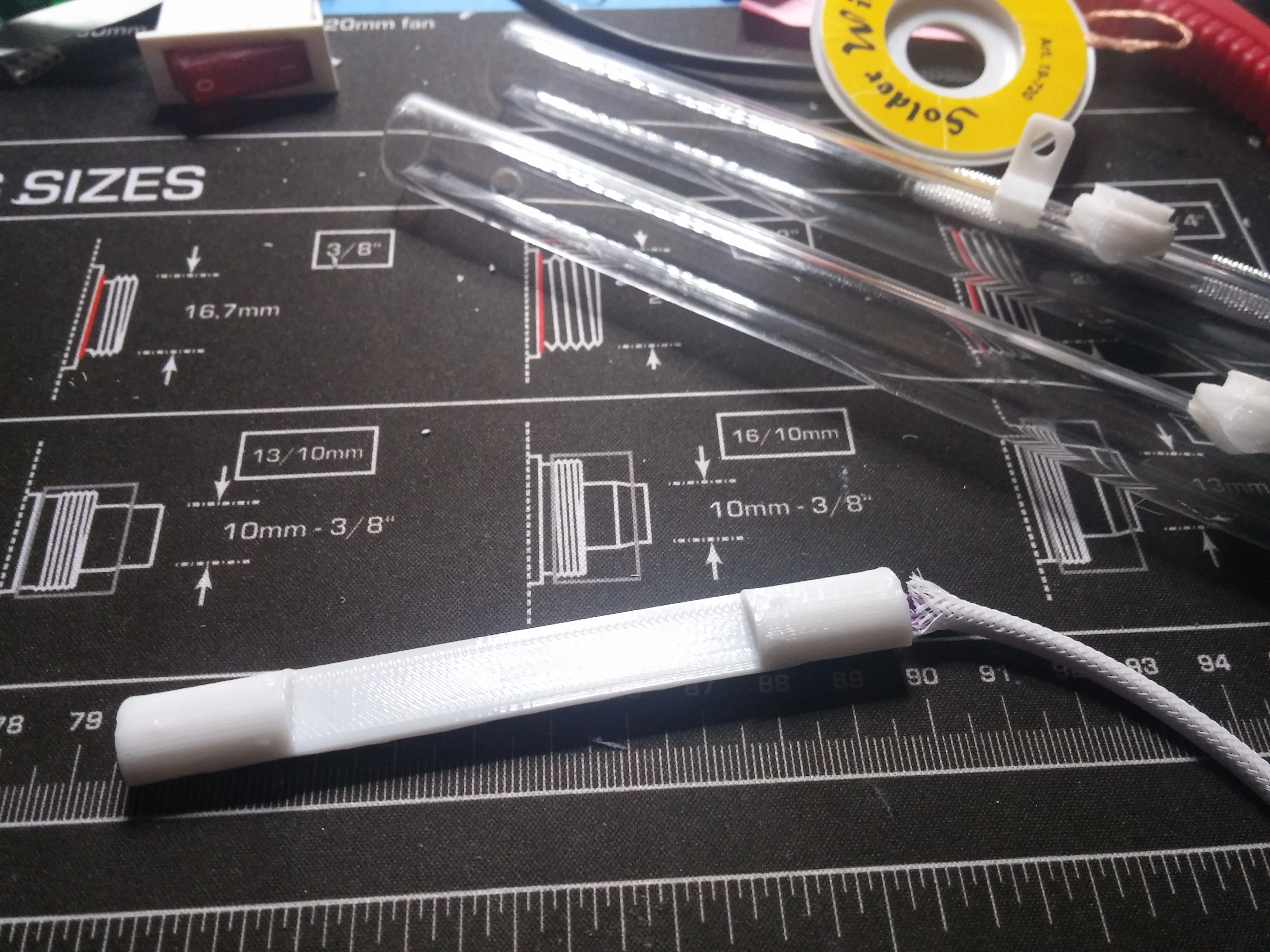

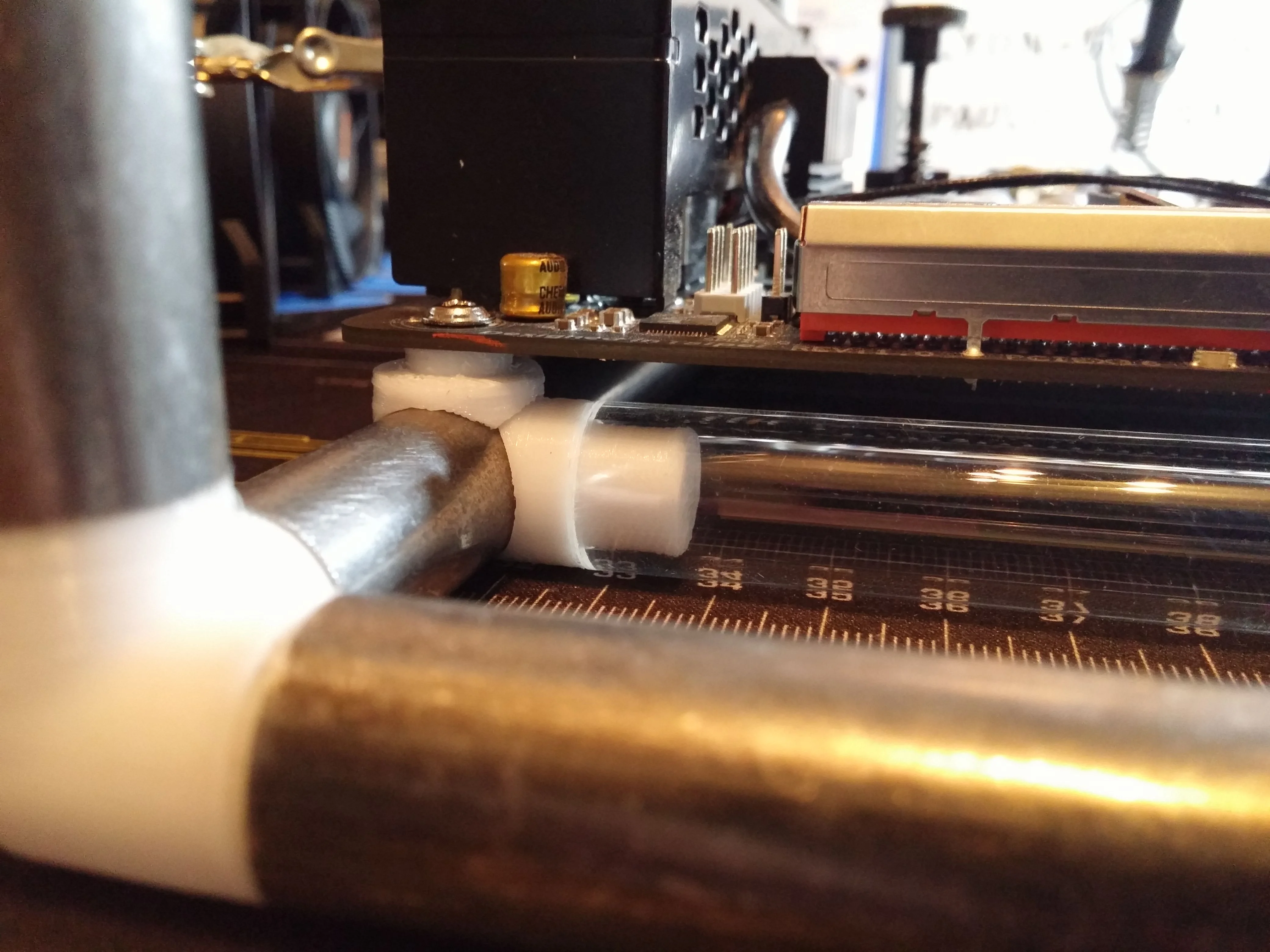

Next upp is the part that connects the plexi tubes to the frame. You might ask why i didn't just go with metal tubes and the reason for that is LED's
but more on that later.




I still had to make some kind of motherboard mount so thats what i did.

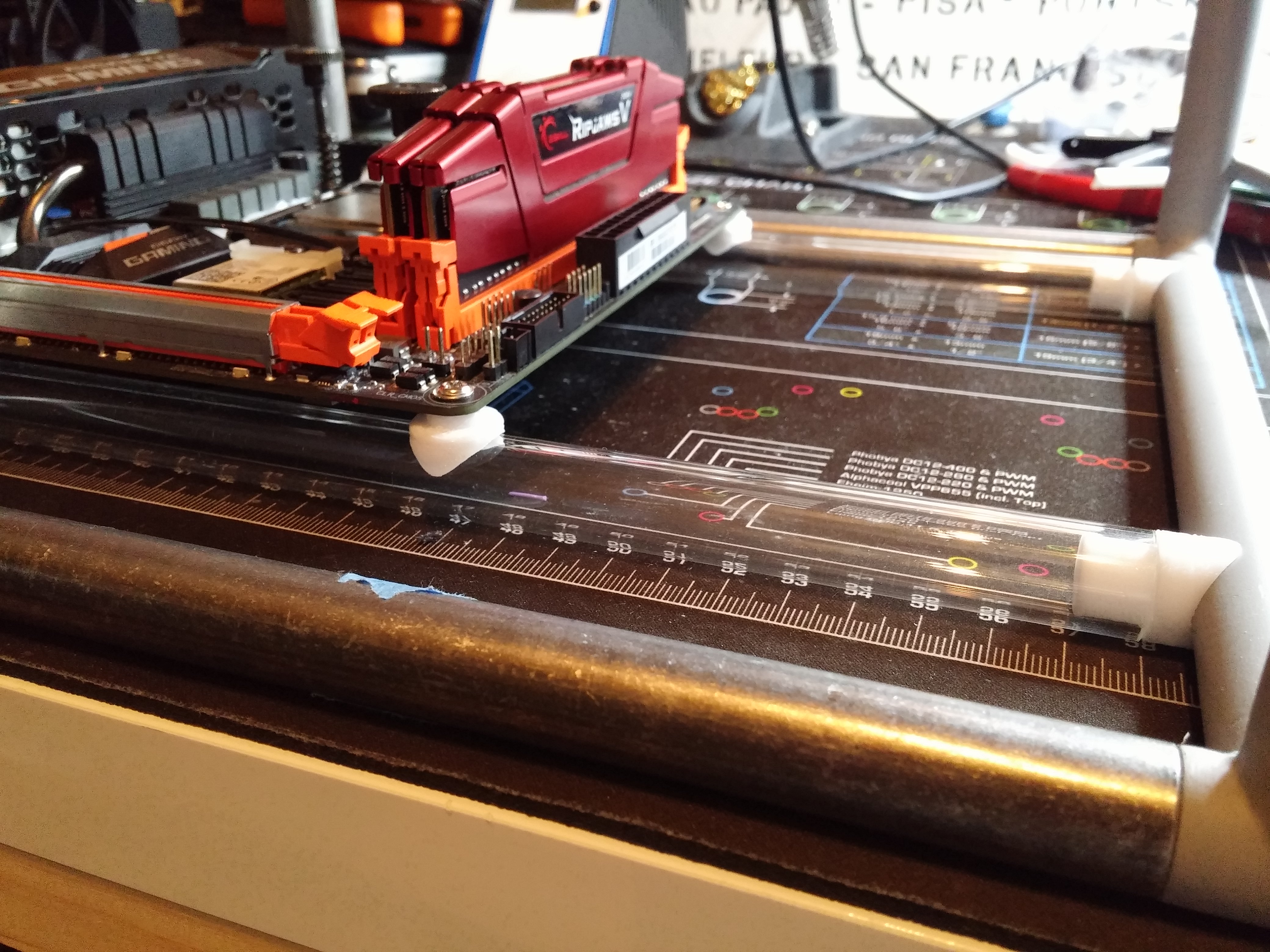

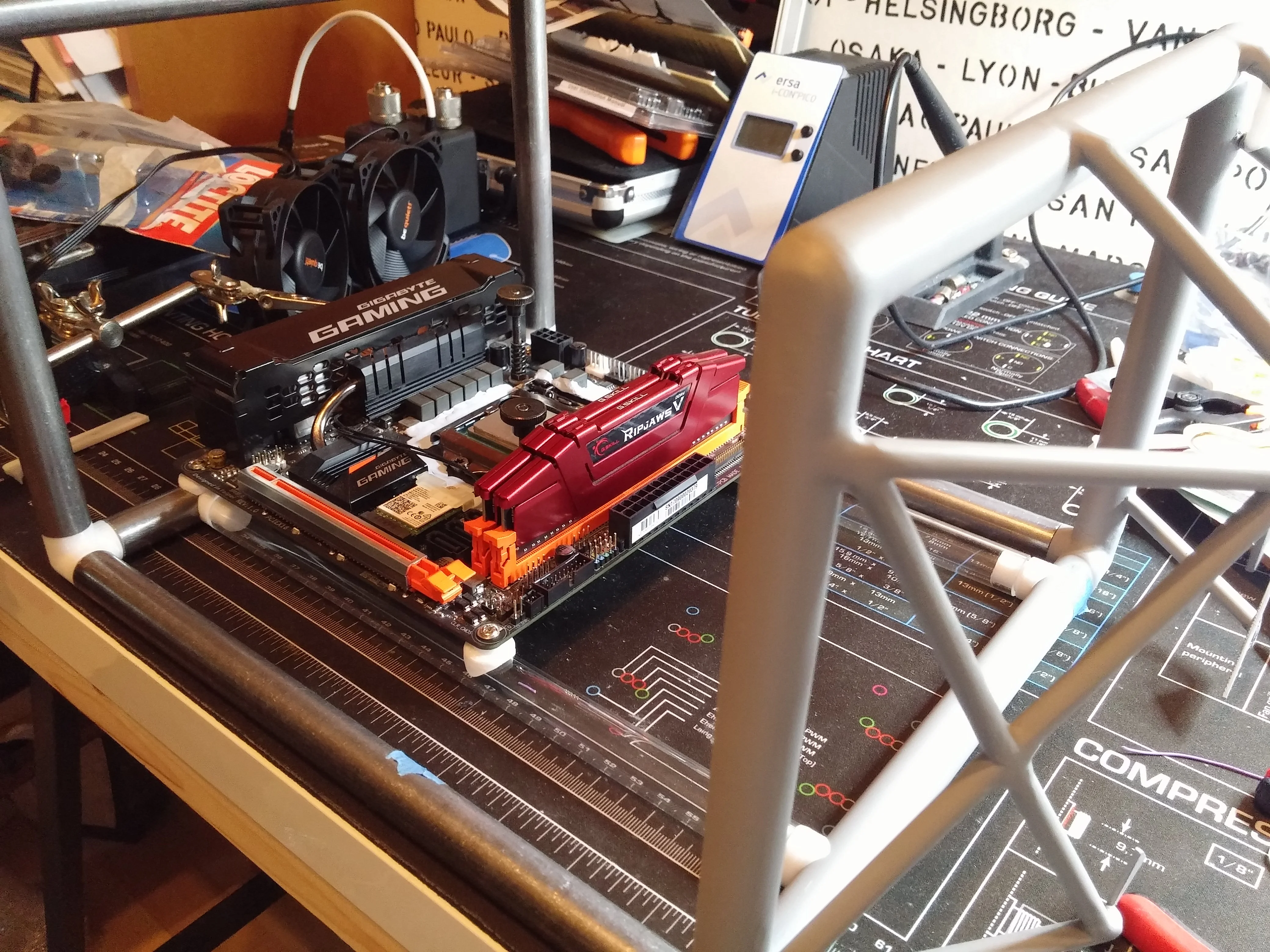

And with motherboard in place.




There is also some other stuff i am working on like gpu braket, a good way to mount the rear fans and a psu mount. But yeah its mostly small stuff left on the fram.

Associate
OP
Joined
6 Sep 2017
Posts
27
Location
Finland
Its getting there!

So for time for an update, currently just have some sleeving and finale Assembly left so should be coming together soonish.

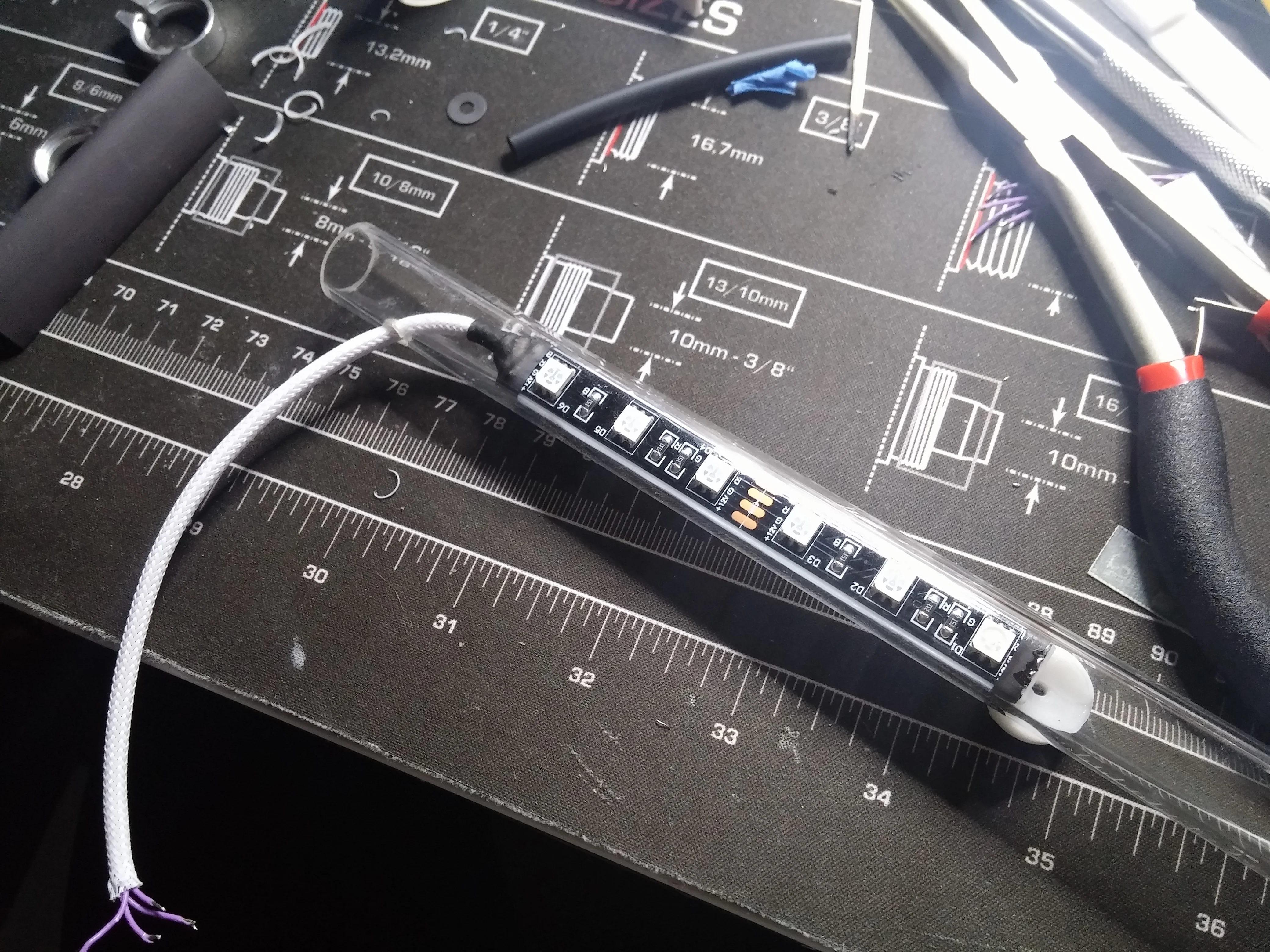

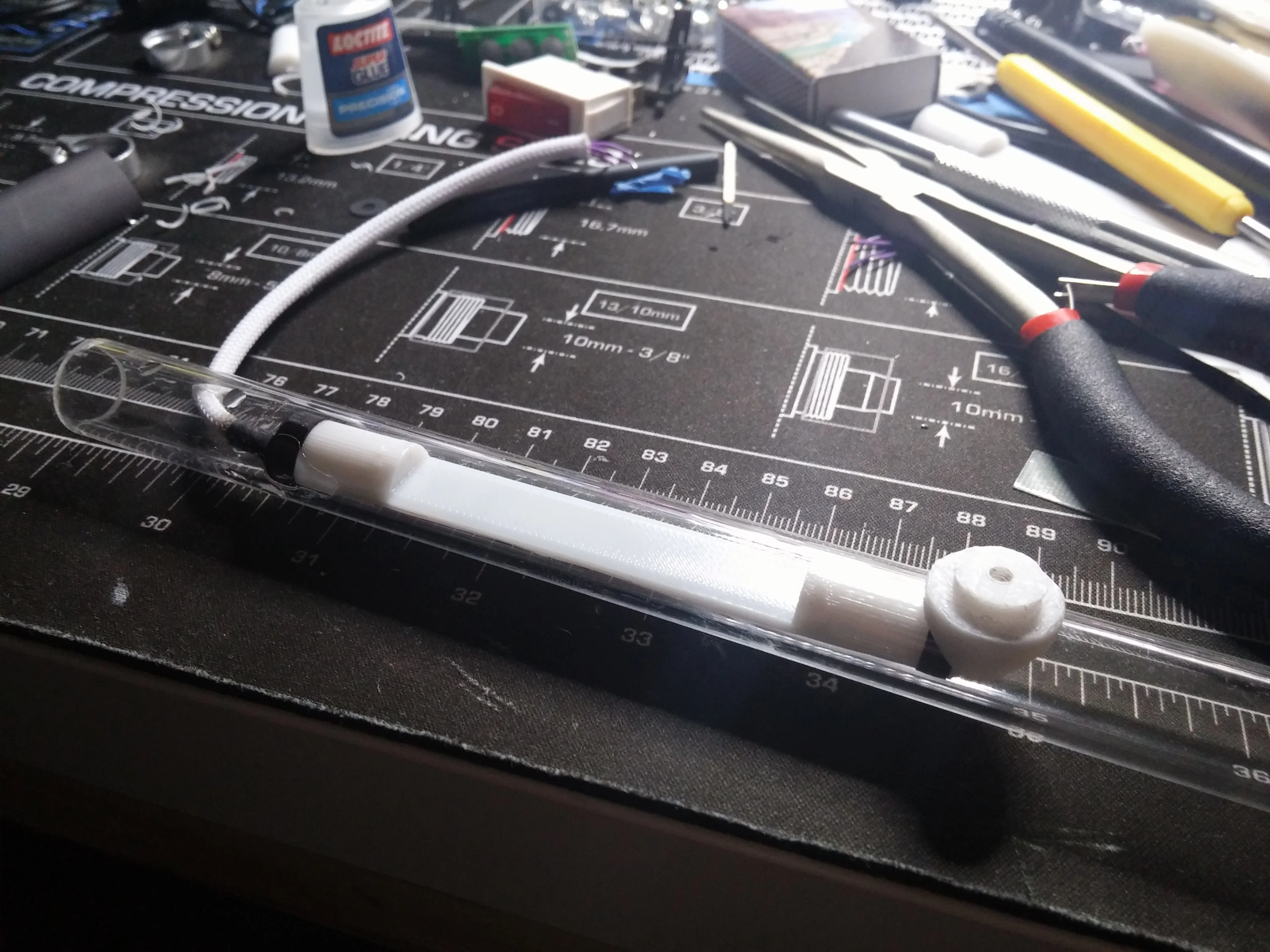

I wanted some lighting effects but still didn't want any thing to flashy so i decided to integrating the leds there into the plexi tubes under neat the motherboard which i think turned out really nicely.

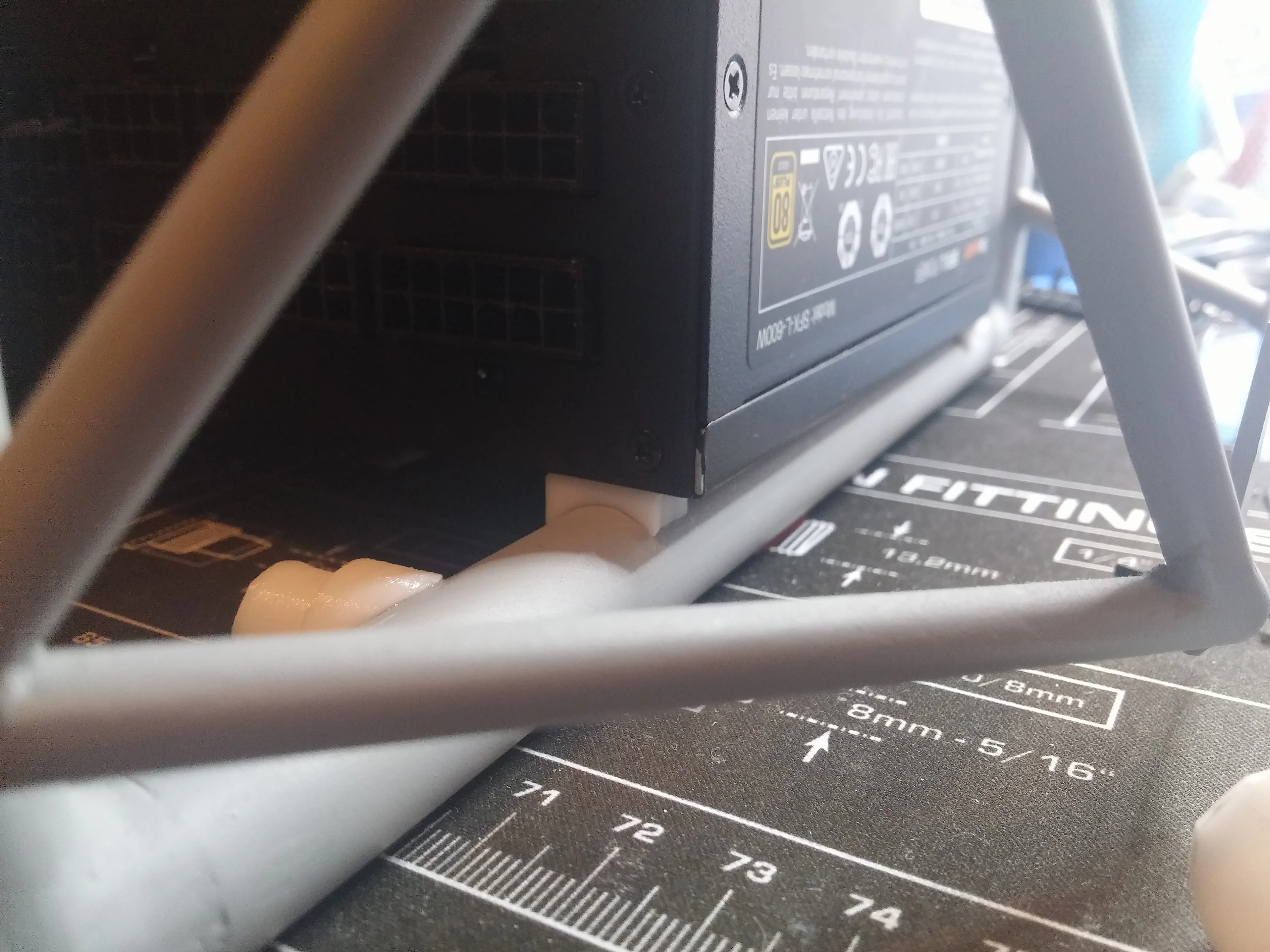

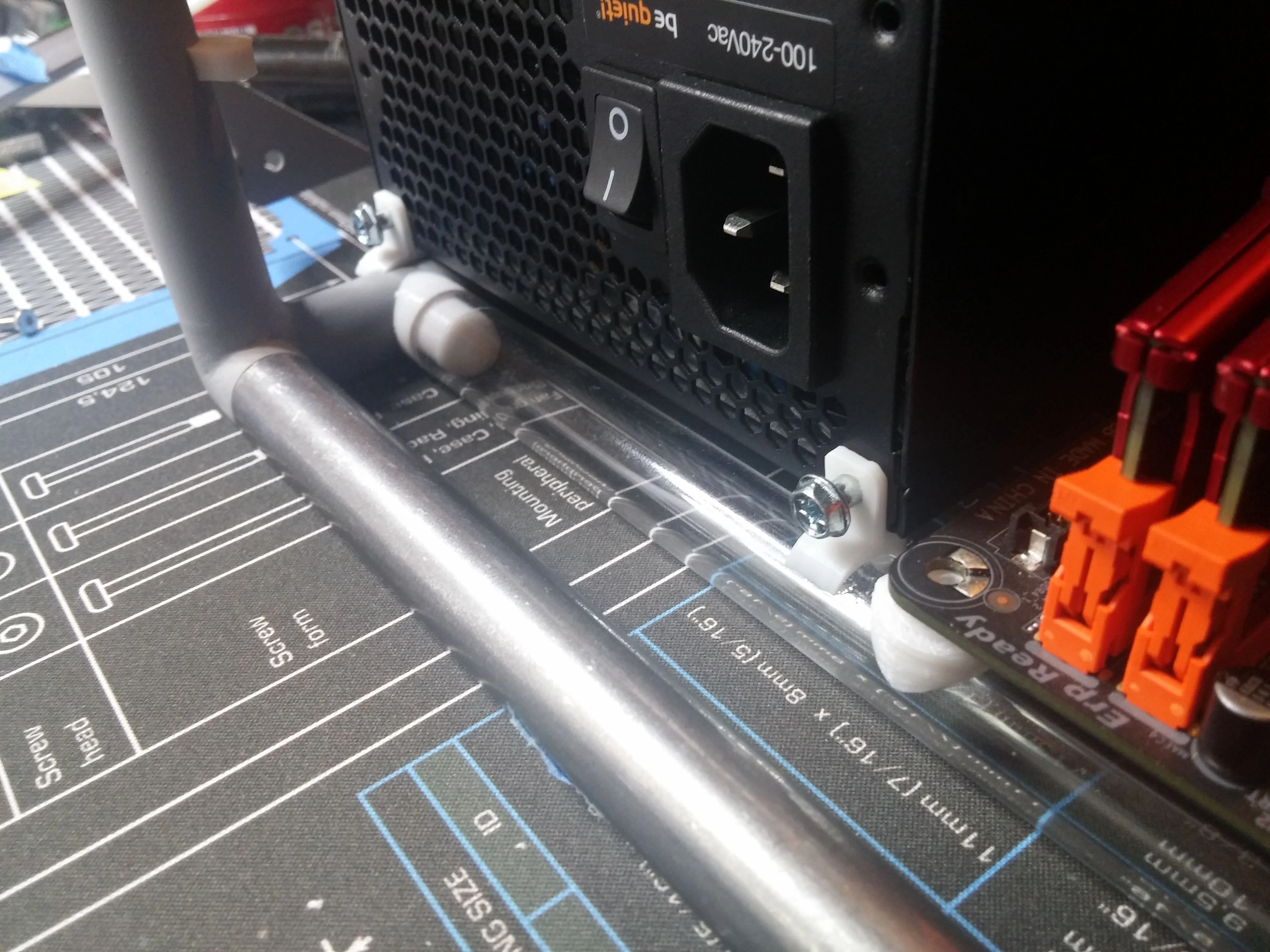

I also made made the supports for rear 80mm fan, psu and some case feet.

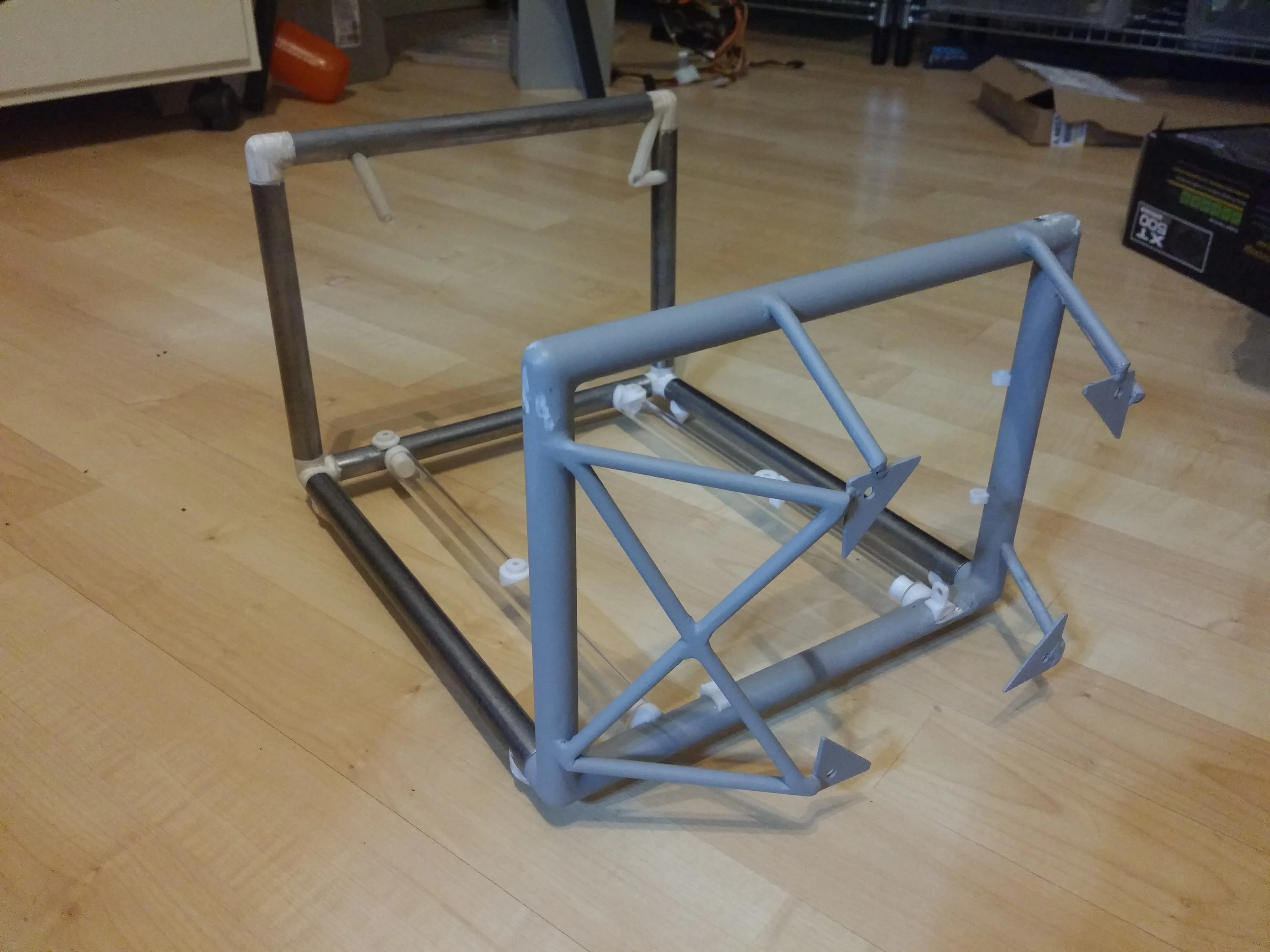

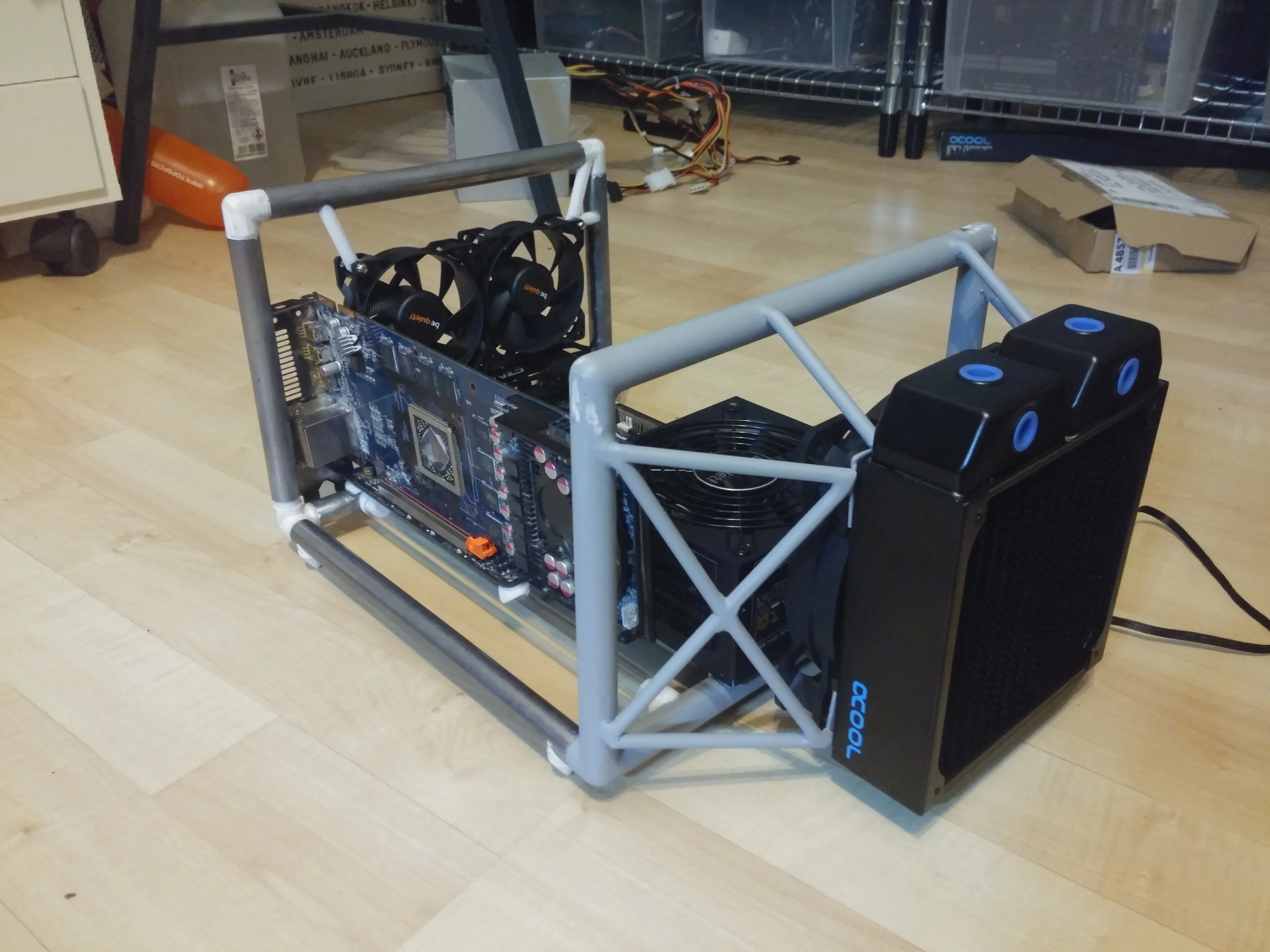

Some test fitting before painting.


Ready for some paint.

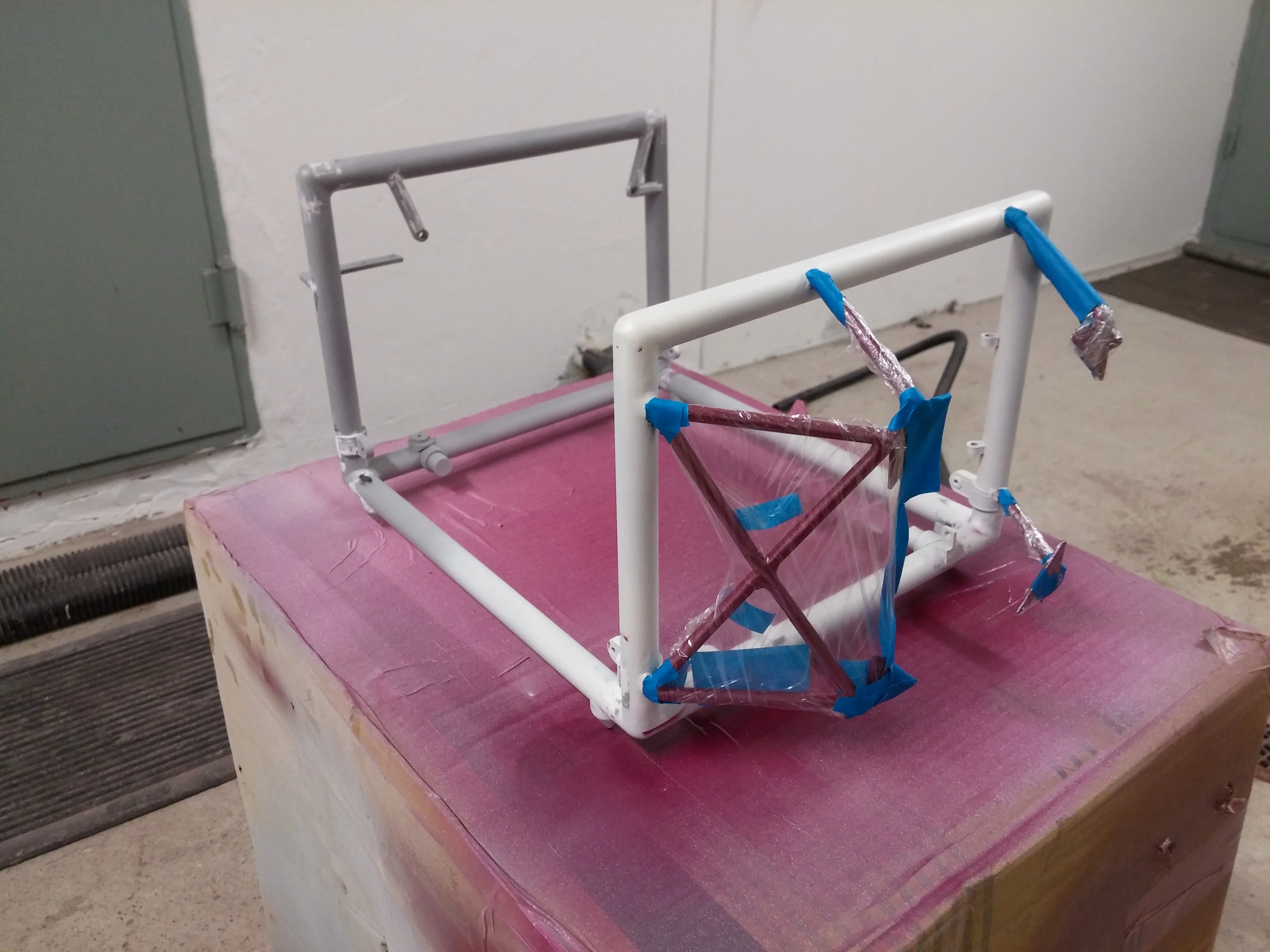

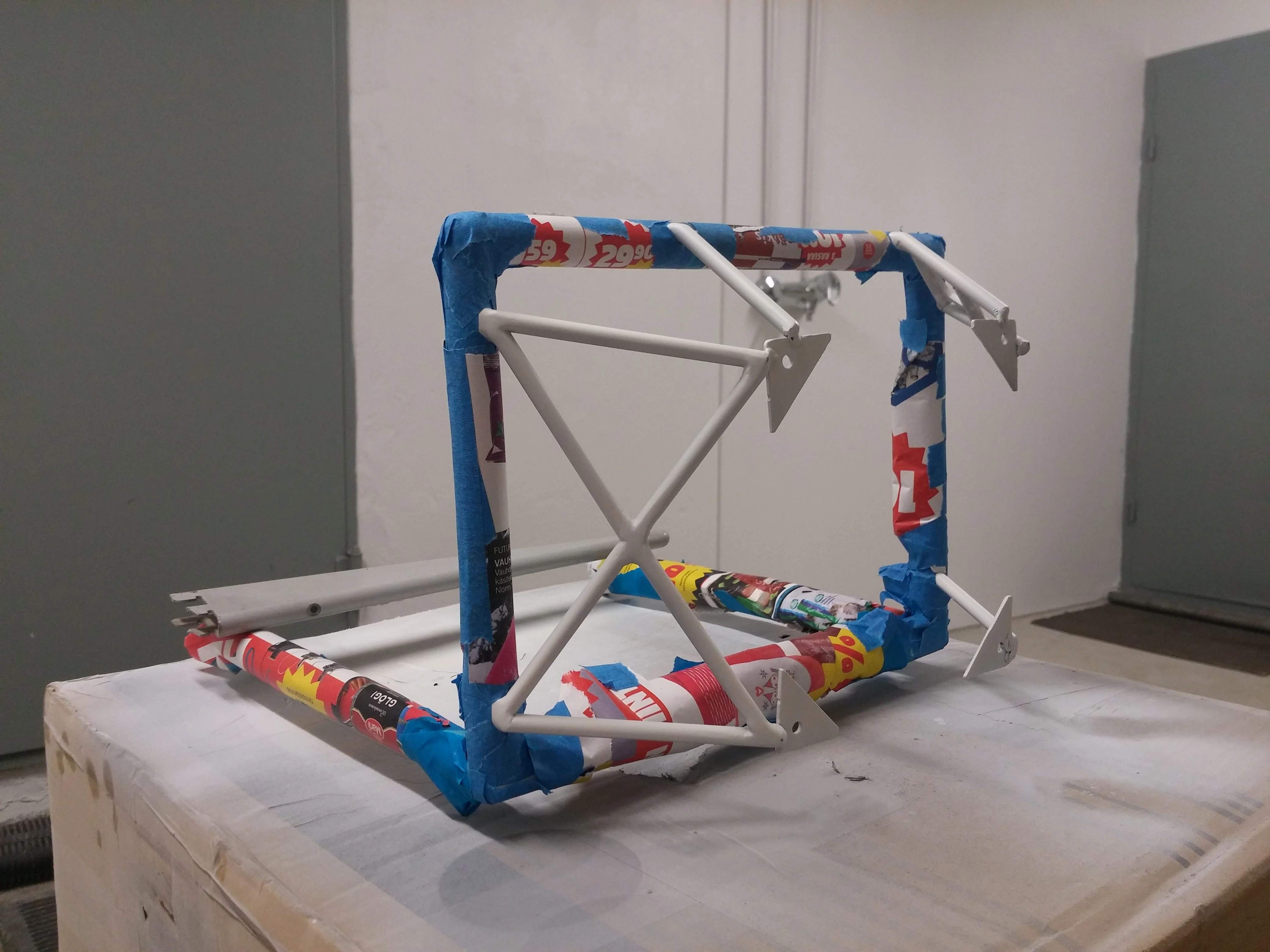

Some days later i masked of the painted parts and made the rest glossy white.

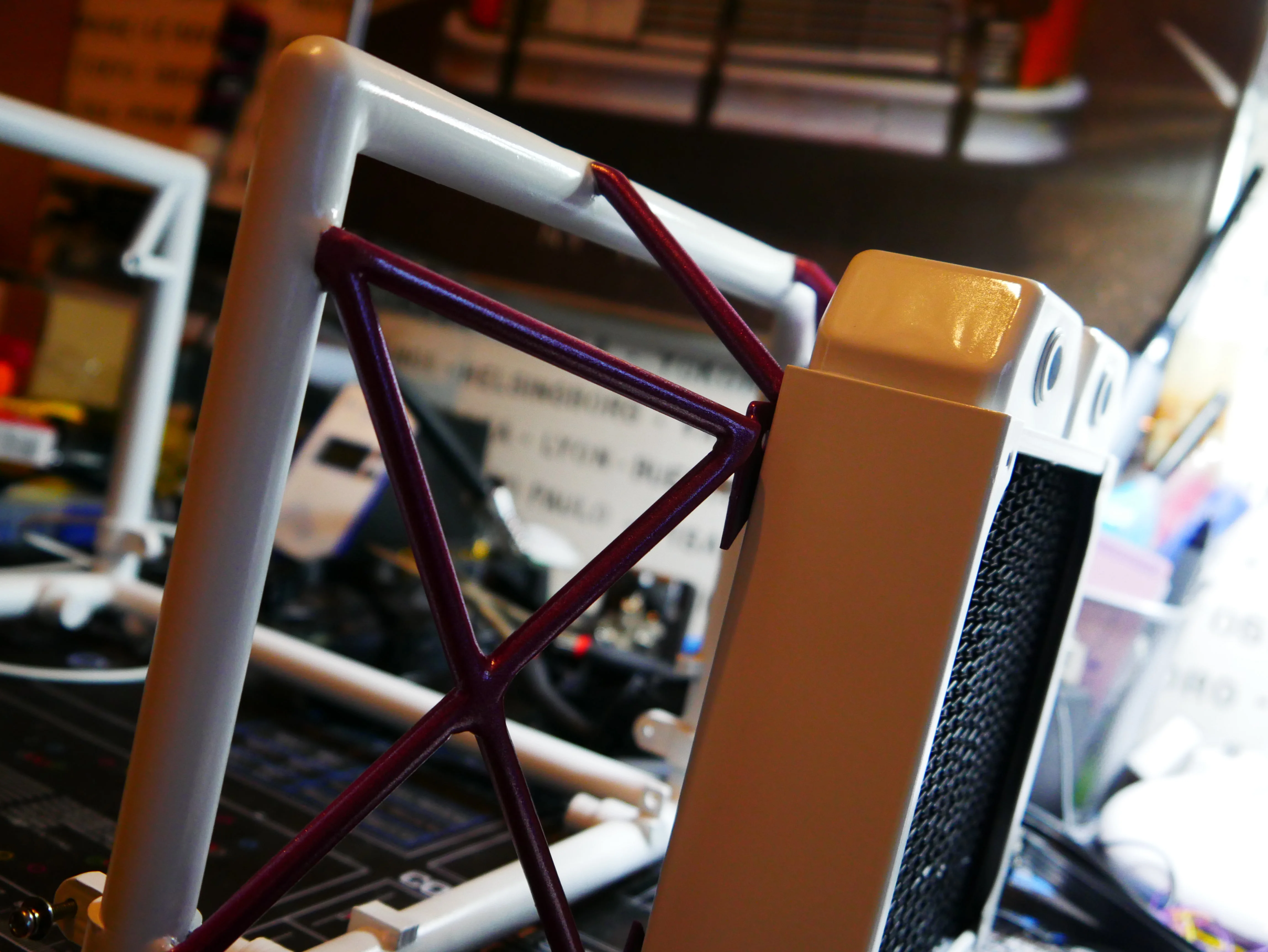

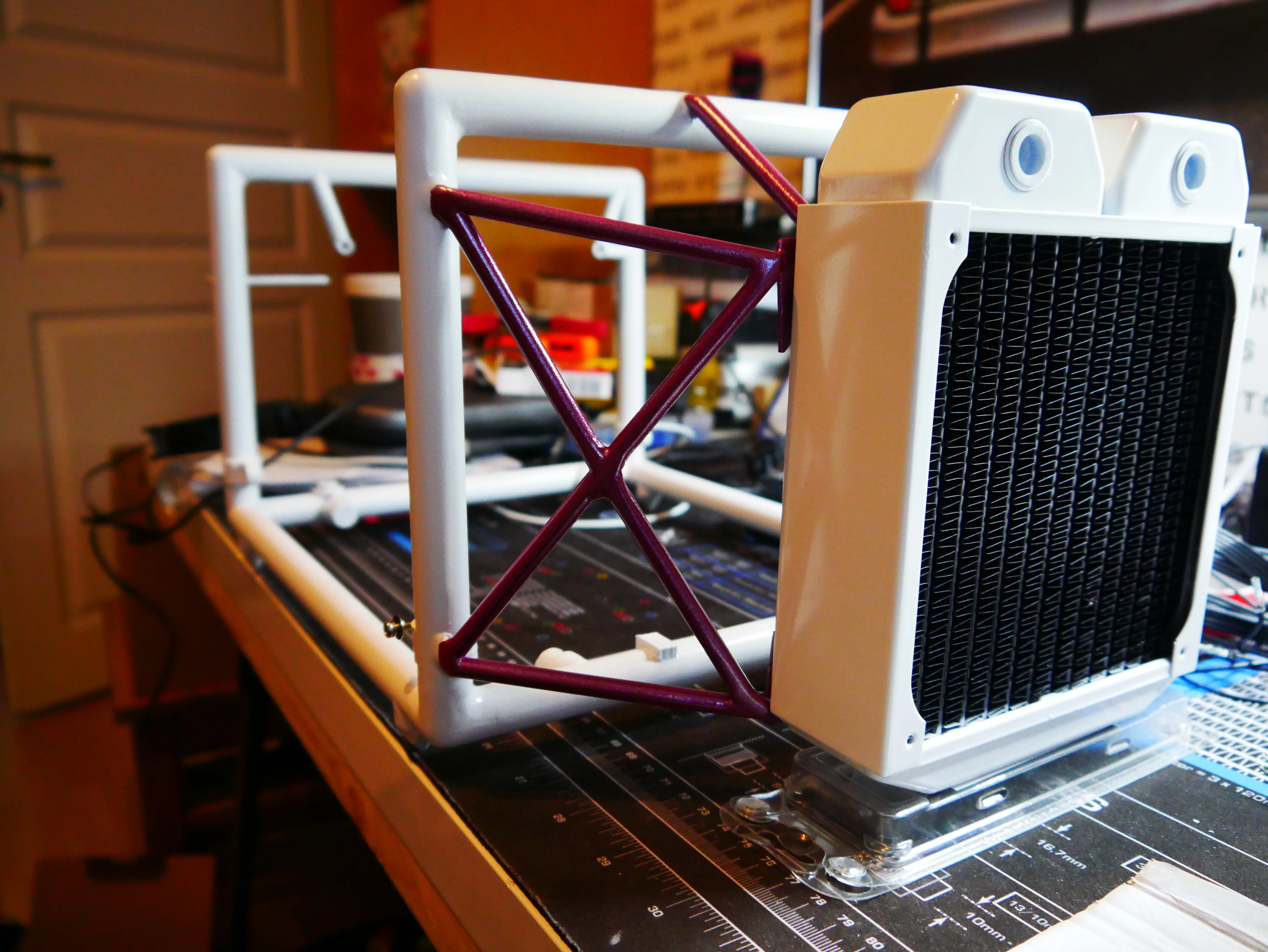

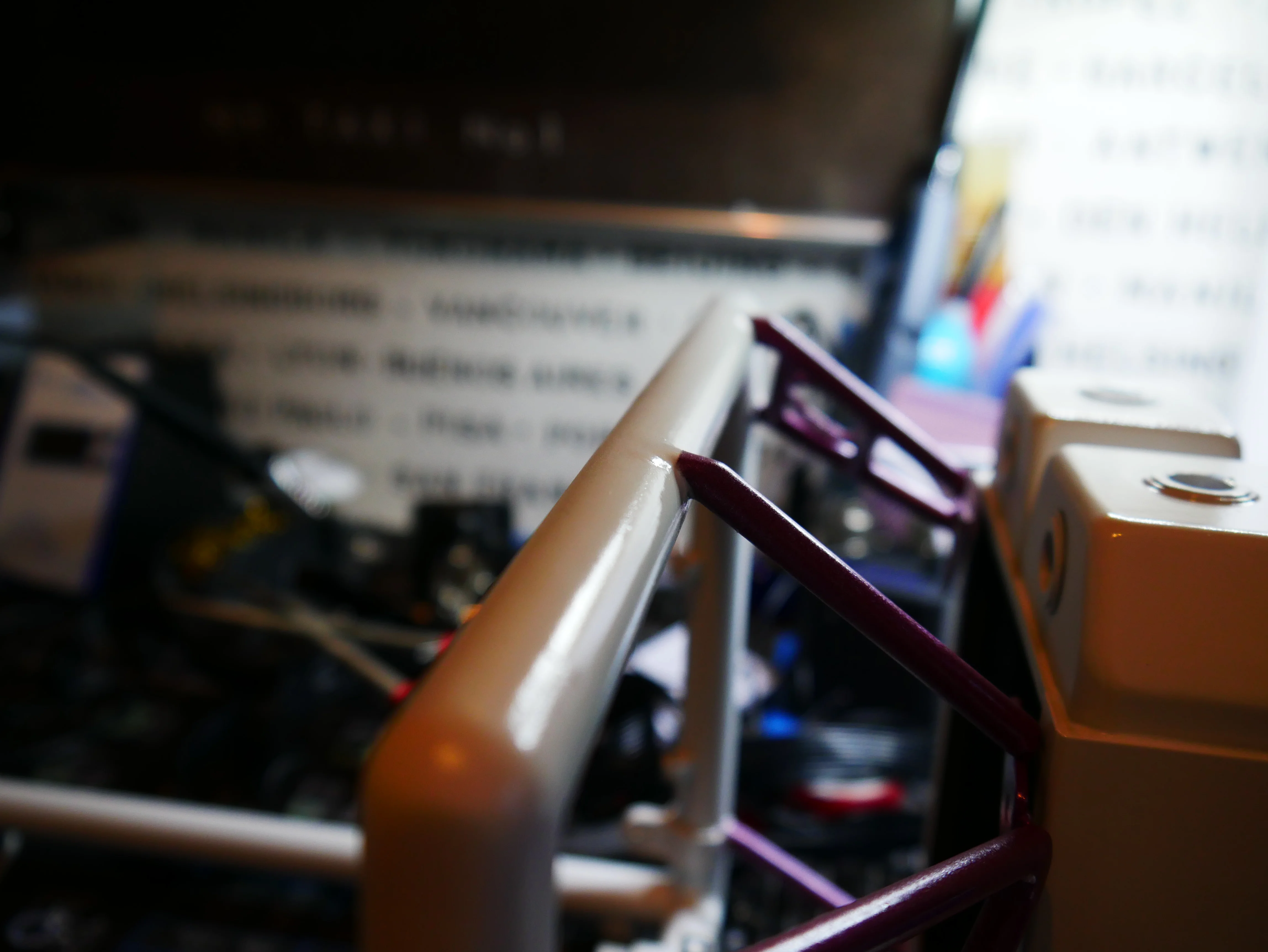

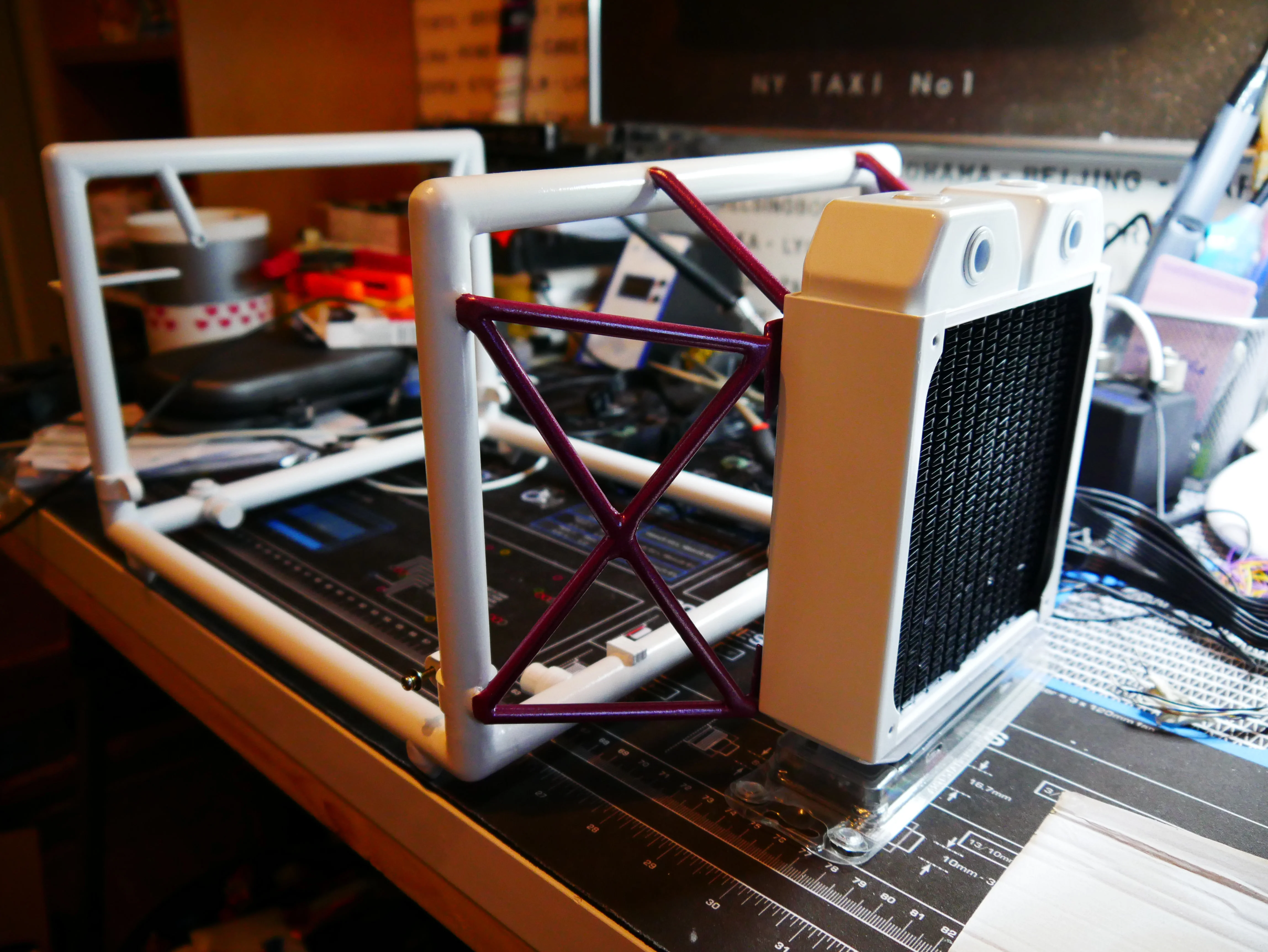

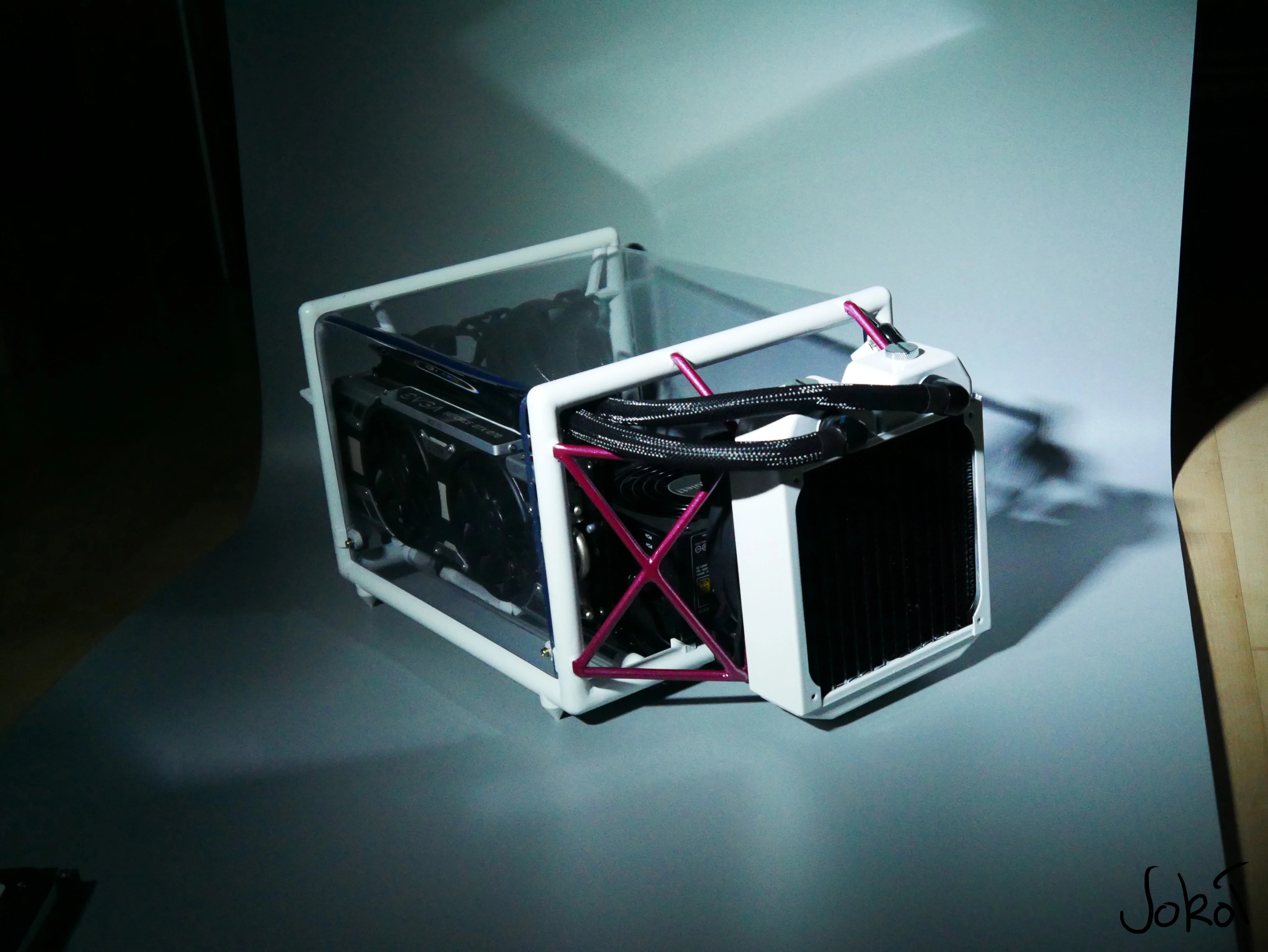

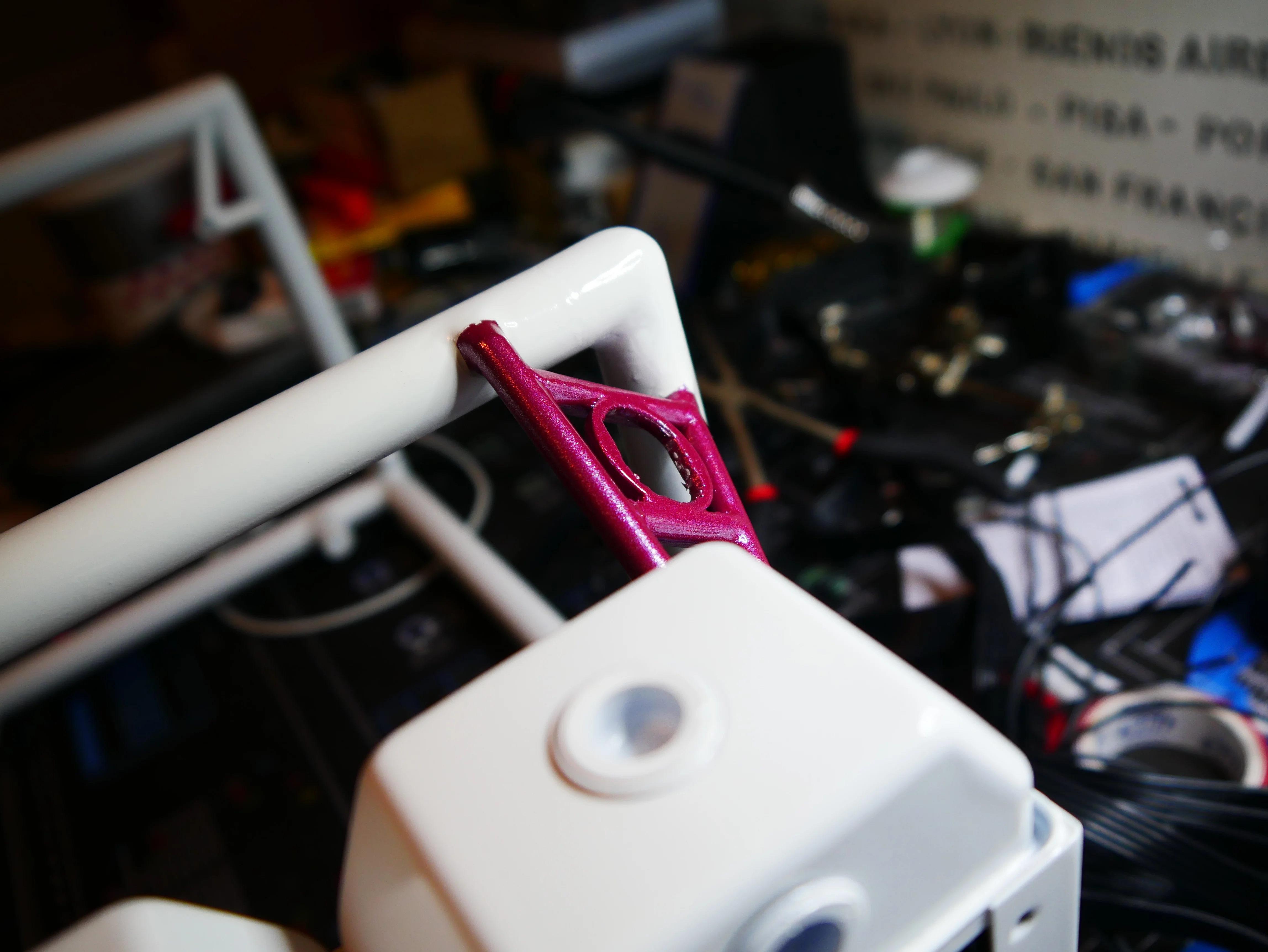

And ofc some pictures after it was all painted
