Sponsored by
The Main Grip
Spent ages thinking of ways to get the grip looking cool first of all starting looking at air rifles and then moved onto water pistols and similar things but always ran into problems like theses
Too flimsy
Look was poor/cheep
Too boring/ didn’t look futuristic
Or was impractical to modify
Then finally remembered I had a Light gun from years ago that stuck in a box waiting for me to sell it “XBox Sniper Scope Rifle” it’s perfect looked futuristic and sturdy with an added bonus of an electronic trigger. Maybe I could hock this up to the multiswitch.

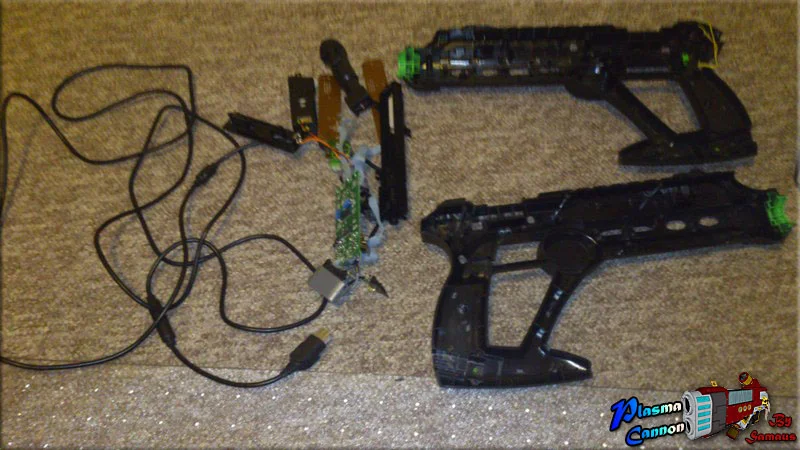

Ok so I have my grip now time to strip out all the electronics and mechanics inside with the exception of the trigger switch.
Gutted!
With such an tricky shape and the difficulty of attaching it the main body I needed some method of making sure it wouldn’t come away from the main body of the cannon so my plan was to fill the inside of the hollow grip with 2 sheets of 3mm aluminum that would allow me to attach it the body and provide some stability then fill it in with some plastic resin.

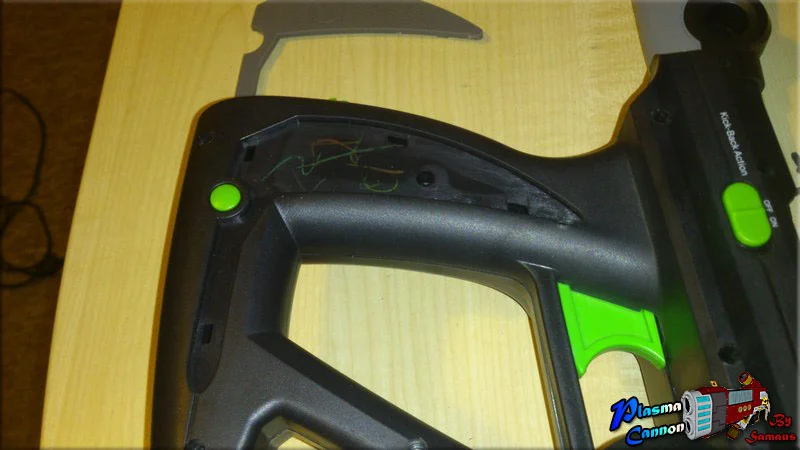

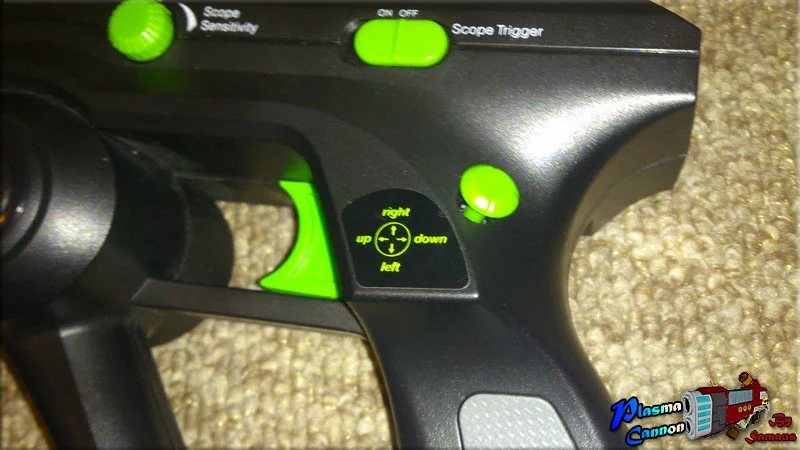

Cool mechanical force feedback but unfortunately it has too go
To get the shape I set out taking measurements of the inside with the help of a trusty piece of cardboard and a knife getting it as good as I could for laser cutting but expect to make some modifications to get it to fit.
Didn’t have this idea till later but going to remove the hat stitch and have a standard single switch and hook that up to the CD tray eject. But am going to keep the hat switch just encase one of you guys have a excellent idea on how I can use it but remember I’m not short on switches on this project. Electronics will come much later when I have the bodywork finished for now it’s just a hole and a support
As expected needed to trip down the laser cut material to fit unfortunately had to trim it down a lot more then I liked but it still has the strength not to snap off. The 2 “claws at the top will fix into the 2 main support bracket at the base of the body and then a slot in the back to give it some extra strength. I will leave the resin till later as I still need to do the electronics and I will need to take this apart at that stage
An so the modifications begin!

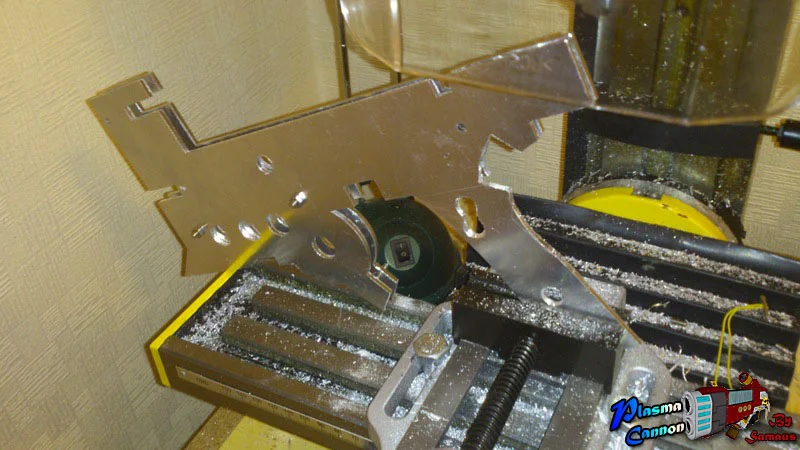

The 1st plate allowing for the trigger.
Both plates bolted together
Yes this aluminum is very scratched but in this case it isn't going to matter really as its all hidden by the plastic cover and fingers crossed the rough surface will help the resin grip to the aluminum.

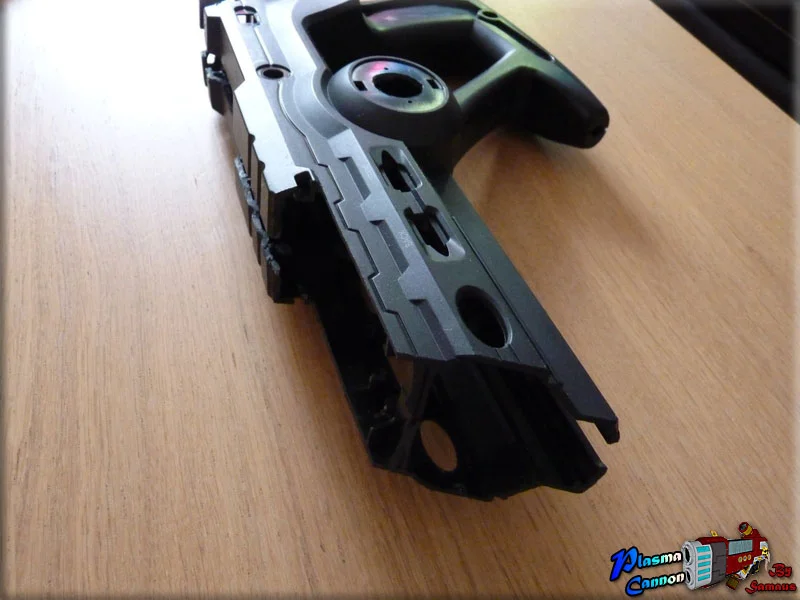

The plastic Grip had to be cut down a lot too with the help of a hacksaw and a mini rotary tool
The green parts don’t really fit will the colour theme of this project so going they are going to be re-sprayed gold. The trigger I was planning to replace this with a milled aluminum one but due to the complex shape and the mechanics behind it Think it’s just best to spray it and have a metal insert below is a Test Piece out of Brass but will probably change this to brushed aluminum

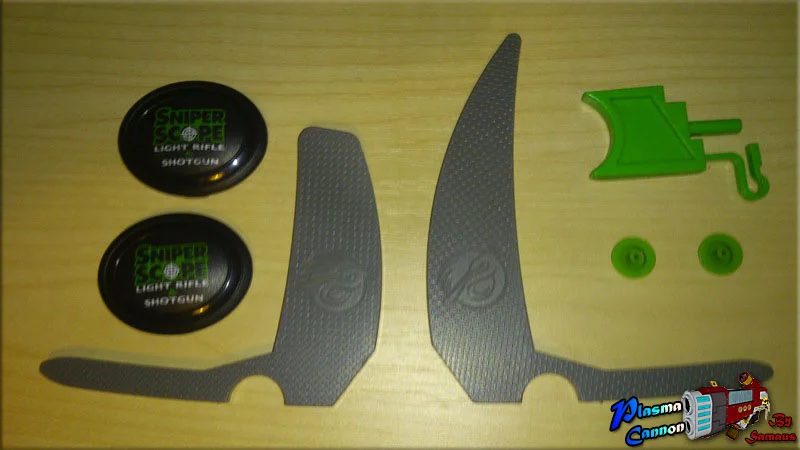

The Gray and black Pieces are going to be totally replaced and milled plates put in with some really cool etched effects and then fixed into the grip and the oval area. Will get you guys some nice screenshots of that when it happens don’t worry you haven’t missed it!

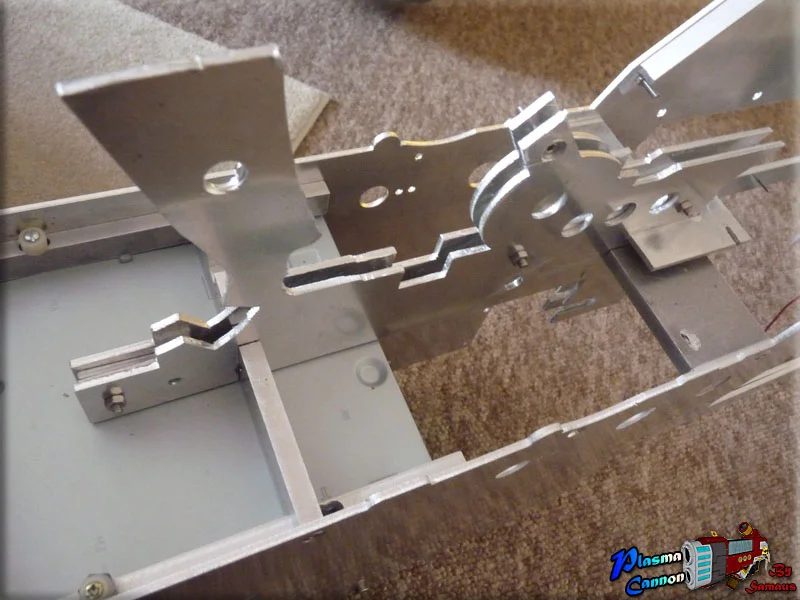

And here it is connected to the body (will get the 2nd claw attachment done soon)
Short piece of scrap to give some stability
And then attached the cover
Next Big post will be the hard drive bay aka the barrel.. Cya soon guys
The Main Grip
Spent ages thinking of ways to get the grip looking cool first of all starting looking at air rifles and then moved onto water pistols and similar things but always ran into problems like theses
Too flimsy
Look was poor/cheep
Too boring/ didn’t look futuristic
Or was impractical to modify
Then finally remembered I had a Light gun from years ago that stuck in a box waiting for me to sell it “XBox Sniper Scope Rifle” it’s perfect looked futuristic and sturdy with an added bonus of an electronic trigger. Maybe I could hock this up to the multiswitch.
Ok so I have my grip now time to strip out all the electronics and mechanics inside with the exception of the trigger switch.
Gutted!
With such an tricky shape and the difficulty of attaching it the main body I needed some method of making sure it wouldn’t come away from the main body of the cannon so my plan was to fill the inside of the hollow grip with 2 sheets of 3mm aluminum that would allow me to attach it the body and provide some stability then fill it in with some plastic resin.
Cool mechanical force feedback but unfortunately it has too go
To get the shape I set out taking measurements of the inside with the help of a trusty piece of cardboard and a knife getting it as good as I could for laser cutting but expect to make some modifications to get it to fit.
Didn’t have this idea till later but going to remove the hat stitch and have a standard single switch and hook that up to the CD tray eject. But am going to keep the hat switch just encase one of you guys have a excellent idea on how I can use it but remember I’m not short on switches on this project. Electronics will come much later when I have the bodywork finished for now it’s just a hole and a support
As expected needed to trip down the laser cut material to fit unfortunately had to trim it down a lot more then I liked but it still has the strength not to snap off. The 2 “claws at the top will fix into the 2 main support bracket at the base of the body and then a slot in the back to give it some extra strength. I will leave the resin till later as I still need to do the electronics and I will need to take this apart at that stage
An so the modifications begin!
The 1st plate allowing for the trigger.
Both plates bolted together
Yes this aluminum is very scratched but in this case it isn't going to matter really as its all hidden by the plastic cover and fingers crossed the rough surface will help the resin grip to the aluminum.
The plastic Grip had to be cut down a lot too with the help of a hacksaw and a mini rotary tool
The green parts don’t really fit will the colour theme of this project so going they are going to be re-sprayed gold. The trigger I was planning to replace this with a milled aluminum one but due to the complex shape and the mechanics behind it Think it’s just best to spray it and have a metal insert below is a Test Piece out of Brass but will probably change this to brushed aluminum
The Gray and black Pieces are going to be totally replaced and milled plates put in with some really cool etched effects and then fixed into the grip and the oval area. Will get you guys some nice screenshots of that when it happens don’t worry you haven’t missed it!
And here it is connected to the body (will get the 2nd claw attachment done soon)
Short piece of scrap to give some stability
And then attached the cover
Next Big post will be the hard drive bay aka the barrel.. Cya soon guys
